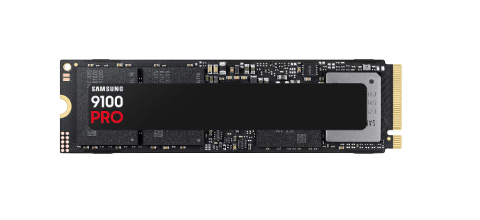

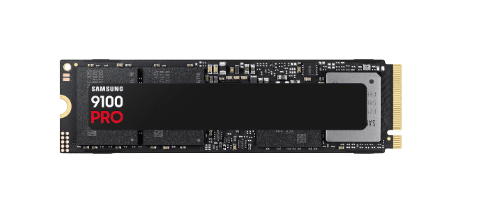

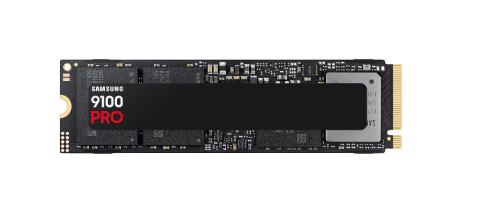

1TB Samsung 9100 PRO M.2 2280 PCI Express 5.0 x4 NVMe Solid State Drive

1TB Samsung 9100 PRO M.2 2280 PCI Express 5.0 x4 NVMe Solid State Drive

CCL Code: SSD1875

Discontinued

1TB Samsung 9100 PRO M.2 2280 PCI Express 5.0 x4 NVMe Solid State Drive

MZ-VAP1T0BW

Key Features:

  • PCIe 5.0 x4 NVMe Interface
  • M.2 2280 Form Factor
  • Up to 14.7GB/s Read
  • Up to 13.3GB/s Write
  • 4K IOPS Read: 1850K
  • 4K IOPS Write: 2600K
CCL Code: SSD1875

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

Enhanced Performance and Power Efficiency to Turbocharge Every Task

The 9100 PRO SSD boasts lightning-fast PCIe® 5.0, enabling the drive to achieve up to 14,800/13,400 MB/s sequential read/write speeds – moving data twice as fast as the previous generation. Plus, with random read/write speeds of up to 2,200K/2,600K IOPS, you can tackle massive files or access your favorite games and apps faster than ever before.

The 9100 PRO series also uses less power than before, thanks to an advanced 5nm controller. In fact, the 9100 PRO delivers up to 49% enhanced power efficiency compared to its predecessor, and packs performance into a low profile as slim as .35”.

More Storage and Enhanced Compatibility for Speed, Wherever you Need

As the first Samsung NVMe SSD with up to 8TB of capacity, the 9100 PRO will let you access more storage than ever for all creative endeavors.

Whether you’re handling professional photo and video editing, generating AI content, or gaming – the 9100 PRO SSD series delivers a new benchmark for reliable storage across compatible laptops, desktop PCs, and PlayStation® 5.

Plus, Samsung Magician Software helps ensure your drive performs like new. It offers data protection, and provides timely notifications for firmware updates, so you always stay up to speed.

Specifications

Storage

Solid State Capacity 1 TB
Storage Type SSD
Drive Size M.2-2280
Memory Type Samsung V NAND TLC (V8)
Drive Capacity 1 TB
Cache Memory 1 GB LPDDR4X

Performance

Read Speed Up to 14,700 MB/s
Write Speed Up to 13,300 MB/s
4K Random Read (AS SSD) Up to 1,850 K IOPS
4K Random Write (AS SSD) Up to 2,600 K IOPS
Data Storage Life Up to 600 TBW
Mean Time Between Failure (MTBF) 1,500,000 hours

Security

Encryption Class 0 (AES 256), TCG/Opal v2.0, MS eDrive (IEEE1667)

Interfaces/Ports

Interface PCIe Gen5 x4 NVMe

System Requirements

System Requirements 1 x M.2-2280 slot supporting PCIe Gen5

Environmental

Operating Temperature 0 ~ 70 °C
Storage Temperature -40 ~ +85 °C
Vibration (Non-Operating) 20 ~ 2,000Hz, 20G
Shock (Non Operating) 1,500G, 0.5ms, 3-axis

Physical

Form Factor Solid State Drive
Enclosure type Internal
Case Colour Black
In The Box 1 x 1TB SSD
Width 22 mm
Depth 80 mm
Height 2.38 mm

Warranty

Warranty 5 Years

Key Features

Interface Type PCI Express 5.0 x4 NVMe
Solid State Drive Yes
Disk Form Factor M.2 2280
Read IOPS (4K) 1850 k IOPS
Drive Interface Type PCIe 5.0 x4 NVMe
Write IOPS (4K) 2600 k IOPS
Intended Use Desktop
Power Requirement (auto) 5 W
PS5 Compatible No
Create Your Own Gaming PC (CCL) Yes

Item Details

Manufacturer Samsung
Manufacturer Code MZ-VAP1T0BW
EAN 8806095811628
Condition New
Warranty

Warranty Information

Warranty 5 Years

Manufacturer Information

Manufacturer Samsung
Manufacturer Code MZ-VAP1T0BW
