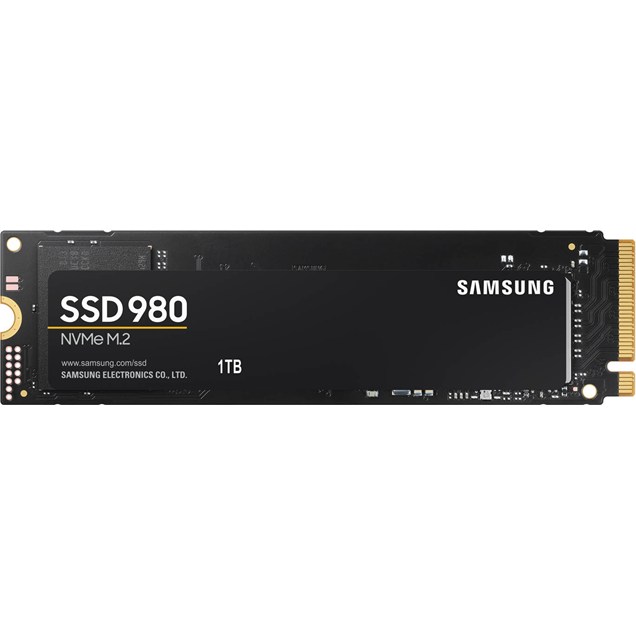

Samsung 980 M.2-2280 1TB PCI Express 3.0 x4 NVMe Solid State Drive

Samsung 980 M.2-2280 1TB PCI Express 3.0 x4 NVMe Solid State Drive

CCL Code: SSD1413

Sold out

Notify Me

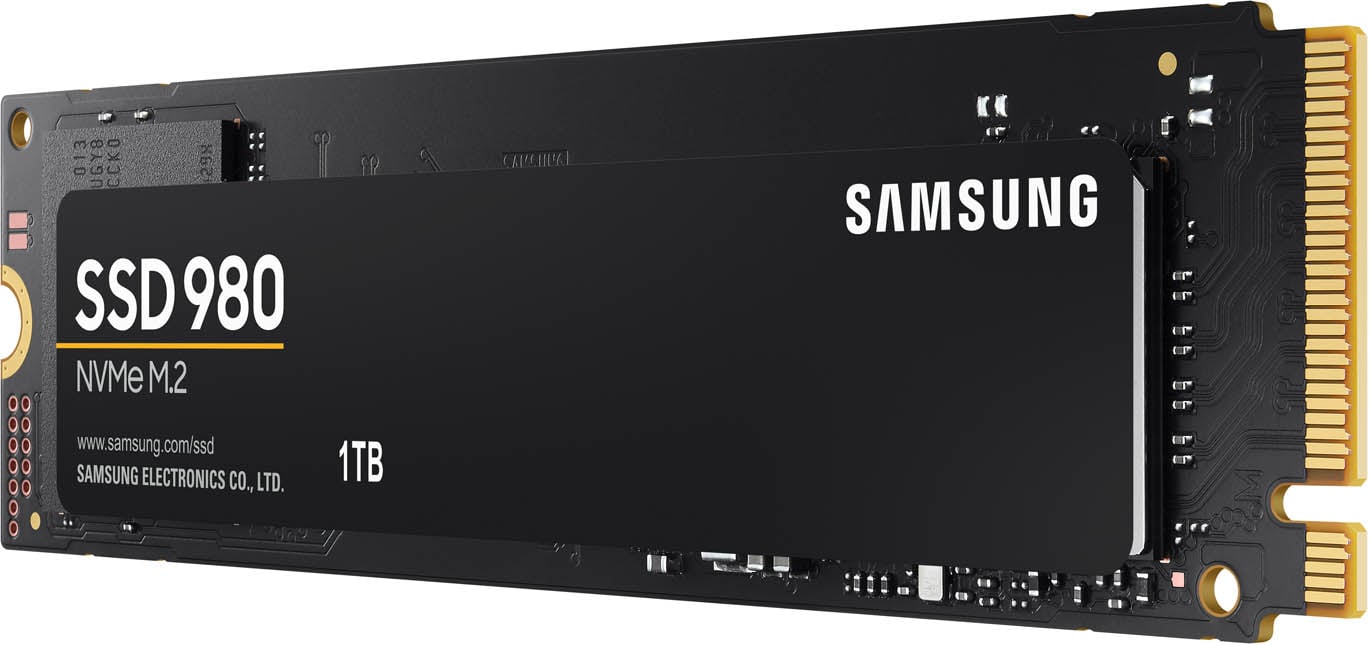

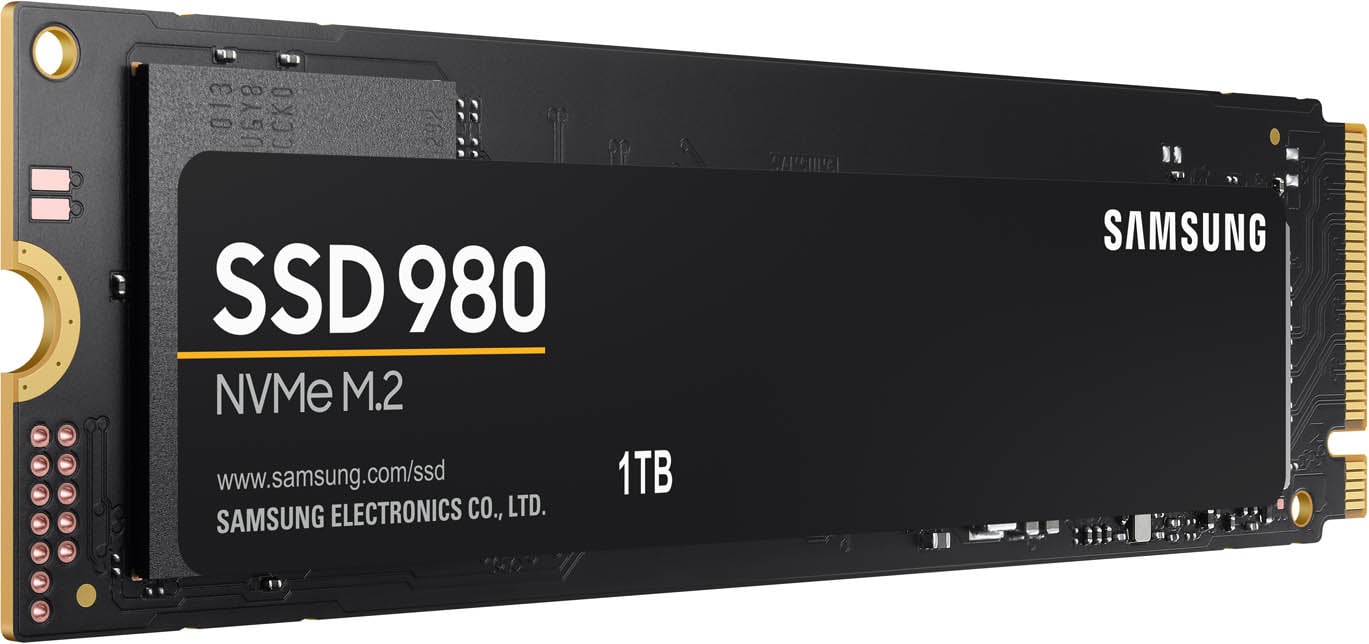

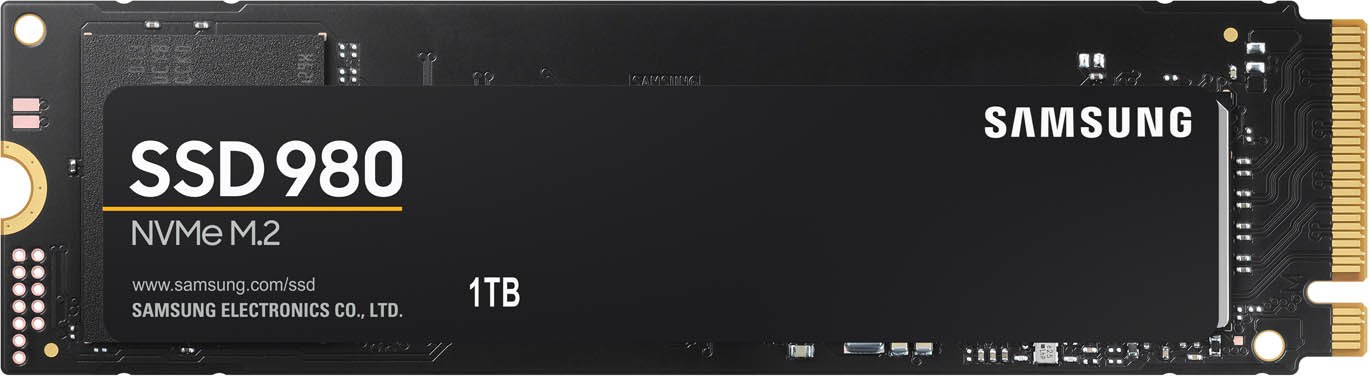

Samsung 980 M.2-2280 1TB PCI Express 3.0 x4 NVMe Solid State Drive

MZ-V8V1T0BW

Key Features:

  • PCIe 3.0 x4 NVMe Interface
  • M.2 2280 Form Factor
  • Up to 3500MB/s Read
  • Up to 3000MB/s Write
  • 4K IOPS Read: 500
  • 4K IOPS Write: 480
CCL Code: SSD1413

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me

Capacity:

Overview

1TB Samsung 980 M.2 PCIe Gen3 x4 Solid State Drive

Samsung 980 500GB M.2 PCIe Gen3 x4 NVMe SSD

Upgrade to breathtaking NVMe speed

It's time to maximize your PC's potential with the 980. Whether you need a boost for gaming or a seamless workflow for heavy graphics, the 980 is the smart choice for outstanding SSD performance, and it's all backed by an NVMe interface and PCIe 3.0 technology.

Samsung 980 500GB M.2 PCIe Gen3 x4 NVMe SSD

* The NVM Express® design mark is a registered trademark of NVM Express, Inc.

Samsung 980 500GB M.2 PCIe Gen3 x4 NVMe SSD

Packed with speed

Get right to it. The 980 harnesses nearly all the speed advantages of PCIe 3.0 through HMB technology and dramatic NVMe efficiency. The DRAM-less design delivers exceptional value, achieving breakneck sequential read/write speeds up to 3,500/3,000 MB/s*, over 6.2x the speed of SATA SSDs.

Samsung 980 500GB M.2 PCIe Gen3 x4 NVMe SSD

* Performance may vary depending on the SSD’s firmware version, system and hardware configuration. Performance measurements are based on IOmeter 1.1.0. The write performances were measured with Intelligent TurboWrite technology activated. The sequential write performances after Intelligent TurboWrite region are: up to 250 MB/s(250GB), 500 MB/s(500GB) and 900 MB/s(1TB).
* Test system configuration: Intel(R) Core(TM) i7-6700K CPU @ 4.00GHz,DDR4 2133MHz 8GBx2 OS-Windows 10 Pro 64bit Asrock Z-170 Extreme7+
* Results are based on a comparison with Samsung SATA SSDs.
* HMB (Host Memory Buffer) technology enables the SSD to use the DRAM of the host system for read/write caching and buffering.

Samsung 980 500GB M.2 PCIe Gen3 x4 NVMe SSD

Keep moving with Full Power Mode

Keep your SSD running at peak level for nonstop, consistent high performance with Full Power Mode. Switch it on through Samsung Magician software to always keep your SSD in active mode. Instantly jump right back to intensive work with huge files, graphics-heavy games, or even normal PC usage.

Samsung 980 500GB M.2 PCIe Gen3 x4 NVMe SSD
Samsung 980 500GB M.2 PCIe Gen3 x4 NVMe SSD

Built for the long run

Keep your files safe with an SSD that's in it for the long haul. With up to 600 TBW and a 5-year limited warranty, the 980's optimized endurance comes with proven reliability thanks to Samsung's in-house solutions, from the state-of-the-art controller to V-NAND and the latest firmware.

Samsung 980 500GB M.2 PCIe Gen3 x4 NVMe SSD

* TBW : Terabytes written
* Warrantied TBW for 980: 150 TBW for 250GB model, 300 TBW for 500GB model, 600 TBW for 1TB model.
* 5 years or TBW, whichever comes first. For more information on the warranty, please find the enclosed warranty statement in the package.

Samsung 980 500GB M.2 PCIe Gen3 x4 NVMe SSD

Reliable thermal control

High-performance SSDs usually require high-performance thermal control. To ensure stable performance, the 980 uses nickel coating to help manage the controller's heat level and a heat spreader label to deliver effective thermal control of the NAND chip.

Samsung 980 500GB M.2 PCIe Gen3 x4 NVMe SSD
Samsung 980 500GB M.2 PCIe Gen3 x4 NVMe SSD
Samsung 980 500GB M.2 PCIe Gen3 x4 NVMe SSD

Smart thermal solution

Embedded with Samsung's cutting-edge thermal control algorithm, the 980 manages heat on its own to deliver durable and reliable performance. To minimize performance fluctuations in the long haul, Samsung's Dynamic Thermal Guard technology maintains the 980's temperature at optimal levels.

Samsung 980 500GB M.2 PCIe Gen3 x4 NVMe SSD

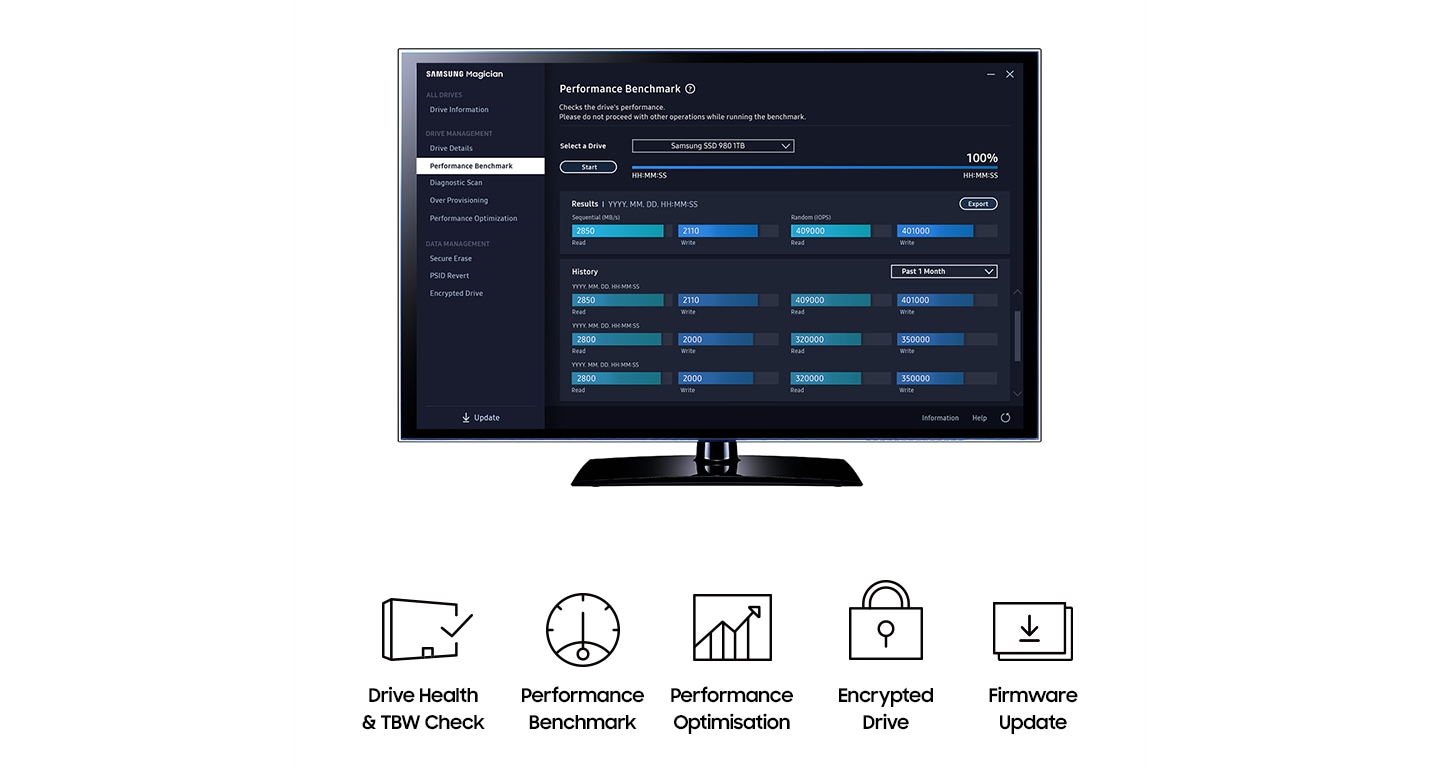

Samsung Magician software

Unlock the full power of the 980 with Samsung Magician's intuitive yet advanced optimization tools. Monitor drive health, optimize performance, protect valuable data, and receive important updates with Magician to ensure you're always getting the best performance out of your SSD.

Samsung 980 500GB M.2 PCIe Gen3 x4 NVMe SSD
Samsung 980 500GB M.2 PCIe Gen3 x4 NVMe SSD
Samsung 980 500GB M.2 PCIe Gen3 x4 NVMe SSD

World's No. 1 Flash Memory

Experience superior performance and reliability that you can only get from the world's number one brand for flash memory since 2003. All firmware and components, including Samsung's world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.

* Source: 2003-2019 IHS Markit data: NAND suppliers' revenue market share.

Specifications

Storage

Solid State Capacity 1 TB
Storage Type SSD
Drive Size M.2 2280
Memory Type SSD
Memory Package V6(12xL) V-NAND 3bit MLC
Cache Memory DRAMless, Host Memory Buffer
Memory Size 1 TB

Performance

Read Speed Up to 3,500 MB/s
Write Speed Up to 3,000 MB/s
4K Random Read (AS SSD) Up to 500k IOPS
4K Random Write (AS SSD) Up to 480k IOPS
Data Storage Life Up to 600 TBW

Security

Encryption Class 0 (AES 256) , TCG/Opal v2.0, MS eDrive (IEEE1667)

Interfaces/Ports

Interface Type PCIe Gen3 x4 NVMe 1.4

System Requirements

System Requirements 1 x M.2 slot, Socket 3, M Key, Type 2280

Electrical

Electrical Power Consumption 4.6 ~ 5.3 W
Electrical Power Consumption Standby 5 mW

Physical

Form Factor Solid State Drive
Enclosure type Internal
Case Colour Black

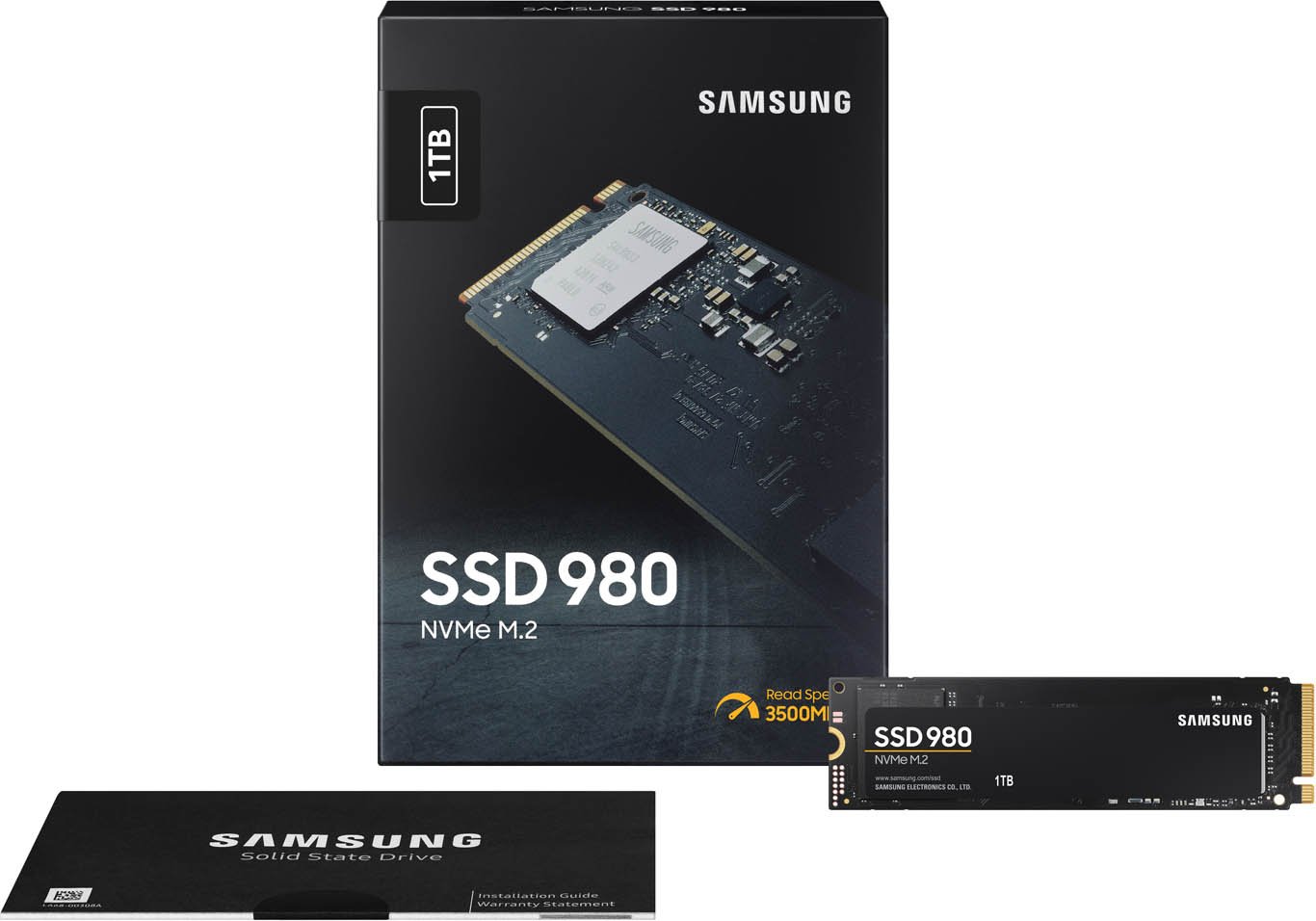

In The Box 1TB SSD
Installation Guide / Warranty Statement
Width 22 mm
Depth 80 mm
Height 2.3 mm
Weight 8 g

Warranty

Warranty 5 Years

Key Features

Disk Capacity 1 TB
Solid State Drive Yes
Disk Form Factor M.2 2280
Read IOPS (4K) 500 k IOPS
Write IOPS (4K) 480 k IOPS
Intended Use Desktop
Power Requirement (auto) 5 W
PS5 Compatible No

Item Details

Manufacturer Samsung
Manufacturer Code MZ-V8V1T0BW
EAN 8806090572210
Condition New
Warranty

Warranty Information

Warranty 5 Years

Manufacturer Information

Manufacturer Samsung
Manufacturer Code MZ-V8V1T0BW
