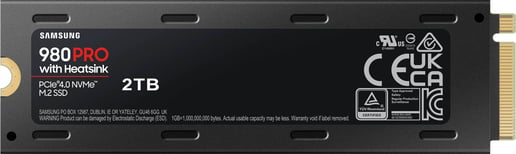

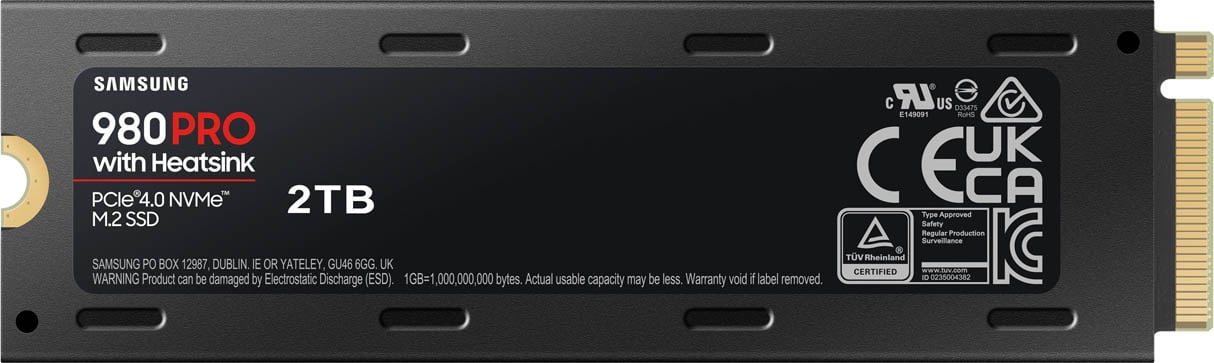

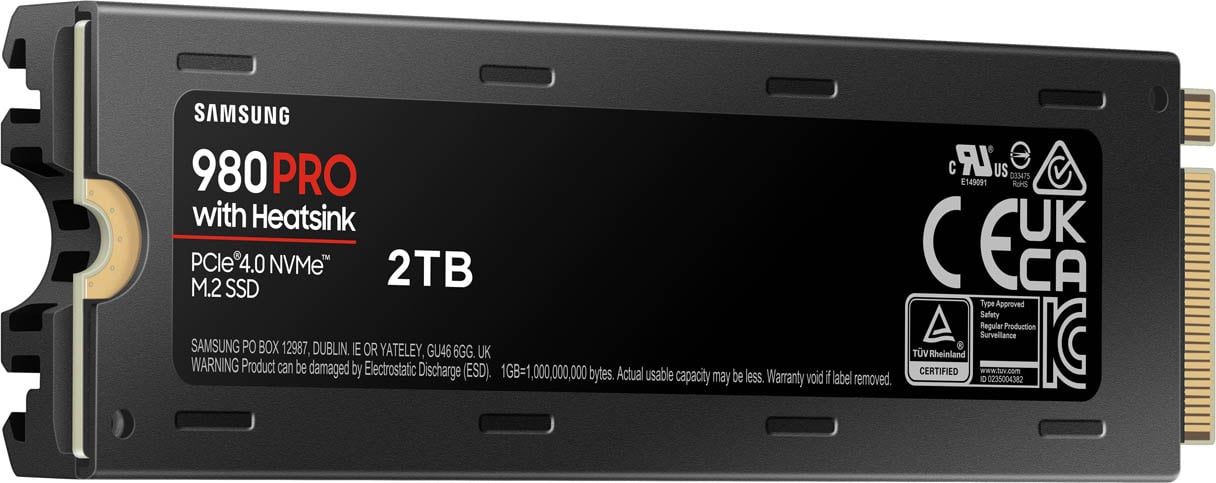

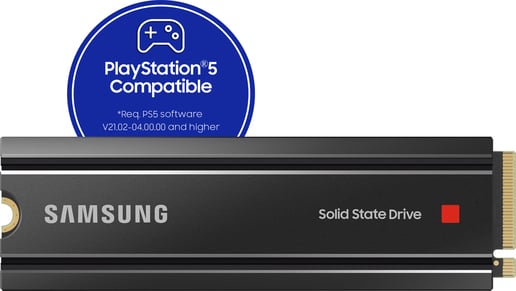

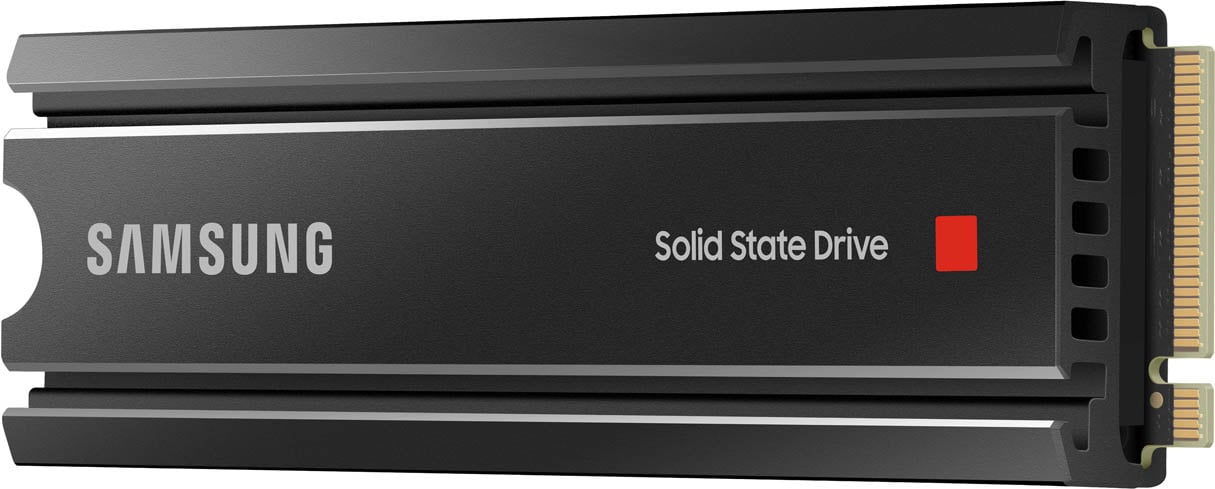

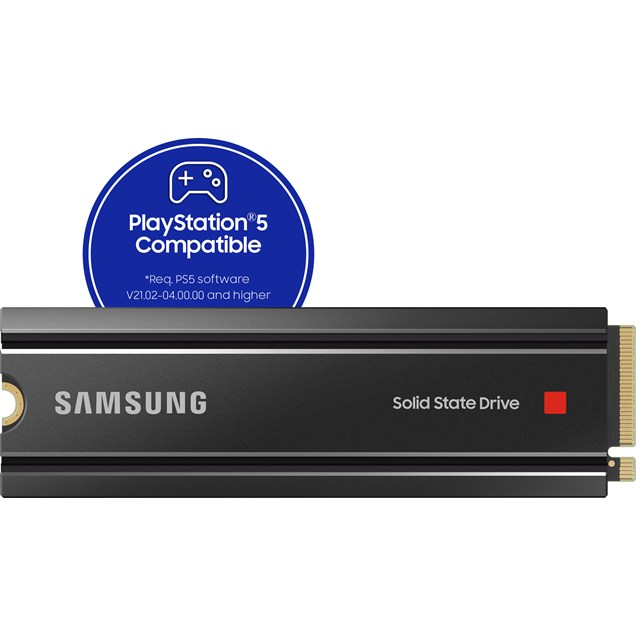

2TB Samsung 980 PRO with Heatsink M.2 2280

2TB Samsung 980 PRO with Heatsink M.2 2280

CCL Code: SSD1488

Was £363.97

SAVE £160

Now only

£202.99 inc VAT

  • 2TB Samsung 980 PRO with Heatsink M.2 2280
  • 2TB Samsung 980 PRO with Heatsink M.2 2280
  • 2TB Samsung 980 PRO with Heatsink M.2 2280
  • 2TB Samsung 980 PRO with Heatsink M.2 2280
  • 2TB Samsung 980 PRO with Heatsink M.2 2280
  • 2TB Samsung 980 PRO with Heatsink M.2 2280
  • 2TB Samsung 980 PRO with Heatsink M.2 2280

Get 5% off when you buy 3 or more different components*

2TB Samsung 980 PRO with Heatsink M.2 2280

MZ-V8P2T0CW

Was £363.97

SAVE £160

Now only

£202.99 inc VAT

Available for delivery from Wednesday 1st May

Buying in bulk? Contact our business team.

Key Features:

  • PCI Express 4.0 x4 NVMe
  • M.2 2280 Form Factor
  • Up to 7000MB/s Read, 5000MB/s Write
  • 4K IOPS Read: 680000
  • 4K IOPS Write: 630000
  • 5 Year Warranty
CCL Code: SSD1488

Capacity:

Overview

Next-level performance with maximum heat control

Unleash the power of the Samsung 980 PRO with Heatsink for next-level computing and gaming. With a PCIe® 4.0 NVMe™ interface, get up to 2x the data transfer rate of PCIe® 3.0* while remaining compatible with PCIe® 3.0.

The integrated heatsink disperses heat to maintain speed, power efficiency, and thermal control, preventing downtime from overheating on Playstation® 5 and PCs.

* Results are based on a comparison with Samsung PCIe® 3.0 NVMe SSDs and SATA SSDs.

Top Speed

Get read speeds up to 7,000 MB/s¹ with 980 PRO with Heatsink and push the limits of what SSDs can do. Powered by an in-house controller designed to harmonize the flash memory components and the interface for top speed – with a PCIe® 4.0² interface that’s 2x faster than PCIe® 3.0 SSDs³ and 12x faster than Samsung SATA SSDs4 – every component of this NVMe™ SSD is manufactured by Samsung for
performance that lasts.

1 Performance may vary depending on the SSD’s firmware version and the system hardware & system configuration. Performance measurements are based on IOmeter 1.1.0. The write performances were measured with Intelligent TurboWrite technology being activated.
2 To maximize the performance of the 980 PRO, please check whether your system supports PCIe® 4.0 at the Intel or AMD website.
3 Results are based on a comparison with Samsung PCIe 3.0 NVMe SSDs and SATA SSDs.
4 Test system configuration: AMD Ryzen 9 3900X 12-Core Processor CPU@3.79GHz, DDR4 2666MHz 16GBx2, OS-Windows 10 Pro 64bit, Chipset-ASUS-X570-ROG CROSSHAIR VIII FORMULA

A winning combination

The 980 PRO with Heatsink delivers an additional layer of thermal control for smart heat management to reduce heat. Achieve fully immersive gameplay with sustained high-performance bandwidth and throughput for heavy-duty applications in gaming, graphics, data analytics, and more. Load games fast, so you can play more and wait less.

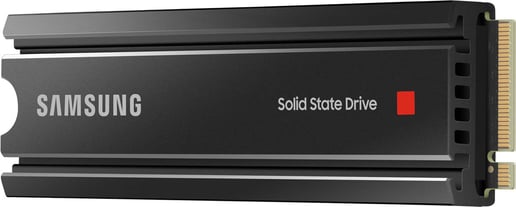

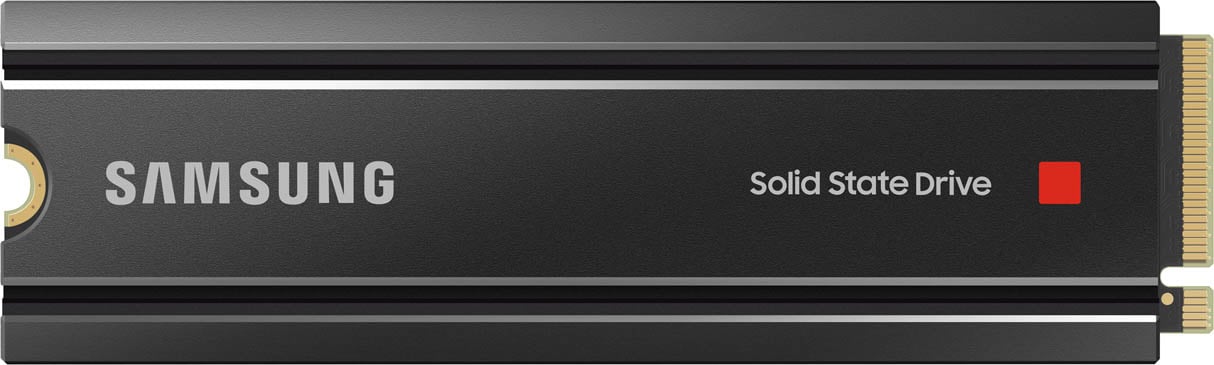

Smart thermal control

High-performance SSDs require high-performance thermal control. The 980 PRO with Heatsink uses Samsung's own nickel-coated high-end controller to deliver effective thermal control of the NAND chip. With the added heatsink, play confidently on PlayStation®5 gaming consoles and PC systems without worries of sudden performance drops from overheating.

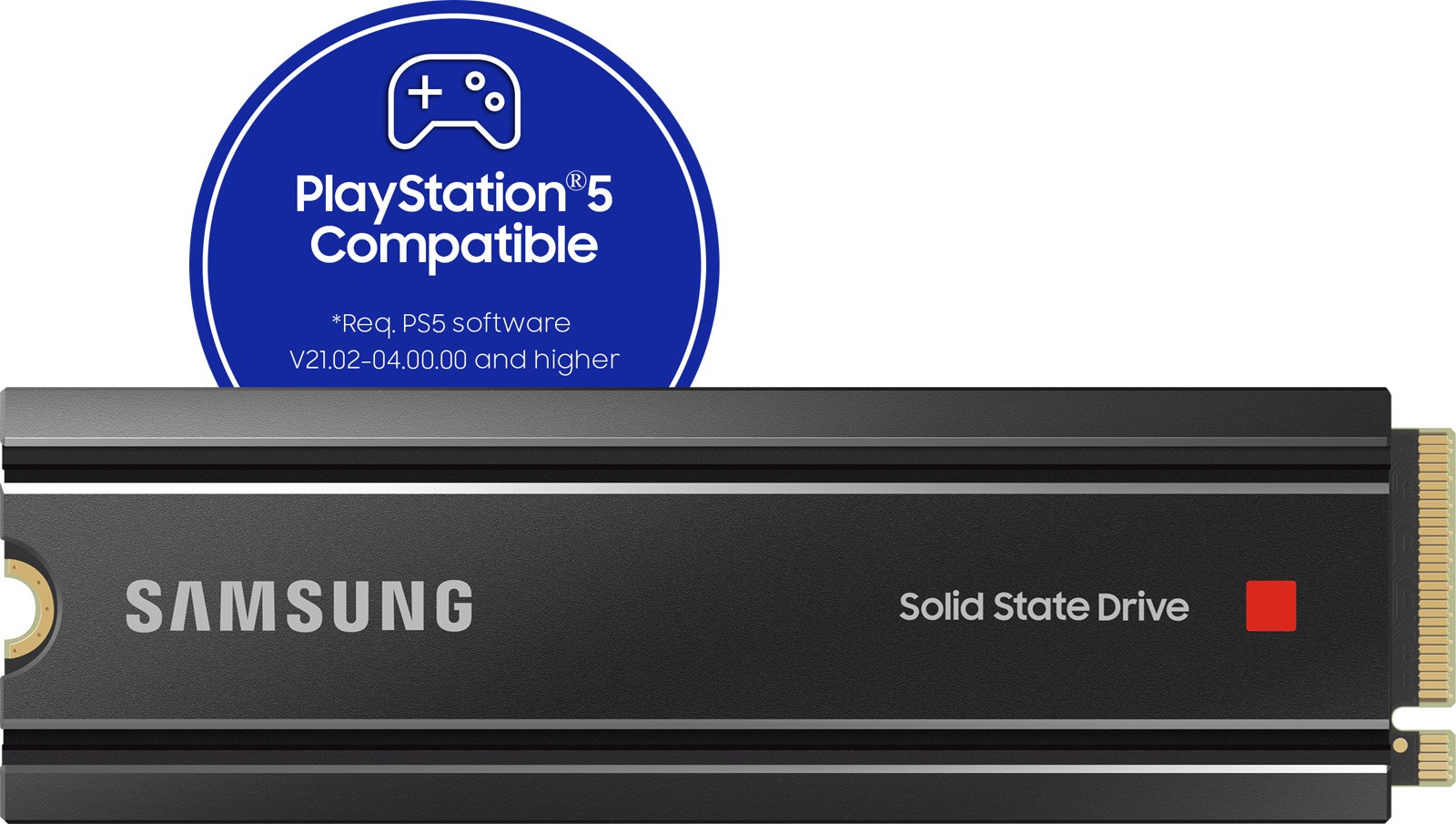

A Perfect Fit for PlayStation®5

The 980 PRO with Heatsink has a thin 8.6mm housing, which perfectly fits the PlayStation®5. Its slim size and optimized power efficiency are also ideal for building high-performance PC computing and gaming systems.

Samsung Magician software

Unlock the full potential of 980 PRO with Samsung Magician's advanced, yet intuitive optimization tools. Monitor drive health, optimize performance, protect valuable data, and receive important updates with Magician to ensure you're always getting the best performance out of your SSD.

World's No.1 Flash Memory Brand

Experience the performance and reliability that you can only get from the world's number one brand for flash memory since 2003. All firmware and components, including Samsung's world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.

* Source: 2003-Q3 2020 IHS Markit data: NAND suppliers' revenue market share.

Promotions

Get 5% off components when you buy three or more*

For a limited time, buy at least three different components worth £30 or more from different qualifying categories and get 5% off those items. *Terms & Conditions apply.

Qualifying categories are Processors, Motherboards, Desktop Memory, Solid State Drives, Hard Disk Drives, Power SuppliesCPU Coolers, and Cases.


Promotional Period: From 24th April 2024 till 25th April 2024. 7pm until 8am.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on products in qualifying categories. Some items may not be included, such as new product launches - please check the item to ensure the promotion applies. Minimum value of each item must £30 or greater. Discount will apply to three or more items bought from separate categories (e.g. one CPU, one motherboard) in one basket. It will not apply to multiples from categories (e.g. two CPUs). Discount will be applied to the three or more items in your basket - please double-check your basket to ensure the offer applies correctly. Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period:From 8PM April 27th, 2023 till 2AM April 28th 2023.

Specifications

Storage

Solid State Capacity 2 TB
Storage Type SSD
Drive Size M.2-2280
Memory Type SSD
Cache Memory Yes (1GB DDR4)
Memory Size 2 TB

Performance

Read Speed Up to 7,000 MB/s
Write Speed Up to 5,000 MB/s
4K Random Read (AS SSD) Up to 680k IOPS
4K Random Write (AS SSD) Up to 630k IOPS
Mean Time Between Failure (MTBF) Up to 1,500,000 hours

Interfaces/Ports

Interface Type PCIe Gen4 x4 NVMe

Electrical

Electrical Power Consumption 6.2 ~ 8.9 W
Electrical Power Consumption Standby 35 mW

Environmental

Shock (Non Operating) 1500 G, 0.5ms

Physical

Form Factor Solid State Drive
Enclosure type Internal
Case Colour Black
In The Box 1 x 2TB SSD
Width 24 mm
Depth 80 mm
Height 8.6 mm
Weight 30.5 mm

Warranty

Warranty 5 Years

Key Features

Disk Capacity 2 TB
Solid State Drive Yes
Disk Form Factor M.2 2280
Read IOPS (4K) 680 k IOPS
Write IOPS (4K) 630 k IOPS
Intended Use Desktop
Power Requirement (auto) 5 W
PS5 Compatible Yes
Create Your Own Gaming PC (CCL) Yes

Item Details

Manufacturer Samsung
Manufacturer Code MZ-V8P2T0CW
EAN 8806092837690
Condition New
Warranty

Warranty Information

Warranty 5 Years

Manufacturer Information

Manufacturer Samsung
Manufacturer Code MZ-V8P2T0CW
Reviews
4.8 / 5 6 reviews

J Stansfield

9 months ago

Exactly what you'd expect from Samsung: fast quality storage - and at an amazing price!

Liam

10 months ago

fast and reliable thought recently outclassed by pcie 5 drives by crucial

Peter Matthews

April 2023

Best upgrade for the price and the ps5

Steff Prest

April 2023

Great price, easy to use in PS5 and so far no problems. Exactly what I wanted.

Nigel Palfreeman

November 2022

Awesome product, every PS5 owner needs this in their life! No more juggling or deleting games.

Ian

August 2022

It works, transferred OS using Samsung software and cloned my install. It worked flawlessly. Its fast, large programs are snappy. It does run a little warm compared to PCIe3 drives. What can you say about a SSD Plug it in, transfer the OS, it works as expected. The ratings above quality 4. Samsung used to use 2 bit MLC flash memory, now its 3 bit TLC, this is a step backwards in endurance. Value for money, its an expensive SSD that performs as claimed, in that regard its worth it but it is not worth its RRP. Look for them on sale.
