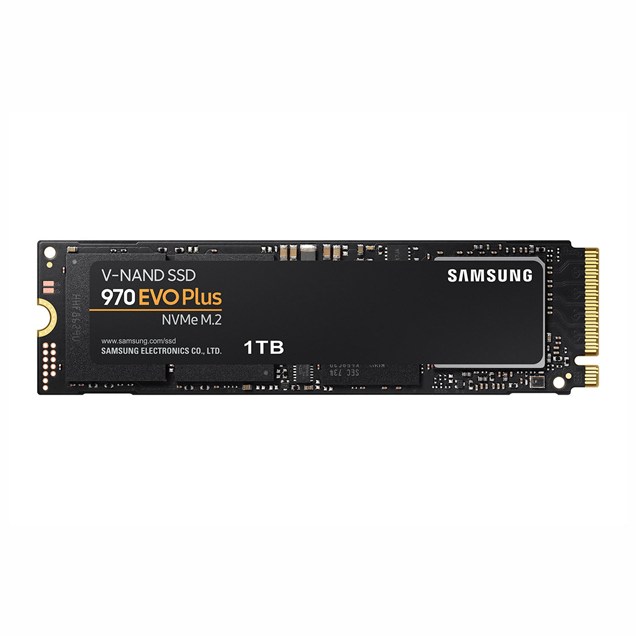

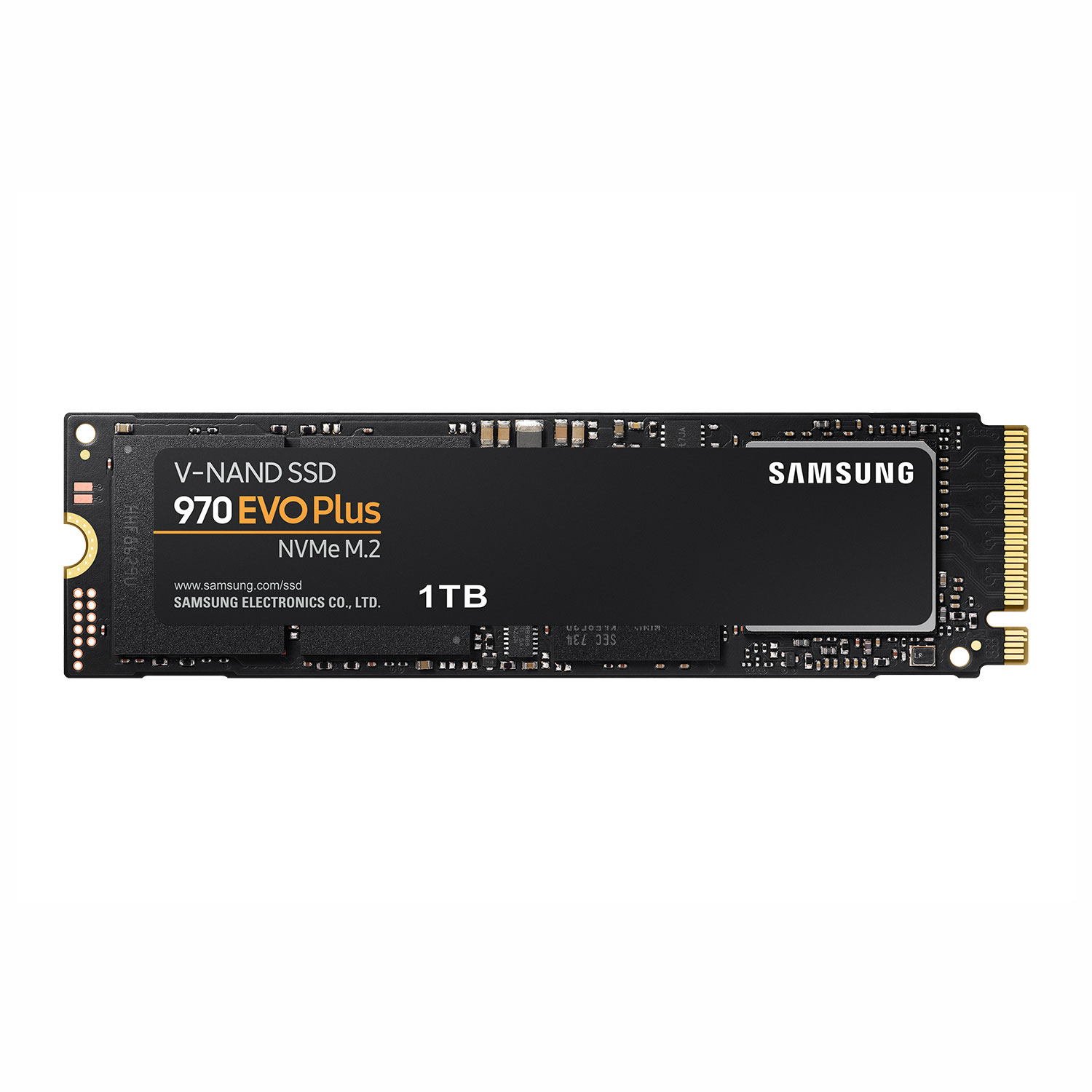

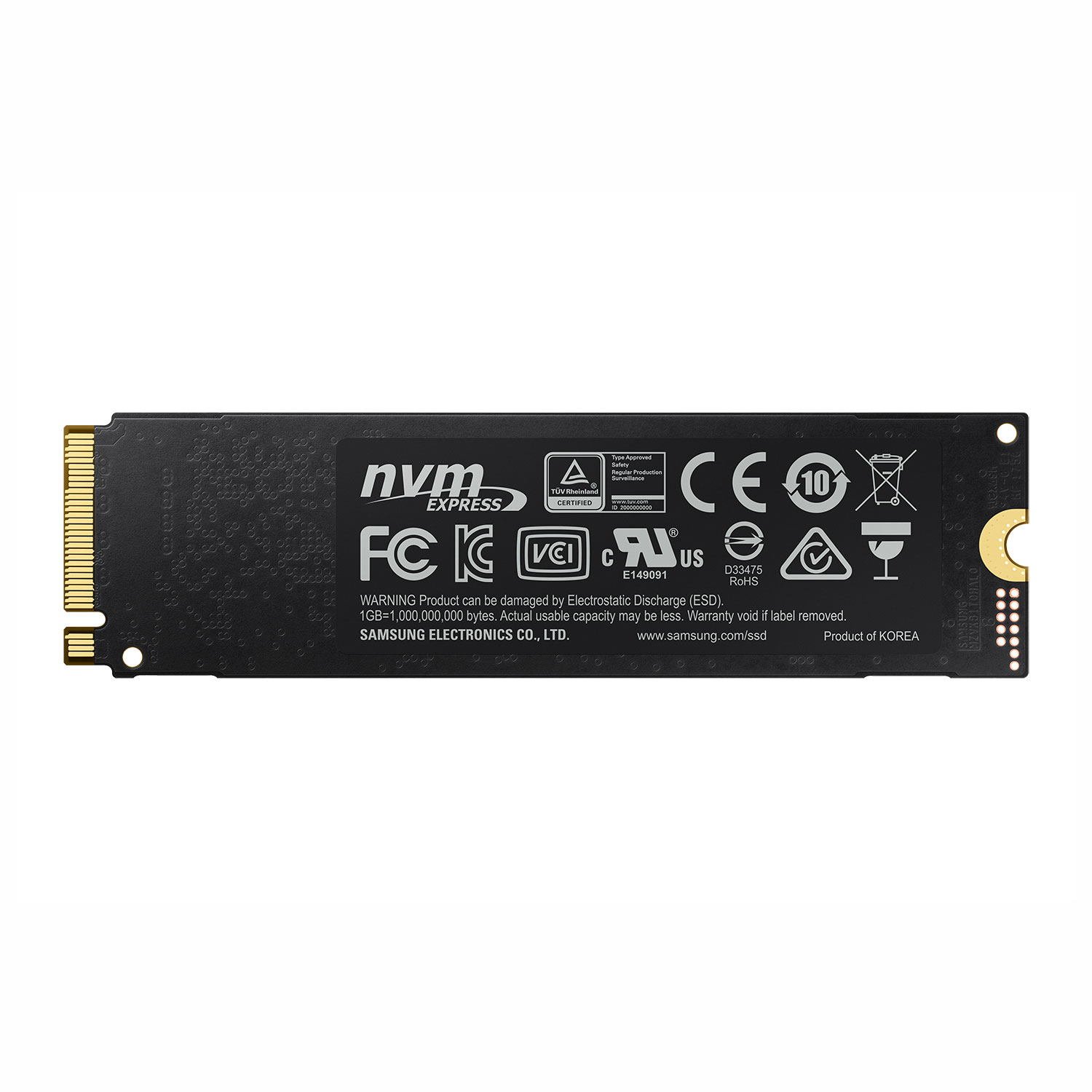

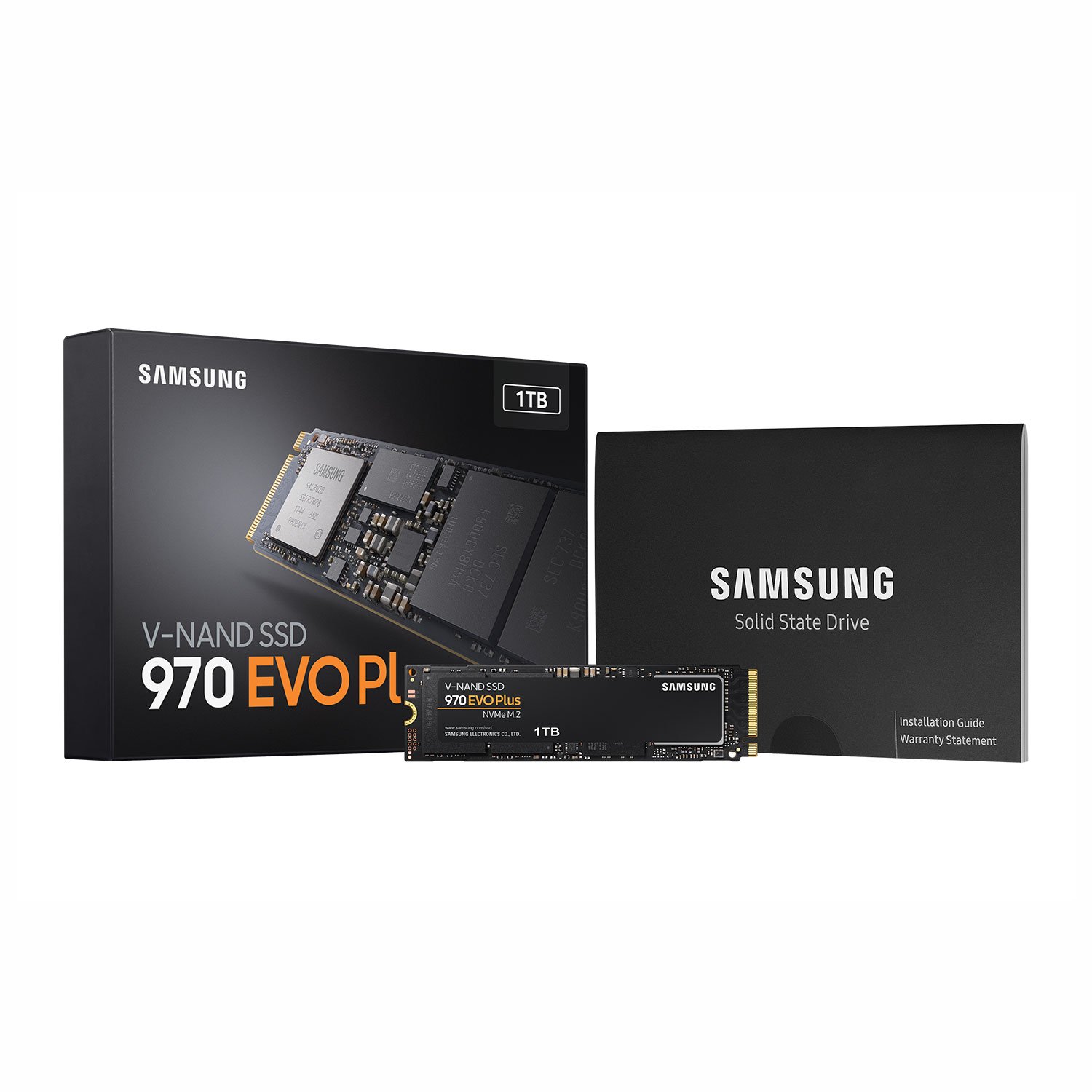

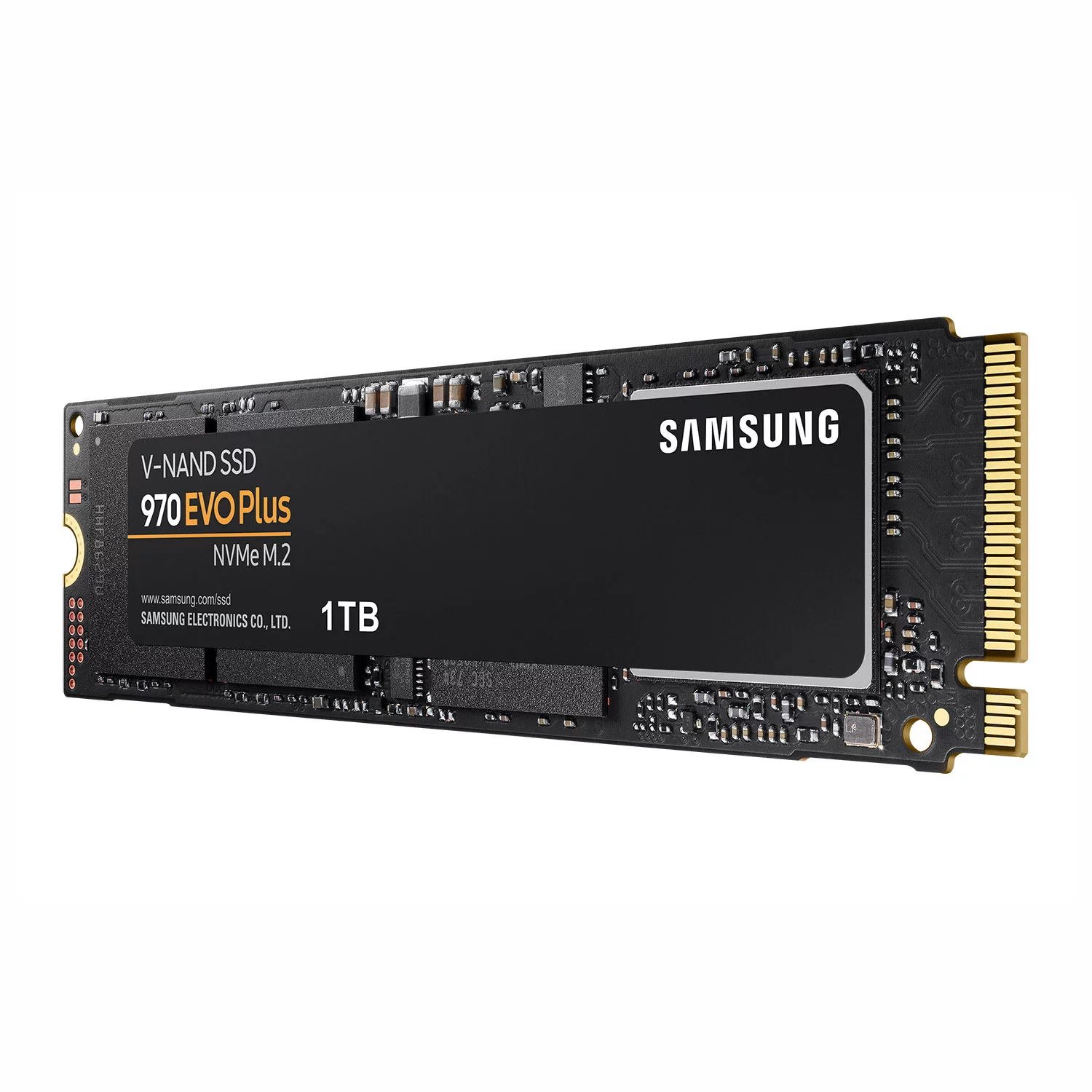

Samsung 970 EVO Plus M.2-2280 1TB PCI Express NVMe 3.0 x4 Solid State Drive

Samsung 970 EVO Plus M.2-2280 1TB PCI Express NVMe 3.0 x4 Solid State Drive

CCL Code: SSD0913

Was £177.66

SAVE £78

Now only

£98.97 inc VAT

  • Samsung 970 EVO Plus M.2-2280 1TB PCI Express NVMe 3.0 x4 Solid State Drive
  • Samsung 970 EVO Plus M.2-2280 1TB PCI Express NVMe 3.0 x4 Solid State Drive
  • Samsung 970 EVO Plus M.2-2280 1TB PCI Express NVMe 3.0 x4 Solid State Drive
  • Samsung 970 EVO Plus M.2-2280 1TB PCI Express NVMe 3.0 x4 Solid State Drive

Get 5% off when you buy 5 or more different components using code: BUY5GET5

Samsung 970 EVO Plus M.2-2280 1TB PCI Express NVMe 3.0 x4 Solid State Drive


Was £177.66

SAVE £78

Now only

£98.97 inc VAT

Available for delivery from Tuesday 3rd October

Buying in bulk? Contact our business team.

Key Features:

  • PCIe 3.0 x4 NVMe Interface
  • M.2 2280 Form Factor
  • Up to 3500MB/s Read
  • Up to 3300MB/s Write
  • 4K IOPS Read: 600
  • 4K IOPS Write: 550

Maximum of 2 per customer

CCL Code: SSD0913



1TB Samsung SSD 970 EVO Plus | MZ-V7S1T0BW

The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimisation. It maximises the potential of NVMe bandwidth for unbeatable computing in capacities up to 2TB, with reliability of up to 1,200 TBW. The 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53%‡ faster than the 970 EVO. The latest V-NAND-which brings greater NAND performance and higher power efficiency-along with optimised firmware, a proven Phoenix controller and Intelligent TurboWrite boost. The next advancement in NVMe SSD. The 970 EVO Plus fits up to 2TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung's innovative technology empowers you with the capacity to do more and accomplish more. The new standard in sustainable performance. Get up to 1,200 TBW with a 5-year limited warranty for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsung's quality. Achieve a new level of drive confidence. Samsung's advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimise performance drops. Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health, check speed and even boost performance.



Get 5% off components when you buy 5 or more*

For a limited time, buy at least 5 different components from different qualifying categories and get 5% off those items at checkout.

 *Terms & Conditions apply.




Promotional Period: From 2023-09-25 till 2023-10-09, while stocks last.

Terms and Conditions

It can't be combined with any other offer. UK residents only. Offer available on products in qualifying categories. Discount will apply to five or more items bought from separate categories (e.g. one CPU, one motherboard) in one basket. If will not apply to multiples from categories (e.g. two CPUs). Discount will be applied to the five or more items in your basket - please double-check your basket to ensure the offer applies correctly. Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From 17th of August, 2023 till 31stof August, 2023.



Solid State Capacity 1 TB
Storage Type SSD
Drive Size m.2
Storage Capacity 1000 GB
Memory Size 1GB LPDDR4
Cache Memory Samsung V-NAND 3bit MLC


Read Speed 3500 MB/s
Write Speed 3300 MB/s
4K Random Read (AS SSD) 19K IOPS
4K Random Write (AS SSD) 60K IOPS


Interface Type PCIe Gen 3.0 x4, NVMe 1.3


Plug and Play No


Electrical Power Consumption 30mW


Operating Temperature 0øC to 70øC
Storage Temperature -45øC to 85øC
Operating Humidity 5% to 95% non-condensing
Vibration (Non-Operating) 20~2,000Hz, 20G
Shock (Non Operating) 1,500G(Gravity), duration: 0.5ms, 3 axis


Form Factor M.2 2280
Pack Quantity 1


Warranty 5 Years

Key Features

Disk Capacity 1 TB
Main Colour Black
Solid State Drive Yes
Disk Form Factor M.2 2280
Read IOPS (4K) 600 k IOPS
Write IOPS (4K) 550 k IOPS
Intended Use Desktop
Power Requirement (auto) 5 W
PS5 Compatible No
Config Business Yes
Config Gaming Yes
Config Home Office Yes
Config Lifestyle Yes
Config Professionals Yes
Config Quiet Yes
Config Silence Yes
Config Students Yes

Item Details

Manufacturer Samsung
Manufacturer Code MZ-V7S1T0BW
EAN 8801643628086
Condition New

Warranty Information

Warranty 5 Years

Manufacturer Information

Manufacturer Samsung
Manufacturer Code MZ-V7S1T0BW

Do you have you a question about the Samsung 970 Evo Plus (1TB) PCI Express M.2 Solid State Drive (Internal)?

Q: Hi I'm looking to upgrade m factory SSD in my MacBook Pro (Retina, 13-inch, Early 2015) to 1TB. Plz advise if this will be compatible
Answer by Website User on 17th February 2020
Unfortunately, we cannot guarantee support for apple devices. - Kristian N
0 customers found this answer helpful.
Post Answer
Q: Hi, I'm in the process of building a new PC, please can you tell me if this is compatible with a Gigabyte Z390 Aorus Pro WiFi Motherboard
Answer by Website User on 1st August 2019
Yes, it is.
0 customers found this answer helpful.
Post Answer
4.9 / 5 29 reviews


3 months ago

This was my first M.2 type drive and first time fitting one! After a quick YouTube search up and flick through my motherbaord manual, really easy to install and format overall. The tricky part was screwing the actual drive to my motherboard as it's such a tiny screw, really tiny! I didn't have the right size magnetic screwdriver at hand which may of helped if I did, so just had to go for it without fiddling around! So far the 970 EVO Plus seems great. I use this drive only for my Pro Tools projects, so can't comment on boot up speeds or OS performance etc. Really decent price and great service from CCL Computers where I purchased it from.

lewis windle

9 months ago

Great m.2 for a started pc and fasg at loading games


August 2022

I got exactly what I asked for with a speedy delivery. I will use this company again


June 2022

good item good seller

Musrat Choudhury

June 2022

Speedy and decent priced


May 2022

Very good, gets the job done. Speeds are good and meet expectations

Harry Jordan

April 2022

Super fast drive, very easy to install, absolutely no issues with it.


April 2022

This M.2 was an absolute steal for the price. Not to mention the speed! I went with this over the Samsung 980 as I had previously heard many good things and after a couple of weeks, I was being pointed towards it by many different sources. Installation was simple and with a fresh install of Windows I now boot to home screen in about 20 seconds! no exaggeration at all! Games now load in no time at all too! Now in terms of looks, its very stealthy with its black PCB board and simplistic design, which is what I was going for with the rest of the build, so this dropped in quite nicely! And would fit into any build or style. No need for any of that extra space and having to have 2 4 large 3.5 hard drives anymore. Definitely an improvement and wont be long until these are standardized as the cost is already reducing. Last thing I would like to add, if your motherboard doesnt have them or only 1 of them and youre looking to install more than 1 of these or any other m.2 drives, is an M.2 heatsink as they can get incredibly warm very quickly. I personally picked up the EK M.2 heatsink, which is fairly easy to install, but there are many others from very reputable brands that do not cost a lot at all.


February 2022

Work like a blast even with stupidly heavy mods in game with very short liad times!


November 2021

Easy install, reliable, lightning quick. Loving the drive so far


November 2021

Very nice hard drive with the usual CCL speedy delivery at a great special offer price. Would definitely buy again in future and recommend to others!


October 2021



March 2021


Brian Hughes

January 2021

All the speed I asked for , is there anything faster ?

Sean Ferigan

January 2021

Fast m2 storage for a great price. Seems to run quite hot ~65c under sustained use, but this seems to be the norm for this type of storage. Simple plug and play with no fuss.

Gareth Stockdale

November 2020

Great product, good price, great delivery.

Jennifer D.

August 2020

Crazy fast performance backed by a 5 year warranty, just wish they were cheaper.

Anthony Ward

July 2020

Lovely product with very fast read and write speeds.


June 2020

Excellent. Fantastic upgrade and really fast


April 2020

Actually, a bit overkill for me as retired. Not in a rush for anything. For other people the sheer speed of this NVME is wonderful. I used a 500GB NVMe for "system" & using the 1TB NVMe for files that value the speed. Photos & what not are on simple HDs. While I'd recommend this product I'd suggest a good look into what is used/needed in your own system.

john hill

March 2020

It's a nice, big, fast Samsung M2 drive. I doubt you will be dissapointed. Why on earth they cant include the tiny screw you need to install it, worth pennies, in the box is beyond me though.

John Colton

January 2020

Works as expected


September 2019

Stellar speed and easy to fit. Nothing to not like about this.


September 2019

Perfect for my needs would recommend five star *****


July 2019

very fast easy install

Phil Penthux

June 2019

The Samsung 970 EVO Plus M.2 SSD range offers some of the -currently- fastest data transfer speeds on the planet of any SSD, if not THE fastest with the "970 Pro" range. You need to ensure you have a mainboard which features a 'M.2 socket 3' slot, to install this SSD, which supports NVMe (PCIE 3.0 x 4 mode) to get the best out of it. Otherwise you'll be using it in 'SATA & PCIE 3.0 x 4 mode' which is not nearly as fast at transferring data. Installing the SSD couldn't be simpler. For those who might need assistance there is a plethora of YouTube videos showing you how to do it. Samsung has it's own software called "Data Migration" which is freely available to download and install (NB: it only works with Samsung SSDs!) Samsung's "Data Migration" software makes it very easy to transfer all your data from your old HDD/SSD onto your new 970 EVO Plus SSD. The entire Windows 10 migration process took approx. 15-20 minutes for me. Samsung also provides a NVMe driver specifically designed for this SSD, to ensure optimal performance and to maximize compatibility with your system. ** Samsung recommends to use the Samsung NVMe driver instead of the one Windows 10 installs through Windows updates. ** I've installed Samsung 970 EVO Plus M.2-2280 1TB in an ASUS Z390-Pro Gaming mainboard running an Intel i5-9600K with DDR4 2666MHz RAM. Windows 10 boots from cold to the desktop in approx. 8-10 seconds. Compare that with the Samsung 860 EVO SSD which did the same in approx. 30-35 seconds using the same hardware. This SSD is amazingly quick! There are other M.2 SSDs currently available which boast speeds as fast (or in AData's case "faster") then the Samsung 970 EVO Plus M.2 SSD and are quite a bit cheaper. However, when you get down to the nitty-gritty calculations of MPS, IOPS, and MTBF you'll find this Samsung M.2 SSD is designed very well and will outlast the competition with double the projected lifespan (and in some cases longer). So, it's expensive but possibly worth the additional cost in my opinion. Samsung could make them slightly cheaper and then it would be perfect and great value.

Phil Penthux

May 2019

Installed this SSD in an ASUS Z390-PRO Gaming mainboard, running an Intel i5-9600K CPU, on the NVMe compatible M.2_2 slot (PCIe 3.0 x4 mode), the one underneath the chipset heatsink(s). Downloaded and installed Samsung Support Tools software ("Data Migration") to clone my existing Windows 10 installation onto the new Samsung 970 SSD. The whole process took approx. 25 minutes, from unboxing the Samsung 970 SSD to having my existing installation of Windows 10 booting from it. A very easy, efficient and successful process indeed, facilitated by the Samsung software. The speed of my system running the Samsung 970 SSD is quite unbelieveable, compared to the SSD I was running before, which was a Samsung 960 EVO 500GB SATA SSD. It was very fast then but now it is twice as fast (or more) using this 970 EVO Plus M.2 SSD. Windows 10 boots to the desktop from a cold start in approx. 6-7 seconds. You hardly have time to blink after clicking an icon to open a program (e.g. MS Word or Mozilla Firefox) before it appears. The data transfer rate of this SSD is super-fast and that's where your (quite large) amount of cash is being spent on. It features the latest in SSD technology and the 970 EVO Plus is faster than anything else on the planet at the moment, apart from the Samsung 970 EVO Pro M.2 SSD - it's bigger brother. For this extreme level of performace, value for money kind of gets thrown out of the window. So, my advice and conclusion is; if you can afford it then your money will be well spent on this SSD.


April 2019

Super fast M2 SSD easy to install

Paul Horbury

March 2019

Connects to vacant dedicated slot on my motherboard.Lightnig sfast enabling rapid boot up and access to files stored on it. Pricy but you forget the price and the quality remains.
