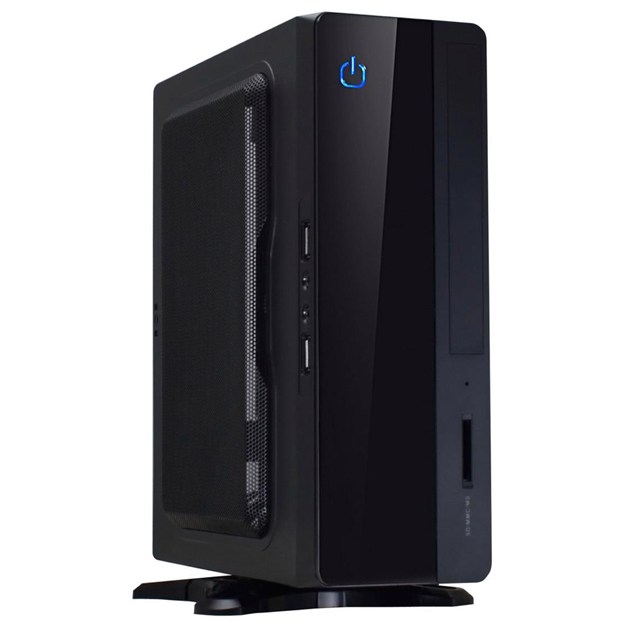

CiT MTX-007B ITX Case - Black

CiT MTX-007B ITX Case - Black

CCL Code: CAS1088

£42.05 inc VAT

CiT MTX-007B ITX Case - Black

MTX-007B

£42.05 inc VAT

Available for delivery from Wednesday 31st May

Hurry, only 2 left!

Buying in bulk? Contact our business team.

Key Features:

  • 180W PSU Included
  • 0 x 5.25" External Bay(s)
  • 1 x 2.5" Drive(s) Max
  • 0 x 3.5" Drive(s) Max
  • Max MB Size: ITX
  • Built-in Card Reader
CCL Code: CAS1088
Overview

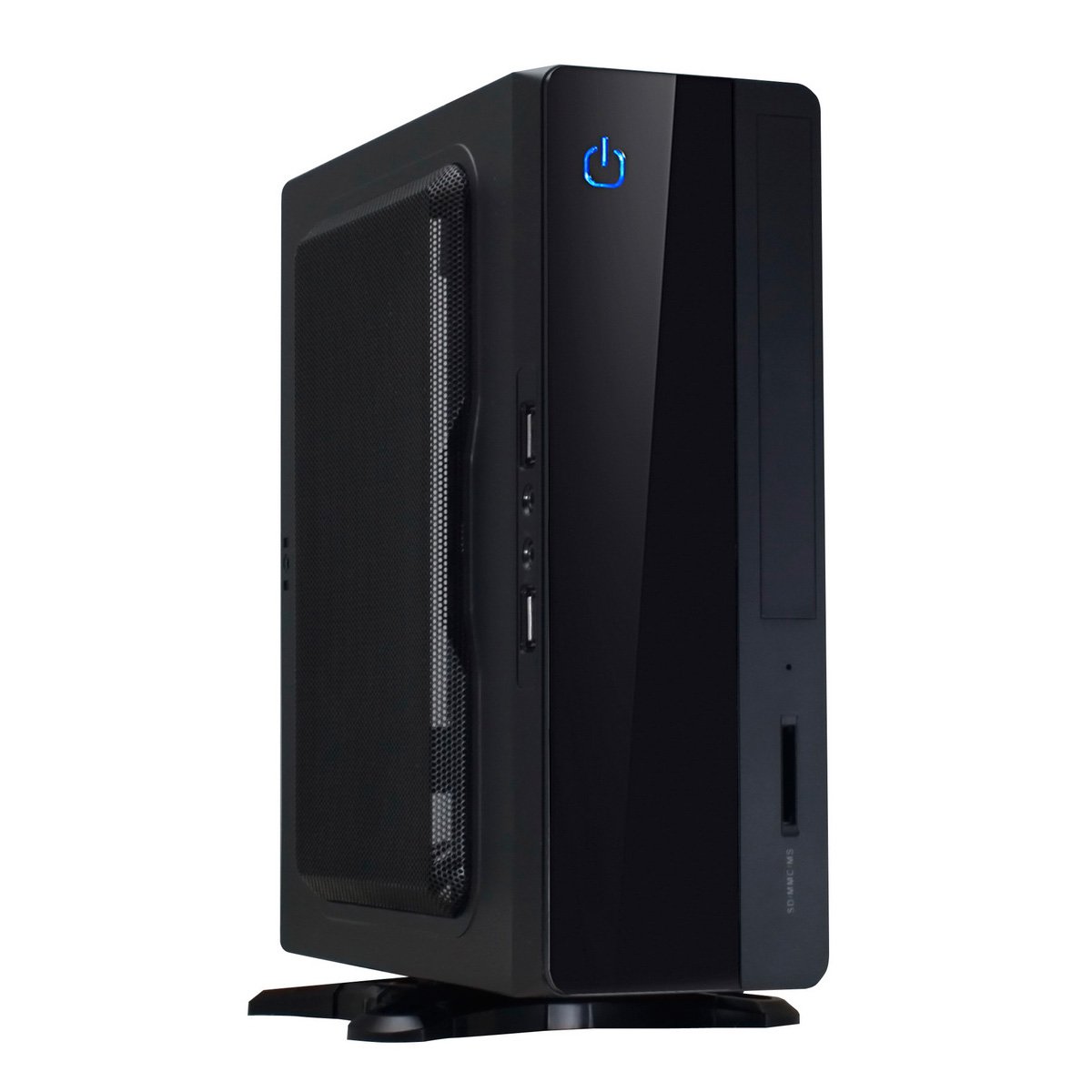

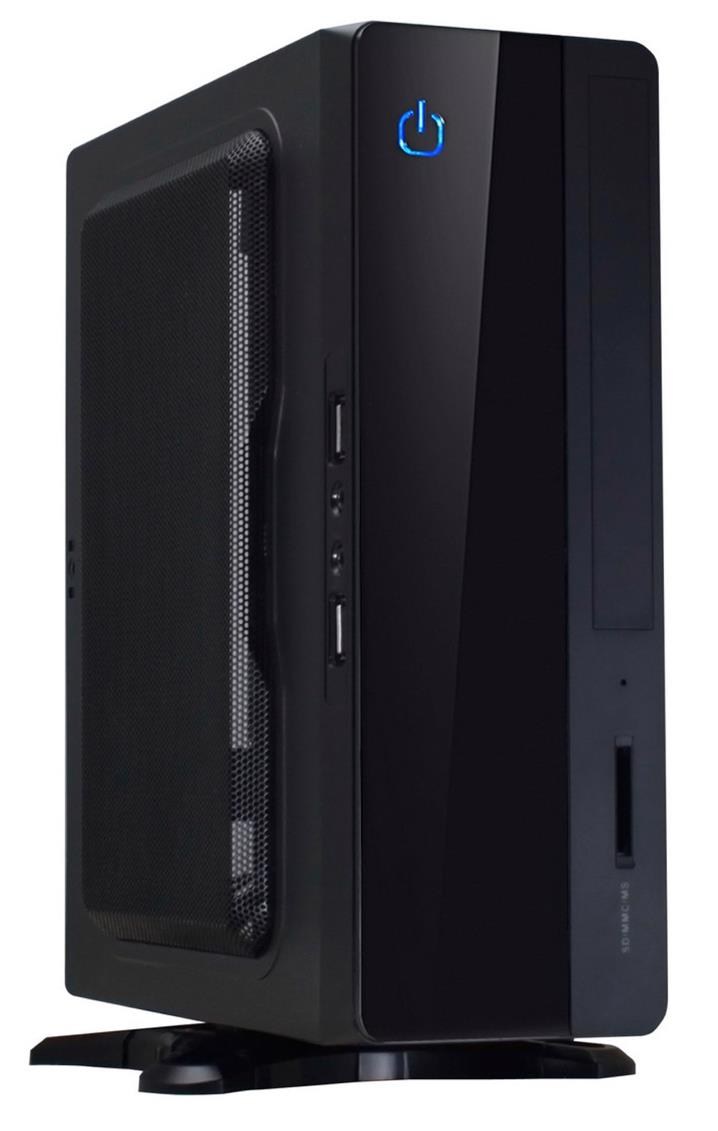

CiT MTX-007B

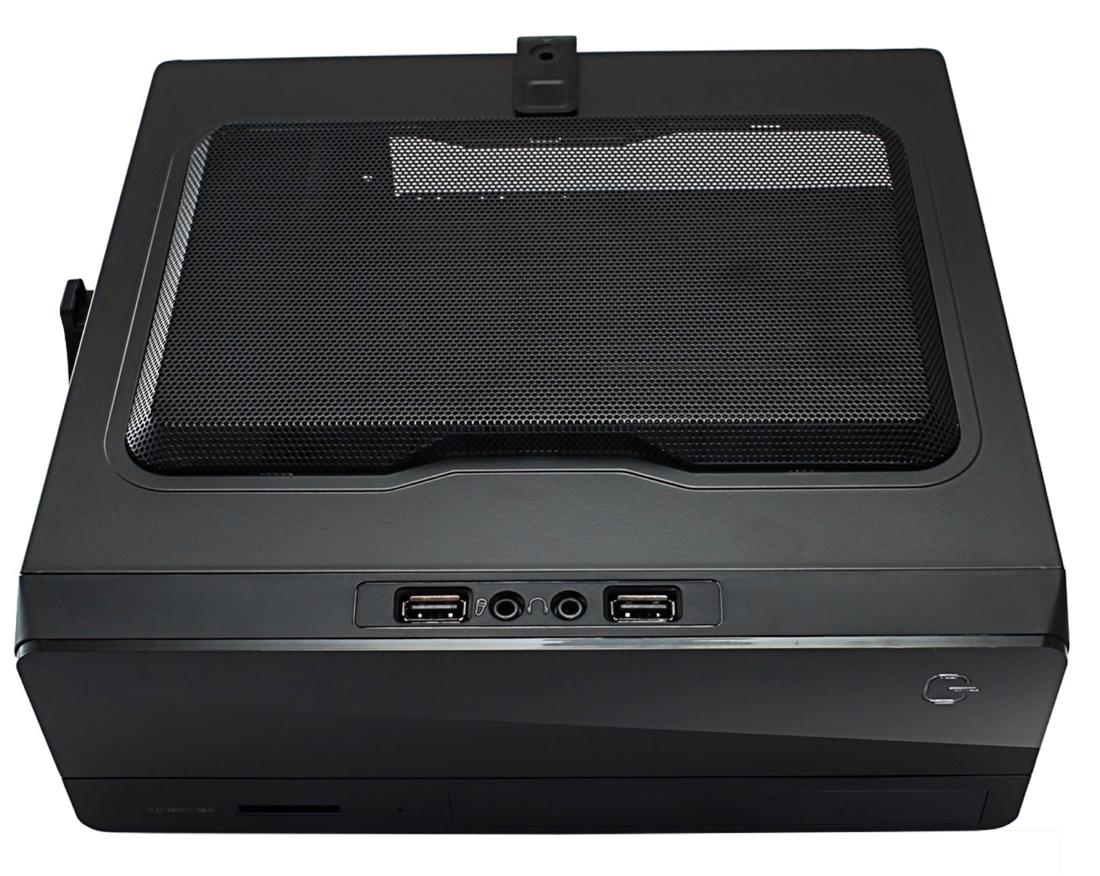

The CiT MTX-007B is an Ultra Mini iTX VESA Mountable Case. With Space Saving Features, the MTX-007B can be easily mounted on to the rear of your monitor. With a Dual Layer Interior Structure, support for Intel i5 and i7 CPUs, and an internal 180W PSU, the MTX-007B is a fantastic choice for a Mini ITX Mountable Case.

Key Features

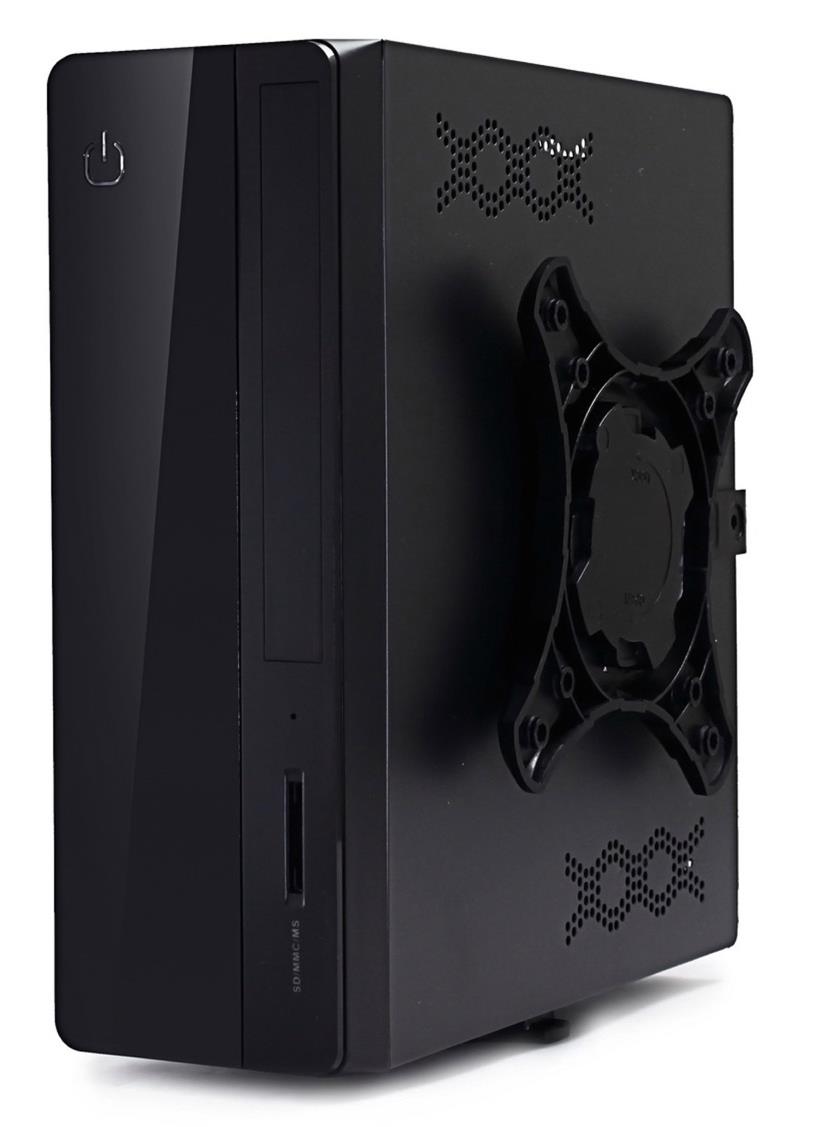

Space saving - With a width of the case being 8cm, this can be easily mounted on to the rear of your LCD / LED monitor using the VESA mount (provided), creating more desk space.

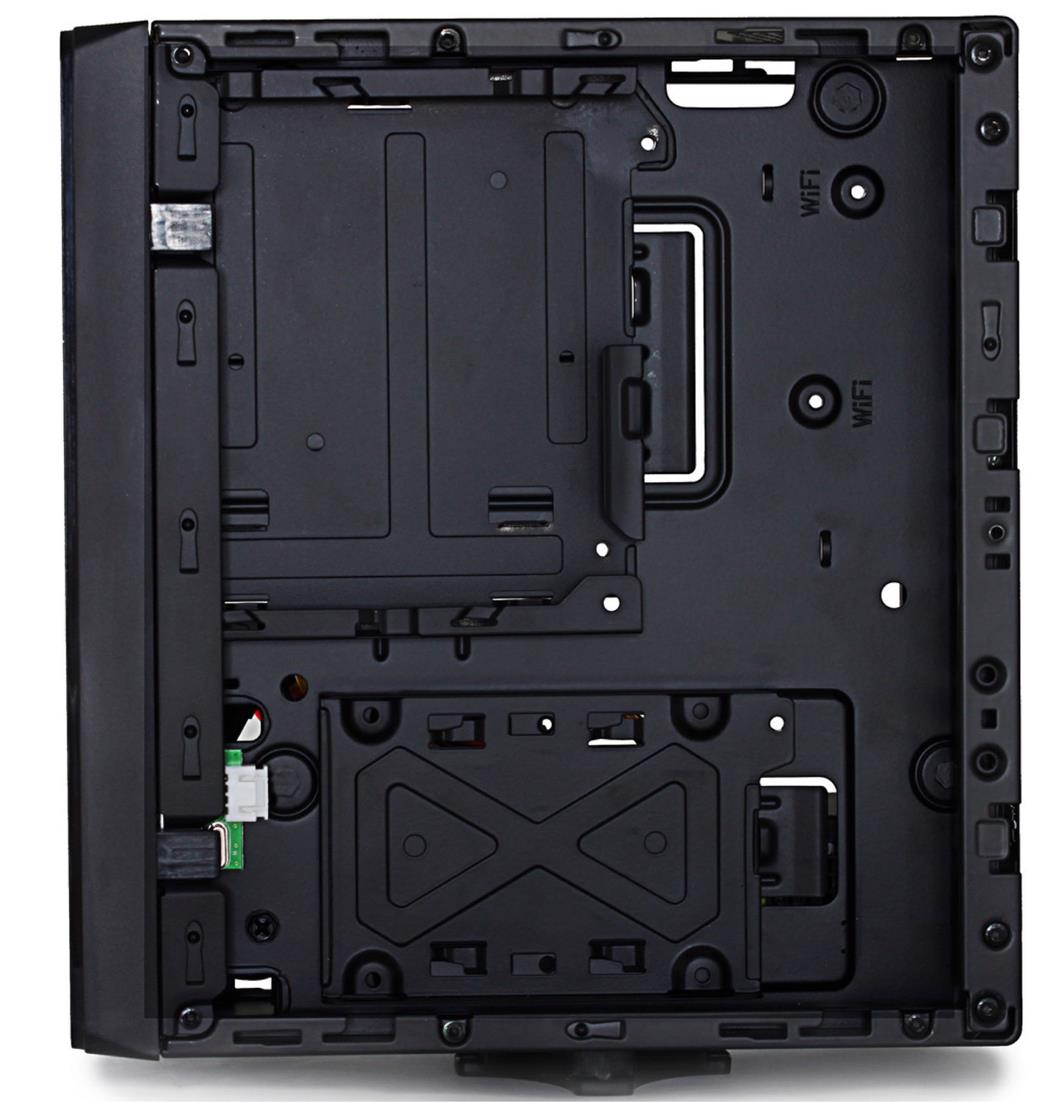

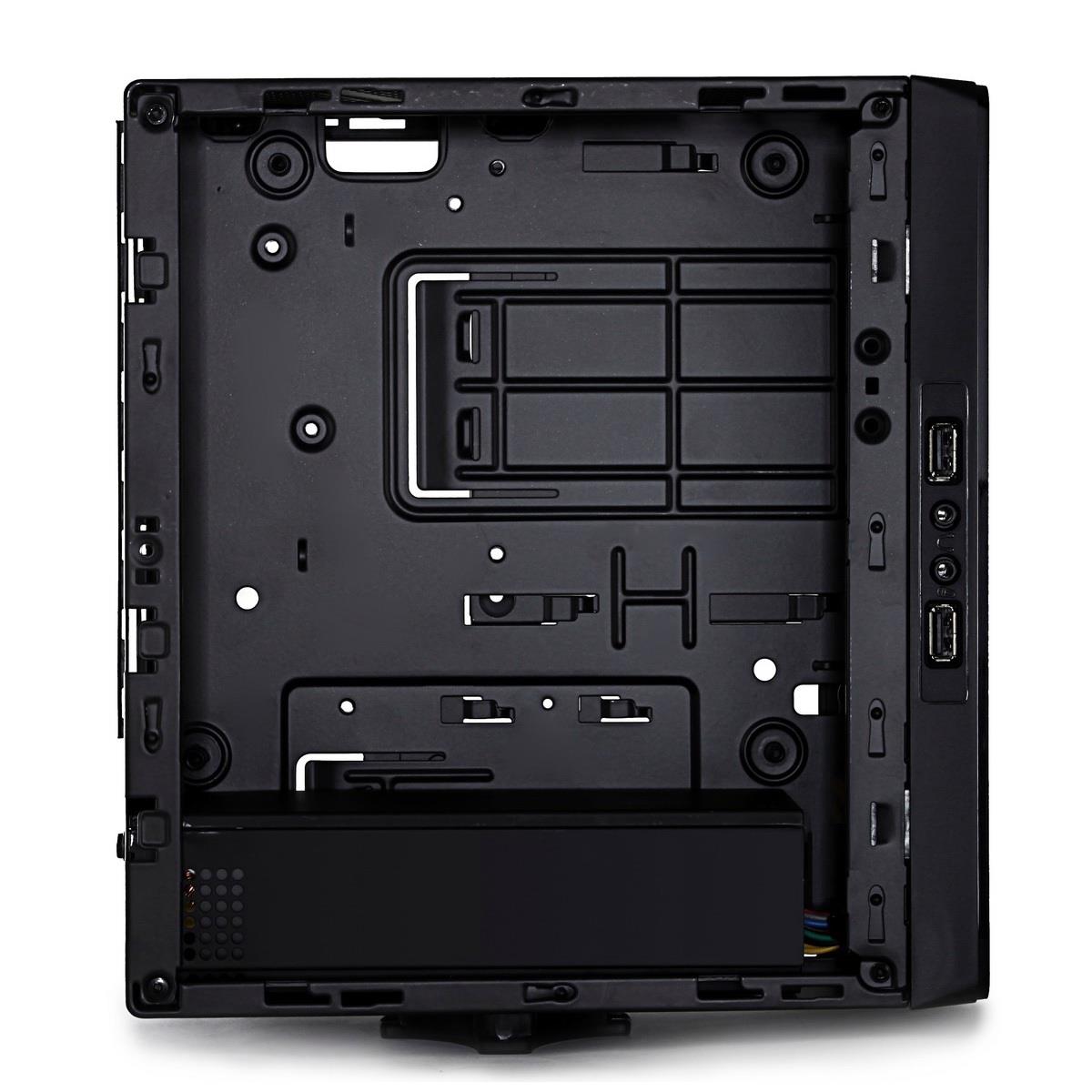

Dual Layer Interior Structure - This case utilises its advanced dual layer interior, allowing for support of a slim ODD, HDD and 3 in 1 card reader.




Supports i5 /i7 - Fully supports the Intel i5 and i7 CPUs, including the latest Haswell chipset. The mesh side panel offers better cooling.




Internal or External PSU - Available with either an internal 180W or external 120W power supply unit to better suit your needs.




Case Specifications


Form Factor:

Mini ITX

Motherboard Support:

Mini ITX

PSU Support:

Flex

Gaming Case:

No

Water Cooling Ready:

No

Dimensions:

95mm x 245mm x 221mm (W x H x D)

Packaging Dimensions:

131mm x 285mm x 265mm (W x H x D)

Body Material:

0.5mm SECC Metal

Front Bezel Material:

Plastic

Side Panel:

Window / Vented

External Bays:

1 x Slimline Optical

Internal Bays:

1 x 2.5” Internal

Drive Bay Notes:



Expansion Slots:



Cooling Front:

None

Cooling Top:

None

Cooling Rear:

None

Cooling Side:

None

Cooling Bottom:

None

IO Ports:

2 x USB 2.0
1 x HD Audio
1 x Microphone

Front Bezel Colour:

Black

Body Colour:

Black

System Cabinet Features:

Card Reader Supports SD/MMC, CF/MD, XD, TF, MS/M2
PSU requires a clover leaf mains cable

PSU Included:

Yes

Net Weight (KGs):

2.3 KGs

Vesa Mountable:

Yes

Main Features

  • Space saving - With a width of the case being 8cm, this can be easily mounted on to the rear of your LCD / LED monitor using the VESA mount (provided), creating more desk space
  • Dual Layer Interior Structure - This case utilises its advanced dual layer interior, allowing for support of a slim ODD, HDD and 3 in 1 card reader
  • Supports i5 /i7 - Fully supports the Intel i5 and i7 CPUs, including the latest Haswell chipset. The mesh side panel offers better cooling
  • Internal PSU - Comes with an internal 180W power supply unit to better suit your needs
Specifications

Storage

Internal Expansion Bays 1 x 2.5 inch

Interfaces/Ports

USB Ports 2 x USB 2.0
Microphone In Port 1

Physical

Form Factor
Case Colour Black
Motherboard Compatibility Mini-ITX
In The Box Case • PSU • Stand
Width 9.5 cm
Depth 22.1 cm
Height 24.5 cm
Weight 2.3 kg

Key Features

Firewire No
Power 180 W
Laptop Size Range ins
Main Colour Black
Expansion Slots
External Expansion Bays
Case Type SFF
USB 3.0 Support No
Case Form Factor ITX
Power Supply Included Yes
Optimised for Home
Modular Cables
80Plus Rated
Bag Size
PSU Form Factor Custom
Display Model in Showroom No
Illuminated
e-SATA No
L.E.D Fan No LED
Laptop Size
Max 2.5" Drives 1
ATX No
Micro-ATX No
ITX Yes
E-ATX No
XL-ATX No
Mini PC
Cooler Height 42 mm
Built-in Card Reader Yes
USB Type-C Support
Front HDMI
Side Panel Type
PSU Depth mm
Memory Speed MHz
Card Reader Type
Front Audio Type Separate
Number of Fans fan(s)
LED Controller Included
LED Strip(s) Included
Maximum Motherboard Size Supported ITX
RGB Software Type
Total 2.5" + 3.5" drive bays 1
USB2.0 ports 2
Low profile expansion No

Warranty

Warranty 1 Year

Item Details

Manufacturer CiT
Manufacturer Code MTX-007B
EAN 5055492411983
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer CiT
Manufacturer Code MTX-007B
Q&A

Do you have you a question about the CiT MTX-007B Mini-ITX Case?

Q: Is the PSU 80+ rated and what form factor is it?
Answer by Website User on 29th April 2022
The PSU doesn't have an 80+ rating. It is a custom form factor that doesn't match the ATX / TFX / FlexATX standards.
0 customers found this answer helpful.
Post Answer
Q: Is this case suitable for the AS Rock B460M-ITX motherboard with either the Intel core i5-10600 or i7-10700 CPU with the stock coolers? ie will the cooler height be OK to fit in the case?
Answer by Website User on 18th September 2020
Yes, it would be fine. -MR
0 customers found this answer helpful.
Post Answer
Q: Hi, can I fit this motherboard in there please? IPXSB-DM (Cork2) I ask as I cannot see the rear. I am worried about the facepolates fitting. I want to move from CQ2940EA Desktop PC please advise.
Answer by Website User on 18th September 2020
Yes, your motherboard should fit. -MR
0 customers found this answer helpful.
Post Answer
Q: I recently purchased this case and there was no wall power cable supplied. What power cable is required? The connector on the case is a three prong clover-style socket.
Answer by Website User on 20th April 2020
A standard UK C13 lead should suffice. -MR
0 customers found this answer helpful.
Post Answer
Q: What size of DVD drive will fit into this case - does it need to be a slimline type?
Answer by Website User on 16th November 2018
Yes, it is a slimline form factor DVD drive that is needed here.
0 customers found this answer helpful.
Post Answer
Q: would this case be suitable for the ryzen 2200g inc supplied cpu cooler (height 55mm I believe). If nit what is the max CPU cooler height thanks
Answer by Website User on 6th March 2018
This case would be able to support the stock processor cooler that comes with the Ryzen 2200G. - Matthewt
0 customers found this answer helpful.
Post Answer
Q: does the price listed include the internal psu
Answer by Website User on 18th March 2015
Yes, this item and the price include the PSU. -Danlevan
0 customers found this answer helpful.
Post Answer
Q: what kind of connectors does the psu come with?
Answer by Website User on 5th February 2015
The manufacturer hasn't listed the connectors on the power supply unfortunately. Given the expansion slots, I would only expect a couple of SATA and/or Molex. -Danlevan
0 customers found this answer helpful.
Post Answer
Q: would this case be suitable for the gigabyte e-350 board? CCL Code: MBD0753
Answer by Website User on 4th December 2014
Yes, that motherboard will fit into this case just fine. -Danlevan
0 customers found this answer helpful.
Post Answer
Q: Hi, Can you recommend a graphics card to go with this case please? Obviously I can get one that's integrated to the motherboard but it looks as if the case has been designed with the potential for an additional as there is a cut out at the back? Thanks
Answer by Website User on 10th June 2014
This case cannot take any expansion cards so you would need to use the onboard graphics of the motherboard/processor. -Danlevan
1 customer found this answer helpful.
Post Answer
Reviews
4.7 / 5 3 reviews

Mr Philip Allen

April 2020

Good service and price

Mr Konstantin Verba

February 2020

Little bit broken, but excellent, decided not to change it, as it was in normal working order.

Vladimir Muscatello

January 2019

Great little case, perfect for HTPC. Nicely done and organized. Good quality built. Bought two of them for my kids PCs. Would recommend.
