750W Cooler Master V SFX Gold 750 ATX3.1 Modular 80 Plus Gold PSU
Small But Mighty
As the leading SFX power supply design, the V SFX Gold offers a highly powerful unit in a space-saving, mini form factor.
Flexible compatibility
With the included SFX-to-ATX bracket, the V SFX Gold ATX 3.1 can be used to power systems ranging from as small as a mini-ITX all the way up to E-ATX motherboards.
ATX 3.1 support & a durable 90-degree 12V-2x6 cable
Includes ATX 3.1 support and a 90-degree 12+4pin (12V-2x6) PCIe 5.1 connector featuring higher electrical durability, lower temperatures, and improved safety.
80 PLUS Gold certified
The V SFX Gold is certified to achieve more than 90% efficiency at typical loads.
100% Japanese capacitors
Large, high-quality Japanese capacitors feature improved efficiency and reduced ripple noise.
Fully modular cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.

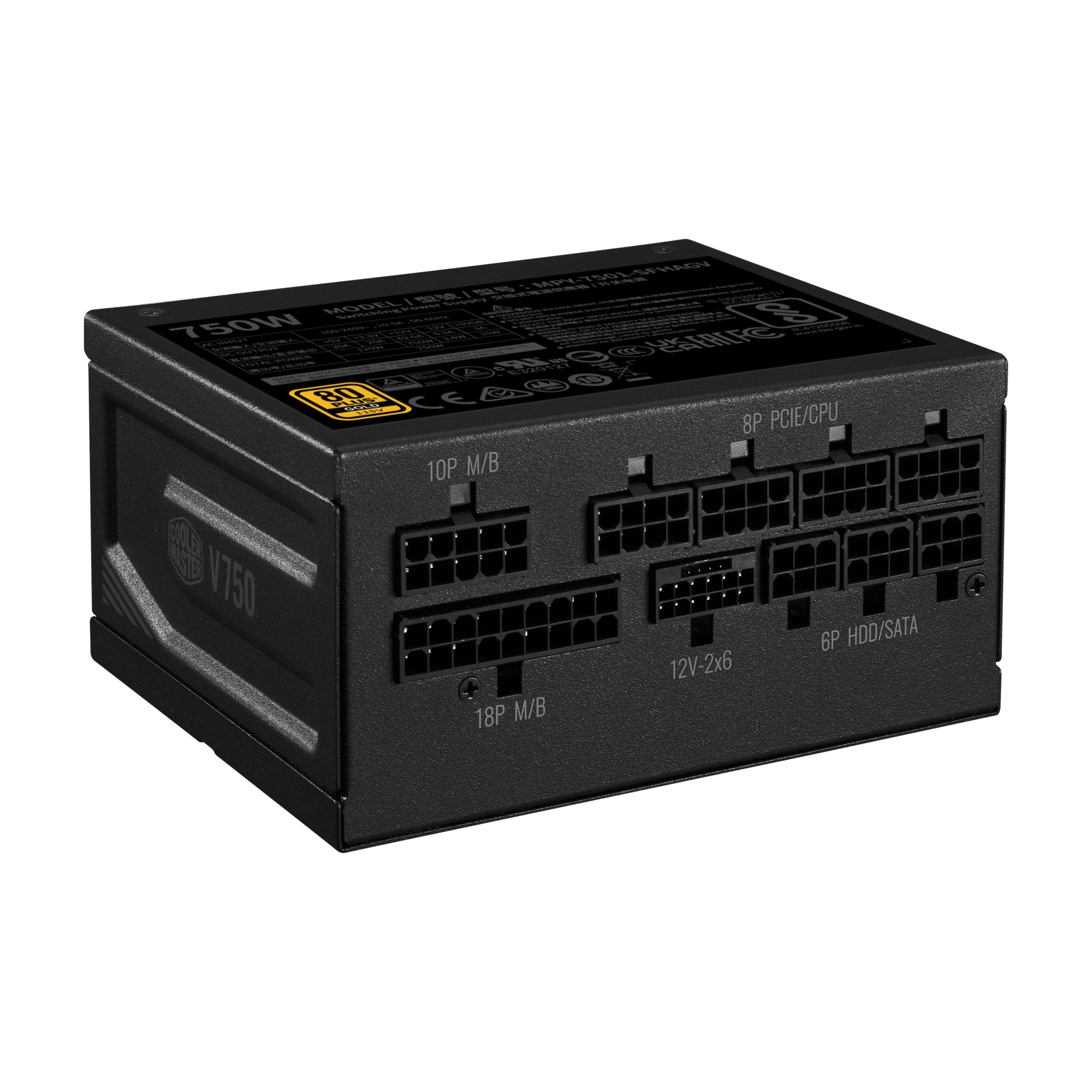

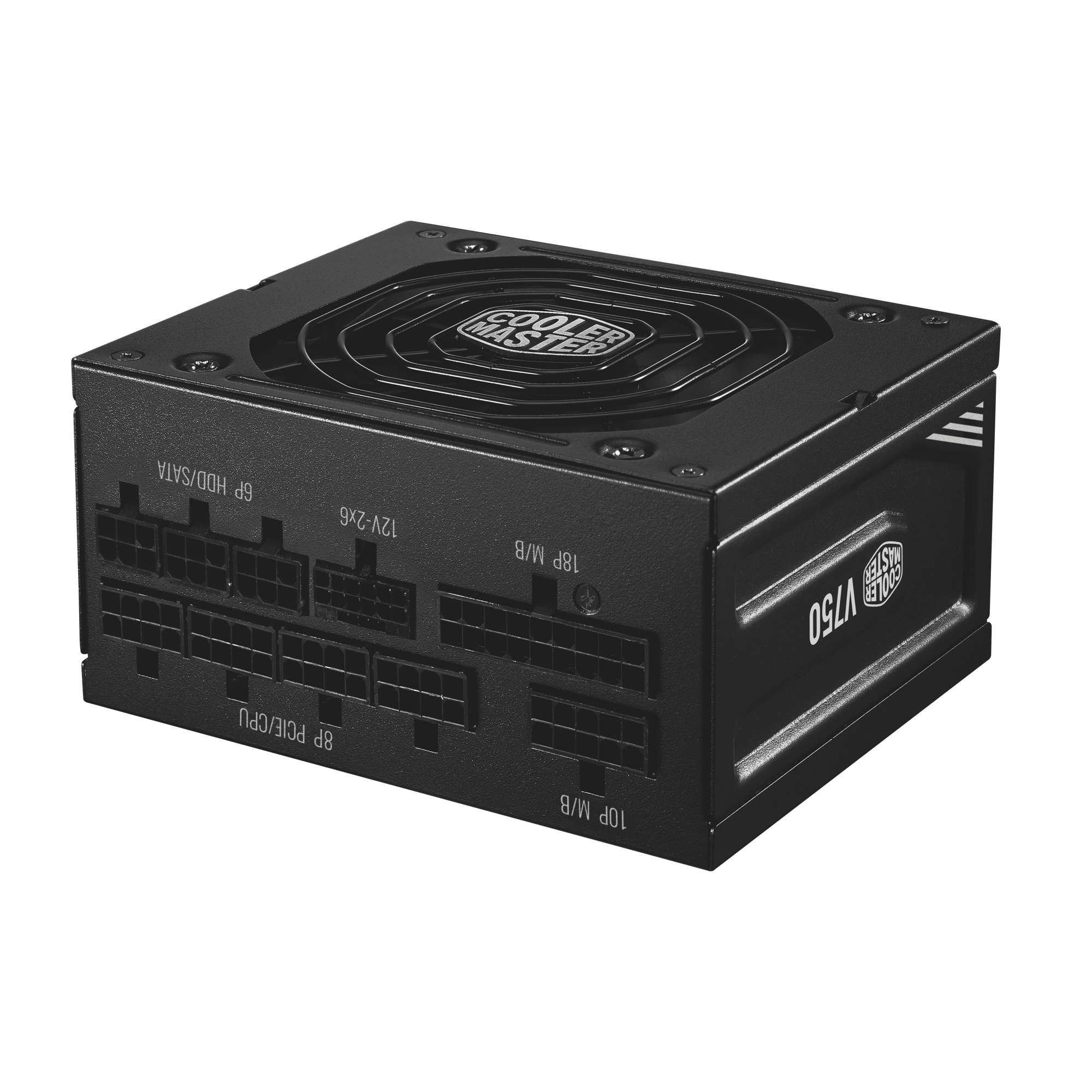

Interfaces/Ports
- SATA Connectors: 8 x SATA
- CPU Connectors: 1 x 8-pin EPS
- 1 x 4+4-pin EPS
- PCI Connectors: 4 x 6+2-pin PCIe
- Motherboard Connectors: 1 x 24-pin ATX
- Molex Connectors: 4 x Molex
- Other Connectors: 1 x 12V-2x6
Compliance
- Standards: 80 PLUS Gold Certified
- Safety: OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection

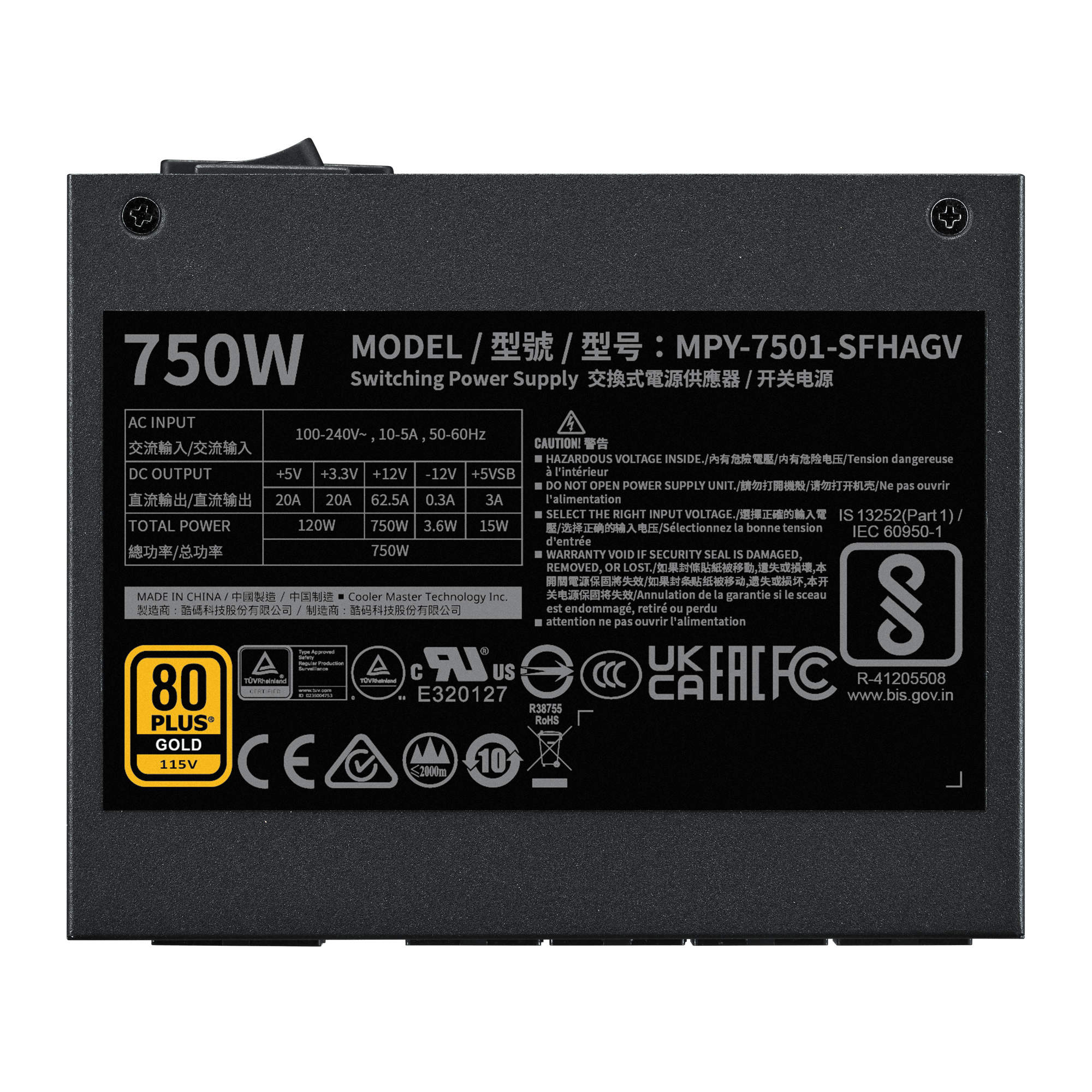

Electrical
- Voltage: 100 ~ 240 V
- Power: 750 W
- Frequency Range: 50 ~ 60 Hz
Environmental
- Operating Temperature: 0 ~ 50 °C
Physical
- Form Factor: SFX Power Supply
- Case Colour: Black
- Width: 125 mm
- Depth: 100 mm
- Height: 63.5 mm
- Weight: 1.42 kg
Warranty
- Warranty: 10 Years
Identifiers
- Stock Code: PSU2422
- Mfg Code: MPY-7501-SFHAGV-3EUK
