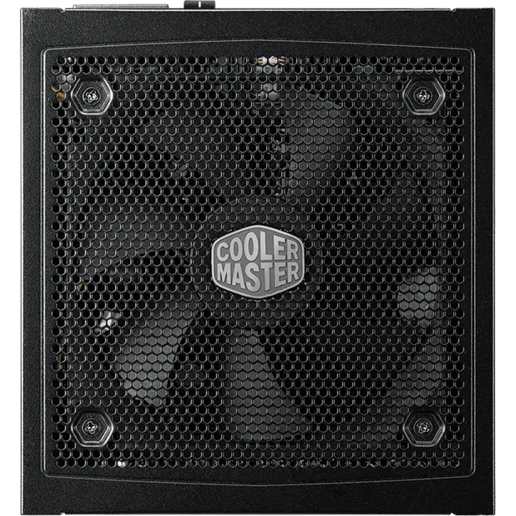

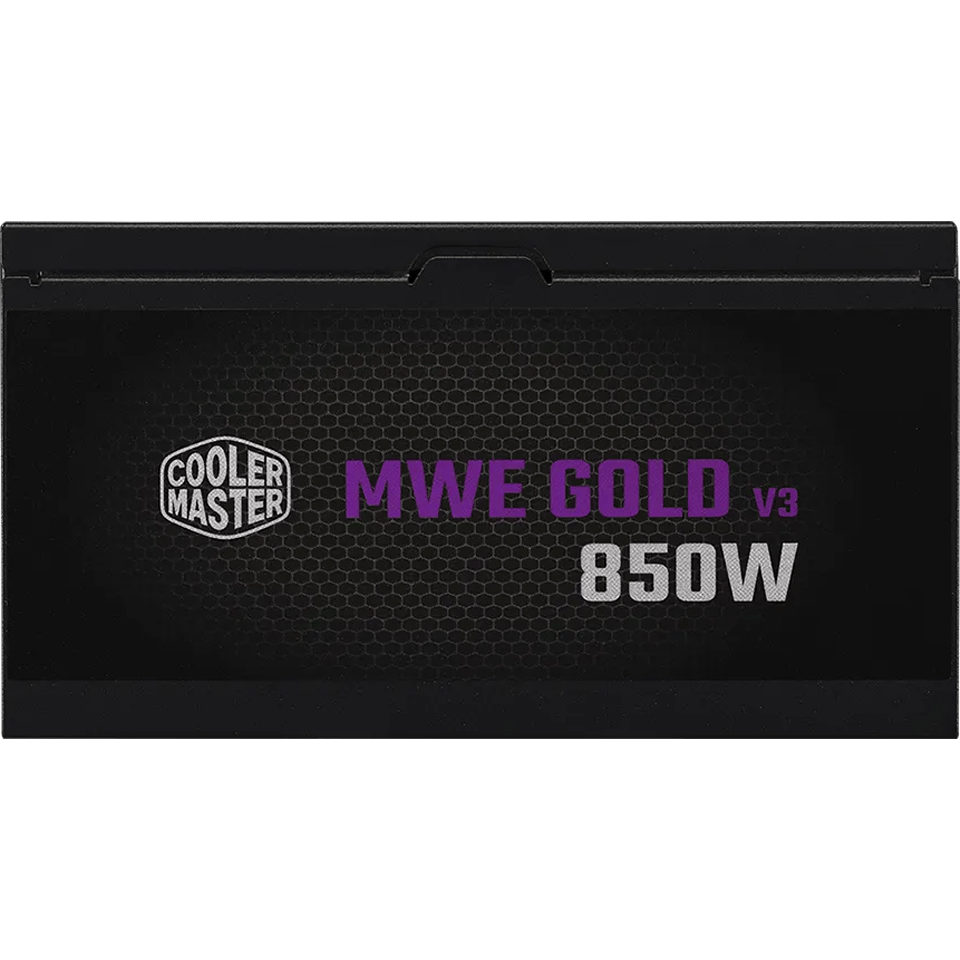

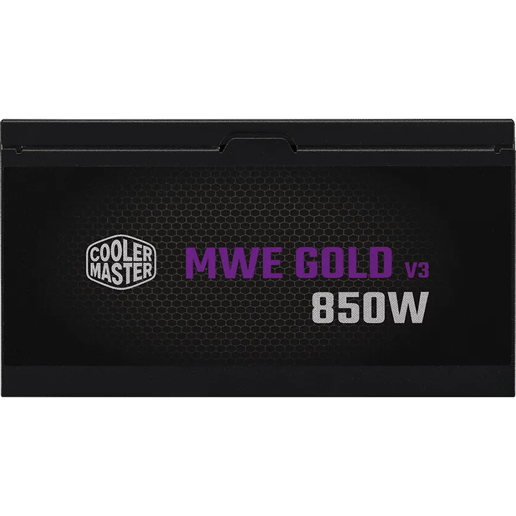

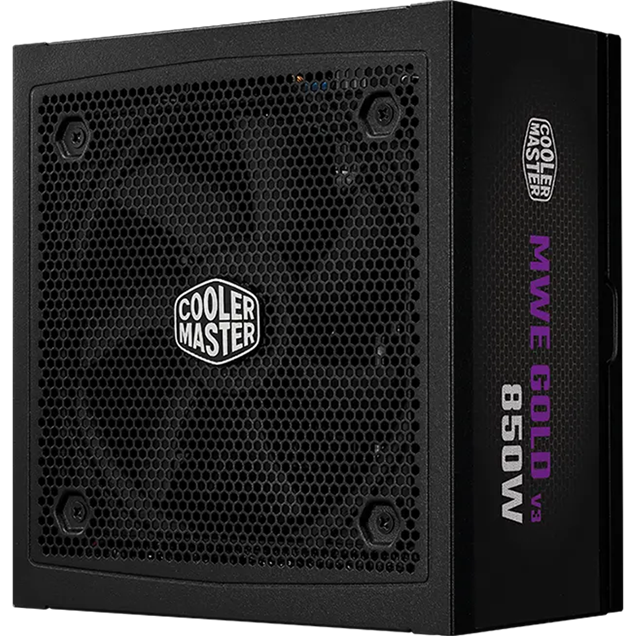

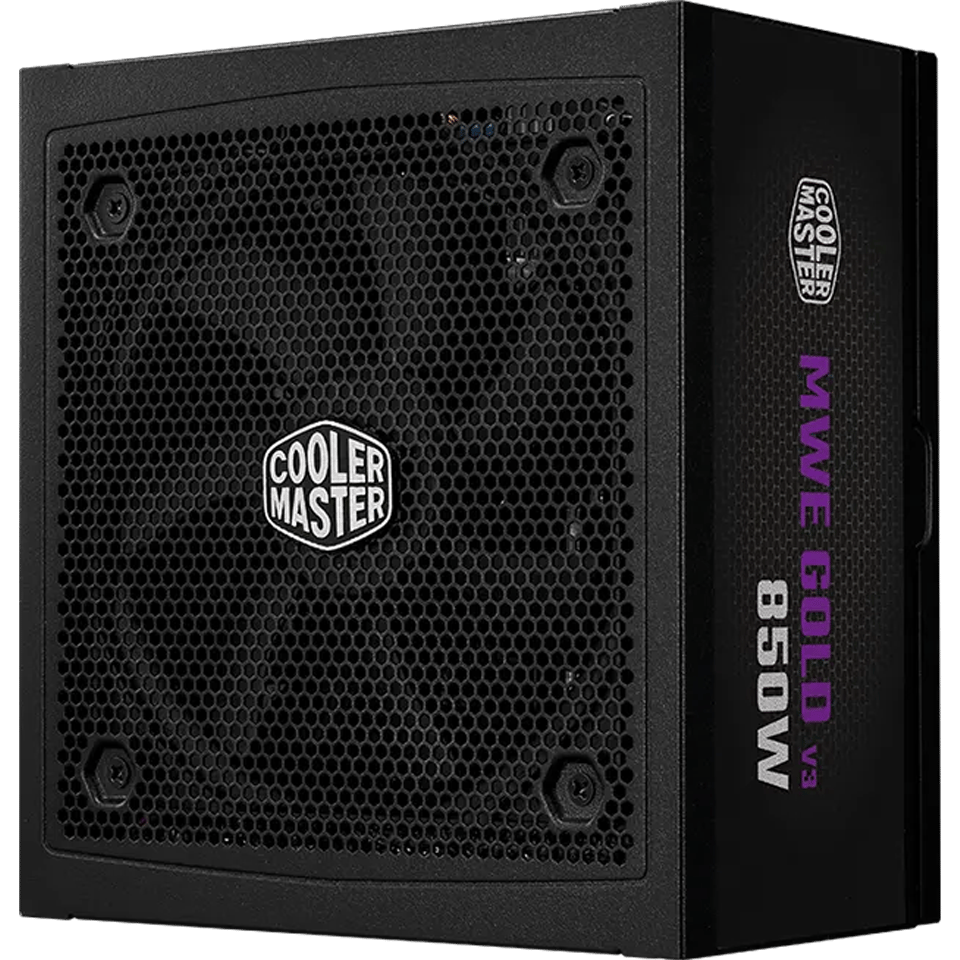

850W Cooler Master MPX-8503-AFAG-2EBUK Modular 80 Plus Gold PSU
The Cooler Master MWE Gold 850 V3 ATX 3.1 is a powerful and reliable power supply made to handle today’s gaming PCs and future upgrades. It delivers up to 850 watts of clean and stable power, which is more than enough for high-end graphics cards and fast processors. With its 80 Plus Gold rating, this power supply runs efficiently, meaning it wastes less energy as heat and helps keep your system cool while saving on electricity. It also comes with a special 12V-2x6 PCIe 5.1 connector, which is the newest standard for powering next-generation graphics cards. This makes it a great choice if you want to be ready for the latest and most demanding games.

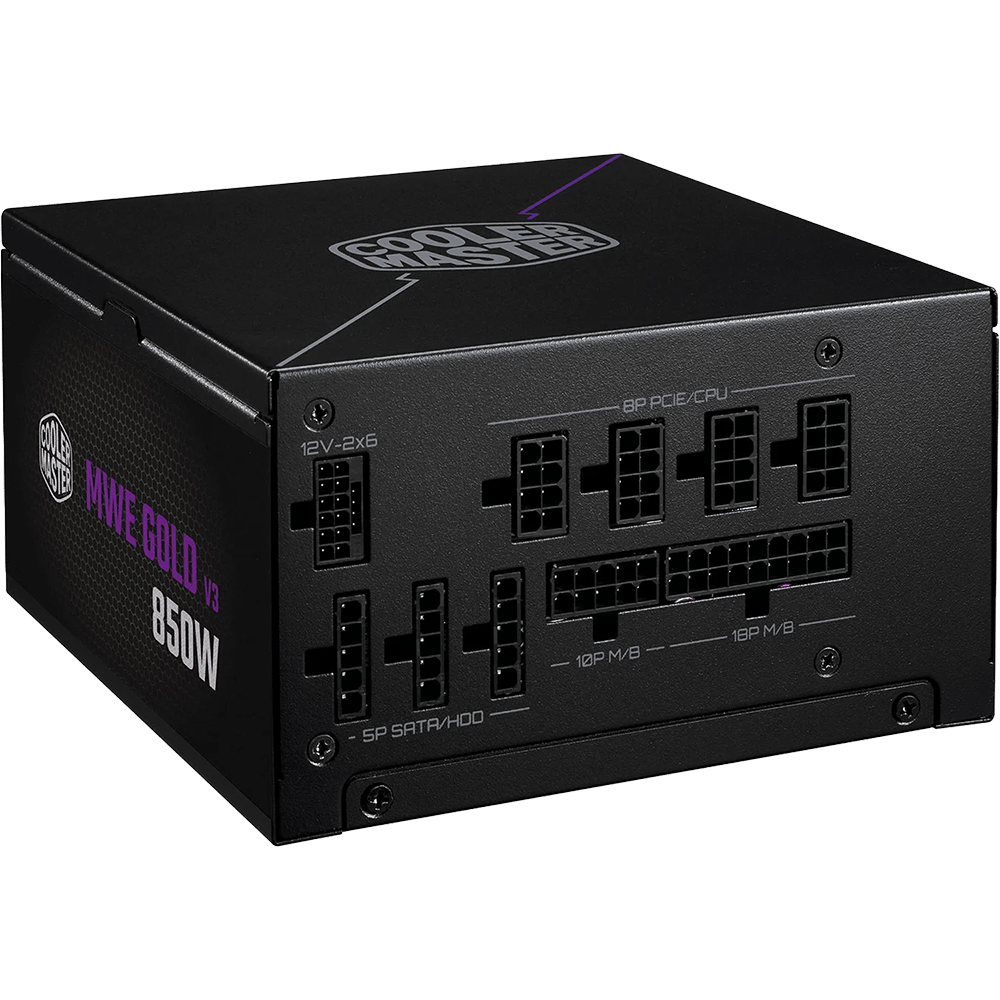

The design focuses on quiet performance and easy building. It has a Zero RPM fan mode, so the fan doesn’t spin at low loads, keeping your computer silent when you’re just browsing or watching videos. When things heat up, the fan turns on to keep everything running smoothly. The power supply is also fully modular, which means you only plug in the cables you need. This makes cable management cleaner and helps your case look better inside. With high-quality Japanese capacitors, long-lasting parts, and a 10-year warranty, the Cooler Master MWE Gold 850 V3 ATX 3.1 is built to keep your PC powered safely and reliably for years to come.
Attributes
- Cable length: Varies by type, up to ~600mm (main cables)
Interfaces/Ports

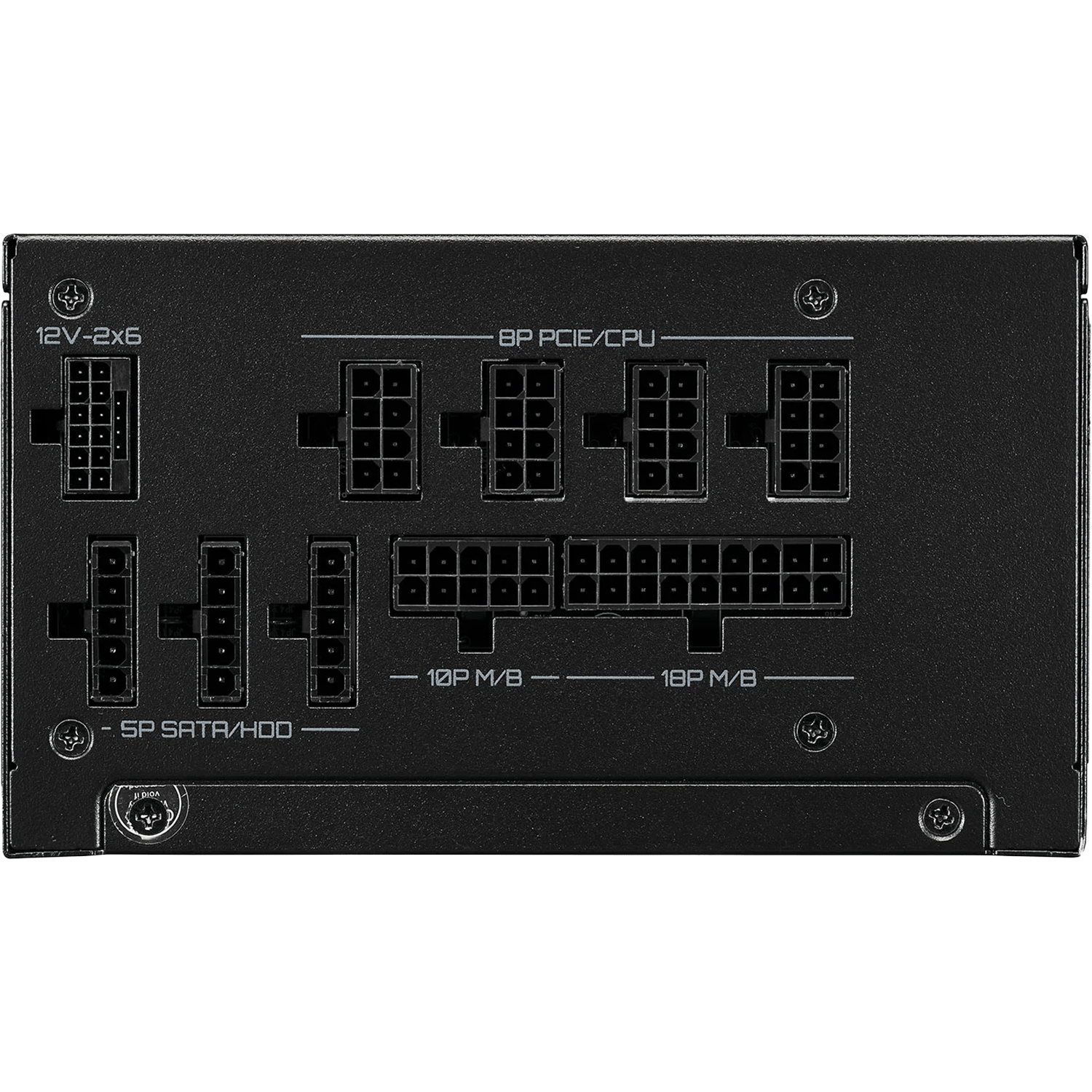

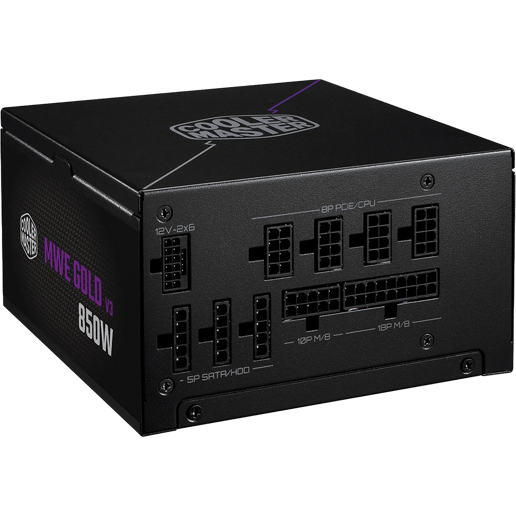

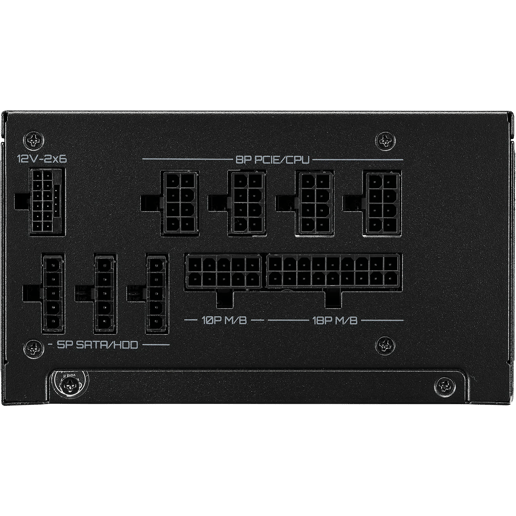

- Power Connectors: 1 x ATX 24-pin, 1 x EPS 8-pin, 1 x EPS 4+4-pin, 4 x PCIe 6+2-pin, 1 x 12V-2x6, 6 x SATA, 2 x Molex
- SATA Connectors: 6
- CPU Connectors: 1 x EPS 8-pin + 1 x EPS 4+4-pin (2 total)
- PCI Connectors: 4 x PCIe 6+2-pin, 1 x 12V-2x6 (PCIe 5.1)
- Motherboard Connectors: 1 x ATX 24-pin
- Molex Connectors: 2
- Berg Connectors: 0
- Floppy Connectors: 0

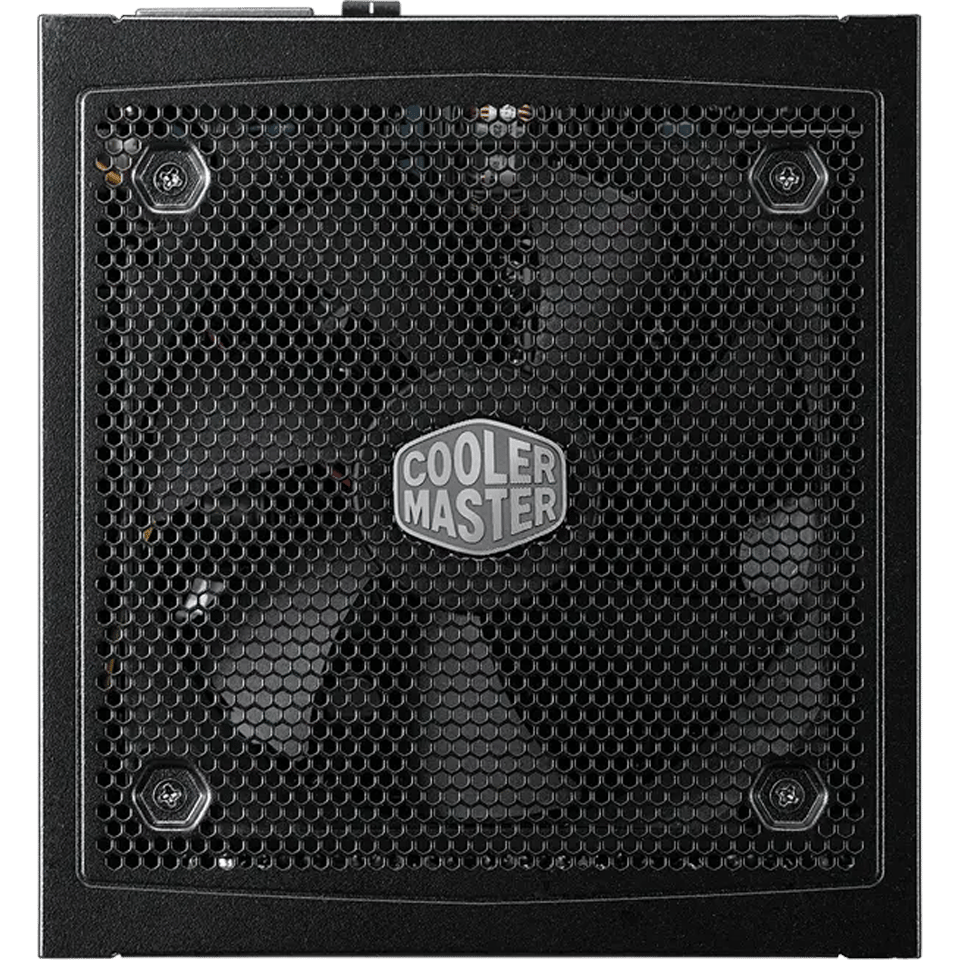

- Fan Connectors: N/A (internal 120mm HDB cooling fan only)
- Auxiliary Connectors: None
- RJ-45 Connectors: 0
- Other Connectors: None
Compatibility
- Compatibility: ATX 12V Ver. 3.1, PCIe 5.1 GPUs, backward compatible with standard ATX motherboards and cases
Compliance
- Standards: 80 PLUS Gold, ErP 2014 Lot 3, RoHS2.0, Safety: cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS, KC (varies by region)
- Safety: cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0, BIS, KC (varies by region)
Electrical

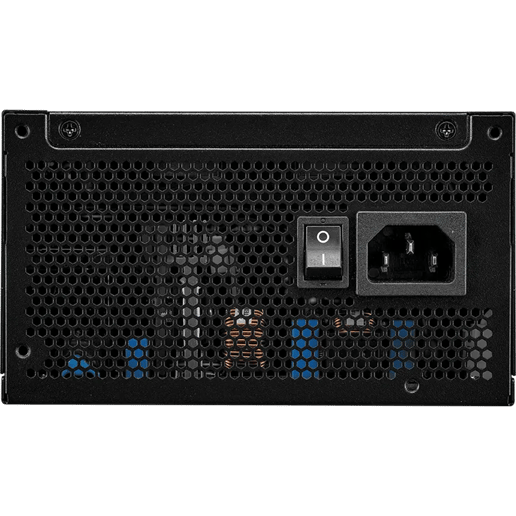

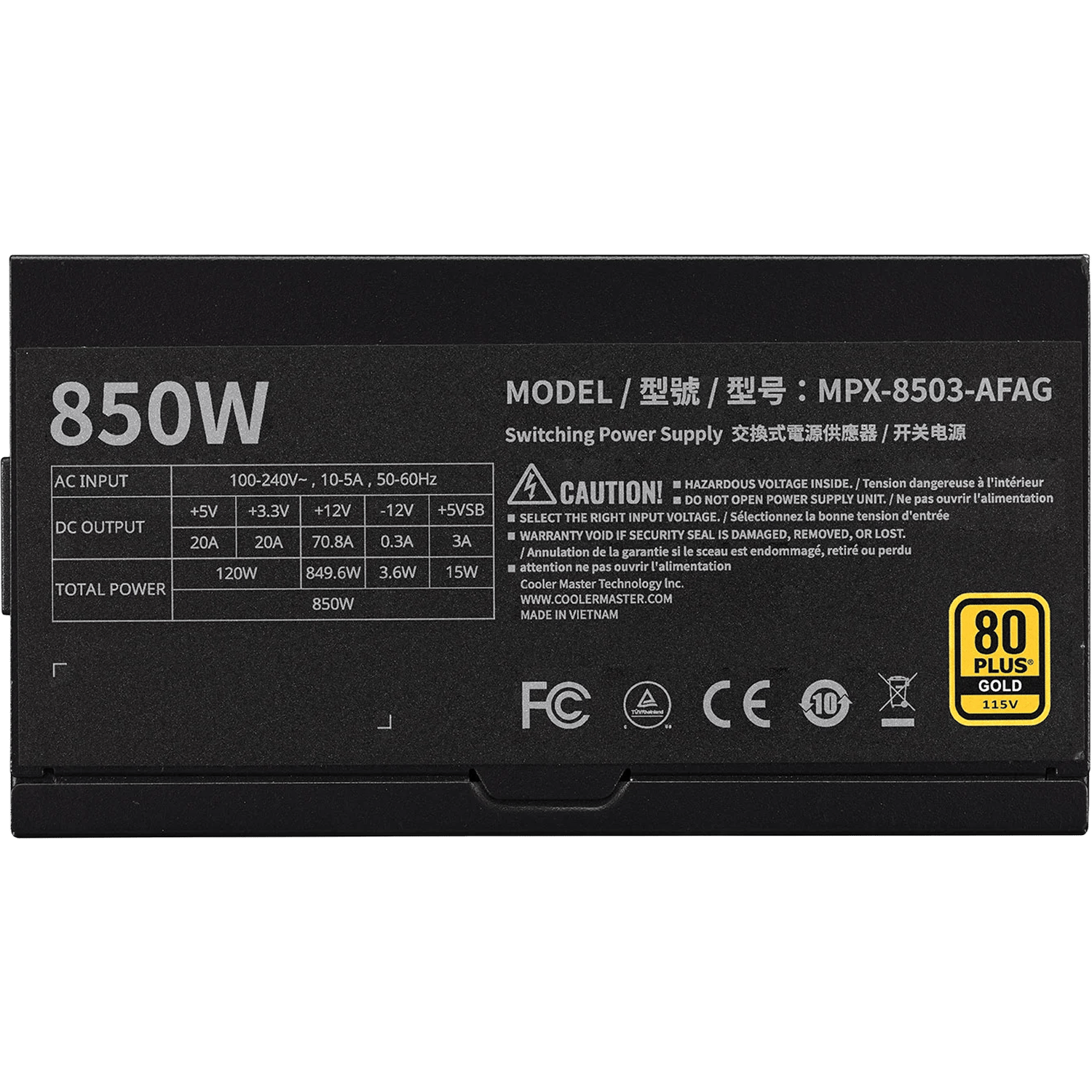

- Voltage: 100 - 240V
Physical
- Form Factor: ATX
Electrical
- Power: 850W
- Frequency Range: 50 - 60Hz
- Power over Ethernet (PoE): No
- Power Over LAN Output: No

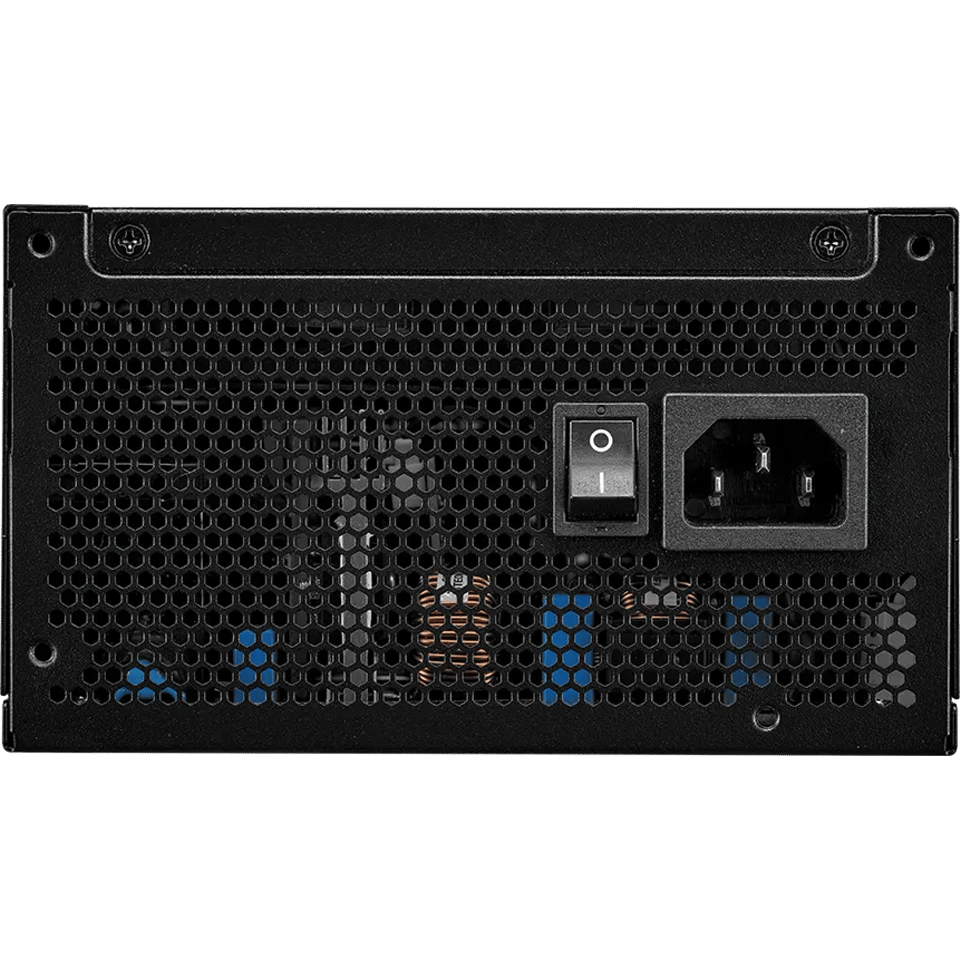

- Power Cord: 1 x AC Power Cable (region-specific)
Environmental
- Operating Temperature: 0 - 40øC
- Operating Humidity: 20%-85% (non-condensing, typical for PSU - Cooler Master does not specify exact but this is standard range)
- Storage Temperature: -40-70øC (typical PSU rating, Cooler Master not explicit, use standard safe storage range)
Physical
- Form Factor: ATX
- Case Colour: Black
- Pack Quantity: 1
- In The Box: PSU Unit, Modular Cables, 1 x AC Power Cable, User Manual, Warranty Info
- Width: 150 mm
- Depth: 160 mm
- Height: 86 mm
- LED Status Indicators: None
Warranty
- Warranty: 10 Years
Attributes
- PCMCIA Slots: 0
Identifiers
- Stock Code: PSU2514
- Mfg Code: MPX-8503-AFAG-2EBUK
Warranty
- Warranty: 10 Years
