The MPG Z790 CARBON WIFI motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.
Form Factor: ATX
Socket Type: LGA 1700
Chipset: Intel Z790

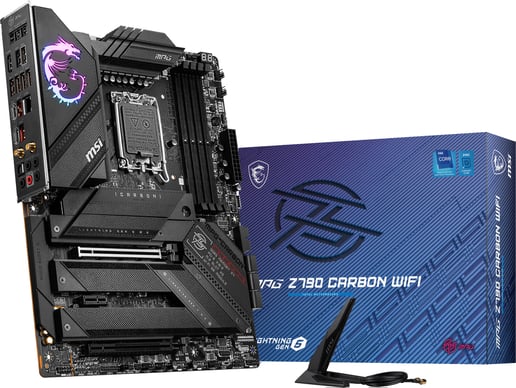

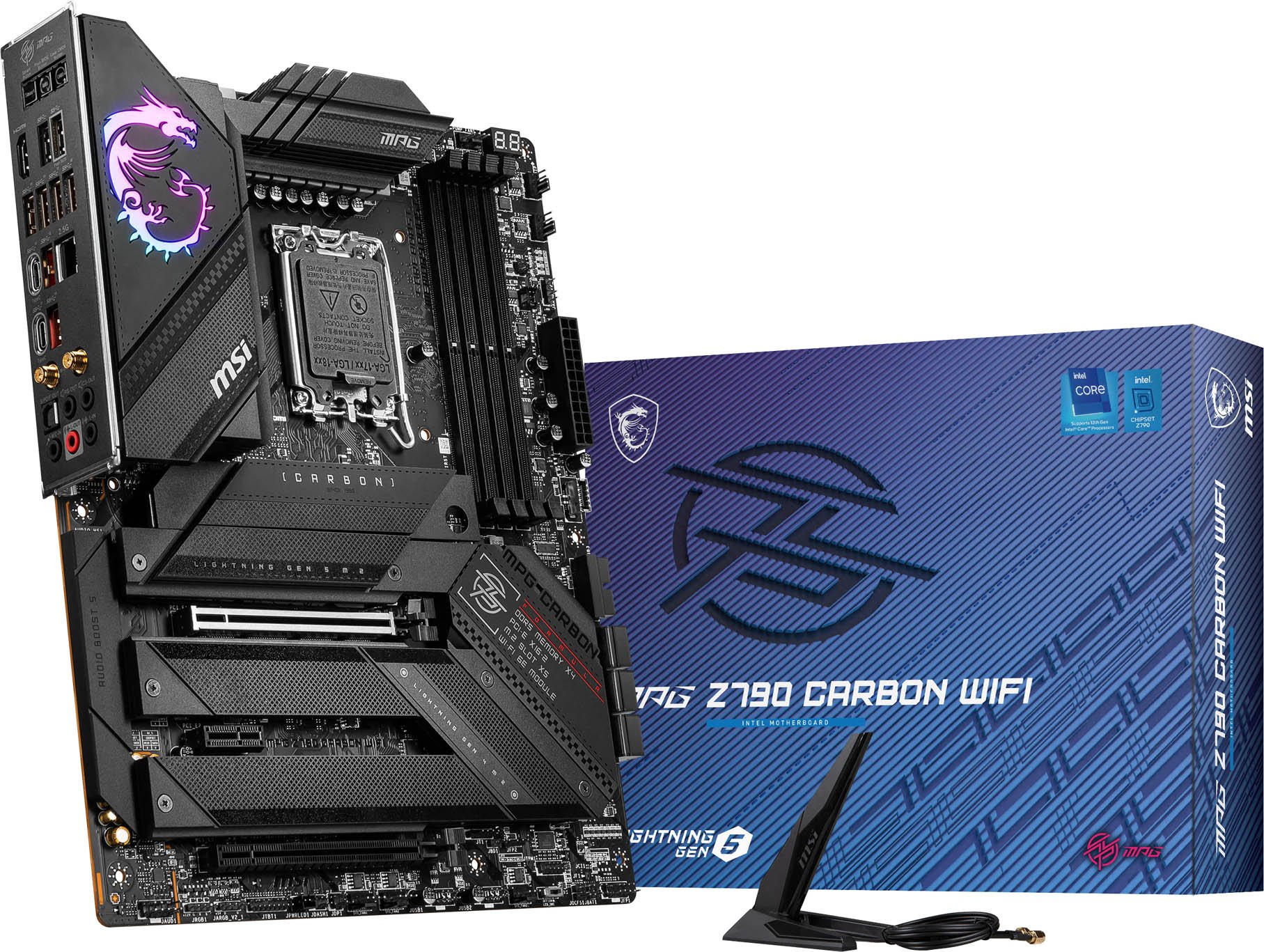

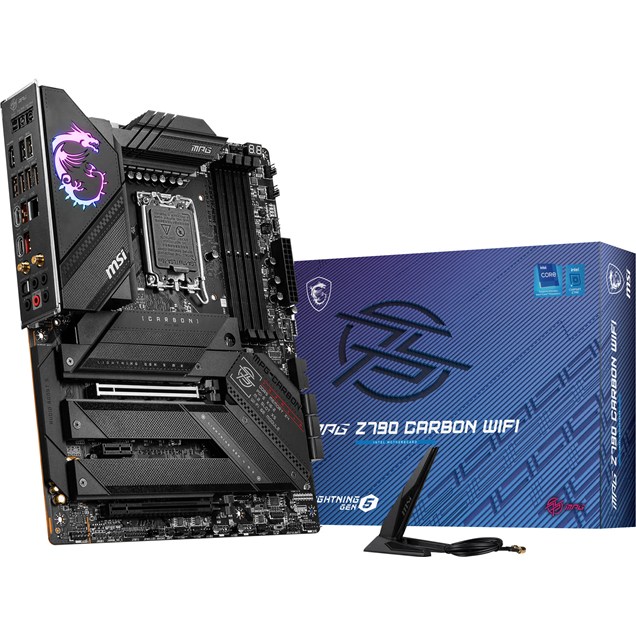

MSI MPG Z790 CARBON WIFI ATX Motherboard for Intel Socket 1700 CPUs
£230.99
MPG Z790 CARBON WIFI
MSI MPG Z790 CARBON WIFI ATX Motherboard for Intel Socket 1700 CPUs
C Grade
FORM FACTOR: ATX
SOCKET: SOCKET 1700
MEMORY: DDR5 (MAX: 128GB)
STORAGE: 5 X M.2, 6 X SATA
WI-FI: BUILT-IN
USB: 10 PORT(S)
£230.99 INC VAT
SAVE £106
Available for delivery from Tuesday 4th August
Click & Collect from Tomorrow
Low stock - don't miss out
Order within
You have 0 of these in your basket
QTY
1
Need Help?
CCL Code: MBD3338XC1
Please note that this is a C Grade clearance item. C Grade items may have missing accessories or show signs of cosmetic wear. See below for details of this specific item. The price has been reduced to reflect this.
Missing Antenna
All C Grade items are working and have been fully tested.
This item is supplied with a Warranty: 6 Month warranty.
Perform in Style

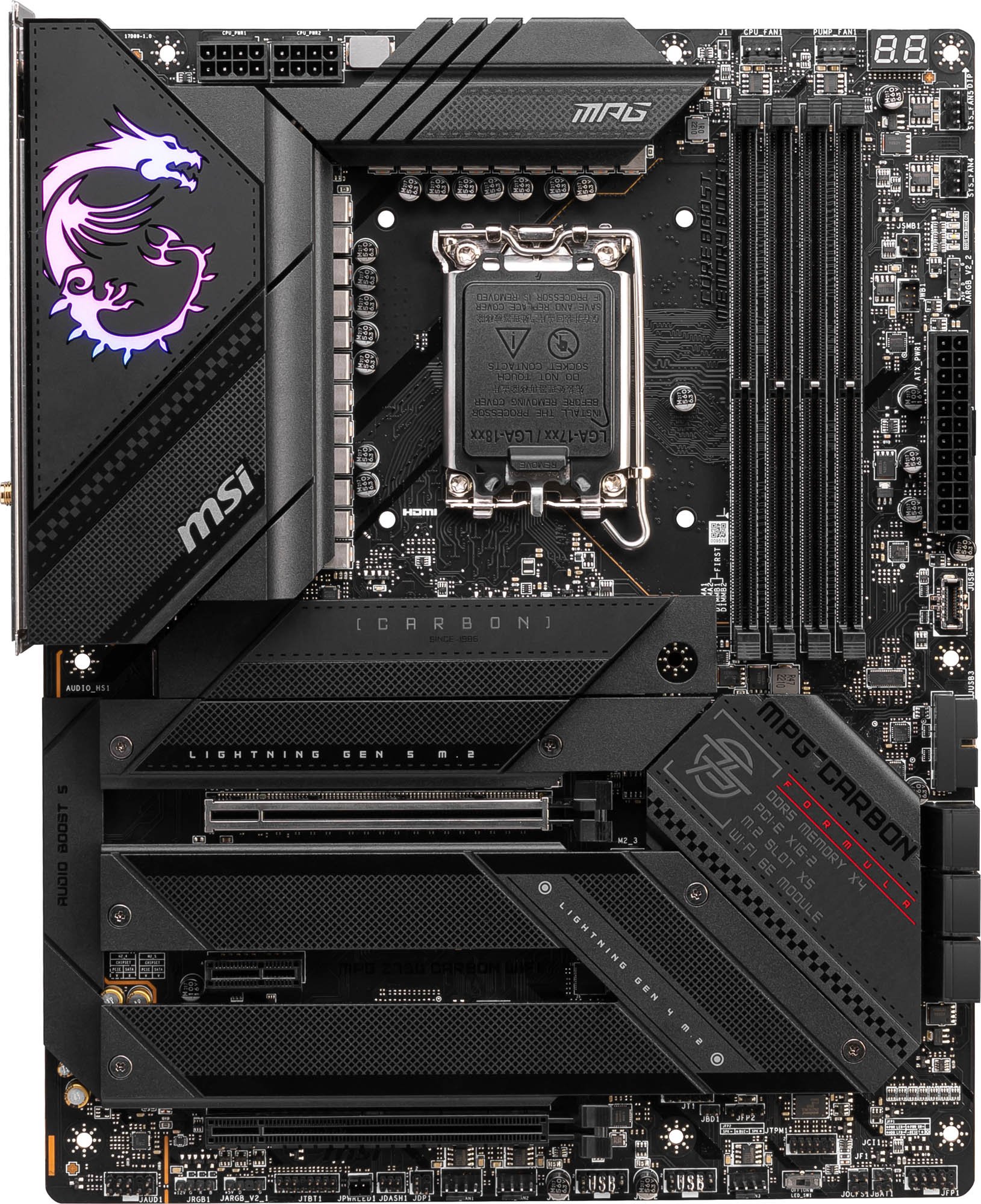

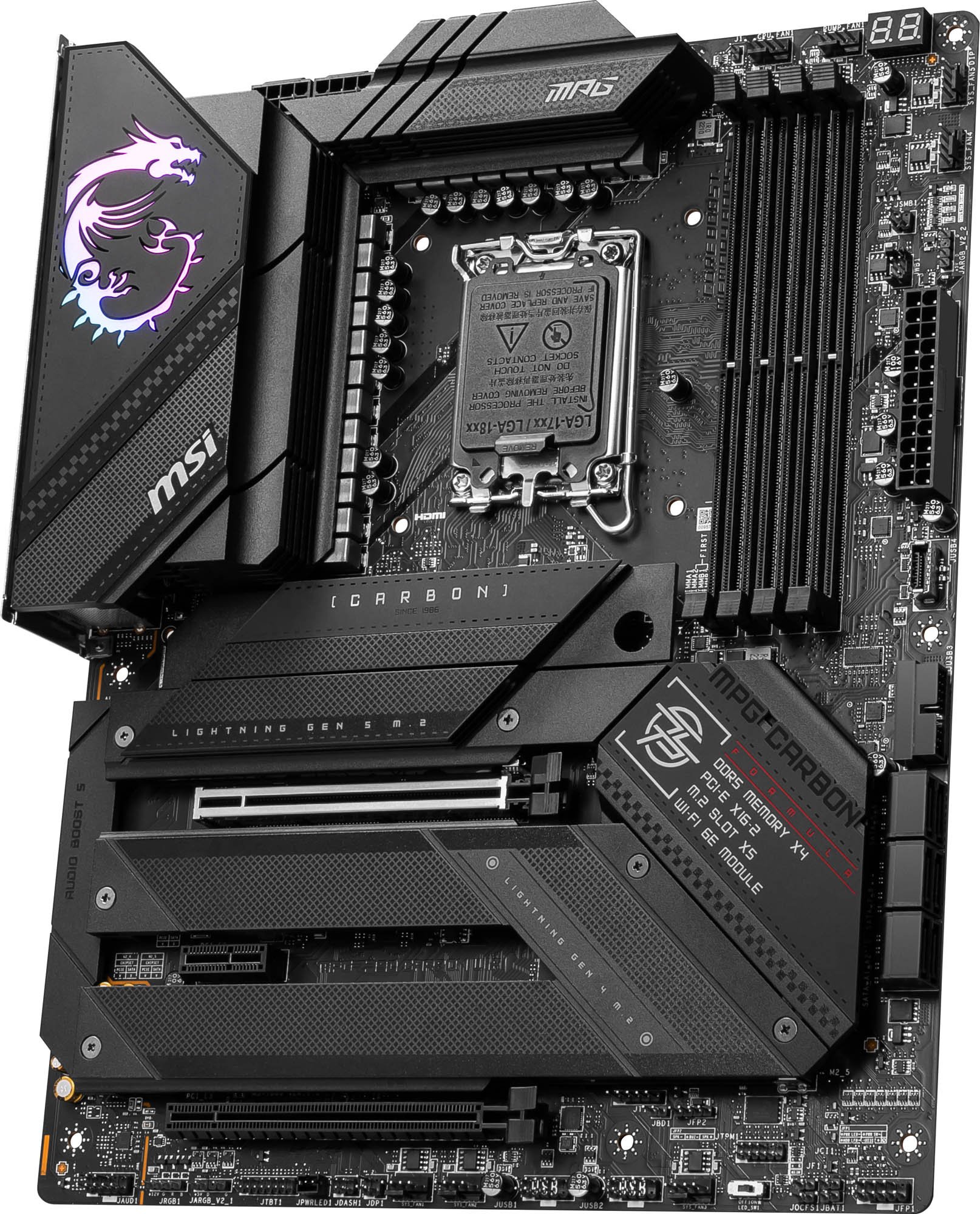

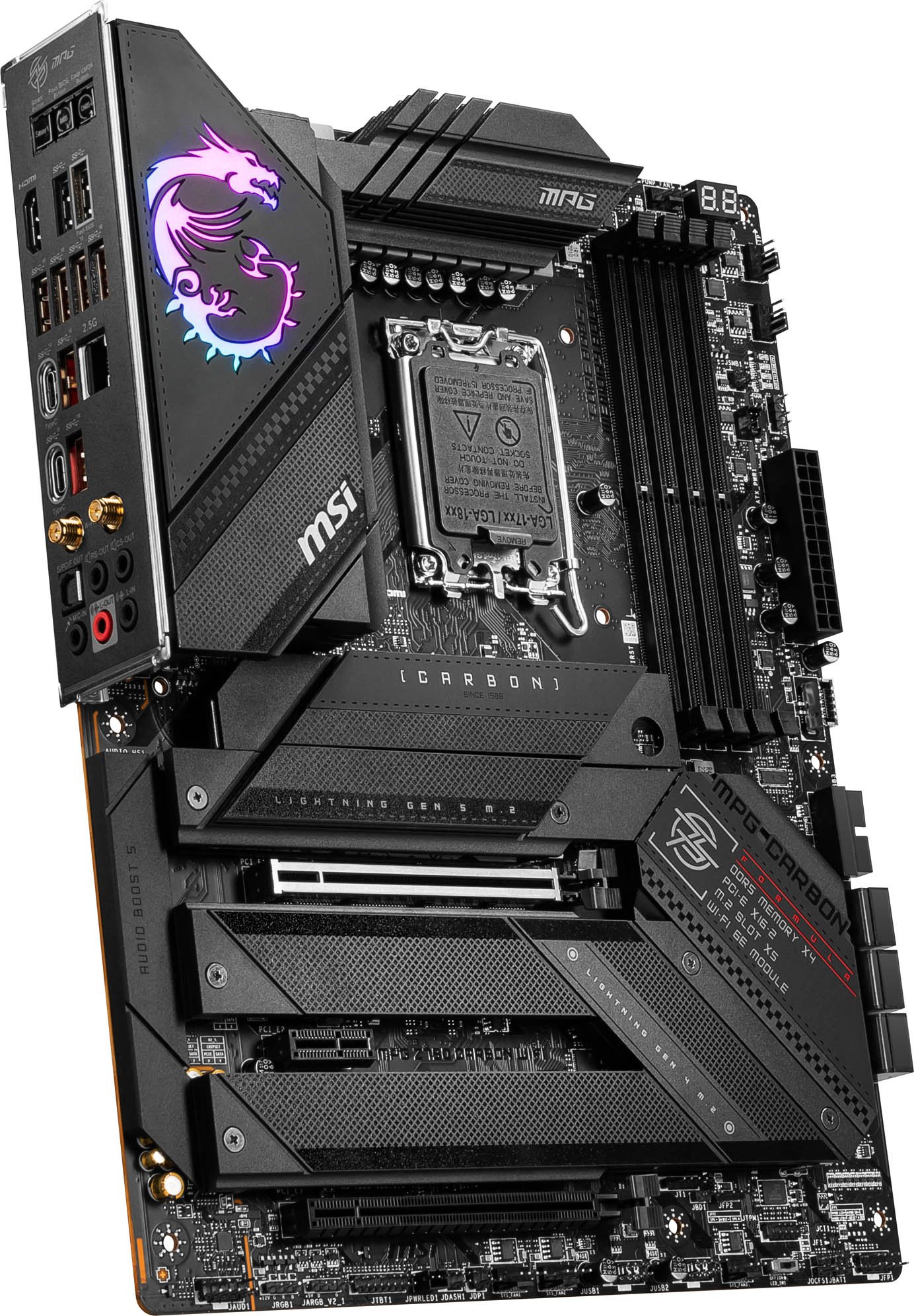

The MPG Z790 CARBON WIFI is a gaming oriented ATX motherboard constructed around the latest Intel Z790 chipset that delivers both performance and style.
Supports Intel Core 12th & 13th Gen Processors
Direct 19+1+1 phase VRM Power with 105A Smart Power Stage
With exclusive Core Boost technology, the MPG Z790 CARBON WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
1. Digital PWM IC
2. 19-Phase direct CPU power (105A)
3. 1-Phase GT Power
4. 1-Phase AUX Power
Integrated Cooling Features
VRM Cooling: Features an Extended Heatsink design, MSI direct-touch heat pipe, extra choke thermal pads and 7W/mK MOSFET thermal pads for improved thermal dissipation.
SSD Cooling: Double-sided M.2 Shield Frozr prevents thermal throttling.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.
PCB Cooling: Premium 8-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
Fortified PCI-e 5.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with SMT solder welding to improves signal clarity. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
1 x PCI-e 5.0/4.0/3.0 x16 slot (with Steel Armor)
1 x PCI-e 4.0/3.0 x16 slot
1 x PCI-e 3.0 x1 slot
*MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
4 x DDR5 Dual Channel (7600+ MHz OC)
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 7600 MHz, supports Intel XMP.
Gen5 M.2 Connector
The MPG Z790 CARBON WIFI motherboard features MSI's latest M.2 slots:
1 x Gen5 x4 128Gb/s slot
4 x Gen4 x4 64Gb/s slots
M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
Tool-Free M.2 Shield Frozr: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.
Wi-Fi 6E & Bluetooth 5.2
2.5G LAN: An Intel 2.5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 6E: Features the latest Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.
USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.
HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 & S/PDIF output.
MPG Z790 CARBON WIFI employs carbon black color scheme and RGB lighting to show off different personality and identity. Besides being stylish, it is also powerful.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: Intel
- Supported Processors: 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
- 64-bit Support: Yes
- Socket: LGA1700

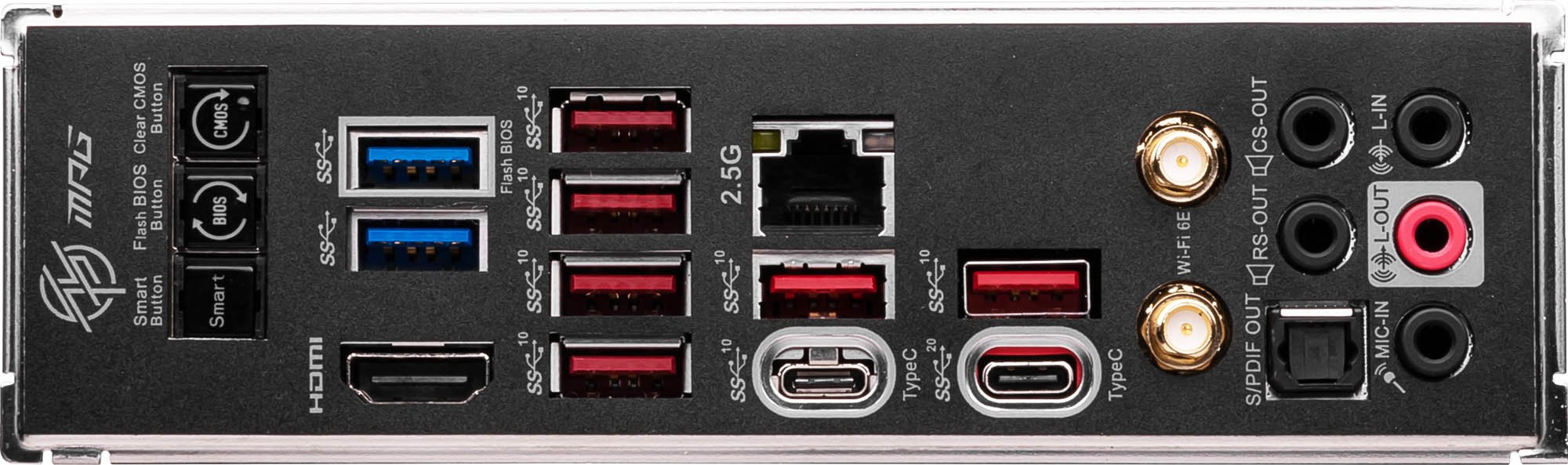

Rear Panel I/O Ports
- USB Ports: 1 x USB-C 3.2
- 1 x USB-C 3.1
- 6 x USB 3.1
- 2 x USB 3.0
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 6 x SATA III
- USB Connectors: 1 x USB-C 3.2 header (supports 1 port)
- 1 x USB 3.0 header (supports 2 ports)
- 2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 7600 (OC) MHz
- Memory Type: DDR5
Motherboard
- Northbridge: Z790
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 5, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 3 x 3.5mm Jacks
- Microphone In Port: 1 x 3.5mm Jack
- S/PDIF Port: 1 x S/PDIF Optical Out
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x Pump fan header
- 5 x System fan headers
- Thunderbolt Port(s): 1 x TBT header (supports RTD3)
- Chassis Intrusion Connector: 1 x Chassis Intrusion heaedr
- TPM Header: 1 x TPM header
- Power Connector Port: 1 x 24-pin ATX
- 2 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Type 2260/2280/22110 (PCIe Gen5)
- 3 x M.2 slots, Type 2260/2280 (PCIe Gen4)
- 1 x M.2 slot, Type 2260/2280 (PCIe Gen4 or SATA)
- 2 x 3-pin ARGB LED headers
- 1 x 4-pin RGB LED header
- 1 x Tuning Controller header
Expansion
- Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
- 1 x PCI Express 4.0 x16 slot (@ x4)
- 1 x PCI Express 3.0 x1 slot
Memory
- Maximum RAM: 128 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes (CPU dependant)
Sound
- Integrated Sound: Realtek ALC4080
Warranty
- Warranty: 6 Month
Network
- Integrated Network: Intel
- Network Speeds Supported: Up to 2.5 Gbps
- Wireless LAN: Yes (Wi-Fi 6E)
- Wireless Network Speed: Up to 2.4 Gbps
- Bluetooth: Yes
- Bluetooth Version: 5.2
System Requirements
- Operating Systems Supported: Microsoft Windows 11 64-bit
System
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: ATX Motherboard
- In The Box: Motherboard
- EU Regulatory Notice
- Quick Installation Guide
- 4 x EZ M.2 Clip Packages
- Wi-Fi Antenna
- Cable Stickers
- USB Drive
- 2 x SATA Cables
- JARGB Extension Cable
- JRGB Extension Cable (1 to 2)
- Width: 304.8 mm
- Length: 243.84 mm
Identifiers
- Stock Code: MBD3338XC1
- Mfg Code: MPG Z790 CARBON WIFI
Warranty
- Warranty: 6 Month
