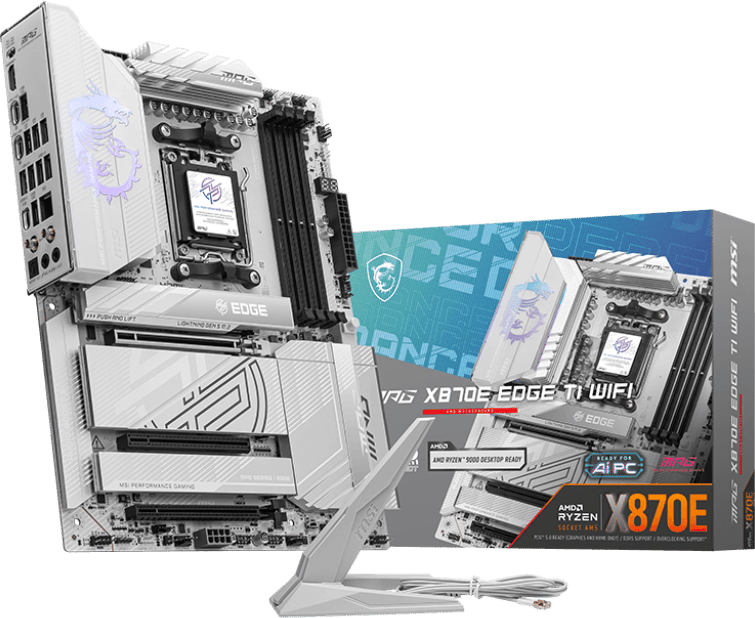

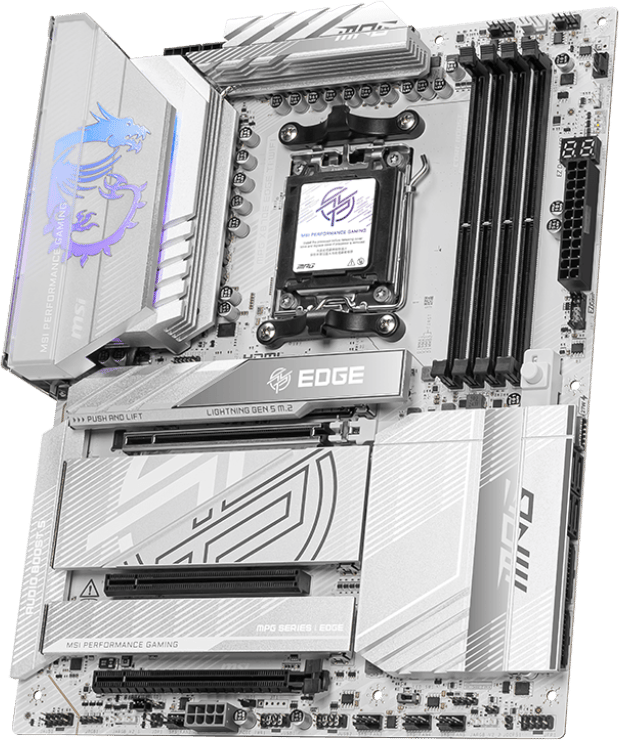

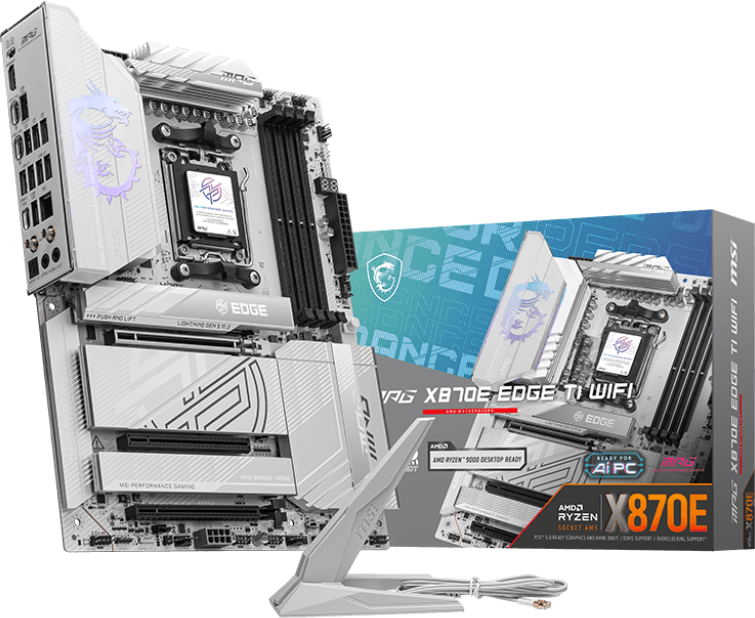

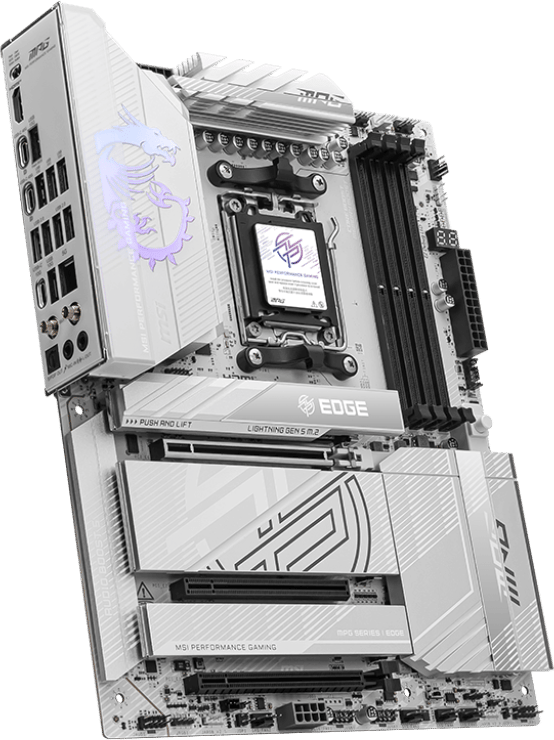

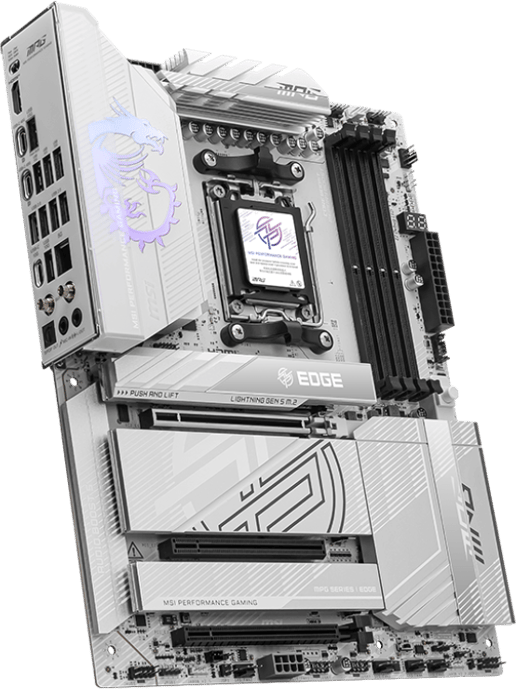

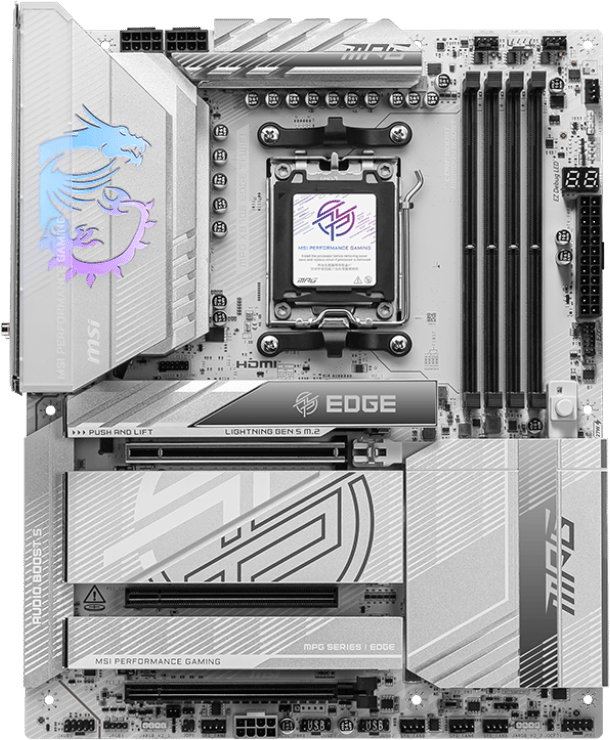

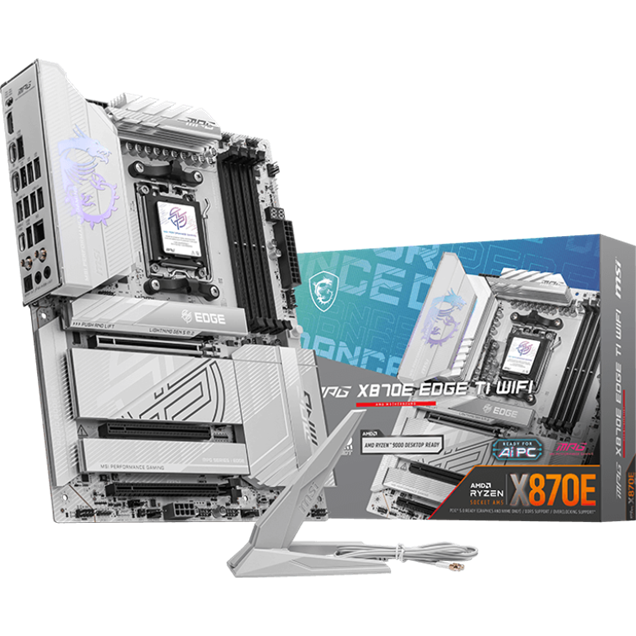

MSI MPG X870E EDGE TI WIFI ATX Motherboard for AMD AM5 CPUs

Compare

MSI MPG X870E EDGE TI WIFI ATX Motherboard for AMD AM5 CPUs

Name: MSI MPG X870E EDGE TI WIFI ATX Motherboard for AMD AM5 CPUs
Brand: MSI
SKU: MBD3881
Price: 349.99 GBP
Availability: InStock

MPG X870E EDGE TI WIFI

Was £442.44

SAVE £92

Now only

£349.99 inc VAT

Available for delivery from Wednesday 28th May

or Click & Collect from Wednesday 28th May

Buying in bulk? Contact our business team.

Add to Basket

Key Features:

ATX Form Factor
AMD X870E Chipset
Socket AM5
DDR5 (Max: 256GB / 4 slots)
4 x M.2 & 12 x USB & 4 x SATA
HDMI

CCL Code: MBD3881

Overview

MPG X870E EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, USB4, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme X870E ATX motherboard for AMD Ryzen™ 9000 series processors.

Specifications

CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	Ryzen 9000/ 8000/ 7000 Series Desktop Processors
64-bit Support	Yes
Socket	AM5

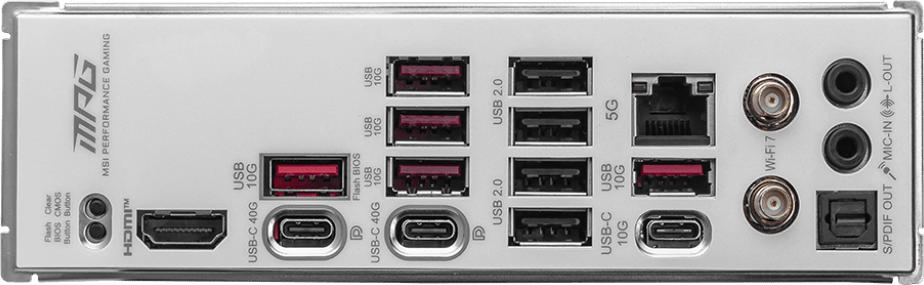

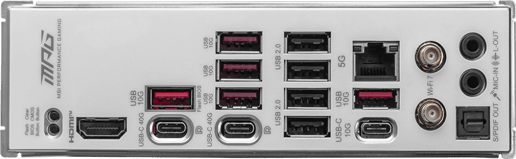

Rear Panel I/O Ports

USB Ports	2 x USB-C 4 1 x USB-C 3.1 5 x USB 3.1 4 x USB 2.0
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA
USB Connectors	1 x USB-C 3.2 header (supports 1 port) 2 x USB 3.0 headers (supports 4 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x Combo fan header 6 x System fan headers
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x TPM header
Power Connector Port	1 x 24-pin ATX 2 x 8-pin EPS 1 x 8-pin PCIe
Other Connectors	1 x M.2 slot, Type 2280/22110 (PCIe Gen5) 1 x M.2 slot, Type 2260/2280 (PCIe Gen5) 2 x M.2 slots, Type 2260/2280 (PCIe Gen4)

Memory

Memory Bus Speed	Up to 8400 MT/s
Memory Type	DDR5
Maximum RAM	256 GB
Memory Slot	2 x DIMM

Motherboard

Northbridge	AMD X870E
RAID Supported	Yes
RAID Format	RAID 0, 1, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
1 x PCI Express 3.0 x16 slot (@ x1)

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek ALC4080

Network

Integrated Network	Realtek 8126
Network Speeds Supported	Up to 5 Gbps
Wireless LAN	Yes - Wi-Fi 7
Wireless Network Speed	Up to 5.8 Gbps
Bluetooth	Yes
Bluetooth Version	5.4

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard
In The Box	Motherboard EU Regulatory Notice Quick Installation Guide Cable Sticker Shout out flyer EZ Wi-Fi Antenna M.2 Plate Screw EZ M.2 Clip II Remover USB Drive 2 x SATA Cables 1 to 3 EZ Conn-Cable (V2) EZ Front Panel Cable
Width	244 mm
Length	305 mm

Key Features

Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
Main Colour	White
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	12 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	ATX
Motherboard (EPS) Power Connectors	2 x 8-Pin
Motherboard Chipset	AMD X870E
Thunderbolt	No
Motherboard Model	MSI MPG X870E EDGE TI WIFI
WiFi Speed	5800 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	MSI Mystic Sync
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	5600 MT/s
Max Memory Speed Supported (overclocked)	8400 MT/s
CPU Power Pins (female)	16
PCI Express Power Pins (female)	8
Total M.2 Slots	4
Maximum NVMe M.2 ports	4
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	4
No. of front USB-C ports supported	1
Back Connect Support	No
