CPU

• Installed Processors (Max): 0 (1)
• Supported Processor Manufacturer: AMD
• Supported Processors: AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
• 64-bit Support: Yes
• Socket: AM5

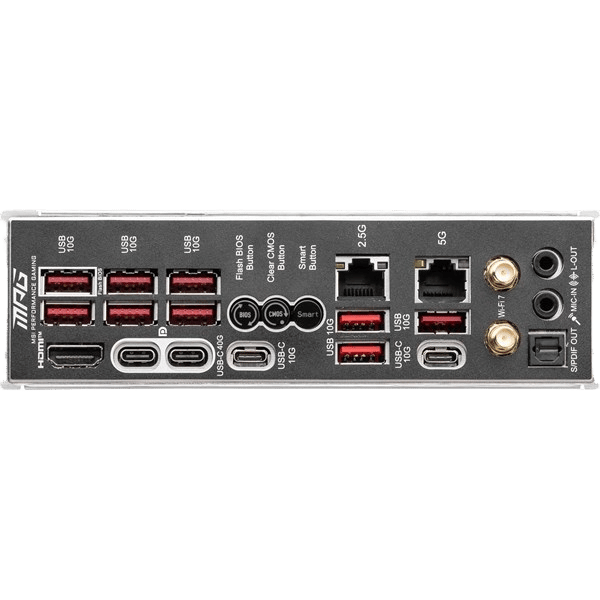

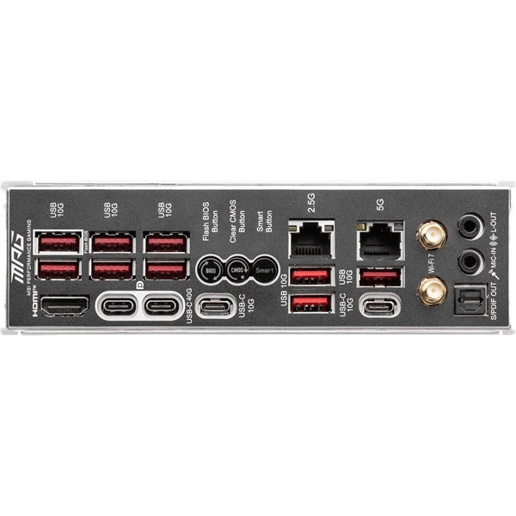

Rear Panel I/O Ports

• USB Ports: 2 x USB-C 4
• 2 x USB-C 3.1
• 9 x USB 3.1
• DisplayPorts: Yes via USB-C
• HDMI Port: 1 x HDMI 2.1

Internal I/O Connectors

• SATA Connectors: 4 x SATA III
• USB Connectors: 1 x USB-C 3.2 header (supports 1 port)
• 2 x USB 3.0 headers (supports 4 ports)
  2 x USB 2.0 headers (supports 4 ports)

Memory

• Memory Bus Speed: Up to 8400 MT/s
• Memory Type: DDR5

Motherboard

• Northbridge: AMD X870
• RAID Supported: Yes
• RAID Format: RAID 0, 1, 10
• SATA Supported: Yes

Rear Panel I/O Ports

• RJ-45 Ports: 2 x RJ-45
• Audio Line Out Ports: 1 x 3.5mm Jack
• Microphone In Port: 1 x 3.5mm Jack
• S/PDIF Port: 1 x S/PDIF Optical Out
• Antenna Connector(s): 2 x SMA Antenna

Internal I/O Connectors

• Front Panel Connectors: 1 x Front Panel
• 1 x Front Audio
• Cooling Fan Support: 1 x CPU fan header
• 1 x Combo fan header
• 5 x System fan headers
• Chassis Intrusion Connector: 1 x Chassis Intrusion header
• Power Connector Port: 1 x 24-pin ATX
• 2 x 8-pin EPS
• 1 x 8-pin PCIe
• Other Connectors: 2 x M.2 slots, Type 2280/2260 (PCIe Gen5)
• 1 x M.2 slot, Type 22110/2280 (PCIe Gen4)
• 1 x M.2 slot, Type 2280/2260 (PCIe Gen4)
• 3 x 3-pin ARGB headers
• 1 x 4-pin RGB header
• 1 x Thermal Sensor header

Expansion

• Number of PCI Express Slots: 2 x PCI Express 5.0 x16 slots (@ x16/x4)
• 1 x PCI Express 4.0 x16 slot (@ x4)

Memory

• Maximum RAM: 256 GB
• Memory Slot: 4 x DIMM

Graphics Device

• Integrated Graphics Supported: Yes

Sound

• Integrated Sound: Realtek ALC4080

Warranty

• Warranty: 3 Years

Network

• Integrated Network: Realtek 8126
• Realtek 8125
• Network Speeds Supported: 8126: Up to 5 Gbps
• 8125: Up to 2.5 Gbps
• Wireless LAN: Yes - Wi-Fi 7
• Wireless Network Speed: Up to 5.8 Gbps
• Bluetooth: Yes
• Bluetooth Version: 5.4

System Requirements

• Operating Systems Supported: Windows 11

System

• Software Included: Yes
• Drivers: Yes

Physical

• Form Factor: ATX Motherboard

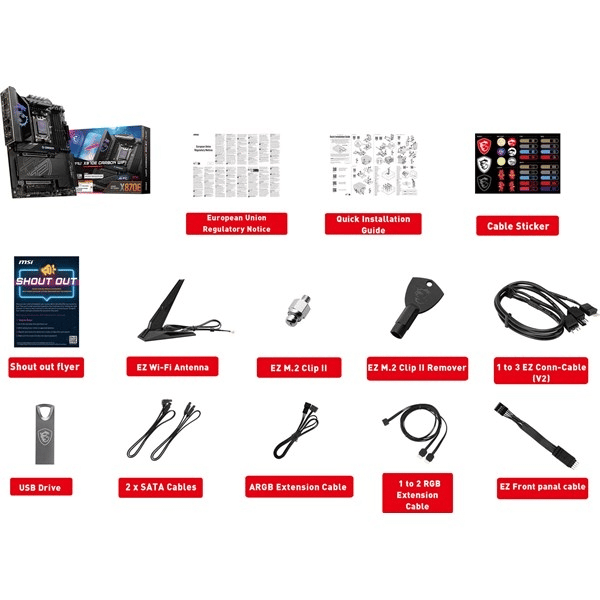

• In The Box: Motherboard
• EU Regulatory Notice
• Quick Installation Guide
• Cable Sticker
• Shout-out Flyer
• EZ Wi-Fi Antenna
• EZ M.2 Clip II
• EZ M.2 Clip II Remover
• 1 to 3 Conn-Cable V2
• USB Drive
• 2 x SATA Cables
• ARGB Extension Cable
• 1 to 2 RGB Extension Cable
• EZ Front Panel Cable
• Width: 244 mm
• Length: 305 mm

Identifiers

• Stock Code: MBD3715

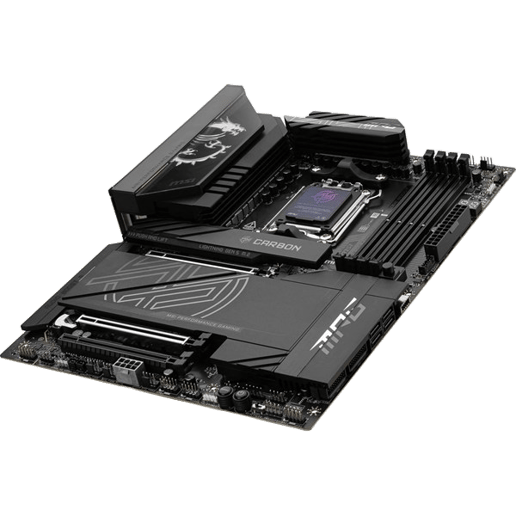

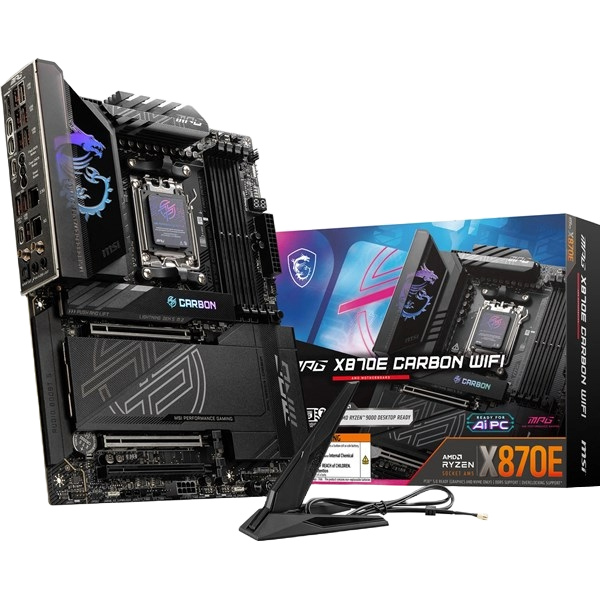

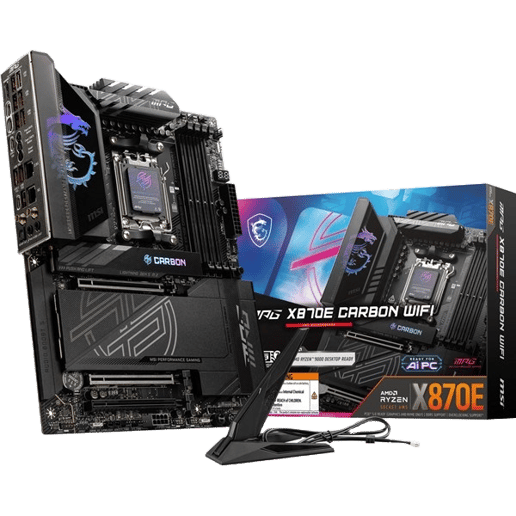

• Mfg Code: MPG X870E CARBON WIFI
