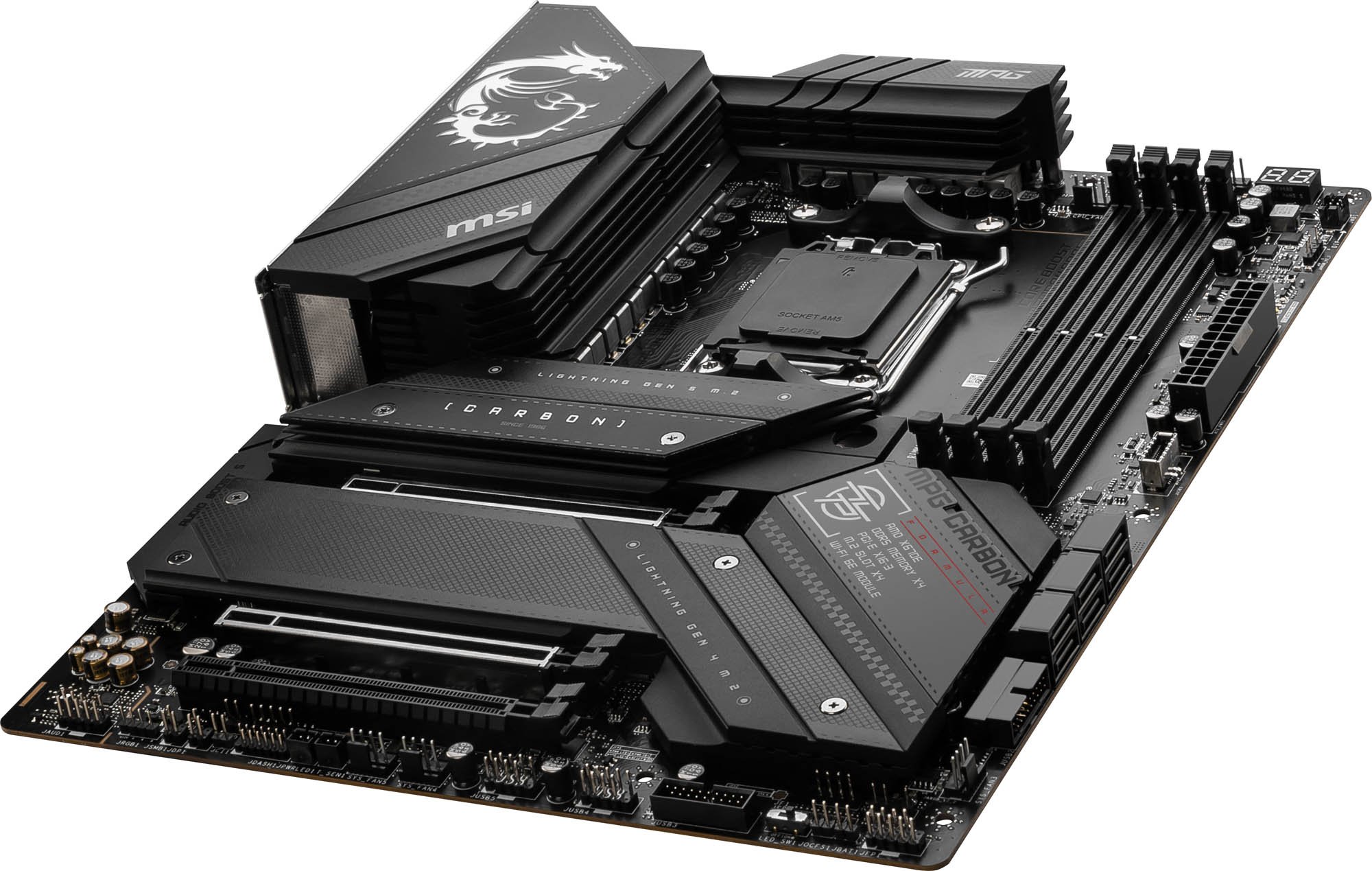

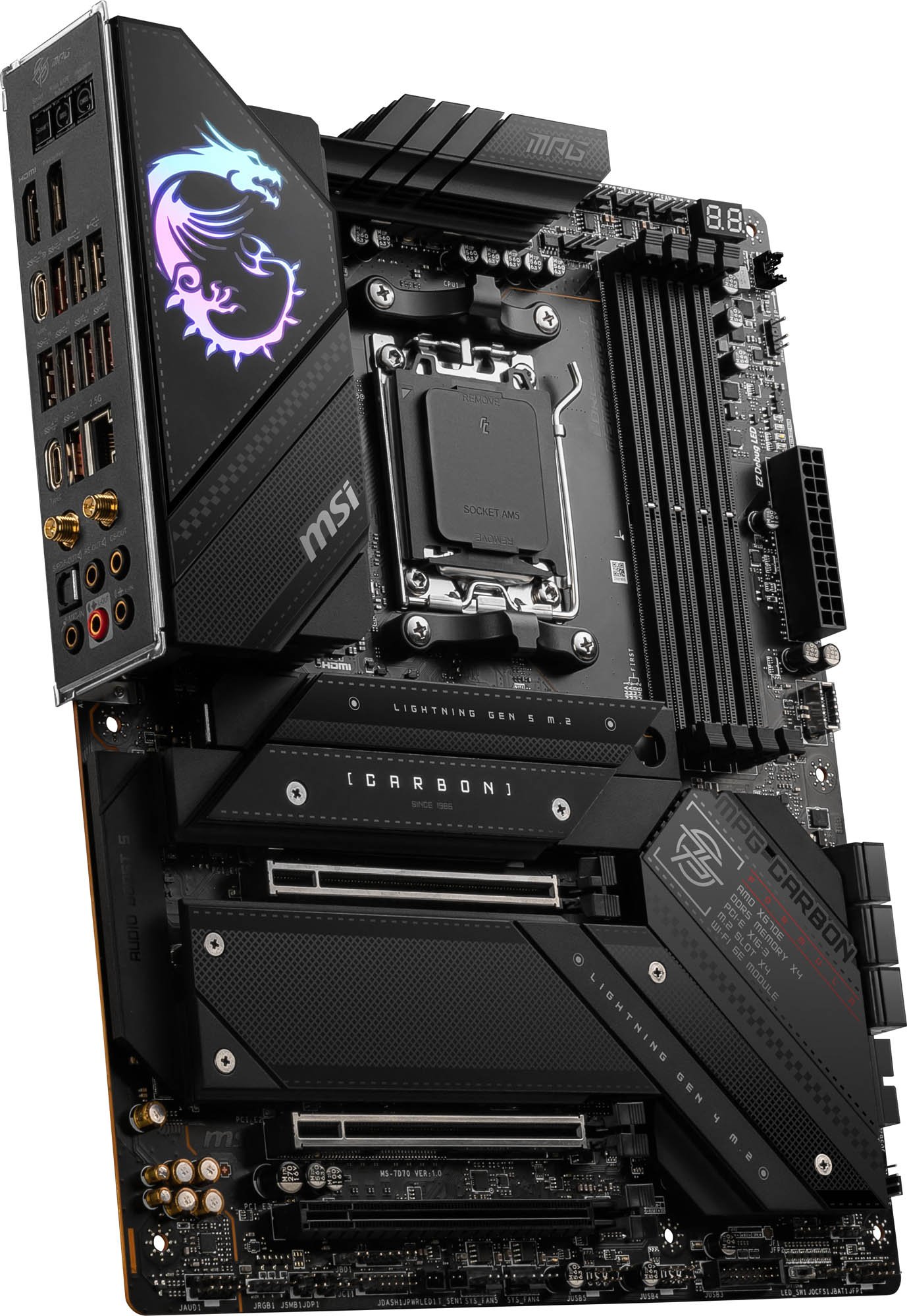

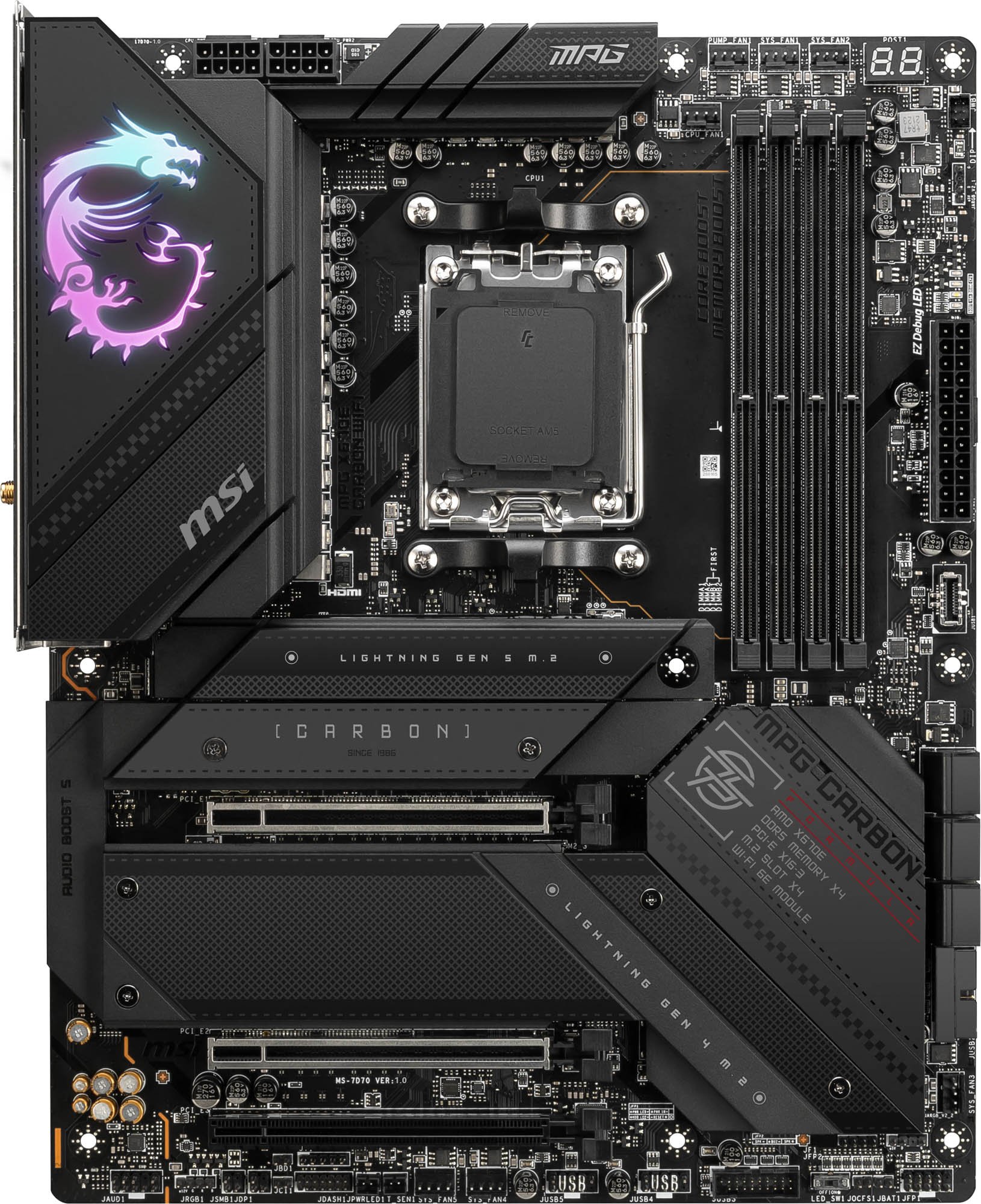

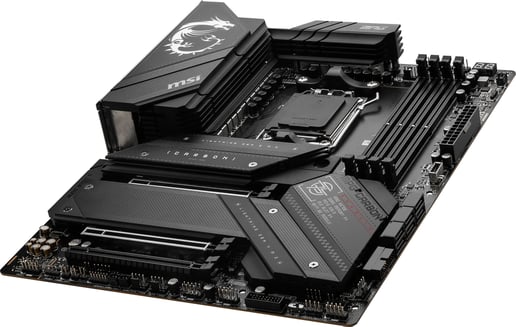

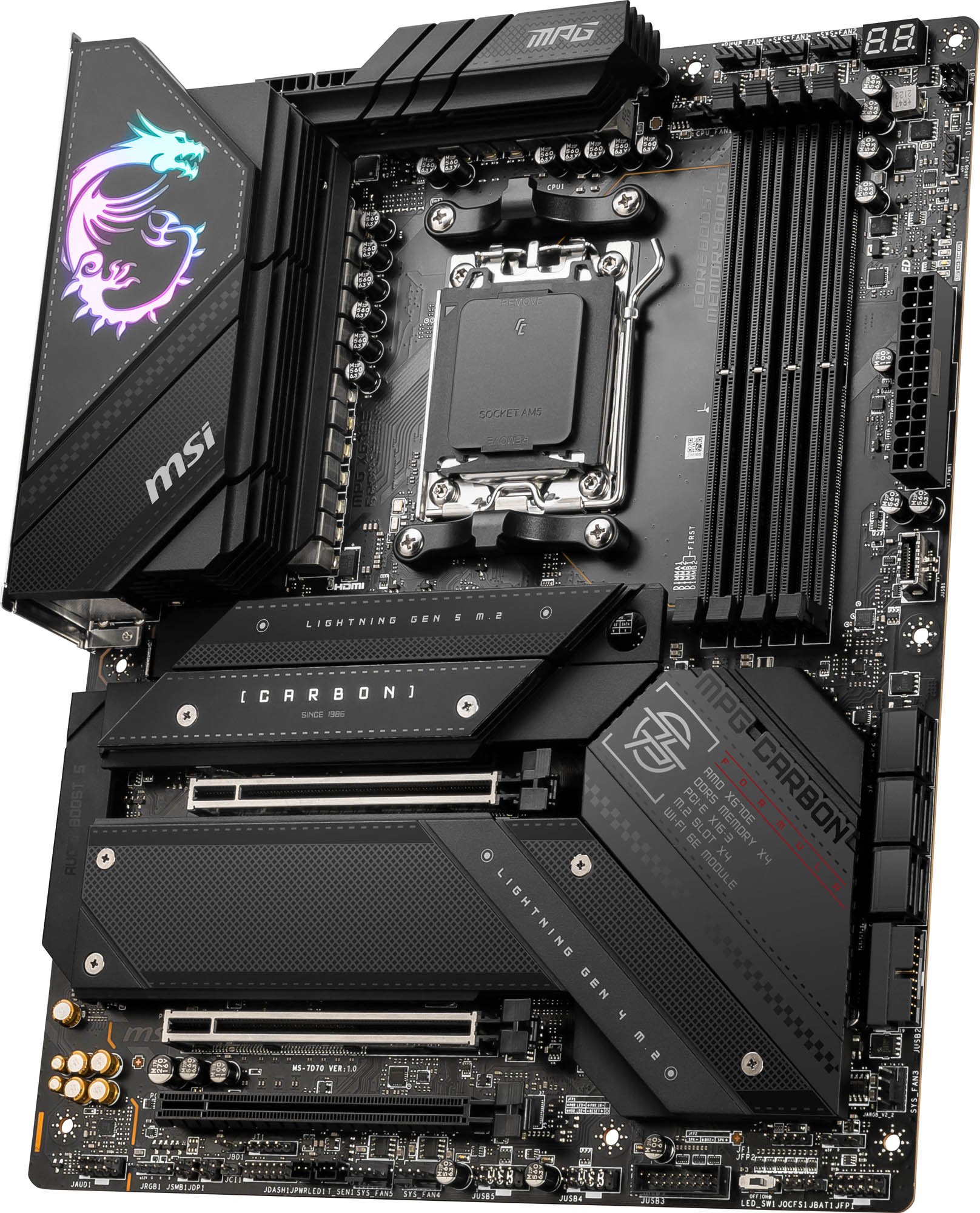

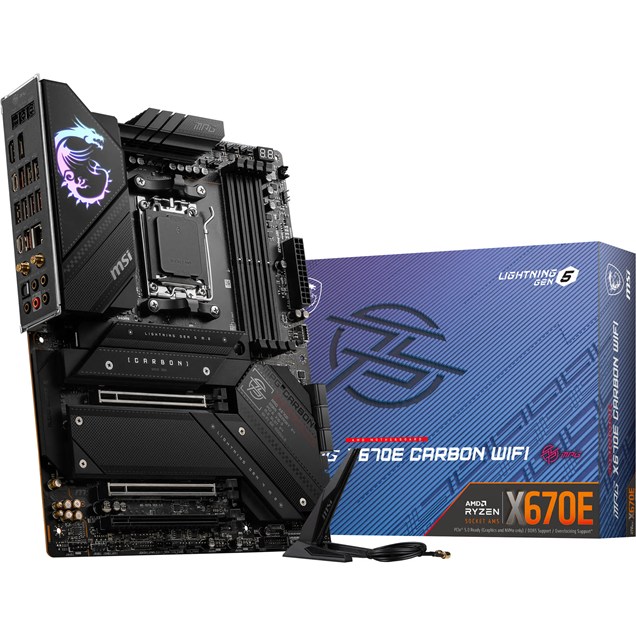

MSI MPG X670E CARBON WIFI ATX Motherboard for AMD AM5 CPUs

MSI MPG X670E CARBON WIFI ATX Motherboard for AMD AM5 CPUs

CCL Code: MBD3301

£539.99 inc VAT

MSI MPG X670E CARBON WIFI ATX Motherboard for AMD AM5 CPUs

MPG X670E CARBON WIFI

£539.99 inc VAT

Available for Free Priority Delivery from Tomorrow

10+ In Stock Now

Order within

Buying in bulk? Contact our business team.

Key Features:

  • Socket AM5
  • AMD X670E Chipset
  • 6 x SATA & 10 x USB Ports
  • DDR5 (max 128GB, 4 slots)
  • HDMI and Display Port
  • ATX Form Factor

Buy now, spread the cost
with PayPal Credit.

- or -

CCL Code: MBD3301
Overview

Perform in Style

For pro gamers looking for a high-performance AMD Ryzen 7000 series motherboard with dual PCI-e 5.0 x16 graphics card architecture, accelerated DDR5 memory, and a vast array of M.2 Gen5 storage options, the MSI MPG X670E CARBON WIFI delivers both performance and style.

Supports AMD Ryzen 7000 Series Processors

The MPG X670E CARBON WIFI motherboard supports AMD Ryzen 7000 series processors.

Form Factor: ATX

Socket Type: AM5

Chipset: AMD X670

X670E motherboards are high-performance variants of the X670 chipset, designed to support extreme overclooking.

18+2 Phases VRM with 90A power stage

With its dual 8-pin power connectors and exclusive Core Boost technology, the MPG X670E CARBON WIFI is able to sustain heavy CPU power loads (up to 170W) to support system-demanding game settings:

1. Digital PWM IC

2. 18-Phase Duet-Rail CPU Power (90A)

3. 2-Phase SOC Power

4. 1-Phase MISC Power

Integrated Cooling Features



VRM Cooling: Features an Extended Heatsink design, MSI Direct-touch heat pipe, extra choke thermal pads and 7W/mK MOSFET thermal pads for improved thermal dissipation.

PCB Cooling: An 8-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & performance.

SSD Cooling: Double-sided M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.


2 x Fortified PCI-e 5.0 x16 Slots

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

* 2 x PCI-e 5.0/4.0/3.0 x16 slots (with Steel Armor)

* 1 x PCI-e 4.0/3.0 x16 slot (AMD Multi-GPU supported)

*MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

4 x DDR5 Dual Channel (6600 MHz OC)

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 6600 MHz, supports AMD EXPO.

Gen5 M.2 Connectors

The MPG X670E CARBON WIFI motherboard features MSI's latest M.2 slots:

* 2 x Gen5 x4 128Gb/s slots

* 2 x Gen4 x4 64Gb/s slots

DIY Friendly Design

MSI X670 motherboards feature patented tool-free M.2 Shield Frozr covers as well as EZ M.2 clips for DIY friendly M.2 SSD installation & upgrades.

Tool-Free M.2 Shield Frozr: MSI patented Shield Frozr covers feature a tool-free design so users don't have to worry about lost screws or overtightening.
EZ M.2 Clip: Install or replace M.2 SSD quickly and effortlessly without ever having to hunt for a screwdriver.

Wi-Fi 6E & Bluetooth 5.2

2.5G LAN: A 2.5Gbps LAN controller delivers a premium network gaming experience.

Wi-Fi 6E: Features the latest Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.

USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 & S/PDIF output.

Main Features

  • Supports AMD Ryzen 7000 Series Desktop Processors
  • Supports DDR5 Memory
  • Enhanced Power Design: 18+2+1 Duet Rail Power System, Dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink with Direct Touched Heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and Double-sided M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material
  • DIY Friendly Design: Patented Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
  • Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
  • 2.5G LAN and Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports latest ARGB Gen2 strips, RGB strips and Ambient devices
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifications

CPU

CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors AMD Ryzen 7000 Series Desktop Processors
64-bit Support Yes
Socket AM5

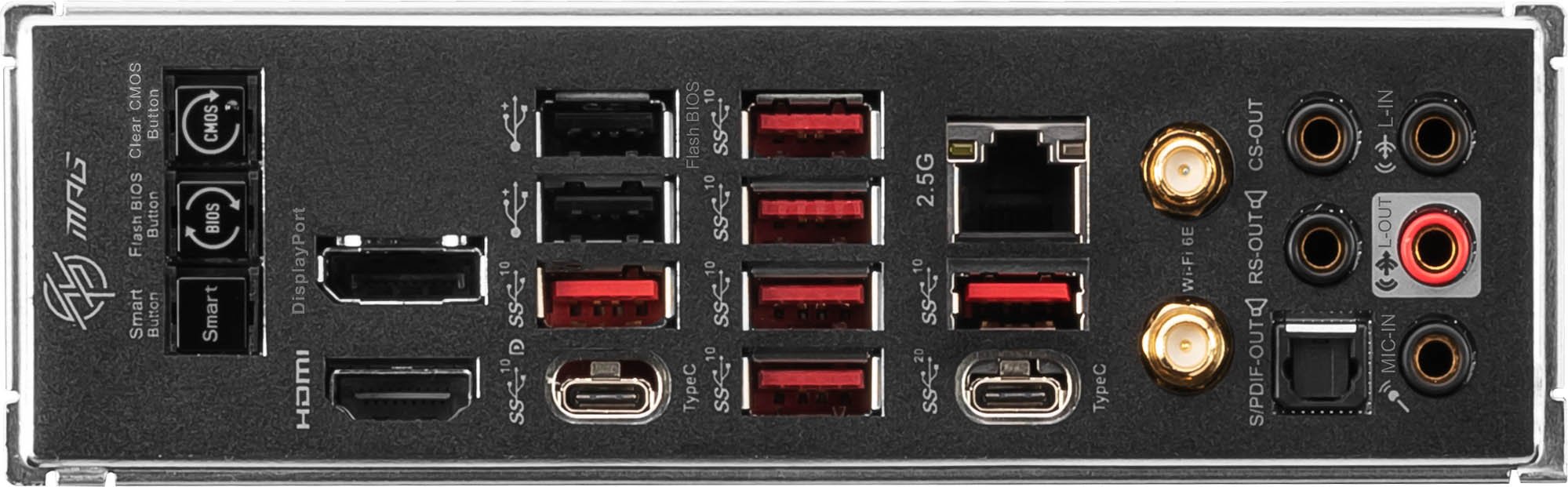

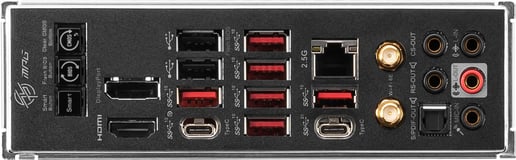

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.2
1 x USB-C 3.1
6 x USB 3.0
2 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 3 x 3.5mm Jacks
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 6 x SATA III
USB Connectors 1 x USB-C 3.1 header (supports 1 port)
2 x USB 3.0 headers (supports 4 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x Pump fan header
5 x System fan headers
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x TPM header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 2 x M.2 slots, Type 2260/2280 (PCIe Gen5)
1 x M.2 slot, Type 2260/2280/22110 (PCIe Gen4)
1 x M.2 slot, Type 2260/2280 (PCIe Gen4)
2 x 3-pin ARGB LED header
1 x 4-pin RGB LED header
1 x Thermal Sensor header
1 x Tuning Controller header

Memory

Memory Type DDR5
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge AMD X670E
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 2 x PCI Express 5.0 x16 slots (@ x16/x0 or x8/x8)
1 x PCI Express 4.0 x16 slot (@ x4)

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek ALC4080

Warranty

Warranty 3 Years

Network

Integrated Network Realtek RTL8125BG
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes (Wi-Fi 6E)
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.2

System Requirements

Operating Systems Supported Microsoft Windows 11 64-bit

System

Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes
SLi/Crossfire Features Supports AMD MULTI-GPU

Physical

Form Factor ATX Motherboard

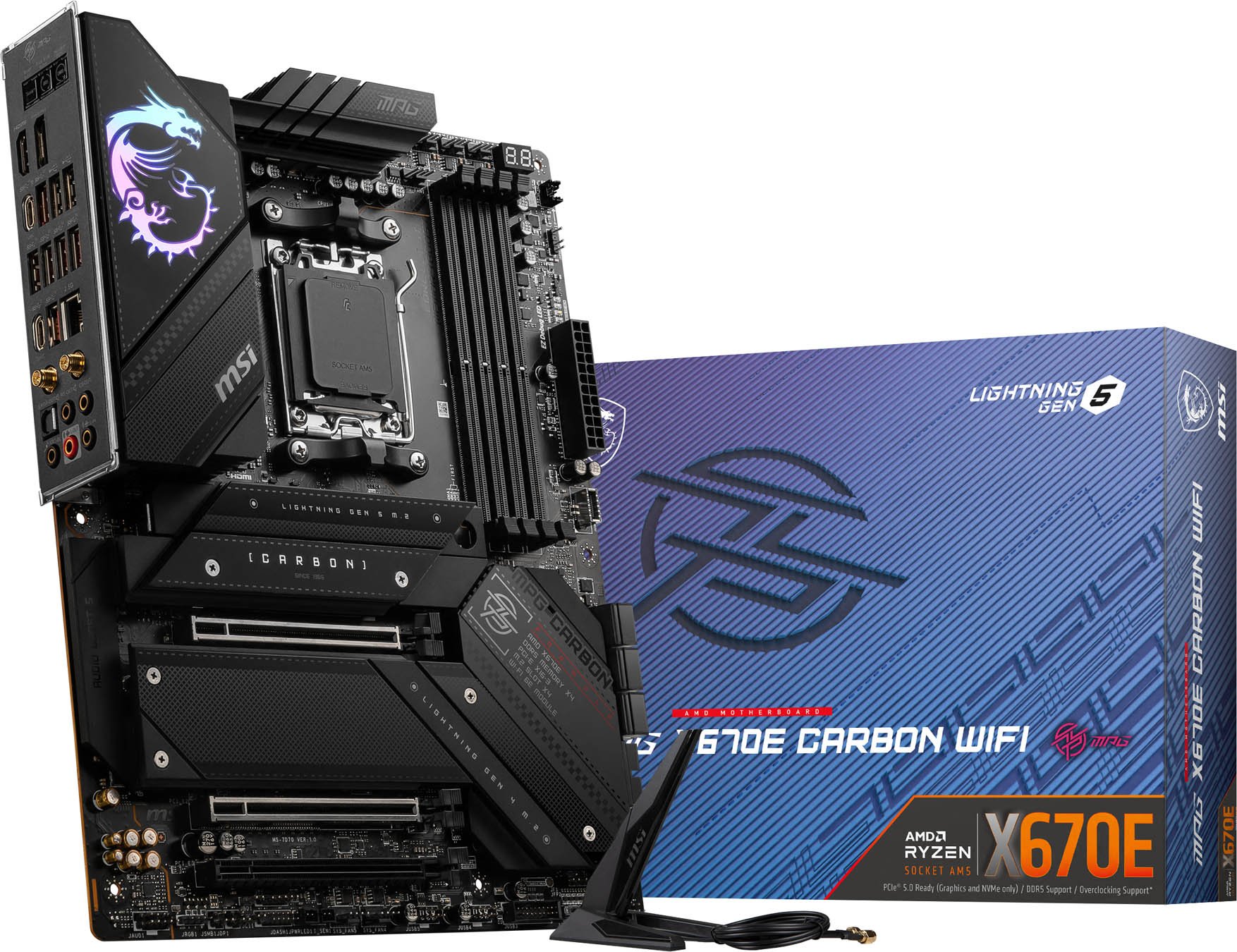

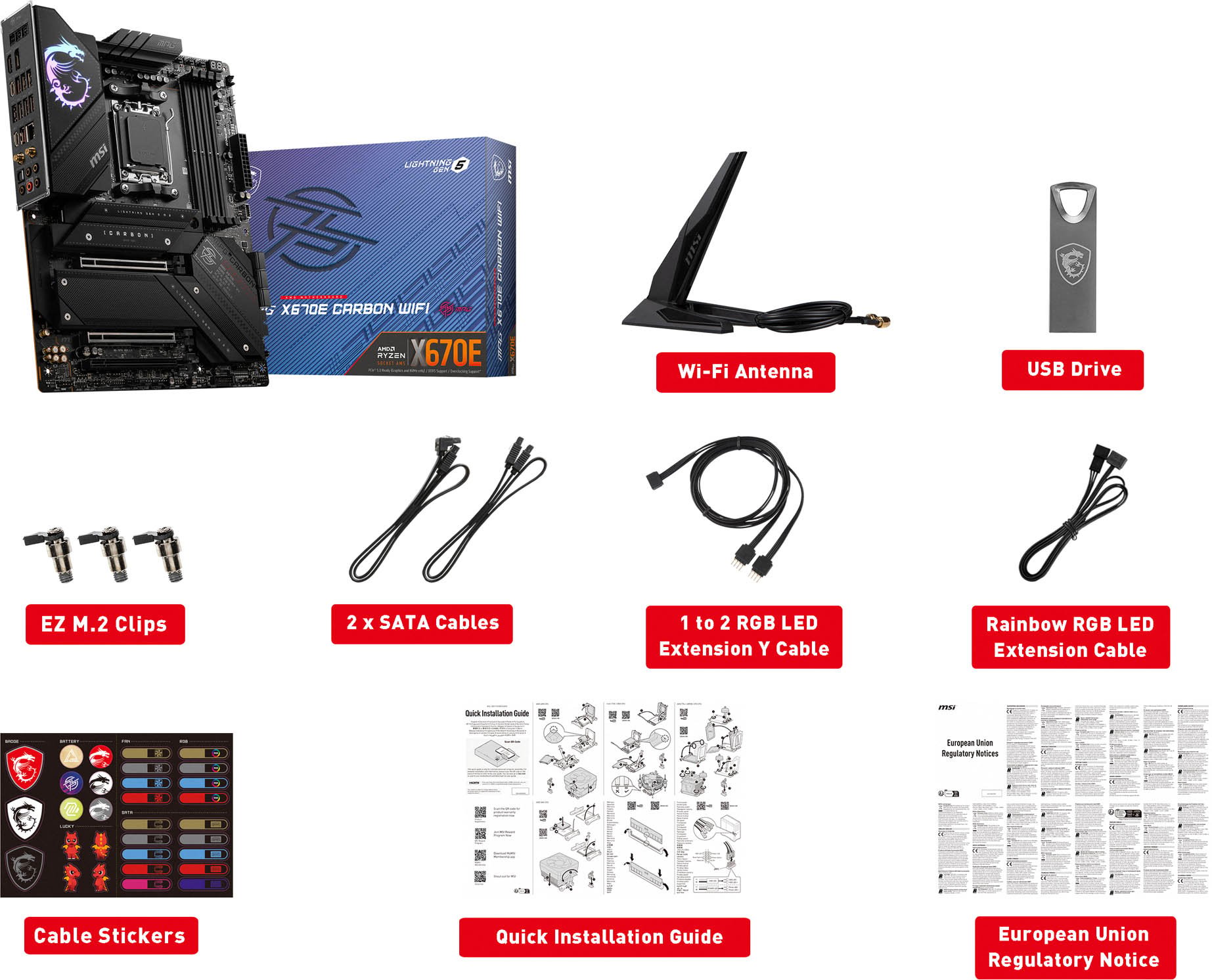

In The Box Motherboard
Wi-Fi Antenna
USB Drive
EZ M.2 Clips
2 x SATA Cables
1 to 2 RGB LED Extension Y Cable
Rainbow RGB LED Extension Cable
Cable Stickers
Quick Installation Guide
European Union Regulatory Notice
Width 304.8 mm
Length 243.84 mm

Key Features

Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless Network Yes
Chipset Manufacturer AMD
Number of PCI Slots slot(s)
Number of PCI-X Slots slot(s)
Main Colour
Socket(s)
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 6 port(s)
Number of USB Ports 10 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support ATi CrossFire
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Wake on LAN
Motherboard Power Connectors 8 + 8-Pin
Motherboard Chipset AMD X670E
Thunderbolt No
Motherboard Model MSI MPG X670E CARBON WIFI
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
Cooler Height mm
M.2 Support Yes
On-board RGB Control MSI Mystic Sync
Memory Speed MHz
Skip Audio Test
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Radiator Length mm
Microsoft Processor List
Power Requirement (auto) 70 W
Cooler count
Max Memory Speed Supported (Non-overclocked) MHz
Max Memory Speed Supported (overclocked) MHz
CPU Power Pins (female) 16
PCI Express Power Pins (female)
Total M.2 Slots 4
Maximum NVMe M.2 ports 4
PCI-e slots
SATA ports 6
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 4
No. of front USB-C ports supported 1

Graphics

Graphics Chipset

Item Details

Manufacturer MSI
Manufacturer Code MPG X670E CARBON WIFI
EAN 4711377004879
UPC 824142299333
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer MSI
Manufacturer Code MPG X670E CARBON WIFI
