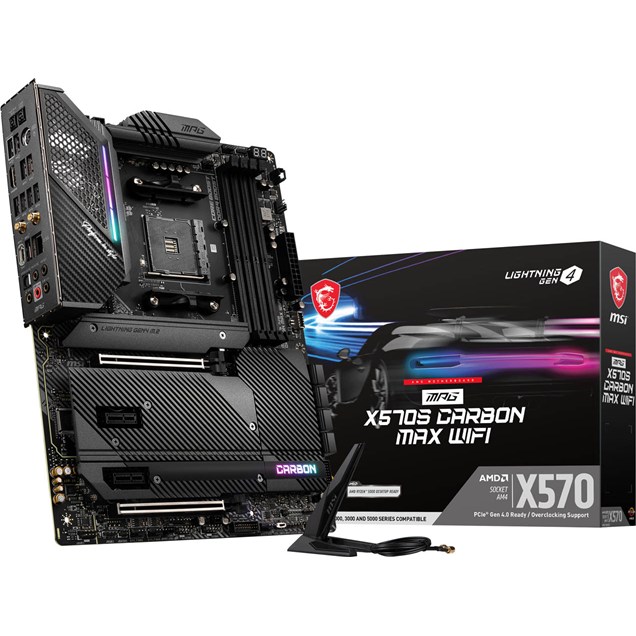

MSI MPG X570S CARBON MAX WIFI ATX Motherboard for AMD AM4 CPUs

MSI MPG X570S CARBON MAX WIFI ATX Motherboard for AMD AM4 CPUs

CCL Code: MBD3126

Discontinued

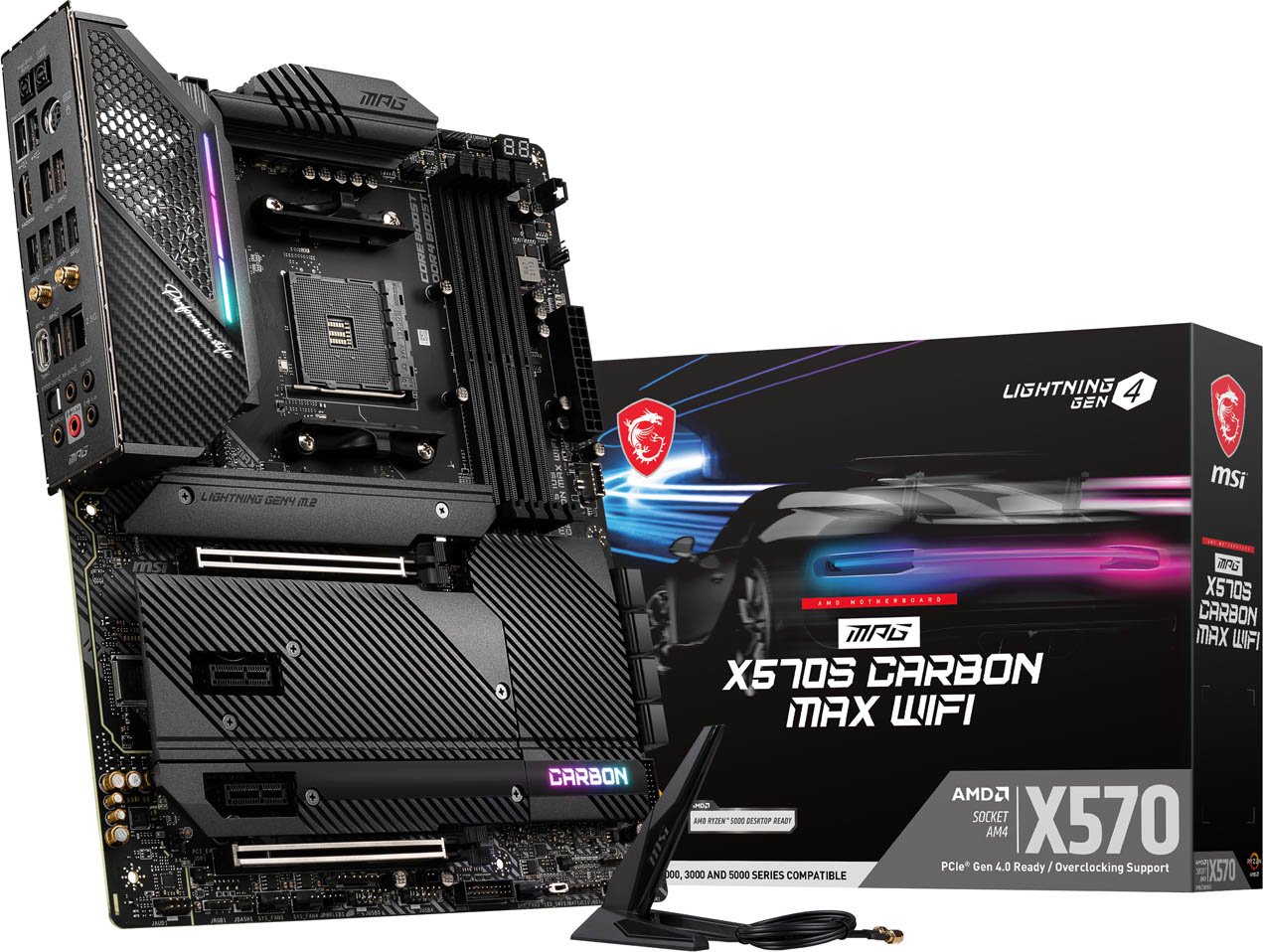

MSI MPG X570S CARBON MAX WIFI ATX Motherboard for AMD AM4 CPUs

MPG X570S CARBON MAX WIFI

Key Features:

  • Socket AM4
  • AMD X570 Chipset
  • 8 x SATA & 10 x USB Ports
  • DDR4 (max 128GB, 4 slots)
  • HDMI
  • ATX Form Factor
CCL Code: MBD3126

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

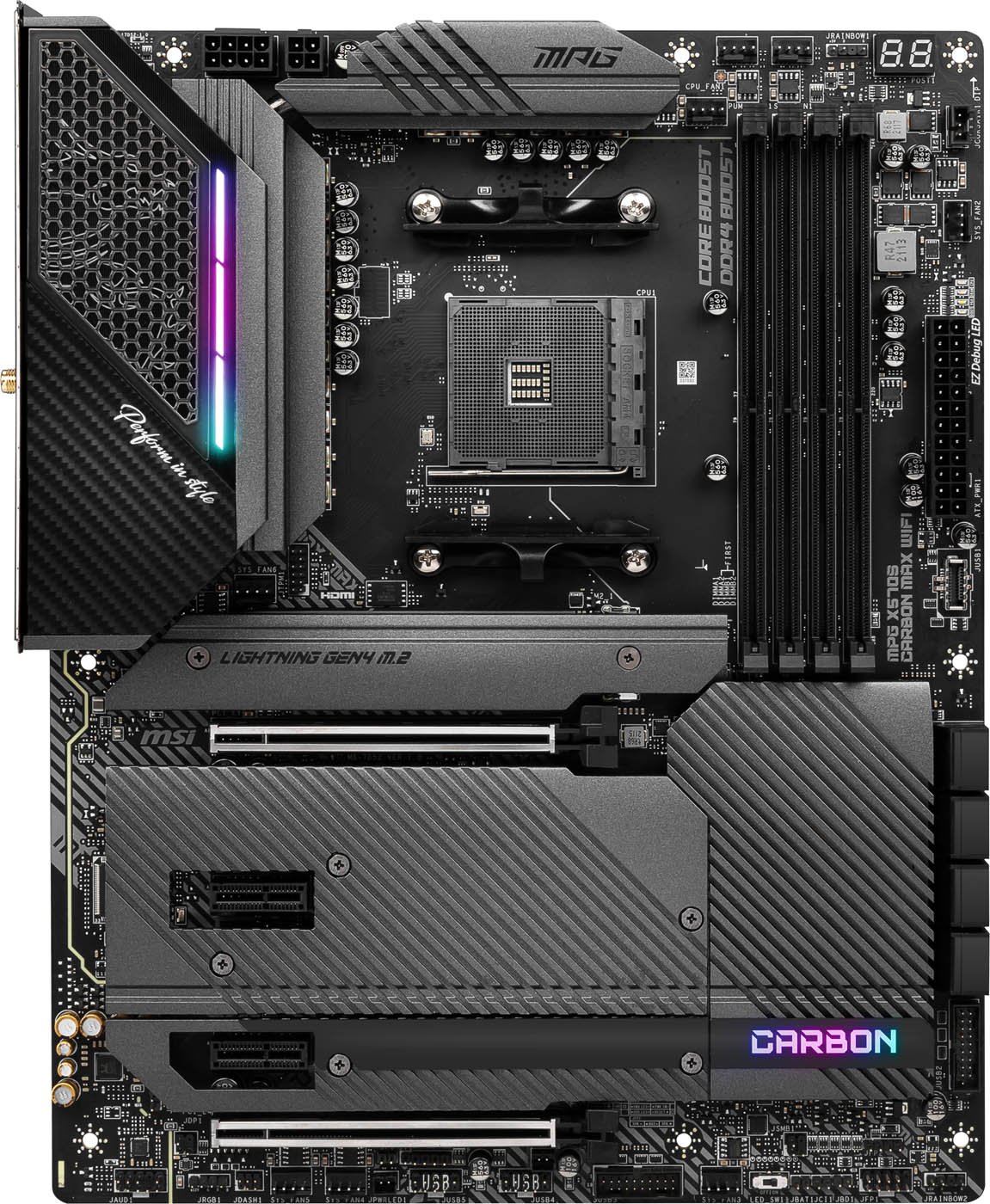

MPG X570S CARBON MAX WIFI
Exclusive feature

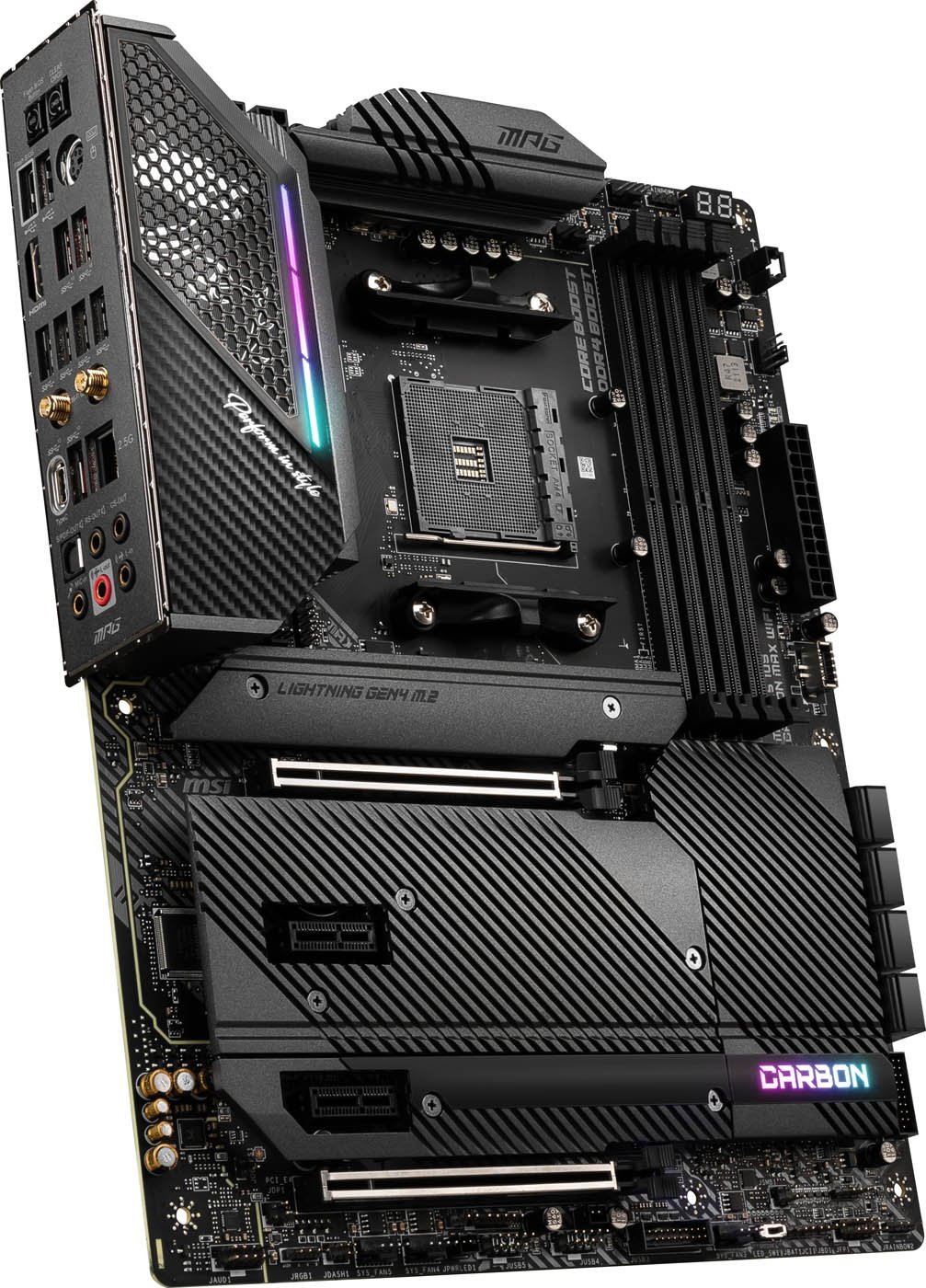

MSI MPG X570S CARBON MAX WIFI CORNERSTONE overview
Core Boost Technology
Core Boost Technology

Combining dual power connectors and premium layout design, that is ready for unleashing the maximum performance.

6 layer PCB
6 layer PCB

6 layer PCB provides higher performance and long-lasting system stability without any compromise.

2oz Thickened Copper PCB
2oz Thickened Copper PCB

An enhanced PCB design improves heat dissipation and performance reliability.

Audio Boost 5
Audio Boost 5

Isolated audio with a high quality audio processor & amp for the most immersive gaming experience.

14+2 Power Design with Digital PWM
14+2 Power Design with Digital PWM

An aggressive digital VRM power design with digital PWM IC and 14 Duet Rail CPU Power System with 75A Smart Power Stage, make sure your system runs smoothly under the most extreme conditions.

PCIe Steel Armor
PCIe Steel Armor

Protecting VGA cards against bending and EMI for better performance, stability and strength.

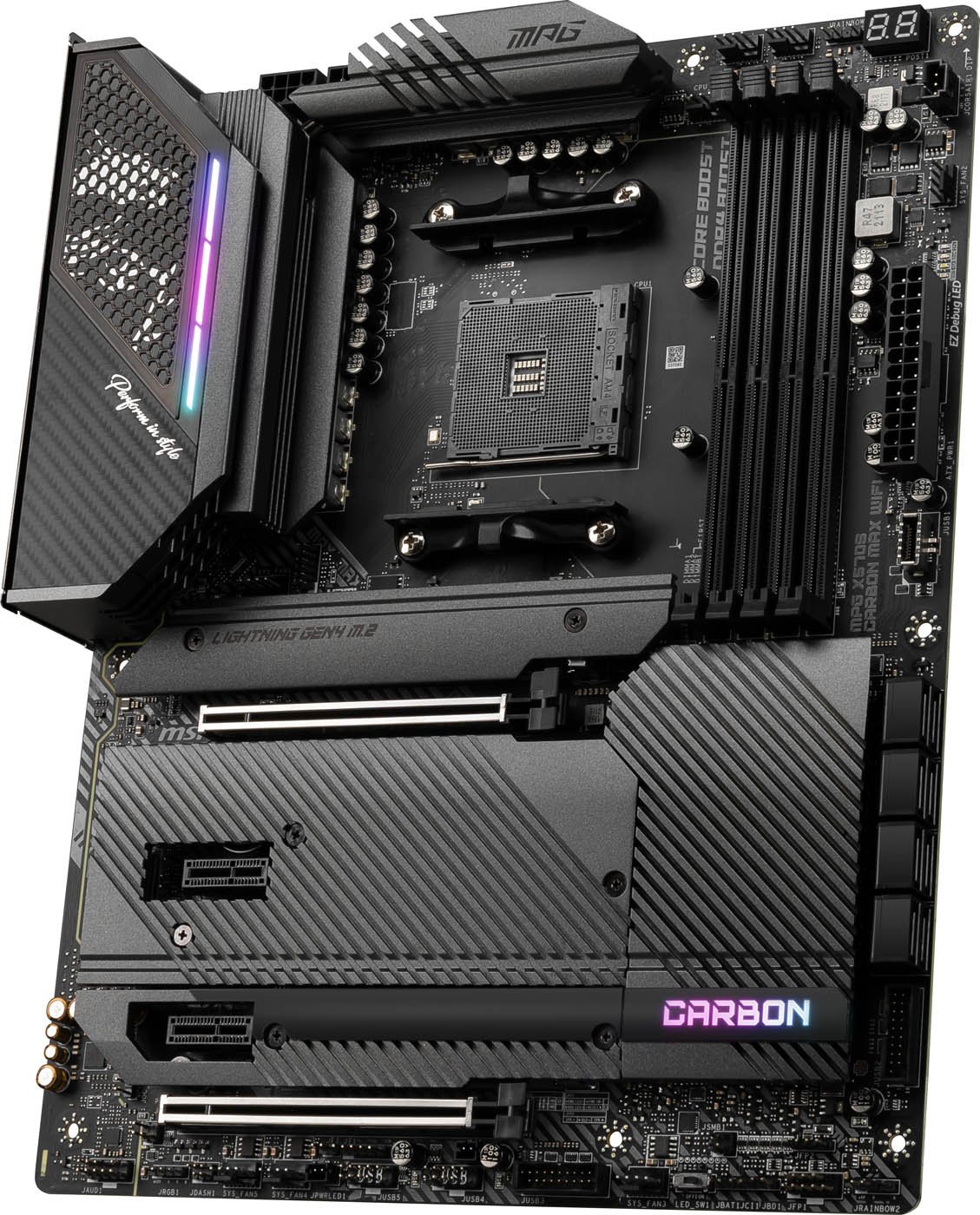

MPG X570S CARBON MAX WIFI
premium thermal solution

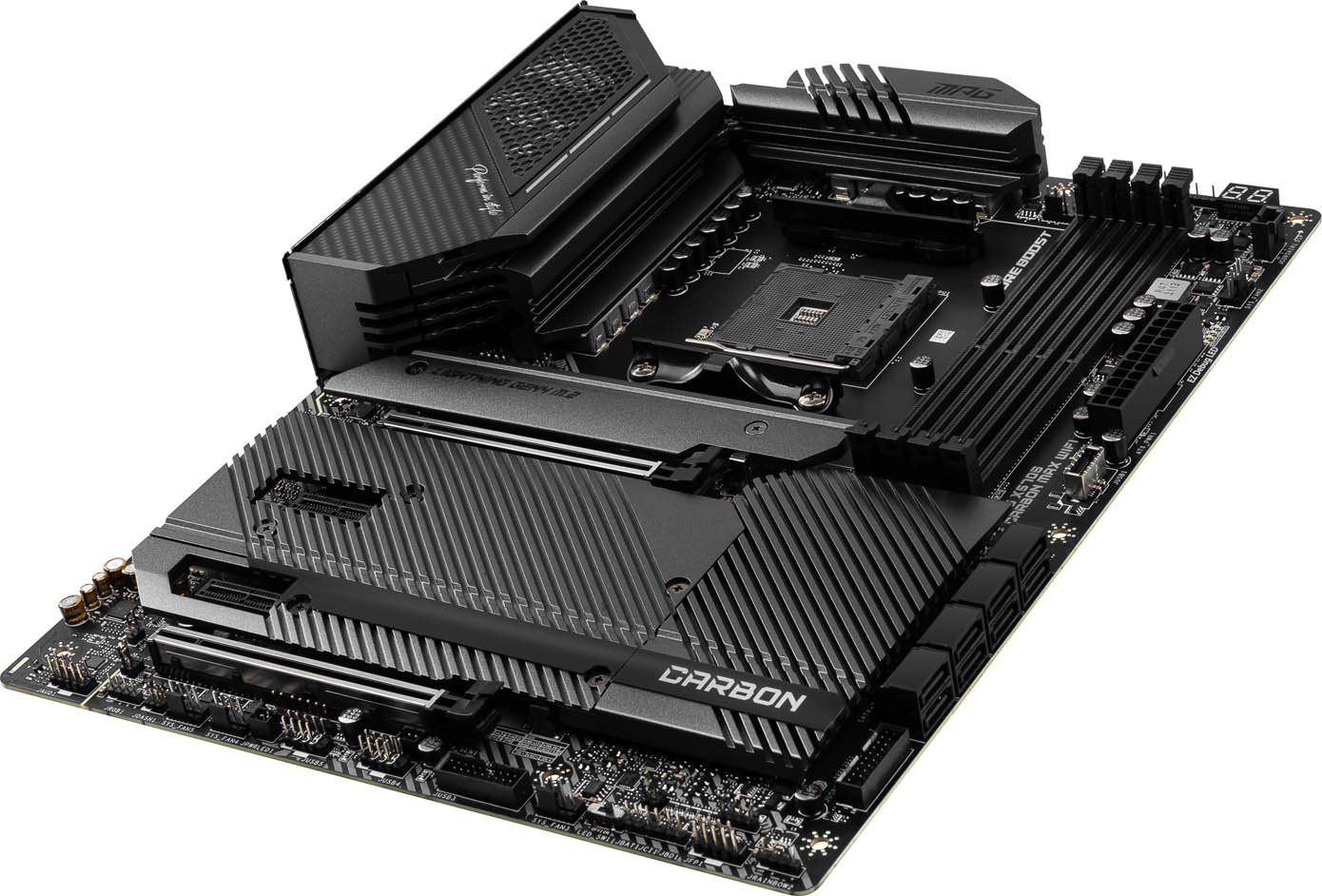

MSI MPG X570S CARBON MAX WIFI THERMAL overview
Premium Thermal Design
Premium Thermal Design

Heavy plated MOSFET heatsink with heat-pipe, high quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

M.2 Shield Frozr
M.2 Shield Frozr

Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Pump Fan Support
Pump Fan Support

Control watercooling pump speeds for best flow and noise control.

Silent Cooling
Silent Cooling

Enlarged chipset heatsink with fanless heatsink design to prevent dust and noise as well as maintain high heat dissipation efficiency.

MPG X570S CARBON MAX WIFI
HIGH-SPEED TRANSMISSION
MSI MPG X570S CARBON MAX WIFI LIGHTNING overview
Intel Wi-Fi 6E
Intel Wi-Fi 6E

The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

2.5G Network Solution
2.5G Network Solution

Featuring premium 2.5G LAN with LAN manager delivers better network experience.

DDR4 BOOST
DDR4 BOOST

The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

Lightning Gen 4 Solution
Lightning Gen 4 Solution

The latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

MSI MPG X570S CARBON MAX WIFI & MPG VELOX 100R AIRFLOW & MPG CORELIQUID K240 & MPG A750GF
MSI MPG X570S CARBON MAX WIFI 14 + 2 DUET RAIL POWER SYSTEM
14 + 2 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design built with a total of 14 Duet Rail Power System(DRPS). Combining 8+4-pin power connectors and exclusive Core Boost technology, MPG series motherboard is ready to sustain heavy daily work.
  • 8+4 Pin CPU Power connectors
  • 14 Duet Rail CPU Power System Smart Power Stage / 75A
  • 2 phases SOC Power
  • Digital PWM IC
MSI MPG X570S CARBON MAX WIFI CORE BOOST
CORE BOOST
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, but creating the perfect conditions for your CPU overclocking.
MSI MPG X570S CARBON MAX WIFI LIGHTNING GEN 4 SOLUTION
LIGHTNING GEN 4 SOLUTION
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.
MSI MPG X570S CARBON MAX WIFI CUSTOMIZE YOUR GAMING RIG
CUSTOMIZE YOUR GAMING RIG
Personalize your PC with 16.8 million colors and 29 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light feature in MSI Center.
  • Customize colors
  • Customize effects
MSI MPG X570S CARBON MAX WIFI EZ LED CONTROL FOR RGB CUSTOMIZATION
EZ LED CONTROL FOR RGB CUSTOMIZATION
A built-in LED button on the motherboard to control your light effect in a second. Use EZ LED CONTROL to show million of colors or turn off lights right away.
MSI MPG X570S CARBON MAX WIFI WI-FI 6E & BLUETOOTH
WI-FI 6E & BLUETOOTH
Use your LAN port for online gaming while using Wi-Fi for other online applications. The Wi-Fi 6E adopts latest OFDMA, two-way MU-MIMO technologies and 6GHz band, delivering wireless transmission speeds up to 2.4Gbps.
MSI MPG X570S CARBON MAX WIFI MAXIMIUM DATA TRANSFER WITH 2.5G LAN
MAXIMIUM DATA TRANSFER WITH 2.5G LAN
MPG X570S CARBON MAX WIFI features high-bandwidth and low-latency Ethernet networks for demanding gamers and power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.
MSI MPG X570S CARBON MAX WIFI USB TYPE-C READY IN BOTH FRONT CASE PANEL & REAR IO
USB TYPE-C READY IN BOTH FRONT CASE PANEL & REAR IO
Get all the performance benefits from the USB Type-C connector. This reversible USB connector allows for effortless connecting of USB devices.
MSI MPG X570S CARBON MAX WIFI AMPLIFY YOUR EXPERIENCE WITH AUDIO BOOST 5
AMPLIFY YOUR EXPERIENCE WITH AUDIO BOOST 5
Like a dedicated sound card, Audio Boost 5 offers a HD audio processor, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by ALC 4080 audio processor, this motherboards supports 120dB SNR, 32-bit/384kHz and DSD Super Audio CD playback & recording.
MSI MPG X570S CARBON MAX WIFI PCB WITH 2OZ THICKENED COPPER
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.
MSI MPG X570S CARBON MAX WIFI MULTIPLE GPU SUPPORTS AND STEEL ARMOR
MULTIPLE GPU SUPPORTS AND STEEL ARMOR
MPG X570S CARBON MAX WIFI supports multiple GPU solution. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD CrossFire™ setup Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.
dot

Main Features

  • Supports AMD Ryzen 5000 series, 5000 G-series, 4000 G-series, 3000 series, 3000 G-series, 2000 series and 2000 G-series desktop processors
  • Supports DDR4 Memory, up to 5300+(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
  • Enhanced Power Design: 14+2 Duet Rail Power System, 8-pin plus 4-pin CPU power connectors, Core Boost, DDR4 Boost
  • Premium Thermal Solution: Aluminum cover, heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Specifications

CPU

CPU Brand AMD
CPU Socket Socket AM4
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
64-bit Support Yes
Socket AM4

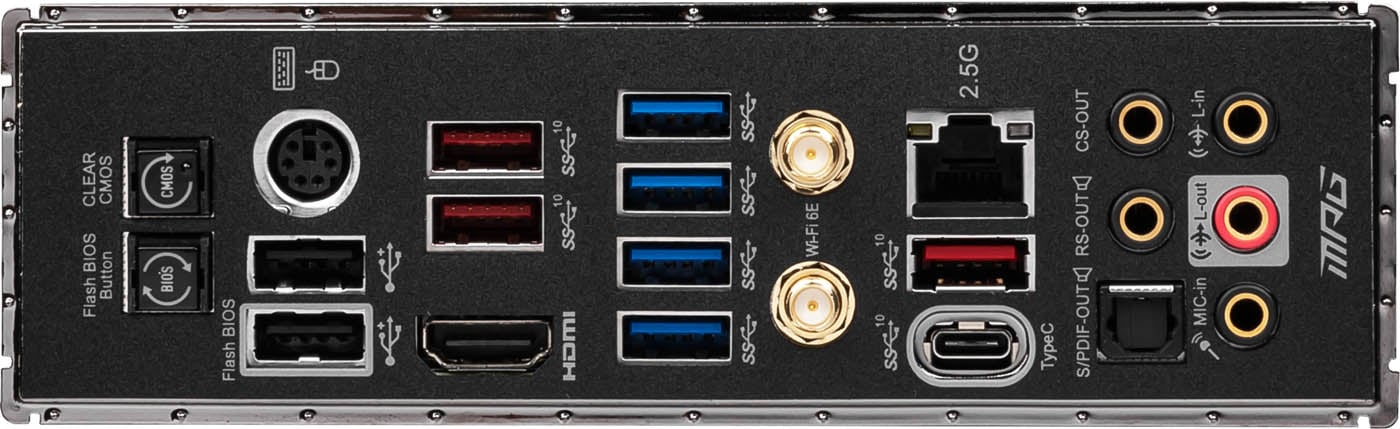

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.1
3 x USB 3.1
4 x USB 3.0
2 x USB 2.0
HDMI Port 1 x HDMI 2.1
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 3 x 3.5mm Jacks
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x SMA Antennas

Internal I/O Connectors

SATA Connectors 8 x SATA III
USB Connectors 1 x USB-C 3.1 header (supports 1 port)
2 x USB 3.0 headers (supports 4 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x Water Pump header
6 x System fan headers
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x TPM header
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
1 x 4-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4, PCIe Gen3)
1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen4, PCIe Gen3)
1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (SATA)
1 x M.2 slot, Key M, Type 2242/2260/2280 (SATA)
2 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header
1 x 3-pin CORSAIR LED header

Memory

Memory Bus Speed Up to 5300 MHz
Memory Type DDR4
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard

Chipset Manufacturer AMD
Northbridge X570
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 2 x PCI Express 4.0 x16 slots (@ x16/x4)
2 x PCI Express 3.0 x1 slots

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek ALC4080

Warranty

Warranty 3 Years

Network

Integrated Network Realtek RTL8125B
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes (Wi-Fi 6)
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.2

System Requirements

Operating Systems Supported Microsoft Windows 10 64-bit

System

Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes
SLi/Crossfire Features Supports AMD CrossFire Technology

Physical

Form Factor ATX Motherboard

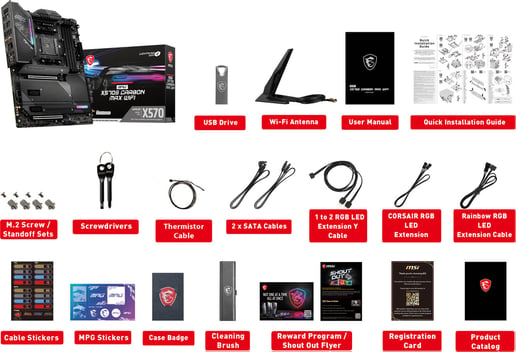

In The Box Motherboard
USB Drive
Wi-Fi Antenna
User Manual
Quick Installation Guide
M.2 Screw / Standoff Sets
Screwdrivers
Thermistor Cable
2 x SATA Cables
1-to-2 RGB LED Extension Y Cable
CORSAIR RGB LED Extension
Rainbow RGB LED Extension Cable
Cable Stickers
MPG Stickers
Case Badge
Cleaning Brush
Reward Program / Shout Out Flyer
Registration Card
Product Catalog
Width 305 mm
Length 244 mm

Key Features

Motherboard Form Factor ATX
Motherboard Power Connectors 4 + 8-Pin
Motherboard Chipset AMD X570
Thunderbolt No
Motherboard Model MSI MPG X570S CARBON MAX WIFI
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control MSI Mystic Sync
Memory Speed 5300 MHz
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (Non-overclocked) 2933 MHz
Max Memory Speed Supported (overclocked) 5300 MHz
CPU Power Pins (female) 12
Total M.2 Slots 4
Maximum NVMe M.2 ports 4
Maximum SATA M.2 ports 2
SATA ports 8
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 4
No. of front USB-C ports supported 1
Firewire No
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
mSATA Supported No
U.2 Supported No
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 8 port(s)
Number of USB Ports 10 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support ATi CrossFire
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection No

Item Details

Manufacturer MSI
Manufacturer Code MPG X570S CARBON MAX WIFI
EAN 4719072874988
UPC 824142266625
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer MSI
Manufacturer Code MPG X570S CARBON MAX WIFI
