The MPG B650I EDGE WIFI motherboard supports AMD Ryzen 7000 processors.
Form Factor: Mini-ITX
Socket Type: AM5
Chipset: AMD B650

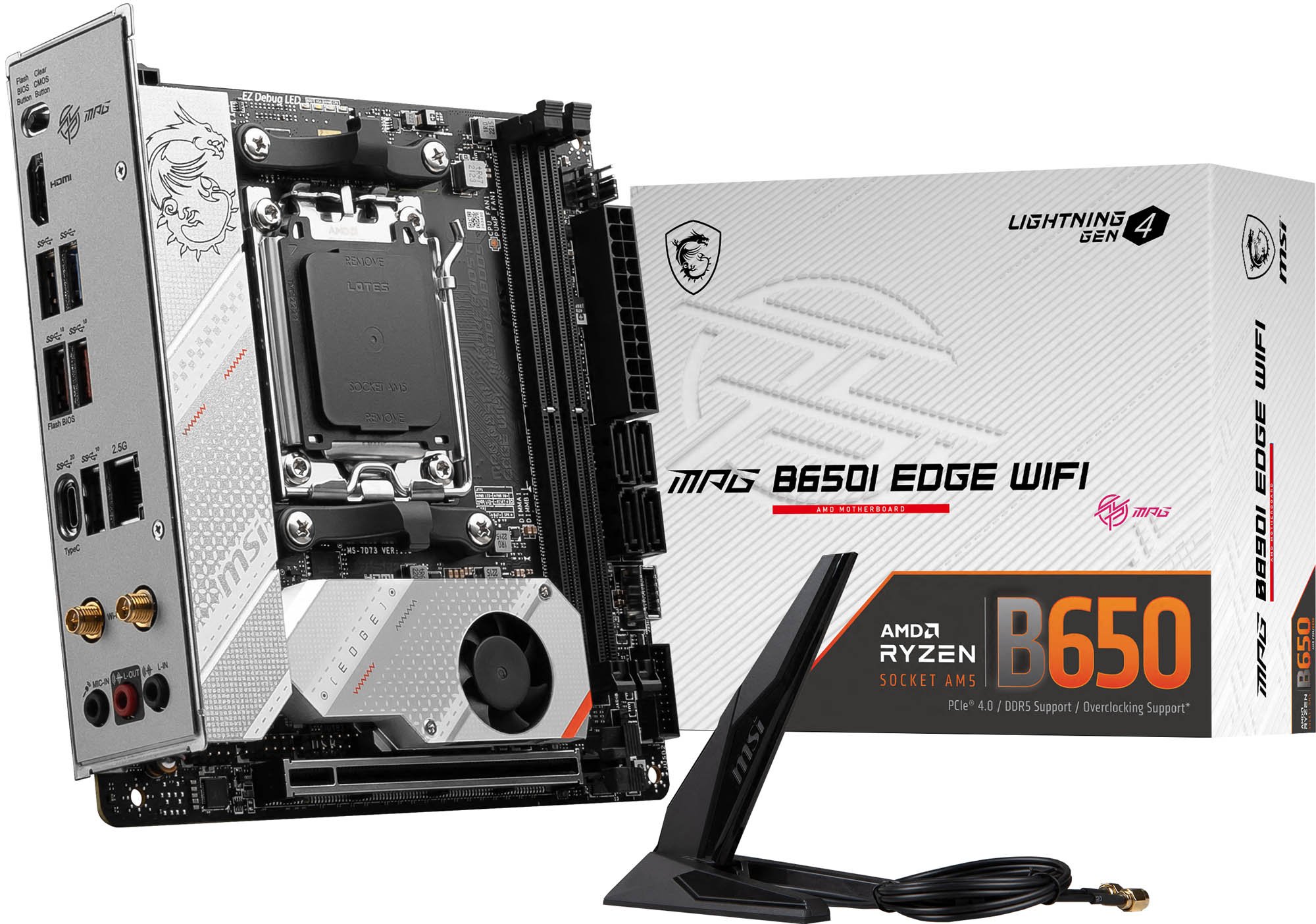

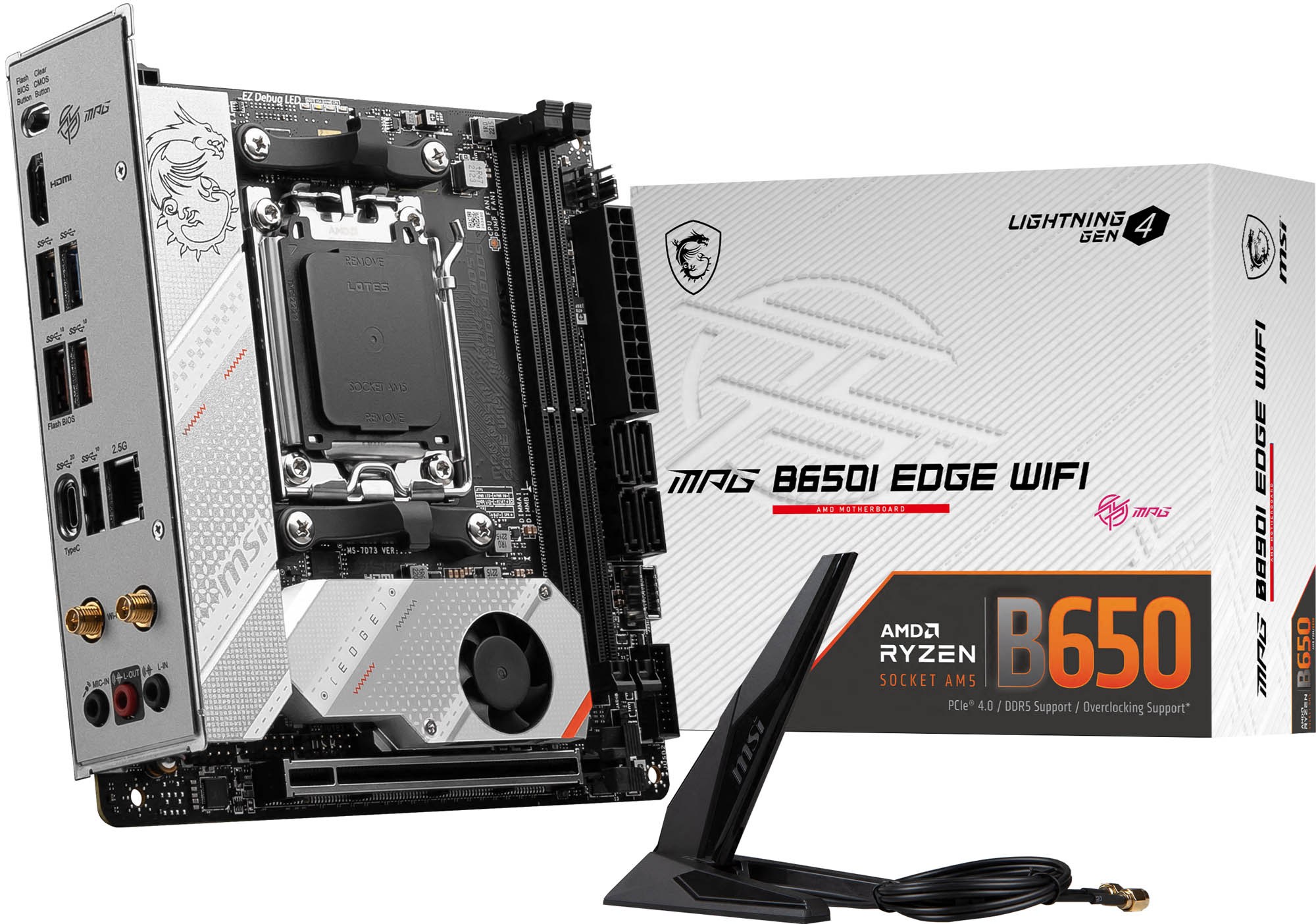

MSI MPG B650I EDGE WIFI ITX Motherboard for AMD AM5 CPUs
£217.99
Discontinued
MPG B650I EDGE WIFI
MSI MPG B650I EDGE WIFI ITX Motherboard for AMD AM5 CPUs
FORM FACTOR: ITX
SOCKET: AM5
MEMORY: DDR5 (MAX: 64GB)
STORAGE: 2 X M.2, 4 X SATA
WI-FI: BUILT-IN
USB: 6 PORT(S)
Perform in Style

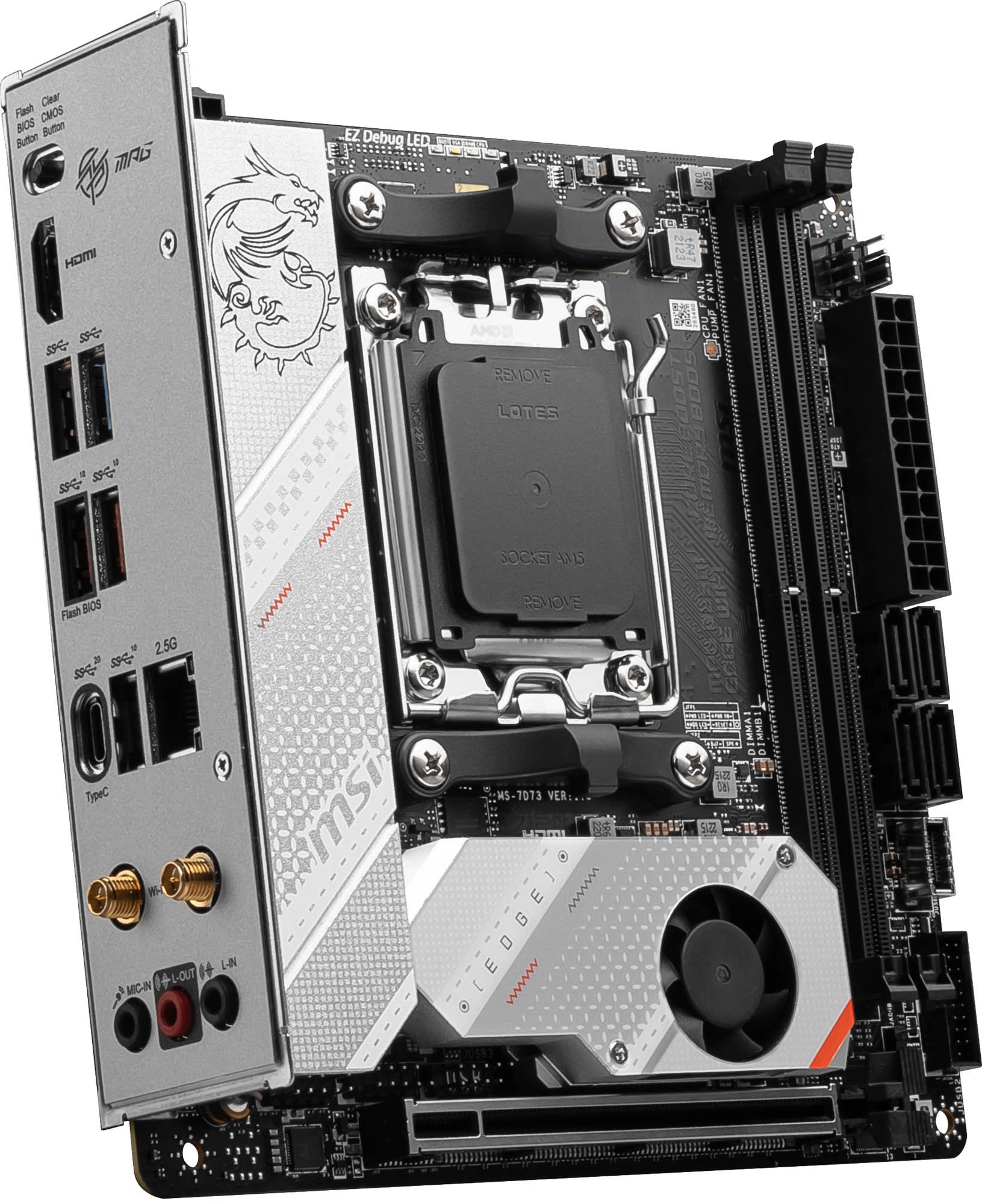

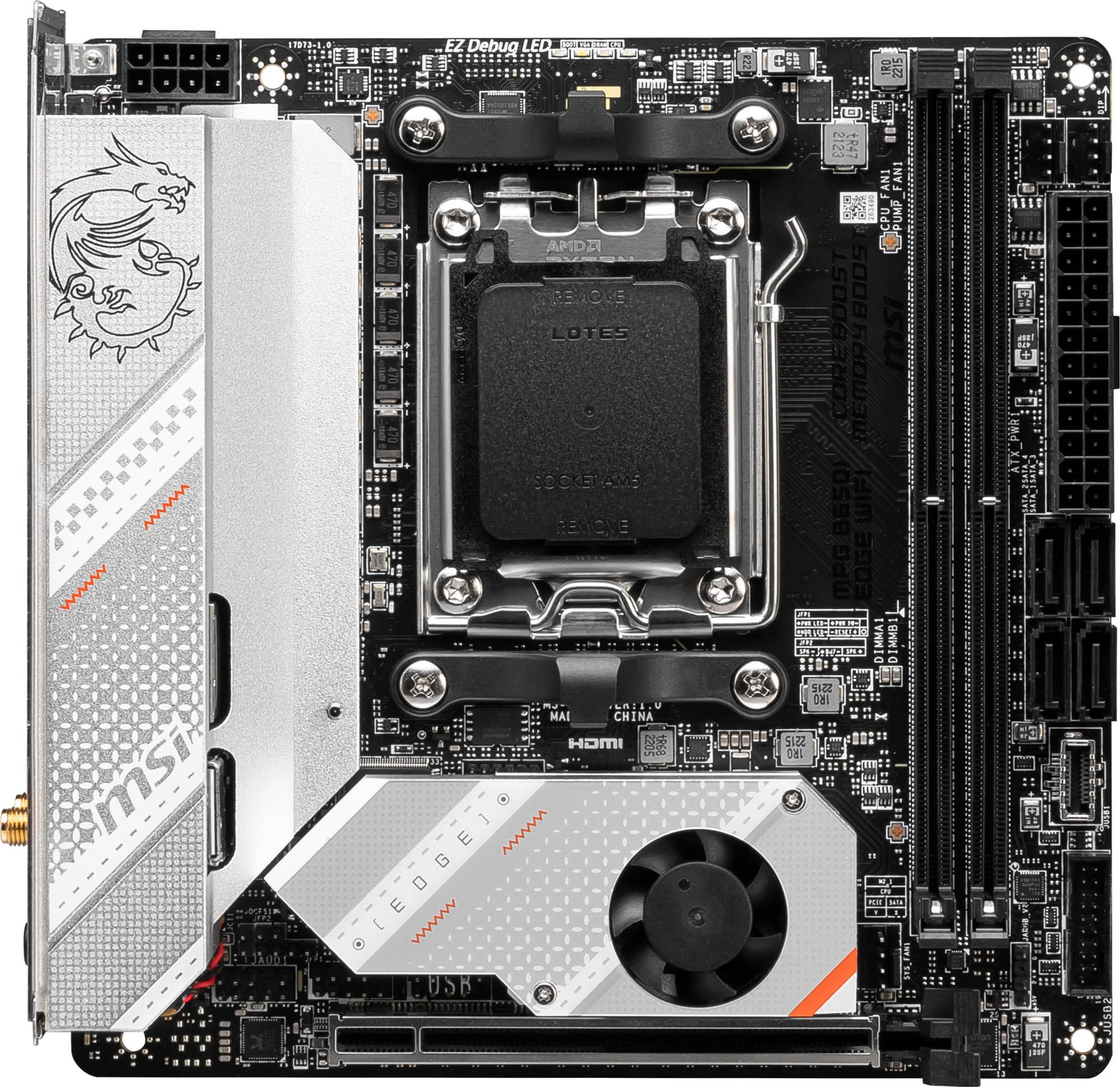

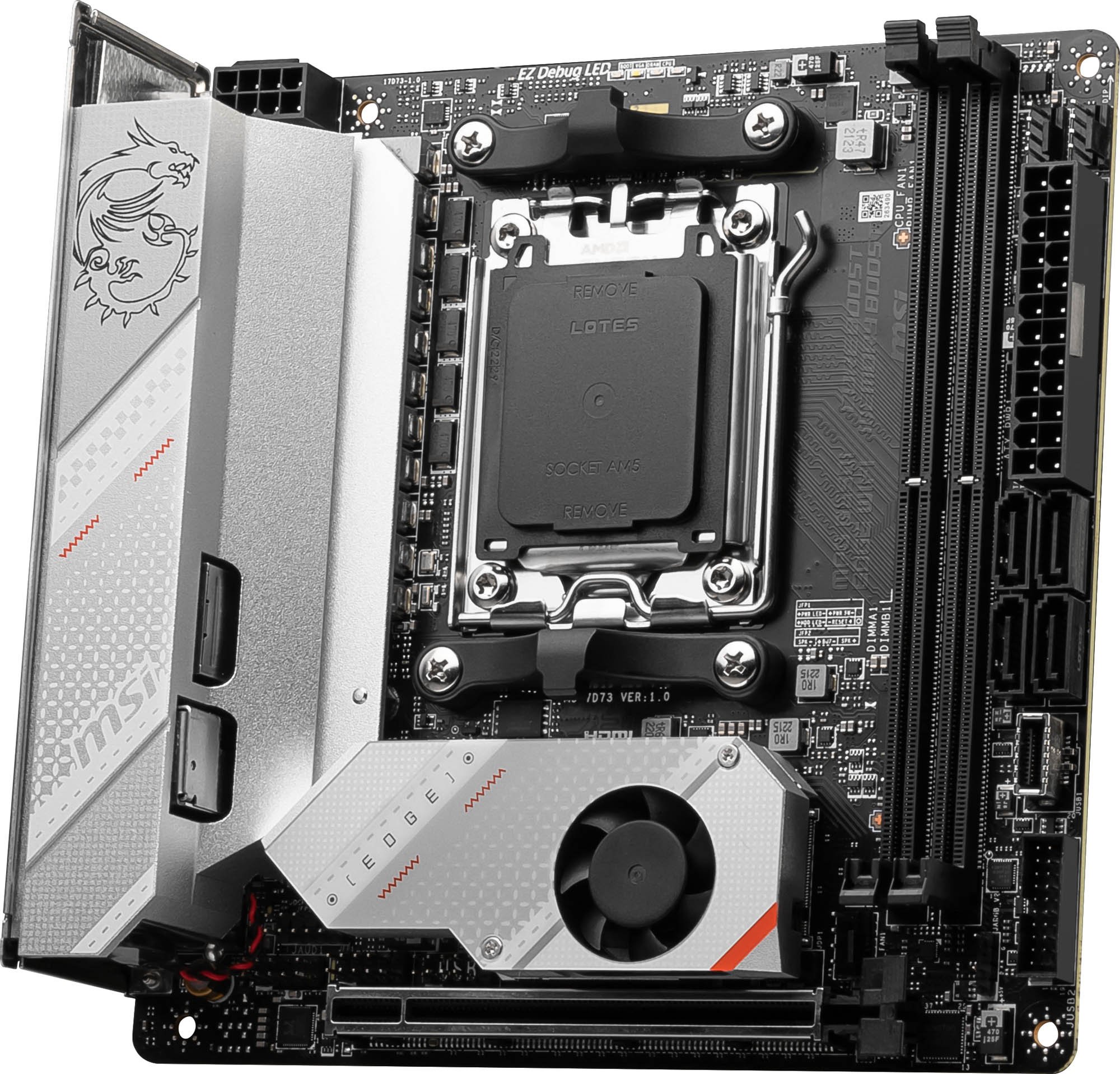

The MPG B650I EDGE WIFI is a gaming oriented Mini-ITX motherboard constructed around the latest AMD B650 chipset that delivers both performance and style.
Supports AMD Ryzen 7000 Processors
Direct 8+2 Phase VRM with 80A Smart Power Stage
With exclusive Core Boost technology, the MPG B650I EDGE WIFI is able to sustain heavy CPU power loads (up to 170W) to support system-demanding game settings:
1. Digital PWM IC
2. 8-Phase Direct CPU Power (80A)
3. 2-Phase SOC Power
4. 1-Phase MISC Power

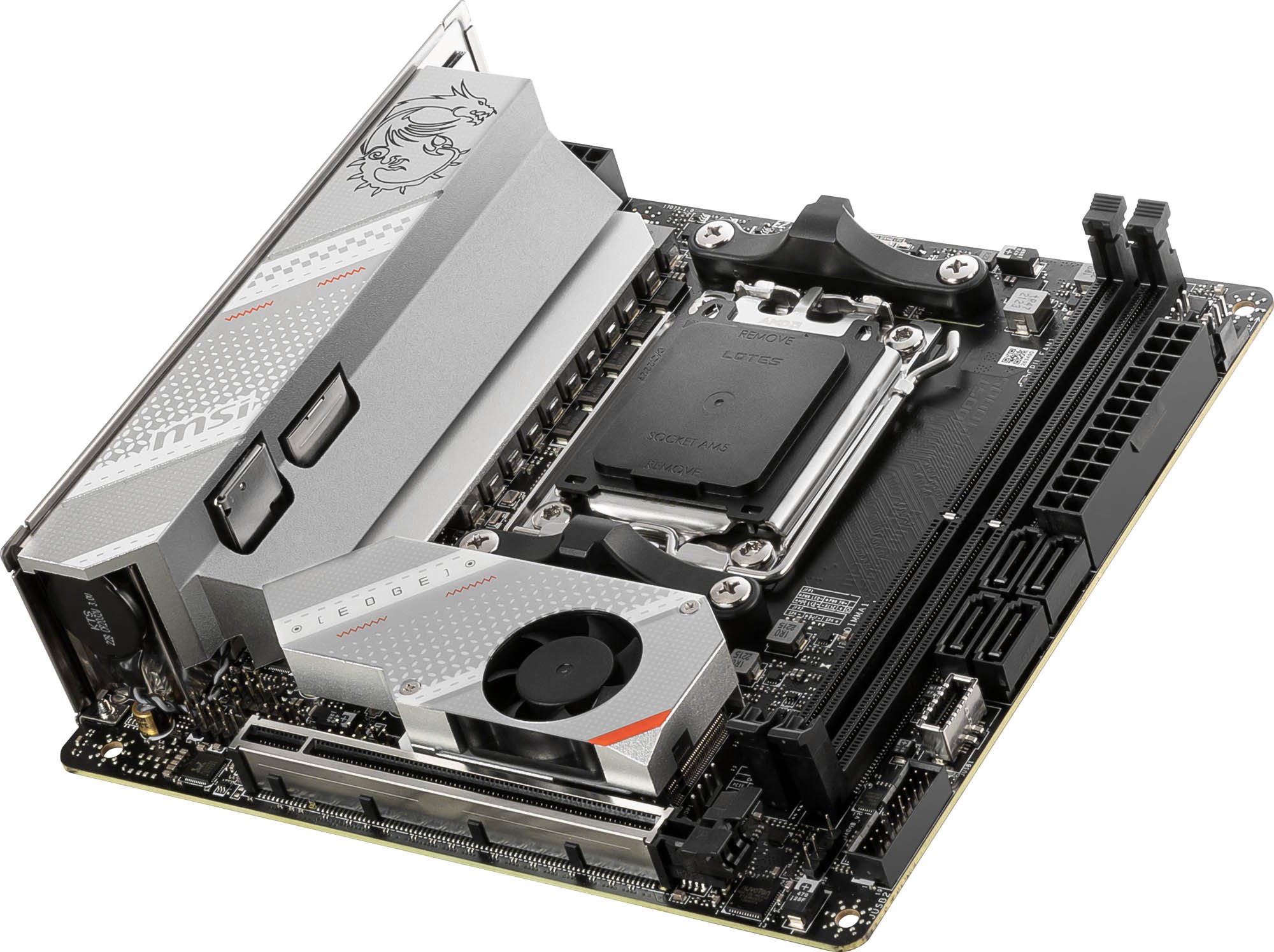

Integrated Cooling Features
VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.
PCB Cooling: Premium 10-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.
1 x Fortified PCI-e 4.0 x16 Slot
MSI PCI Express Steel Armor slot is secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
1 x PCI-e 4.0/3.0 x16 slot (with Steel Armor)
2 x DDR5 Dual Channel (6600+ MHz OC)
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 6600 MHz, supports AMD EXPO.
Gen4 M.2 Connectors
The MPG B650I EDGE WIFI motherboard features MSI's Gen4 M.2 slots:
2 x Gen4 x4 64Gb/s slots
M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
Wi-Fi 6E & Bluetooth 5.2
2.5G LAN: A Realtek RTL8125BG 2.5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 6E: Features an AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.
USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.
HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5.
MPG B650I EDGE WIFI employs silver white color scheme to show off different personality and identity. Besides being stylish, it is also powerful.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: AMD Ryzen 7000 Series Desktop Processors
- 64-bit Support: Yes
- Socket: AM5

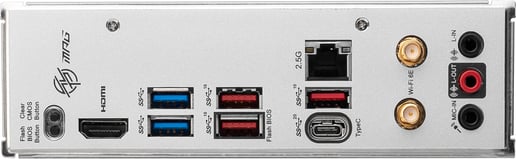

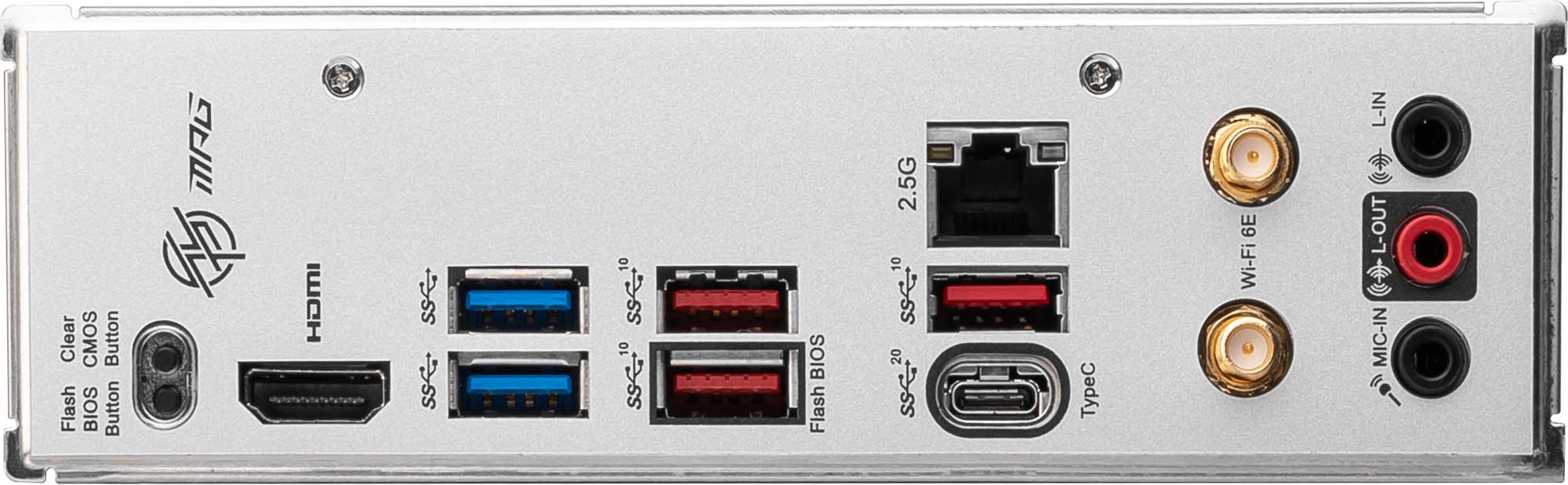

Rear Panel I/O Ports
- USB Ports: 1 x USB-C 3.2
- 3 x USB 3.1
- 2 x USB 3.0
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA III
- USB Connectors: 1 x USB-C 3.2 header (supports 1 port)
- 1 x USB 3.0 header (supports 2 ports)
- 1 x USB 2.0 header (supports 2 ports)
Memory
- Memory Bus Speed: Up to 6600 (OC) MHz
- Memory Type: DDR5
Motherboard
- Northbridge: B650
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x Pump fan header
- 1 x System fan header
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- Other Connectors: 2 x M.2 slots, Type 2260/2280 (PCIe Gen4)
- 1 x 3-pin ARGB LED header
Expansion
- Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
Memory
- Maximum RAM: 64 GB
- Memory Slot: 2 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek ALC4080
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek RTL8125BG
- Network Speeds Supported: Up to 2.5 Gbps
- Wireless LAN: Yes (Wi-Fi 6E)
- Wireless Network Speed: Up to 2.4 Gbps
- Bluetooth: Yes
- Bluetooth Version: 5.2
System Requirements
- Operating Systems Supported: Microsoft Windows 11 64-bit
System
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: Mini-ITX Motherboard

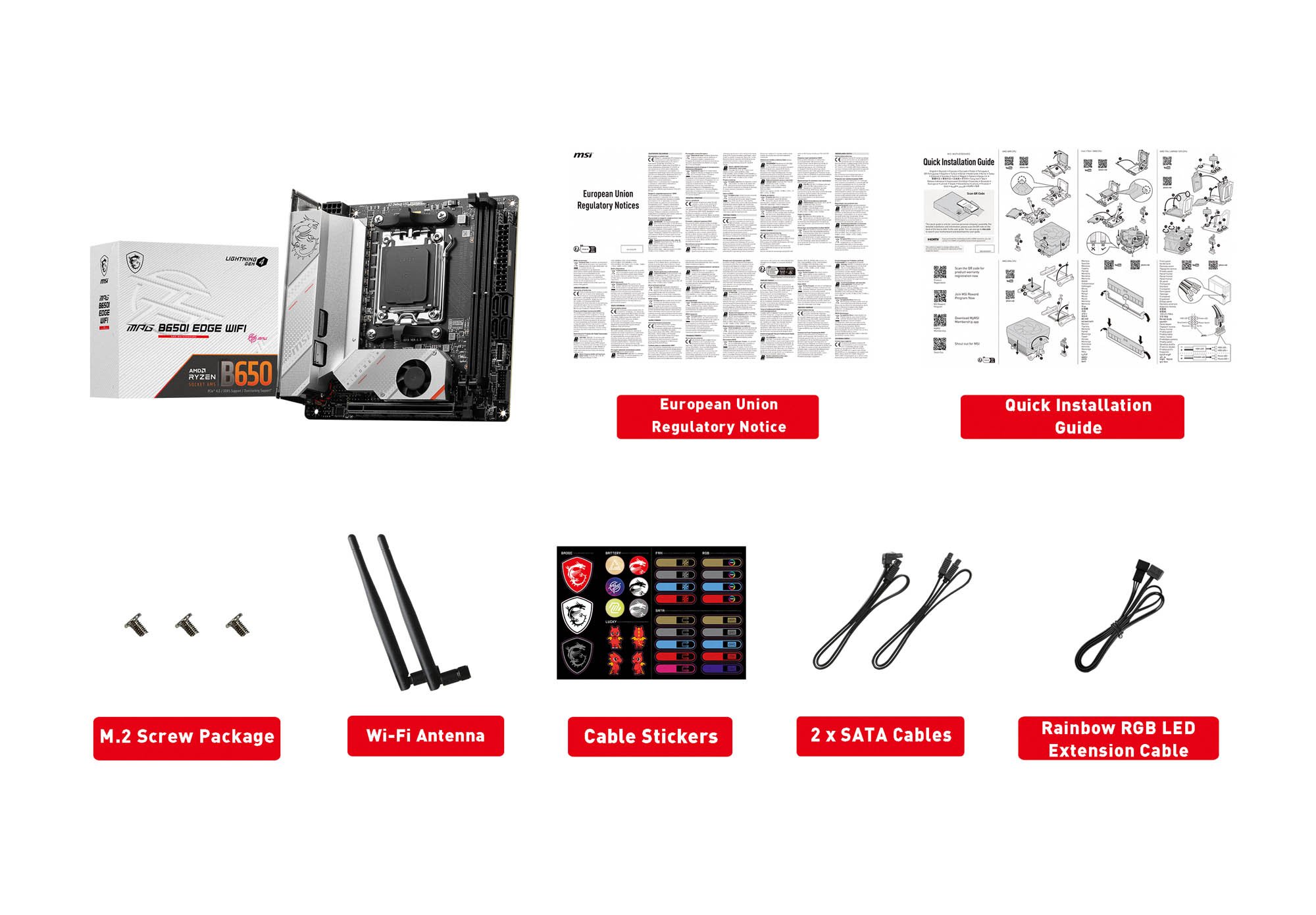

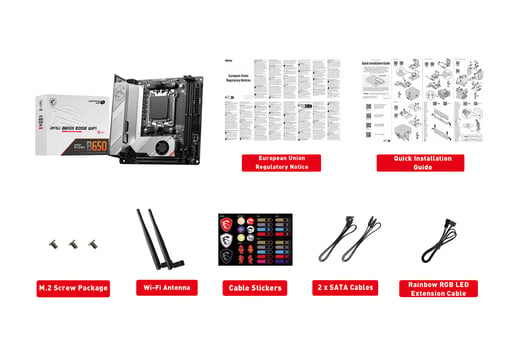

- In The Box: Motherboard
- EU Regulatory Notice
- Quick Installation Guide
- M.2 Screw Package
- Wi-Fi Antenna
- Cable Stickers
- 2 x SATA Cables
- Rainbow RGB LED Extension Cable
- Width: 170 mm
- Length: 170 mm
Identifiers
- Stock Code: MBD3332
- Mfg Code: MPG B650I EDGE WIFI
Warranty
- Warranty: 3 Years
