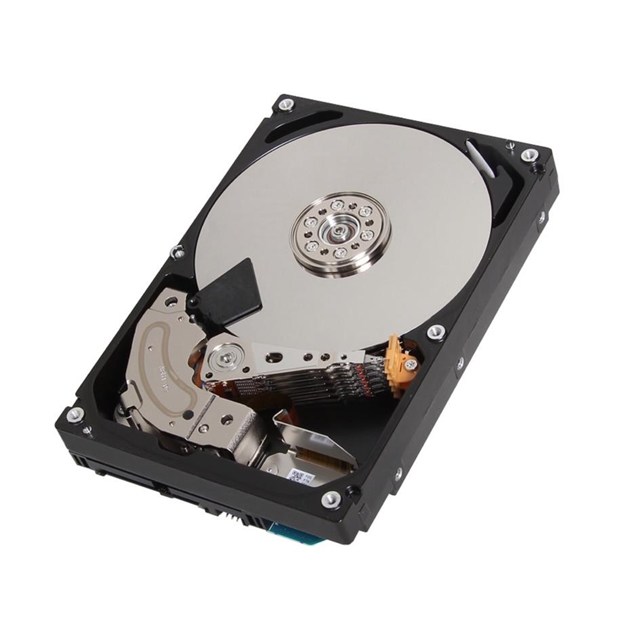

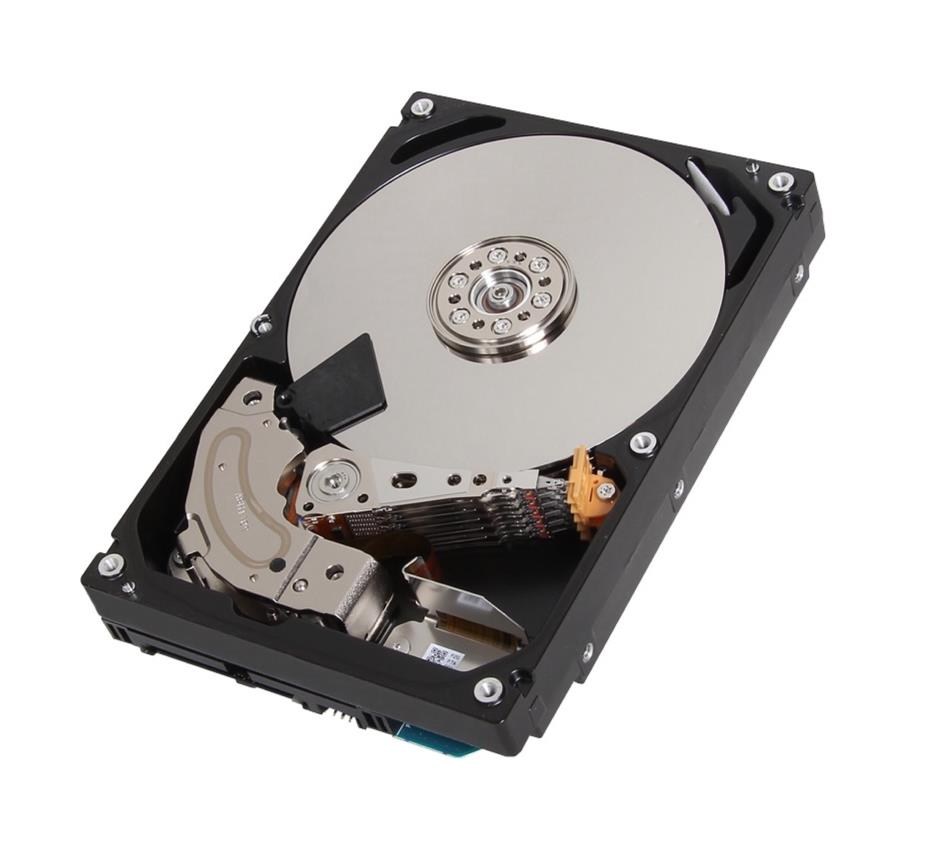

Toshiba MG04SCA20EE 2TB SAS 3.5" Hard Drive - 7200RPM, 128MB Cache

Toshiba MG04SCA20EE 2TB SAS 3.5" Hard Drive - 7200RPM, 128MB Cache

CCL Code: HDD3516

Discontinued

Toshiba MG04SCA20EE 2TB SAS 3.5" Hard Drive - 7200RPM, 128MB Cache

MG04SCA20EE

Key Features:

  • 2TB Capacity
  • 7200RPM Spin Speed
  • SAS Interface
  • 128MB Cache
  • 3.5" Form Factor
  • 5 Year Warranty
CCL Code: HDD3516

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

The up to 6TB Enterprise Capacity HDD models (MG04SCAxxEx) come in a robust design with 3.5-inch form factor and performance of 7,200 rpm. Features of MG04SCAxxEx include 12 Gbit/s SAS interface, Toshiba persistent write cache technology, industry-standard 4K native (4Kn) and 512e Advanced Format sector technologies for optimum performance in the latest generation of servers and storage systems. While 4Kn models (MG04SCAxxEA) offer optimum performance and compatibility with 4K applications, the support for legacy applications and operating environments that require 512B sector lengths is provided by 512e models (MG04SCAxxEE). Model options supporting Sanitize Instant Erase (SIE) are also available. This feature may help to protect data from unintended disclosure in the event that drives are re-purposed or moved outside of data centre environments.

Main Features

  • Industry Standard 3.5-inch 26.1 mm Height Form Factor
  • Large Capacity (6 / 5 / 4 / 2 TB Models)
  • 7,200rpm Performance
  • Dual-Port 12 Gbit/s SAS Interface
  • 550 Total TB Transferred per Year Workload Rating
  • 4Kn or 512e Advanced Format Sector Technology
  • Introducing Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events
  • Sanitize Instant Erase (SIE) Option Available
Specifications

Hard Disk

Disk Capacity 2000 GB
Drive Capacity 2000 GB
Disk Size 3.5 Inches
Drive Size 3.5 Inches
Disk Speed 7200RPM
Interface SAS
Drive Interface SAS
Data Buffer/RAM 128 MB

Performance

Average Latency 4.17 ms

Compliance

Certifications RoHS Compatible

Electrical

Electrical Power Consumption 11.8 W

Environmental

Operating Temperature 5 to 55 °C
Operating Humidity 5 to 90 %
Non Operating Temperature -40 to 70 °C
Relative Humidity 5 to 95 %
Shock (Operating) 70Gs for 2ms
Shock (Non Operating) 300Gs for 2ms
Vibration (Non-Operating) 5 G, with 5 - 500 Hz
Altitude (Operating) -305 to 3,048 m
Altitude (Non-Operating) -305 to 12,192 m

Physical

Form Factor Hard Disk Drive
Enclosure type Internal
Pack Quantity 1
Width 10.1 cm
Depth 14.7 cm
Height 2.61 cm
Weight 0.72 kg
Barcode 4047999501831

Key Features

Interface Type SAS
Cache Memory 128 MB
Disk Form Factor 3.5"
Interface Type SAS
Condition New
Intended Use Enterprise

Warranty

Warranty 5 Years

Storage

Storage Type HDD

Item Details

Manufacturer Toshiba
Manufacturer Code MG04SCA20EE
EAN 4047999501831
Condition New
Warranty

Warranty Information

Warranty 5 Years

Manufacturer Information

Manufacturer Toshiba
Manufacturer Code MG04SCA20EE
Q&A

Do you have you a question about the Toshiba MG04SCA20EE (2TB) 7200rpm 3.5 inch SAS 3.0 128MB Hard Drive 512n?

Q: These drives are listed as having 0 years warranty! This must be wrong but what IS the correct number of years please? :-)
Answer by Website User on 6th September 2021
This has been updated for you now. - Kristian N
0 customers found this answer helpful.
Post Answer
Reviews
No reviews have been received for this product yet
Downloads

PDF Datasheets and Manuals

Document File type File size
Datasheet pdf 0.59MB
