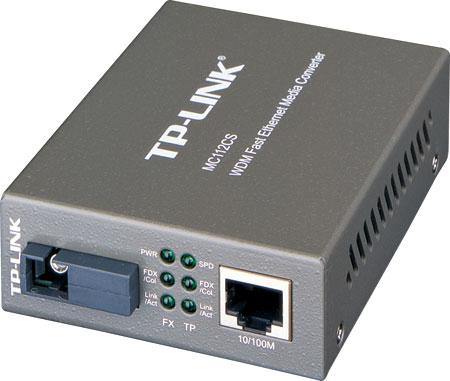

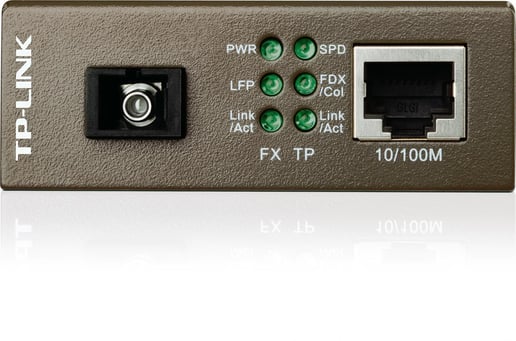

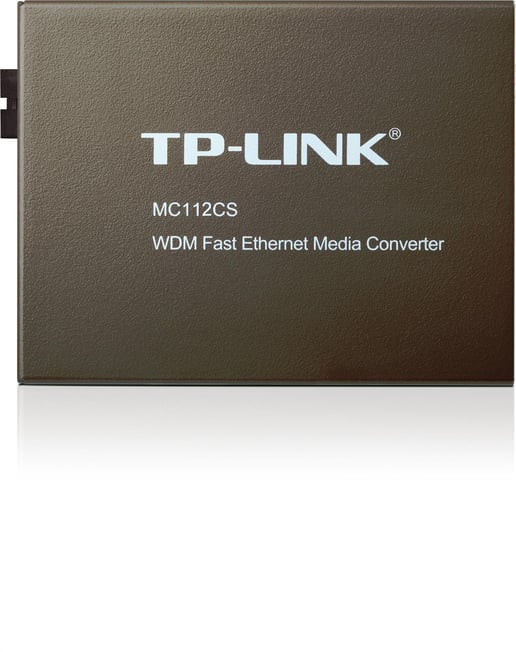

TP-Link MC112CS Ethernet Adapter

TP-Link MC112CS Ethernet Adapter

CCL Code: NET4558

Discontinued

TP-Link MC112CS Ethernet Adapter

MC112CS

Key Features:

CCL Code: NET4558

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

The MC112CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Adopting WDM technology, MC112CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fiber cable utilizing the SC-Type connector.

Main Features

  • TP-Link MC112CS WDM Fast Ethernet Media Converter (SC, Single-mode)
  • Auto negotiation of 10/100Mbps and auto MID/MID-X for TX port
  • Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
  • Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Ports: 1 x 100M SC port; 1 x 100M RJ45 port (Auto MDI/MDIX)
  • WDM: TX (1310nm) • RX (1550nm)
  • Extend fiber distance up to 20km
  • Easy-to-view LED indicators provide status to monitor network activity easily
  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • External power supply
Specifications

Interfaces/Ports

Supported Cable Distance (Maximum) 20 km
Convert From 10/100BaseTX
Convert To 100BaseFX
Fiber Ports 1 x SC Connector
RJ-45 Ports 1 x RJ-45

System

Protocols Supported IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Technical Notes MC112CS: RJ45--SC (Connector); 20km (Transmission Distance); Single-mode Fiber, Cat-5 (Transmission Media); 1310nmTX/1550nmRX (Output Center Wavelength)

Compliance

Certifications Safety & Emission: FCC, CE

Electrical

Power Adaptor Type External

Environmental

Operating Temperature 0 to 40 °C
Operating Humidity 10 to 90 %

Physical

Form Factor Network Media Converter
LED Status Indicators PWR, FDX/Col, Link/Act, SPD
Width 9.45 cm
Depth 7.3 cm
Height 2.7 cm

Warranty

Warranty 1 Year

Item Details

Manufacturer TP-Link
Manufacturer Code MC112CS
EAN 6935364030421
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer TP-Link
Manufacturer Code MC112CS
