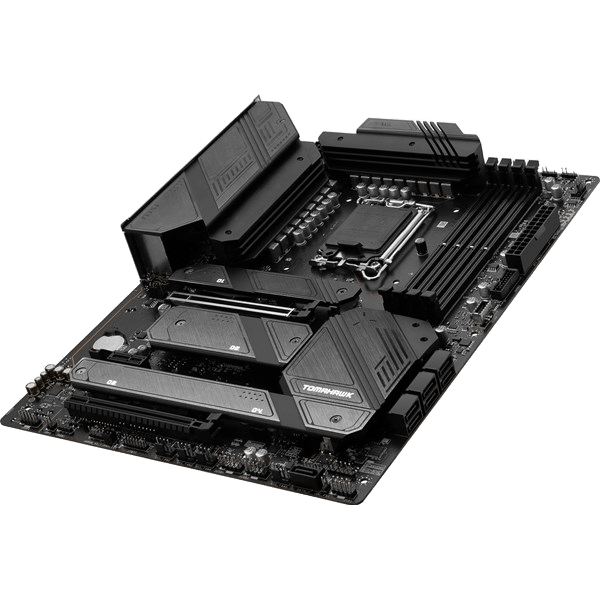

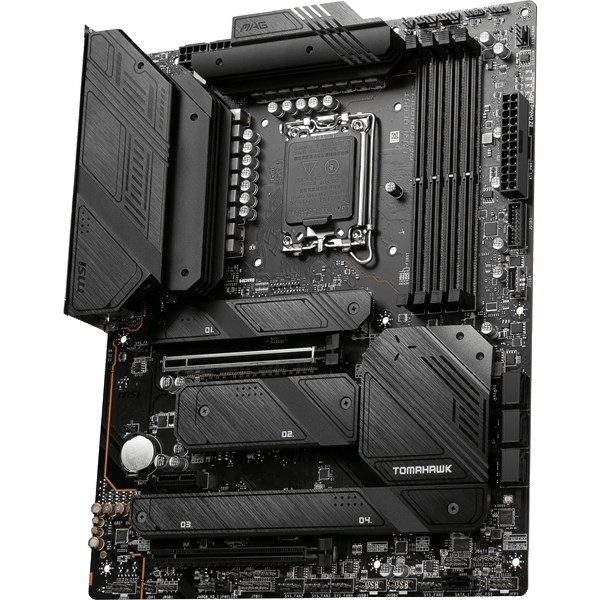

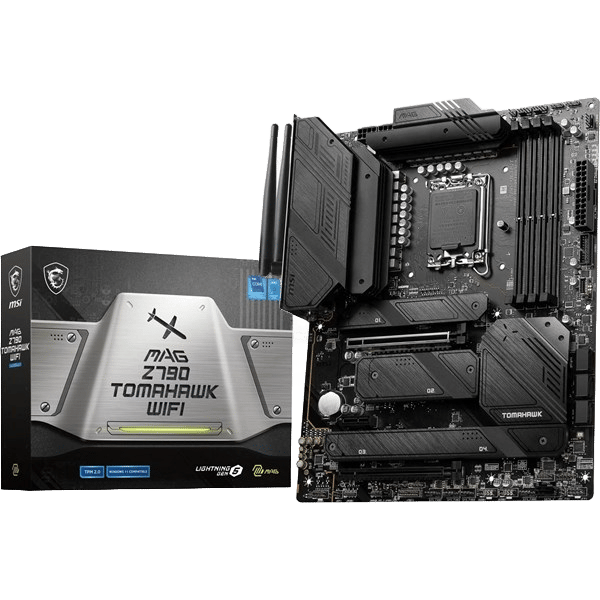

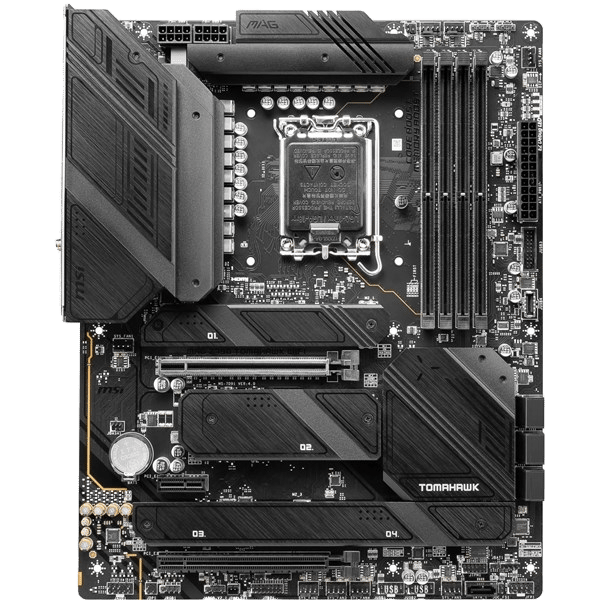

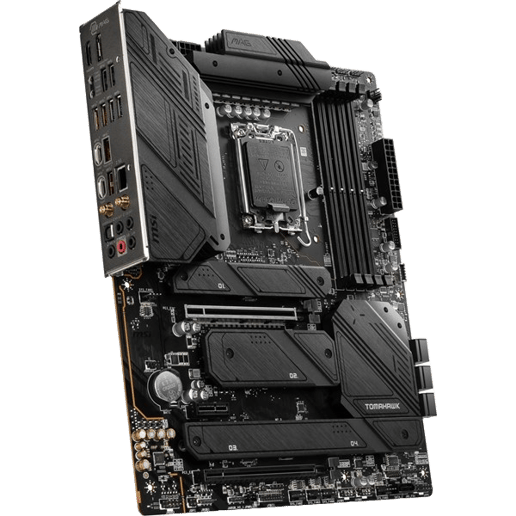

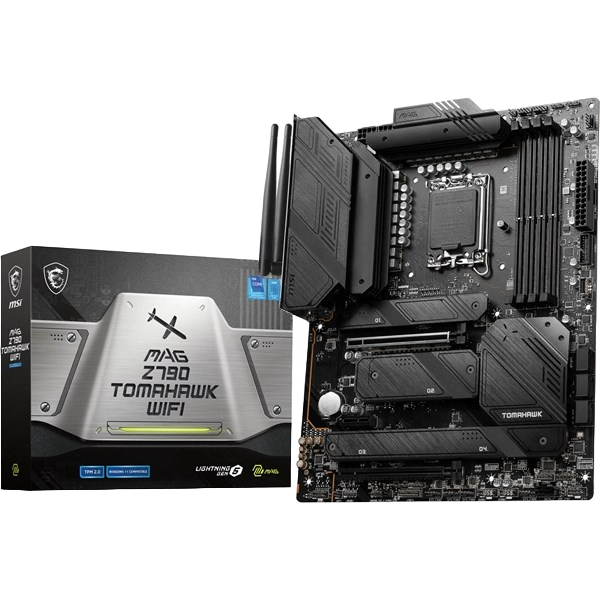

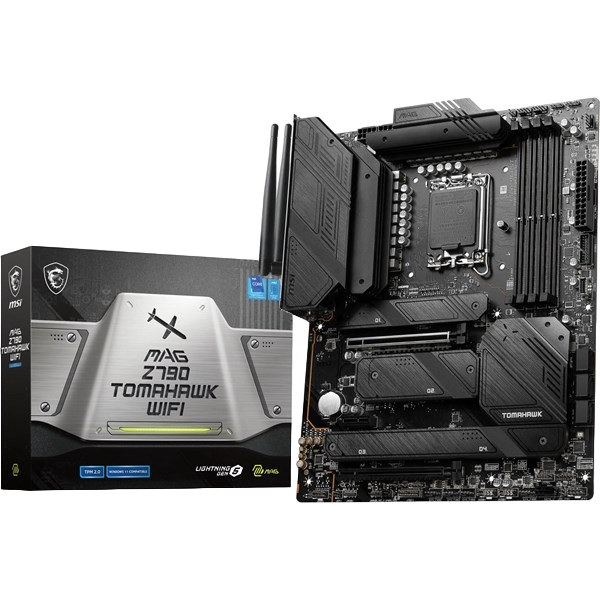

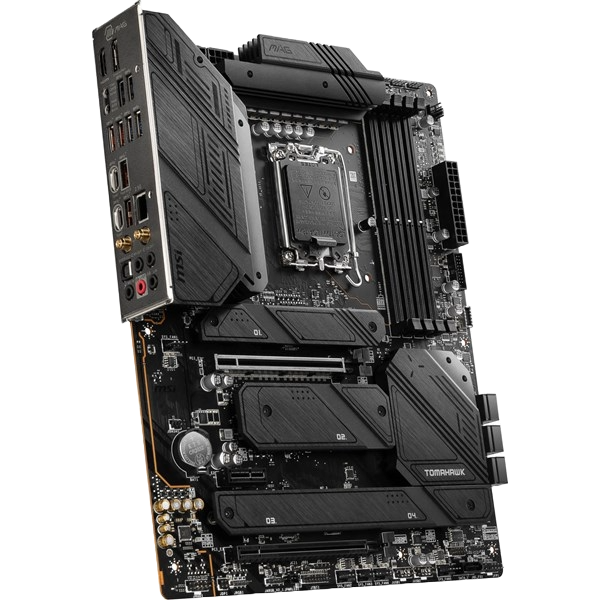

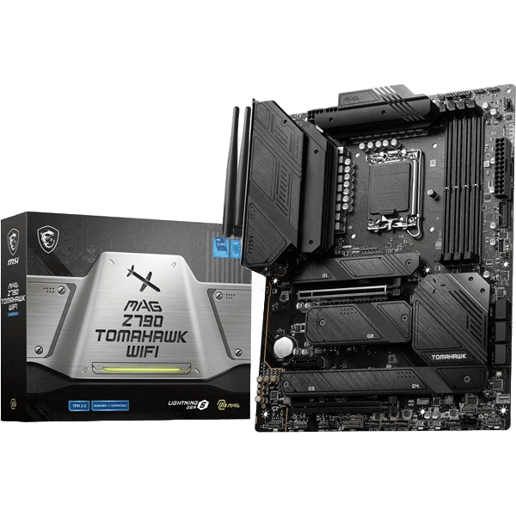

MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard for Intel LGA1700 CPUs

MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3341

Sold out

Notify Me
  • MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard for Intel LGA1700 CPUs
  • MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard for Intel LGA1700 CPUs
  • MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard for Intel LGA1700 CPUs
  • MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard for Intel LGA1700 CPUs
  • MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard for Intel LGA1700 CPUs
  • MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard for Intel LGA1700 CPUs
  • MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard for Intel LGA1700 CPUs

Get 5% off when you buy 3 or more different components*

MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard for Intel LGA1700 CPUs

MAG Z790 TOMAHAWK WIFI

Key Features:

  • ATX Form Factor
  • Intel Z790 Chipset
  • Socket 1700
  • DDR5 (Max: 128GB / 4 slots)
  • 4 x M.2 & 10 x USB & 7 x SATA
  • HDMI and Display Port
CCL Code: MBD3341

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

Unite as One

The MAG Z790 TOMAHAWK WIFI is a gaming oriented ATX motherboard constructed around the latest Intel Z790 chipset that balances value with premium hardware.

Supports Intel Core 12th & 13th Gen Processors

The MAG Z790 TOMAHAWK WIFI motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.

Socket Type: LGA 1700

Chipset: Intel Z790

16+1+1 Duet Rail Power System with 90A SPS

With its dual 8 pin power connectors and exclusive Core Boost technology, the MAG Z790 TOMAHAWK WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:

  1. Digital PWM IC
  2. 16-Phase Duet Rail CPU Power (Smart Power Stage / 90A)
  3. 1-Phase GT Power
  4. 1-Phase AUX Power

Integrated Cooling Features

VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.

PCB Cooling: Premium 6-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.

4 x DDR5 Dual Channel (7200 MHz OC)

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 7200+ MHz, supports Intel XMP.

Fortified PCI-e 5.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

1 x PCI-e 5.0/4.0/3.0 x16 slot (with Steel Armor**)

1 x PCI-e 4.0/3.0 x16 slot*

*Supports x16/x4

**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Gen4 M.2 Connectors

The MAG Z790 TOMAHAWK WIFI motherboard features MSI's Gen4 M.2 slots:

4 x Gen4 x4 64Gb/s slots

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

Wi-Fi 6E & Bluetooth 5.2

2.5G LAN: An Intel 2.5Gbps LAN controller delivers a premium network gaming experience.

Wi-Fi 6E: Features the latest Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.

USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.

HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 & S/PDIF output.

Main Features

  • Supports 12th/ 13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7200+(OC) MHz
  • Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Promotions

Get 5% off components when you buy three or more*

For a limited time, buy at least three different components worth £30 or more from different qualifying categories and get 5% off those items. *Terms & Conditions apply.

Qualifying categories are Processors, Motherboards, Desktop Memory, Solid State Drives, Hard Disk Drives, Power SuppliesCPU Coolers, and Cases.


Promotional Period: From 24th April 2024 till 25th April 2024. 7pm until 8am.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on products in qualifying categories. Some items may not be included, such as new product launches - please check the item to ensure the promotion applies. Minimum value of each item must £30 or greater. Discount will apply to three or more items bought from separate categories (e.g. one CPU, one motherboard) in one basket. It will not apply to multiples from categories (e.g. two CPUs). Discount will be applied to the three or more items in your basket - please double-check your basket to ensure the offer applies correctly. Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period:From 8PM April 27th, 2023 till 2AM April 28th 2023.

Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
64-bit Support Yes
Socket LGA1700

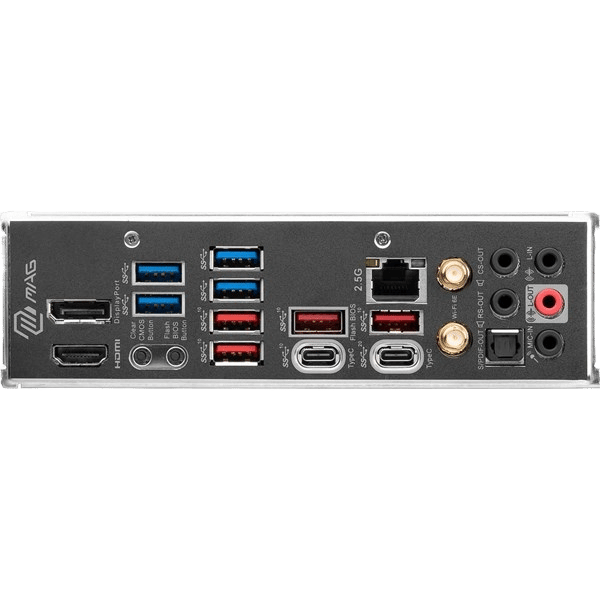

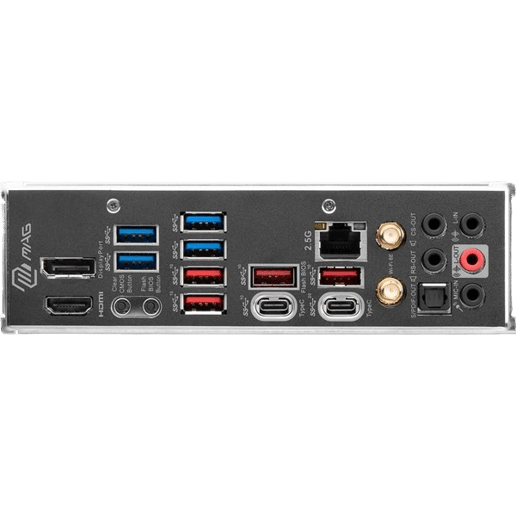

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.2
1 x USB-C 3.1
4 x USB 3.1
4 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 3 x 3.5mm Jacks
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 7 x SATA III
USB Connectors 1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x Pump fan header
6 x System fan headers
Thunderbolt Port(s) 1 x TBT header (supports RTD3)
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x TPM header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 1 x M.2 slot, Type 2260/2280/22110 (PCIe Gen4)
1 x M.2 slot, Type 2260/2280 (PCIe Gen4)
1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen4)
1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen4 or SATA)
3 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header
1 x Tuning Controller header

Memory

Memory Bus Speed Up to 7200 (OC) MHz
Memory Type DDR5
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge Z790
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported Yes

Warranty

Warranty 3 Years

Sound

Integrated Sound Realtek ALC4080

Network

Integrated Network Intel
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes (Wi-Fi 6E)
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.2

System Requirements

Operating Systems Supported Microsoft Windows 11 64-bit

System

Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard

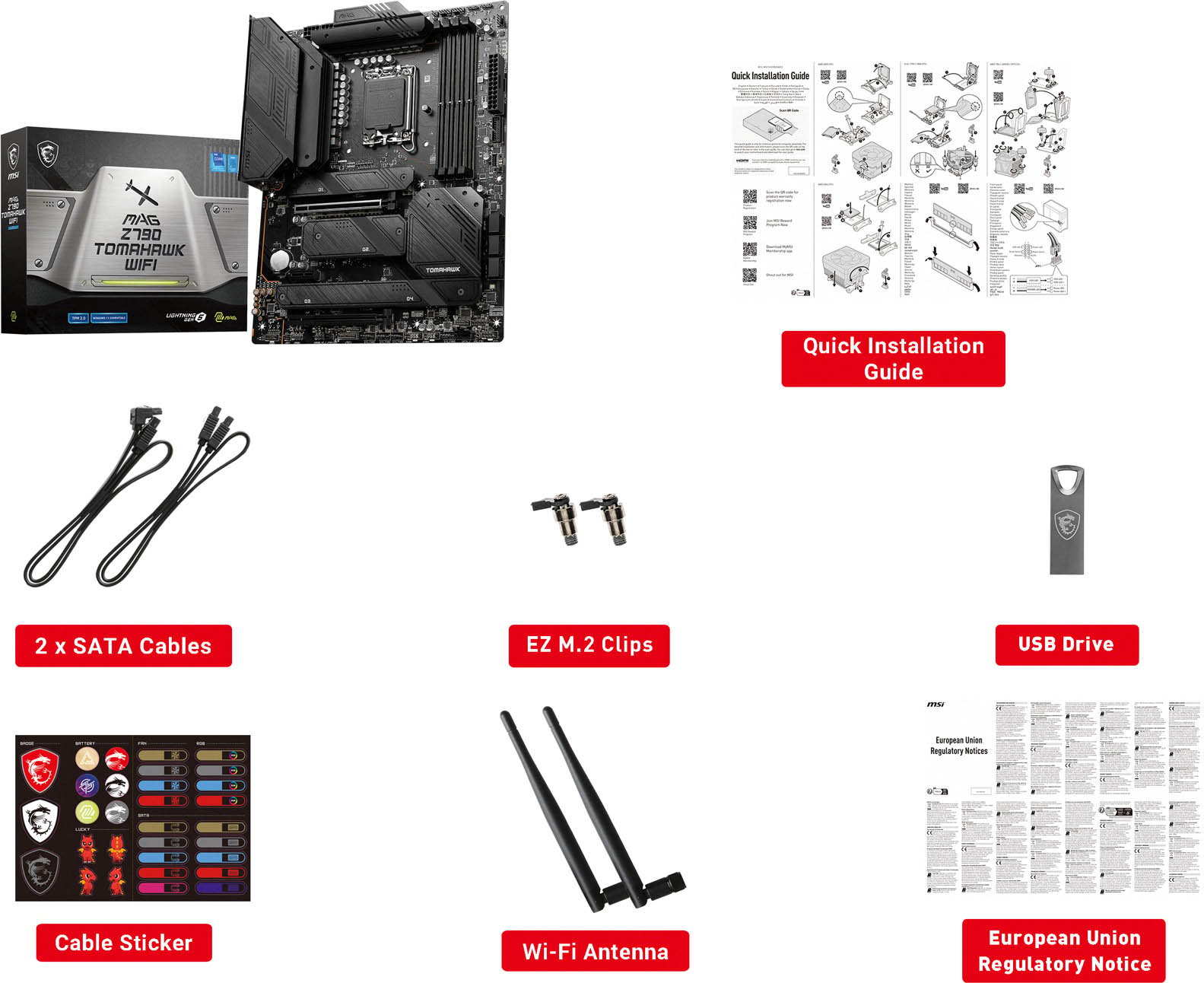

In The Box Motherboard
Quick Installation Guide
2 x SATA Cables
EZ M.2 Clips
USB Drive
Cable Stickers
Wi-Fi Antenna
EU Regulatory Notice
Width 304.8 mm
Length 243.84 mm

Key Features

Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
mSATA Supported No
U.2 Supported No
Chipset Manufacturer Intel
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 7 port(s)
Number of USB Ports 10 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Motherboard (EPS) Power Connectors 2 x 8-Pin
Motherboard Chipset Intel Z790
Thunderbolt No
Motherboard Model MSI MAG Z790 TOMAHAWK WIFI
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control MSI Mystic Sync
Memory Speed 7200 MHz
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (Non-overclocked) 5600 MHz
Max Memory Speed Supported (overclocked) 7200 MHz
CPU Power Pins (female) 16
Total M.2 Slots 4
Maximum NVMe M.2 ports 4
Maximum SATA M.2 ports 1
SATA ports 7
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
