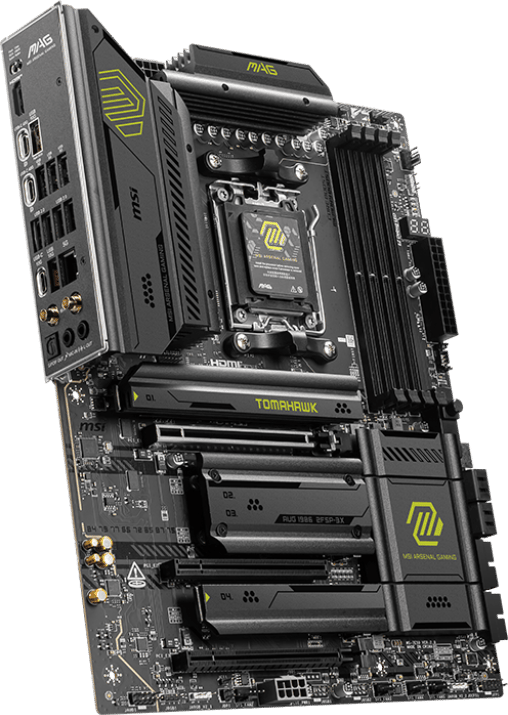

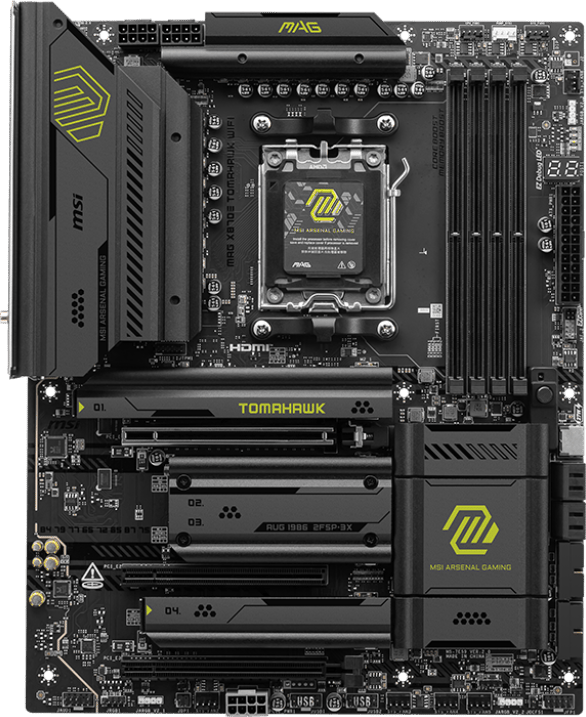

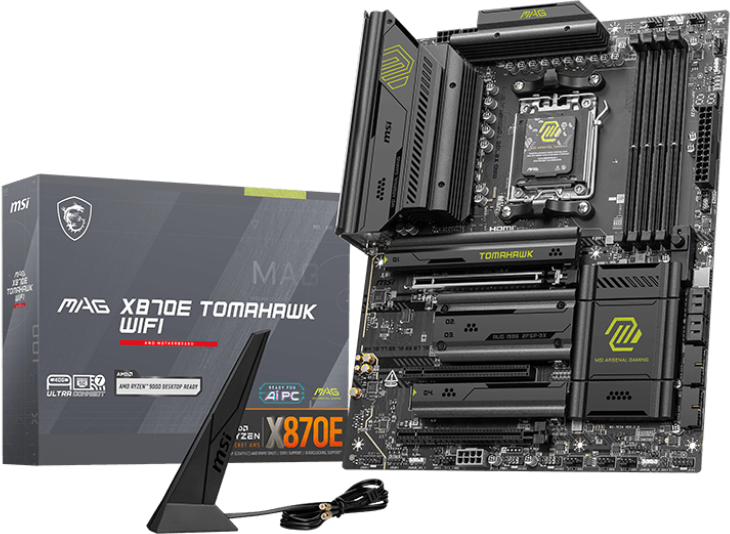

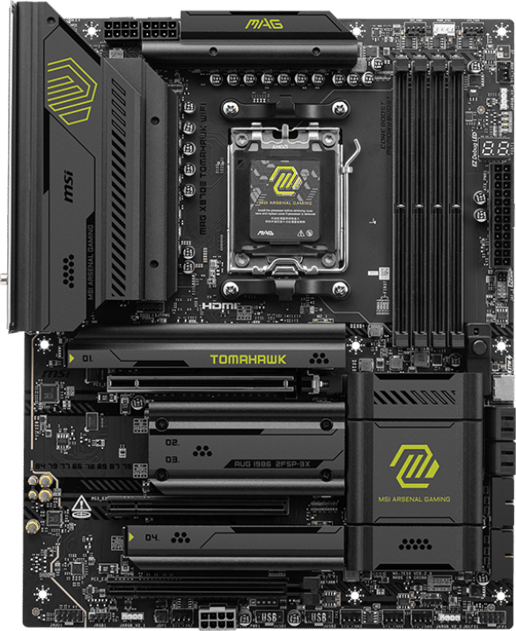

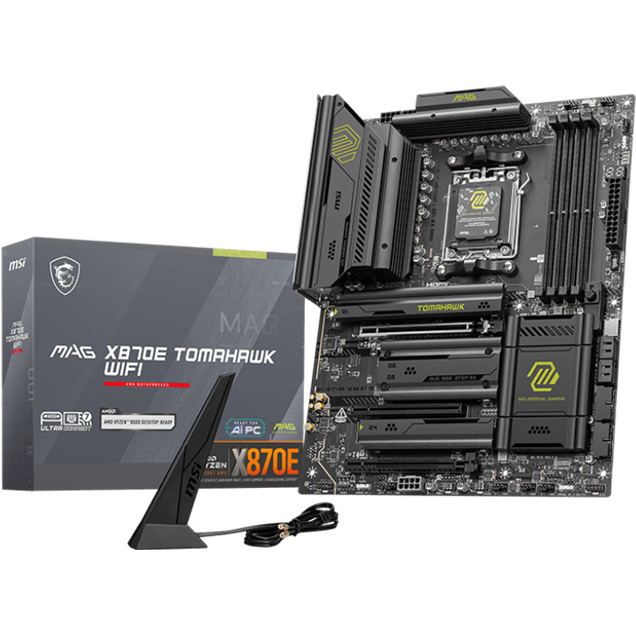

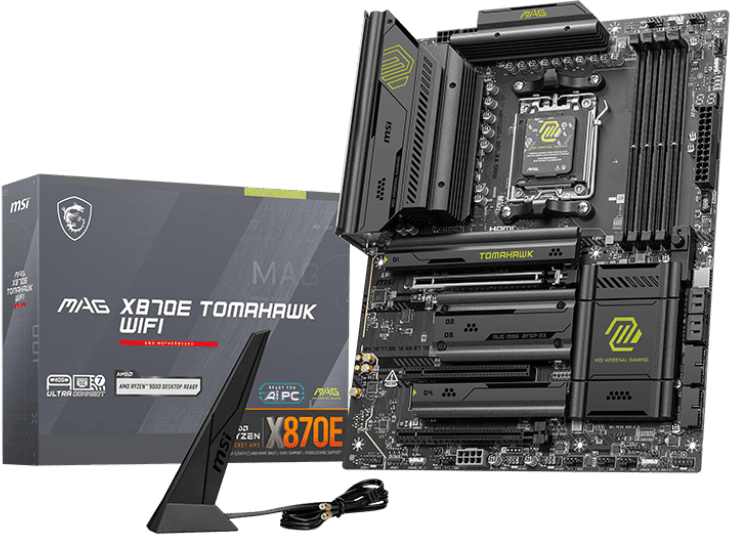

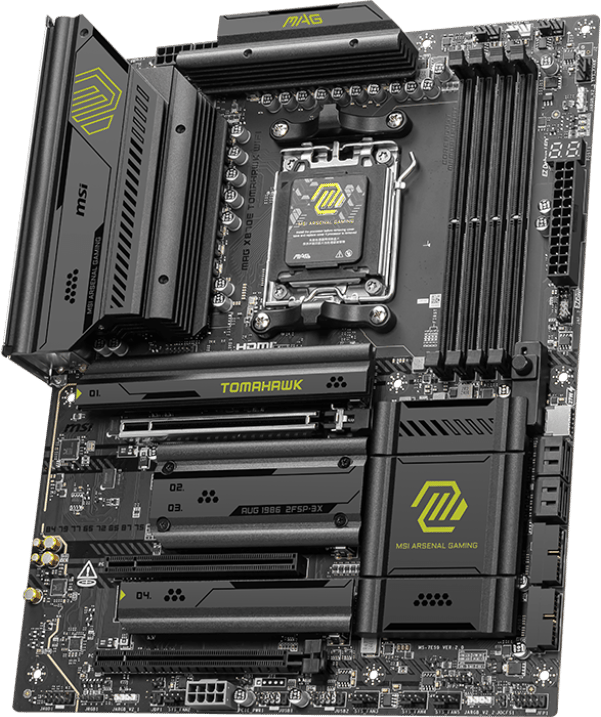

MSI MAG X870E TOMAHAWK WIFI ATX Motherboard for AMD Socket AM5 CPUs
SAVE £53
Available for delivery from Tomorrow
Click & Collect from Today
5 In Stock Now
Order within
You have 0 of these in your basket
Brutal and battle-ready
The X870E TOMAHAWK WIFI is a fortress of raw power and cutting-edge technology, clad in deep black with the signature MAG green slashing through its angular heatsinks like battle scars. A relentless 14+2+1 Duet Rail Power System and dual 8-pin CPU connectors channel unyielding energy into Ryzen 9000 series processors, keeping performance locked and loaded under any pressure. True Wi-Fi 7 and 5G LAN deliver blistering network speeds, while PCIe 5.0 and supplemental PCIe power forge a path for next-gen hardware without hesitation. Built for overclocking enthusiasts, this board is engineered for domination.
Frozr Extended Heatsink Design
From the M.2 slots to the VRM and chipset, this board is built with cooling in mind at every level. A combination of an extended heatsink, double-sided M.2 Shield Frozr, heavy-plated VRM heatsink, high-quality 7 W/mK thermal pads, and an enlarged chipset heatsink all work together to keep heat under control, so your system stays stable and performs at its best even when you're pushing it hard.
EZ DIY Installation
MSI's exclusive EZ M.2 Shield Frozr II and EZ M.2 CLIP II make M.2 installation seamless. Insert your SSD card into the slot and press it down to lock it in place with the clip; it's that easy! The process is simple and smooth, and you don't need to use any tools.
Pre-Installed I/O Shield
The pre-installed I/O shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.
14+2+1 DRPS POWER DESIGN
Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 14 Phase V-Core 80A Smart Power Stage, MAG X870E TOMAHAWK WIFI is ready for any challenge high-end processors can throw at it.
EZ OC Tuning
With the rich features of MSI BIOS, you can easily enjoy the powerful performance that overclocking brings. Performance pre-sets offer a more intuitive way to boost performance by setting the power limitations to your preference; meanwhile, Performance Switch combines the benefits of AMD's default PBO and MSI's own OC setting, boosting CPU performance in both single-core and multi-core processors. And that's just touching the surface of the overclocking potential.
Ultra Connect
Staying connected has never been faster or more reliable, thanks to USB4, 5G LAN, and Wi-Fi 7 all coming along for the ride. USB4 brings seriously quick data transfer speeds, so moving large files between devices feels less like watching paint dry and more like actual magic. 5G LAN ensures a reliable wired connection for gaming, streaming, and other applications that require a high-speed link, while Wi-Fi 7 wirelessly delivers faster speeds and reduced interference.
Lightning-Fast Gaming Experience
PCIe 5.0 slot, Lightning Gen 5 x4 M.2
Packing a PCIe 5.0 slot and Lightning Gen 5 x4 M.2, this board is built for speed — and we mean seriously fast. PCIe 5.0 doubles the bandwidth of the previous generation, so your latest graphics card and storage drives have all the headroom they need to stretch their legs and hit their full potential.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: Ryzen 9000/ 8000/ 7000 Series Desktop Processors
- 64-bit Support: Yes
- Socket: AM5

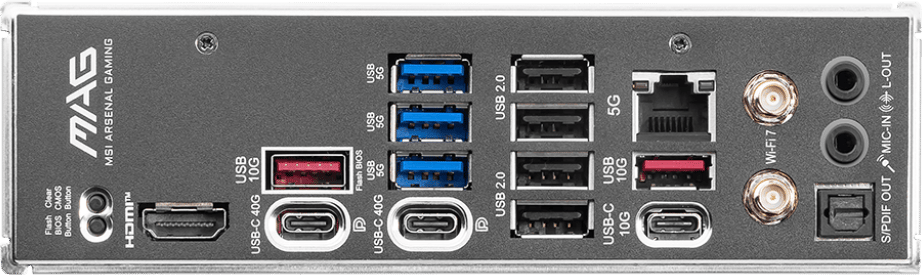

Rear Panel I/O Ports
- USB Ports: 2 x USB-C 4
- 1 x USB-C 3.1
- 2 x USB 3.1
- 3 x USB 3.0
- 4 x USB 2.0
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA
- USB Connectors: 1 x USB-C 3.2 header (supports 1 port)
2 x USB 3.0 headers (supports 4 ports) - 2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 8400 MT/s
- Memory Type: DDR5
Motherboard
- Northbridge: AMD X870E
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- RJ-45 Ports: 1 x RJ-45
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
- S/PDIF Port: 1 x S/PDIF Optical Out
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x Combo fan header
- 6 x System fan headers
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- TPM Header: 1 x TPM header
- Power Connector Port: 1 x 24-pin ATX
2 x 8-pin EPS
1 x 8-pin PCIe - Other Connectors: 1 x M.2 slot, Type 2280/22110 (PCIe Gen5)
- 1 x M.2 slot, Type 2260/2280 (PCIe Gen5)
- 2 x M.2 slots, Type 2260/2280 (PCIe Gen4)
3 x 3-pin ARGB headers - 1 x 4-pin RGB header
Expansion
- Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
- 1 x PCI Express 4.0 x16 slot (@ x4)
- 1 x PCI Express 3.0 x16 slot (@ x1)
Memory
- Maximum RAM: 256 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek ALC4080
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek 8126
- Network Speeds Supported: Up to 5 Gbps
- Wireless LAN: Yes - Wi-Fi 7
- Wireless Network Speed: Up to 5.8 Gbps
- Bluetooth: Yes
- Bluetooth Version: 5.4
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: ATX Motherboard
- In The Box: Motherboard
- Quick Installation Guide
- EU Regulatory Notice
- Shout-Out Flyer
- 2 x SATA Cables
- EZ M.2 Clip II Remover
- M.2 Plate Screw
- USB Drive
- Cable Sticker
- EZ Wi-Fi Antenna
- 1 to 3 EZ Conn-Cable (V2)
- EZ Front Panel Cable
- Width: 244 mm
- Length: 305 mm
Identifiers
- Stock Code: MBD3882
- Mfg Code: MAG X870E TOMAHAWK WIFI
Warranty
- Warranty: 3 Years
