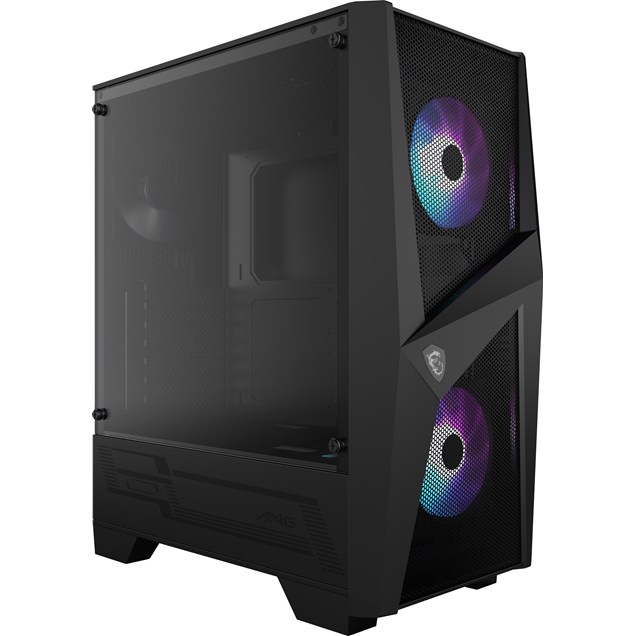

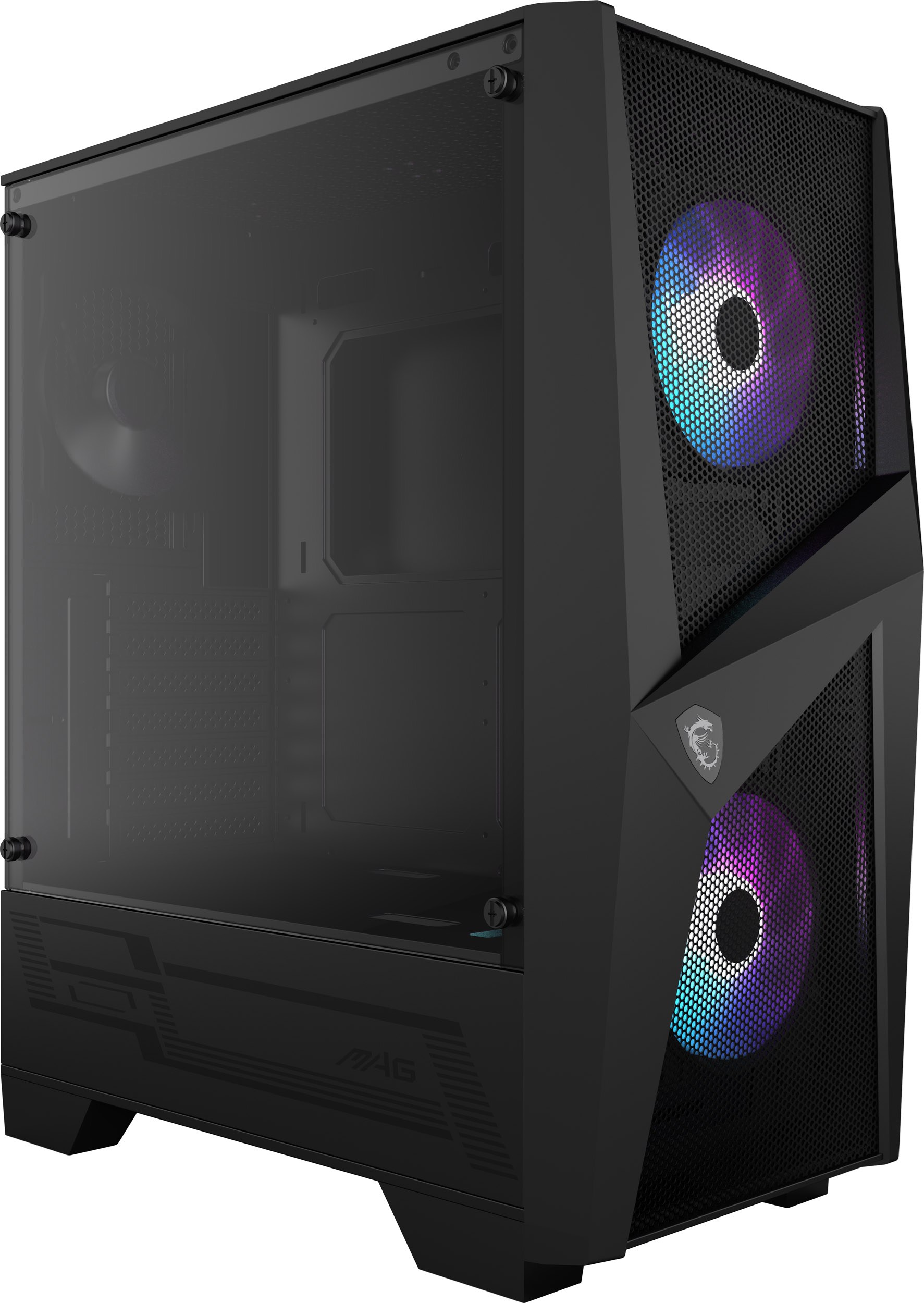

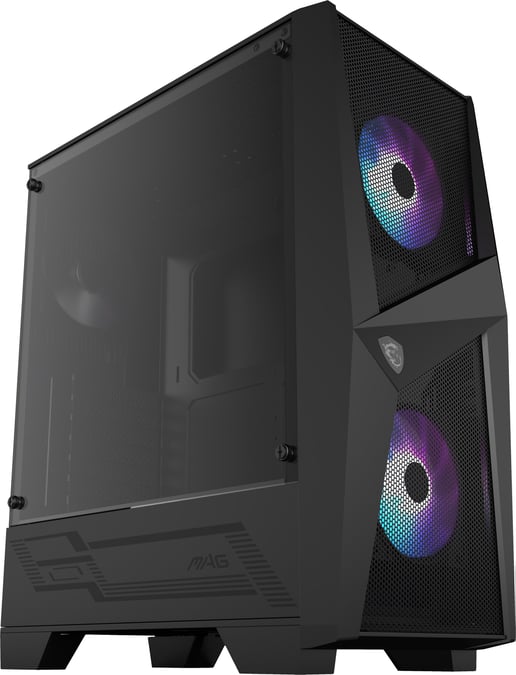

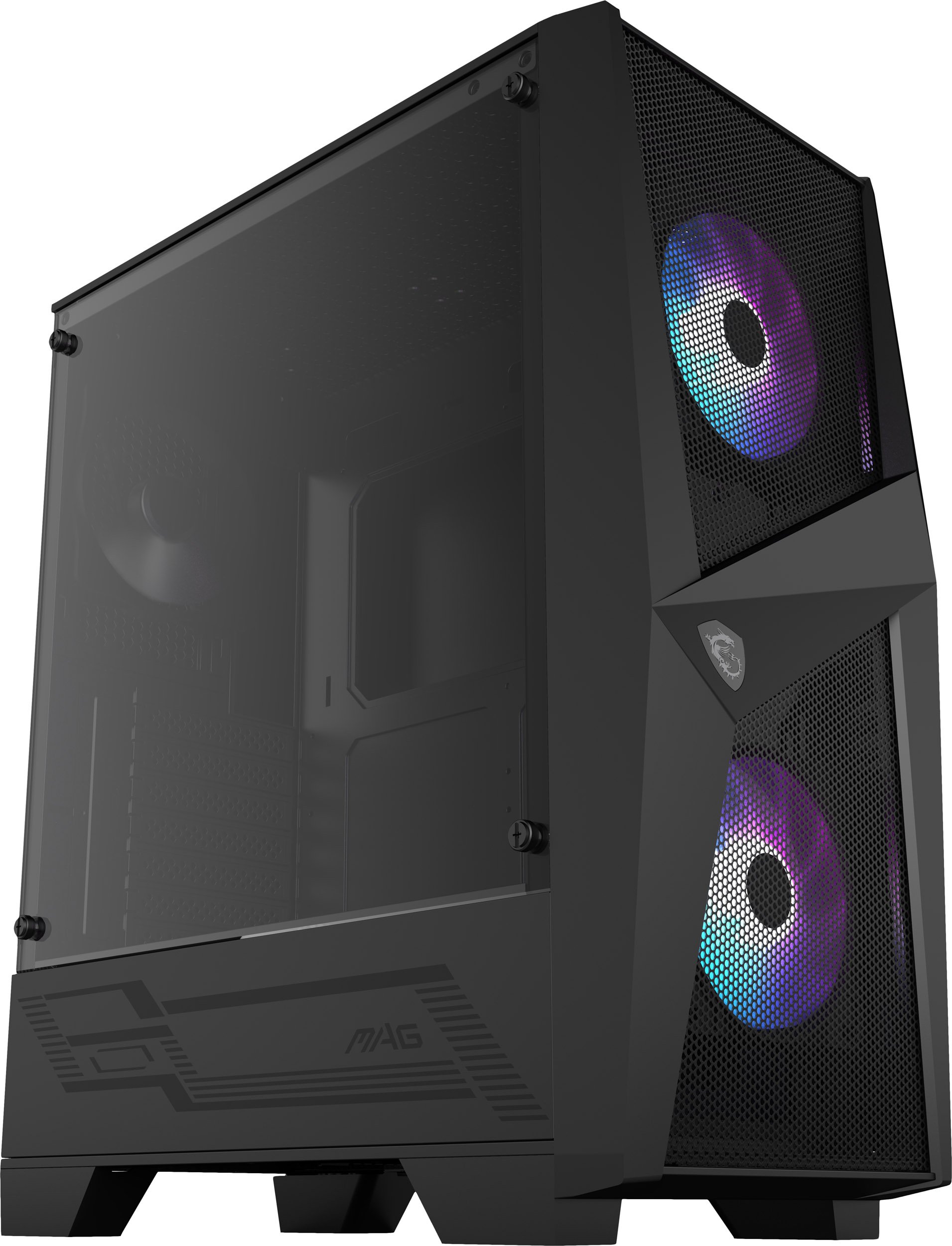

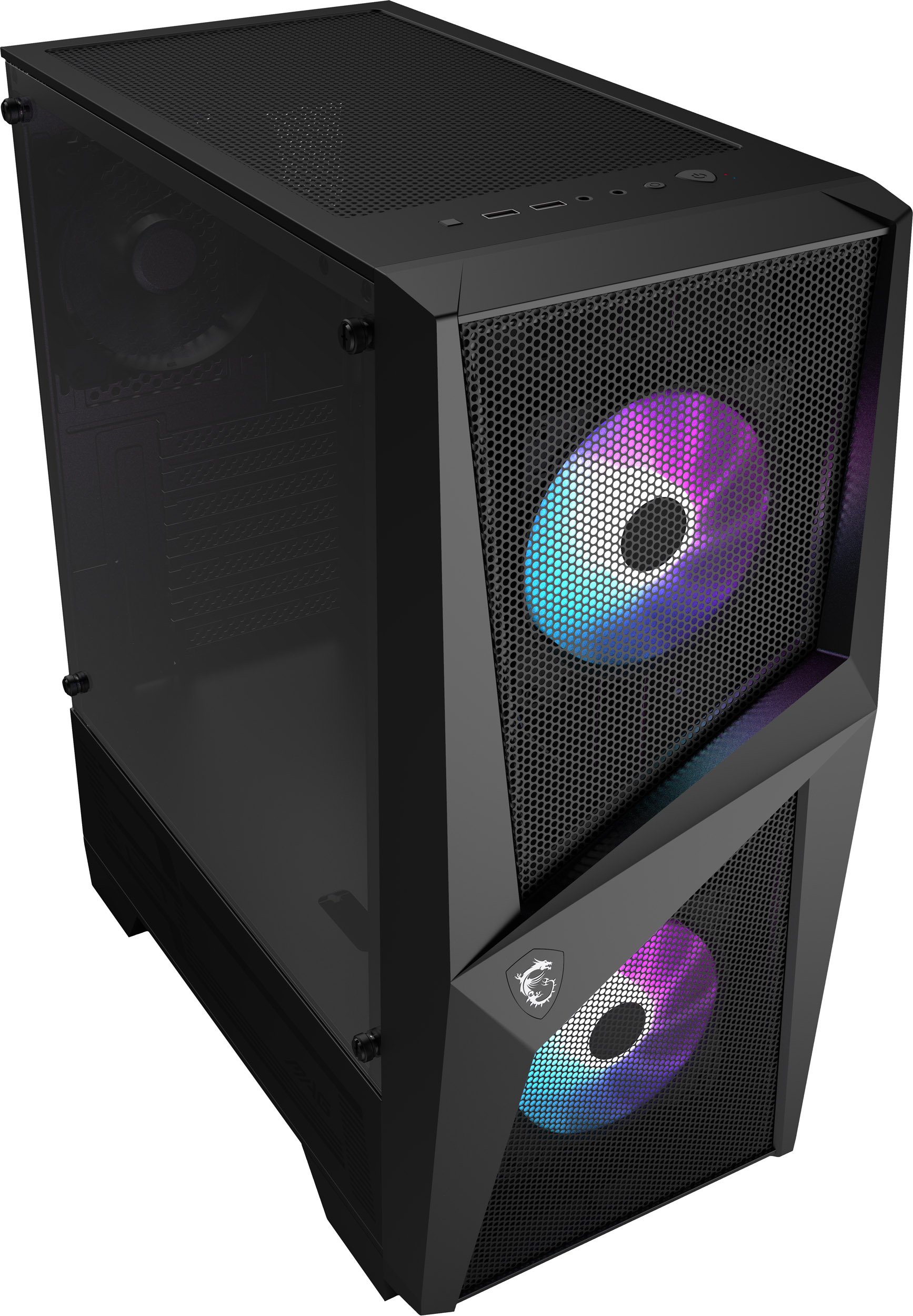

MSI MAG FORGE 100R Mid Tower Gaming Case - Black

Compare

MSI MAG FORGE 100R Mid Tower Gaming Case - Black

Name: MSI MAG FORGE 100R Mid Tower Gaming Case - Black
Brand: MSI
SKU: CAS3854
Price: 54.99 GBP
Availability: InStock
Rating: 5.0 (2 reviews)

MAG FORGE 100R

£54.99 inc VAT

Available for delivery from Wednesday 21st May

or Click & Collect from Wednesday 21st May

Buying in bulk? Contact our business team.

Add to Basket

Key Features:

Max Motherboard Size: ATX
Tempered Glass Side
3 x 2.5" / 2 x 3.5" Bay(s)

CCL Code: CAS3854

Overview

Key Features

1	LED SWITCH BUTTON User can intuitively control & switch 9 lighting effects through the LED switch button. Keep pressing the LED button for three seconds, and then users can control the lighting effects via syncing with the motherboard by MSI mystic light app.

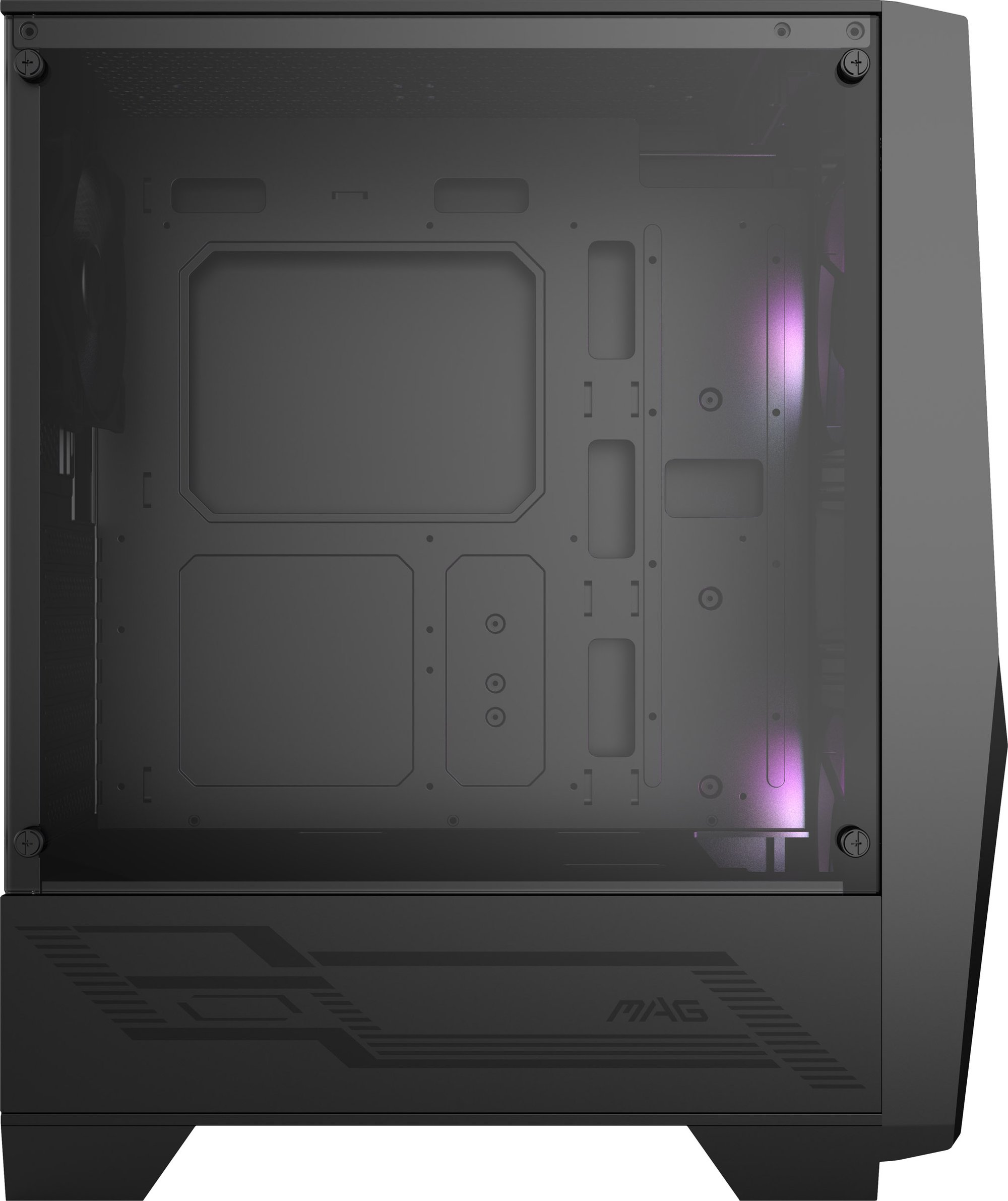

2	TOOL-LESS TEMPERED GLASS The light gray tone of 4mm tempered glass side panel is ideal for displaying RGB lighting effects and provides clear internal component construction.
3	MID-TOWER SIZE FITS THE OPTIMIZED GAMING MOTHERBOARD Mid-Tower size supports ATX / Micro ATX / Mini-ITX motherboards.
4	1 TO 6 ARGB LED CONTROL BOARD Bundled with a 1 to 6 ARGB LED Control Board to help you have more attractive ways to decorate your gaming rig by add the LED strips.
5	MYSTIC LIGHT SYNC MSI Mystic light offers multiple colors and effects for you to set up your rig with your own style.
6	SYSTEM FAN INCLUDED Two 120mm ARGB fans aligned vertically on the front draw in air evenly across the entire face of the enclosure. One 120mm system fan on the rear makes sure the rising warm air has been exhausted.

IO CONNECTION

READY FOR OPTIMIZED MOTHERBOARDS

Designed with multiple easy installation mechanisms & accommodated an up to ATX motherboard to provide an unhindered building experience.

BUILT FOR A PRIME RADIATOR CAPACITY

MAG Forge 100 Series support up to 240mm radiator.

Top - support 120 / 240 mm radiator
Pront - support 120 / 240 mm radiator

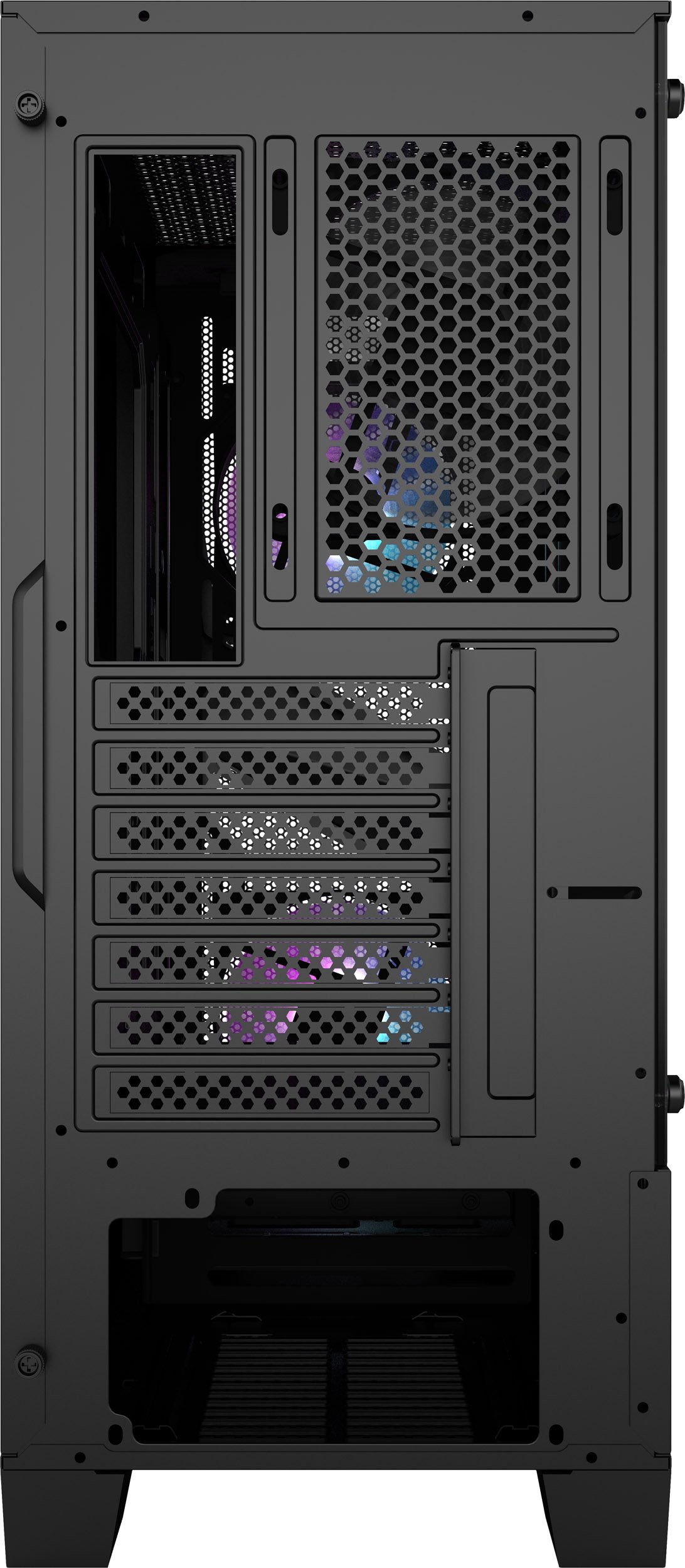

Rear - support 120 radiator

BUILT FOR A PRIME FAN CAPACITY

Cooling Layout

Front: Up to 3 x 120 mm or 2 x 140 mm
Top: Up to 2 x 120 mm or 2 x 140 mm
Rear: 1 x 120 mm

Pre-install Fan

Front: 2 x 120 mm addressable RGB LED Fan included
Rear: 1 x 120mm System Fan included

OPTIMIZED AIR FLOW

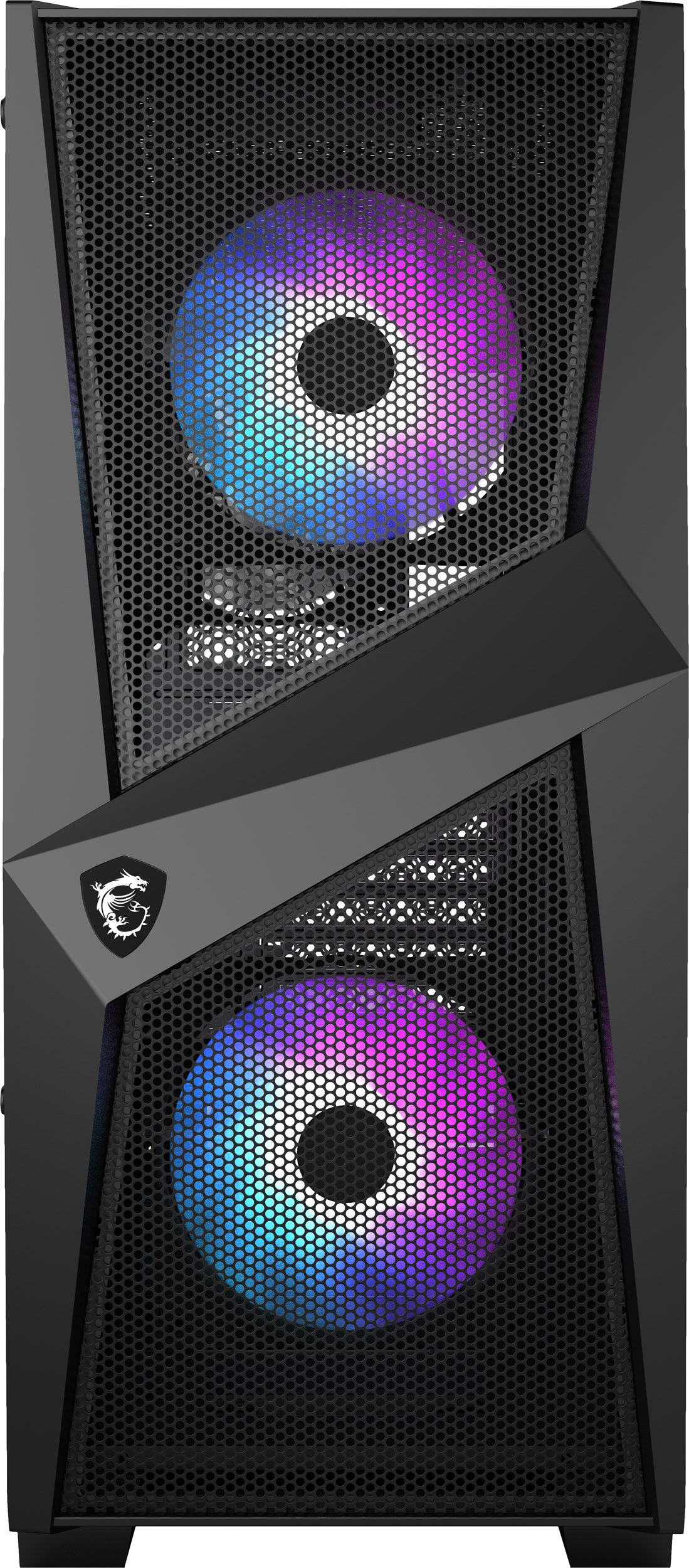

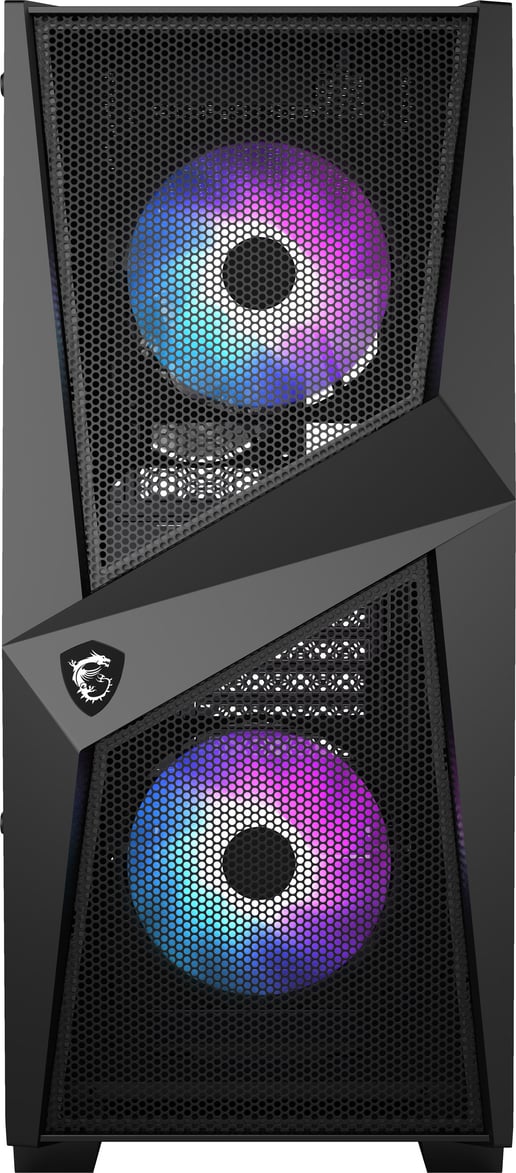

Two 120mm fans aligned vertically on the front to draw in air evenly across the entire face of the enclosure.
That will contribute to positive air pressure within the case, the rising warm air will always be exhausted with the rear and top airflow from the MAG Forge 100 Series.

*To guide the airflow from the radiator, please evaluate and adjust the airflow direction of the top fan when installing the radiator.

Ignite Your Gaming Rig

1 to 6 ARGB LED Control Board

Bundled with a 1 to 6 ARGB LED Control Board to help you have more attractive ways to decorate your gaming rig by add the LED strips.

LED Switch Button

User can intuitively control & switch 9 lighting effects through the LED switch button.

PERSONALIZE YOUR GAMING RIG

Customizing Addressable RGB LEDs integrated in the front, top & rear cover with a dedicated control button; or with MSI Mystic Light software, MAG Forge 100R can cast millions of colors and effects that can be synchronized with a vast ecosystem of components to augment your build.

Main Features

Optimize Airflow
RGB Fan included
4mm Tempered Glass
330 mm Radiator Support
160 mm CPU Cooler Support

Specifications

User Controls

Power
Reset
LED Control

Storage

Internal Expansion Bays

3 x 2.5"
2 x 2.5"/3.5"

Expansion

Expansion Slots

7 x Full Height

Interfaces/Ports

USB Ports	2 x USB 3.0
Headphone Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack

Electrical

Cooling System	Front: Supports 3 x 120mm or 2 x 140mm fans (2 x 120mm RGB fans included) Top: Supports 2 x 120mm or 140mm fans Rear: Supports 1 x 120mm fan (included)
Power Supply	ATX Power Supply supported

Physical

Form Factor	Mid Tower Case
Case Colour	Black
Motherboard Compatibility	ATX MicroATX Mini-ITX
Width	210 mm
Depth	421 mm
Height	499 mm
Weight	5.64 kg

Key Features

Firewire	No
Max Motherboard Width	244 mm
Max Motherboard Height	305 mm
Main Colour	Black
Case Type	Tower
USB 3.0 Support	Yes
Case Form Factor	Mid Tower
Power Supply Included	No
Optimised for	Gaming
80Plus Rated	No
PSU Form Factor	ATX
Display Model in Showroom	No
Illuminated	No
e-SATA	No
L.E.D Fan	RGB
Max 3.5" Drives	2
Max 2.5" Drives	3
ATX	Yes
Micro-ATX	Yes
ITX	Yes
E-ATX	No
Cooler Height	160 mm
Built-in Card Reader	No
USB Type-C Support	No
Front HDMI	No
Side Panel Type	Tempered Glass
GPU Length	330 mm
PSU Depth	200 mm
Front Audio Type	Separate
Number of Fans	3 fan(s)
RGB LED Controller Included	Yes
LED Strip(s) Included	No
Maximum Motherboard Size Supported	ATX
RGB Software Type	None
Total 2.5" + 3.5" drive bays	5
Power Requirement (auto)	9 W
USB3.0 ports	2
Low profile expansion	No
Vinyl Position - Top	No
Vinyl Position - Front	No
Vinyl Position - Left	Yes
Vinyl Position - Right	Yes
Max Supported Radiator Length	240 mm
Create Your Own Gaming PC (CCL)	Yes

Warranty

1 Year

Item Details

Manufacturer	MSI
Manufacturer Code	MAG FORGE 100R
Alternative Part Number	306-7G03R11-809
EAN	4719072676407
UPC	824142198841
Condition	New

Warranty

Warranty Information

Warranty

1 Year

Manufacturer Information

Manufacturer	MSI
Manufacturer Code	MAG FORGE 100R

Reviews

5.0 / 5 2 reviews

william McFarlane

July 2021

tower is everything i need and more for my MSI build so happy with it :)

Pauline Haigh

March 2020

For the money excellant value, addressable argb. Very easy to build in. Could do with more places to tie cables down. Best option take out the hard drive tray to hide cables. With 3 fans installed great cooling and silent. Probably the best cheap good quality case
