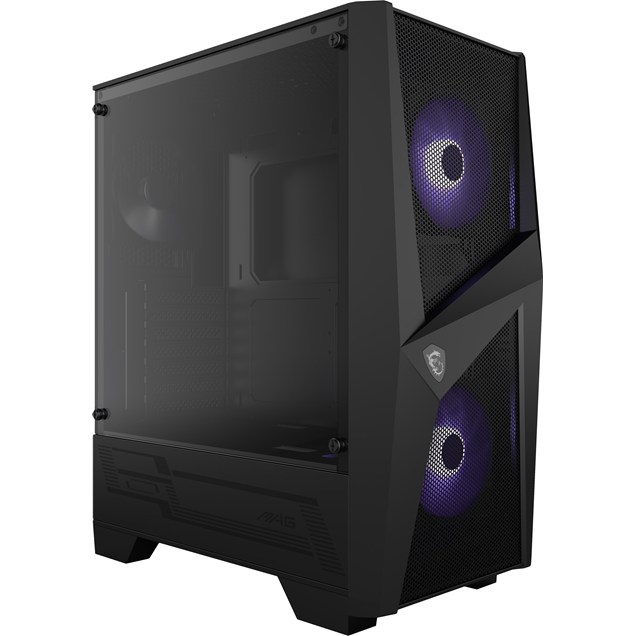

MSI MAG FORGE 100M Mid Tower Gaming Case - Black USB 3.0

MSI MAG FORGE 100M Mid Tower Gaming Case - Black USB 3.0

CCL Code: CAS3855

Sold out

Notify Me

MSI MAG FORGE 100M Mid Tower Gaming Case - Black USB 3.0

MAG FORGE 100M

Key Features:

  • PSU not included
  • 0 x 5.25" External Bay(s)
  • 3 x 2.5" Drive(s) Max
  • 2 x 3.5" Drive(s) Max
  • Max MB Size: ATX
  • Tempered Glass
CCL Code: CAS3855

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

FORGE 100M


Key Features
1 LED SWITCH BUTTON
User can intuitively control & switch 5 lighting effects through the LED switch button.
2 TOOL-LESS TEMPERED GLASS
The light gray tone of 4mm tempered glass side panel is ideal for displaying RGB lighting effects and provides clear internal component construction.
3 MID-TOWER SIZE FITS THE OPTIMIZED GAMING MOTHERBOARD
Mid-Tower size supports ATX / Micro ATX / Mini-ITX motherboards.
4 1 TO 6 RGB LED CONTROL BOARD
Bundled with a 1 to 6 RGB LED Control Board to help you have more attractive ways to decorate your gaming rig by add the LED strips.
5 SYSTEM FAN INCLUDED
Two 120mm RGB fans aligned vertically on the front draw in air evenly across the entire face of the enclosure. One 120mm system fan on the rear makes sure the rising warm air has been exhausted.
Forge 100M


IO CONNECTION
FORGE 100R


READY FOR OPTIMIZED MOTHERBOARDS

Designed with multiple easy installation mechanisms & accommodated an up to ATX motherboard to provide an unhindered building experience.
core frozr


BUILT FOR A PRIME RADIATOR CAPACITY

MAG Forge 100 Series support up to 240mm radiator.
Top - support 120 / 240 mm radiator
Pront - support 120 / 240 mm radiator
Rear - support 120 radiator
core frozr


BUILT FOR A PRIME FAN CAPACITY

Cooling Layout
Front: Up to 3 x 120 mm or 2 x 140 mm
Top: Up to 2 x 120 mm or 2 x 140 mm
Rear: 1 x 120 mm
Pre-install Fan
Front: 2 x 120 mm RGB LED Fan included
Rear: 1 x 120mm System Fan included
Fan


OPTIMIZED AIR FLOW
Two 120mm fans aligned vertically on the front to draw in air evenly across the entire face of the enclosure.
That will contribute to positive air pressure within the case, the rising warm air will always be exhausted with the rear and top airflow from the MAG Forge 100 Series.

*To guide the airflow from the radiator, please evaluate and adjust the airflow direction of the top fan when installing the radiator.
FORGE 100R


Ignite Your Gaming Rig
Mystic
1 to 6 RGB LED Control Board
Bundled with a 1 to 6 RGB LED Control Board to help you have more attractive ways to decorate your gaming rig by add the LED strips
Mystic
LED Switch Button
User can intuitively control & switch 5 lighting effects through the LED switch button.


Main Features

  • Optimize Airflow
  • RGB Fan included
  • 4mm Tempered Glass
  • 330 mm Radiator Support
  • 160 mm CPU Cooler Support
Specifications

User Controls

User Controls Power
Reset
LED Control

Storage

Internal Expansion Bays 3 x 2.5"
2 x 2.5"/3.5"

Expansion

Expansion Slots 7 x Full Height

Interfaces/Ports

USB Ports 2 x USB 3.0
Headphone Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Electrical

Cooling System Front: Supports 3 x 120mm or 2 x 140mm fans (2 x 120mm RGB fans included)
Top: Supports 2 x 120mm or 140mm fans
Rear: Supports 1 x 120mm fan (included)
Power Supply ATX Power Supply supported

Physical

Form Factor Mid Tower
Case Colour Black
Motherboard Compatibility ATX
MicroATX
Mini-ITX
Width 210 mm
Depth 421 mm
Height 499 mm
Weight 5.64 kg

Key Features

Firewire No
Main Colour Black
Case Type Tower
USB 3.0 Support Yes
Case Form Factor Mid Tower
Power Supply Included No
Optimised for Gaming
80Plus Rated No
PSU Form Factor ATX
Display Model in Showroom No
Illuminated No
e-SATA No
L.E.D Fan RGB
Max 3.5" Drives 2
Max 2.5" Drives 3
ATX Yes
Micro-ATX Yes
ITX Yes
Cooler Height 160 mm
Built-in Card Reader No
USB Type-C Support No
Front HDMI No
Side Panel Type Tempered Glass
GPU Length 330 mm
PSU Depth 200 mm
Front Audio Type Separate
Number of Fans 3 fan(s)
LED Controller Included Yes
LED Strip(s) Included No
Maximum Motherboard Size Supported ATX
Total 2.5" + 3.5" drive bays 5
Power Requirement (auto) 9 W
USB3.0 ports 2
Low profile expansion No

Warranty

Warranty 1 Year

Item Details

Manufacturer MSI
Manufacturer Code MAG FORGE 100M
Alternative Part Number 306-7G03M11-809
EAN 4719072676414
UPC 824142198831
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer MSI
Manufacturer Code MAG FORGE 100M
Q&A

Do you have you a question about the MSI Mag Forge 100M Mid Tower Gaming Computer Case?

Reviews
4.3 / 5 3 reviews

Cameron James

October 2020

great case good value for what you get but could use a third fan in the front of it since I can't seem to find the same front fan in anything other than in a pack of 3

Cameron James

October 2020

great quality case for the price a good buy could use a third case fan on the front

Ricky

May 2020

very good case
