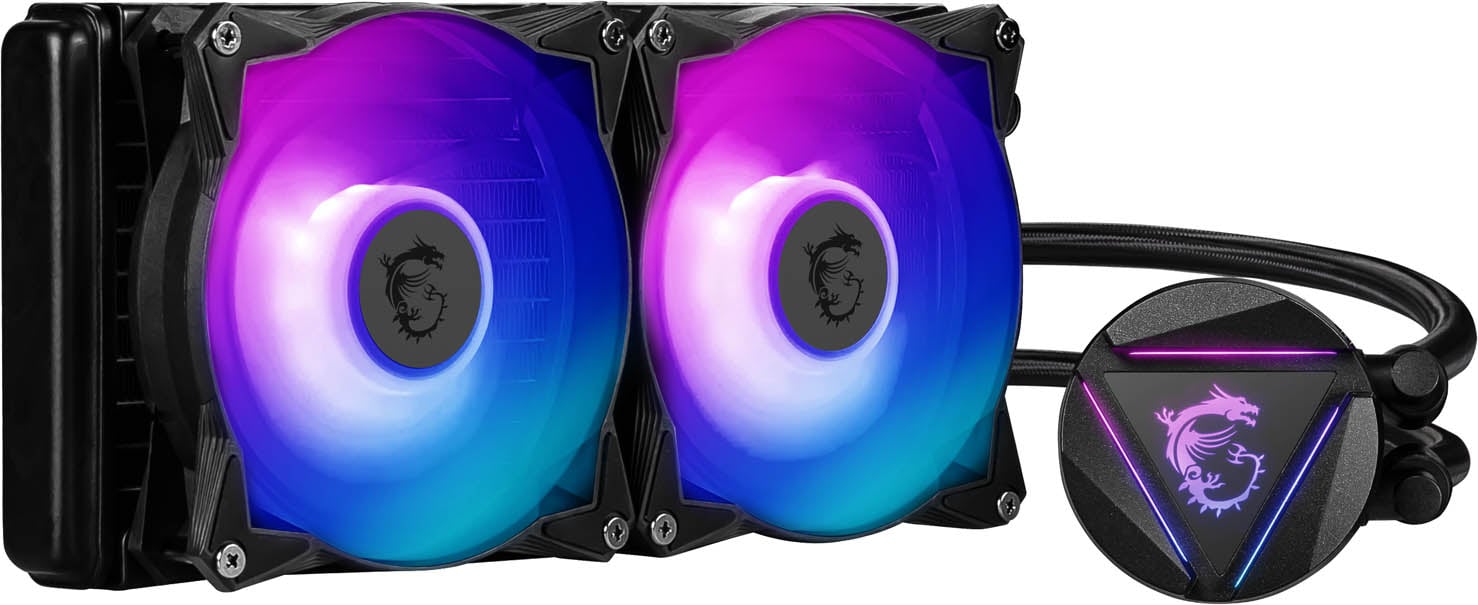

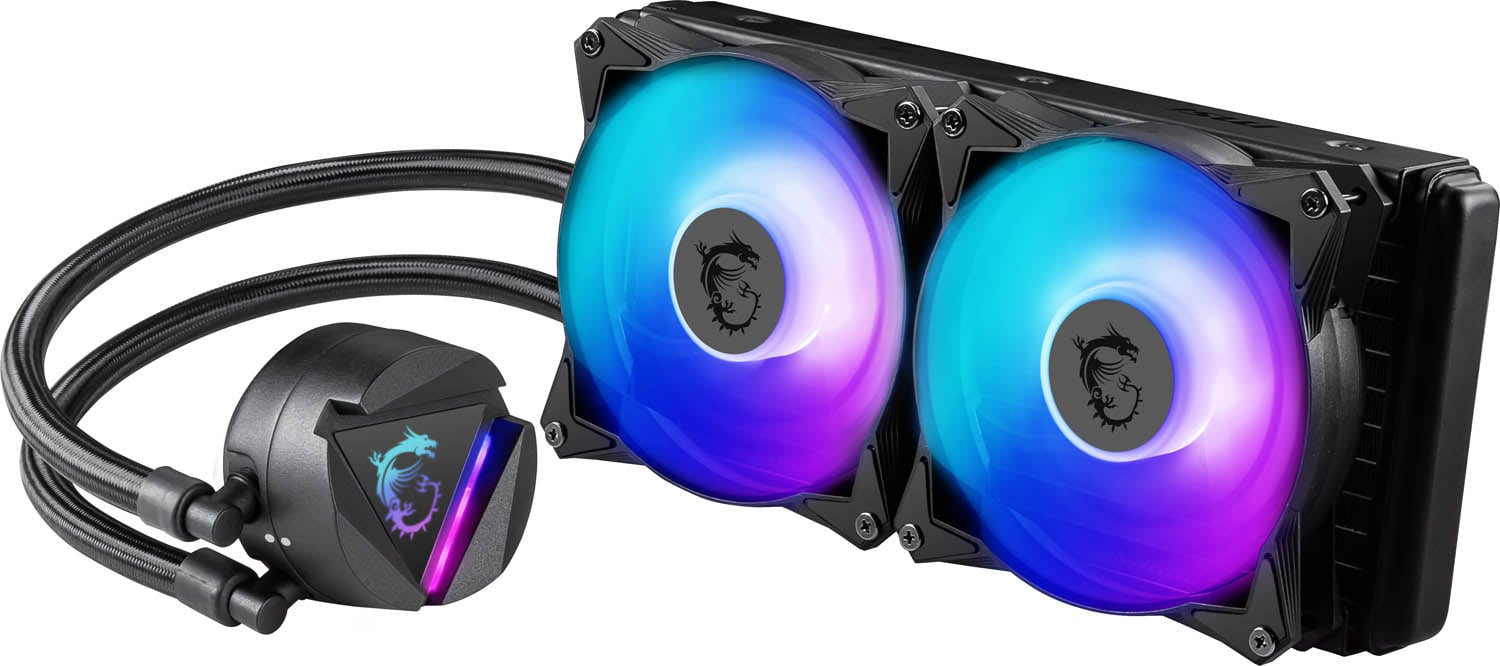

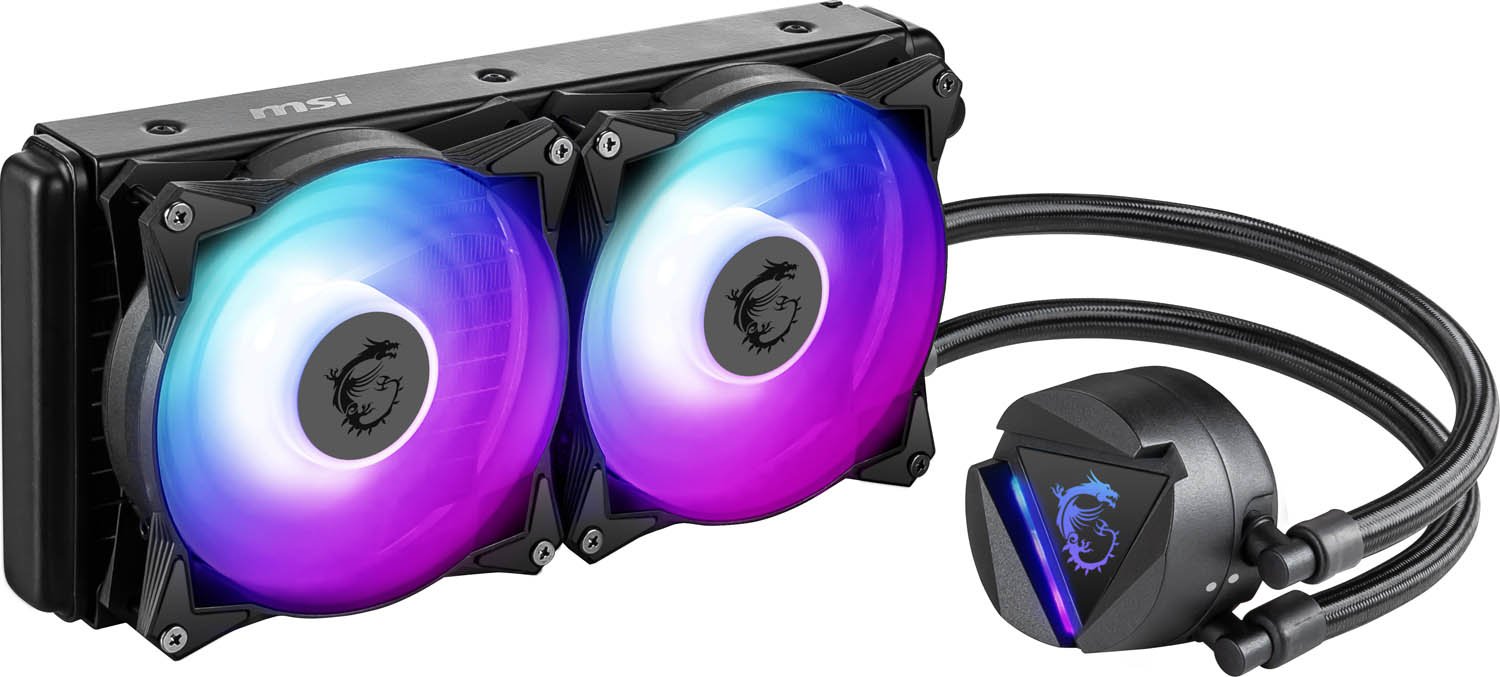

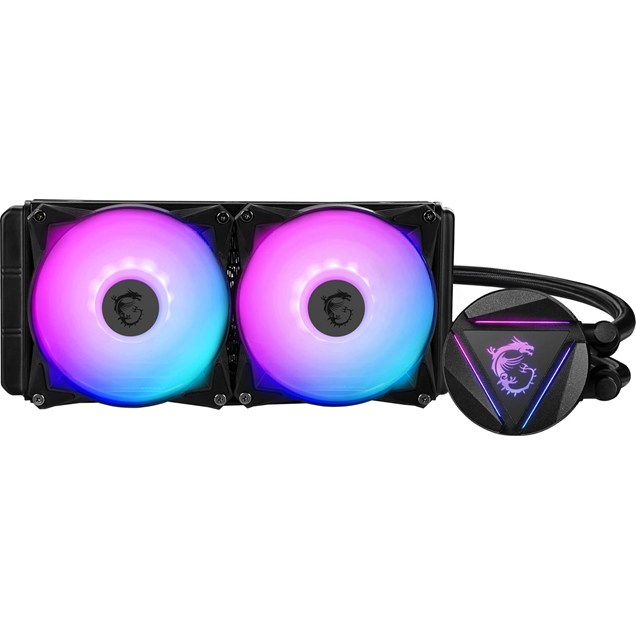

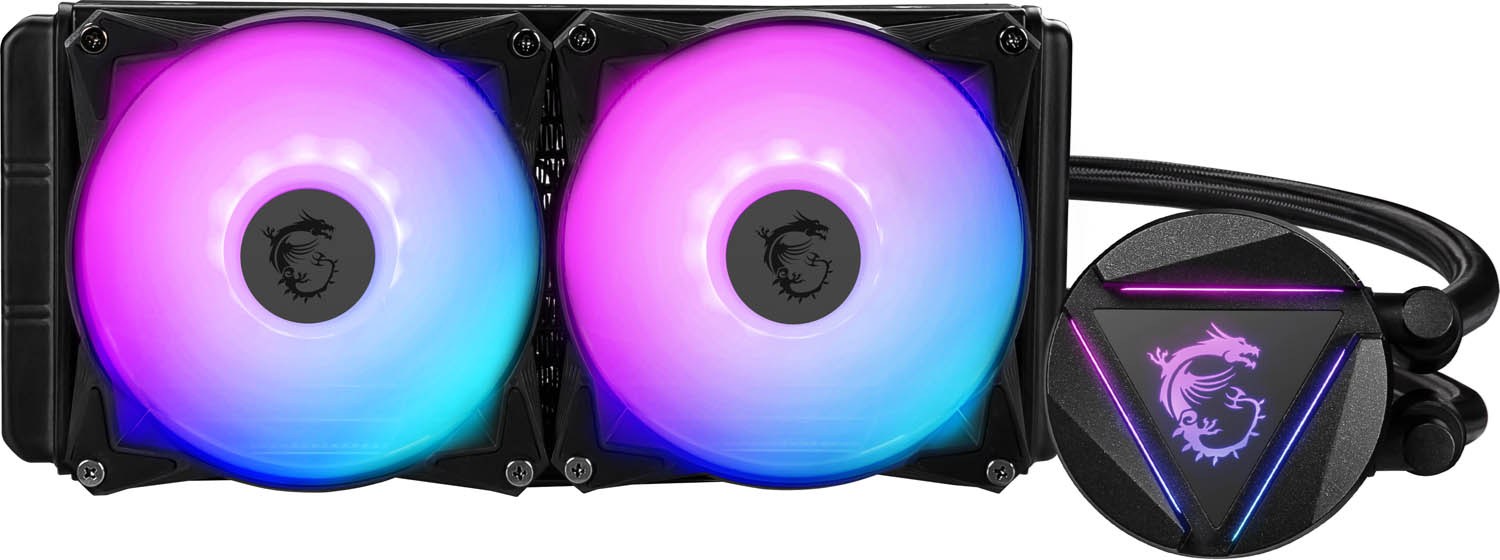

MSI MAG CORELIQUID 240R V2 240mm AiO Liquid CPU Cooler

MSI MAG CORELIQUID 240R V2 240mm AiO Liquid CPU Cooler

CCL Code: CLR2437

Discontinued

  • MSI MAG CORELIQUID 240R V2 240mm AiO Liquid CPU Cooler
  • MSI MAG CORELIQUID 240R V2 240mm AiO Liquid CPU Cooler
  • MSI MAG CORELIQUID 240R V2 240mm AiO Liquid CPU Cooler
  • MSI MAG CORELIQUID 240R V2 240mm AiO Liquid CPU Cooler
  • MSI MAG CORELIQUID 240R V2 240mm AiO Liquid CPU Cooler
  • MSI MAG CORELIQUID 240R V2 240mm AiO Liquid CPU Cooler

Conquer the Battlefield

MSI MAG CORELIQUID 240R V2 240mm AiO Liquid CPU Cooler

MAG CORELIQUID 240R V2

Key Features:

  • 240mm AIO Liquid Cooler
  • 2 x 12cm Fan(s)
  • 500 ~ 2000RPM
  • Intel 115x 1200 1700
  • AMD AM4 AM5
CCL Code: CLR2437

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview
Take cooling underwater with the MAG CORELIQUID Series V2 from MSI. Stay cool under pressure with a liquid cooler design constructed from high quality materials that remain durable and deliver unstoppable cooling performance even under extreme operating conditions. Wreak havoc without sacrificing style with the intuitive 270-degree rotating blockhead inlaid with a deep aggressive aesthetic and ARGB lighting. The MAG CORELIQUID Series V2 design has been engineered to painstaking depths to look cool and stay cool without compromise.
MAG Coreliquid Series
Rotatable Blockhead
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.
Rotatable Blockhead
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction.
RADIATOR PUMP DESIGN

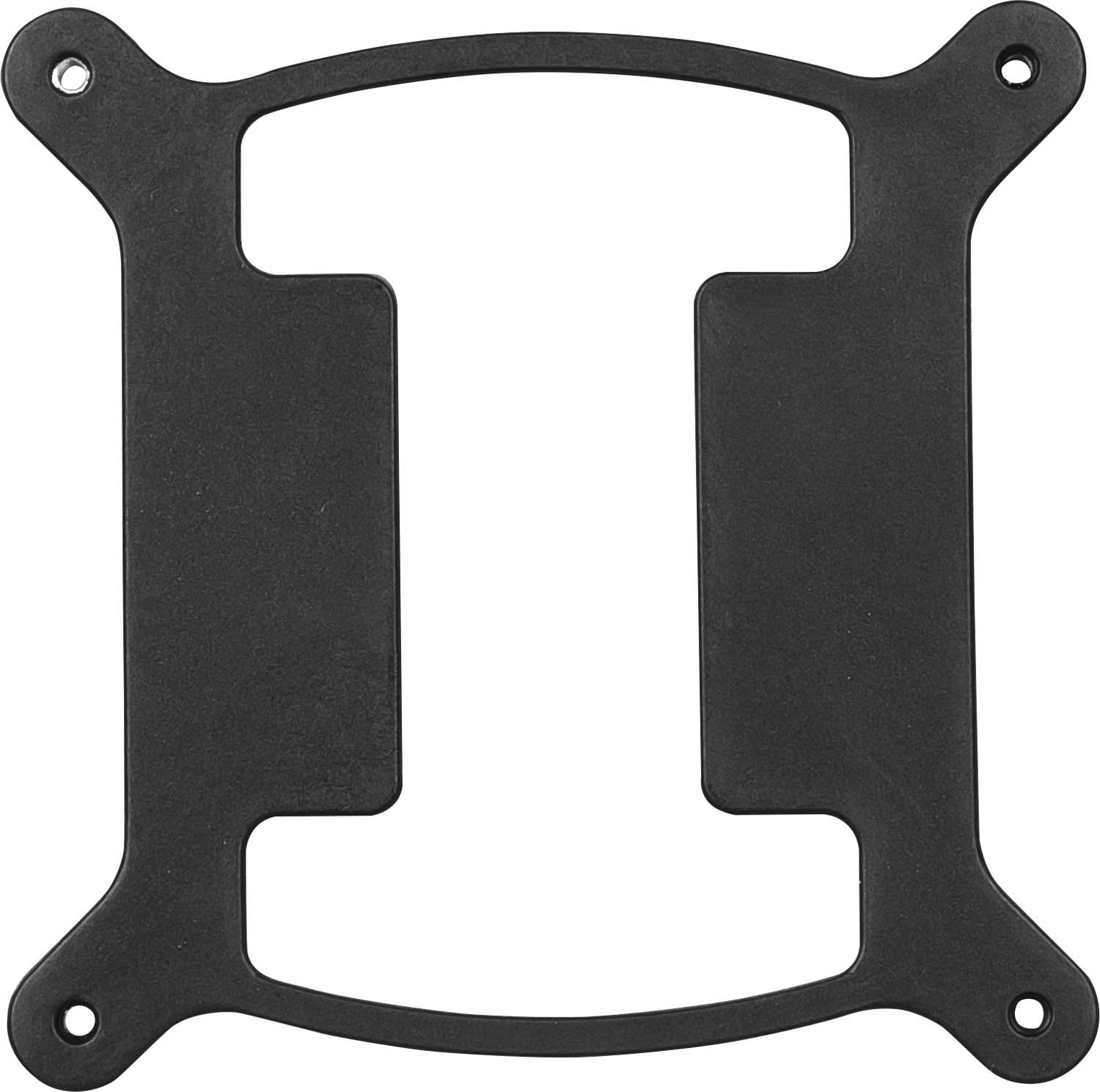

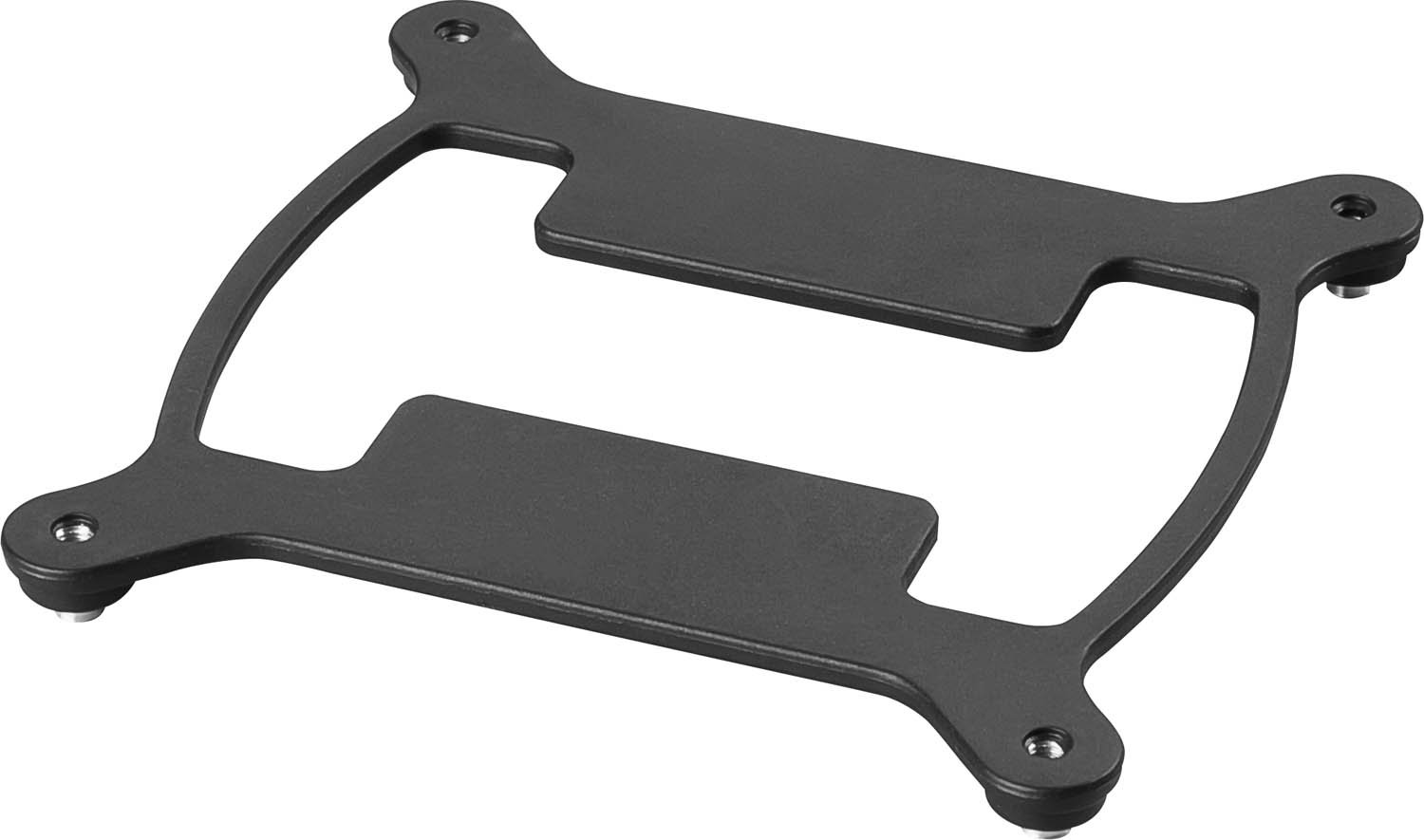

LGA 1700 Compatible
The MAG CORELIQUID 240R V2 liquid cooler provides out of box support for LGA 1700.
LGA 1700 Compatible
Pump Motor Resonance Elimination
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
Pump Motor Resonance Elimination
High Thermal Dissipation
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
High Thermal Dissipation
Evaporation Proof Tubing
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
RADIATOR PUMP DESIGN
MORE SILENCE THAN EXPECTED
MAG CORELIQUID 240R V2's noise level is significantly lower than that of competitor's by 10%.
MORE SILENCE THAN EXPECTED
EXTENSIVE COMPATIBILITY
Robust yet built for flexibility, MAG CORELIQUID 240R V2 has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
Intel
LGA 1150/1151/1155/1156, LGA1200, LGA1366, LGA 1700, LGA2011, LGA2011-3, LGA2066
AMD
AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2
EXTENSIVE COMPATIBILITY

dot

Main Features

  • Mount the cold plate at any orientation, turn the water blockhead up to 270 degrees
  • The pump has been integrated into the radiator for sound dampening and noise reduction
  • Constructed with three layers of netted plastic tubing and a reinforced mesh exterior
  • A split liquid pathway through the radiator rapidly dissipates heat. Cooled liquid is then pumped back into the loop
  • Compatible Sockets & CPU: Intel Socket LGA 1150, 1151, 1155, 1156, LGA1200, 1700, LGA1366, LGA2011, LGA2011-3, LGA2066 / AMD Socket AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2
Specifications

CPU Types

Socket Intel: LGA 1150/1151/1155/1156/1200/1700, LGA 1366/2011/2011-3/2066
AMD: AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2

Fan

Fan Diameter 2x 120 mm
Fan Bearing Type Two Ball
Fan Speed 500 ~ 2000 RPM
Fan Noise Level 14.3 ~ 34.3 dBA
Fan Air Pressure 0.23 ~ 2.39 mmH2O
Airflow 21.63 ~ 78.73 CFM

Fan Speed Controller

Connector 4-pin PWM, 3-pin ARGB
Allowable Power 1.8 W
Voltage 12 V DC
Current 0.15 A

Physical

Form Factor AiO CPU Cooler
Case Colour Black
Base Material Copper
Heatsink Material Aluminium
Width 80.57 mm
Depth 66.82 mm
Height 48.58 mm
Fan Width 12 cm
Fan Depth 120 mm
Fan Height 25 mm
Heatsink Width 120 mm
Heatsink Height 27 mm
Heatsink Depth 274 mm

Warranty

Warranty 1 Year

Key Features

Compatible with Socket AM3 Yes
Compatible with Socket AM2+ Yes
Compatible with Socket AM2 Yes
Compatible with Socket 1366 Yes
Compatible with Socket 1156 Yes
Heatpipe Technology No
Includes Fan Yes
Socket 2066/2011 Yes
Socket 115x Yes
Socket AM2(+)/AM3(+) Yes
Compatible with Socket FM1 Yes
L.E.D Fan ARGB
Socket FM2/FM1 Yes
Liquid Cooler Yes
Compatible with Socket 1150 Yes
Watercooler Yes
Compatible with Socket 1151 Yes
Socket AM5/AM4 Yes
Cooler Height 49 mm
Compatible with Socket 2066 Yes
Number of Fans 2 fan(s)
Radiator Size 240 mm
Socket 1200 Yes
RGB Software Type MSI Mystic Light
Socket 1700 Yes
Power Requirement (auto) 14 W
Cooler count 1
Our Cooling Rating (TDP) 255 W
Create Your Own Gaming PC (CCL) No
Socket 1851 Yes
Bundle Config - Home (CB) No

Item Details

Manufacturer MSI
Manufacturer Code MAG CORELIQUID 240R V2
EAN 4526541039072
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer MSI
Manufacturer Code MAG CORELIQUID 240R V2
