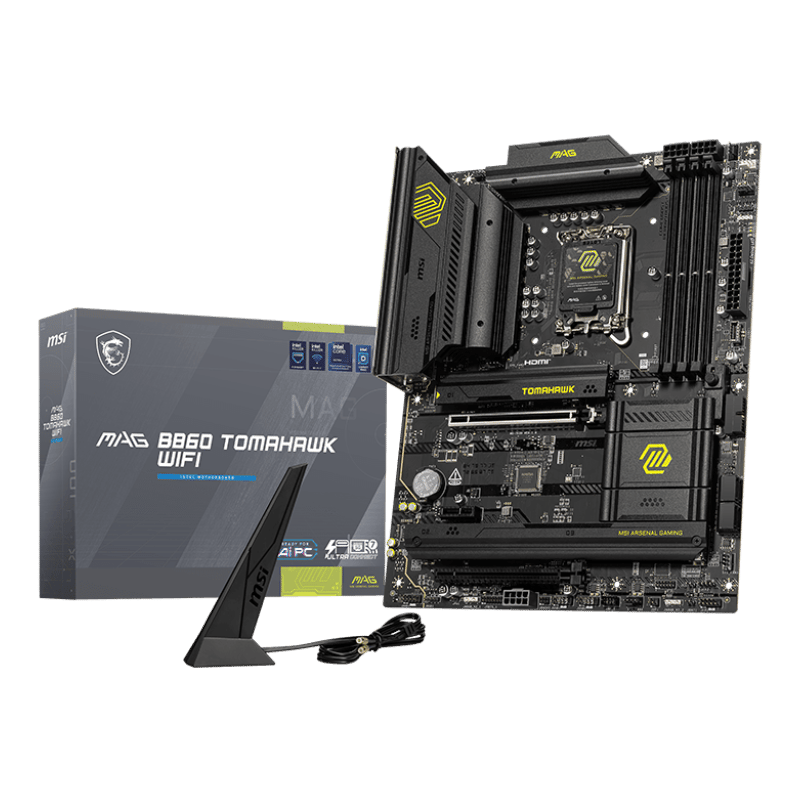

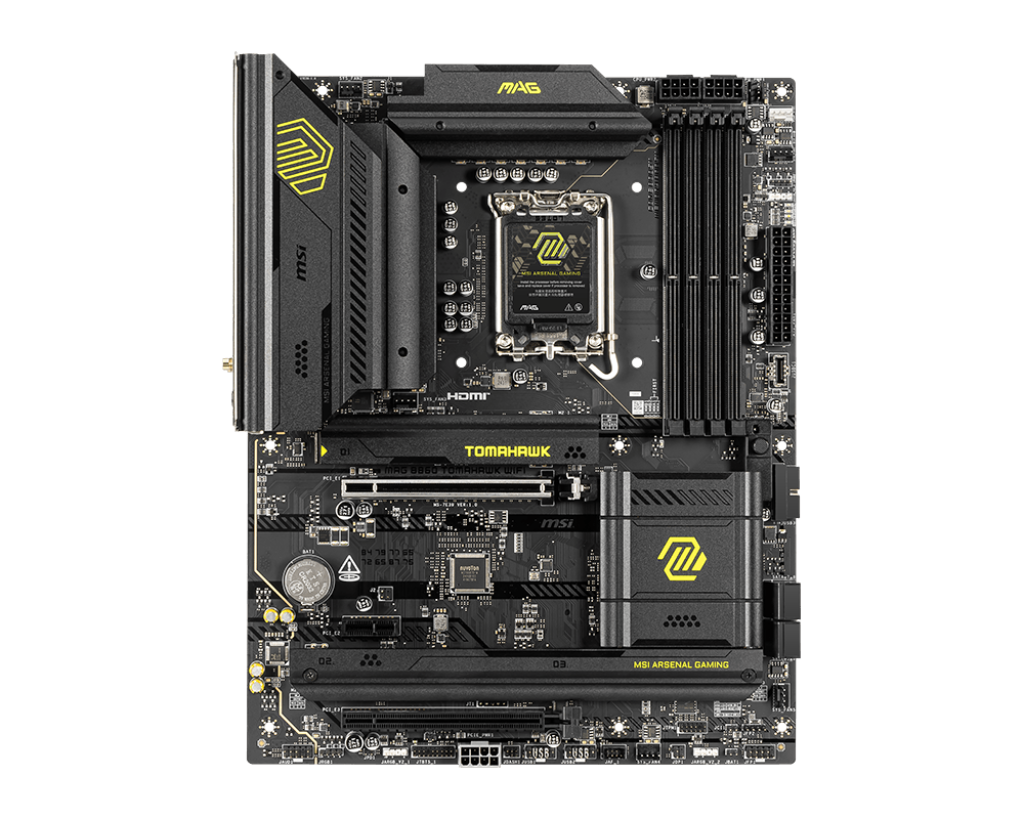

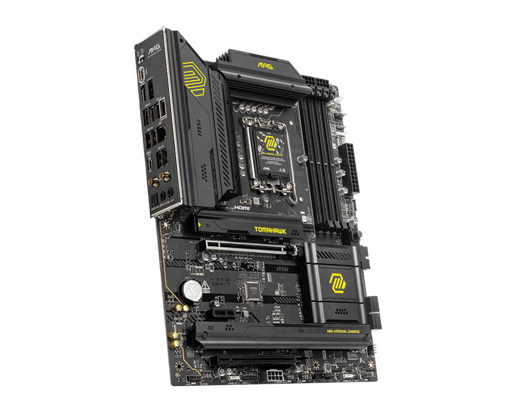

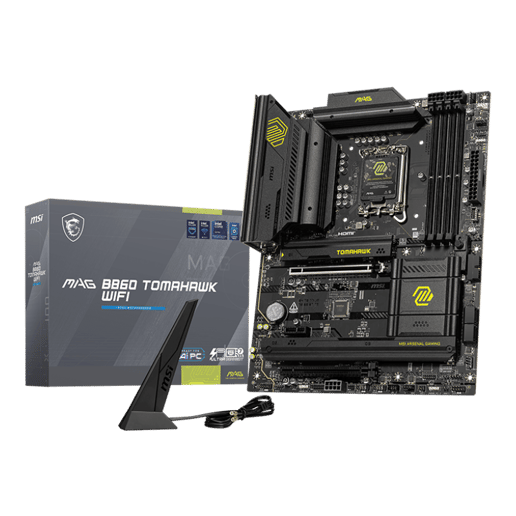

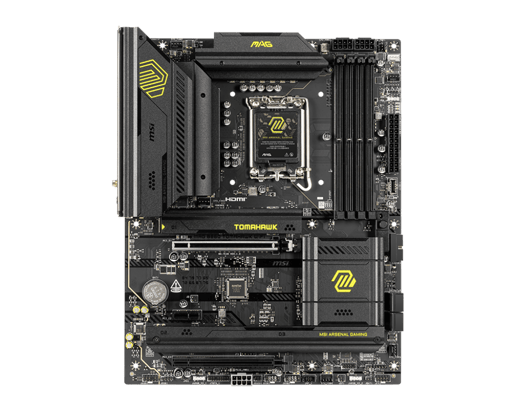

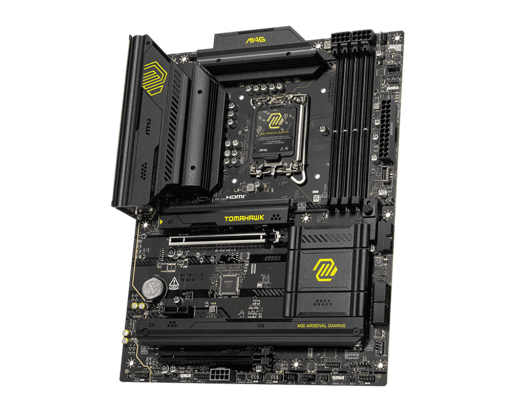

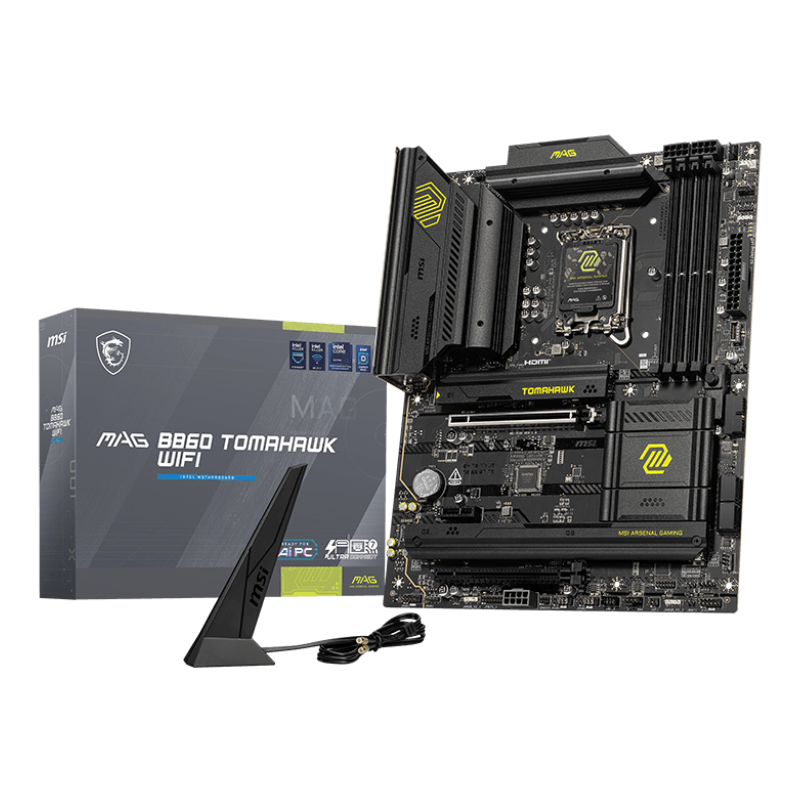

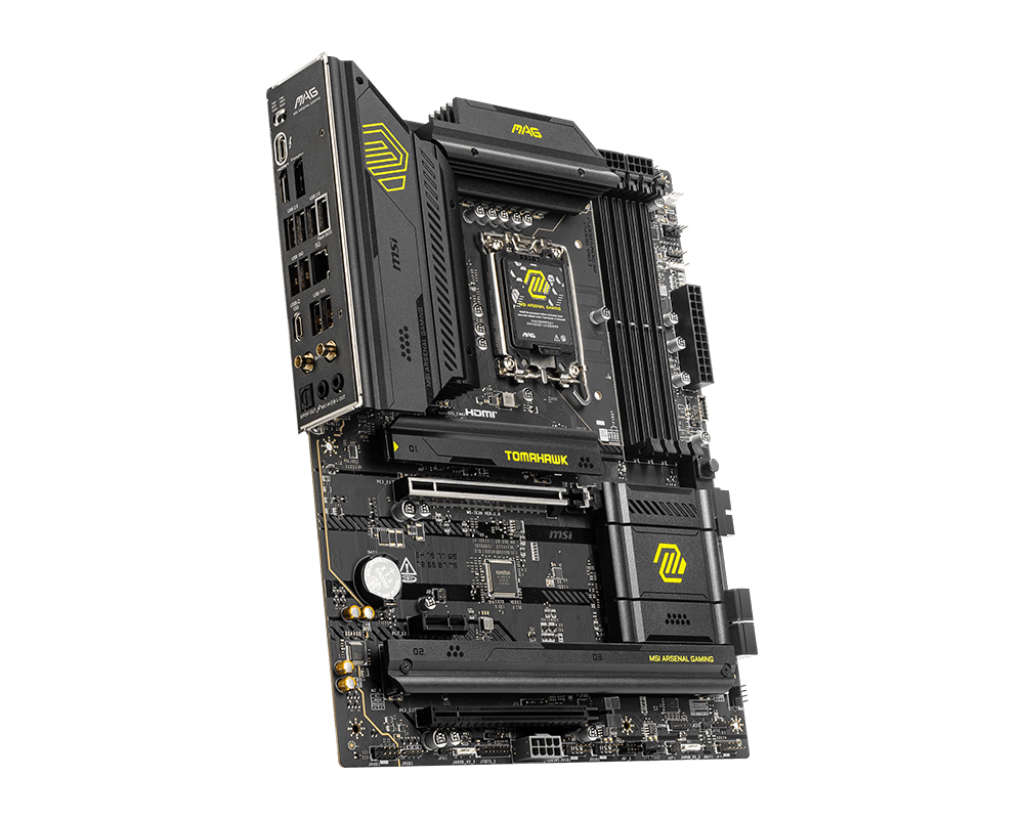

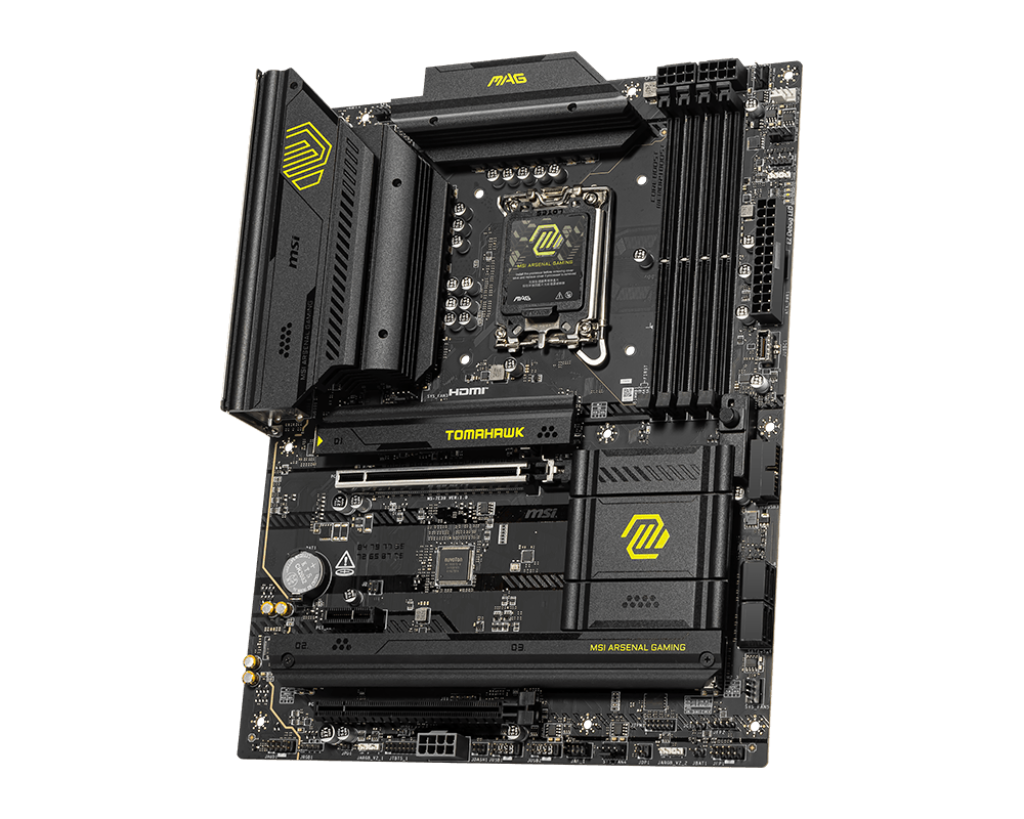

MSI MAG B860 TOMAHAWK WIFI ATX Motherboard for Intel LGA1851 CPUs
Available for delivery from Tomorrow
Click & Collect from Today
Hurry, only 1 left!
Order within
You have 0 of these in your basket
MAG B860 TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for the battlefied of Intel Core Ultra processors.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: Intel
- Supported Processors: Intel Core Ultra Processors (Series 2)
- 64-bit Support: Yes
- Socket: LGA1851

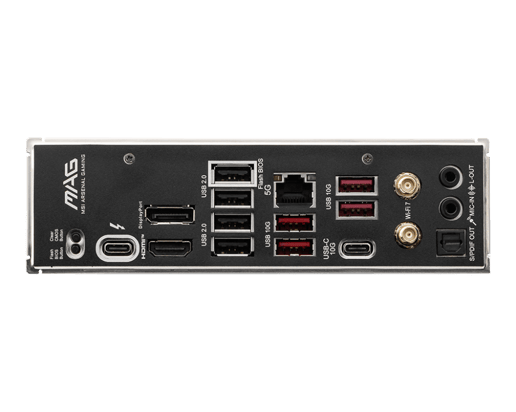

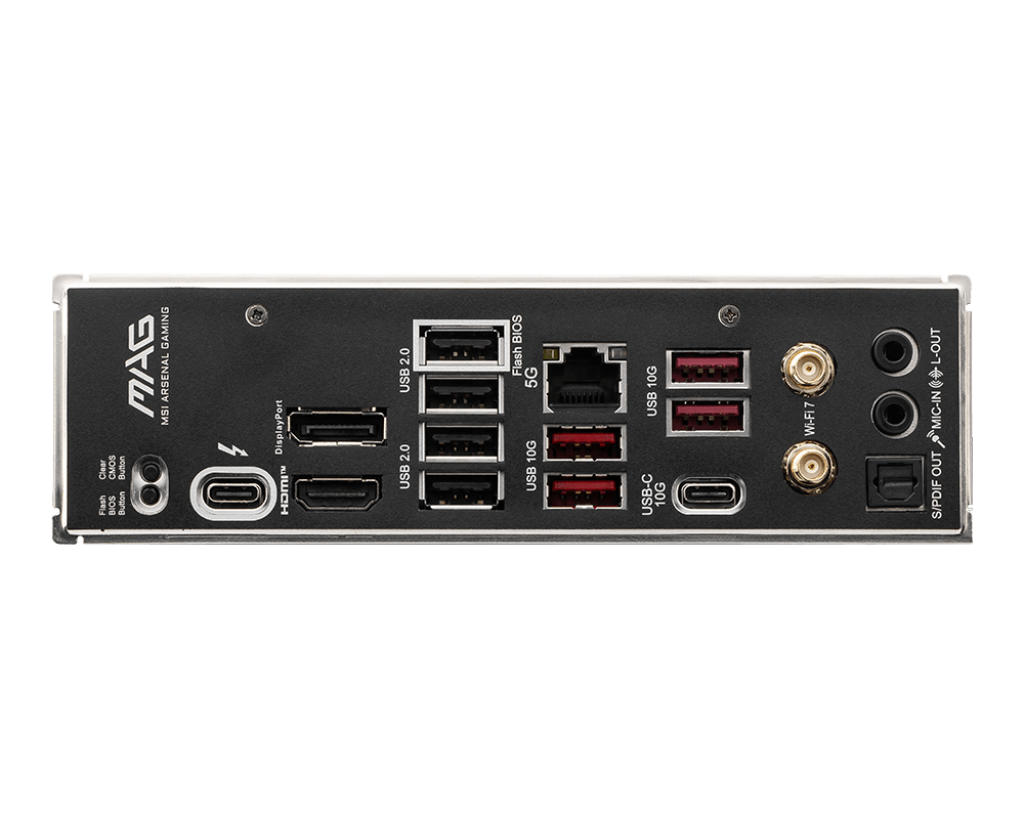

Rear Panel I/O Ports
- USB Ports: 1 x Thunderbolt 4 (USB-C 4)
1 x USB-C 3.1 - 4 x USB 3.1
- 4 x USB 2.0
- DisplayPorts: 1 x DisplayPort 2.1
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA
- USB Connectors: 1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 9200 MT/s
- Memory Type: DDR5
Motherboard
- Northbridge: Intel B860
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 5, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- RJ-45 Ports: 1 x RJ-45
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
- S/PDIF Port: 1 x S/PDIF Optical Out
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan
- 1 x Combo fan
- 5 x System fans
- Thunderbolt Port(s): 1 x Thunderbolt5 card connector (JTBT5, support RTD3)
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- TPM Header: 1 x TPM header
- Power Connector Port: 1 x 24-pin ATX
- 2 x 8-pin EPS
- 1 x 8-pin PCIe
- Other Connectors: 1 x M.2 slot, Type 2280 (PCIe Gen5)
- 1 x M.2 slot, Type 2260/2280/22110 (PCIe Gen4 or SATA)
- 1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen4 or SATA)
- 3 x 3-pin ARGB headers
- 2 x 4-pin RGB headers
Expansion
- Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
- 1 x PCI Express 4.0 x16 slot (@ x4)
1 x PCI Express 4.0 x1 slot
Memory
- Maximum RAM: 256 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek ALC897
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Intel Killer E5000
- Network Speeds Supported: Up to 5 Gbps
- Wireless LAN: Yes - Wi-Fi 7
- Wireless Network Speed: Up to 5.8 Gbps
- Bluetooth: Yes
- Bluetooth Version: 5.4
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: ATX Motherboard
- In The Box: Motherboard
- Quick Installation Guide
- EU Regulatory Notice
- Shout-Out Flyer
- 1 x SATA Cable
- EZ M.2 Clips II
- EZ M.2 Clip II Remover
- EZ Wi-Fi Antenna
- 1 to 2 EZ Conn-Cable (V1)
- EZ Front Panel Cable
- Width: 244 mm
- Length: 305 mm
Identifiers
- Stock Code: MBD3856
- Mfg Code: MAG B860 TOMAHAWK WIFI
Warranty
- Warranty: 3 Years
