The MAG B850M MORTAR WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
- Form Factor: mATX
- Socket Type: AM5
- Chipset: AMD B850

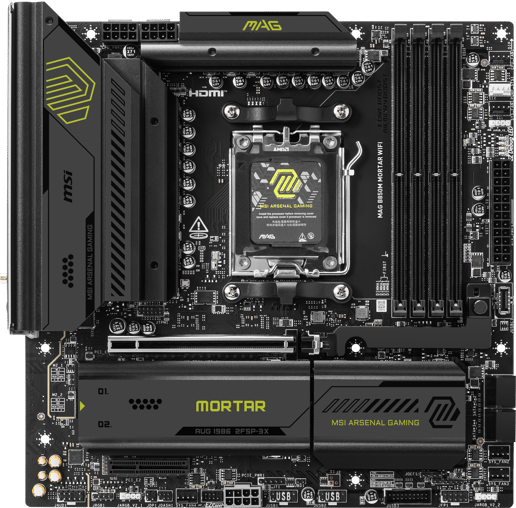

MSI MAG B850M MORTAR WIFI mATX Motherboard for AMD AM5 CPUs
£194.99
.png)
MAG B850M MORTAR WIFI
MSI MAG B850M MORTAR WIFI mATX Motherboard for AMD AM5 CPUs
FORM FACTOR: MATX
SOCKET: AM5
MEMORY: DDR5 (MAX: 256GB)
STORAGE: 3 X M.2, 4 X SATA
WI-FI: BUILT-IN
USB: 9 PORT(S)
Stable Foundation, Durably Built
The MAG B850M MORTAR WIFI is a gaming oriented mATX motherboard that is contructued with a 12 Duet Rail Power System and the latest AMD B850 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7 and DDR5 support that balances both value and premium hardware.

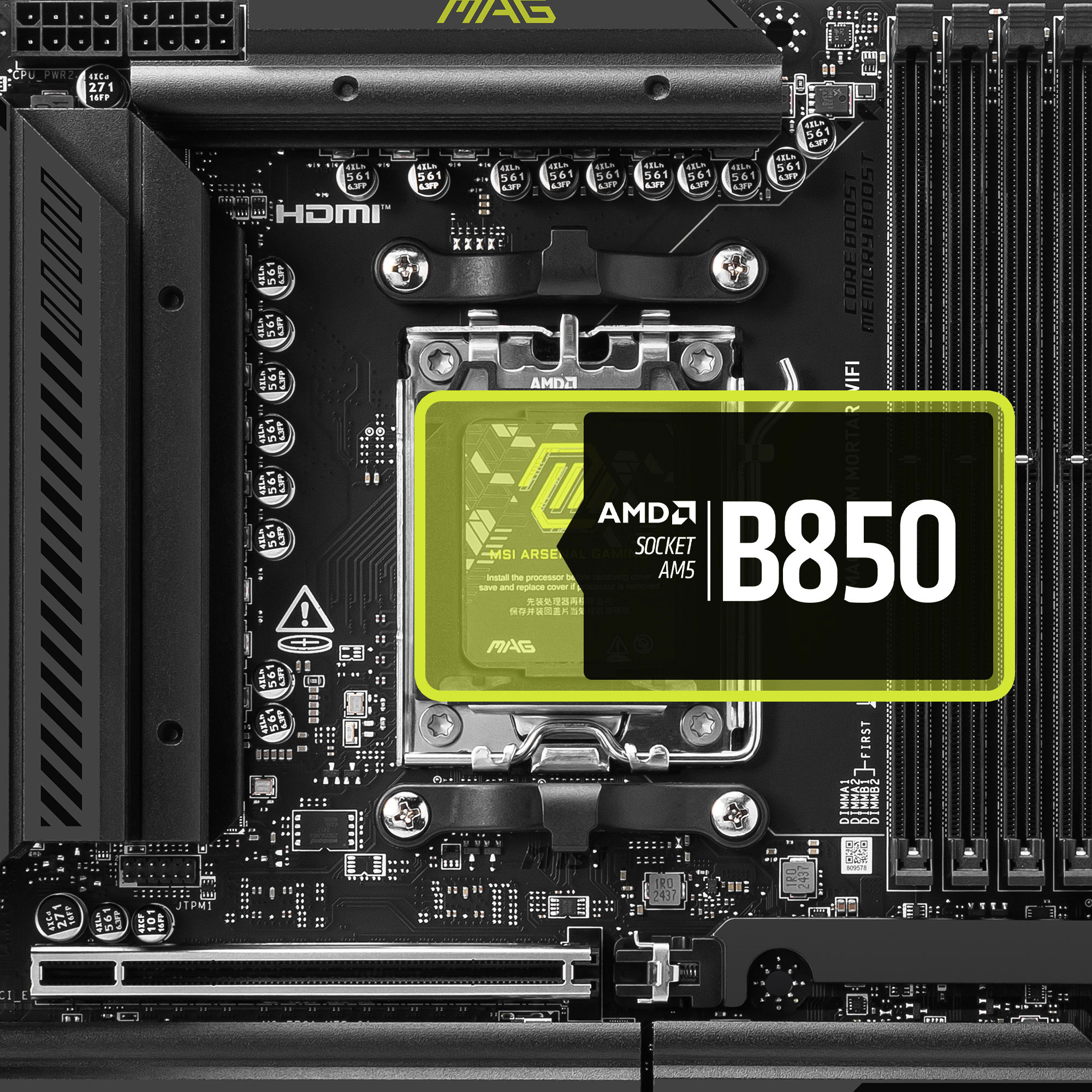

Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

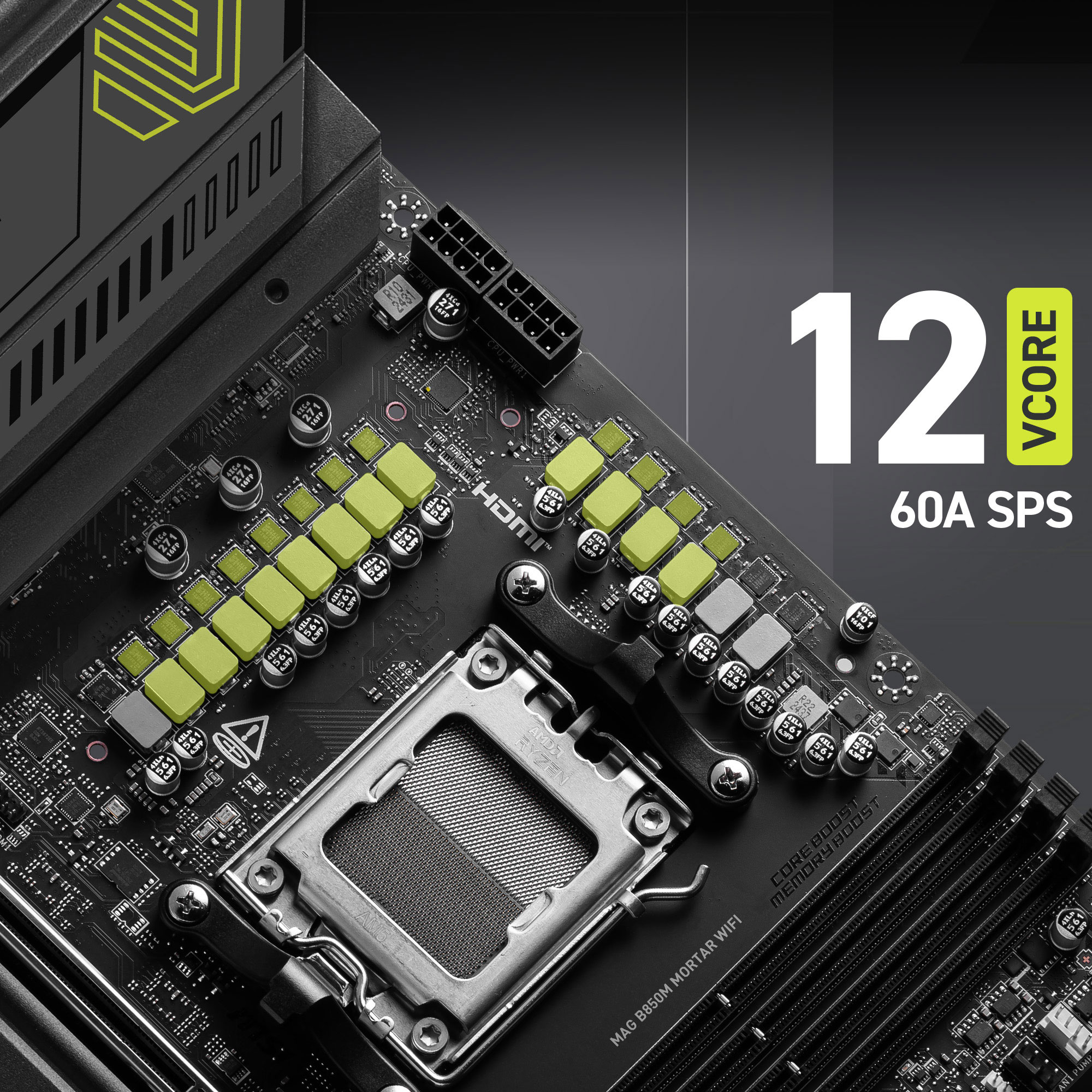

Ultra Power - 12 Duet Rail Power System with 60A Smart Power Stage
With exclusive Core Boost technology and dual 8 pin power connectors, the MAG B850M MORTAR WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
- Digital PWM IC
- 12 Duet Rail Power System (60A / SPS)
- 2 Phase SOC Power
- 1 Phase MISC Power

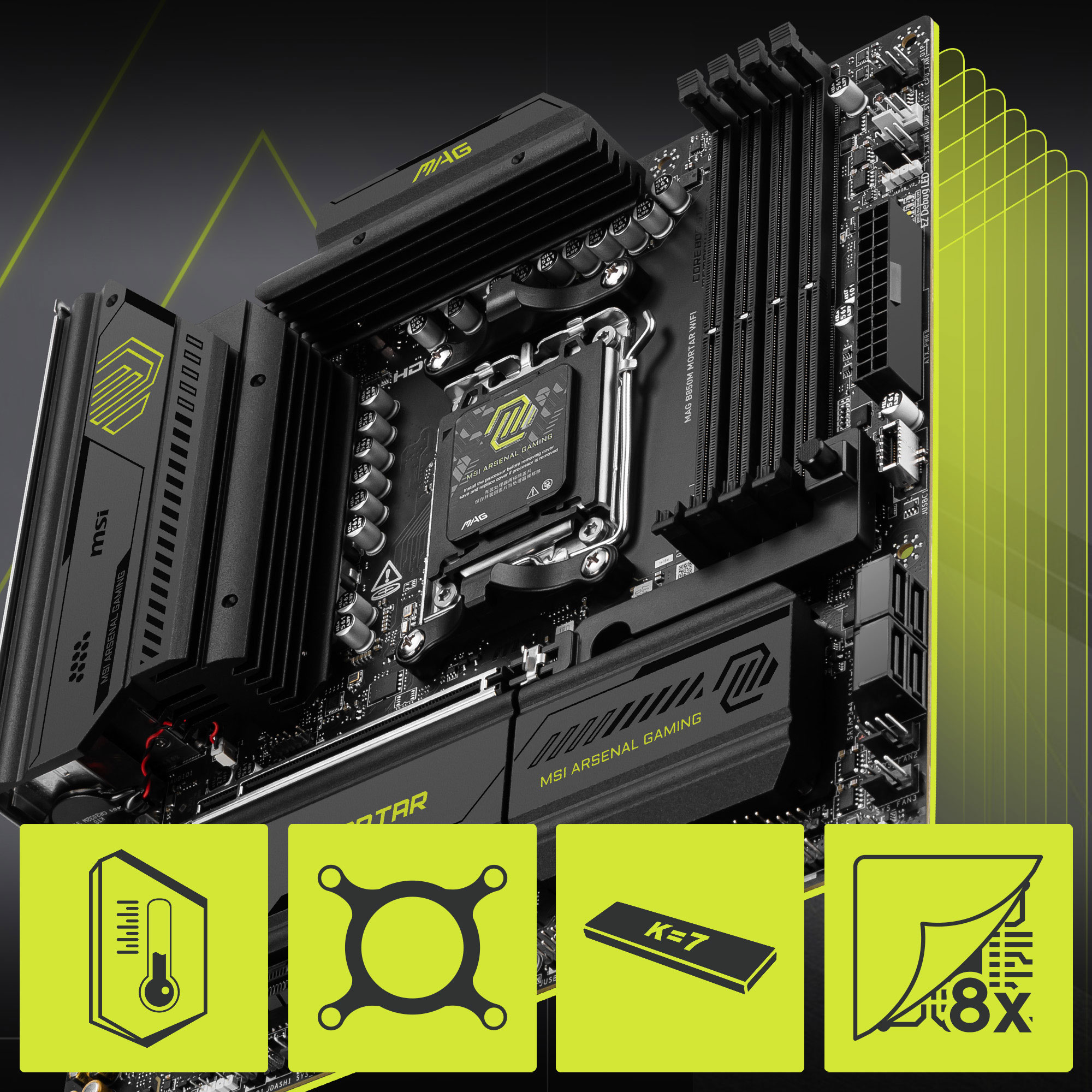

Frozr Design
Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizzard and Frozr AI Cooling.

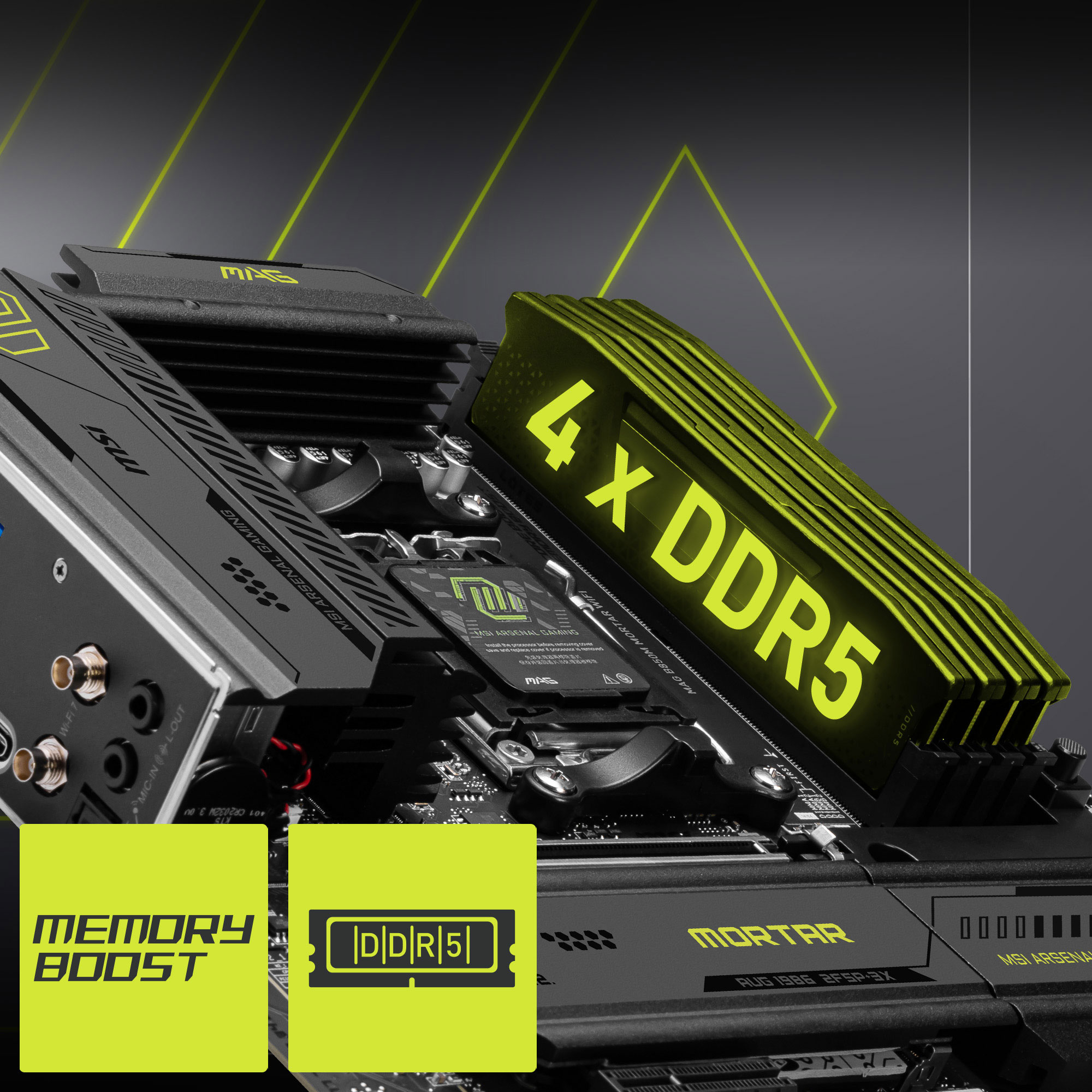

4 x DDR5 Dual Channel (8200+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.
EXPO Profiles: in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 8200+ MT/s, supports AMD EXPO and Intel XMP.

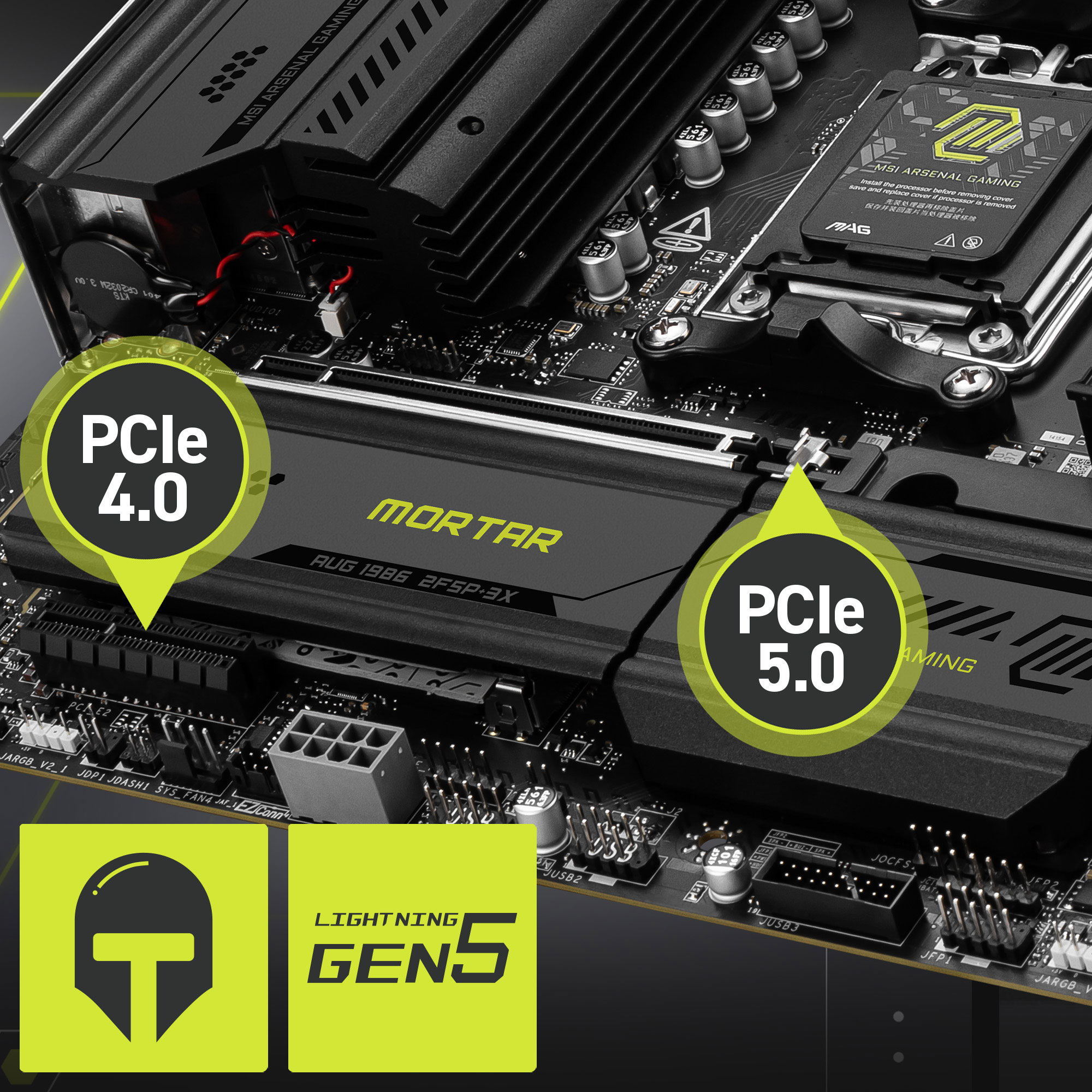

Fortified PCIe 5.0 x16 Slot
The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting up to twice the weight of graphics cards compared to 1st Gen Steel Armor.
- 1 x PCIe 5.0/4.0/3.0 x16 slot* (one with Steel Armor II** and EZ PCIe Release)
- 1 x PCIe 4.0/3.0 x4 slot*
*Supports x16x4
**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

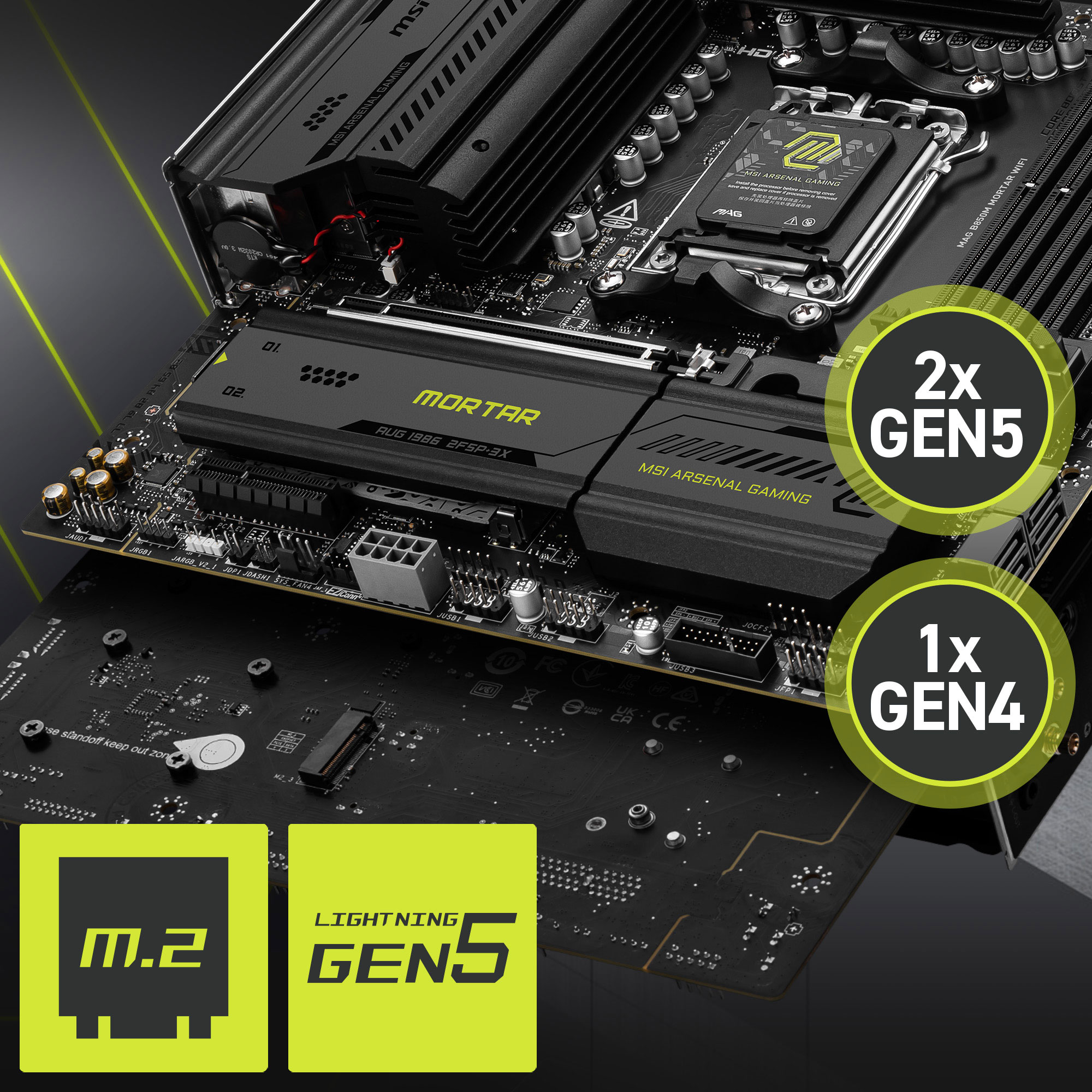

Gen5 M.2 Connector
The MAG B850M MORTAR WIFI motherboard features MSI's M.2 slots:
- 2 x Gen5 x4 128Gbps slots*
- 1 x Gen4 x2 32Gbps slot
*with EZ M.2 Shield Frozr II
EZ DIY
The DIY Friendly designs optimize the assemble process and experience.
EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.

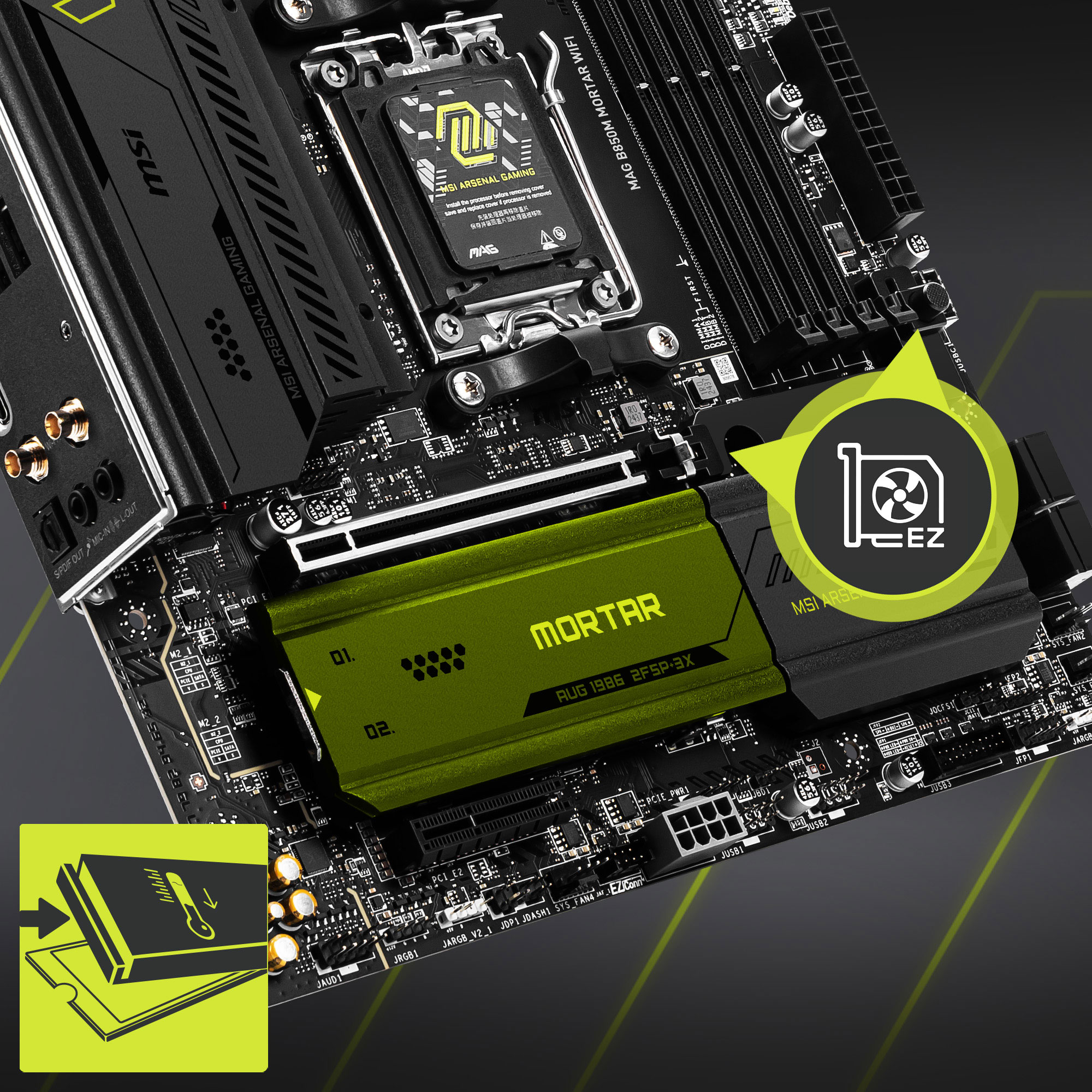

EZ PCIe Release: With just one press of a button, users can easily install or remove the graphics card with one hand.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.

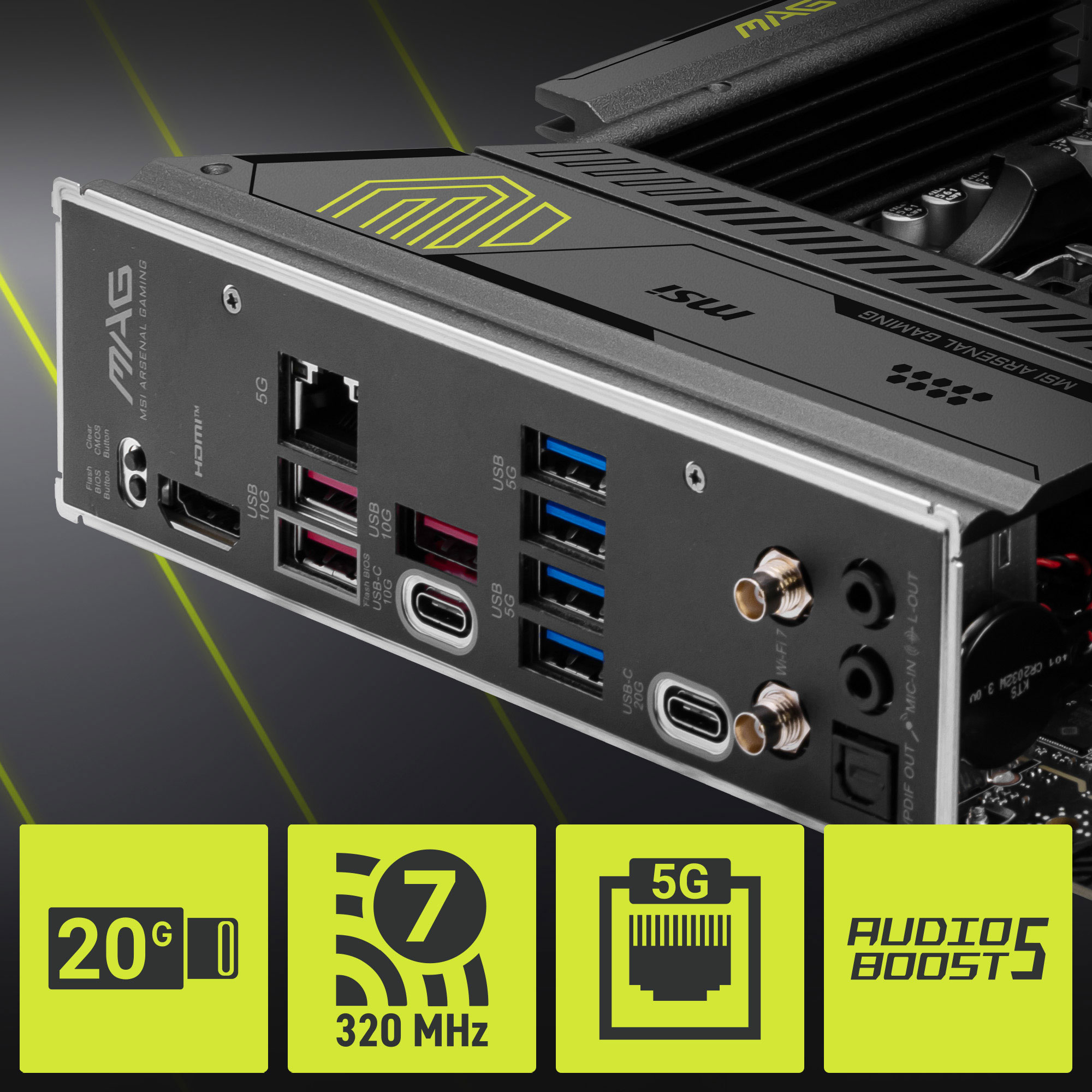

High-Speed Connectivity
5G LAN: A Realtek 5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
USB 20G Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gbps
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
- 64-bit Support: Yes
- Socket: AM5

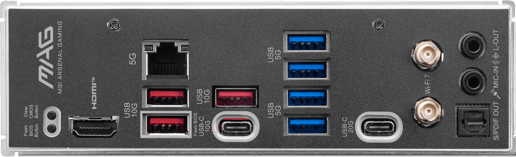

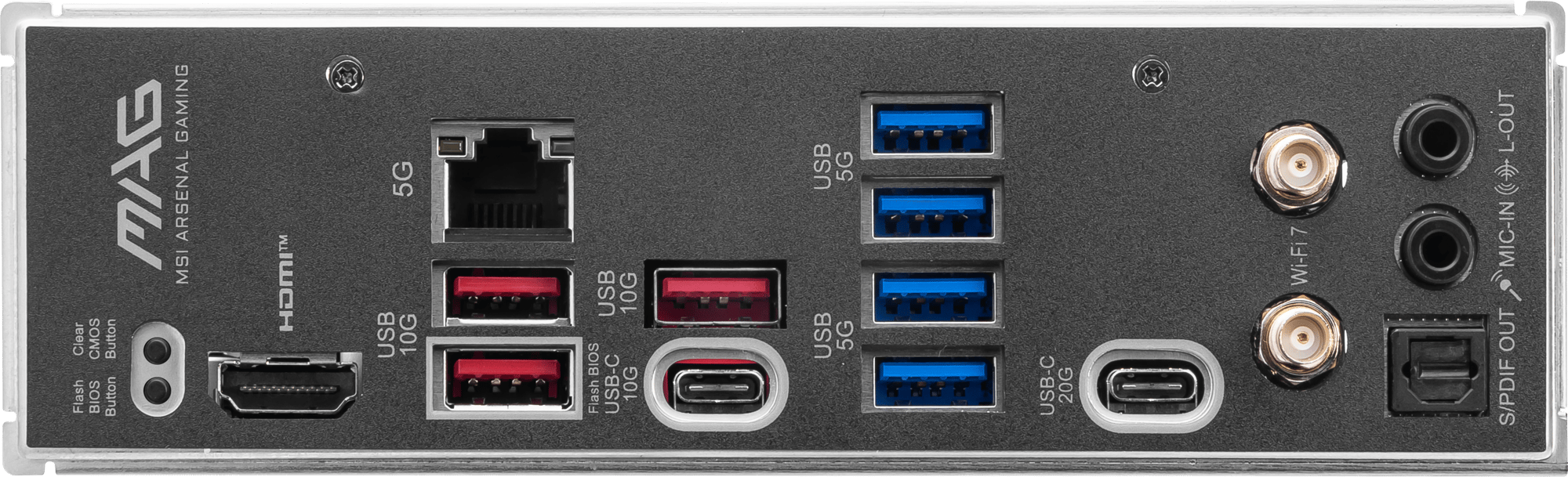

Rear Panel I/O Ports
- USB Ports: 1 x USB-C 3.2
- 1 x USB-C 3.1
- 3 x USB 3.1
- 4 x USB 3.0
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA
- USB Connectors: 1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 8200 MT/s
- Memory Type: DDR5
Motherboard
- Northbridge: AMD B850
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- S/PDIF Port: 1 x S/PDIF Optical Out
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x Combo fan header
- 4 x System fan headers
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- TPM Header: 1 x TPM header
- Power Connector Port: 1 x 24-pin ATX
- 2 x 8-pin EPS
- 1 x 8-pin PCIe
- Other Connectors: 2 x M,2 slots, Type 2260/2280 (PCIe Gen5)
- 1 x M.2 slot, Type 2280 (PCIe Gen4)
Expansion
- Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
- 1 x PCI Express 4.0 x4 slot
Memory
- Maximum RAM: 256 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek ALC4080
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek 8126-VB
- Network Speeds Supported: Up to 5 Gbps
- Wireless LAN: Yes - Wi-Fi 7
- Wireless Network Speed: Up to 5.8 Gbps
- Bluetooth: Yes
- Bluetooth Version: 5.4
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Software Included: Yes
- Drivers: YEs

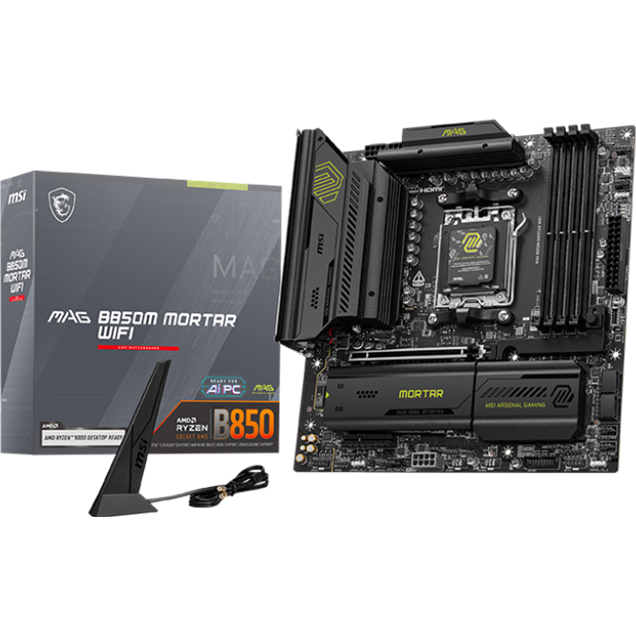

Physical
- Form Factor: mATX Motherboard

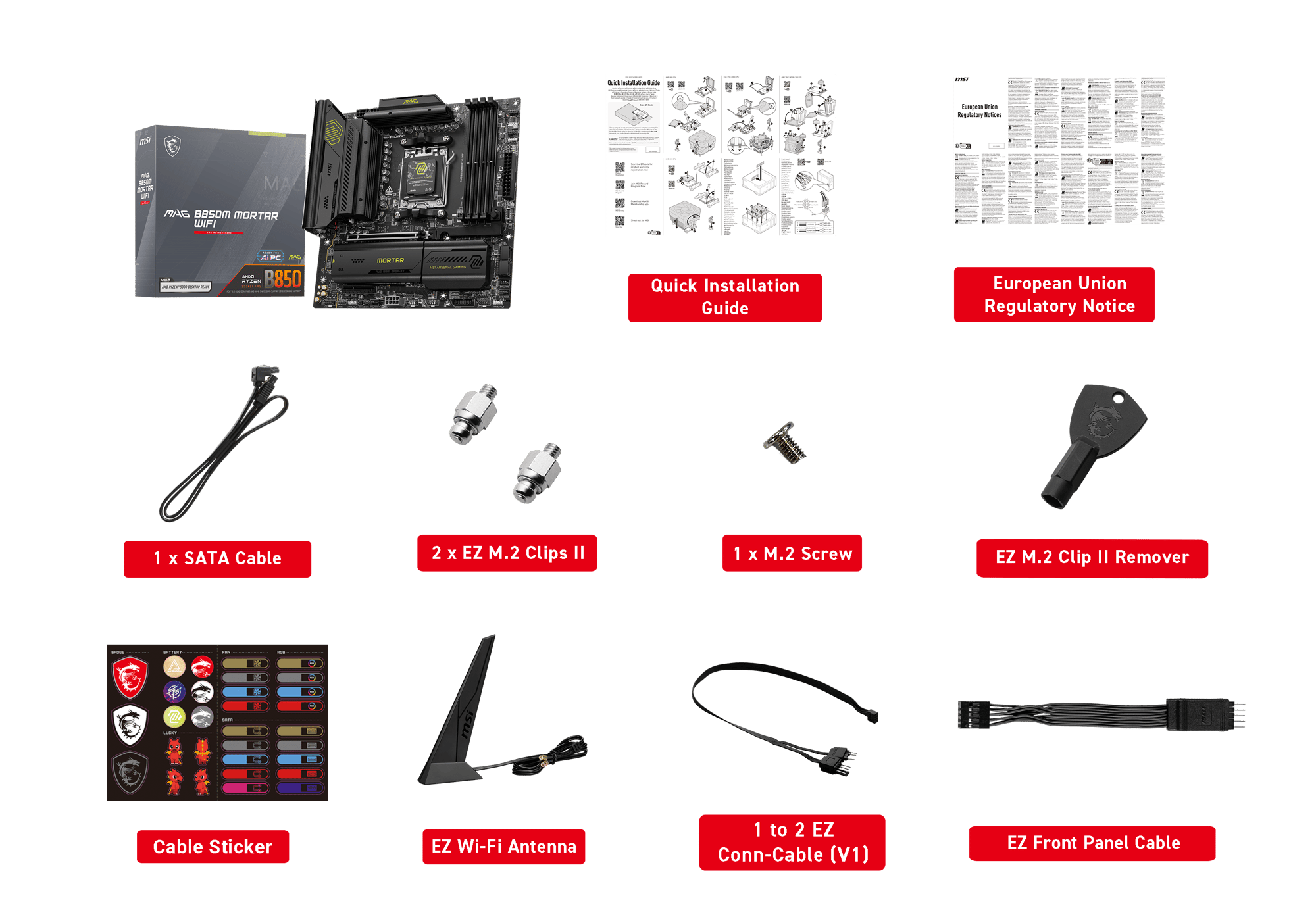

- In The Box: Motherboard
- Quick Installation Guide
- EU Regulatory Notice
- SATA Cable
- 2 x EZ M.2 Clips II
- M.2 Screw
- EZ M.2 Clip II Remover
- Cable Sticker
- EZ Wi-Fi Antenna
- 1 to 2 EZ Conn-Cable (v1)
- EZ Front Panel Cable
- Width: 244 mm
- Length: 244 mm
Identifiers
- Stock Code: MBD3911
- Mfg Code: MAG B850M MORTAR WIFI
Warranty
- Warranty: 3 Years
