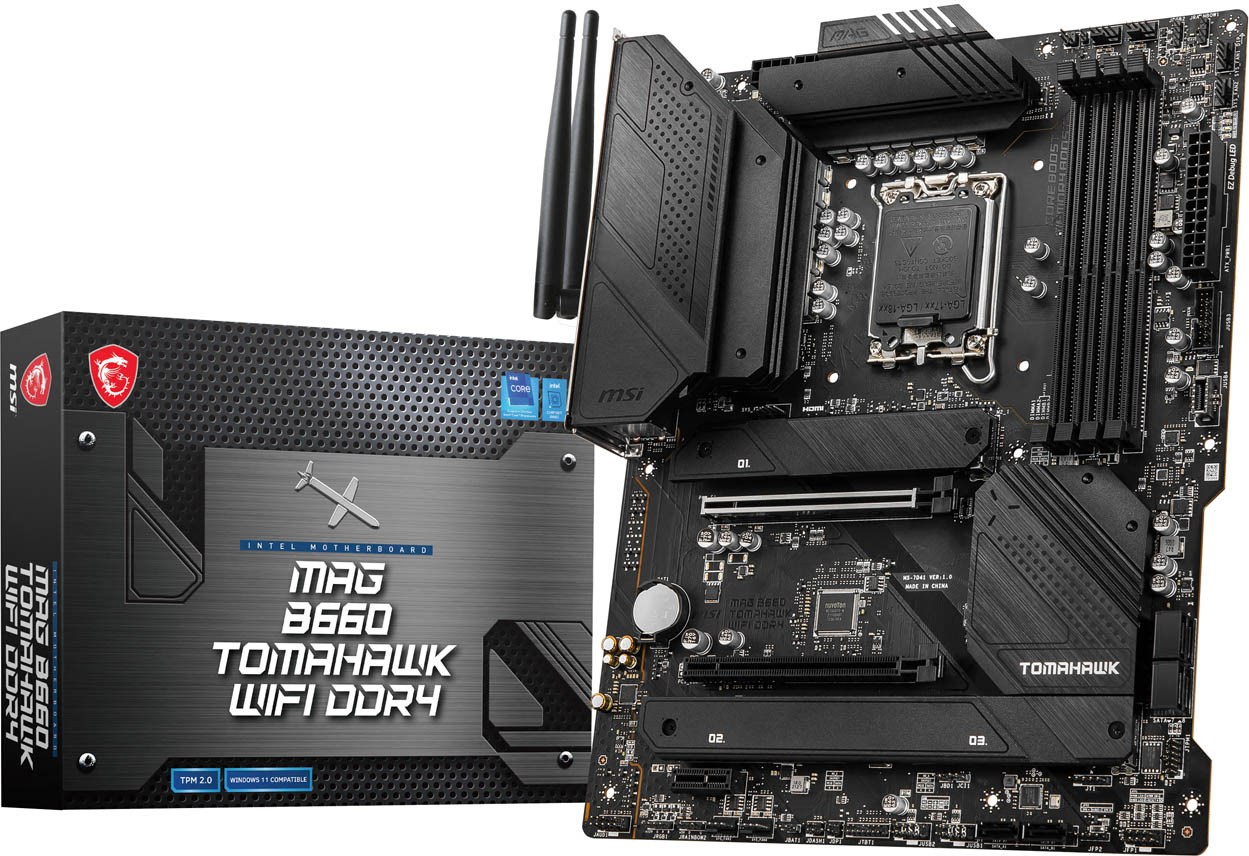

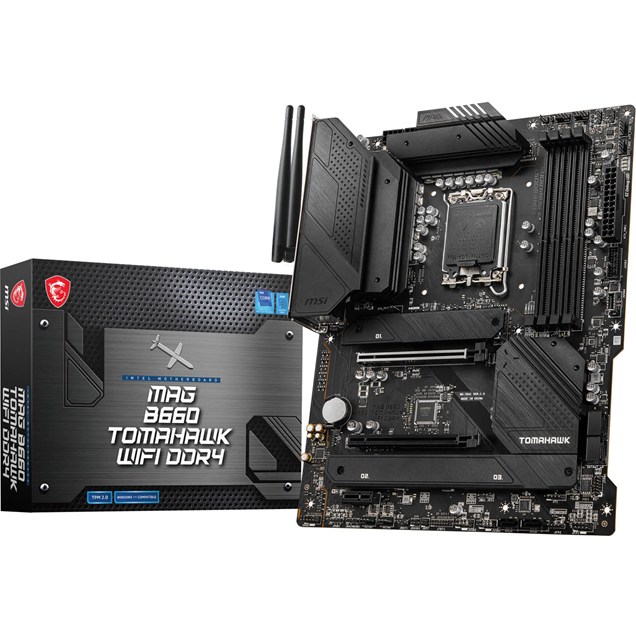

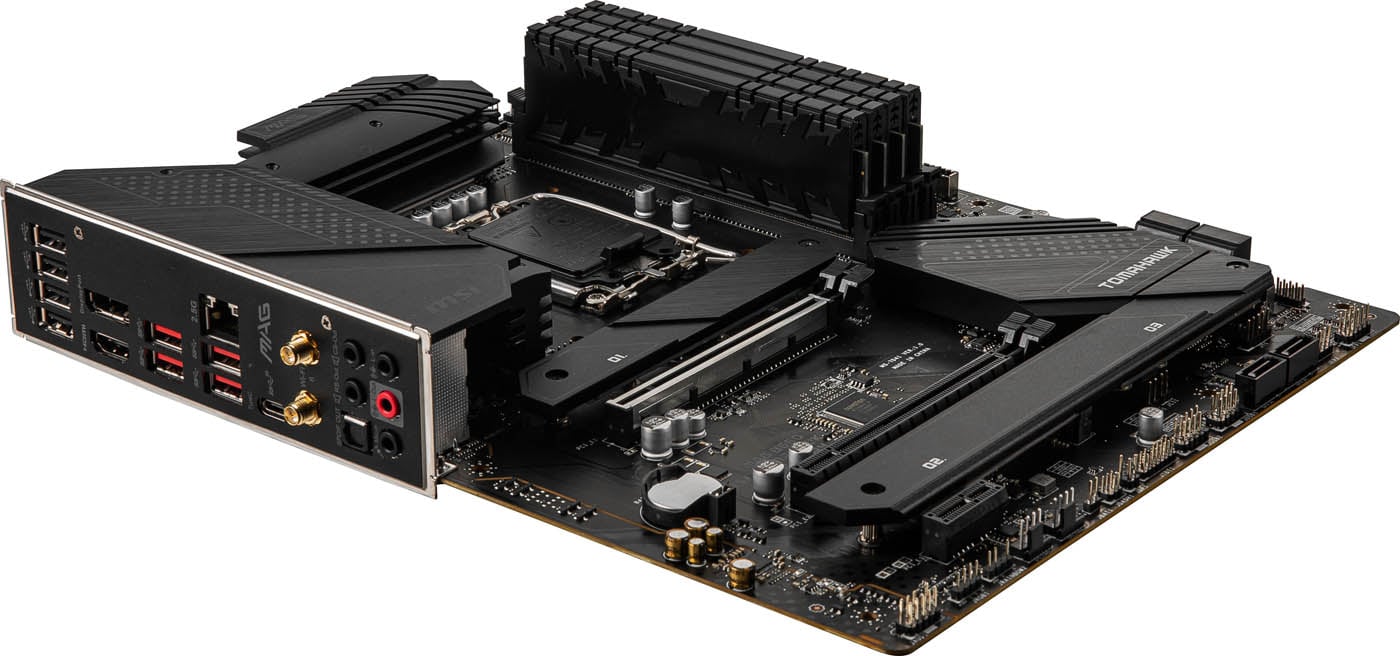

MSI MAG B660 TOMAHAWK WIFI DDR4 Intel Motherboard

CCL Code: MBD3216
|
Manufacturer Code: MAG B660 TOMAHAWK WIFI DDR4
| Manufacturer: MSI
|

Key Features:

  • Socket 1700
  • Intel B660 Chipset
  • 6 x SATA & 9 x USB Ports
  • DDR4 (max 128GB, 4 slots)
  • HDMI and Display Port
  • ATX Form Factor

Coming soon

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

More stock is expected around 10/08/2022.

Notify Me
Overview

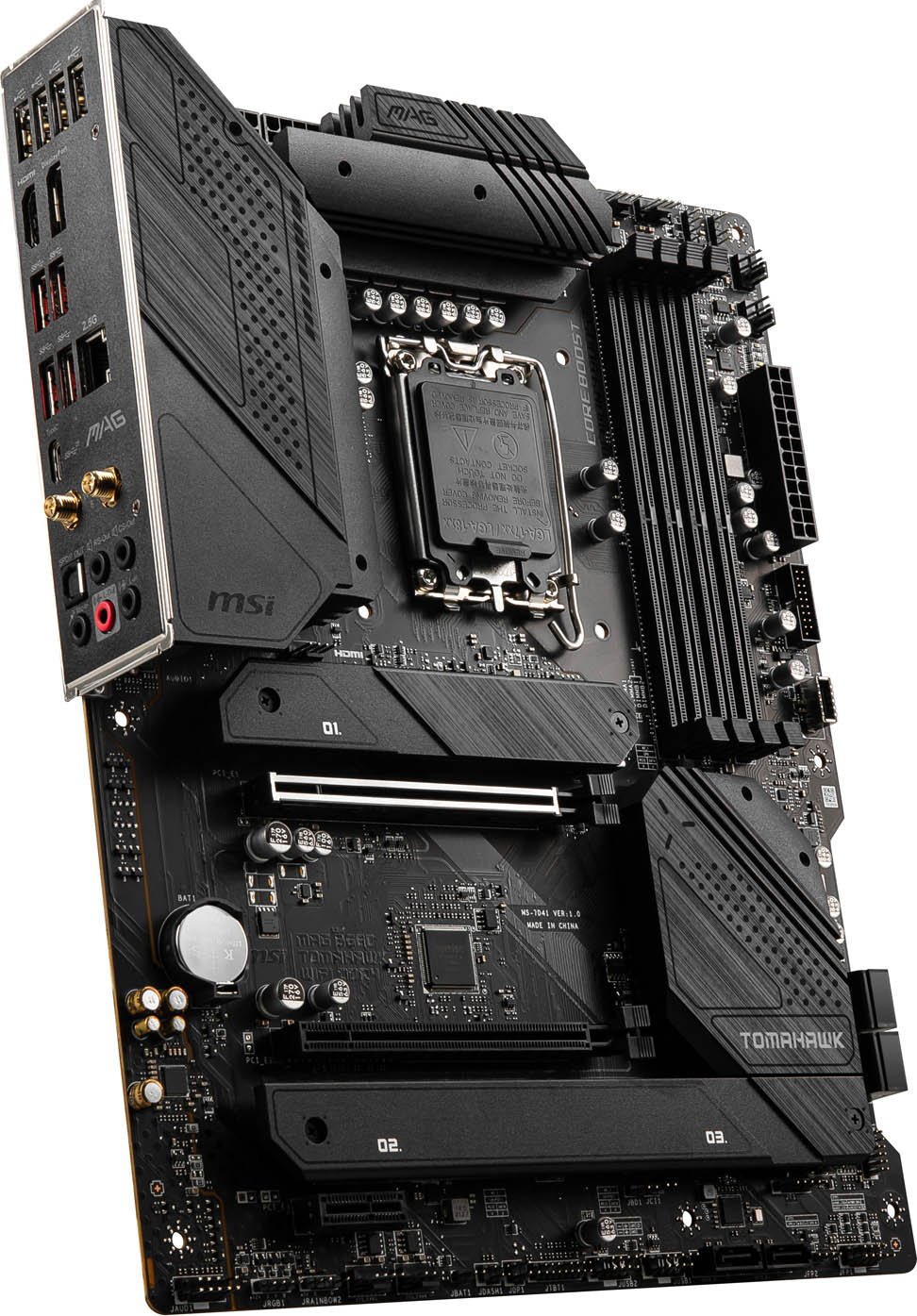

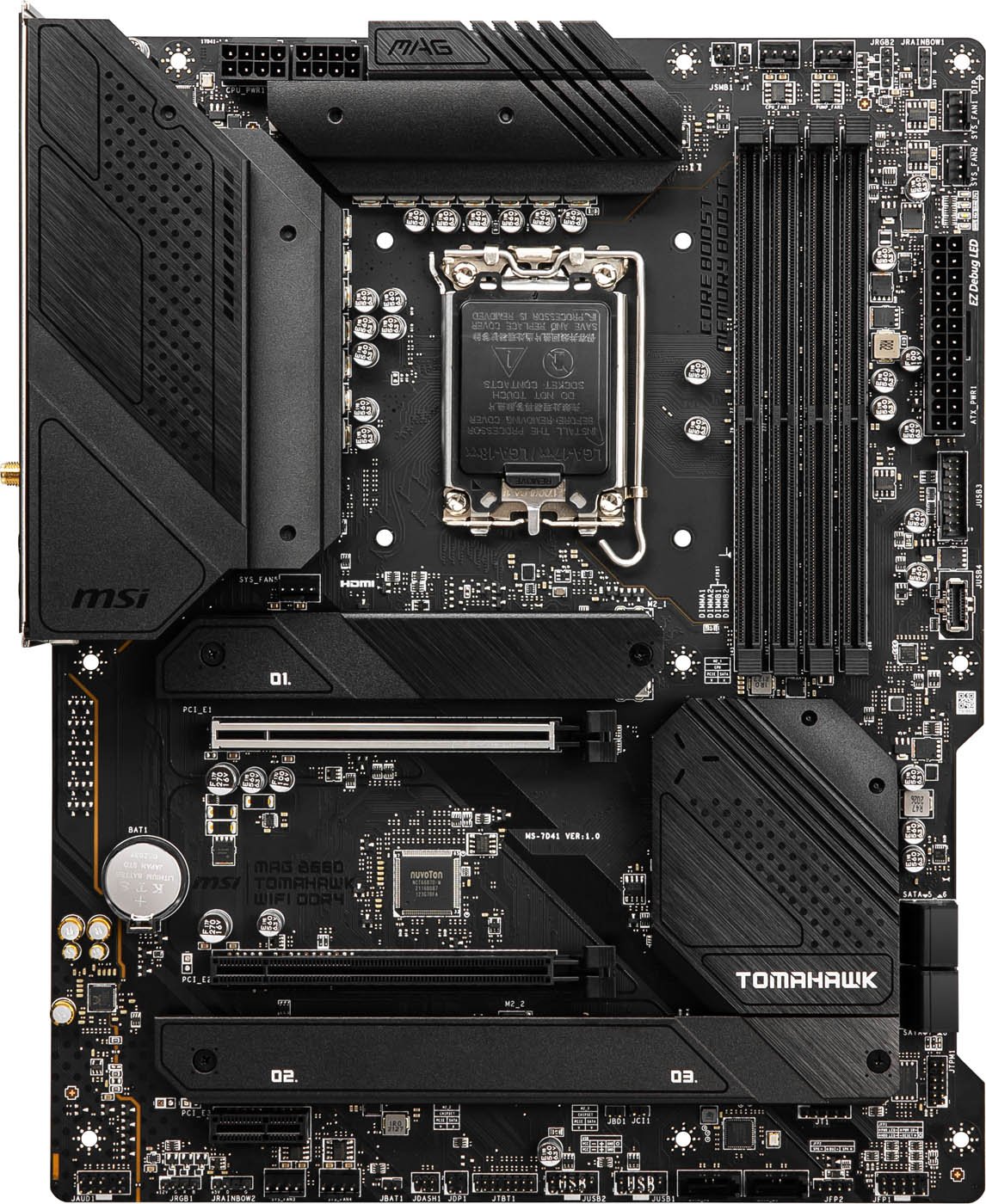

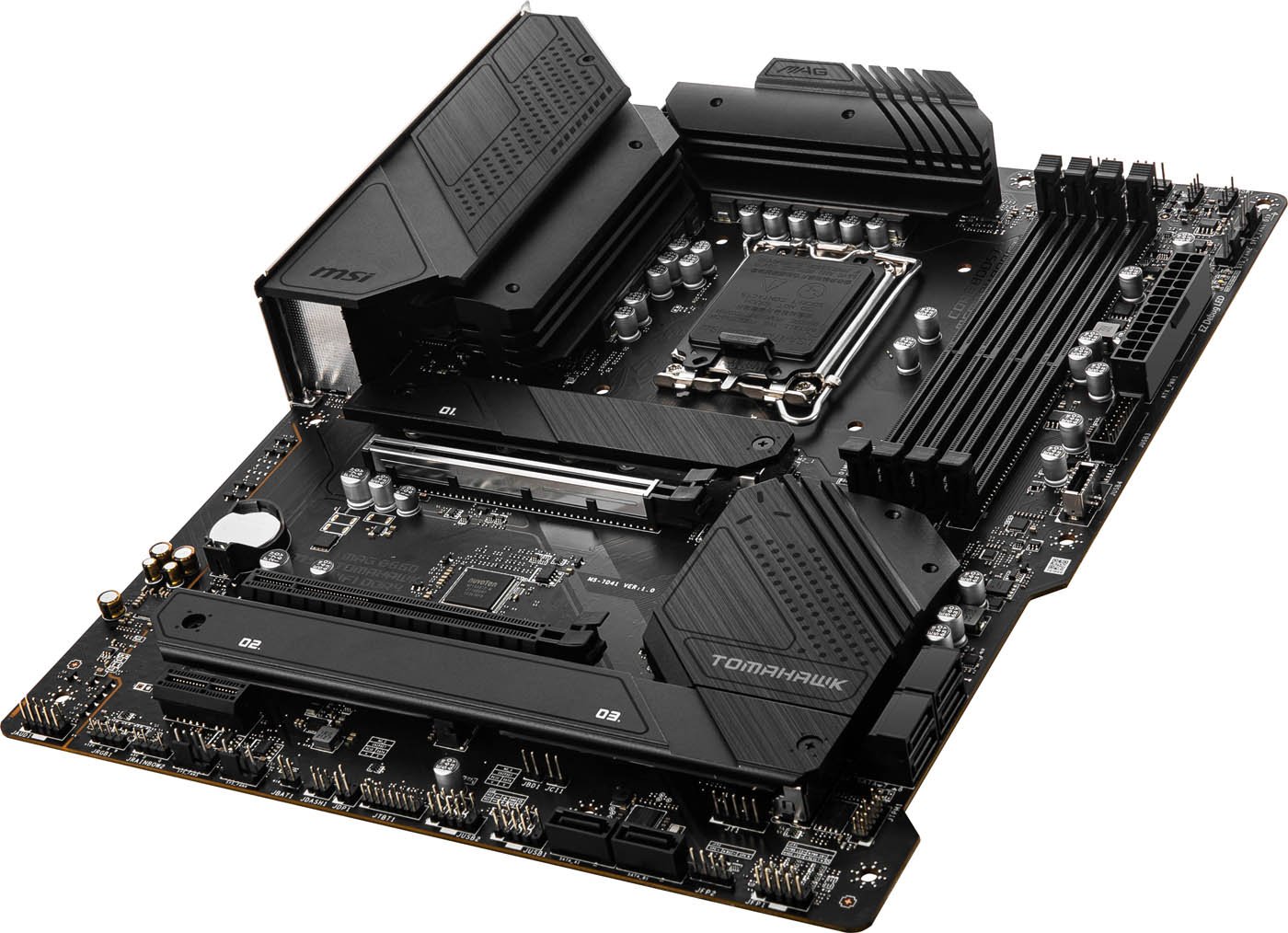

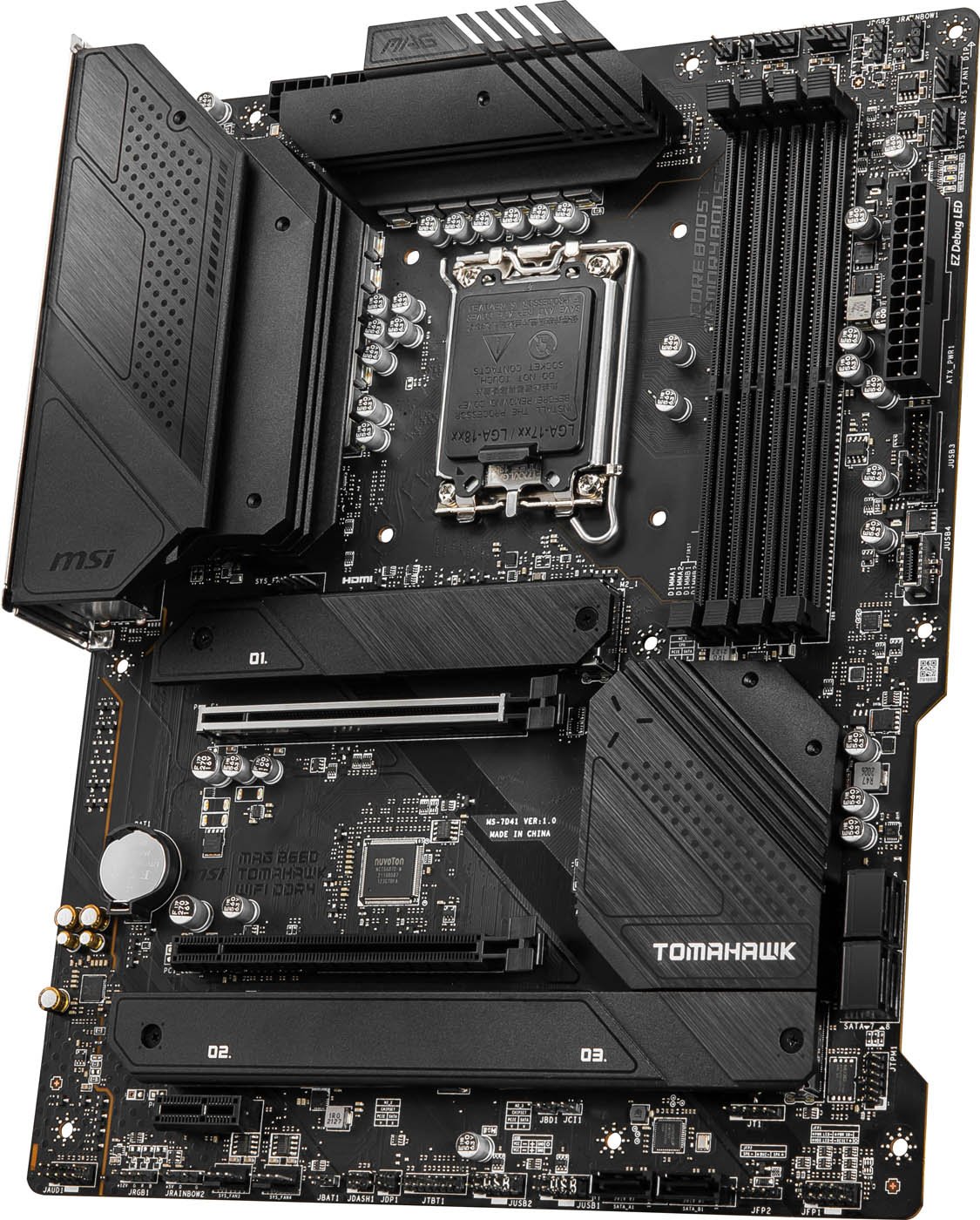

MAG B660 TOMAHAWK WIFI DDR4

Conquer the Battlefield

The MAG B660 TOMAHAWK WIFI DDR4 is a gaming oriented ATX motherboard constructed around the latest Intel B660 chipset that balances value with cutting-edge hardware.

Supports Intel Core 12th Gen Processors

Supports Intel Core 12th Gen Processors

The MAG B660 TOMAHAWK WIFI DDR4 motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors.

Form Factor: ATX

Socket Type: LGA 1700

Chipset: Intel B660

12+1+1 Duet Rail Power System

12+1+1 Duet Rail Power System

With its dual 8 pin power connectors and exclusive Core Boost Technology, the MAG B660 TOMAHAWK WIFI DDR4 is able to sustain heavy CPU power loads to support system-demanding game settings:

1. Digital PWM IC

2. 1-Phase AUX Power

3. 1-Phase GT Power

4. 12 Duet Rail CPU Power System

Integrated Cooling

Integrated Cooling

VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.

PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.

Fortified PCI-e 4.0 x16

Fortified PCI-e 4.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

* 1 x PCI-e 4.0/3.0 x16 slot (with Steel Armor)

* 1 x PCI-e 3.0 x16 slot (CrossFire supported)

Gen4 M.2 Connectors

Gen4 M.2 Connectors

The MAG B660 TOMAHAWK WIFI DDR4 motherboard features MSI's latest M.2 slots (Intel Optane supported):

* 2 x Gen4 x4 64Gb/s slots

* 1 x Gen4 x2 32Gb/s slot

*M.2 specifications may vary depending on the CPU installed.

M.2 Shield Frozr

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

4 x DDR4 Dual Channel (4800 MHz OC)

4 x DDR4 Dual Channel (4800 MHz OC)

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimized memory speed and stability.

Wi-Fi 6 & Bluetooth 5.2

Wi-Fi 6 & Bluetooth 5.2

2.5G LAN: A 2.5 Gbps LAN controller delivers a premium network gaming experience.

USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20 Gb/s.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost & S/PDIF output.

Wi-Fi 6: The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400 Mbps.

dot

Main Features

  • Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 4800+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire
Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 12th Gen Intel Core, Pentium Gold and Celeron processors
64-bit Support Yes
Socket LGA1700

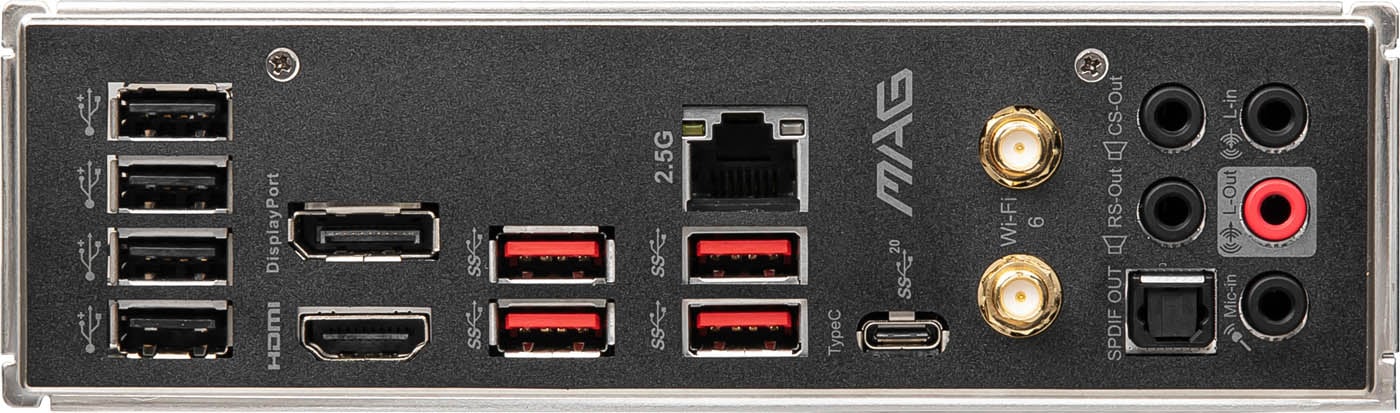

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.2
4 x USB 3.1
4 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 3 x 3.5mm Jacks
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x Antenna

Internal I/O Connectors

SATA Connectors 6 x SATA III
USB Connectors 1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x Water Pump fan header
5 x System fan headers
Thunderbolt Port(s) 1 x TBT header (supports RTD3)
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x TPM header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4 or SATA)
1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4 x2 or SATA)
2 x 3-pin ARGB LED headers
2 x 4-pin RGB LED headers
1 x Tuning Controller header

Memory

Memory Bus Speed Up to 4800+ MHz
Memory Type DDR4
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard

Chipset Manufacturer Intel
Northbridge B660
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x16 slot (@ x4)
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek ALC1220P

Warranty

Warranty 3 Years

Network

Integrated Network Realtek RTL8125B-CG
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes (Wi-Fi 6)
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.2

System Requirements

Operating Systems Supported Microsoft Windows 11 / 10 64-bit

System

Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes
SLi/Crossfire Features Supports AMD CrossFire Technology

Physical

Form Factor ATX Motherboard

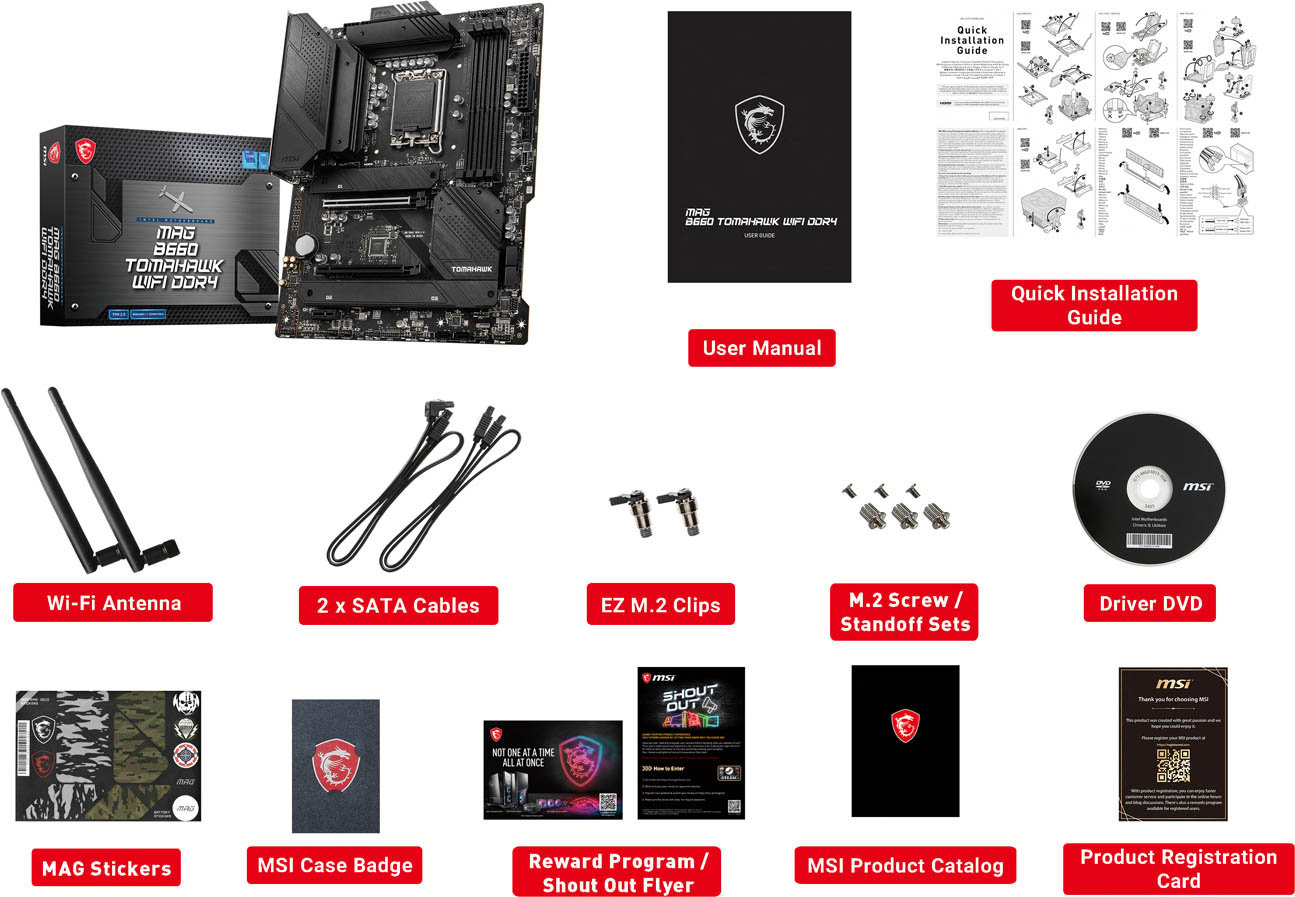

In The Box MSI MAG B660 TOMAHAWK WIFI DDR4 Motherboard
Quick Installation Guide
Wi-Fi Antenna
2 x SATA Cables
EZ M.2 Clips
M.2 Screw / Standoff Sets
Driver DVD
MAG Stickers
MSI Case Badge
Reward Program / Shout Out Flyer
MSI Product Catalog
Product Regsitration Card
Width 305 mm
Length 244 mm

Key Features

Motherboard Model MSI MAG B660 TOMAHAWK WIFI DDR4
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control MSI Mystic Sync
Memory Speed 4800 MHz
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Firewire No
Wireless Network Yes
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 6 port(s)
Number of USB Ports 9 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support ATi CrossFire
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Motherboard Power Connectors 8 + 8-Pin
Motherboard Chipset Intel B660
Thunderbolt No

Item Details

Manufacturer MSI
Manufacturer Code MAG B660 TOMAHAWK WIFI DDR4
EAN 4719072903398
UPC 824142274149
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer MSI
Manufacturer Code MAG B660 TOMAHAWK WIFI DDR4
Questions and Answers

Do you have you a question about the MSI MAG B660 TOMAHAWK WIFI DDR4 Motherboard, ATX, Intel Socket 1700, B660 Chipset?

Reviews
5.0 / 5 5 reviews

Luke

last month

I haven't got any complaints.

kev

3 months ago

first time building a tower pc and the motherboard made it so easy to do. everything fits in really nicely with plenty of space for the cables so they don't get in the way of each other

SF

3 months ago

Well built, looks good, has all features required with plenty of USB ports

- Diogo Mota

3 months ago

Much needed goodness

Robert

4 months ago

This is an awesome looking motherboard, it's heavy too. I love the integrated backplate and the chunky heatsinks. I bought this for 200, but I'm selling it already because I realised I could get one for just 115 that basically does everything I need, but it doesn't look quite as cool.
