The MAG B650 TOMAHAWK WIFI motherboard supports AMD Ryzen 7000 processors.
Form Factor: ATX
Socket Type: AM5
Chipset: AMD B650

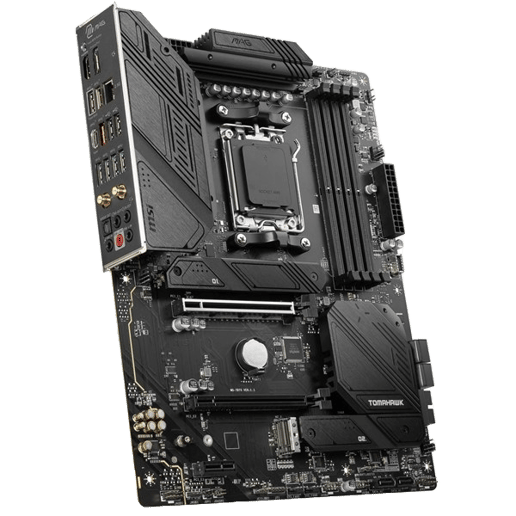

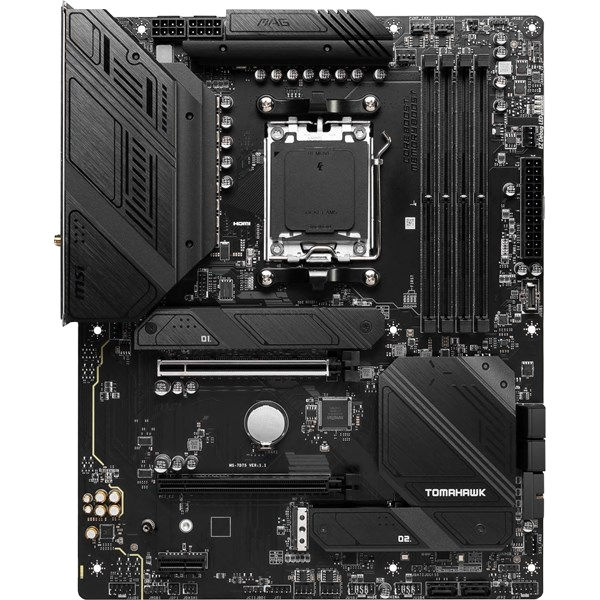

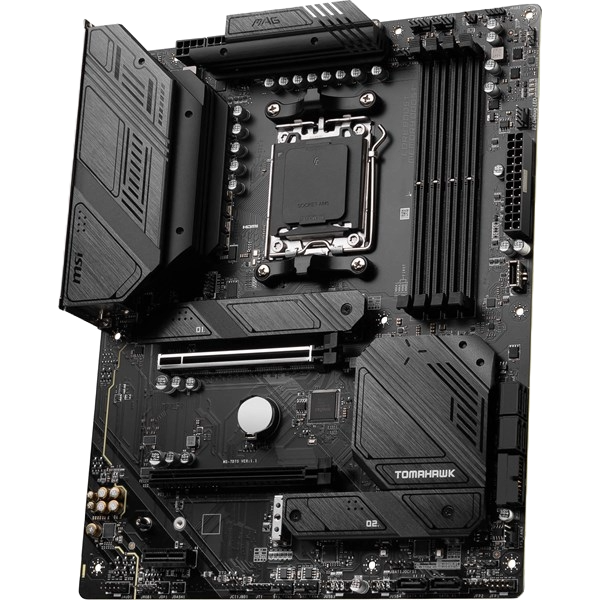

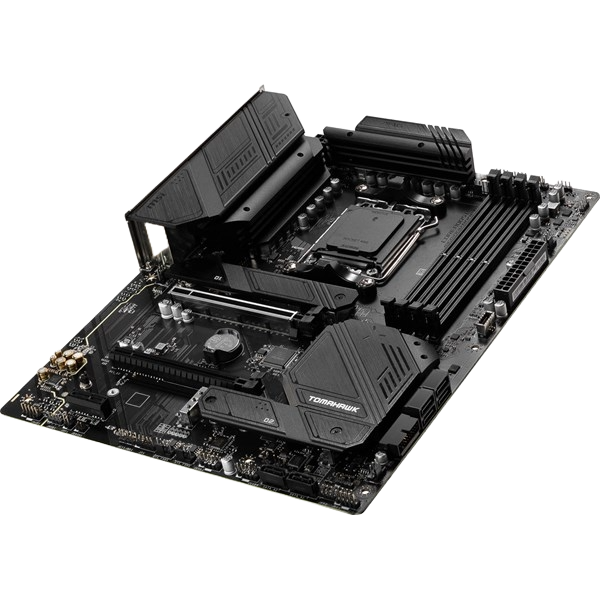

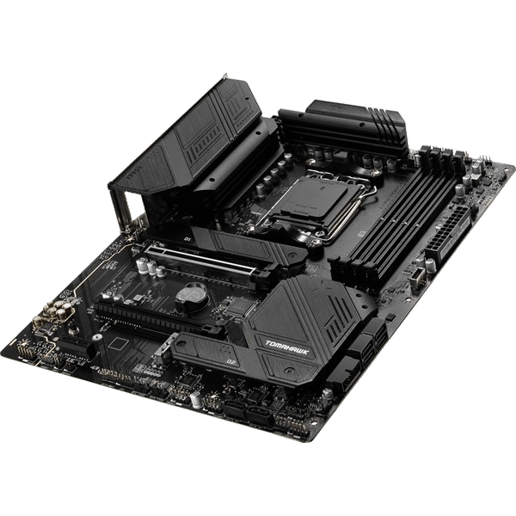

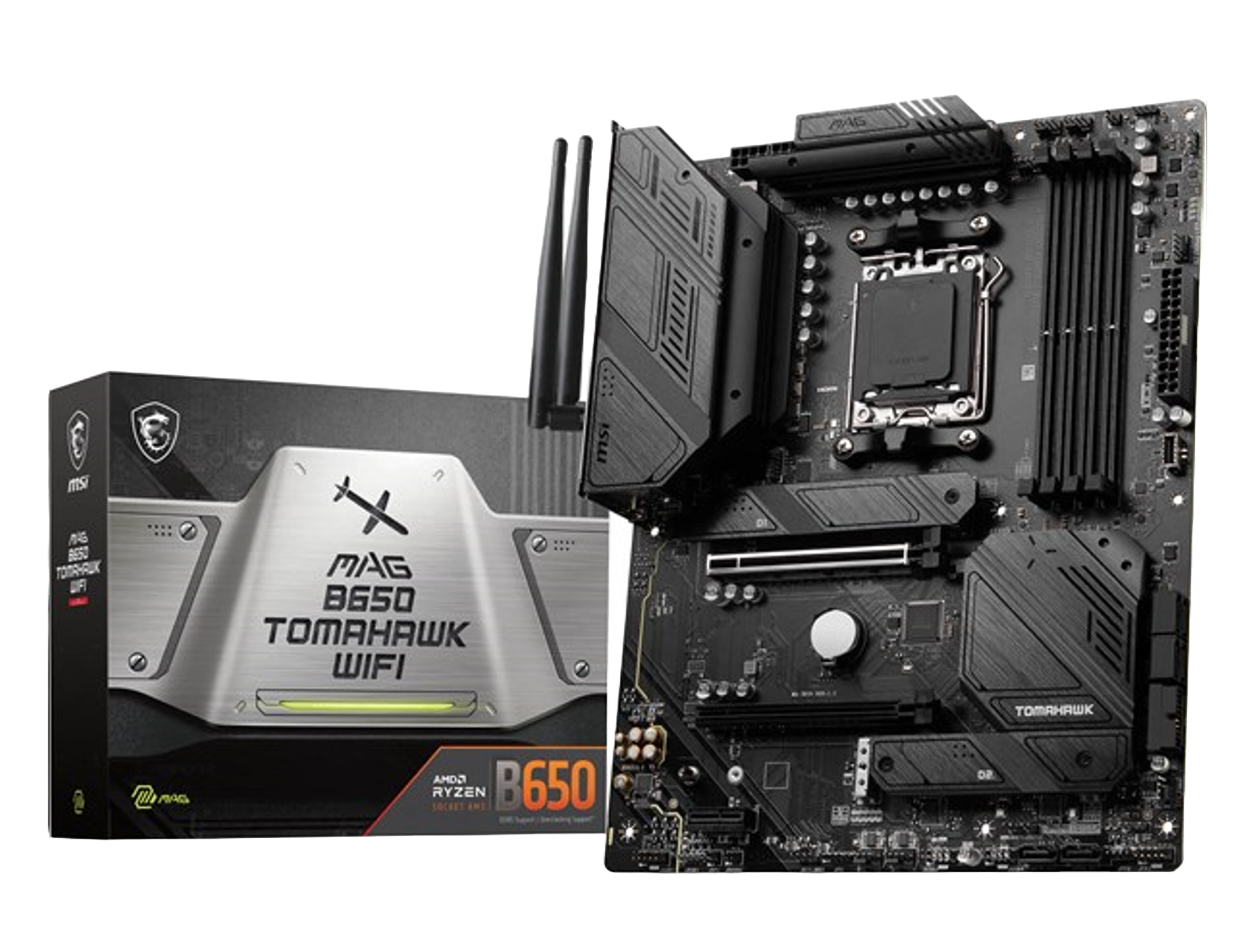

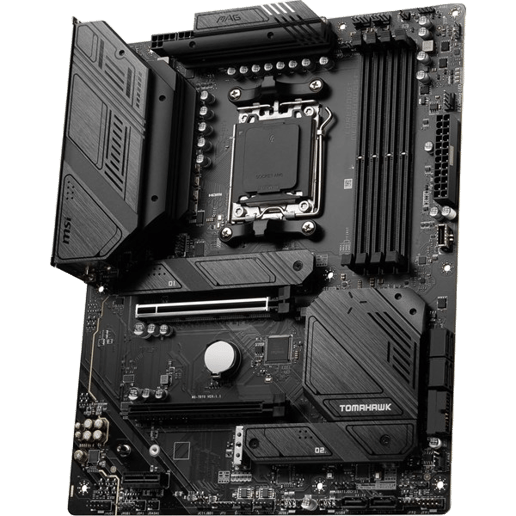

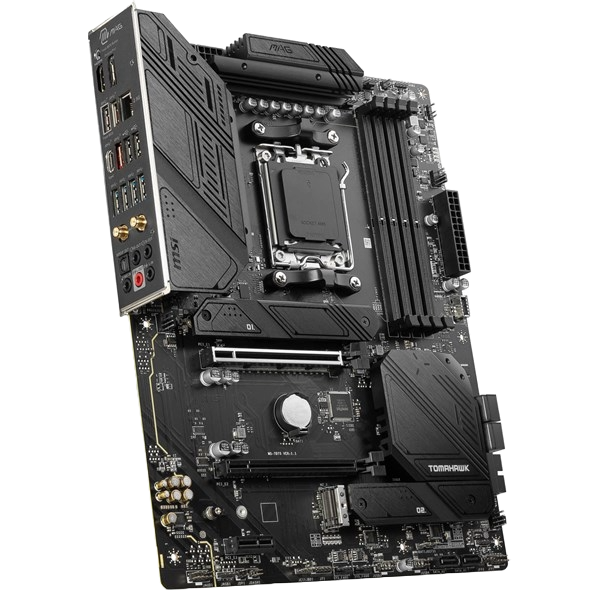

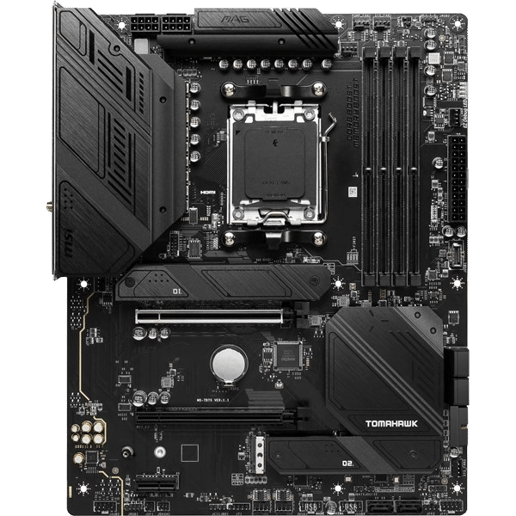

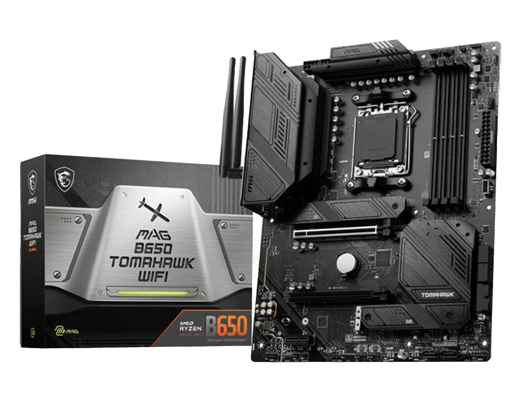

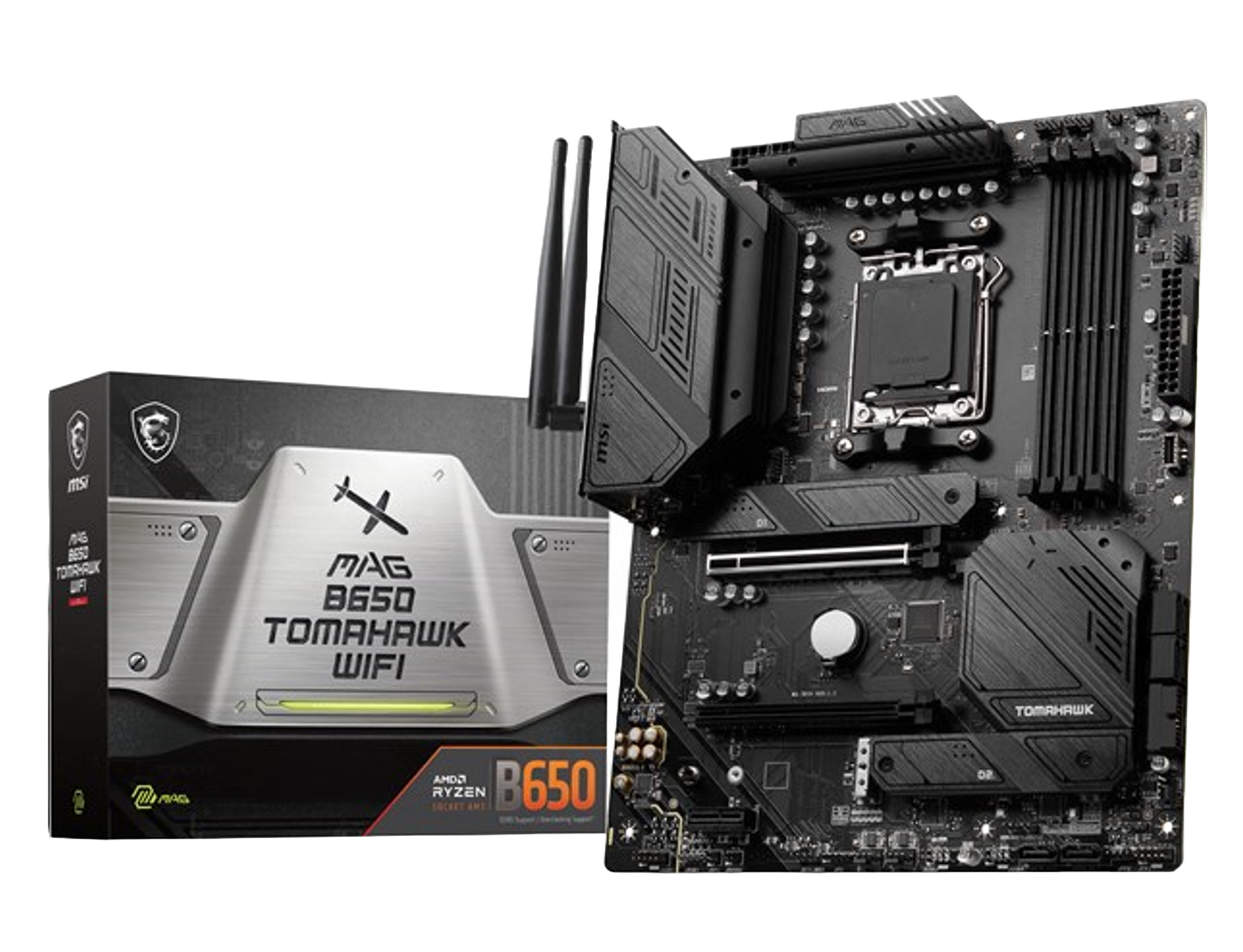

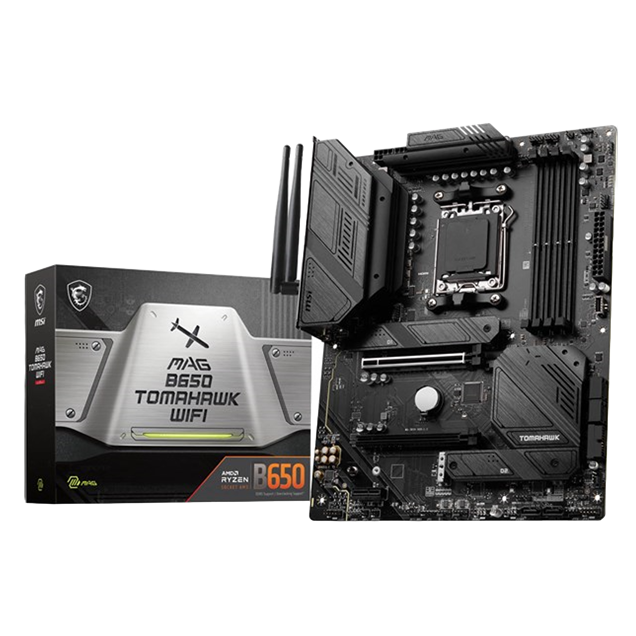

MSI MAG B650 TOMAHAWK WIFI ATX Motherboard for AMD Socket AM5 CPUs
£162.99
Discontinued
.png)
.png)
.png)
.png)
.png)
.png)
.png)
MAG B650 TOMAHAWK WIFI
MSI MAG B650 TOMAHAWK WIFI ATX Motherboard for AMD Socket AM5 CPUs
FORM FACTOR: ATX
SOCKET: SOCKET AM5
MEMORY: DDR5 (MAX: 128GB)
STORAGE: 3 X M.2, 6 X SATA
WI-FI: BUILT-IN
USB: 10 PORT(S)
Unite as One
The MAG B650 TOMAHAWK WIFI is a gaming oriented ATX motherboard constructed around the latest AMD B650 chipset that unites value with premium hardware.
Supports AMD Ryzen 7000 Processors
14+2 Phase VRM with 80A Smart Power Stage
With its dual 8 pin power connectors and exclusive Core Boost technology, the MAG B650 TOMAHAWK WIFI is able to sustain heavy CPU power loads (up to 170W) to support system-demanding game settings:
1. Digital PWM IC
2. 14-Phase Duet-Rail CPU Power (80A)
3. 2-Phase SOC Power
4. 1-Phase MISC Power
Integrated Cooling Features
VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.
PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.
2 x Fortified PCI-e 4.0 x16 Slots
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
2 x PCI-e 4.0/3.0 x16 slots (primary with Steel Armor*)
*Supports x16/x4
4 x DDR5 Dual Channel (6400+ MHz Overclocked*)
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 6400 MHz, supports AMD EXPO.
Gen4 M.2 Connectors
The MAG B650 TOMAHAWK WIFI motherboard features MSI's latest M.2 slots:
3 x Gen4 x4 64Gb/s slots
M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
Wi-Fi 6E & Bluetooth 5.2
2.5G LAN: A Realtek RTL8125BG 2.5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 6E: Features an AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.
USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.
HD Audio: 7.1-Channel High Performance Audio with Audio Boost 5 & S/PDIF output.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: AMD Ryzen 7000 Series Desktop Processors
- 64-bit Support: Yes
- Socket: AM5

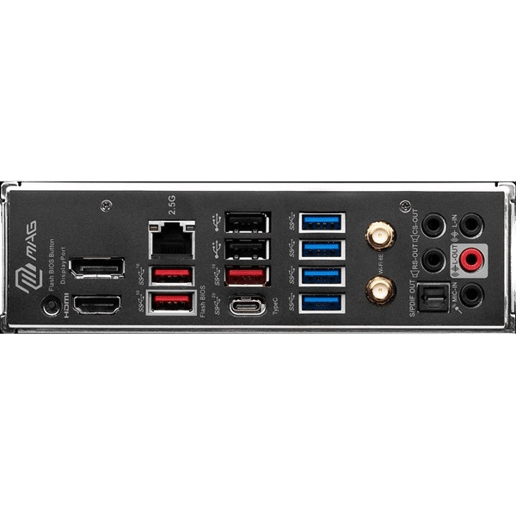

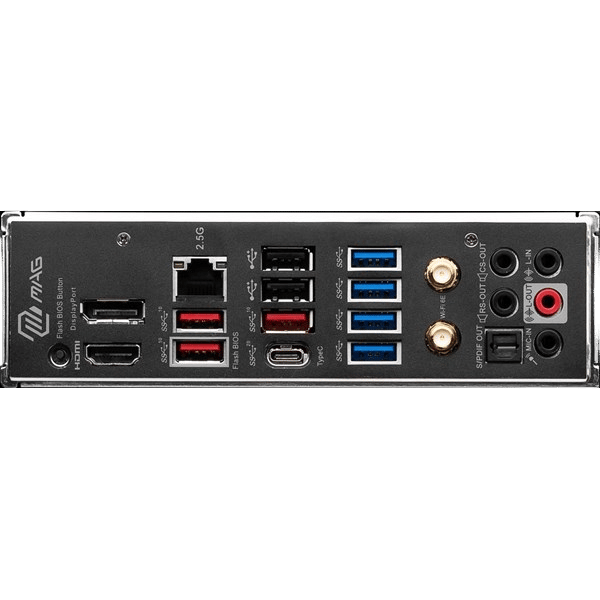

Rear Panel I/O Ports
- USB Ports: 1 x USB-C 3.2
- 3 x USB 3.1
- 4 x USB 3.0
- 2 x USB 2.0
- DisplayPorts: 1 x DisplayPort 1.4
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 6 x SATA III
- USB Connectors: 1 x USB 3.2 header (supports 1 port)
- 1 x USB 3.0 header (supports 2 ports)
- 2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 6600 (OC) MHz
- Memory Type: DDR5
Motherboard
- Northbridge: B650
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 3 x 3.5mm Jacks
- Microphone In Port: 1 x 3.5mm Jack
- S/PDIF Port: 1 x S/PDIF Optical Out
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x Pump fan header
- 6 x System fan headers
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- TPM Header: 1 x TPM header
- Power Connector Port: 1 x 24-pin ATX
- 2 x 8-pin EPS
- Other Connectors: 3 x M.2 slots, Type 2260/2280 (PCIe Gen4)
- 2 x 3-pin ARGB LED headers
- 2 x 4-pin RGB LED headers
- 1 x Tuning Controller header
Expansion
- Number of PCI Express Slots: 2 x PCI Express 4.0 x16 slots (@ x16, x4)
- 1 x PCI Express 3.0 x1 slot
Memory
- Maximum RAM: 128 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek ALC4080
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek RTL8125B
- Network Speeds Supported: Up to 2.5 Gbps
- Wireless LAN: Yes (Wi-Fi 6E)
- Wireless Network Speed: Up to 2.4 Gbps
- Bluetooth: Yes
- Bluetooth Version: 5.2
System Requirements
- Operating Systems Supported: Microsoft Windows 11 64-bit
System
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: ATX Motherboard

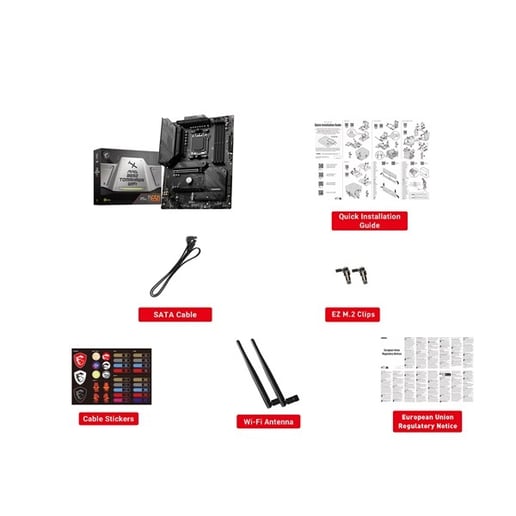

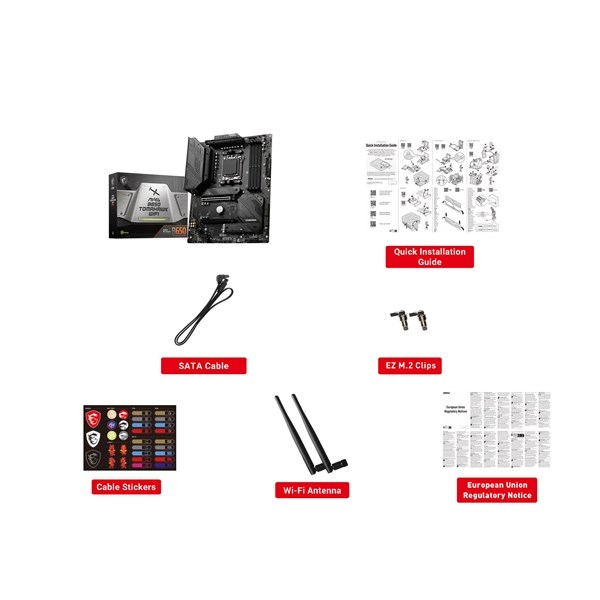

- In The Box: Motherboard
- Quick Installation Guide
- SATA Cable
- EZ M.2 Clips
- Cable Stickers
- Wi-Fi Antenna
- EU Regulatory Notice
- Width: 304.8 mm
- Length: 243.84 mm
Identifiers
- Stock Code: MBD3333
- Mfg Code: MAG B650 TOMAHAWK WIFI
Warranty
- Warranty: 3 Years
