Ryzen™ 5000 Ready
The MAG B550 TOMAHAWK MAX WIFI delivers a full AMD Ryzen™ 5000 ready platform which offers high-end performance and sophisticated aesthetics.

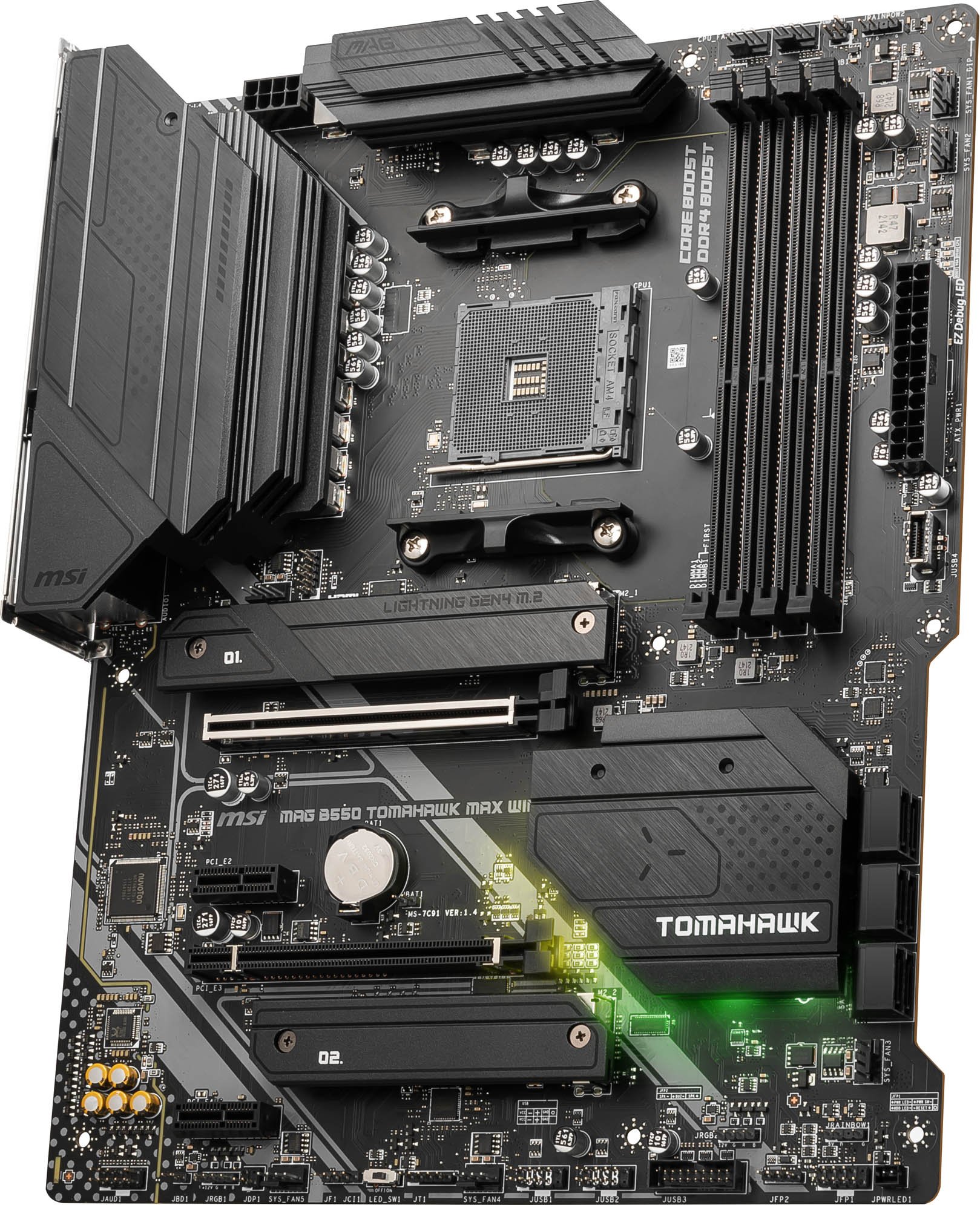

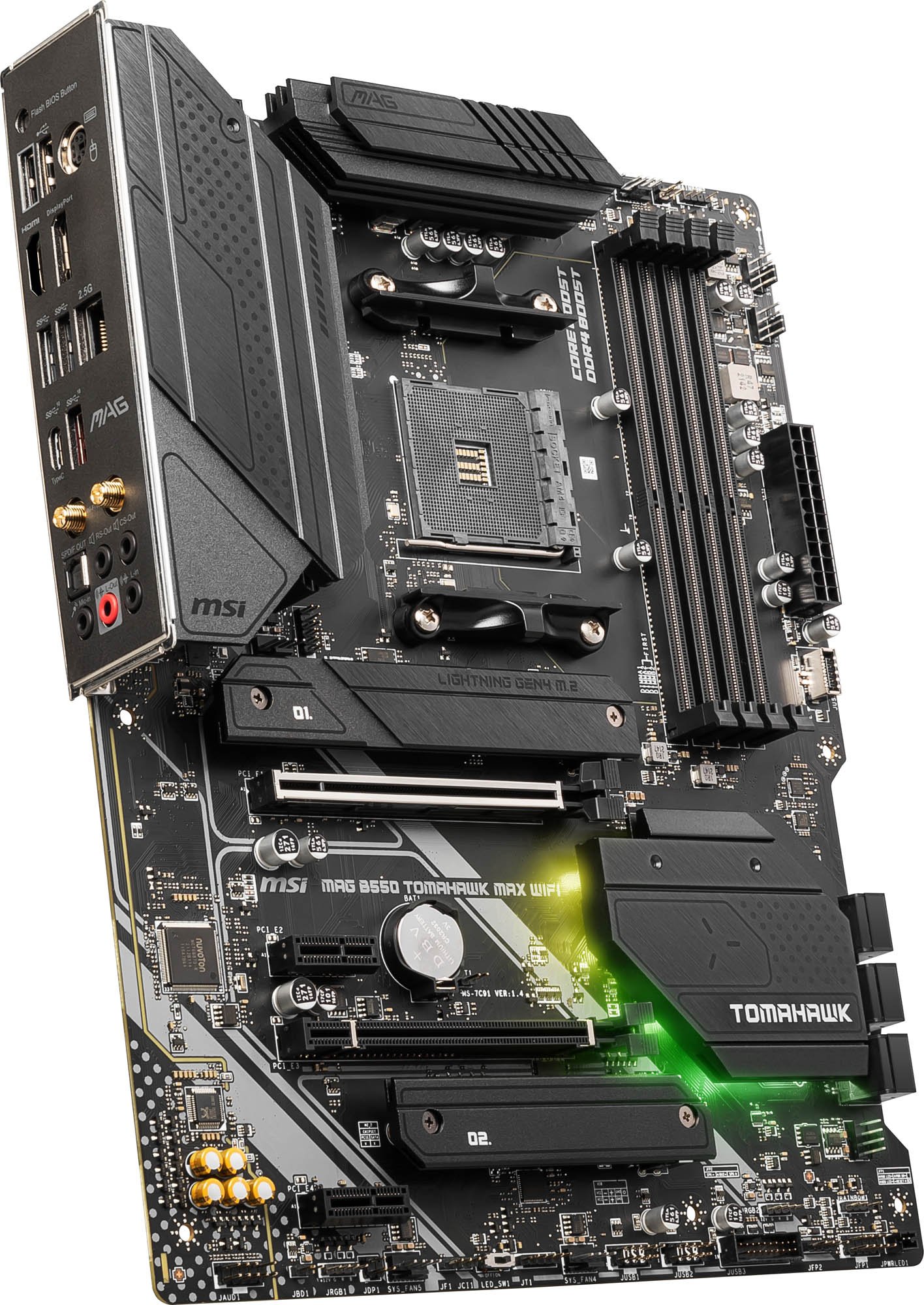

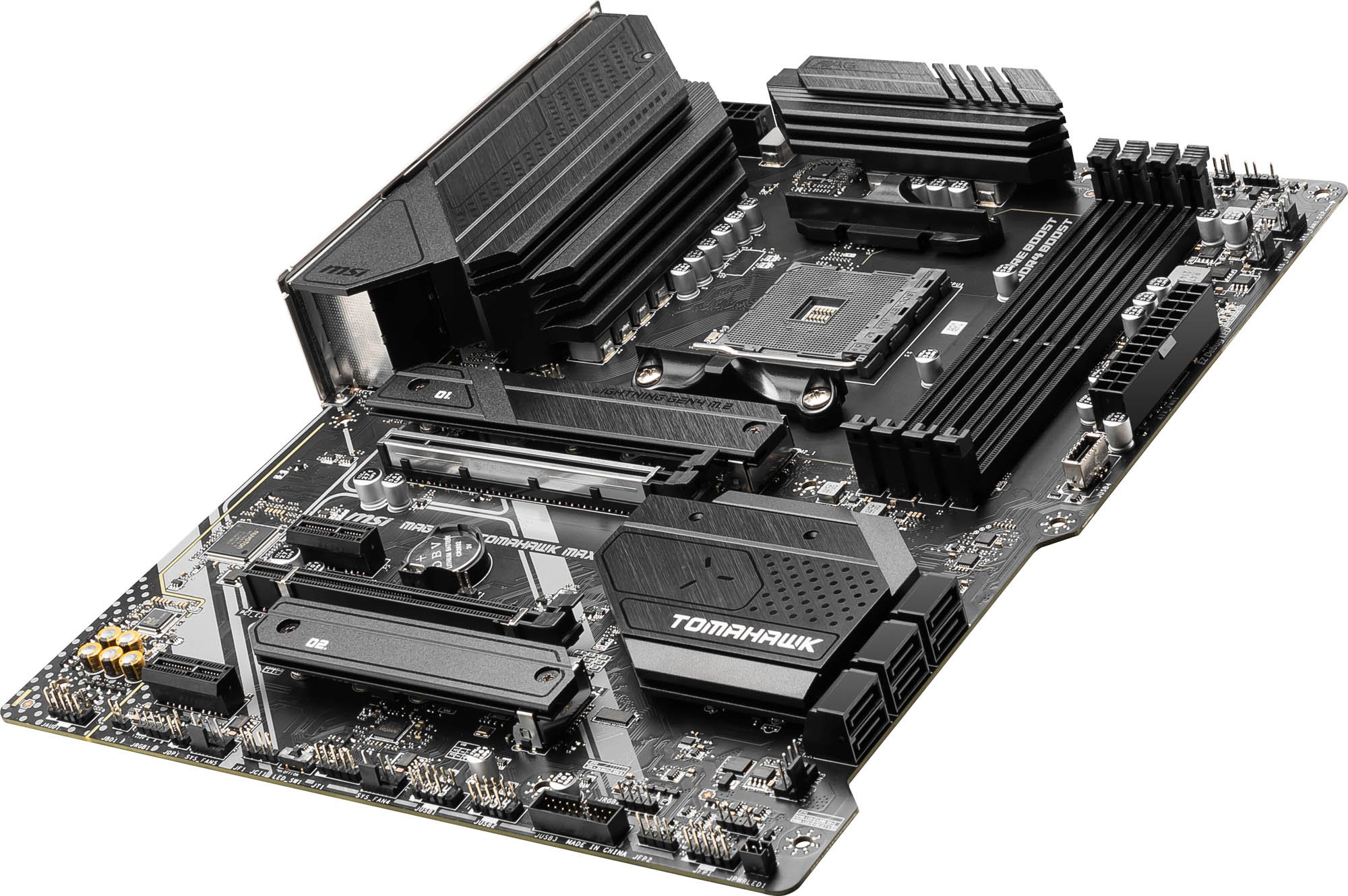

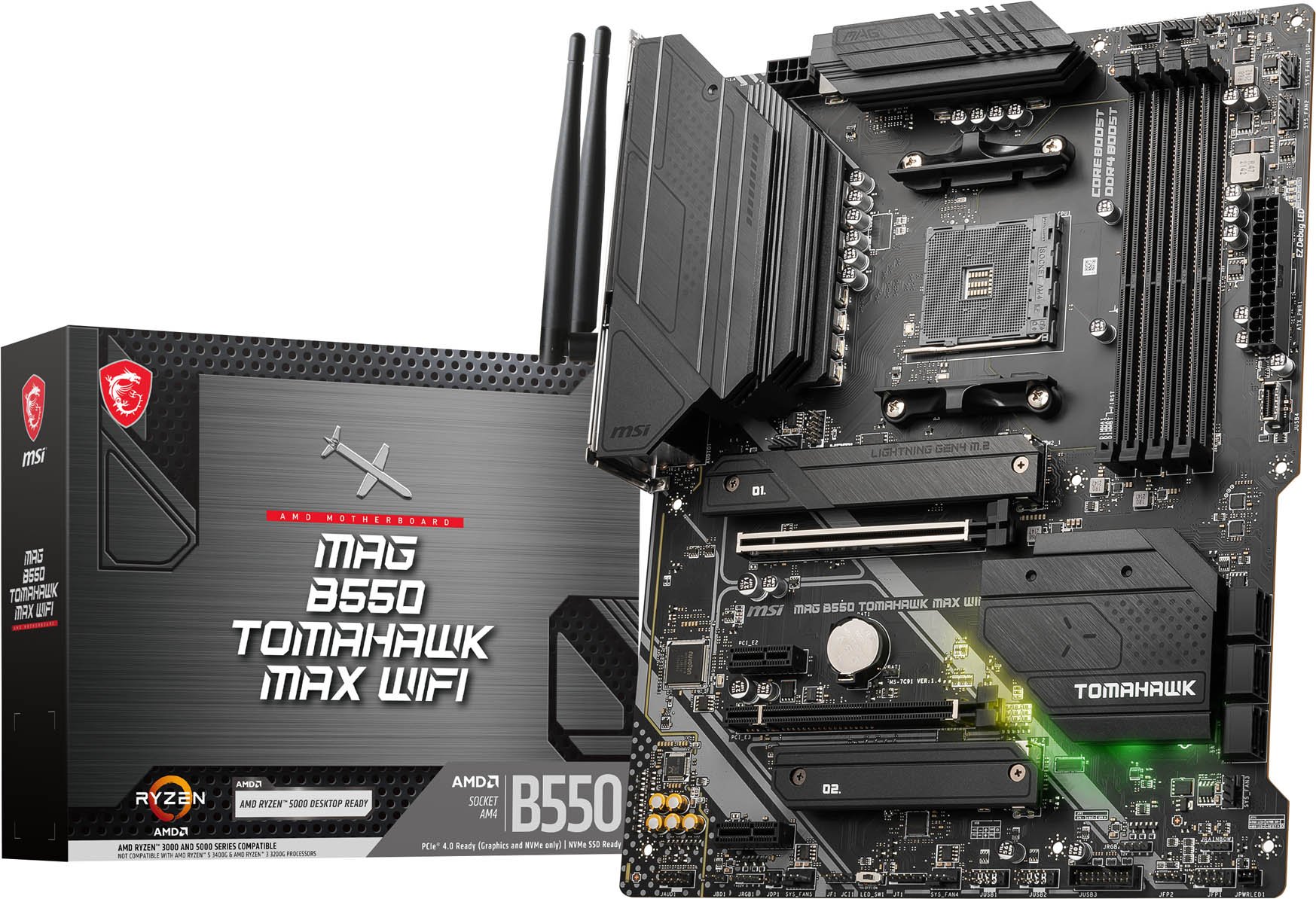

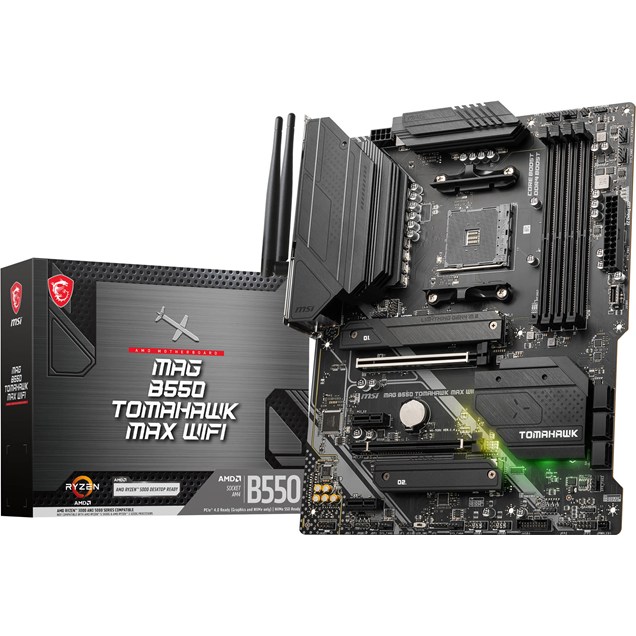

MSI MAG B550 TOMAHAWK MAX WIFI ATX Motherboard for AMD AM4 CPUs
£174.99
Discontinued

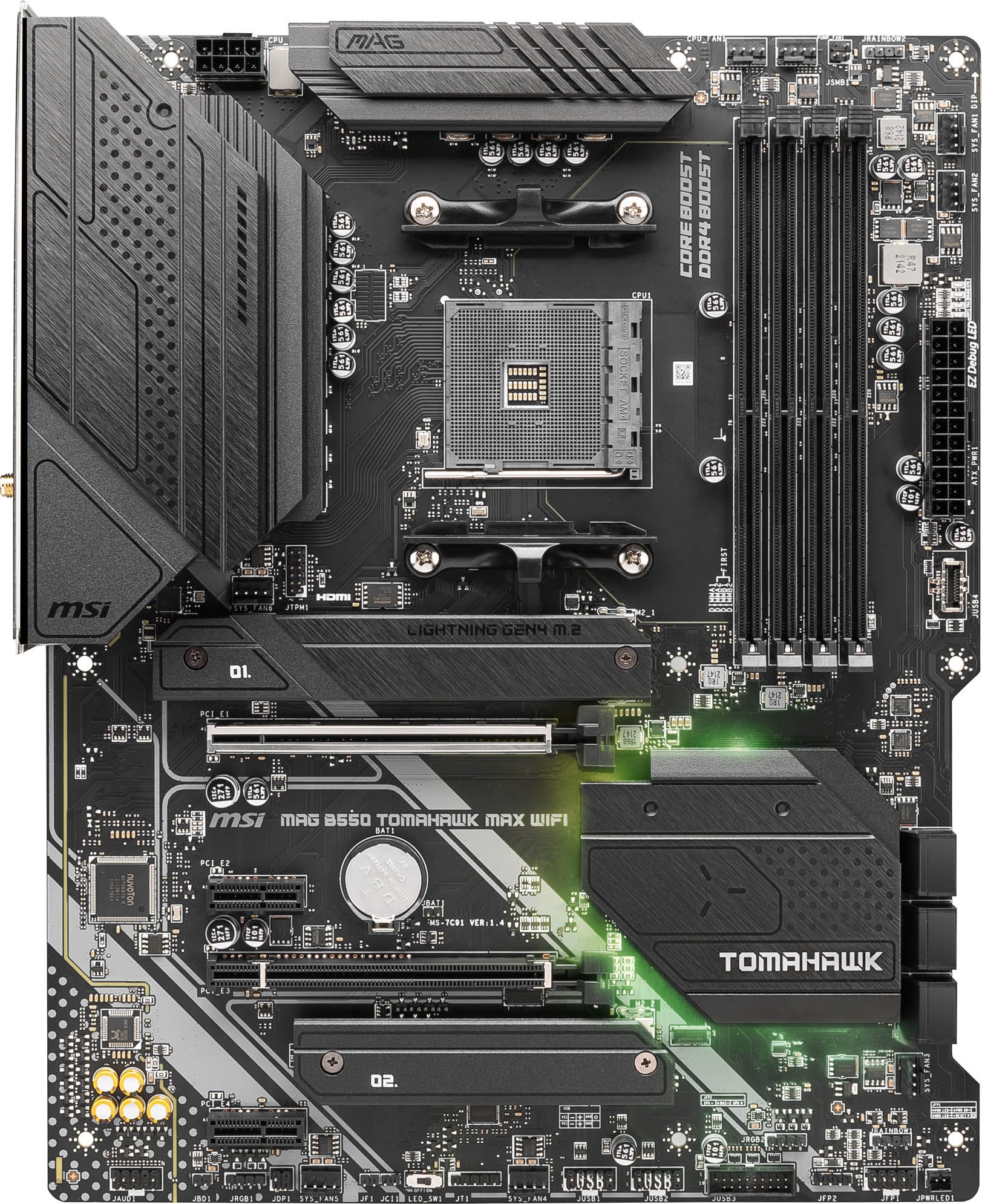

MAG B550 TOMAHAWK MAX WIFI
MSI MAG B550 TOMAHAWK MAX WIFI ATX Motherboard for AMD AM4 CPUs
FORM FACTOR: ATX
SOCKET: AM4
MEMORY: DDR4 (MAX: 128GB)
STORAGE: 2 X M.2, 6 X SATA
WI-FI: BUILT-IN
USB: 6 PORT(S)
Supports AMD Ryzen™ 5000 Processors
The MAG B550 TOMAHAWK MAX WIFI motherboard supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series desktop processors.
Form Factor: ATX
Socket Type: AM4
Chipset: AMD B550
10+2+1 Duet Rail Power System
With its 8 pin power connectors and exclusive Core Boost technology, the MAG B550 TOMAHAWK MAX WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
1. Digital PWM Power
2. 1-Phase APU Power
3. 2-Phases SOC Power
4. 10 Duet Rail Power System
Integrated Cooling Features
VRM Cooling: Features extended heatsinks and 7W/mK thermal pads.
PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.
Fortified PCIe 4.0 x16
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
1 x PCIe 4.0/3.0 x16 slot (with Steel Armor)
1 x PCIe 3.0 x16 slot
Gen4 M.2 Connectors
The MAG B550 TOMAHAWK MAX WIFI motherboard features MSI's latest M.2 slots:
* 1 x Gen4 x4 64Gb/s slot
* 1 x Gen3 x4 32Gb/s slot
M.2 Shield Frozr
Even the world's fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

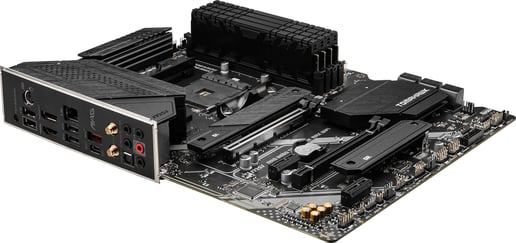

4 x DDR4 Dual Channel (5100 MHz OC)
DDR4 Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
A-XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimized memory speed and stability.
WI-FI 6E CONNECTED
LAN: A Realtek® RTL8125B 2.5Gbps LAN controller delivers premium network gaming experience.
Wi-Fi 6E: The latest Wi-Fi 6E solution supports 6GHz spectrum, while Bluetooth 5.2 offers data transfer speeds up to 2400Mbps.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost & S/PDIF output.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
- 64-bit Support: Yes
- Socket: AM4

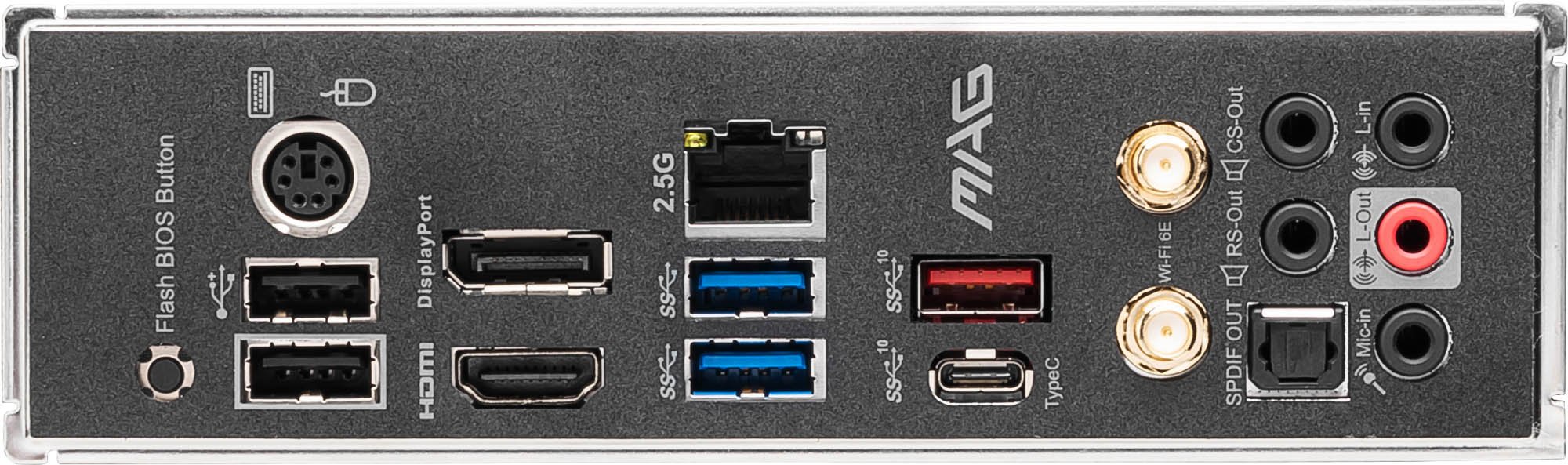

Rear Panel I/O Ports
- USB Ports: 1 x USB-C 3.1
- 1 x USB 3.1
- 2 x USB 3.0
- 2 x USB 2.0
- DisplayPorts: 1 x DisplayPort 1.4
- HDMI Port: 1 x HDMI 2.1
- Antenna Connectors: 2 x SMA Antenna
Internal I/O Connectors
- SATA Connectors: 6 x SATA III
- USB Connectors: 1 x USB-C 3.0 header (supports 1 port)
- 1 x USB 3.0 header (supports 2 ports)
- 2 x USB 2.0 headers (supports 2 ports)
Memory
- Memory Bus Speed: Up to 5100+ MHz
- Memory Type: DDR4
Motherboard
- Chipset Manufacturer: AMD
- Northbridge: B550
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- Keyboard/Mouse Combo Port: 1 x PS/2
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 3 x 3.5mm Jacks
- Microphone In Port: 1 x 3.5mm Jack
- S/PDIF Port: 1 x S/PDIF Optical Out
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x Water Pump fan header
- 6 x System fan headers
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- TPM Header: 1 x TPM header
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen4, PCIe Gen3 or SATA)
- 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen3)
- 2 x 3-pin ARGB LED headers
- 2 x 4-pin RGB LED headers
Expansion
- Number of PCI Express Slots: 1 x PCI Express 4.0 x16 slot
- 1 x PCI Express 3.0 x16 slot (@ x4)
- 2 x PCI Express 3.0 x1 slots
Memory
- Maximum RAM: 128 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes (CPU dependant)
Sound
- Integrated Sound: Realtek ALC897
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek RTL8125B
- Network Speeds Supported: Up to 2.5 Gbps
- Wireless LAN: Yes (Wi-Fi 6E)
- Wireless Network Speed: Up to 2.4 Gbps
- Bluetooth: Yes
- Bluetooth Version: 5.2
System Requirements
- Operating Systems Supported: Windows 11 64-bit, Windows 10 64-bit
System
- Jumpers: 1 x Clear CMOS
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: ATX Motherboard

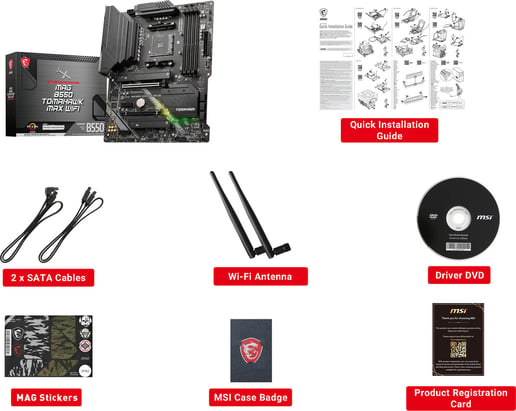

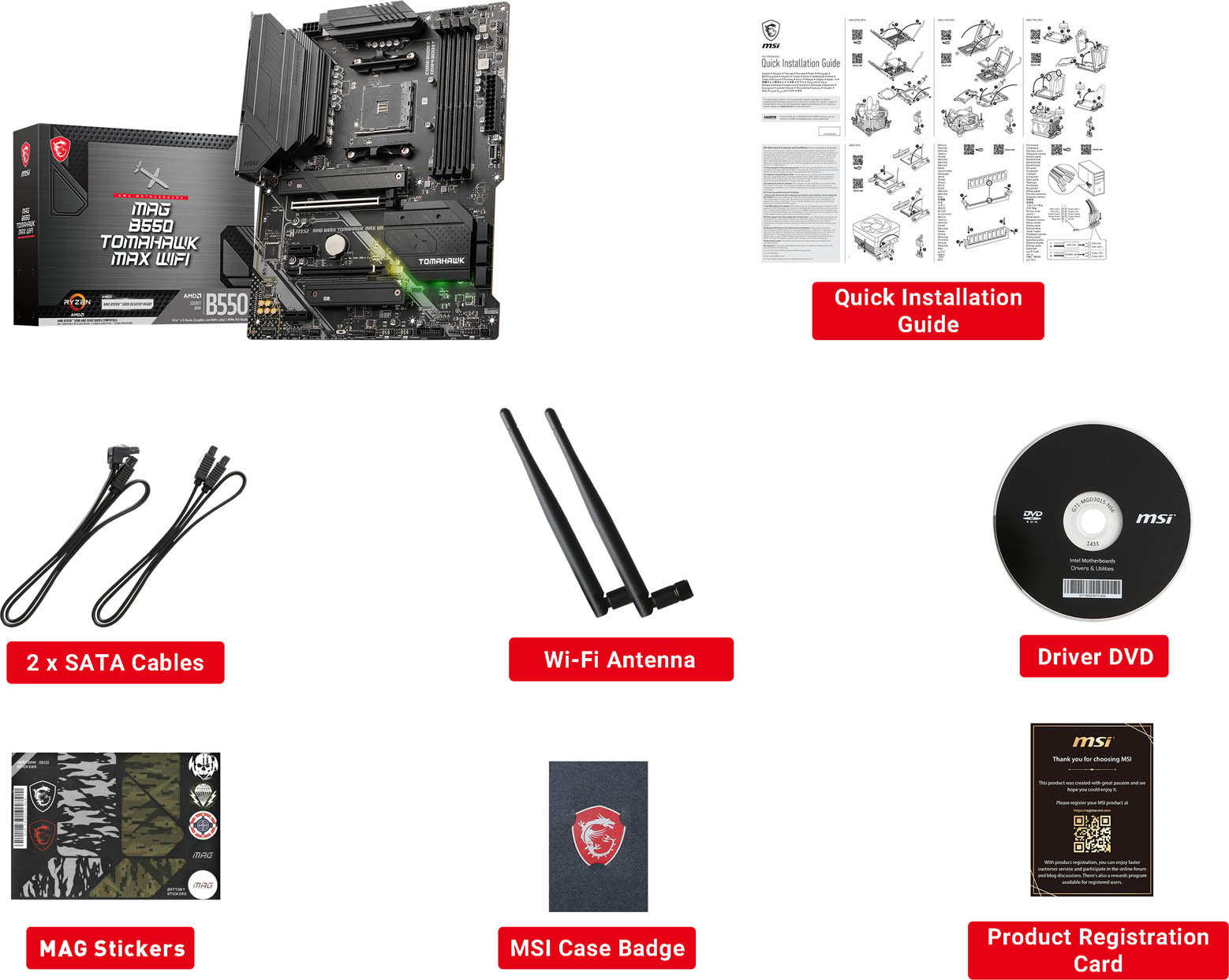

- In The Box: Motherboard
- Quick Installation Guide
- 2 x SATA Cables
- Wi-Fi Antenna
- Driver DVD
- MAG Stickers
- MSI Case Badge
- Product Registration Card
- Width: 305 mm
- Length: 244 mm
Identifiers
- Stock Code: MBD3294
- Mfg Code: MAG B550 TOMAHAWK MAX WIFI
Warranty
- Warranty: 3 Years
