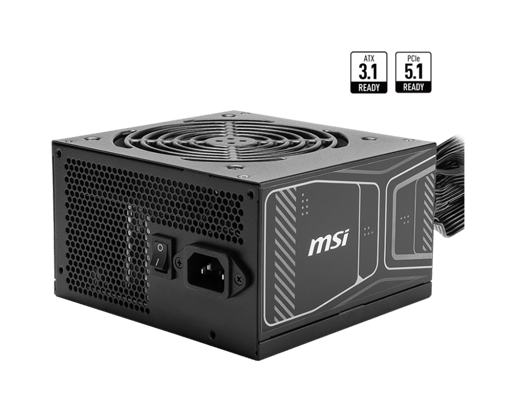

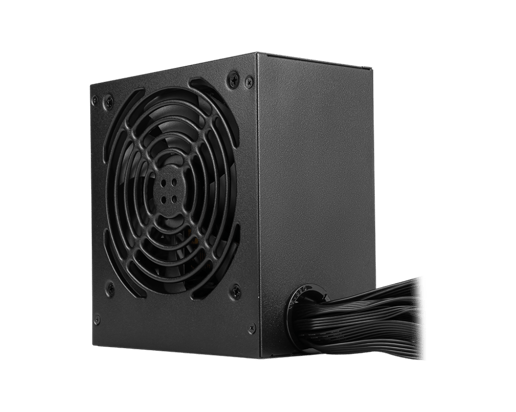

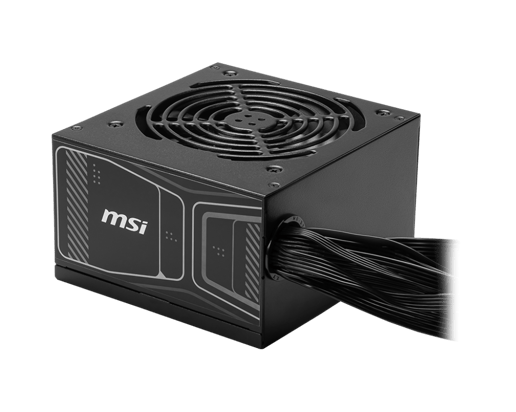

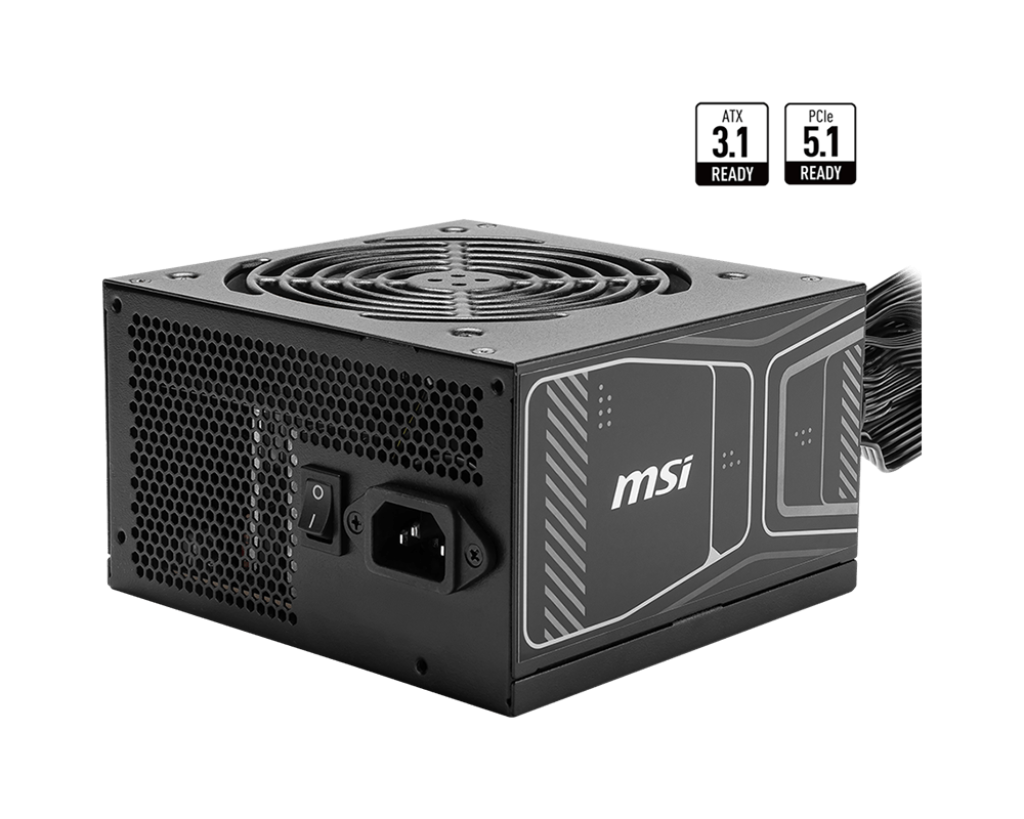

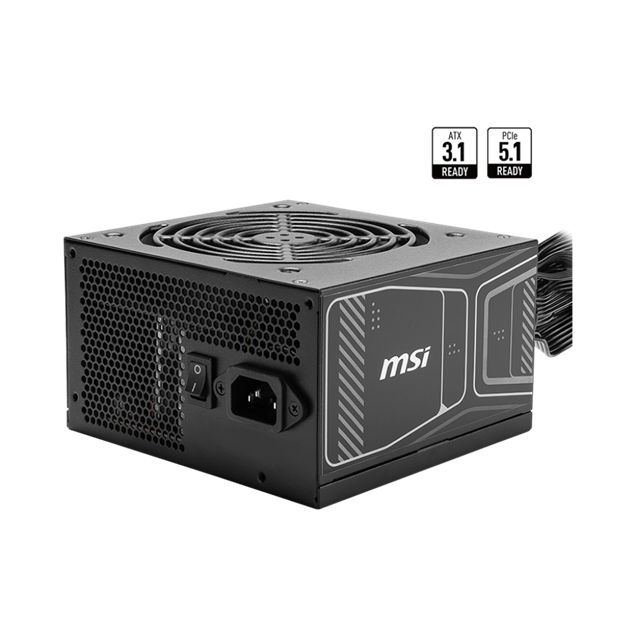

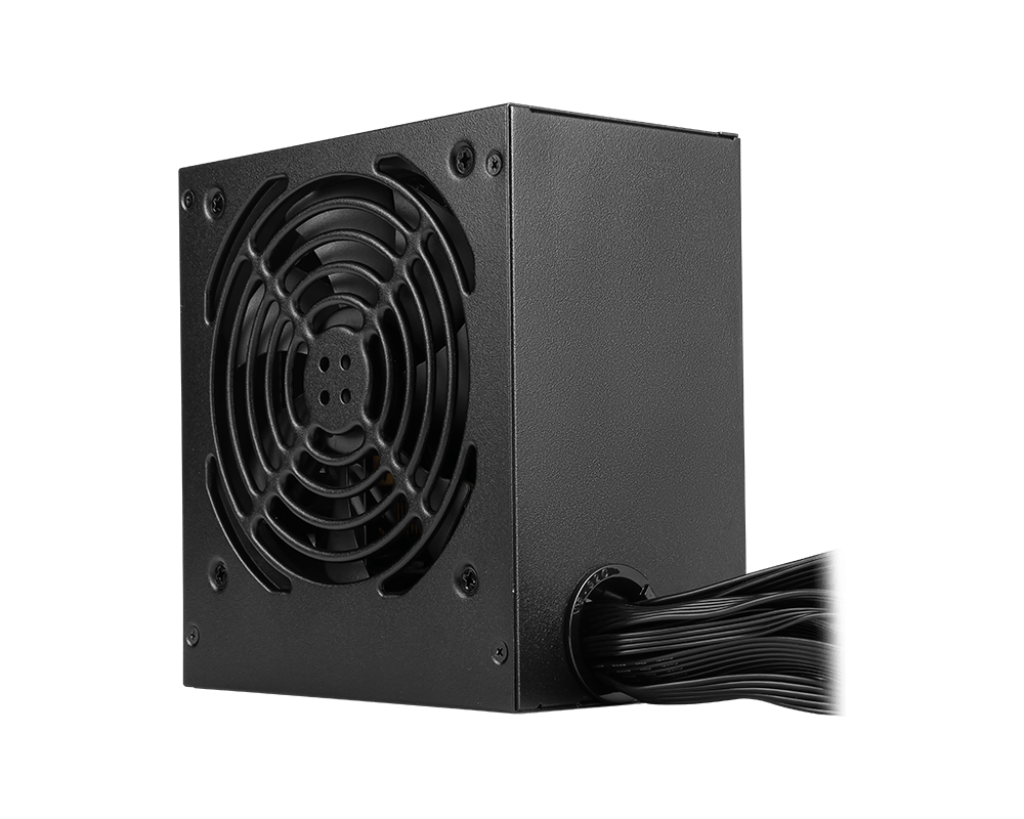

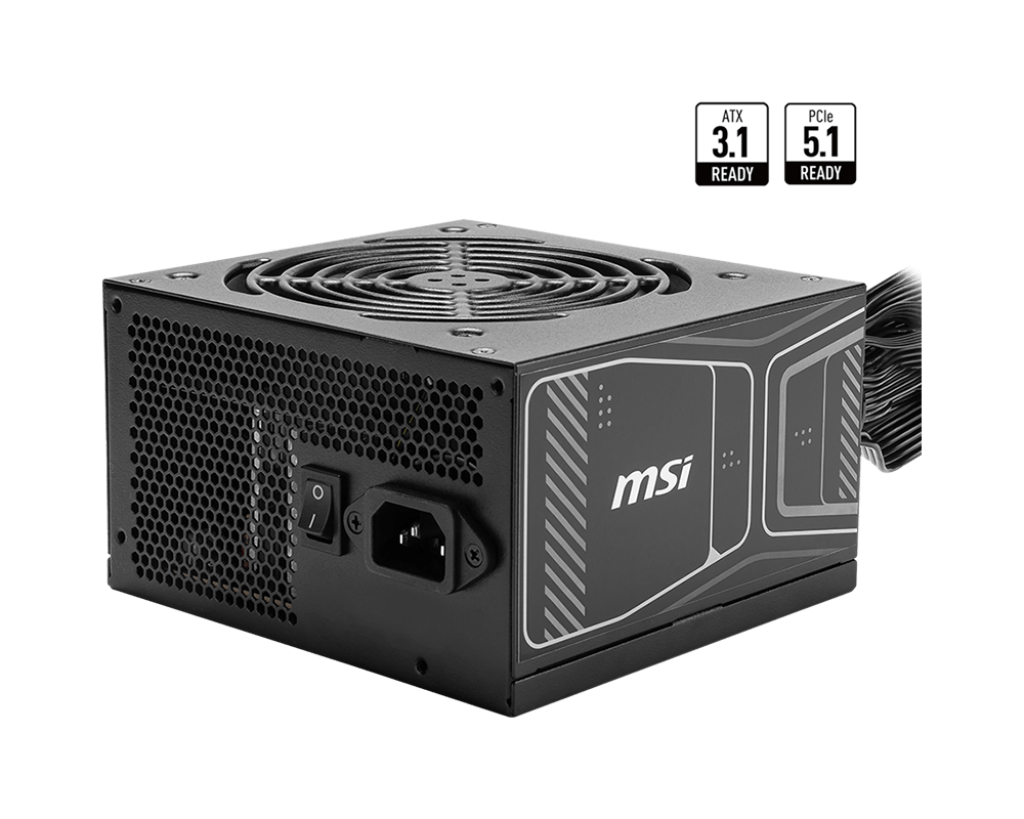

750W MSI MAG A750GN 80 Plus Gold PSU
750W Gold-Rated Power
Deliver reliable, efficient power to your gaming PC with 750W of output and 80 PLUS Gold certification, providing up to 90% efficiency for reduced energy waste and heat.
Ready for Modern GPUs
With a native PCIe 5.1 16-pin connector supporting up to 450W, the MAG A750GL PCIE5 is ready for modern NVIDIA graphics cards and demanding gaming hardware.

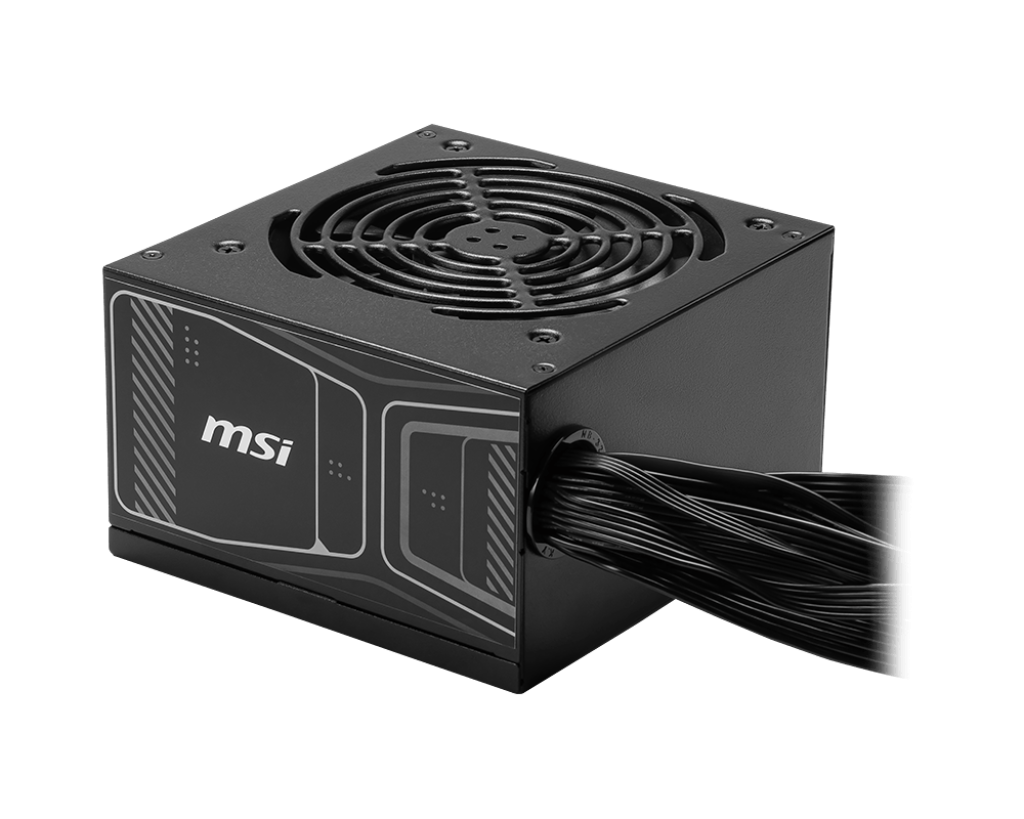

Fully Modular Design
Enjoy a cleaner, easier-to-build system with fully modular flat cables, allowing you to connect only the cables your PC needs for improved cable management and airflow.

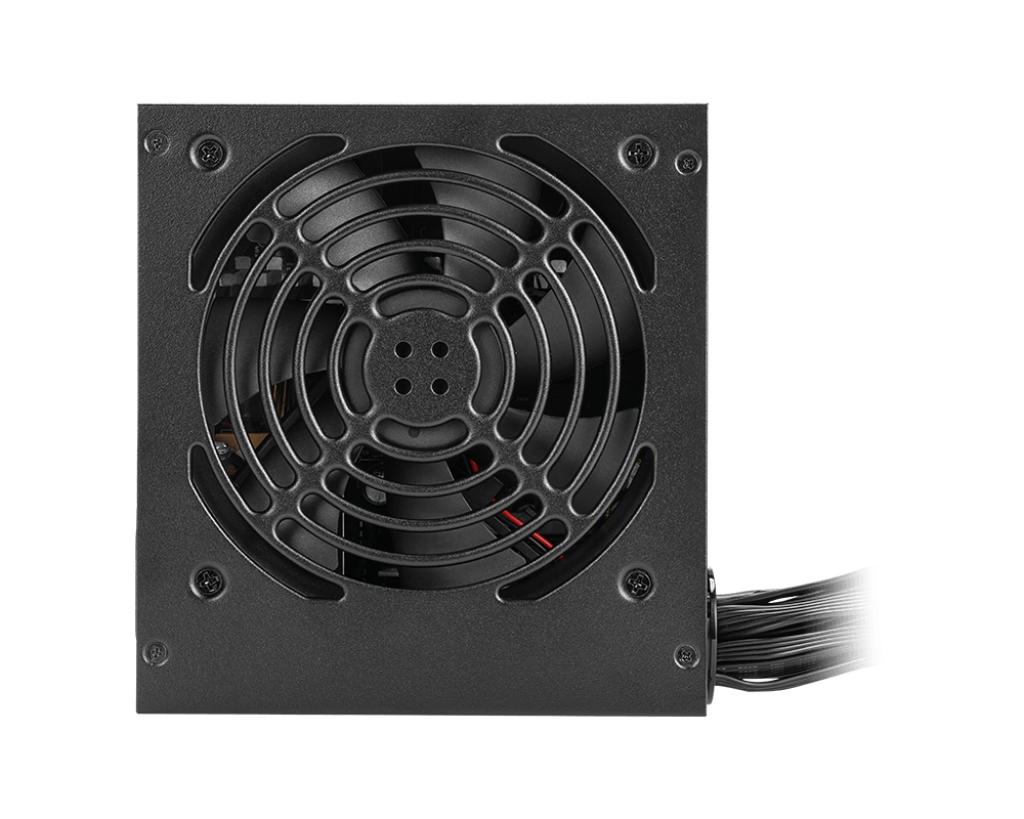

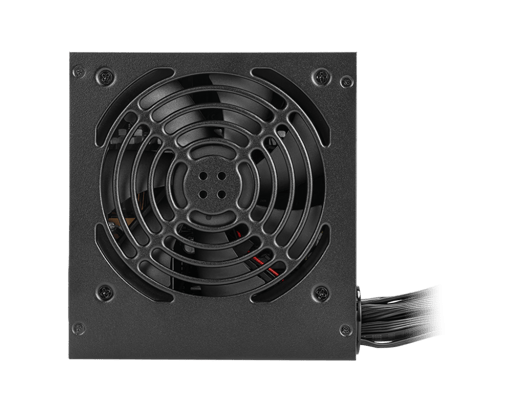

Quiet & Reliable Cooling
A 120mm Fluid Dynamic Bearing fan provides efficient cooling, while built-in OCP, OVP, OPP, OTP, SCP and UVP protections help safeguard your components from electrical faults.
Attributes
- No Of Sockets: 1
Interfaces/Ports
- Power Connectors: 12 total (1 ATX + 2 EPS + 1 PCI-E 16-pin + 2 PCI-E 6+2 + 4 SATA + 2 Peripheral)
- SATA Connectors: 4
- CPU Connectors: 2 (4+4 pin EPS)
- PCI Connectors: 3 (1 PCI-E 5.1 16-pin + 2 PCI-E 6+2 pin)
- Motherboard Connectors: 1 (24-pin ATX)
- Molex Connectors: 2
- Berg Connectors: 0
- Floppy Connectors: 0
- Fan Connectors: 1 (internal PSU fan)
- Auxiliary Connectors: 0
- RJ-45 Connectors: 0
- Other Connectors: None
Compatibility
- Compatibility: ATX 3.1 / PCI-E 5.1 (12VHPWR support)
Compliance
- Standards: 80 PLUS Gold (up to 90%), Active PFC, OCP / OVP / OPP / OTP / SCP
- Safety: OCP, OVP, OPP, OTP, SCP protection
Electrical
- Voltage: 100-240 VAC
Physical
- Form Factor: ATX 3.1
Electrical
- Power: 750 W continuous (1500 W excursion for 100 æs)
- Frequency Range: 47-63 Hz
- Power Cord: Standard AC power cable (included)
Environmental
- Operating Temperature: 0 øC - 40 øC (typical)
- Operating Humidity: 20 % - 85 % non-condensing
- Storage Temperature: -20 øC - 70 øC
Physical
- Form Factor: 140 x 150 x 86 mm
- Case Colour: Black
- Pack Quantity: 1
- In The Box: Power supply unit, AC cable, user manual, mounting screws
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
- Weight: Approx. 1.4 kg
- LED Status Indicators: None
Warranty
- Warranty: 5 Years
Identifiers
- Stock Code: PSU2516
- Mfg Code: MAG A750GN
Warranty
- Warranty: 5 Years
