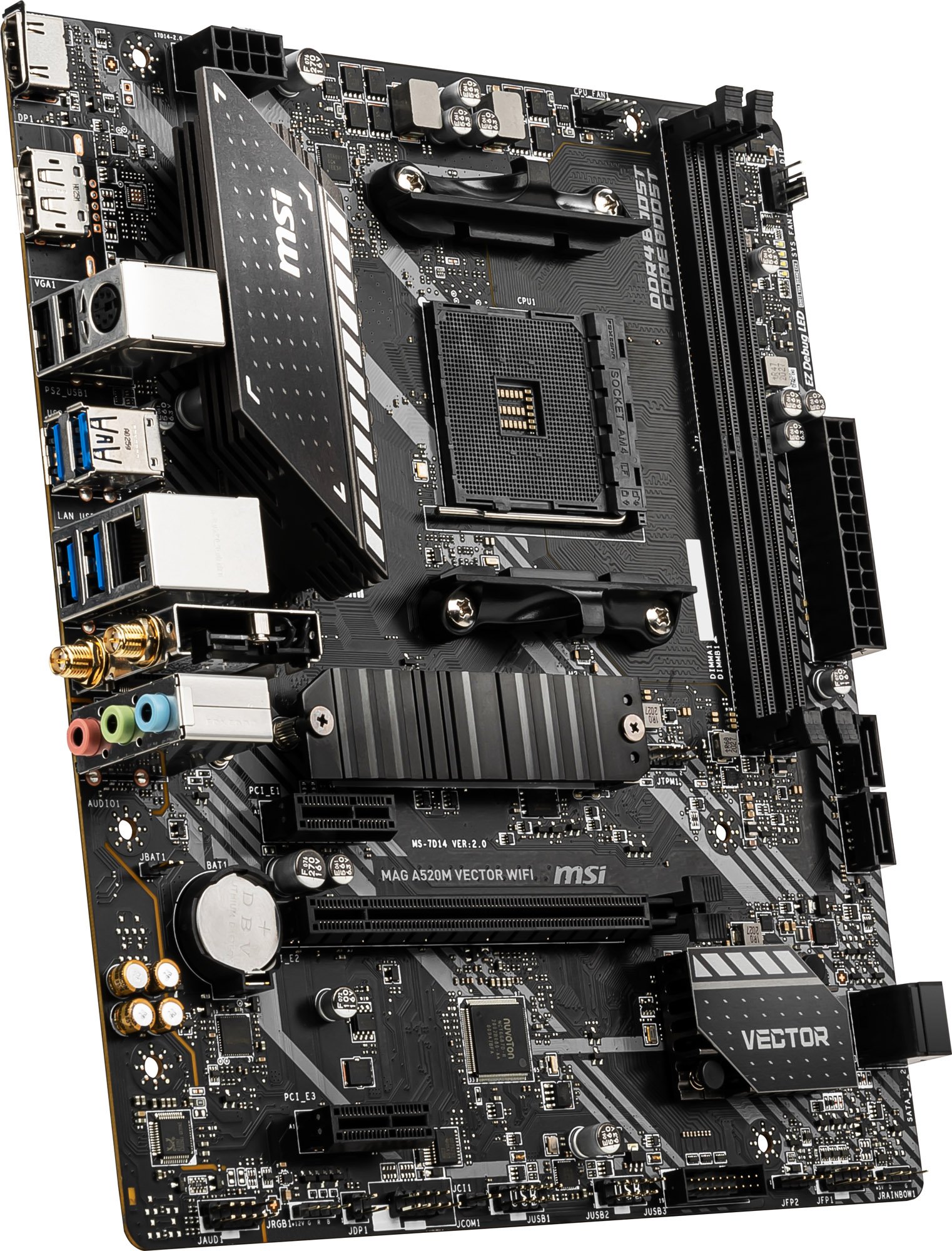

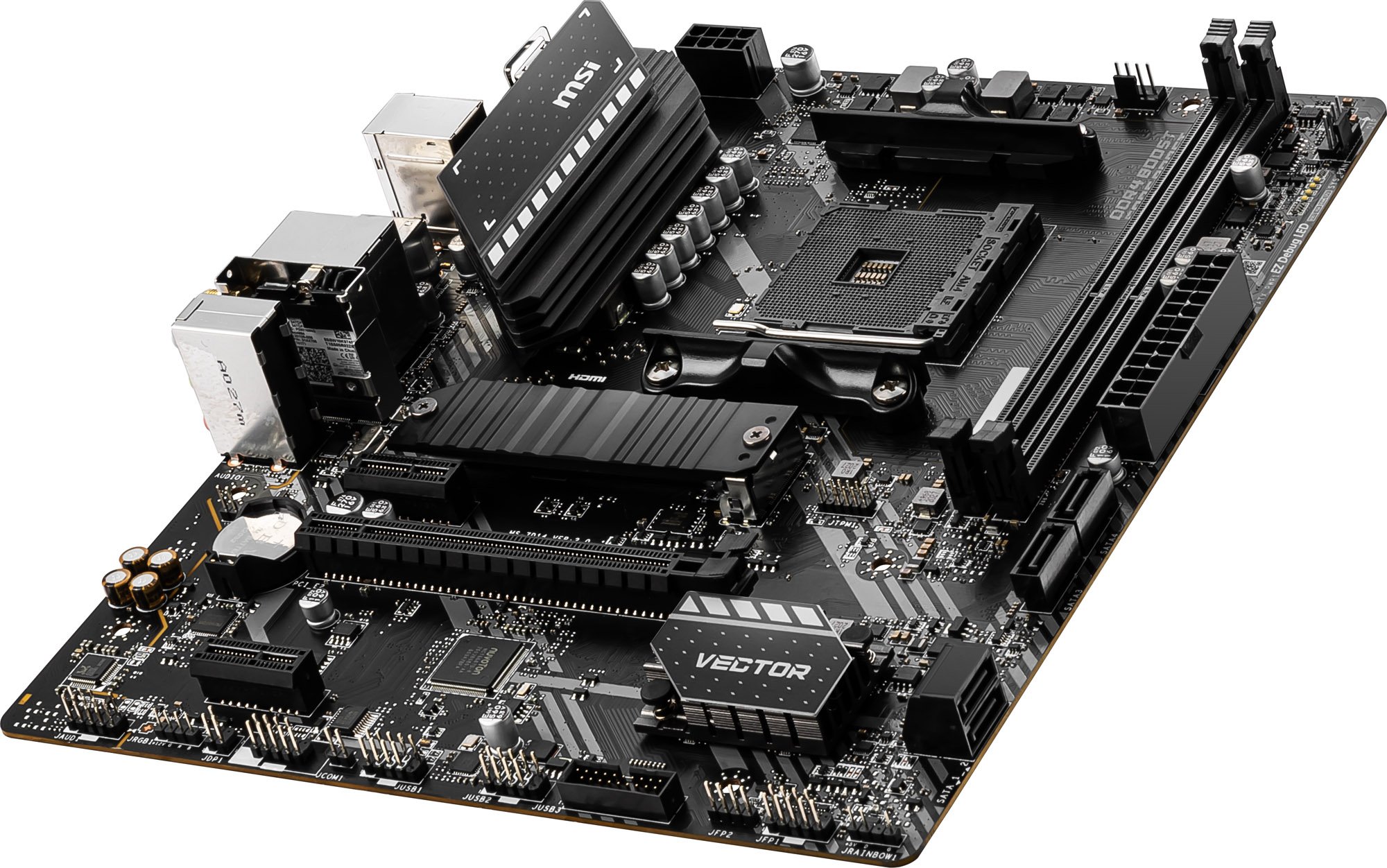

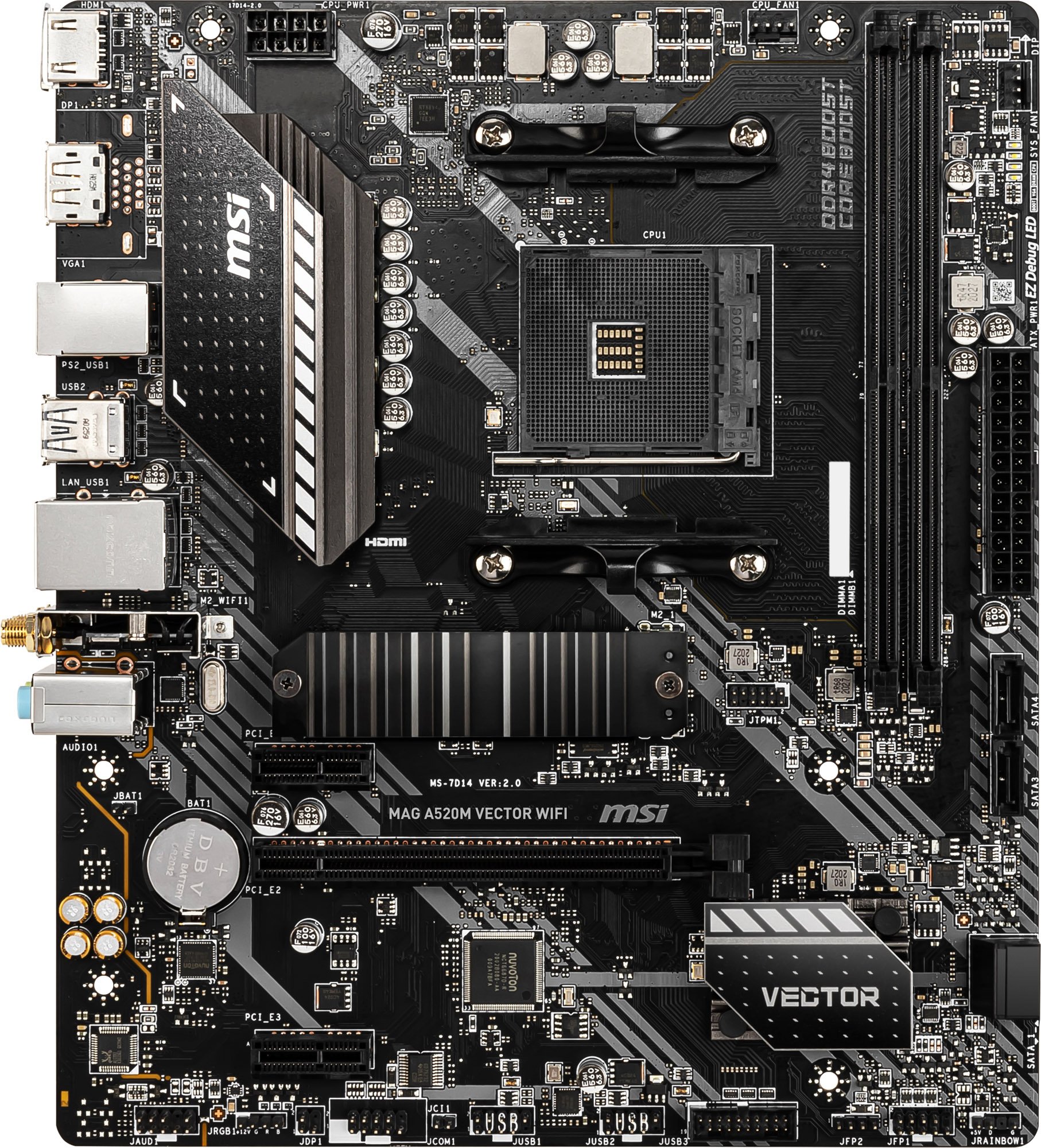

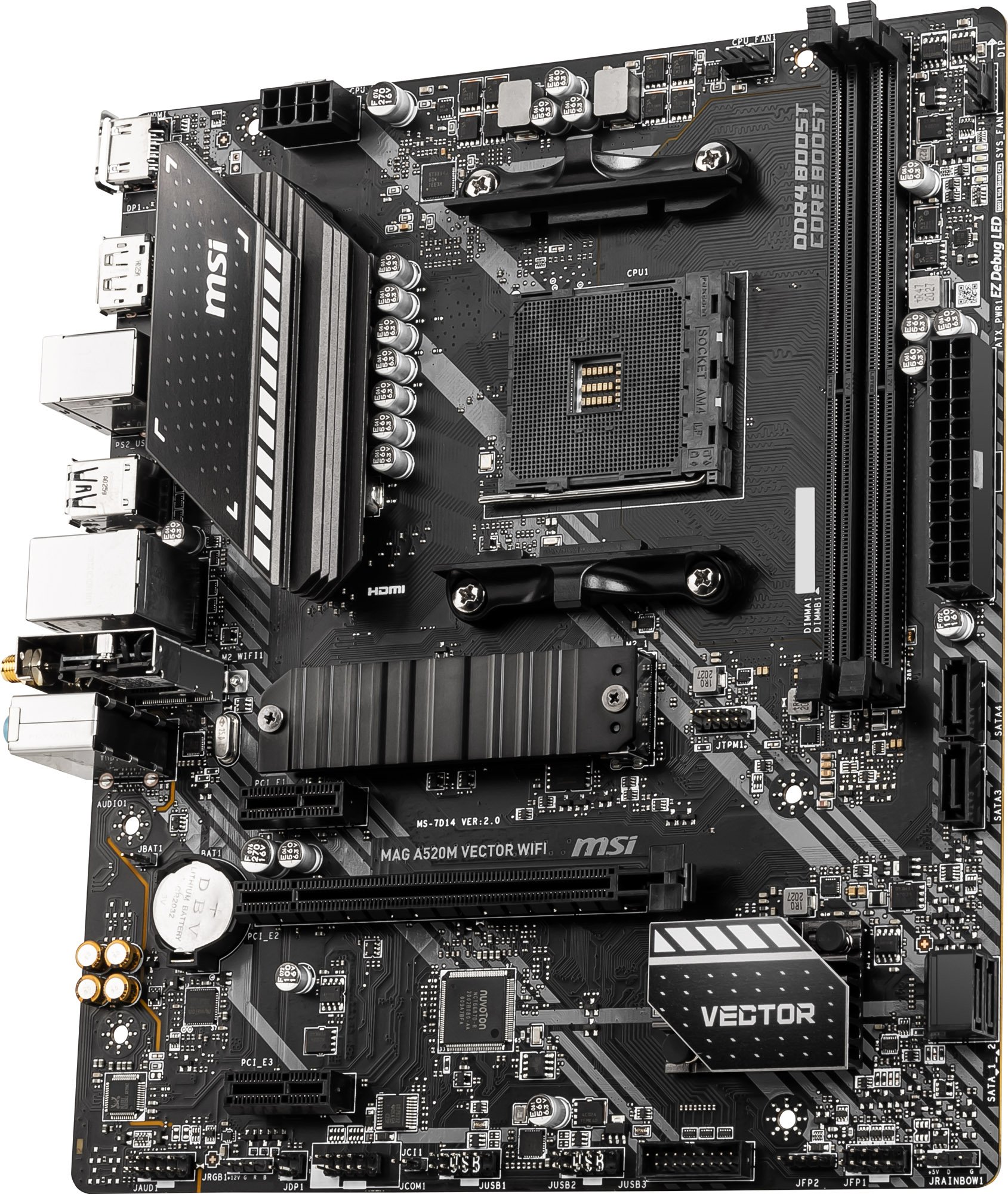

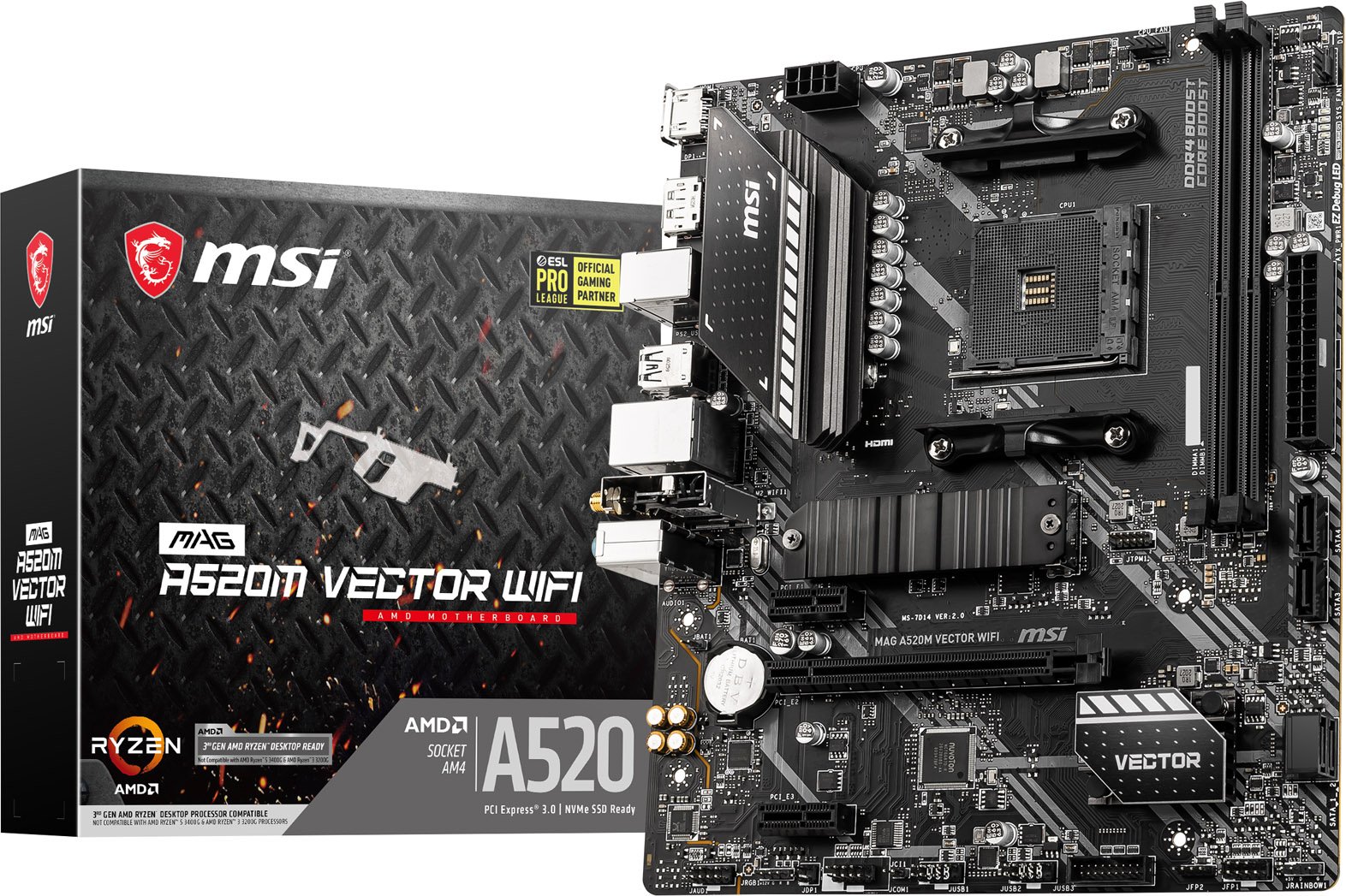

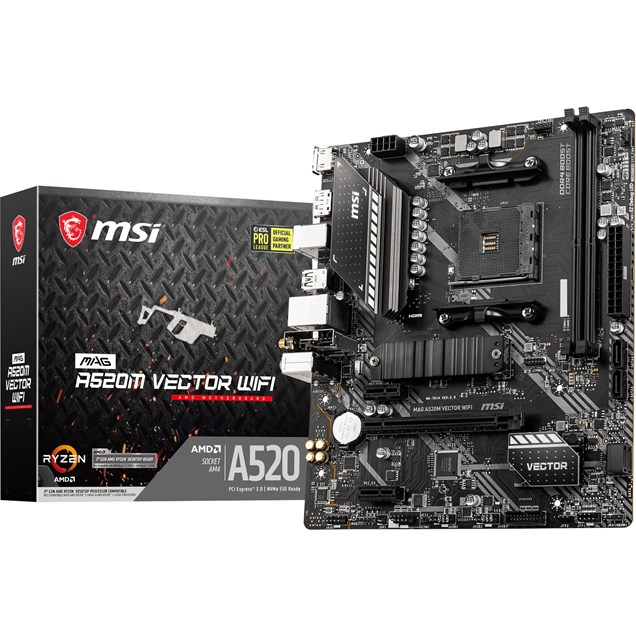

MSI MAG A520M VECTOR WIFI mATX Motherboard for AMD AM4 CPUs

Compare

MSI MAG A520M VECTOR WIFI mATX Motherboard for AMD AM4 CPUs

MAG A520M VECTOR WIFI

Key Features:

Socket AM4
AMD A520 Chipset
4 x SATA & 6 x USB Ports
DDR4 (max 64GB, 2 slots)
HDMI and Display Port
mATX Form Factor

MSI MAG A520M VECTOR WIFI mATX Motherboard for AMD AM4 CPUs

MAG A520M VECTOR WIFI

CCL Code: MBD2926

Socket AM4
AMD A520 Chipset
4 x SATA & 6 x USB Ports
DDR4 (max 64GB, 2 slots)
HDMI and Display Port
mATX Form Factor

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

MAG A520M VECTOR WIFI

EXCLUSIVE FEATURE

Core Boost Technology
With premium layout design, that is ready for unleashing the maximum performance.

2oz Thickened Copper PCB
2oz thickened copper PCB provides higher performance and long-lasting system stability without any compromise.

Digital PWM
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.

MAG A520M VECTOR WIFI

PREMIUM THERMAL SOLUTION

Extended Heatsink
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.

M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

MAG A520M VECTOR WIFI

HIGH-SPEED TRANSMISSION

4K Support
Onboard HDMI/DP support up to 4K UHD resolution.

Wi-Fi
Delivering AC speeds up to 433Mbps with lower CPU loading and better long-term usage.

DDR4 Boost
The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

Turbo M.2
Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.

MSI MAG A520M VECTOR WIFI & MAG VAMPIRIC 100R

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.

TURBO M.2 WITH M.2 SHIELD FROZR

Cooling your NVMe SSD delays throttling which results in higher overall performance. Part of the motherboards heatsink design which helps avoid SSD throttling by offering the best thermal protection.

4 + 2 + 1 DUET RAIL POWER SYSTEM

Unleash and sustain maximum performance with an aggressive VRM design with concurrent stable power delivery. Combining 8pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy daily work.

4 Duet Rail CPU Power System
2 phases SOC Power
1 phase APU Power
Digital PWM IC

PCB WITH 2OZ THICKENED COPPER

An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.

INTEL^® WI-FI AC & BLUETOOTH

Use your LAN port for online gaming while using WiFi for other online applications. The Intel^® Wi-Fi / Bluetooth solution delivers AC speeds up to 433Mbps.

Core Boost

Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. This creates the perfect conditions for multi-core CPU while doing overclocking.

UNMATCHED MEMORY PERFORMANCE

MSI motherboards are crammed with features to fuel your system’s memory with more speed, higher overclockability and increased stability. Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing.

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add your color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

AMPLIFY YOUR GAME WITH AUDIO BOOST

Like a dedicated sound card, Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

Main Features

Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors
Supports DDR4 Memory, up to 4600(OC) MHz
Extended Heatsink Design: Leading heatsink design, extended for maximum cooling and performance
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
Core Boost: With premium layout and digital power design to support more cores and provide better performance
2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
Audio Boost: Reward your ears with studio grade sound quality
Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface

Specifications

CPU

CPU Socket	Socket AM4
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors
64-bit Support	Yes
Socket	AM4

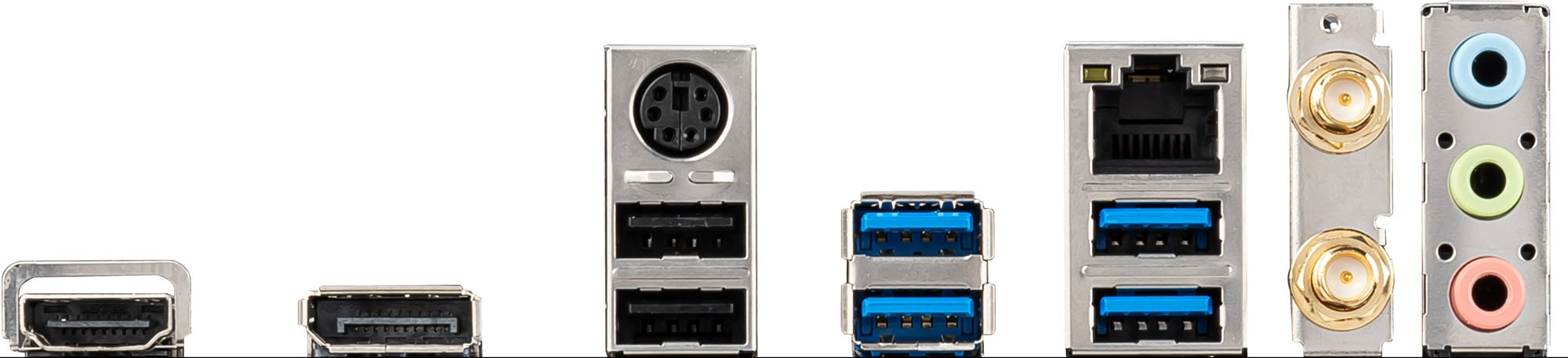

Rear Panel I/O Ports

USB Ports	4 x USB 3.0 2 x USB 2.0
DisplayPorts	1 x DisplayPort
HDMI Port	1 x HDMI 2.1
Keyboard/Mouse Combo Port	1 x PS/2
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x System fan header
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x TPM header
Power Connector Port	1 x 20+4-pin ATX 1 x 4+4-pin EPS
Other Connectors	1 x M.2, Socket 3, M Key (Type 2242/2260/2280) 1 x ARGB LED header 1 x RGB LED header

Memory

Memory Bus Speed	2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz
Memory Type	DDR4
Maximum RAM	64 GB
Memory Slot	2 x DIMM

Motherboard

Chipset Manufacturer	AMD
Northbridge	A520
RAID Supported	Yes
RAID Format	RAID 0, 1, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 3.0 x16
2 x PCI Express 3.0 x1

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek ALC892

Network

Integrated Network	Realtek RTL8111H
Network Speeds Supported	10/100/1000 Mbps
Wireless LAN	Yes
Wireless Network Speed	Up to 433 Mbps
Bluetooth	Yes

System Requirements

Operating Systems Supported

Microsoft Windows 10 64-bit

System

Jumpers

1 x Clear CMOS

Physical

Form Factor	MicroATX Motherboard

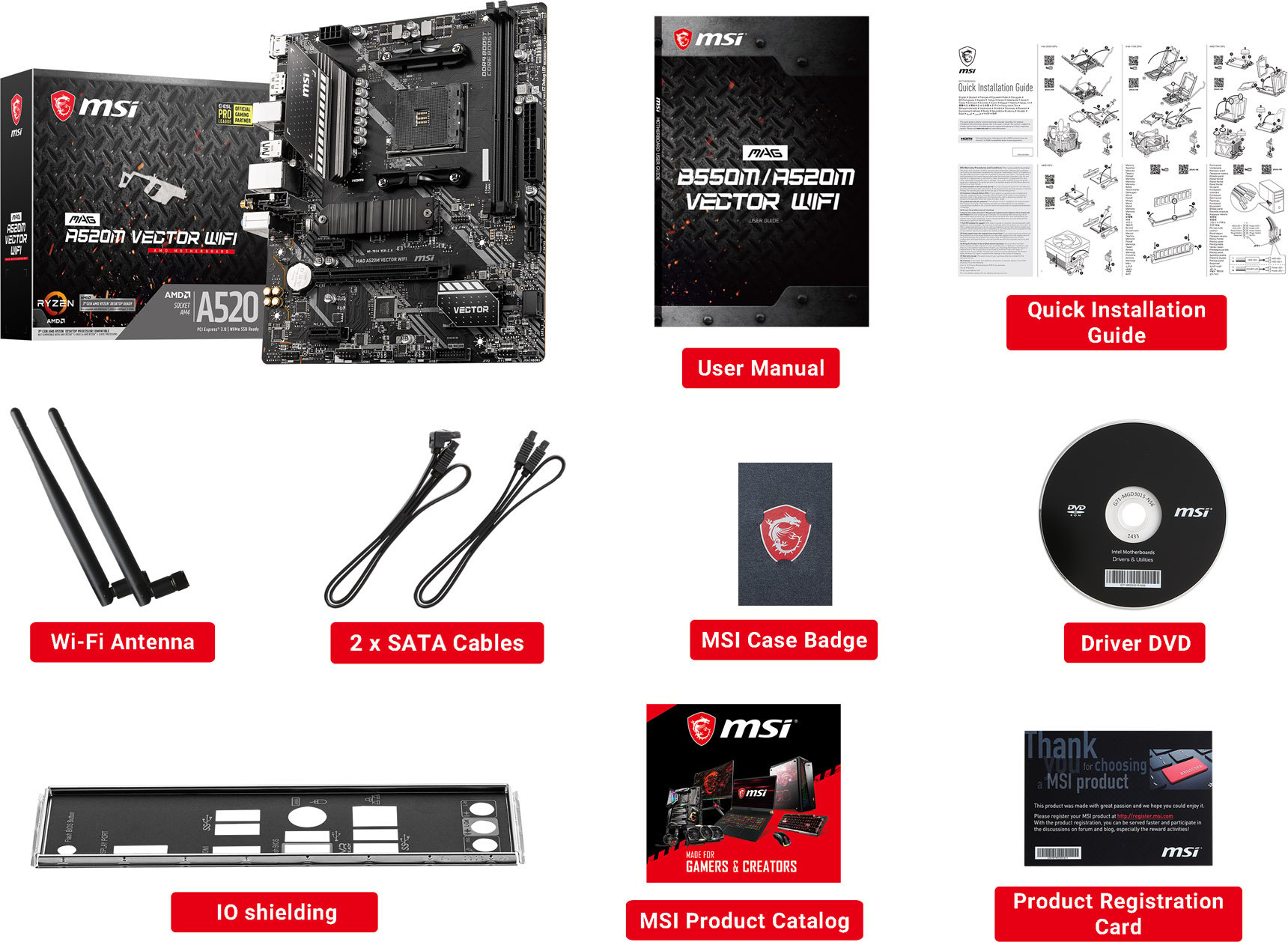

In The Box	Motherboard User Manual Quick Installation Guide Wi-Fi Antenna 2 x SATA Cables MSI Case Badge Driver DVD I/O Shield MSI Product Catalog Product Registration Card
Width	244 mm
Length	210 mm

Key Features

Firewire	No
RDIMM Memory Supported	No
RDIMM Memory Required	No
Wireless Network	Yes
Motherboard Width	210 mm
Motherboard Height	244 mm
mSATA Supported	No
U.2 Supported	No
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	6 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	mATX
Motherboard (EPS) Power Connectors	4+4-Pin
Motherboard Chipset	AMD A520
Thunderbolt	No
Motherboard Model	MSI MAG A520M VECTOR WIFI
WiFi Speed	433 Mbps
USB 3.1 Support	No
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	MSI Mystic Sync
Memory Speed	4600 MT/s
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	No
Power Requirement (auto)	60 W
Max Memory Speed Supported (Non-overclocked)	3200 MT/s
Max Memory Speed Supported (overclocked)	4600 MT/s
CPU Power Pins (female)	8
Total M.2 Slots	1
Maximum NVMe M.2 ports	1
Maximum SATA M.2 ports	1
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
