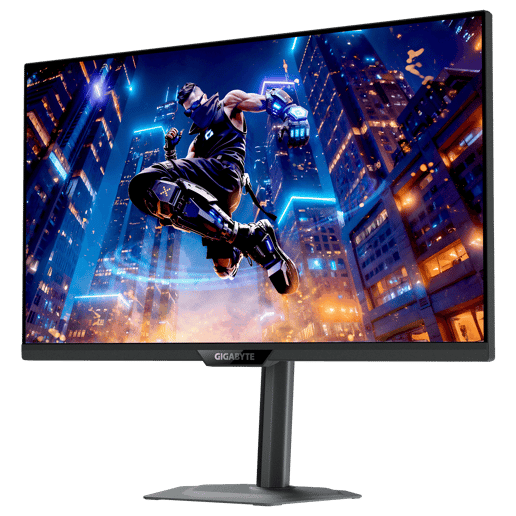

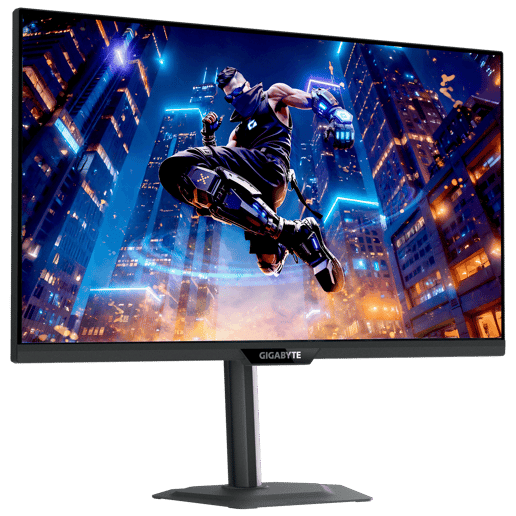

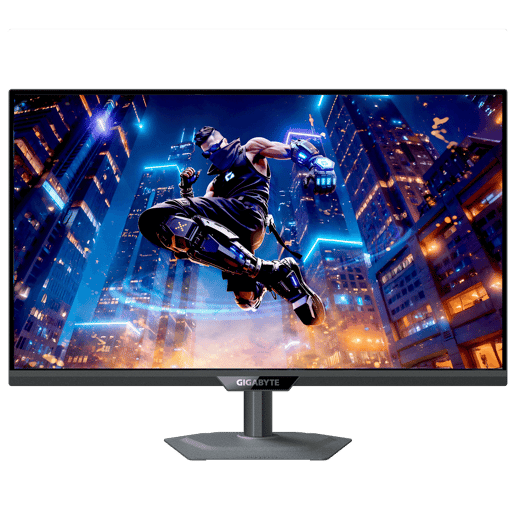

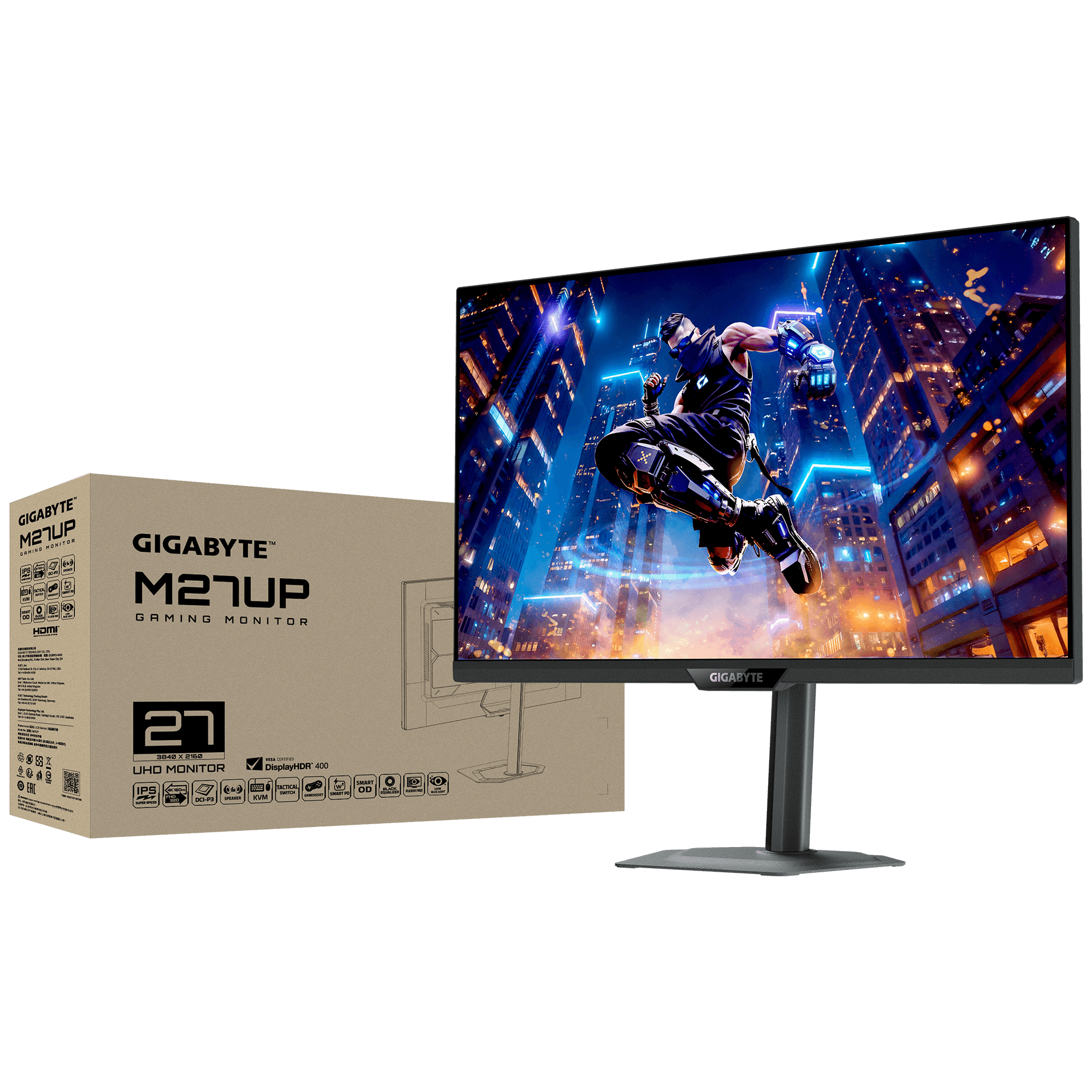

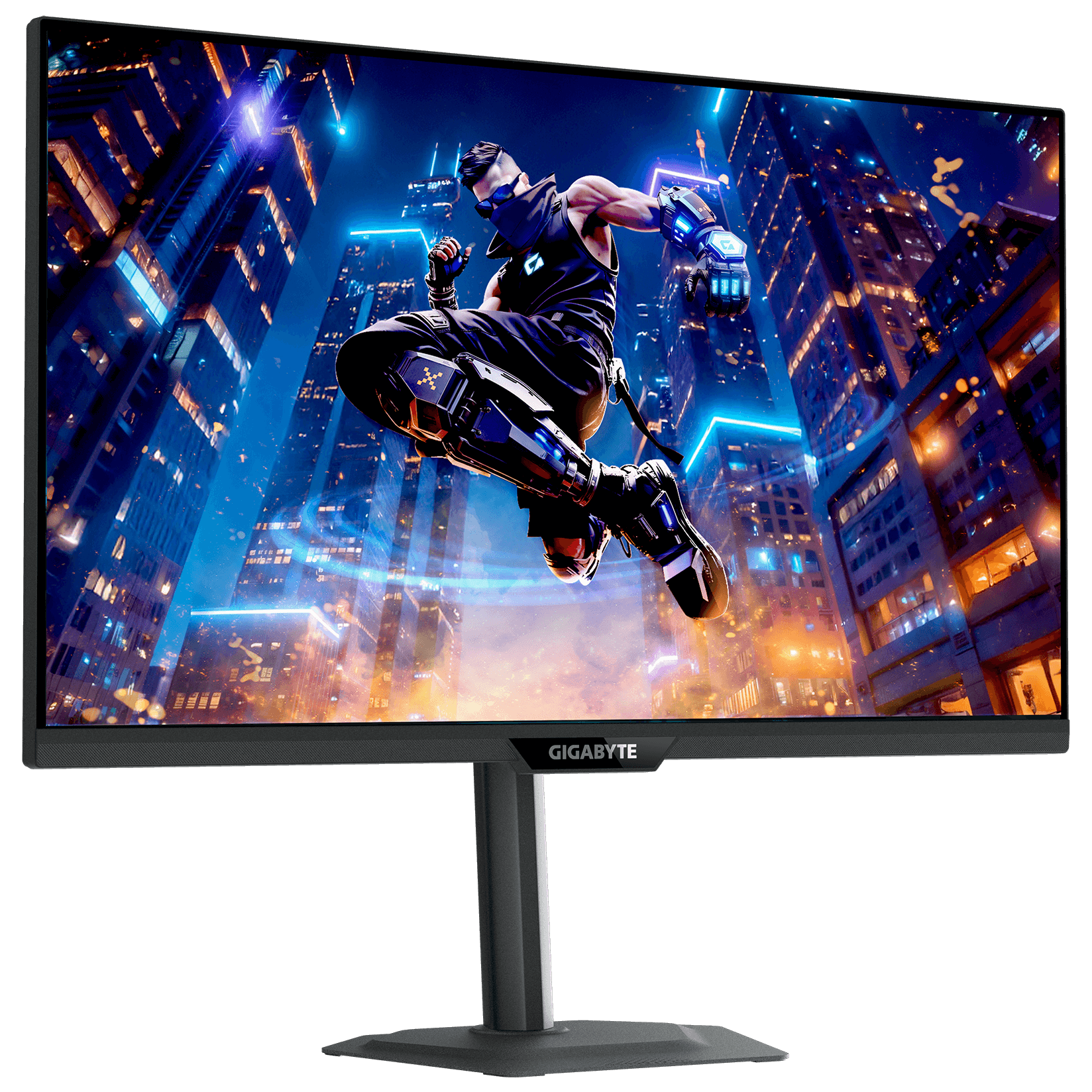

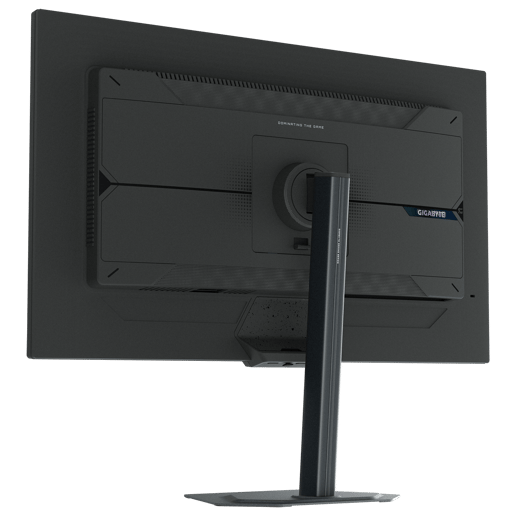

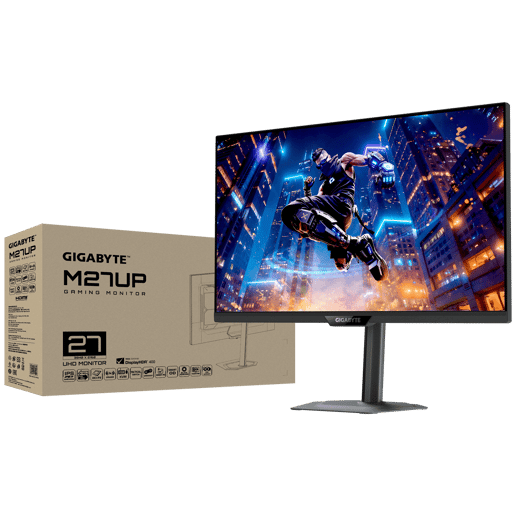

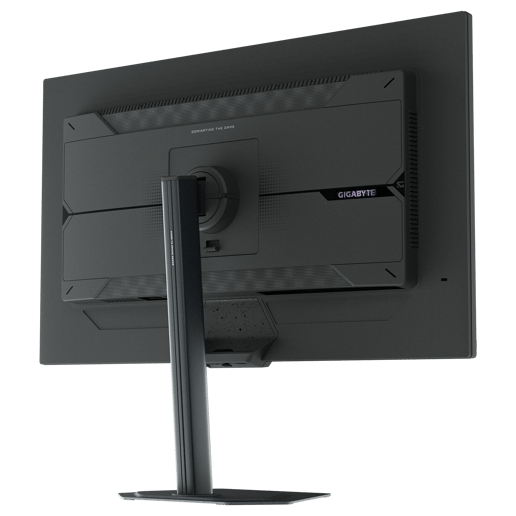

Gigabyte M27UP 27" 4K Gaming Monitor - IPS, 320Hz, 1ms, Speakers, HDMI, DP
The Gigabyte M27UP is a powerful 27-inch gaming monitor that gives you the best of both worlds — stunning 4K detail and lightning-fast speed. Thanks to its unique Dual Mode feature, you can switch between 4K resolution at 160Hz for sharp, detailed visuals, or Full HD at 320Hz for ultra-smooth action in competitive games.
Built with a SuperSpeed IPS panel, the M27UP delivers bright, accurate colours and wide viewing angles, perfect for gaming, creative work, or watching films. It covers 95% of the DCI-P3 colour space and 125% of sRGB, giving you rich and vibrant colour that looks great in every scene.
This monitor also includes G-Sync Compatible and FreeSync support, helping to reduce screen tearing and stuttering for smoother gameplay. With a 1ms response time, every move feels instant and precise — ideal for fast-paced shooters or racing games.
The M27UP isn’t just about gaming speed; it’s also designed for everyday comfort and convenience. It comes with USB-C connectivity, a built-in KVM switch to easily control two devices with one keyboard and mouse, dual speakers, and a fully adjustable stand so you can tilt, swivel, or raise it to your liking.
Whether you’re editing videos, exploring open-world adventures in 4K, or battling it out in online matches at 320Hz, the Gigabyte M27UP gives you the flexibility and performance you need to stay ahead.
Display
- Screen Size: 27 inches
- Viewable screen size: 27 inches
- Display Area: 596.7 x 335.7 mm
- Screen Width: 596.7 mm
- Screen Height: 335.7 mm
- Screen technology: SuperSpeed IPS (In-Plane Switching)
Physical
- Form Factor: Flat
Display
- Screen Technology: LED-backlit LCD
- Screen Construction: Anti-glare / 3H hard coating
- Colours: 16.7 million (8-bit) - 95% DCI-P3 / 125% sRGB
- Pixel Pitch: 0.155 mm
- Brightness: 350 cd/m
- View Angle (Horizontal - Max): 178ø
- View Angle (Vertical - Max): 178ø
- Anti-Glare / Anti-Static: Yes - Anti-glare surface
- Pixel Clock Speed: 594 MHz
- Contrast Ratio: 1000:1 (typical)
- Contrast Ratio - Dynamic: 12M:1
- Resolution (Native): 3840 x 2160 (4K UHD)
- Resolution Type (Native): 4K UHD
- Response time: 1 ms (GtG)
- Response Time: 1 ms
- Video Bandwidth: DisplayPort 1.4 / HDMI 2.1 / USB-C
- Lifetime: 30,000 hours (typical LCD lifespan)
- Swivel: ñ30ø
- Resolution (Maximum): 3840 x 2160
- Resolution Type (Maximum): 4K UHD
- Pixels Per Inch (PPI): 163 PPI
- Backlight: LED
- Supported Resolutions: 3840x2160 @160Hz / 1920x1080 @320Hz
- Vertical Frequ: 48Hz - 160Hz (4K mode), up to 320Hz (FHD mode)
- Colour Gamut: 95% DCI-P3 / 125% sRGB
- HD Support: 4K Ultra HD
- Aspect Ratio: 16:9
- 3D Glasses Included: No
- Pivot: ñ90ø
- 3D Display: No
- 3D Display Type: Not supported
- Horizontal Frequency - Low (Digital): 30 kHz
- Horizontal Frequency - High (Digital): 255 kHz
- Vertical Frequency - Low (Digital): 48 Hz
- Vertical Frequency - High (Digital): 160 Hz (4K) / 320 Hz (FHD)
- Vertical Frequency - Low: 48 Hz
- Vertical Frequency - High: 160 Hz (4K) / 320 Hz (FHD)
- Horizontal Frequency: 30 - 255 kHz
- Vertical Frequency: 48 - 160 Hz (4K) / up to 320 Hz (FHD)
Interfaces/Ports
- Microphone In Port: No
- Audio Line Out Ports: Yes - 3.5 mm headphone jack
Physical
- Display Type: LED-backlit LCD

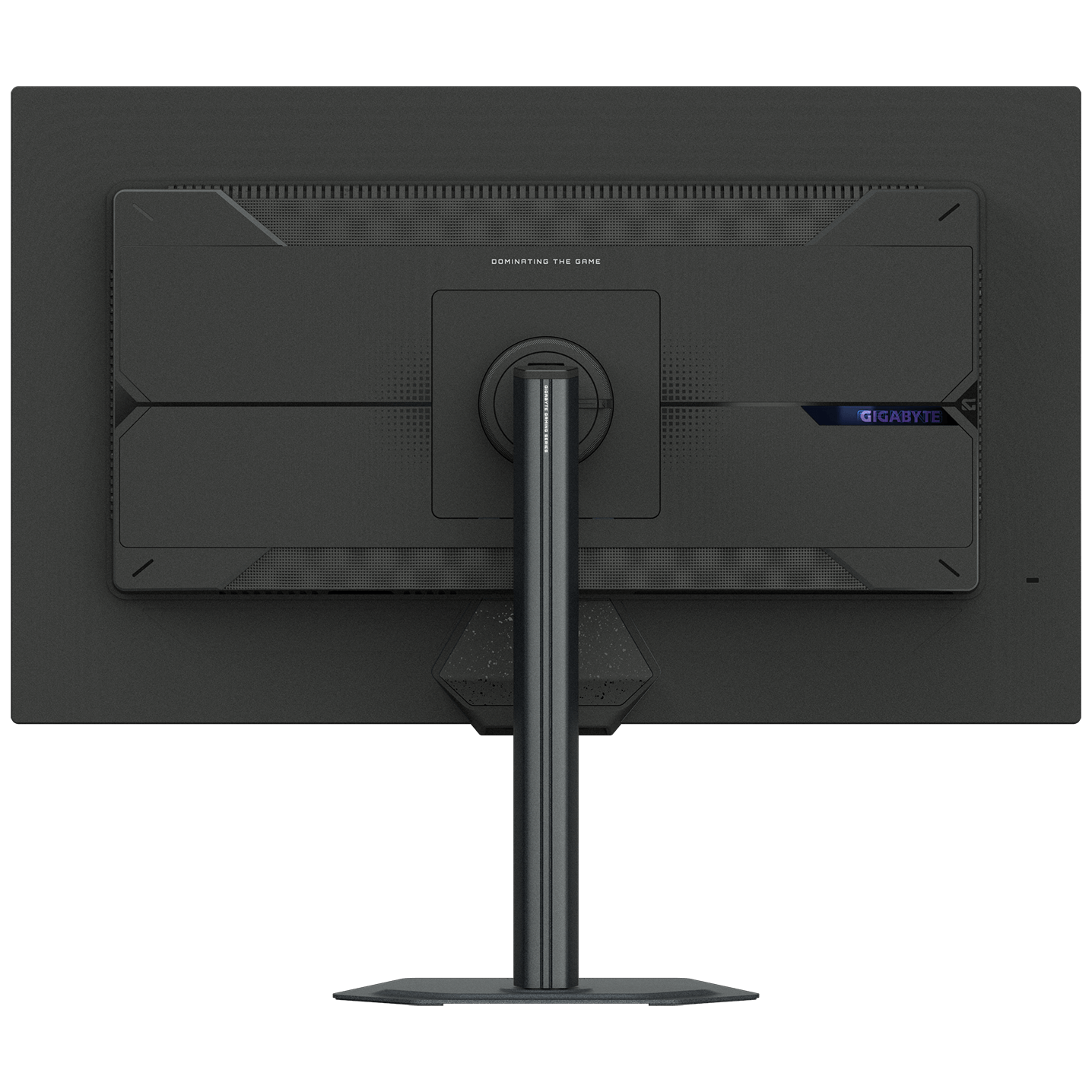

Mount
- Wall Mountable: Yes
- Wall Mount: 100 x 100 mm VESA
- Tilt (Forward/Backward): -5ø to +20ø
- Tilt Range: 25ø total
- Swivel (Left/Right): ñ30ø
- Swivel Range: 60ø total
- Height Adjustable: Yes
- Maximum Height: 130 mm
- Pivot (Rotation): ñ90ø
- Pivot Range: 180ø total
- Side Bezel Width: Approx. 2 mm (top/sides), 18 mm (bottom)
Resolution
- 1920 x 1080 Graphic Mode: Supported (Full HD)
- 2560 x 1440 Graphic Mode: Supported (QHD)
Camera
- Webcam: No
Input
- Input Impedance: 100 Ohms (typical video input impedance)
- User Controls: Power, Input Select, Volume, Brightness, OSD Menu, Game Mode
Remote
- Motion Sensing Technology: None
- Wireless Type: Not supported
- Control Buttons: 5-way joystick and OSD control button
- Button Functions: Power, Menu, Navigation, Quick Switch, Game Mode
- Remote Control: No
Media Adaptor
- Number of Card Slots: None
Warranty
- Warranty: 3 years manufacturer warranty
Sound
- Audio Capabilities: Built-in 2 x 5W speakers, Audio Out (3.5 mm jack)
- Speakers: Yes - 2 x 5W stereo speakers
- Audio Features: Stereo sound, volume control via OSD
Interfaces/Ports
- Audio Line Out Ports: 1 x 3.5 mm headphone jack
- VGA In: No
- SCART Ports: No
- Audio/Visual Port: HDMI 2.1 with audio support
- BNC Port: No
- Digital In: 2 x HDMI 2.1, 1 x DisplayPort 1.4, 1 x USB-C (DP Alt Mode)
- Synch Input: Digital (via DisplayPort and HDMI)
- S-Video in: No
- Video Composite In: No
- USB Ports: 1 x USB-C, 2 x USB-A 3.2, 1 x USB-B upstream
- Microphone In Port: No
- Audio Line In Ports: No
- Headphone Ports: Yes - 3.5 mm headphone jack
- Serial Ports: No
- AC Power: 100 - 240V AC, 50/60Hz
- DC Power: External power supply (DC 19V, 6.32A)
- Video Component In: No
- Video Component Out: No
- Video Composite Out: No
- HDMI Ports: 2 x HDMI 2.1
- DisplayPort In: 1 x DisplayPort 1.4
- Firewire Ports: No
- Digital Audio Optical Out: No
- Digital Out: Via HDMI / DisplayPort
- RJ-45 Ports: No
- Thunderbolt Port(s): No
- Infrared Port: No
- DisplayPort Out: No
Network (Wireless)
- Bluetooth: No
- Wireless System: No
System
- User Programmable Modes: Yes - User, Standard, Movie, FPS, RTS/RPG modes
- Factory Presets: Yes - sRGB, DCI-P3, HDR, and Gaming presets
- Language Selection: Multi-language OSD (English, French, German, Spanish, etc.)
- Plug and Play: Yes
- Monitor Management: OSD Sidekick software, Auto brightness, KVM switch
- Software Included: Gigabyte OSD Sidekick
System Requirements
- Operating Systems Supported: Windows, macOS, and compatible with gaming consoles
- System Requirements: HDMI 2.1, DisplayPort 1.4, or USB-C compatible device
Electrical
- Electrical Power Consumption: 32W (typical), 60W (max)
- Electrical Power Consumption Standby: <0.5W
- Electrical Power Consumption Saving: <0.5W (Eco Mode)
Compliance
- Certifications: CE, FCC, BSMI, KC, VCCI, RCM, Energy Star, EAC
Electrical
- Voltage: 100 - 240V AC
- Electrical Frequency: 50 / 60 Hz
- Power Adaptor Type: External AC to DC adaptor
- Power Adaptor Output Voltage: 19V DC, 6.32A
- Power Management Features: Energy-saving mode, auto sleep, and Eco power-off
- Power Supply: External AC adapter (19V DC, 6.32A)
- Energy Rating: Energy Star Certified
Environmental
- Operating Temperature: 0øC - 40øC
- Operating Humidity: 10% - 90% (non-condensing)
Physical
- Form Factor: Flat panel
- Case Colour: Black
- Pack Quantity: 1
- Security Locking Mechanics: Kensington lock slot
- In The Box: Monitor, stand, power adapter, HDMI cable, DisplayPort cable, USB cable, quick start guide
- Width: 615 mm
- Depth: 235 mm (with stand)
- Height: 533 mm (with stand)
- Weight: 7.1 kg (with stand)
- Country of Origin: China
Shipping
- Shipping Carton Quantity: 1
- Shipping Carton Product Quantity: 1
- SC Width: 700 mm
- SC Depth: 190 mm
- SC Height: 470 mm
- SC Weight: 9.2 kg (approximate, including packaging)
- Trade Carton: Standard retail packaging
- Trade Carton Product Quantity: 1
- TC Width: 700 mm
- TC Depth: 190 mm
- TC Height: 470 mm
- TC Weight: 9.2 kg
- Shipping Pallet Quantity: Varies (typically 20 units per pallet)
- Pallet Product Quantity: 20 units
- SP Width: 1200 mm
- SP Depth: 190 mm
- SP Height: 470 mm
- SP Weight: 9.2 kg (with packaging)
Identifiers
- Stock Code: MON9706
- Mfg Code: M27UP-EK
Warranty
- Warranty: 3 years manufacturer warranty
