Gigabyte H810M GAMING WIFI6 mATX Motherboard for Intel Socket 1851 CPUs
Available for delivery from Tomorrow
Click & Collect from Today
Hurry, only 1 left!
Order within
You have 0 of these in your basket
Please note that this is a C Grade clearance item. C Grade items may have missing accessories or show signs of cosmetic wear. See below for details of this specific item. The price has been reduced to reflect this.
All C Grade items are working and have been fully tested.
This item is supplied with a Warranty: 3 Years warranty.

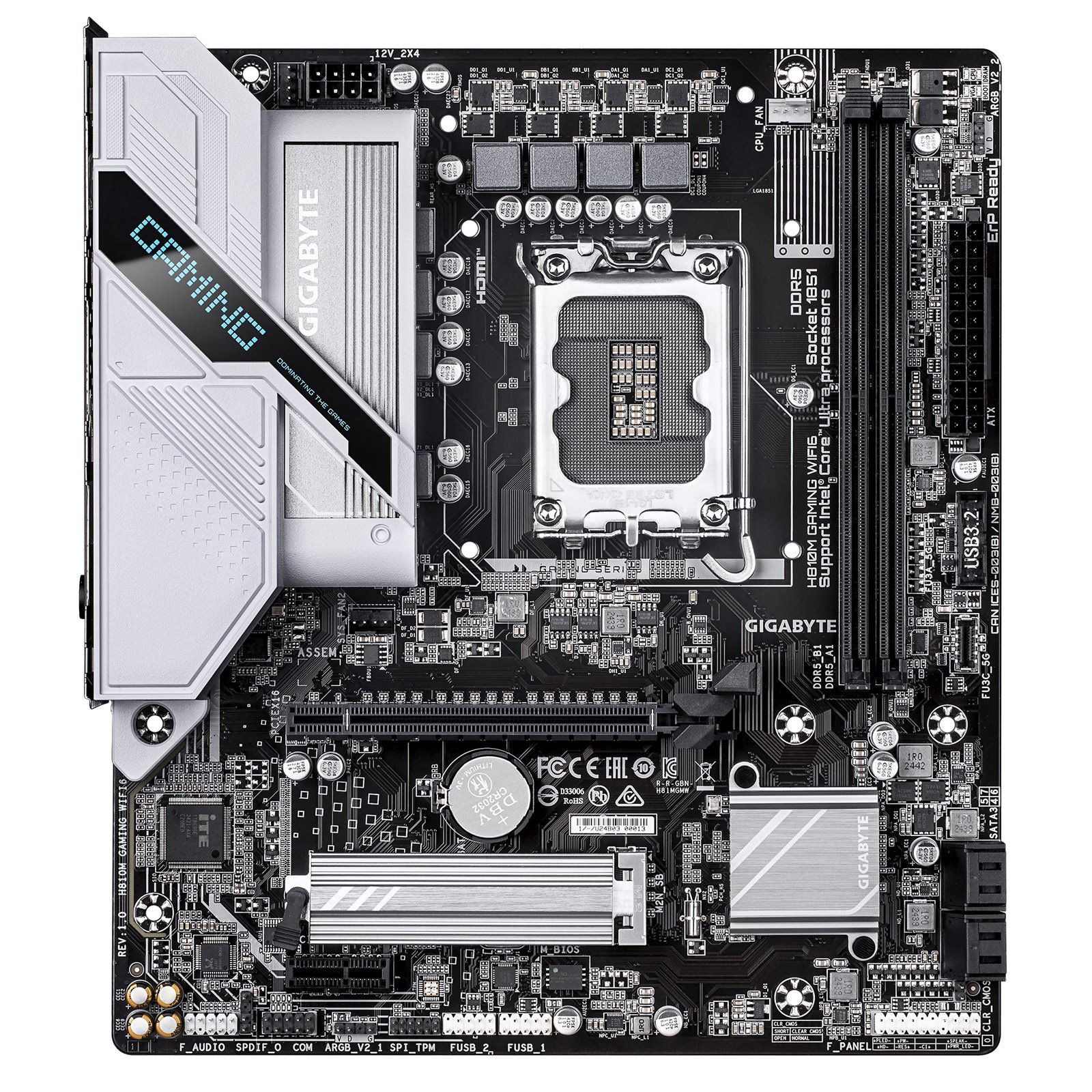

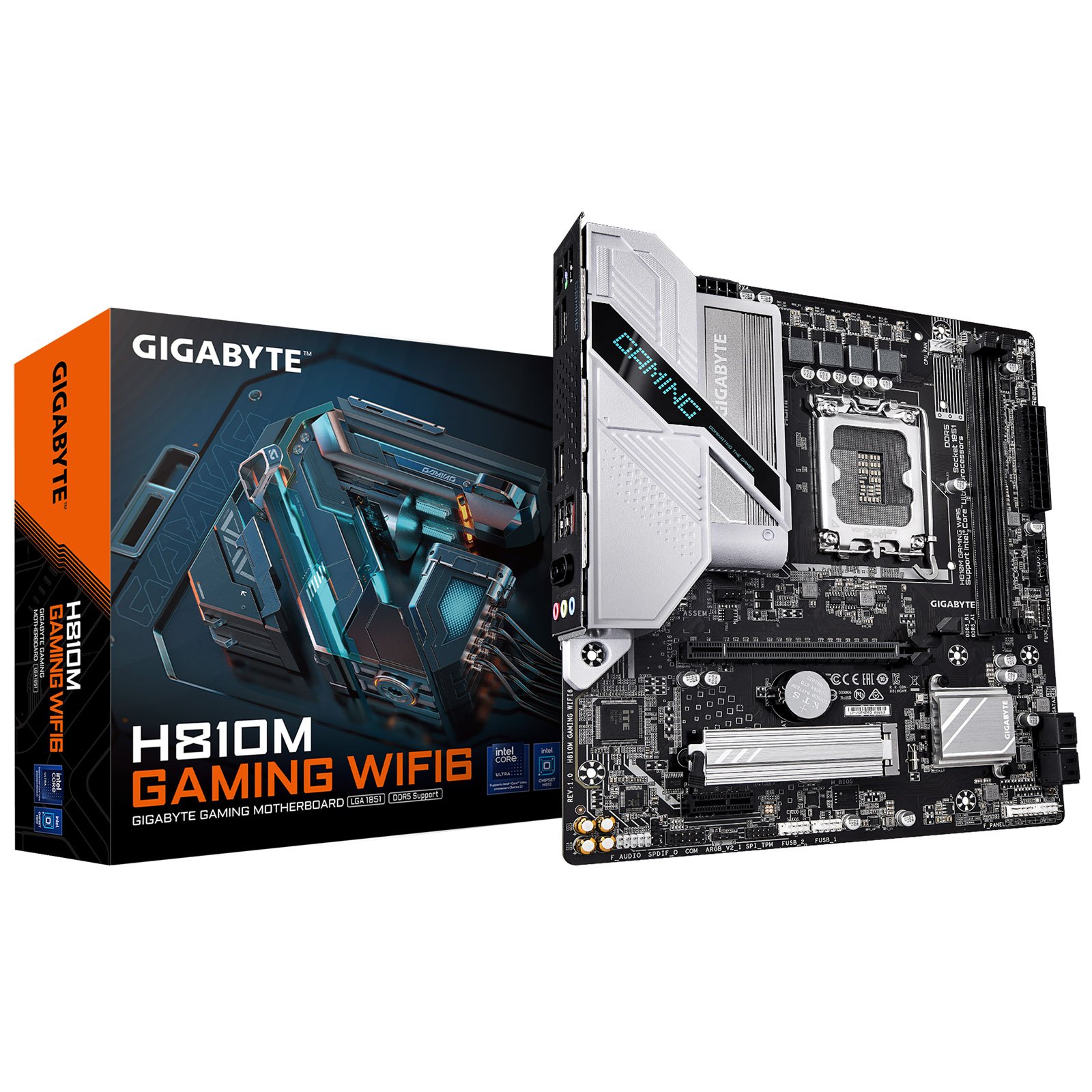

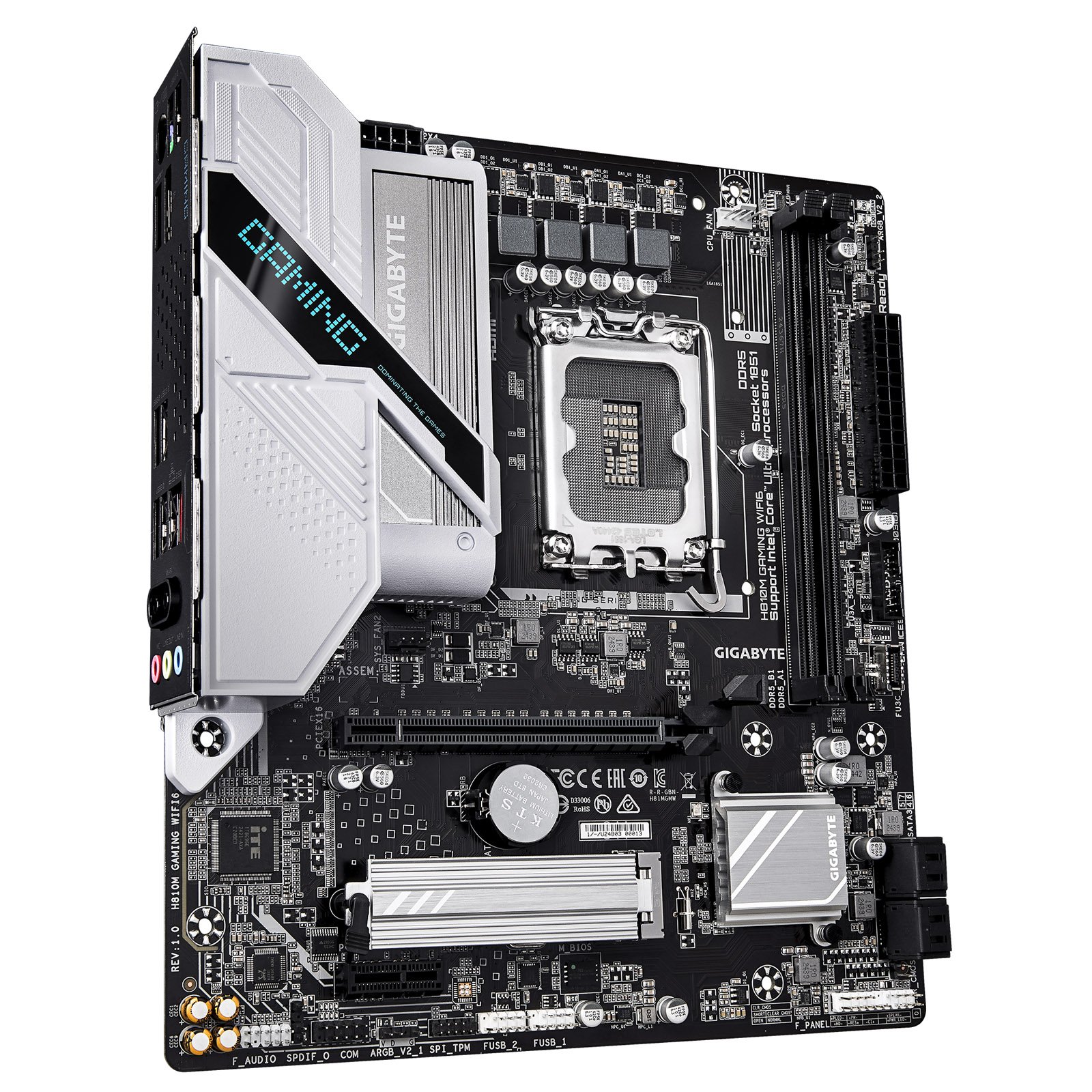

Gigabyte H810M GAMING WIFI6 Socket LGA1851 mATX Motherboard
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: Intel
- Supported Processors: Intel Core Ultra Processors
- 64-bit Support: Yes
- Socket: LGA1851

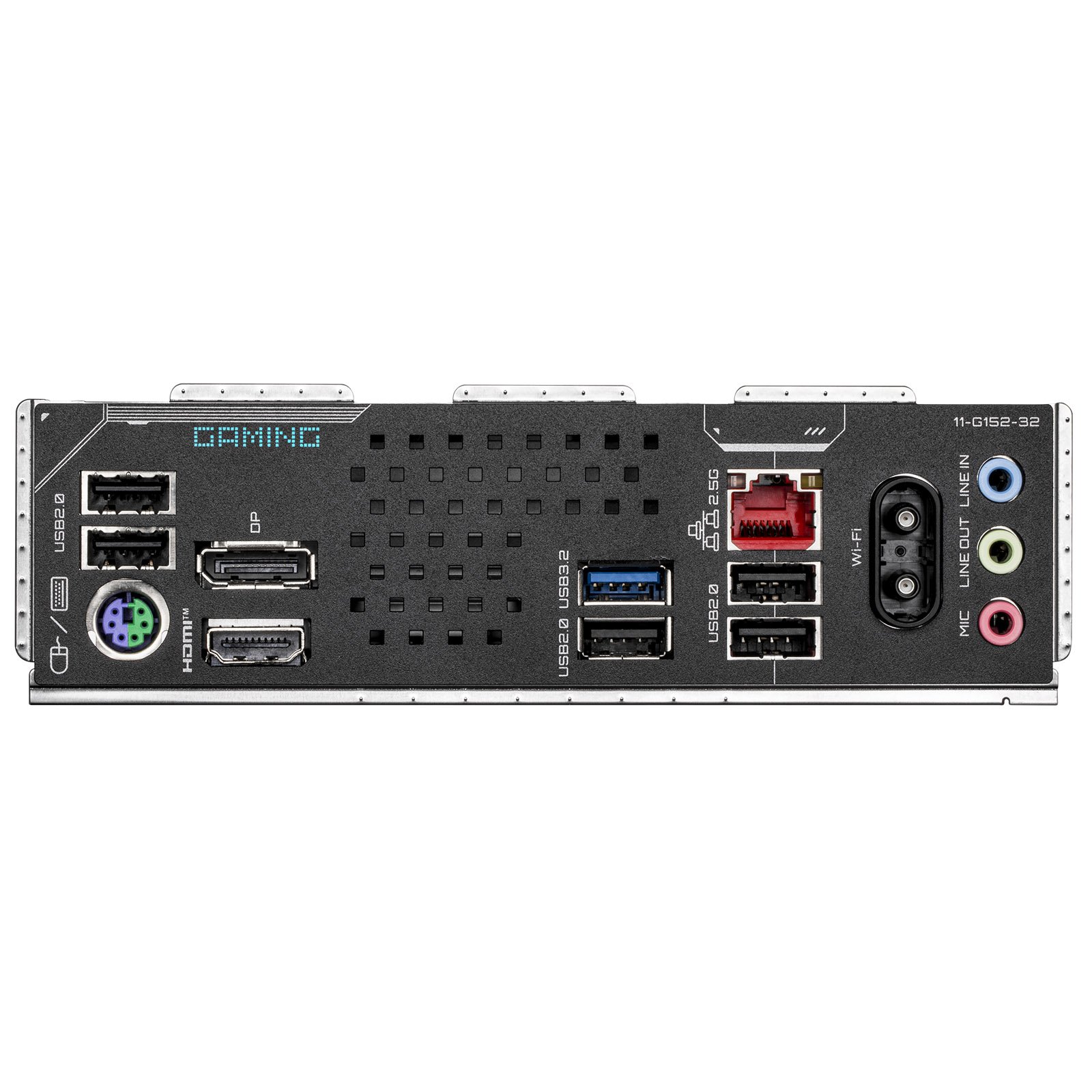

Rear Panel I/O Ports
- USB Ports: 1 x USB 3.0
- 5 x USB 2.0
- DisplayPorts: 1 x DisplayPort 2.1
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA
- USB Connectors: 1 x USB-C 3.0 header (supports 1 port)
- 1 x USB 3.0 header (supports 2 ports)
- 2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 6400 MT/s
- Memory Type: DDR5
Motherboard
- Northbridge: Intel H810
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 5, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- Keyboard/Mouse Combo Port: 1 x PS/2
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 2 x System fan headers
- S/PDIF Connectors: 1 x S/PDIF Out header
- Serial Connectors: 1 x COM header
- TPM Header: 1 x TPM header (For the GC-TPM2.0 SPI V2 module only)
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Socket 3, M Key, Type 2280 (PCIe Gen4)
- 2 x 3-pin ARGB headers
Expansion
- Number of PCI Express Slots: 1 x PCI Express 4.0 x16 slot
- 1 x PCI Express 3.0 x1 slot
Memory
- Maximum RAM: 128 GB
- Memory Slot: 2 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek
- Network Speeds Supported: Up to 2.5 Gbps
- Wireless LAN: Yes - Wi-Fi 6
- Bluetooth: Yes
- Bluetooth Version: 5.3
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Jumpers: 1 x Clear CMOS
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: mATX Motherboard
- Width: 215 mm
- Length: 244 mm
Identifiers
- Stock Code: MBD3934XC1
- Mfg Code: H810M GAMING WIFI6
Warranty
- Warranty: 3 Years
