CPU

• Installed Processors (Max): 0 (1)
• Supported Processor Manufacturer: Intel
• Supported Processors: 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
• 64-bit Support: Yes
• Socket: LGA1700

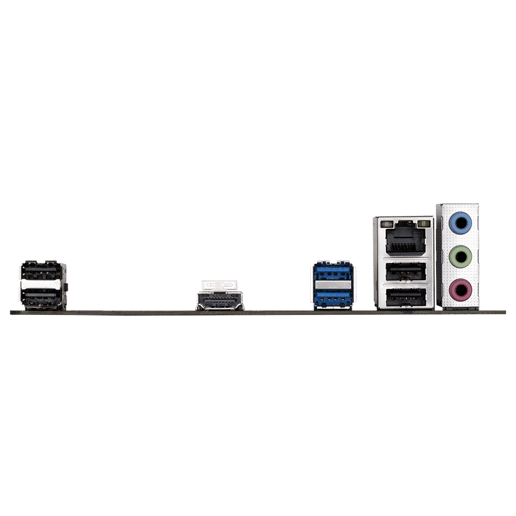

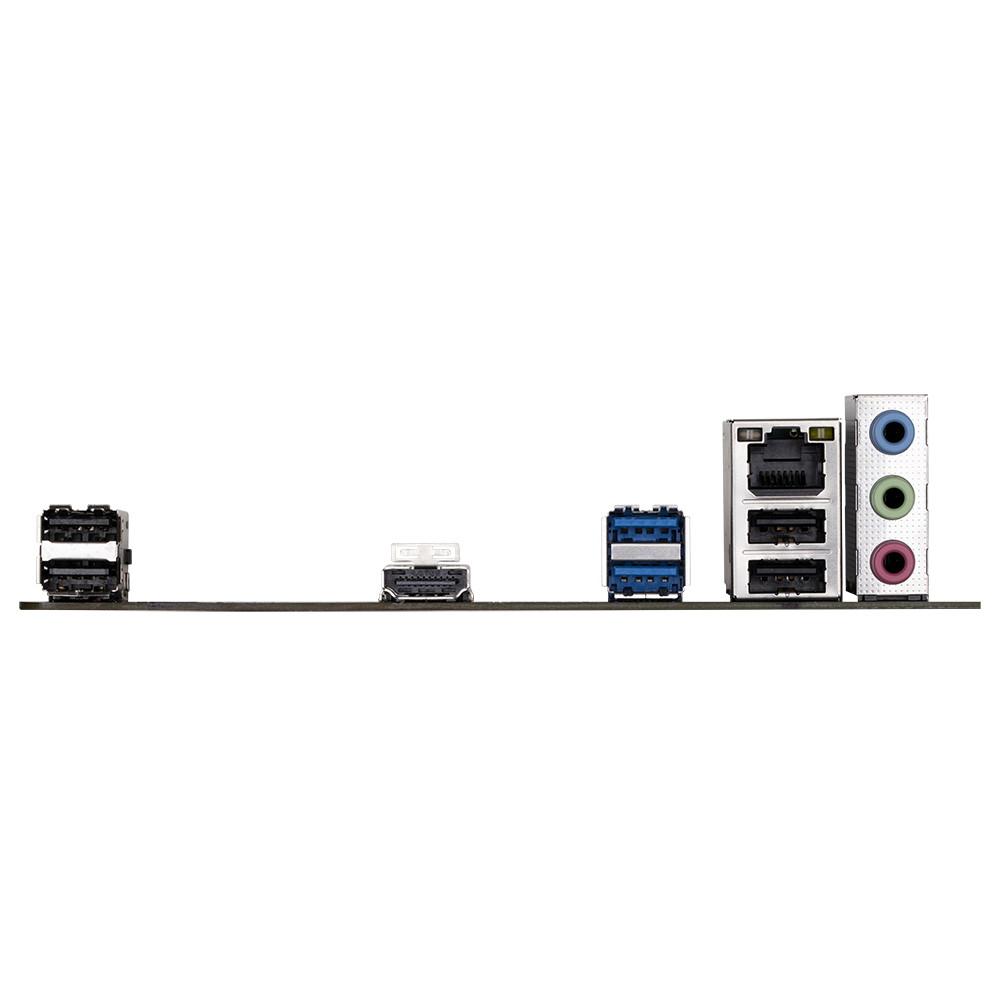

Rear Panel I/O Ports

• USB Ports: 2 x USB 3.0
• 4 x USB 2.0
• HDMI Port: 1 x HDMI 2.1

Internal I/O Connectors

• SATA Connectors: 2 x SATA III
• USB Connectors: 1 x USB 3.0 header (supports 2 ports)
  1 x USB 2.0 header (supports 2 ports)

Memory

• Memory Bus Speed: Up to 3200 MHz
• Memory Type: DDR4

Motherboard

• Northbridge: Intel H610
• RAID Supported: No
• SATA Supported: Yes

Rear Panel I/O Ports

• RJ-45 Ports: 1 x RJ-45
• Audio Line In Ports: 1 x 3.5mm Jack
• Audio Line Out Ports: 1 x 3.5mm Jack
• Microphone In Port: 1 x 3.5mm Jack

Internal I/O Connectors

• Front Panel Connectors: 1 x Front Panel
• 1 x Front Audio
• Cooling Fan Support: 1 x CPU fan header
• 1 x System fan header
• TPM Header: 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
• Power Connector Port: 1 x 24-pin ATX
• 1 x 8-pin EPS
• Other Connectors: 1 x M.2 slot, Socket 3, M Key, Type 2260/2280 (PCIe Gen3)

Expansion

• Number of PCI Express Slots: 1 x PCI Express 4.0 x16 slot
• 1 x PCI Express 3.0 x1 slot

Memory

• Maximum RAM: 64 GB
• Memory Slot: 2 x DIMM

Graphics Device

• Integrated Graphics Supported: Yes

Sound

• Integrated Sound: Realtek

Warranty

• Warranty: 3 Years

Network

• Integrated Network: Realtek
• Network Speeds Supported: Up to 1 Gbps
• Wireless LAN: No
• Bluetooth: No

System Requirements

• Operating Systems Supported: Microsoft Windows 11

System

• Jumpers: 1 x Clear CMOS
• Software Included: Yes
• Drivers: Yes

Physical

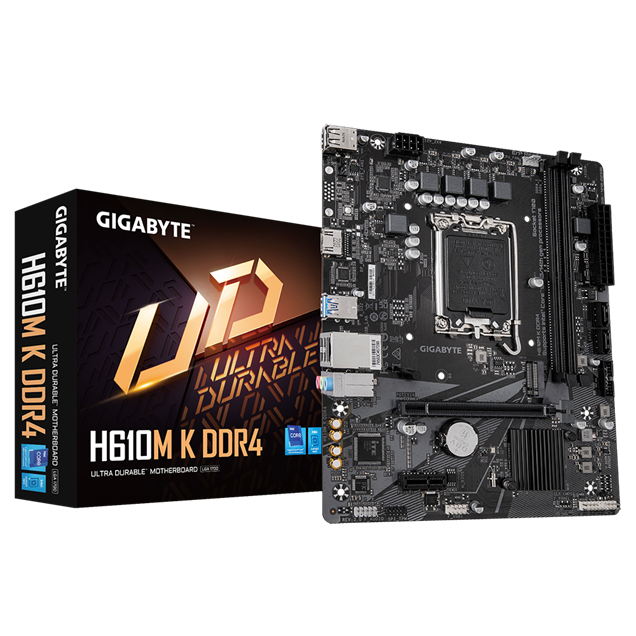

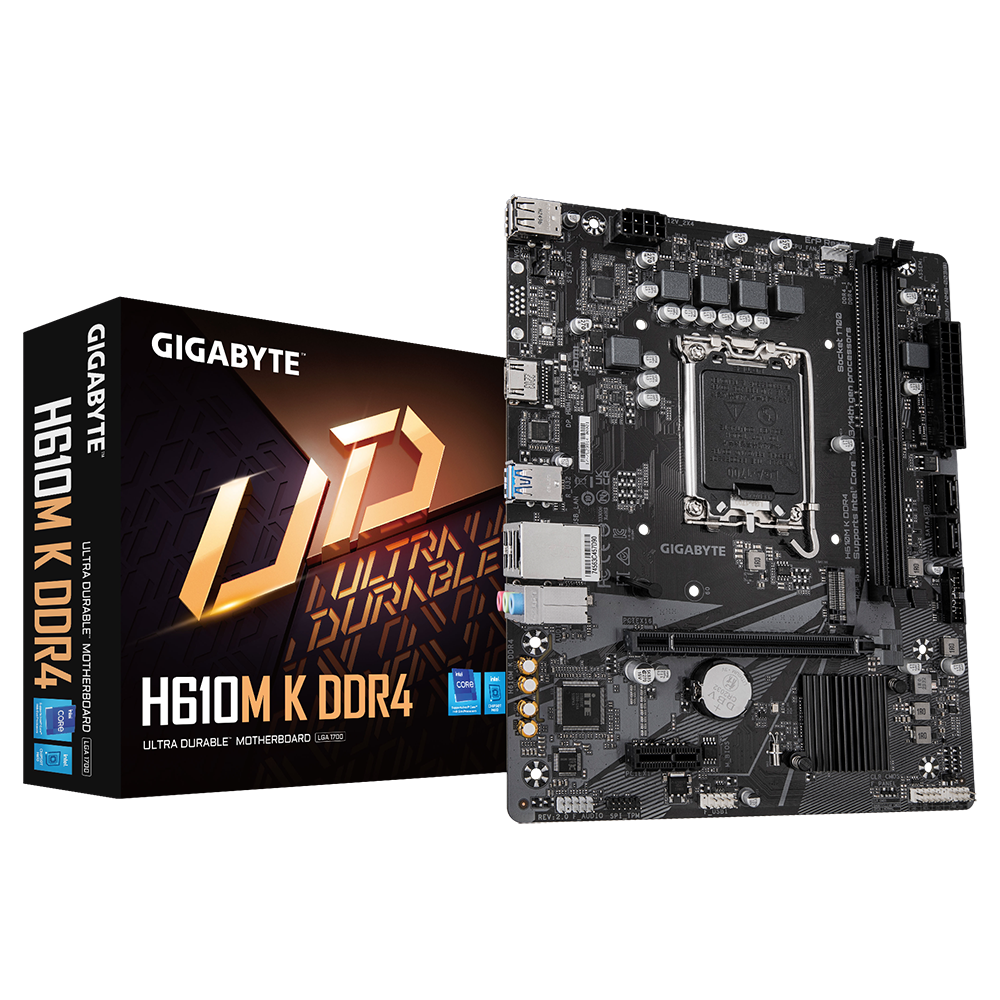

• Form Factor: mATX Motherboard
• Width: 185 mm
• Length: 226 mm

Identifiers

• Stock Code: MBD3582
• Mfg Code: H610M K DDR4
