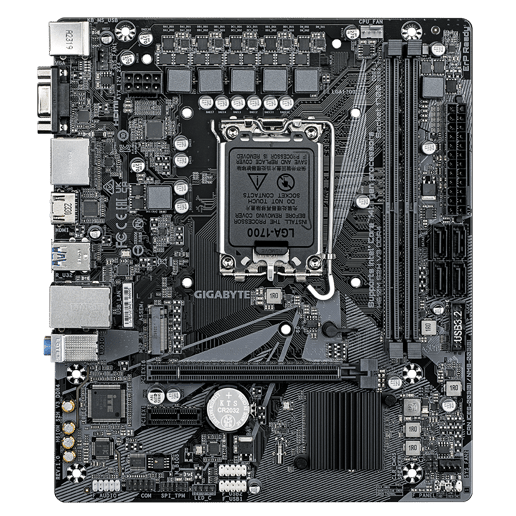

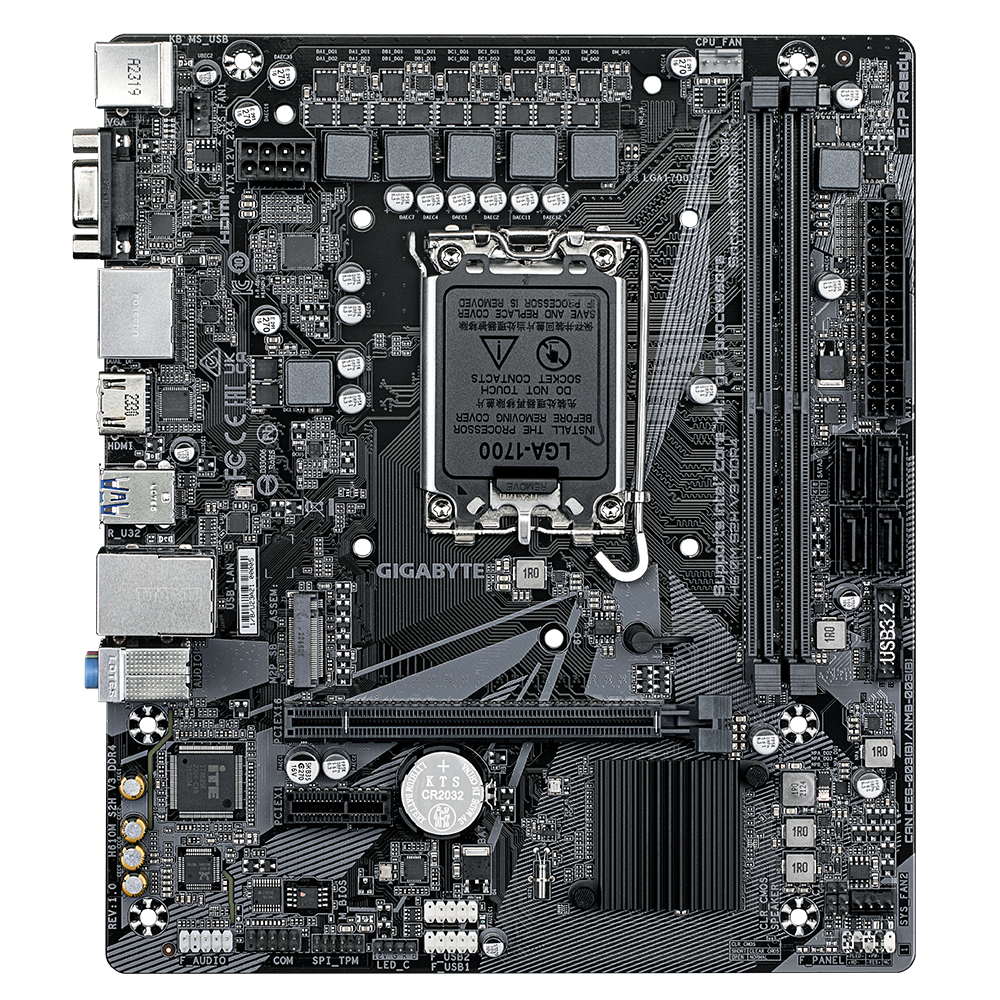

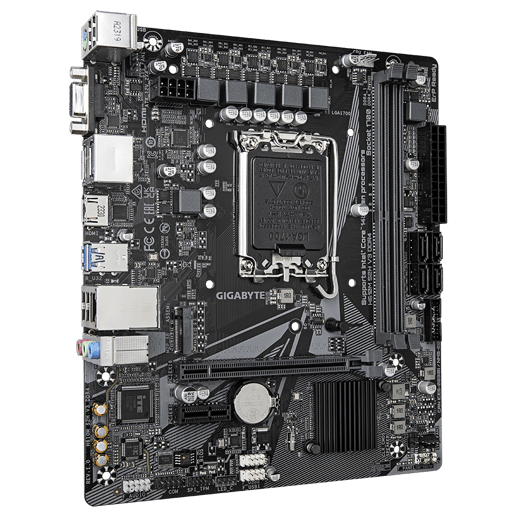

Gigabyte H610M H V3 DDR4 mATX Motherboard for Intel Socket 1700 CPUs
SAVE 13%
Available for delivery from Tomorrow
Click & Collect from Today
Hurry, only 3 left!
Order within
You have 0 of these in your basket
4+1+1 Phases Hybrid Power Design
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
Single 32GB Support
The maximum memory capacity on the H610 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 64GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Hybrid Cores Optimization
With new Intel Hybrid technology, GIGABYTE exclusively creates two new "CPU Upgrade" in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
NVMe PCIe Gen3 x4 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Solid Pin Power Connectors
H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: Intel
- Supported Processors: 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
- 64-bit Support: Yes
- Socket: LGA1700

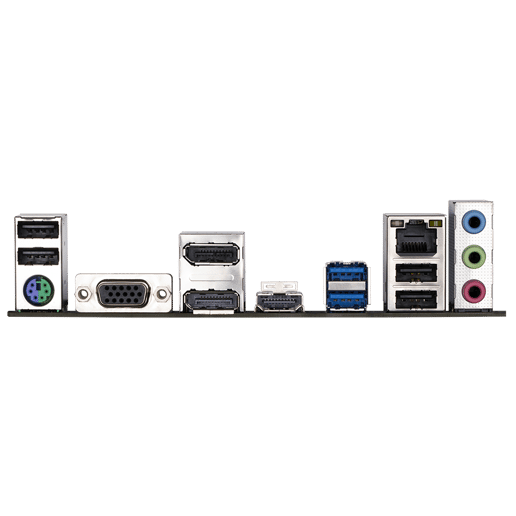

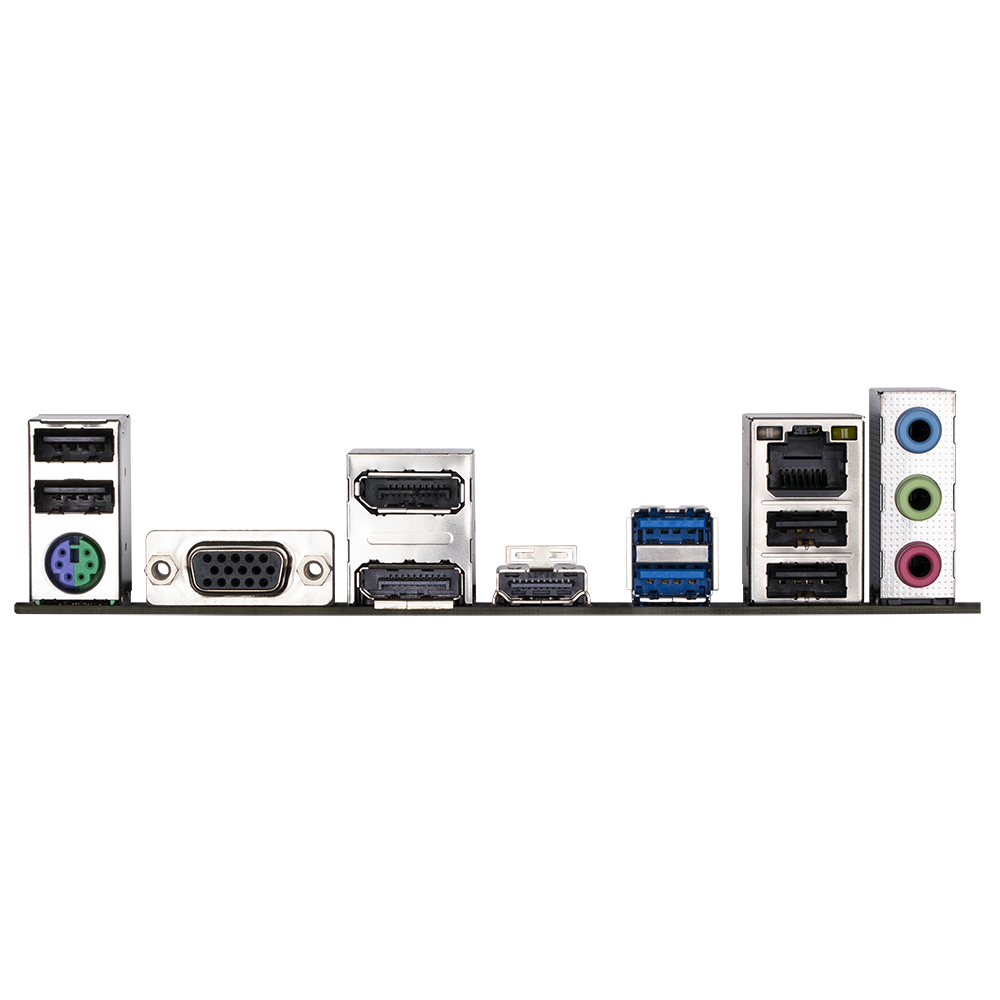

Rear Panel I/O Ports
- USB Ports: 2 x USB 3.0
- 4 x USB 2.0
- HDMI Port: 1 x HDMI 2.1
- VGA Port: 1 x D-Sub
Internal I/O Connectors
- SATA Connectors: 4 x SATA III
- USB Connectors: 1 x USB 3.0 header (supports 2 ports)
- 2 x USB 2.0 headers (supports 4 ports)
- Speaker: 1 x Speaker header
Memory
- Memory Bus Speed: Up to 3200 MT/s
- Memory Type: DDR4
Motherboard
- Northbridge: Intel H610
- RAID Supported: No
- SATA Supported: Yes
Rear Panel I/O Ports
- Keyboard/Mouse Combo Port: 1 x PS/2
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 2 x System fan headers
- Serial Connectors: 1 x COM header
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- TPM Header: 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Socket 3, M Key, Type 2280/2260 (PCIe Gen3)
- 1 x 4-pin RGB LED header
Expansion
- Number of PCI Express Slots: 1 x PCI Express 4.0 x16 slot
- 1 x PCI Express 3.0 x1 slot
Memory
- Maximum RAM: 64 GB
- Memory Slot: 2 slots
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek
- Network Speeds Supported: Up to 1 Gbps
- Wireless LAN: No
- Bluetooth: No
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Jumpers: 1 x Clear CMOS
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: mATX Motherboard
- Width: 193 mm
- Length: 223 mm
Identifiers
- Stock Code: MBD3664
- Mfg Code: H610M H V3 DDR4
Warranty
- Warranty: 3 Years
