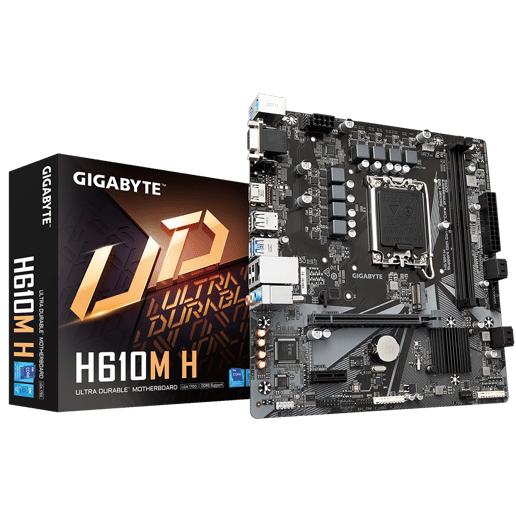

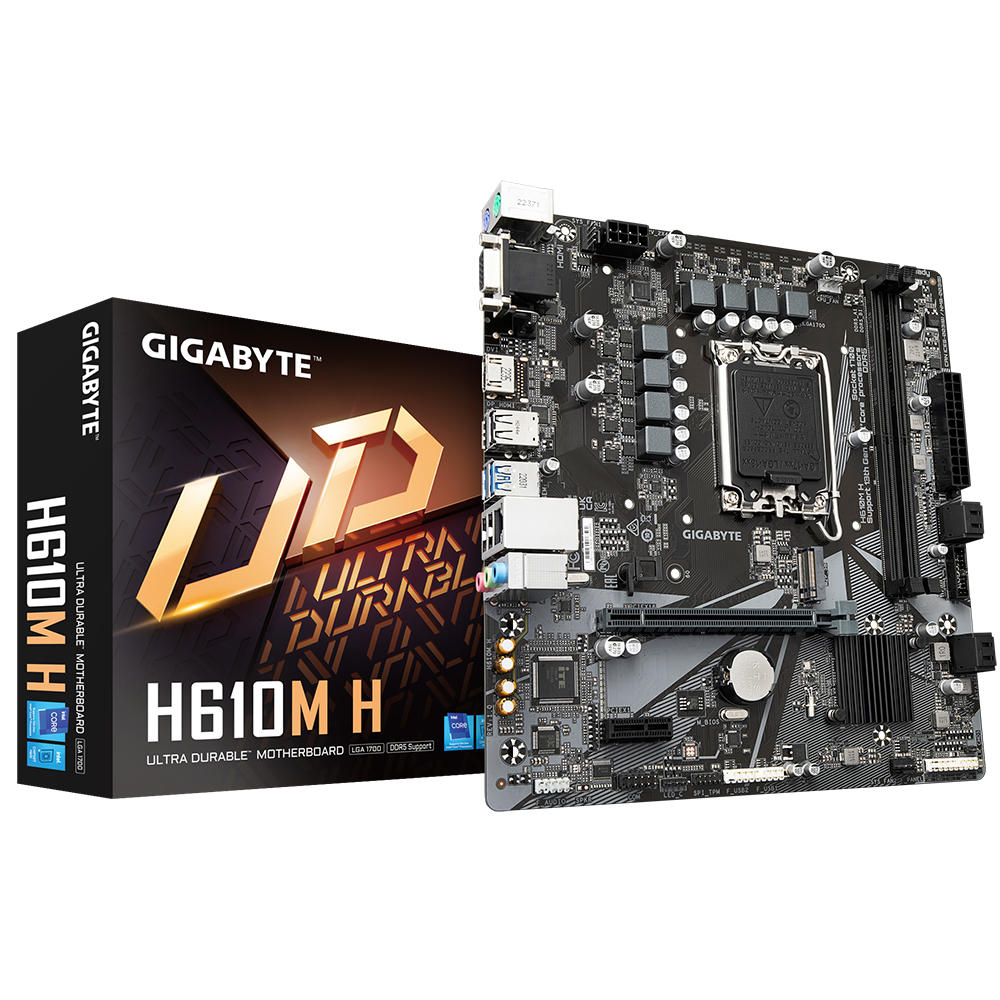

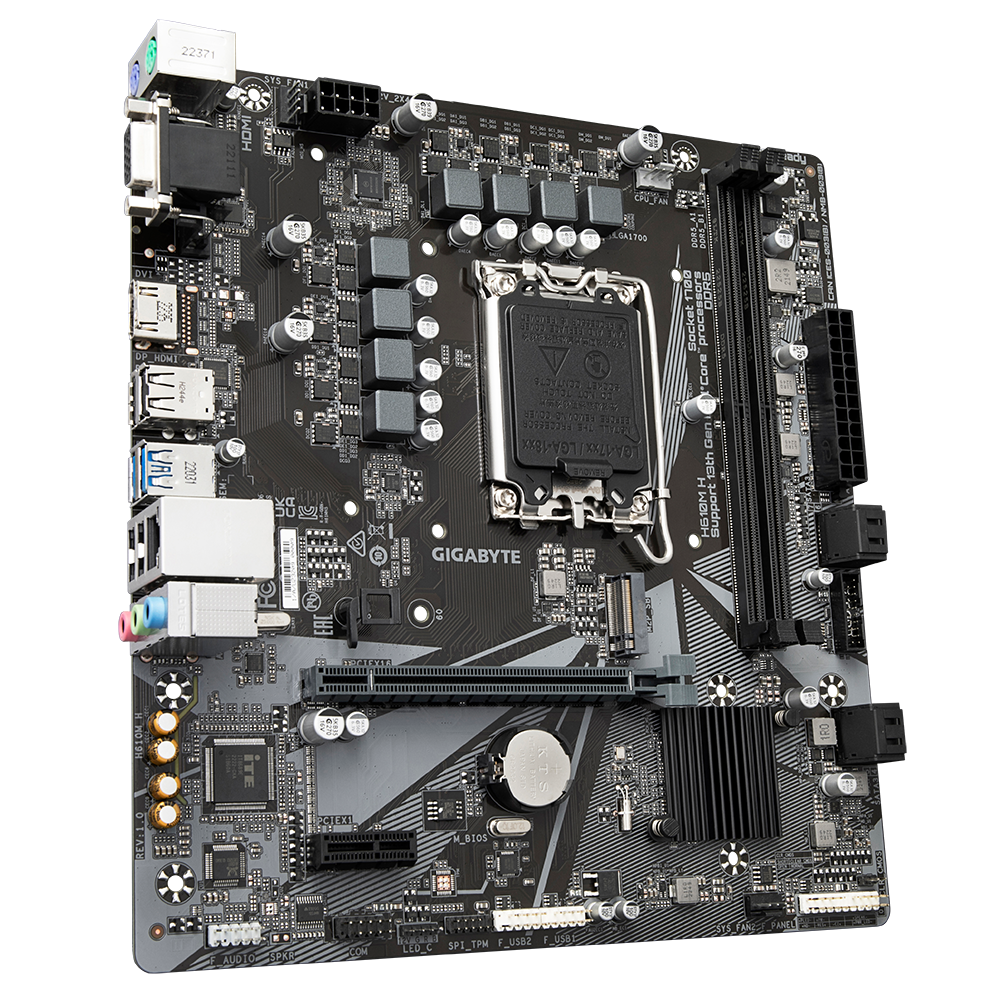

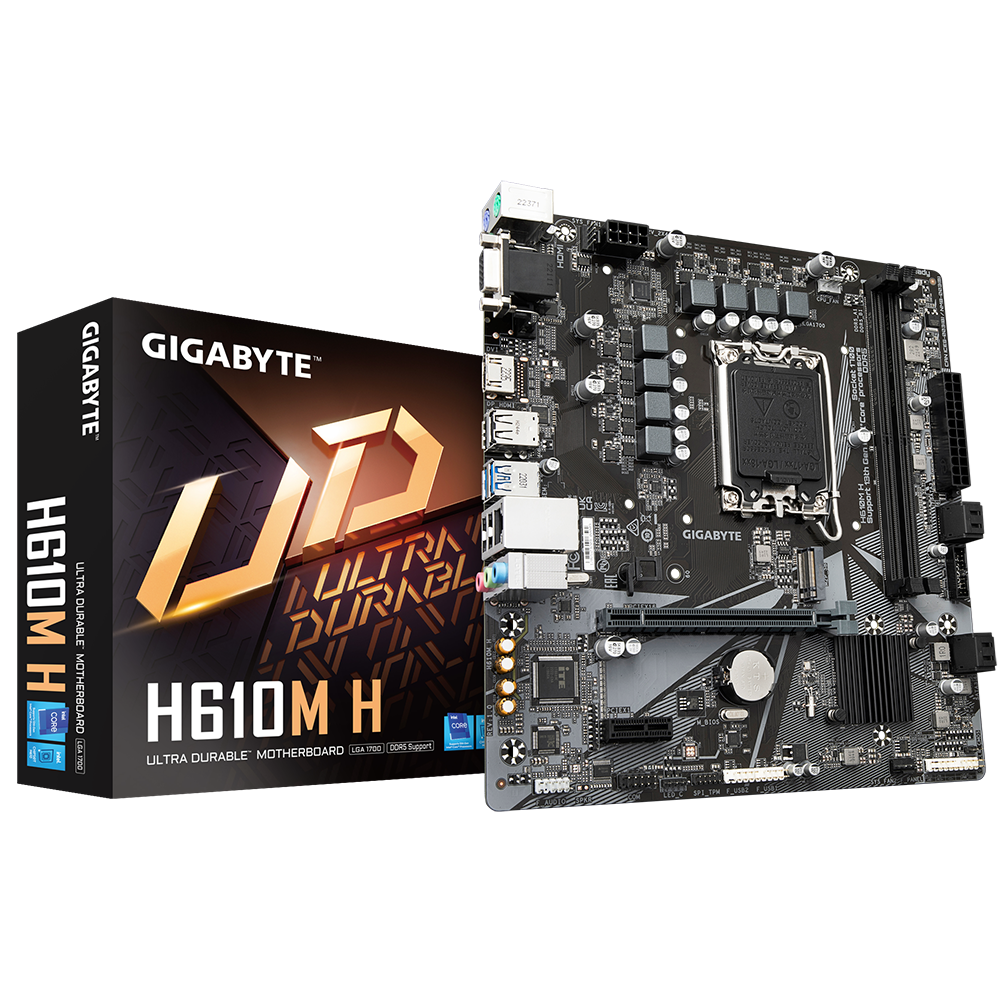

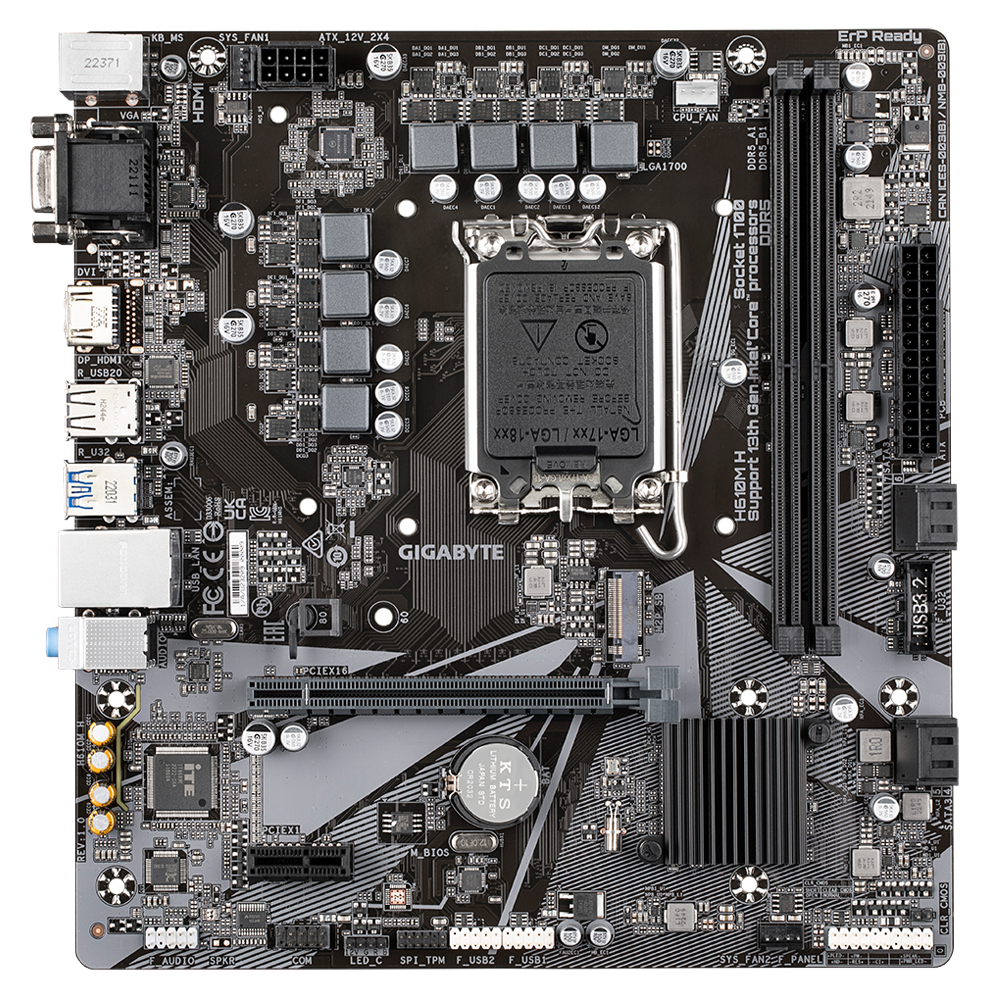

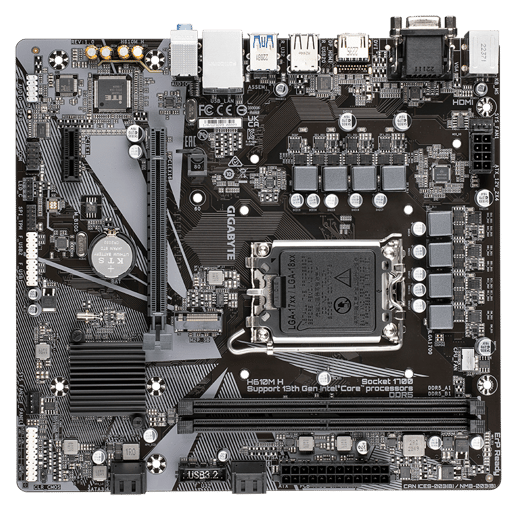

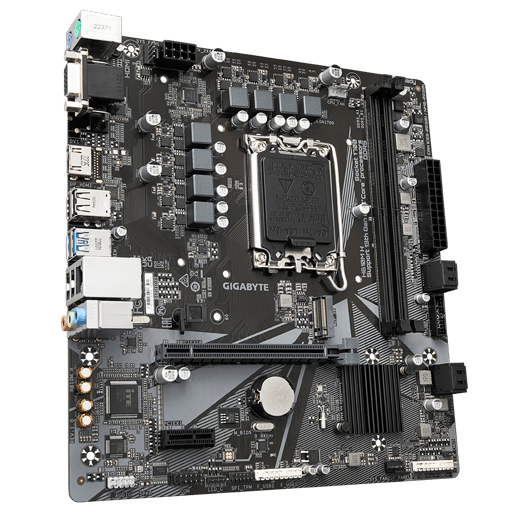

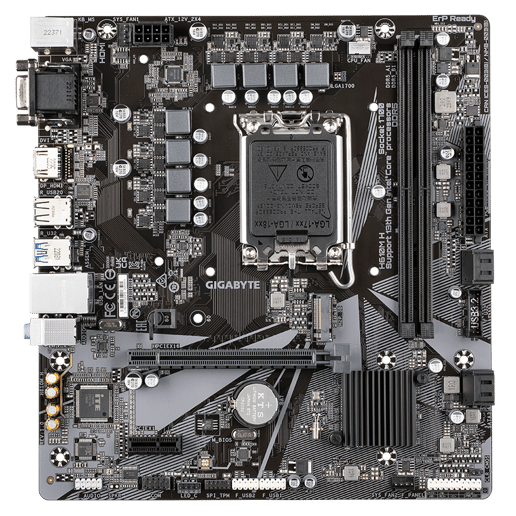

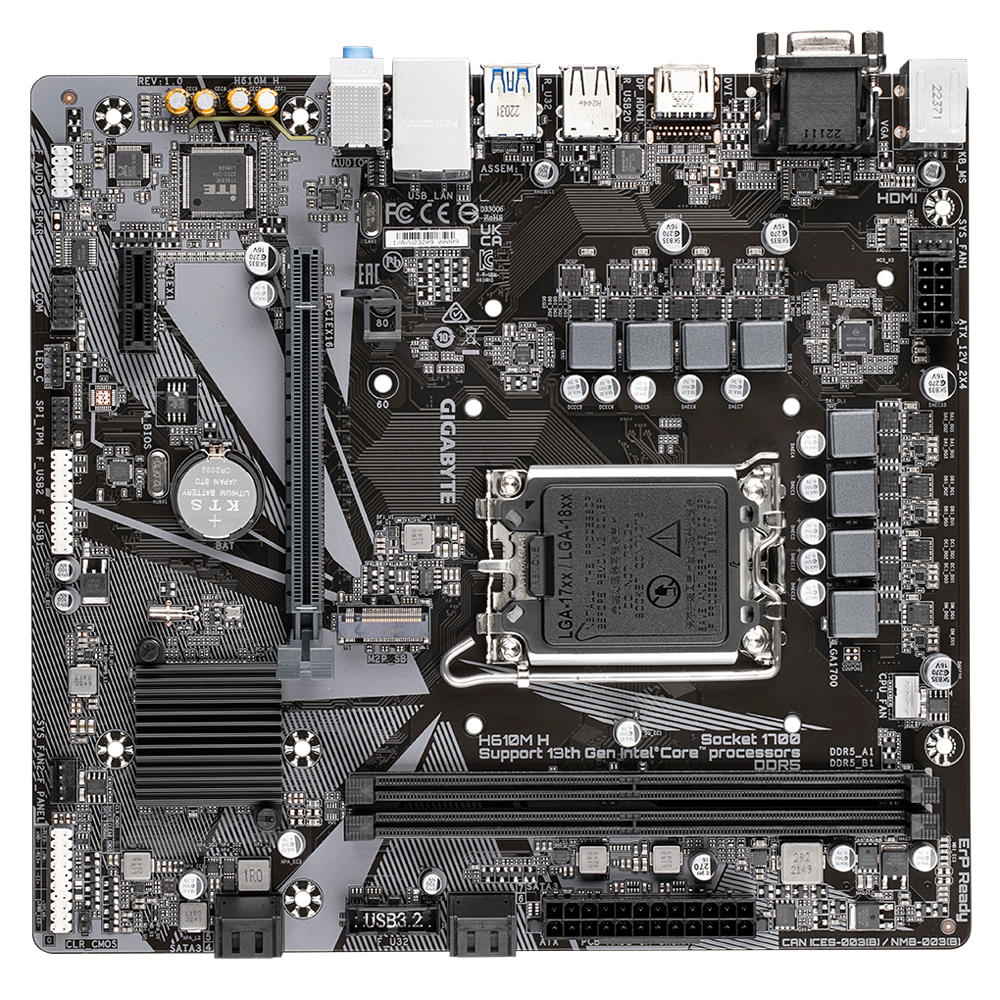

Name: Gigabyte H610M H mATX Motherboard for Intel LGA1700 CPUs
Brand: Gigabyte
SKU: MBD3583
Price: 79.99 GBP
Availability: OutOfStock

Gigabyte H610M H mATX Motherboard for Intel LGA1700 CPUs

Compare

Intel® H610 Motherboard with 6+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0 Design, Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 6

Key Features:

mATX Form Factor
Intel H610 Chipset
Socket 1700
DDR5 (Max: 64GB / 2 slots)
1 x M.2 & 6 x USB & 4 x SATA
HDMI and VGA

CCL Code: MBD3583

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me

Overview

Gigabyte H610M H Motherboard

Main Features

Supports Intel Core 14th/ 13th /12th processors
Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
6+1+1 Hybrid Digital VRM Design
GbE LAN with Bandwidth Management
NVMe PCIe 3.0 x4 M.2
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

Specifications

CPU

CPU Socket	Socket 1700
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
64-bit Support	Yes
Socket	LGA1700

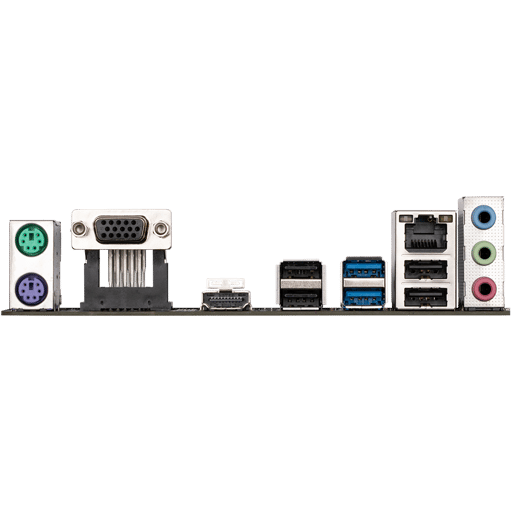

Rear Panel I/O Ports

USB Ports	2 x USB 3.0 4 x USB 2.0
HDMI Port	1 x HDMI 2.1
VGA Port	1 x D-Sub
Keyboard Port	1 x PS/2
Mouse Port	1 x PS/2
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 2 x System fan headers
Serial Connectors	1 x COM header
TPM Header	1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	1 x M.2 slot, Socket 3, M Key, Type 2260/2280 (PCIe Gen3) 1 x 4-pin RGB LED header

Memory

Memory Bus Speed	Up to 5600 MHz
Memory Type	DDR5
Maximum RAM	64 GB
Memory Slot	2 x DIMM

Motherboard

Northbridge	Intel H610
RAID Supported	No
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek

Network

Integrated Network	Realtek
Network Speeds Supported	Up to 1 Gbps
Wireless LAN	No
Bluetooth	No

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	mATX Motherboard
Width	215 mm
Length	230 mm

Key Features

RDIMM Memory Supported	No
RDIMM Memory Required	No
Wireless Network	No
Motherboard Width	215 mm
Motherboard Height	230 mm
mSATA Supported	No
U.2 Supported	No
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	6 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	Yes
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	mATX
Motherboard (EPS) Power Connectors	4+4-Pin
Motherboard Chipset	Intel H610
Thunderbolt	No
Motherboard Model	Gigabyte H610M H
USB 3.1 Support	No
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	Gigabyte RGB Fusion
RGB Header Type	4-Pin RGB
Addressable RGB	No
Internal USB Type-C Header	No
Power Requirement (auto)	60 W
Max Memory Speed Supported (Non-overclocked)	5600 MHz
CPU Power Pins (female)	8
Total M.2 Slots	1
Maximum NVMe M.2 ports	1
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
