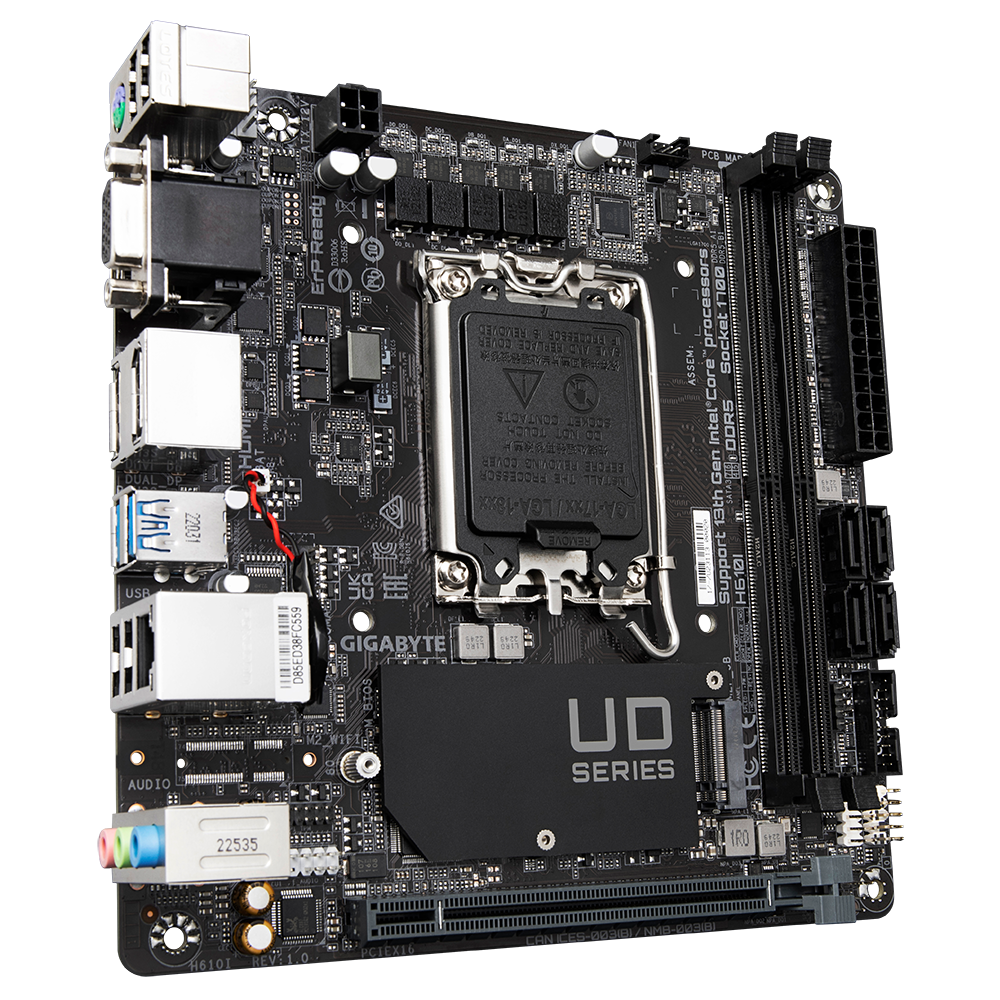

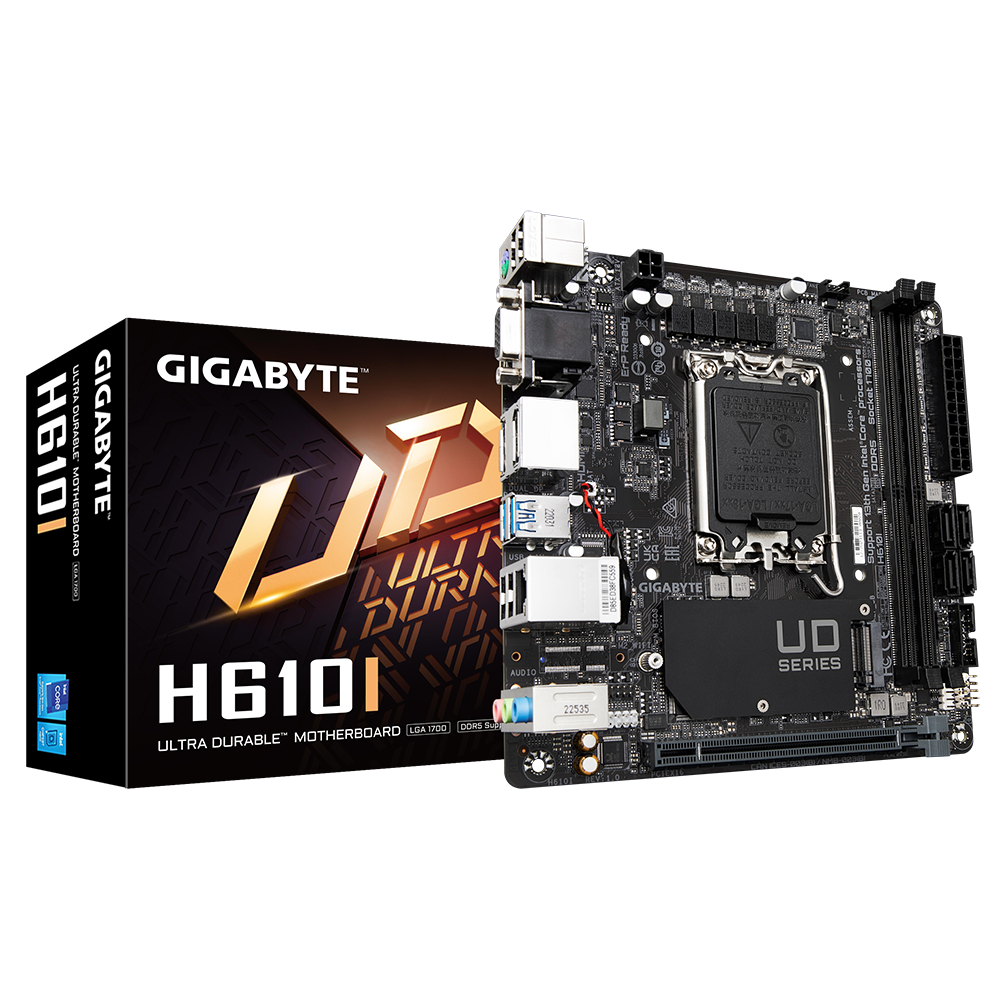

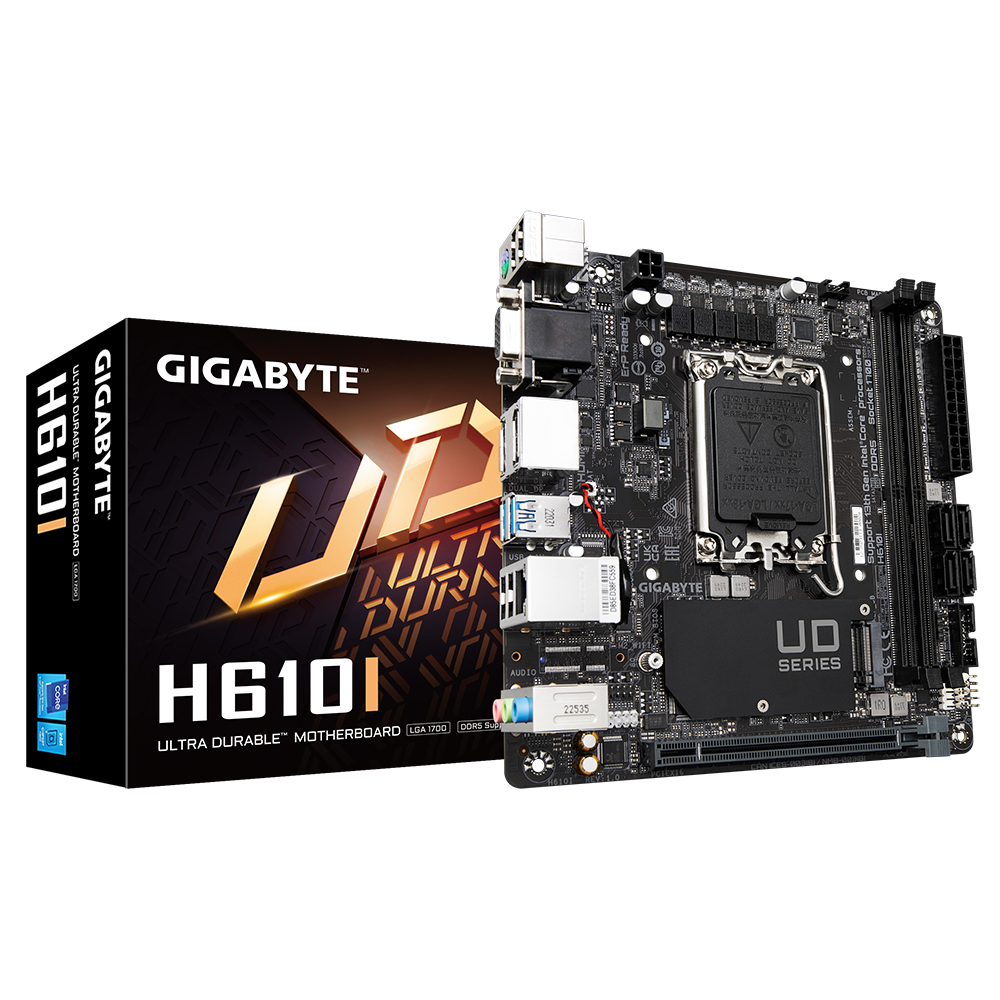

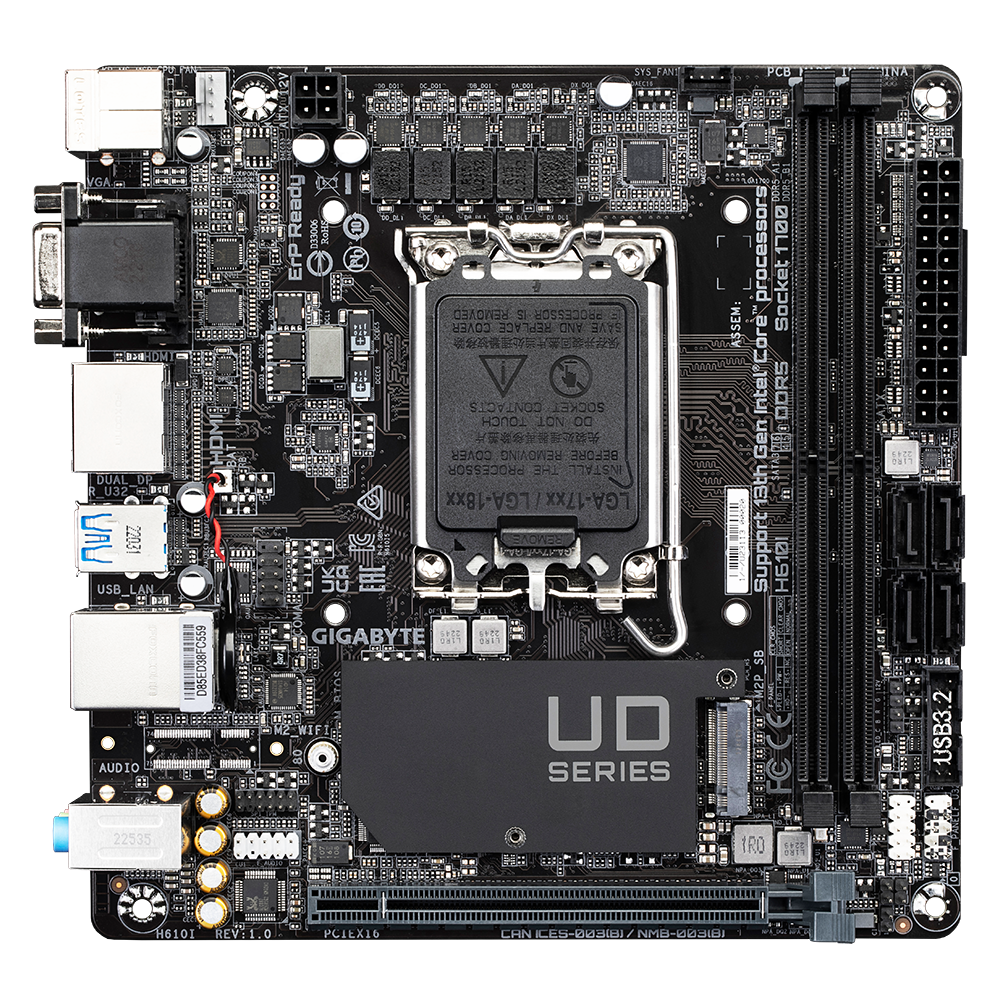

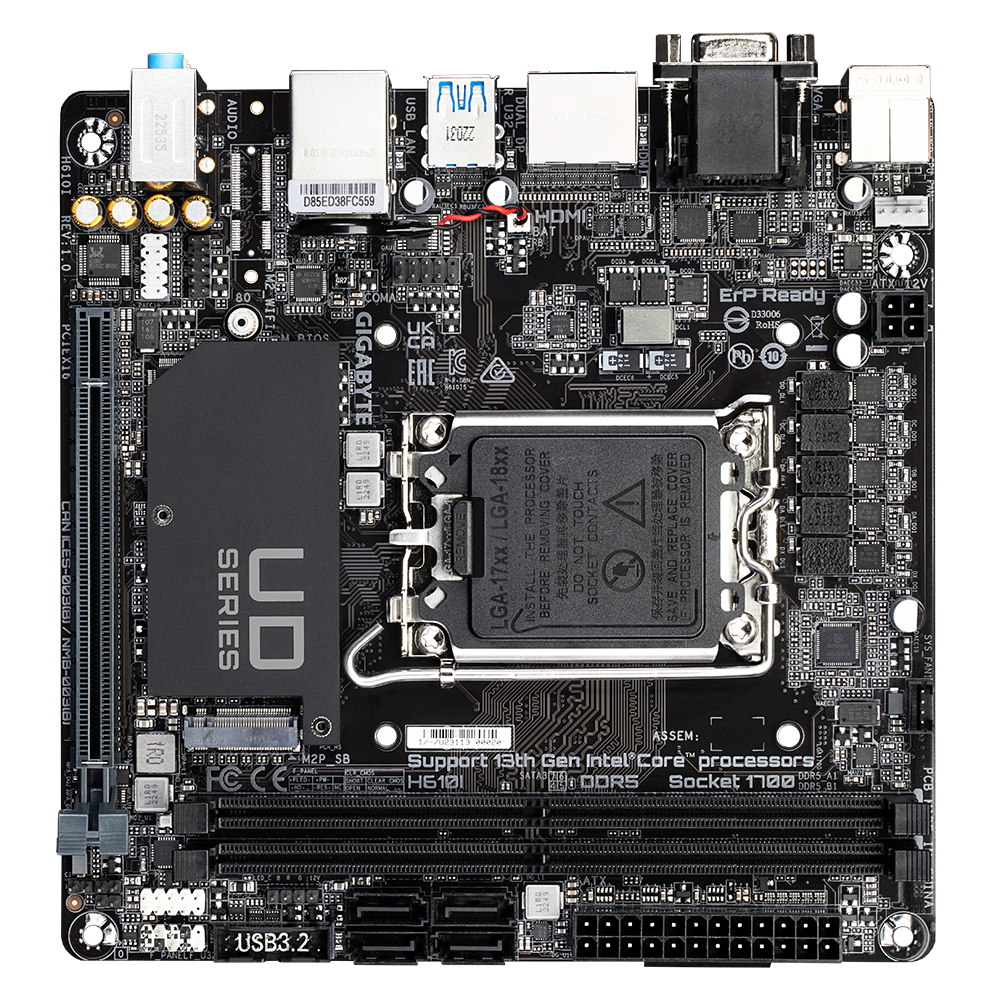

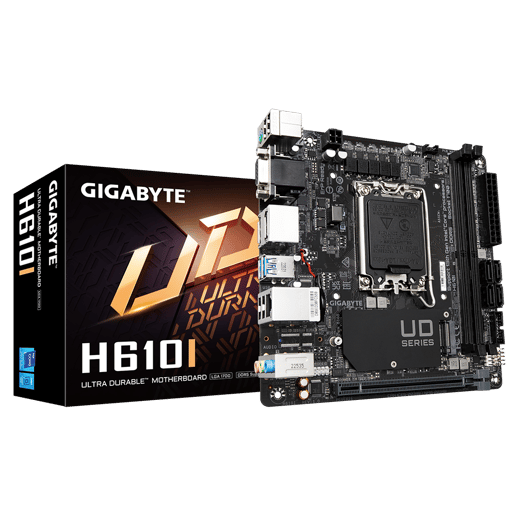

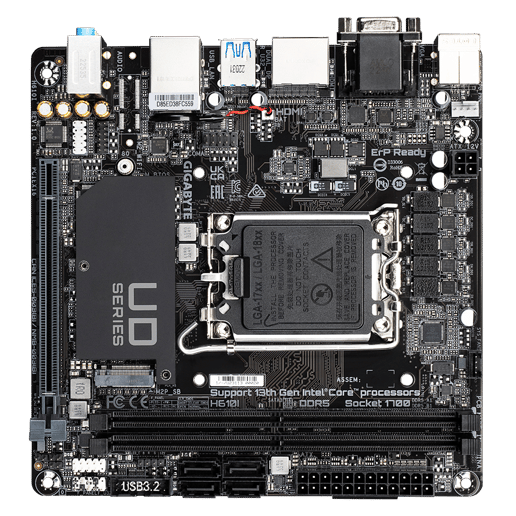

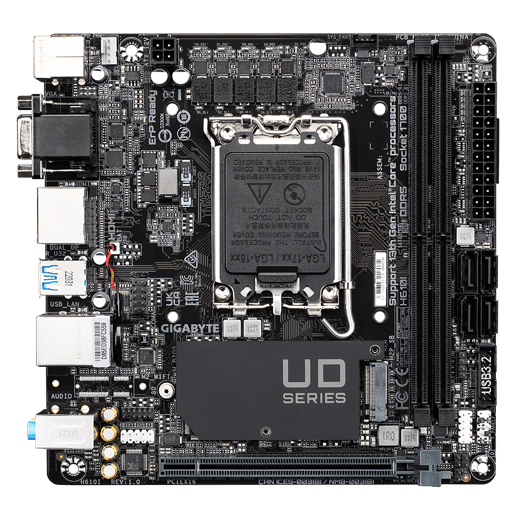

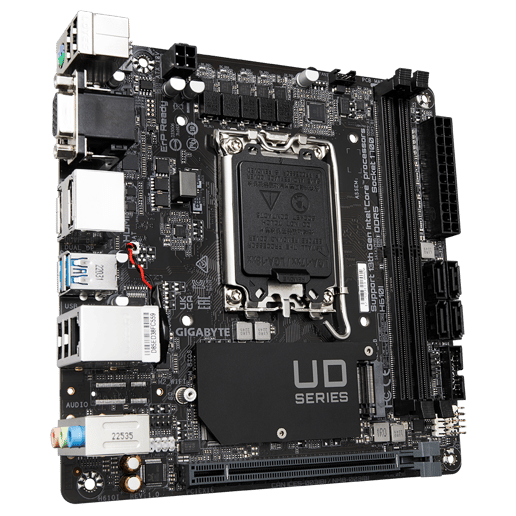

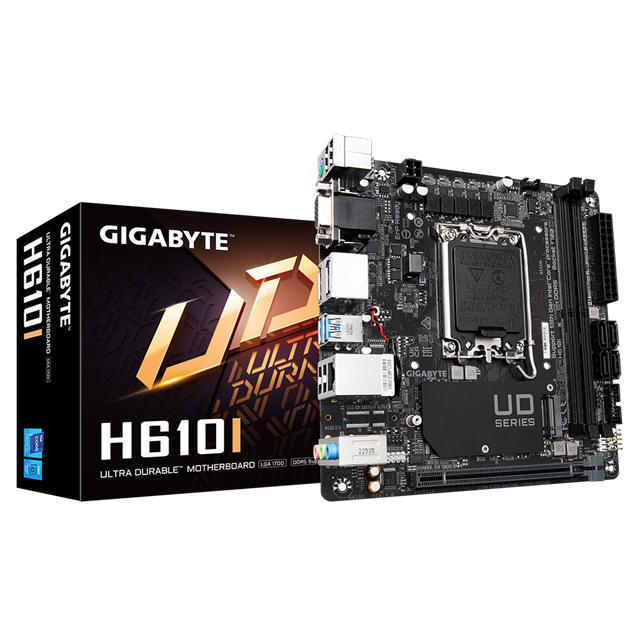

Gigabyte H610I ITX Motherboard for Intel LGA1700 CPUs

Gigabyte H610I ITX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3662

£115.99 inc VAT

  • Gigabyte H610I ITX Motherboard for Intel LGA1700 CPUs
  • Gigabyte H610I ITX Motherboard for Intel LGA1700 CPUs
  • Gigabyte H610I ITX Motherboard for Intel LGA1700 CPUs
  • Gigabyte H610I ITX Motherboard for Intel LGA1700 CPUs
  • Gigabyte H610I ITX Motherboard for Intel LGA1700 CPUs

Intel® H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Intel® GbE with cFosSpeed, Anti-Sulfur Resistor, Smart Fan 6

Gigabyte H610I ITX Motherboard for Intel LGA1700 CPUs

H610I

Intel® H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Intel® GbE with cFosSpeed, Anti-Sulfur Resistor, Smart Fan 6

£115.99 inc VAT

Available for delivery from Tomorrow

or Click & Collect from Monday 16th December

Hurry, only 1 left!

Order within

Buying in bulk? Contact our business team.

Key Features:

  • ITX Form Factor
  • Intel H610 Chipset
  • Socket 1700
  • DDR5 (Max: 64GB / 2 slots)
  • 1 x M.2 & 6 x USB & 4 x SATA
  • HDMI, Display Port and VGA
CCL Code: MBD3662
Overview

4+1+1 Phases Hybrid Power Design

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

Support for DDR5 XMP Up to 5600MHz and Beyond

GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5600MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.

Shielded Memory Routing

All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Hybrid Cores Optimization

With new Intel Hybrid technology, GIGABYTE exclusively creates two new "CPU Upgrade" in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.

Intel® GbE LAN with cFosSpeed Internet Accelerator Networking

Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

NVMe PCIe Gen3 x4 M.2 Connector

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Solid Pin Power Connectors

H610 motherboards feature solid plated ATX 24pin & ATX 12V 4pin power connectors to offer a stable power supply during CPU overloading.

Main Features

  • Supports Intel Core 14th/ 13th /12th processors
  • Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
  • 4+1+1 Hybrid Digital VRM Design
  • Intel GbE LAN with cFosSpeed Internet Accelerator Software
  • NVMe PCIe 3.0 x4 M.2
  • High Quality Audio Capacitors and Audio Noise Guard
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design
Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
64-bit Support Yes
Socket LGA1700

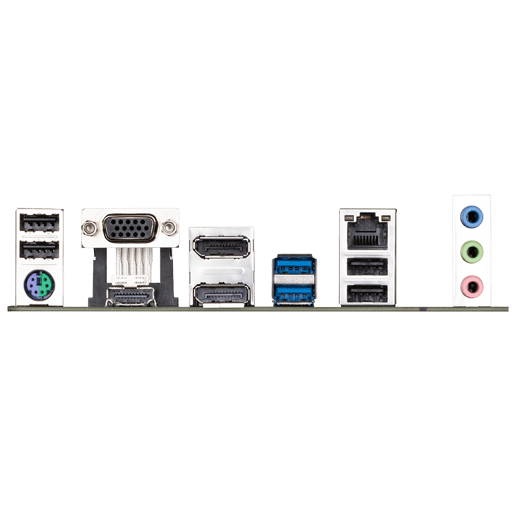

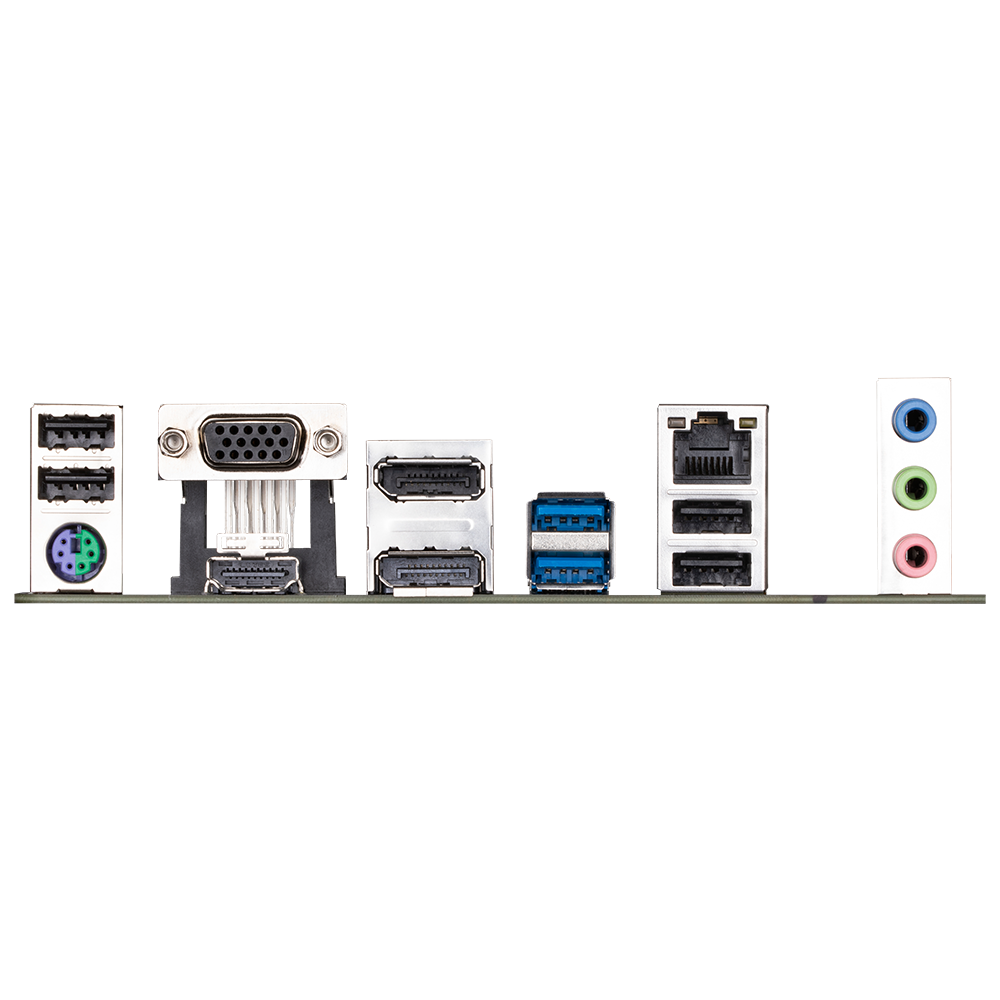

Rear Panel I/O Ports

USB Ports 2 x USB 3.0
4 x USB 2.0
DisplayPorts 2 x DisplayPort 1.2
HDMI Port 1 x HDMI 2.1
VGA Port 1 x D-Sub
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
2 x System fan headers
Serial Connectors 2 x COM headers
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Power Connector Port 1 x 24-pin ATX
1 x 4-pin EPS
Other Connectors 1 x M.2 slot, Socket 3, M Key, Type 2280 (PCIe Gen3)
1 x 4-pin RGB LED header

Memory

Memory Bus Speed Up to 5600 MT/s
Memory Type DDR5
Maximum RAM 64 GB
Memory Slot 2 x DIMM

Motherboard

Northbridge Intel H610
RAID Supported No
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16 slot

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek

Warranty

Warranty 3 Years

Network

Integrated Network Intel
Network Speeds Supported Up to 1 Gbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor Mini-ITX Motherboard
Width 170 mm
Length 170 mm

Key Features

Maximum NVMe M.2 ports 1
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
Wireless Network No
Motherboard Width 170 mm
Motherboard Height 170 mm
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection Yes
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ITX
Motherboard (EPS) Power Connectors 4-Pin
Motherboard Chipset Intel H610
Thunderbolt No
Motherboard Model Gigabyte H610I
USB 3.1 Support No
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control Gigabyte RGB Fusion
RGB Header Type 4-Pin RGB
Addressable RGB No
Internal USB Type-C Header No
Power Requirement (auto) 30 W
Max Memory Speed Supported (Non-overclocked) 5600 MT/s
CPU Power Pins (female) 4
Total M.2 Slots 1

Item Details

Manufacturer Gigabyte
Manufacturer Code H610I
EAN 4719331855222
UPC 889523037676
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code H610I
