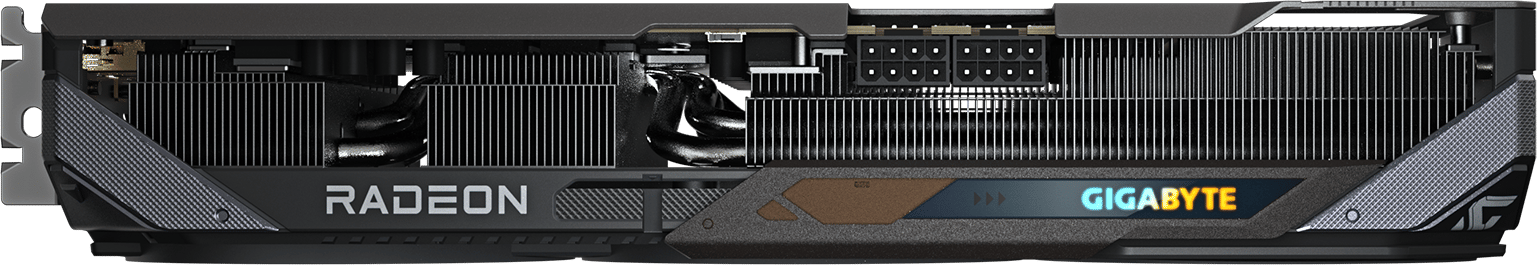

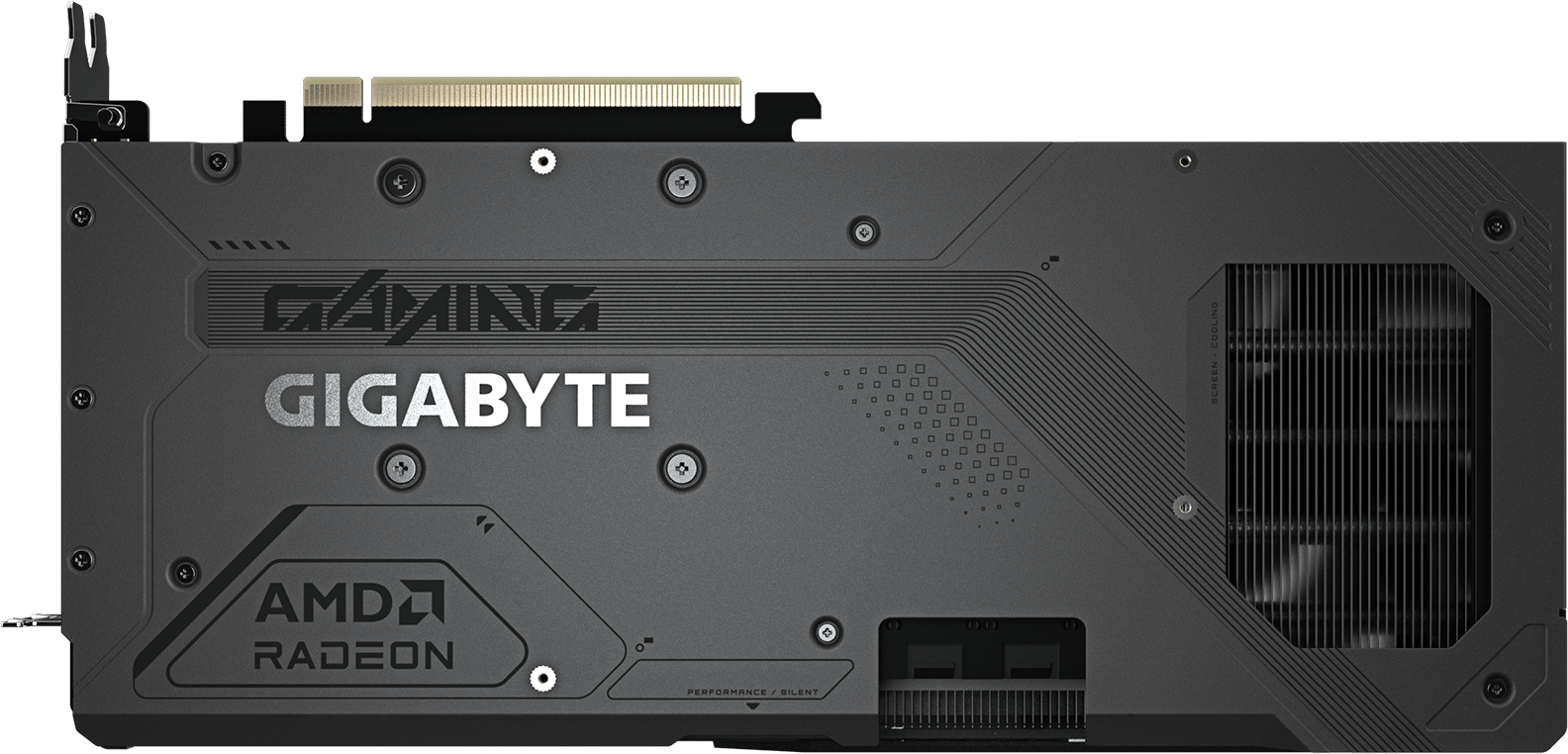

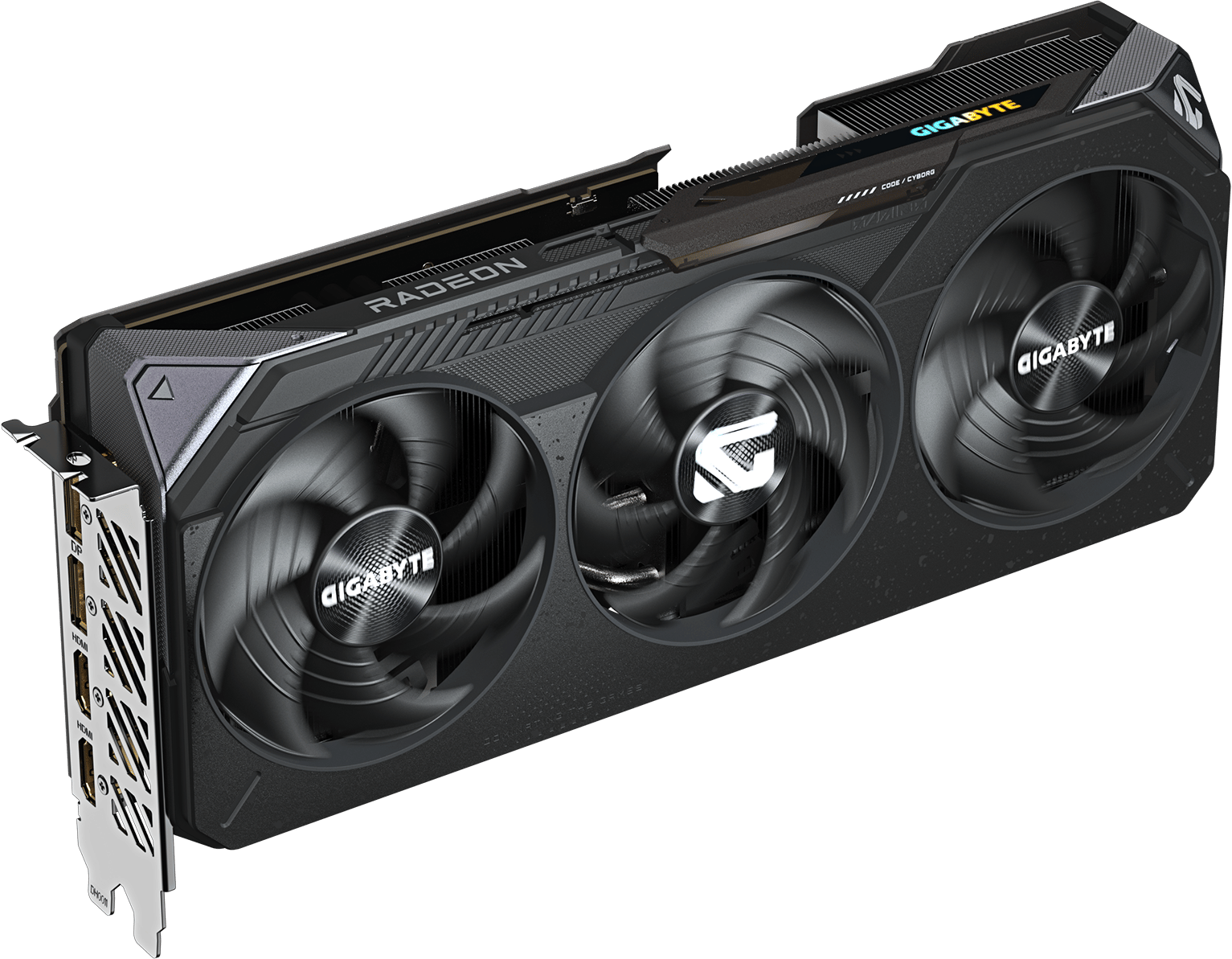

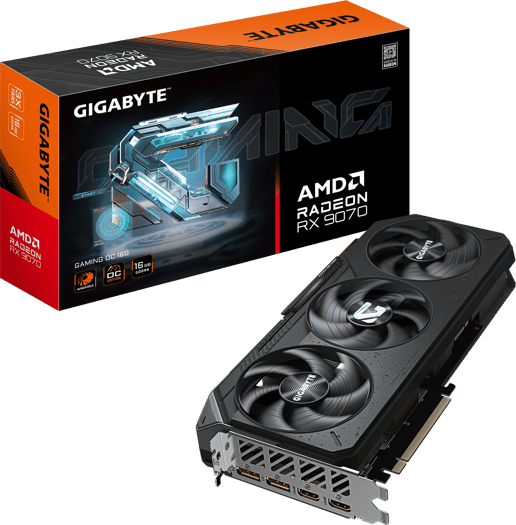

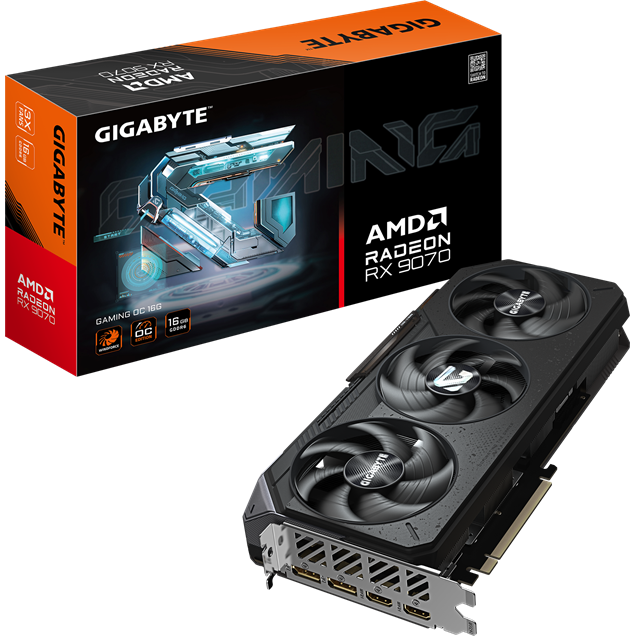

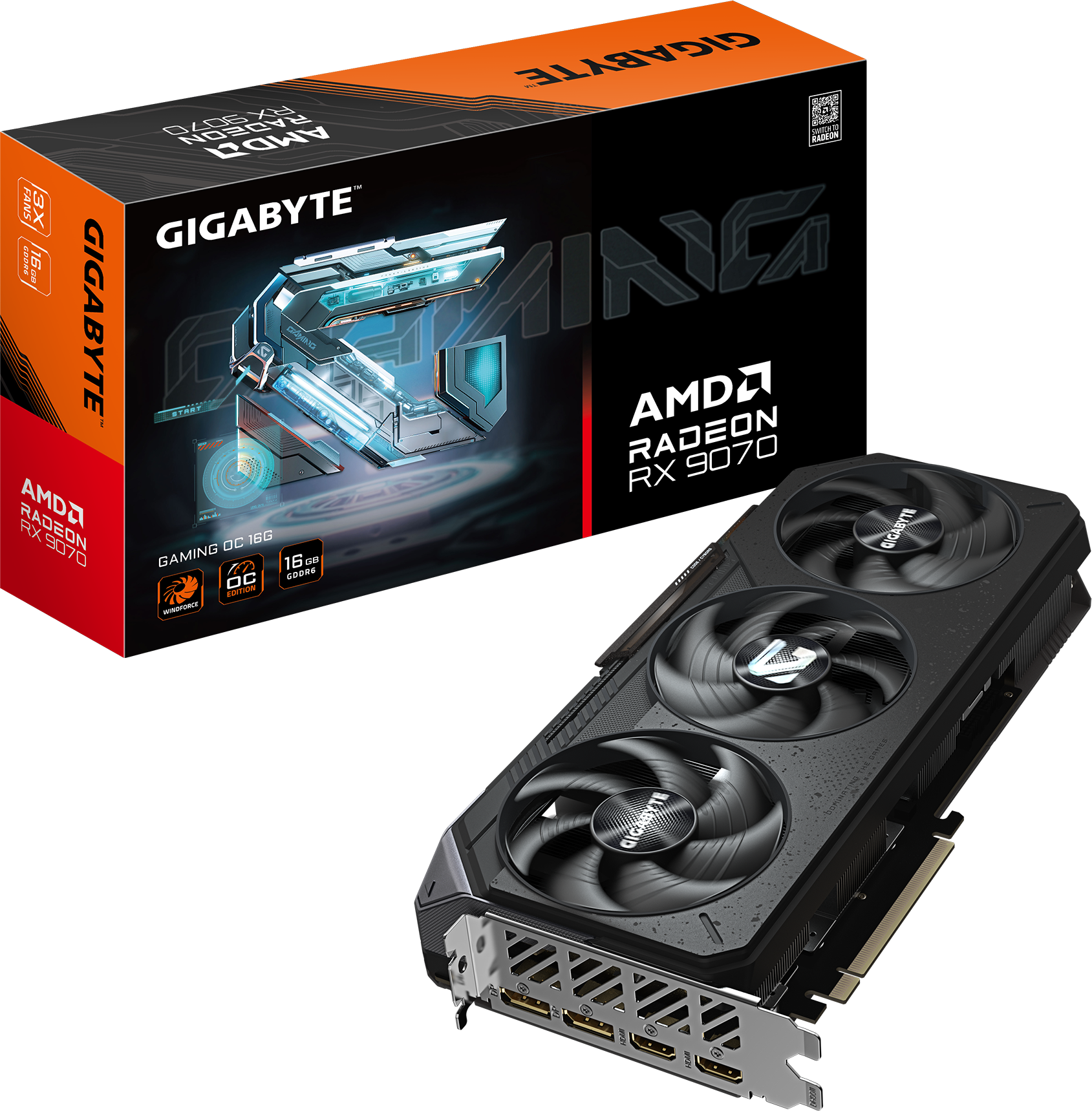

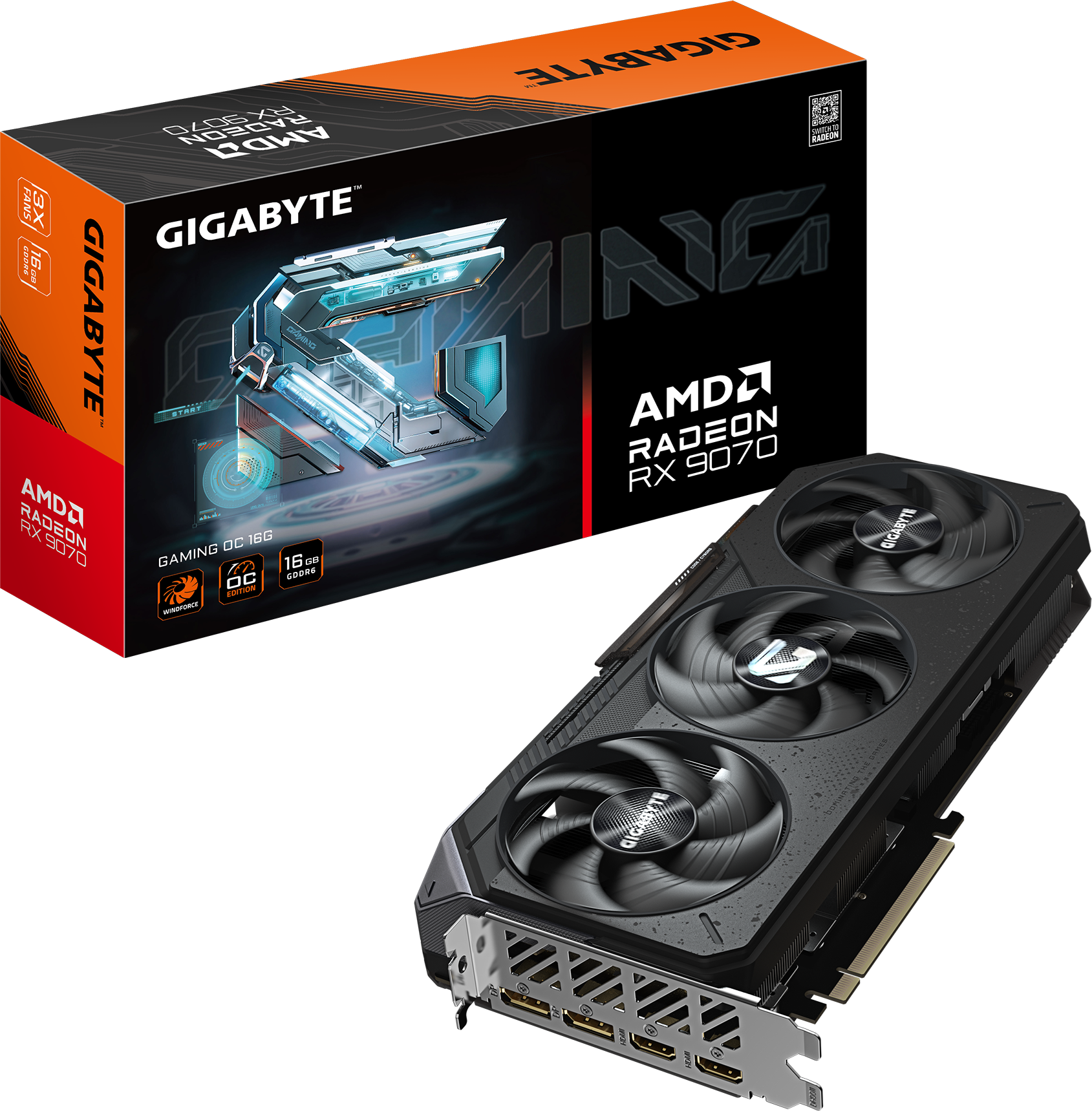

Gigabyte Radeon RX 9070 GAMING OC 16GB GDDR6 Graphics Card

Gigabyte Radeon RX 9070 GAMING OC 16GB GDDR6 Graphics Card

CCL Code: VGA7301

Discontinued

Gigabyte Radeon RX 9070 GAMING OC 16GB GDDR6 Graphics Card

GV-R9070GAMING OC-16GD

Key Features:

  • 16GB GDDR6 Graphics Memory
  • PCI Express 5.0 x16 Interface
  • Overclocked Edition
  • Outputs - HDMI and Display Port

This item has very limited stock [more info]

CCL Code: VGA7301

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

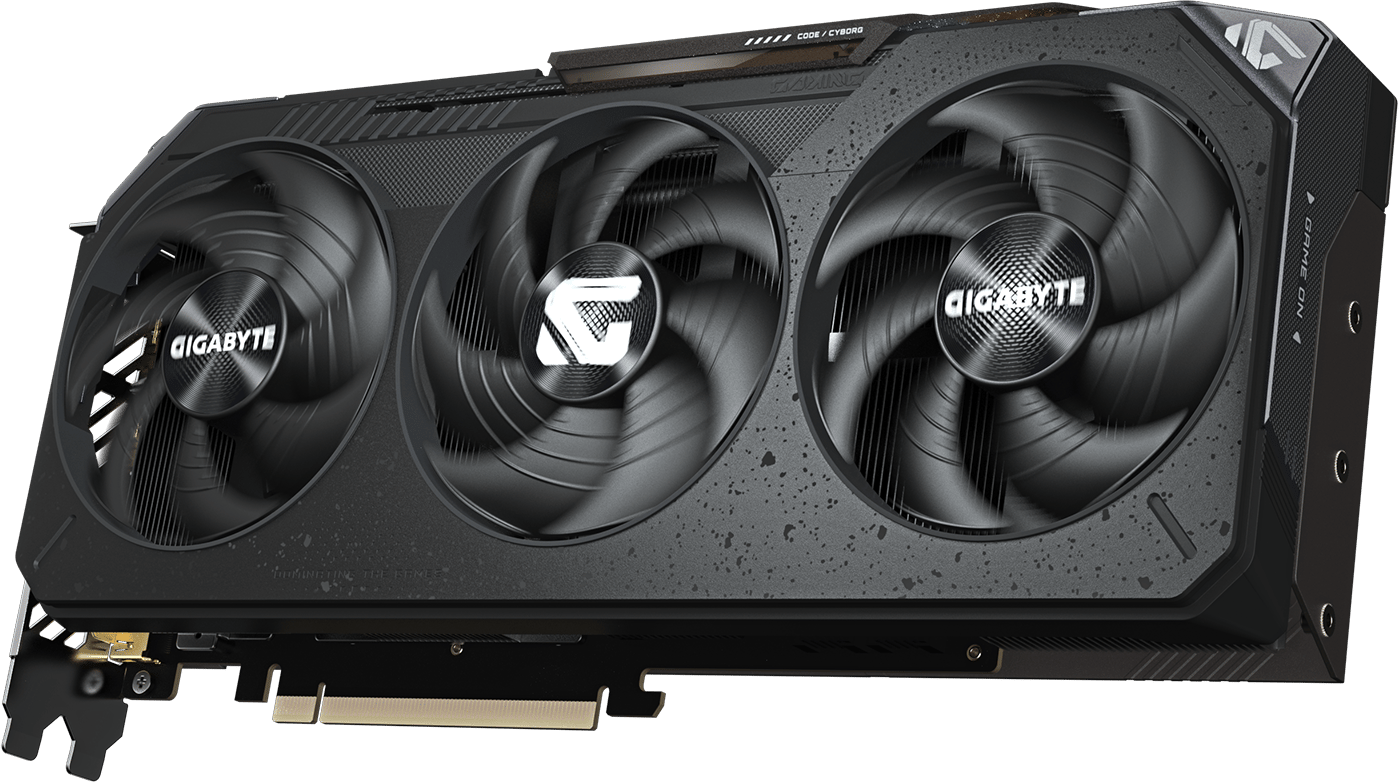

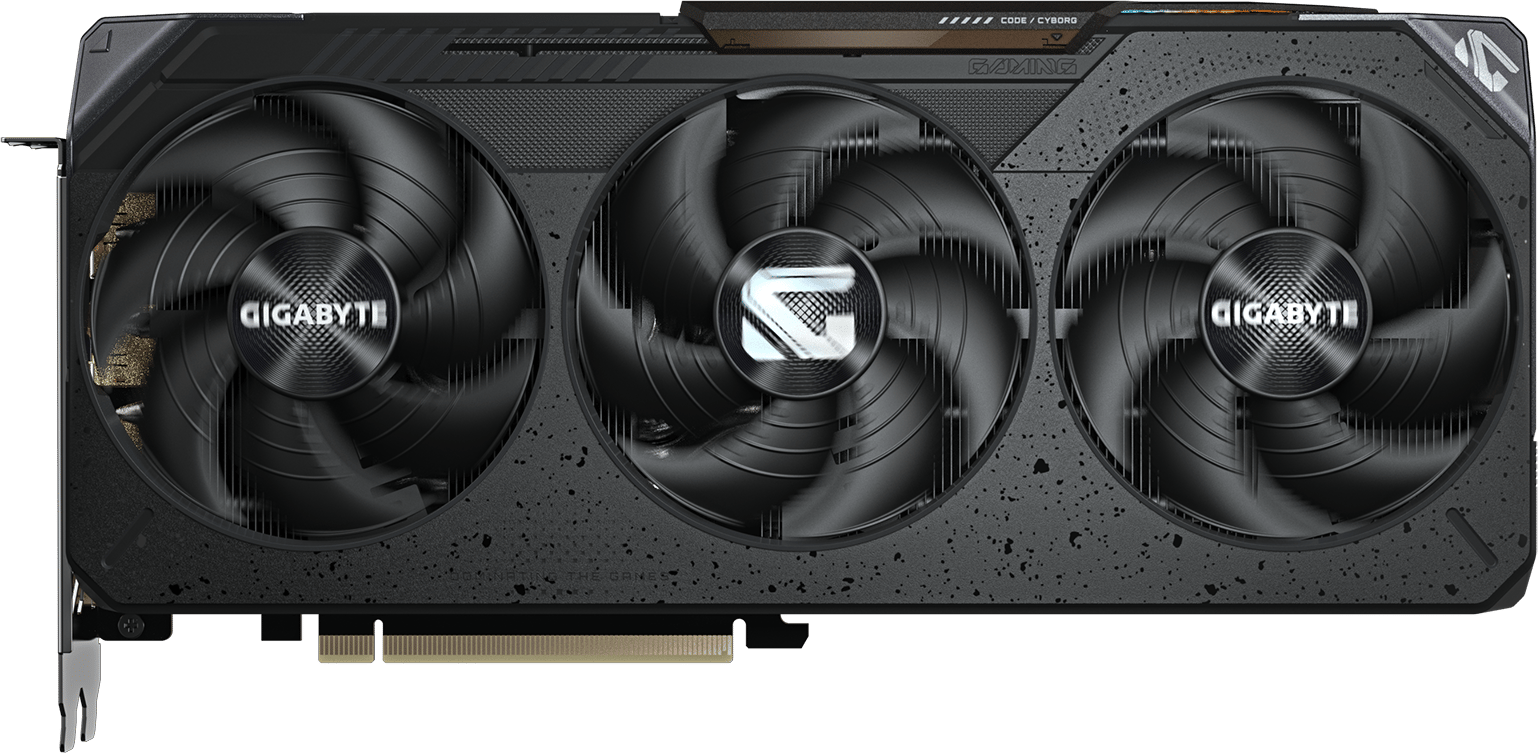

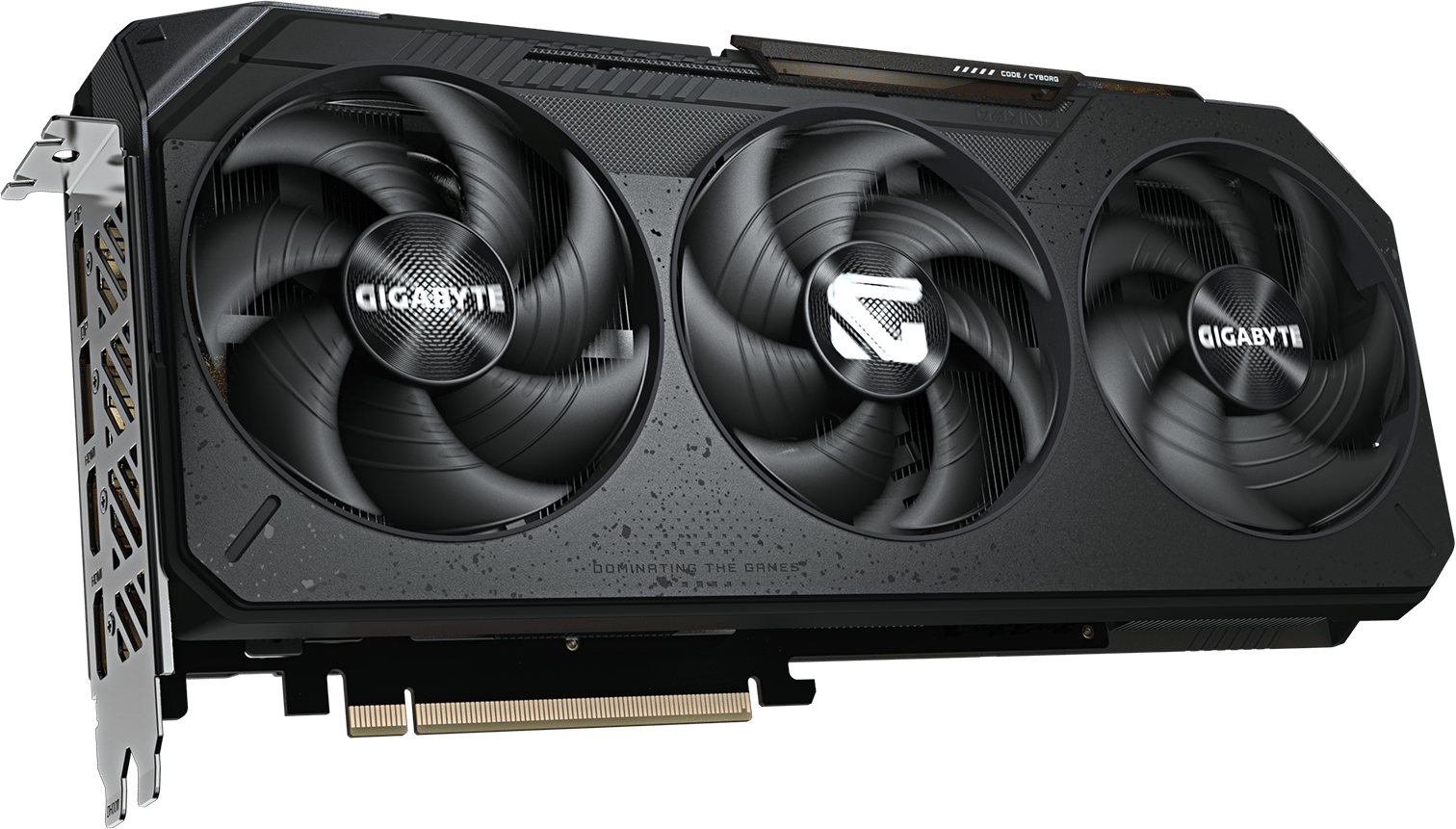

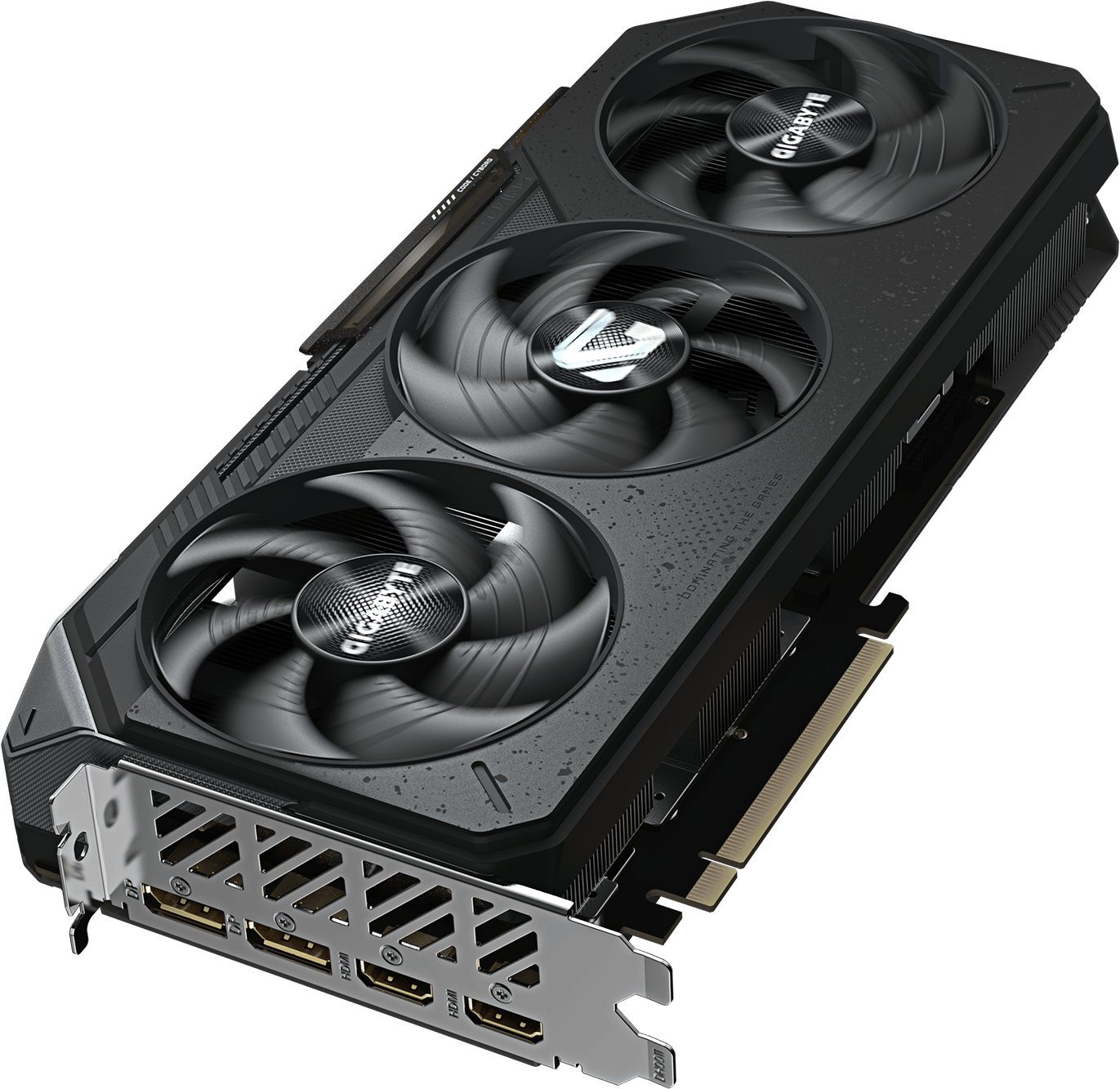

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN

The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Main Features

  • Powered by Radeon RX 9070
  • Integrated with 16GB GDDR6 256bit memory interface
  • WINDFORCE cooling system
  • RGB Lighting
  • Dual BIOS (Performance / Silent)
  • Reinforced structure
Specifications

GPU

Chipset Manufacturer AMD
Chipset Model Name Radeon RX
Chipset Model Number 9070
Chipset Additional Information GAMING OC
Base Chip Clock 1330 MHz
Boost Chip Clock Game Clock: 2210 MHz
Boost Clock: Up to 2700 MHz
Number of Cores 3584

Memory

Memory Size 16384 MB
Memory Clock 20 Gbps
Memory Type GDDR6
Memory Width 256 bit

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 5.0 x16
HDMI Port 1 x HDMI 2.1b
DisplayPort 3 x DisplayPort 2.1a

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320

System Requirements

System Requirements 1 x PCI Express 5.0 x16 slot

Electrical

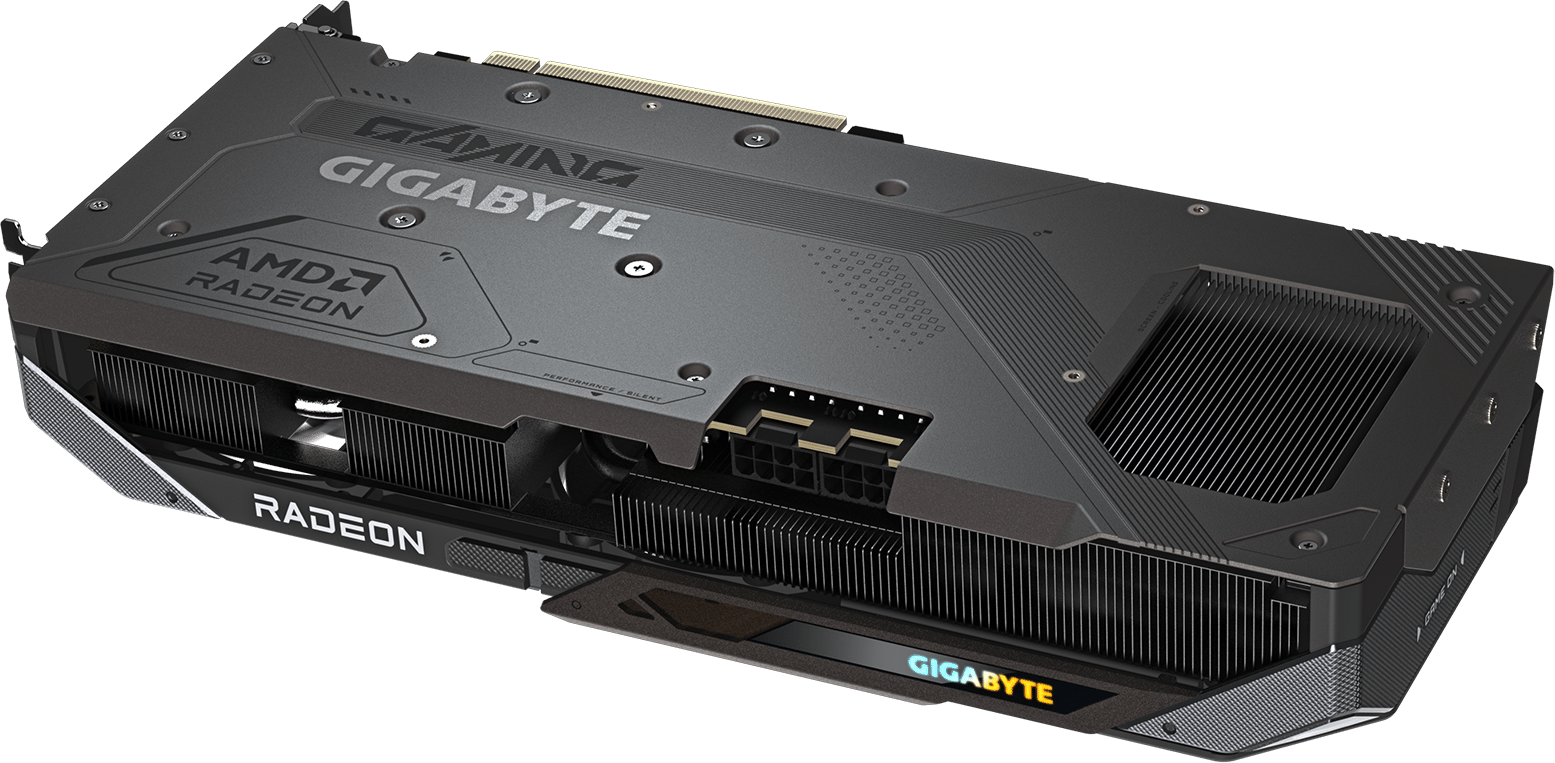

Power Connector 2 x 8-pin PCIe
Power Consumption 220 W
Recomended Power Supply 750 W

Physical

Form Factor Graphics Card
In The Box Graphics Card
Manual
Width 50 mm (2.5 slot)
Depth 288 mm
Height 132 mm

Warranty

Warranty 3 Years

Key Features

Interface Type PCI Express 5.0 x16
Config Gaming x8 (CB/CCL) No
Graphics Memory Type GDDR6
Main Colour Black
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan Inc. 0dB Mode
Low Profile No
AMD Radeon RX 9070
PCIe Pin Type 2 x 8-Pin
FreeSync Yes
Cooling Technology Dynamic Fan Inc. 0dB Mode
VR Ready AMD
GPU Length 288 mm
Card Width 3
Power Requirement (auto) 220 W
GPU Power (TDP) 220 W
Graphics card count 1
PCI Express Power Pins (female) 16
PCIe Physical Slot required 16
12VHPWR 16-pin Connector No
AI Ready Yes

Graphics

Graphics Chipset Radeon RX 9070

Item Details

Manufacturer Gigabyte
Manufacturer Code GV-R9070GAMING OC-16GD
EAN 4719331355531
UPC 889523047552
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code GV-R9070GAMING OC-16GD
