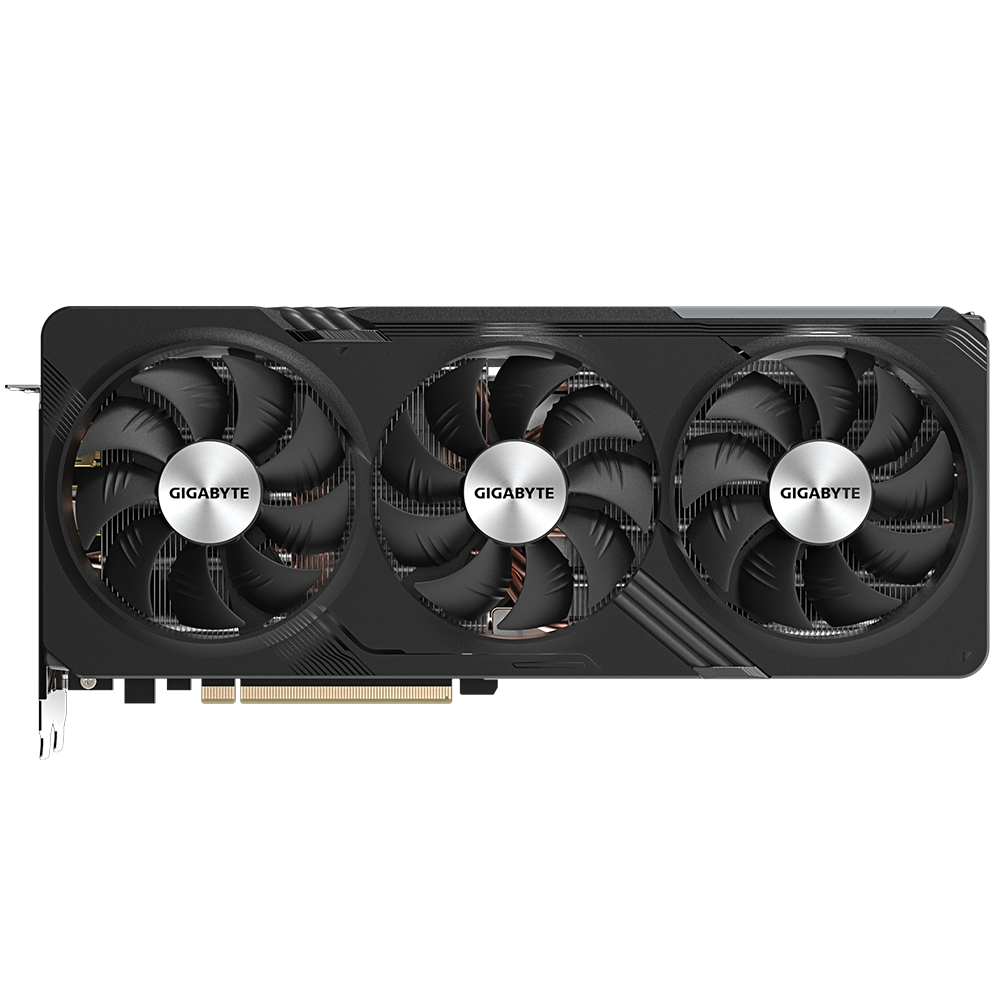

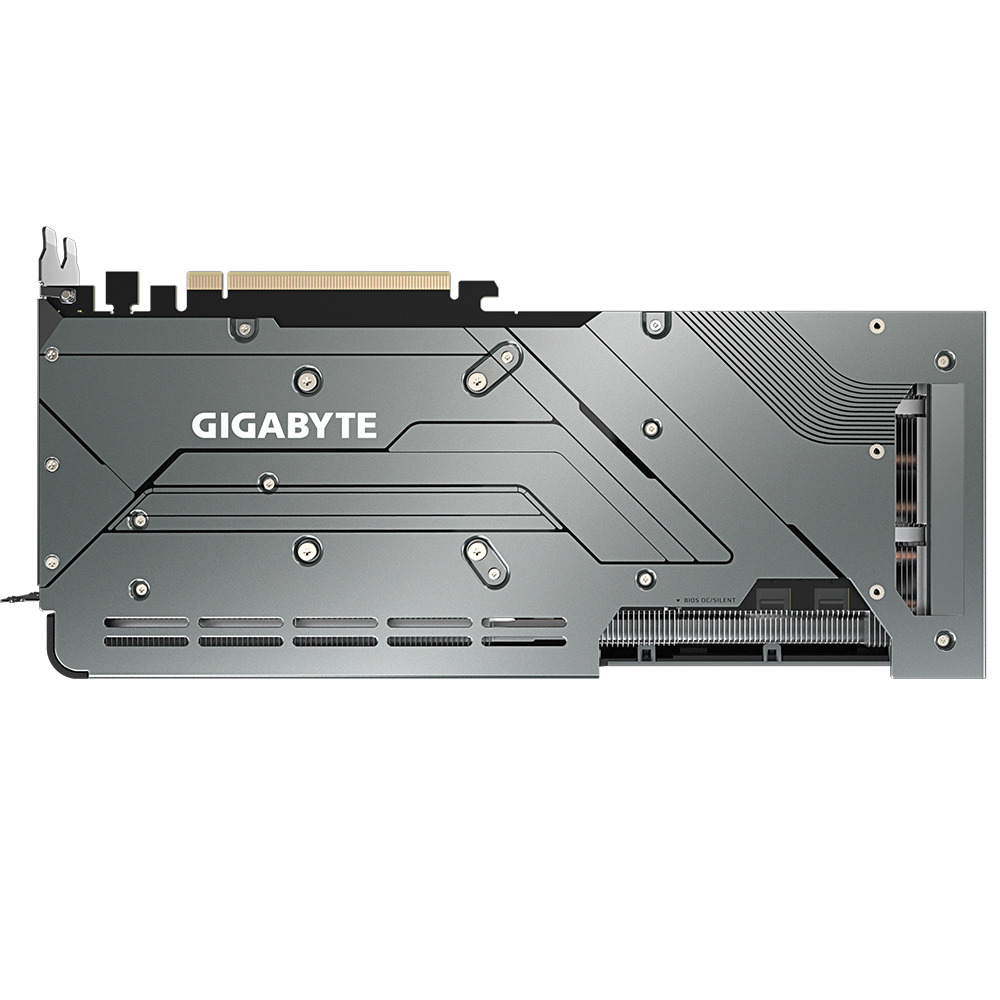

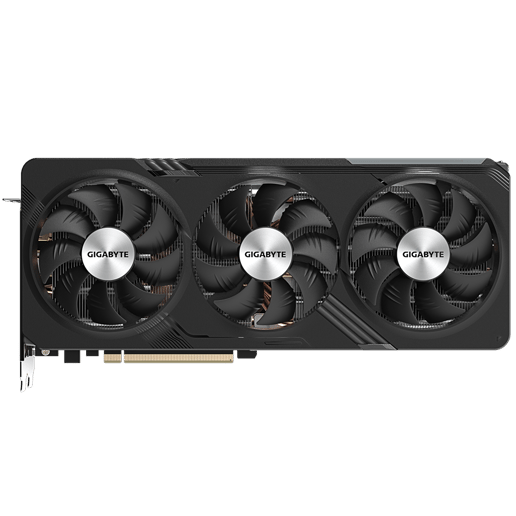

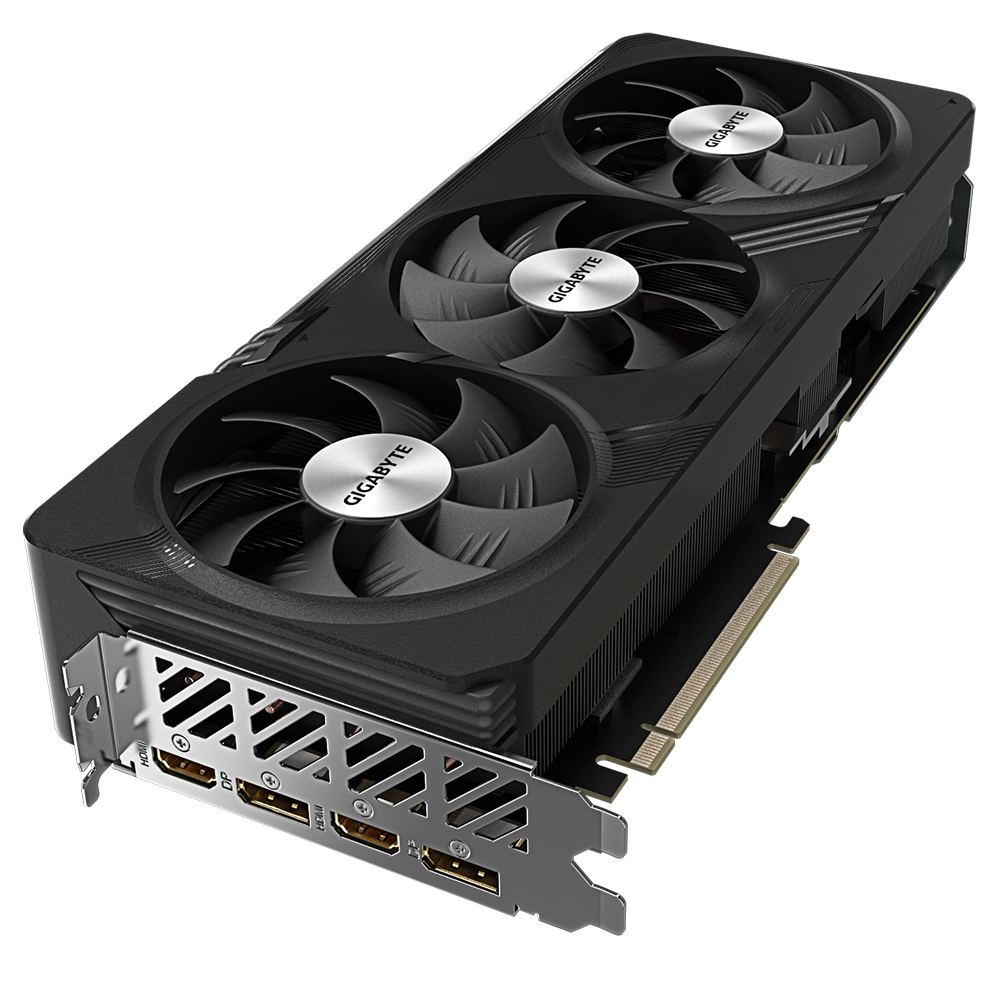

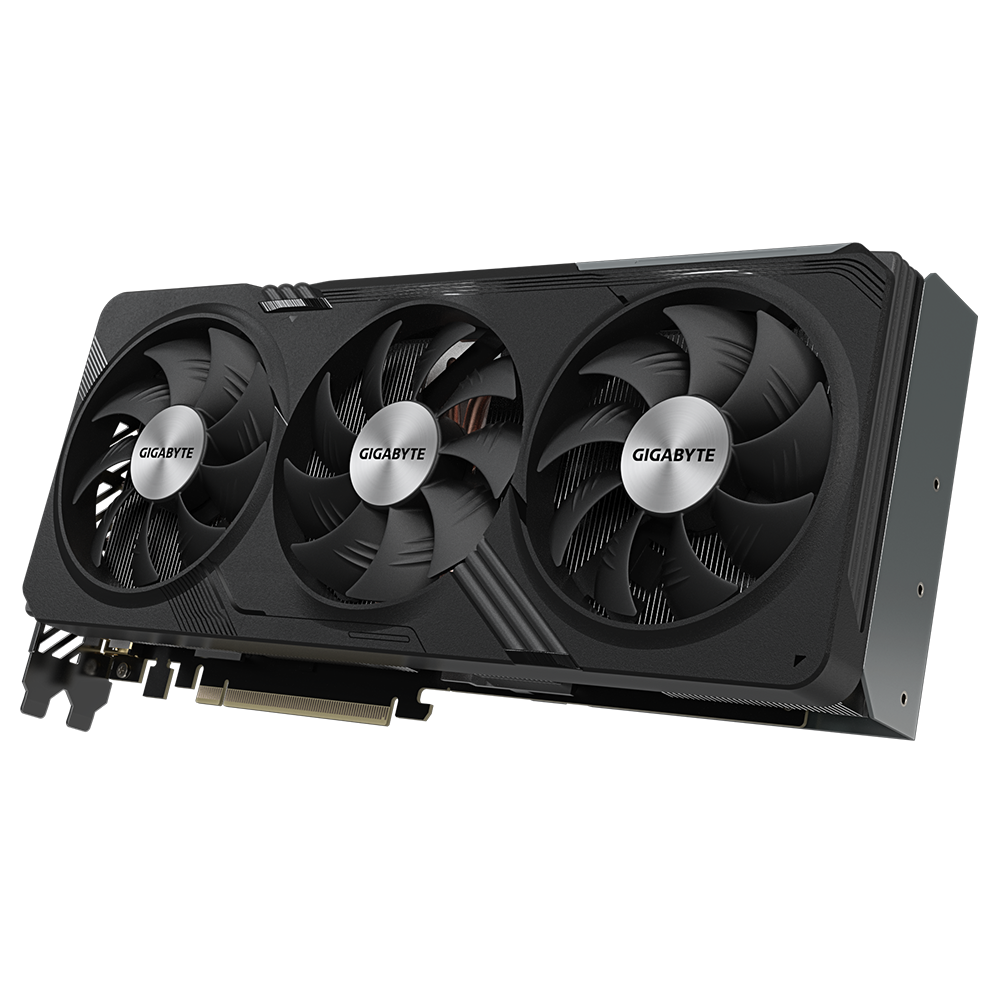

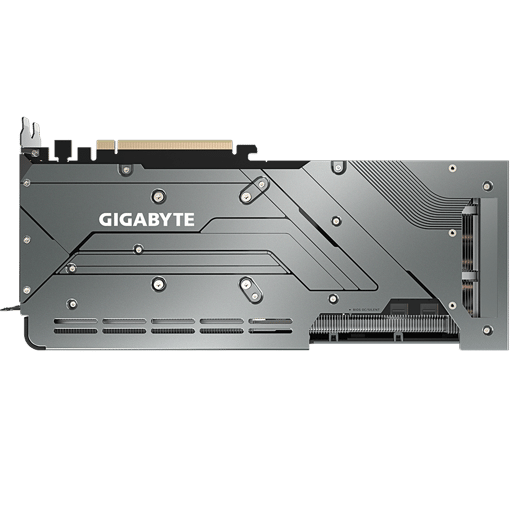

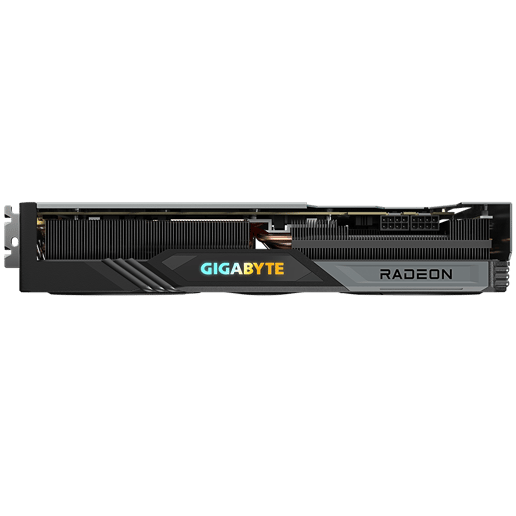

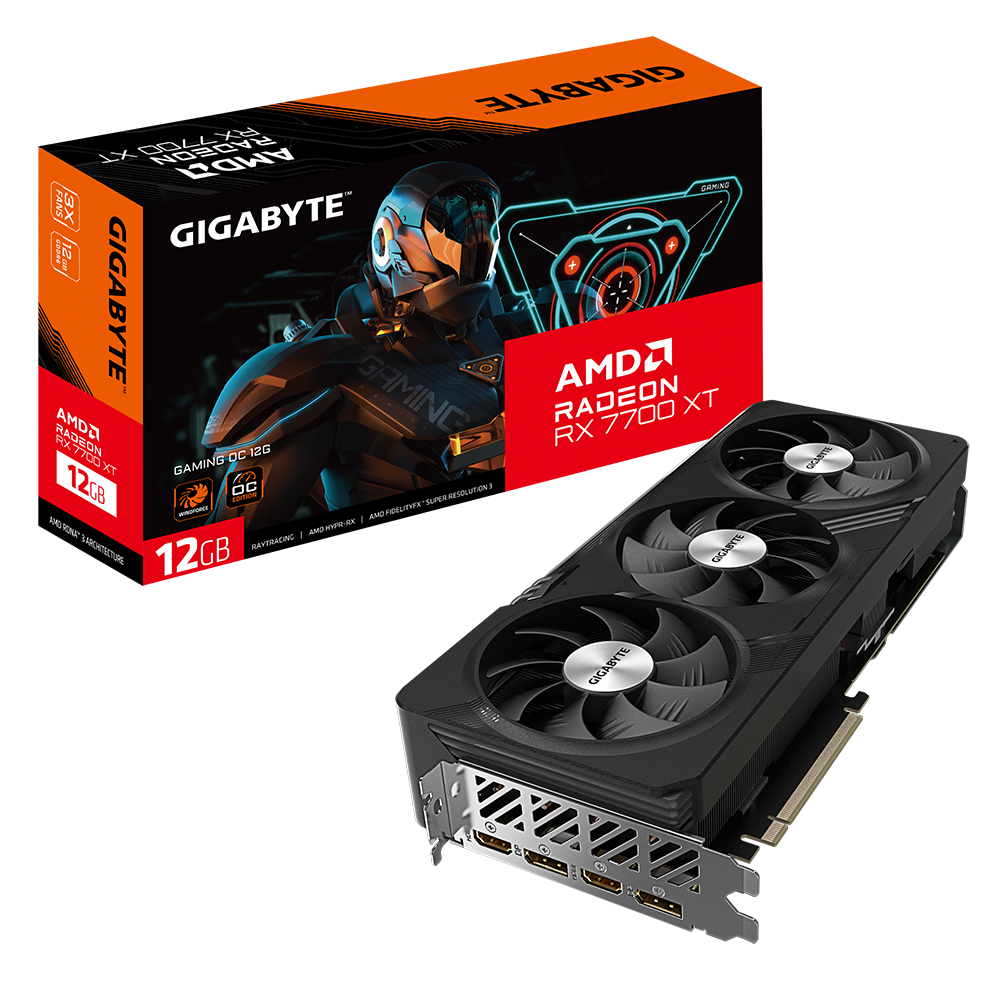

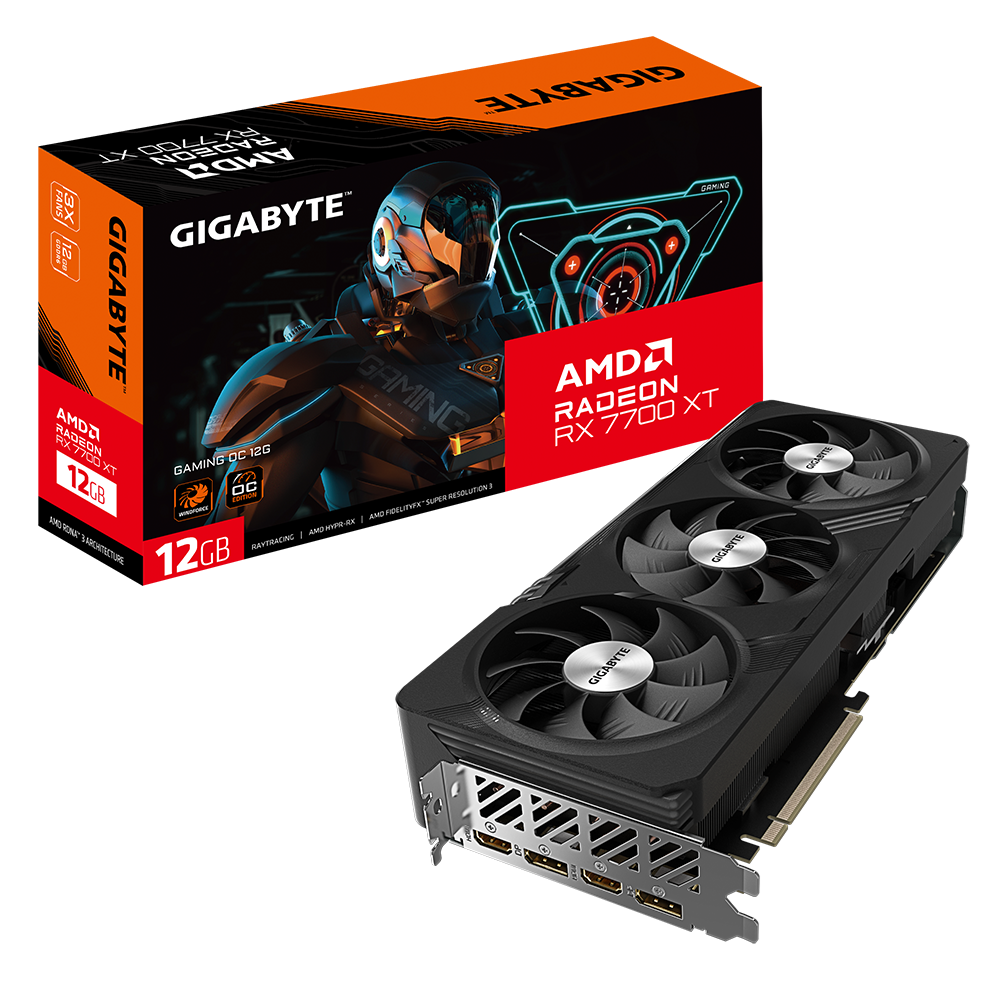

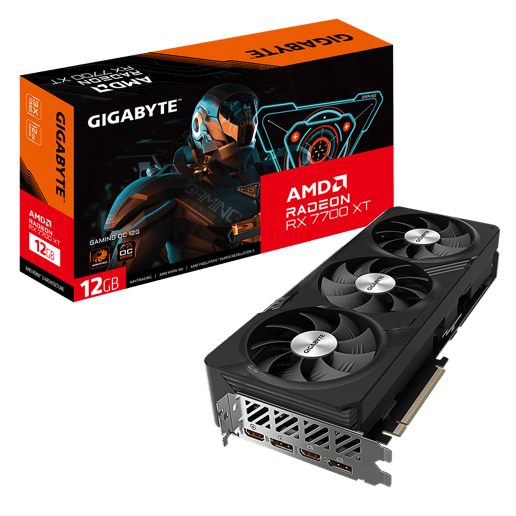

Gigabyte Radeon RX 7700 XT GAMING OC 12GB GDDR6 Graphics Card

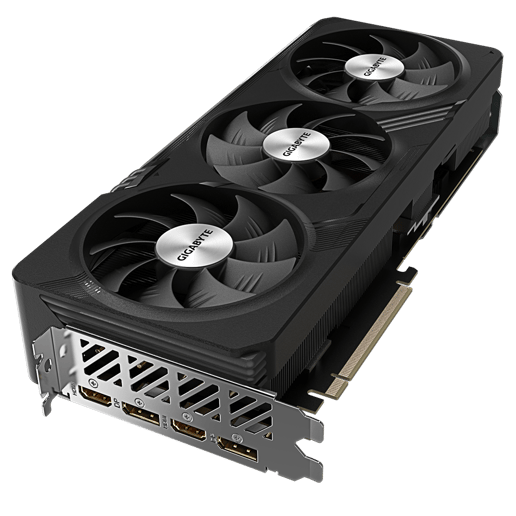

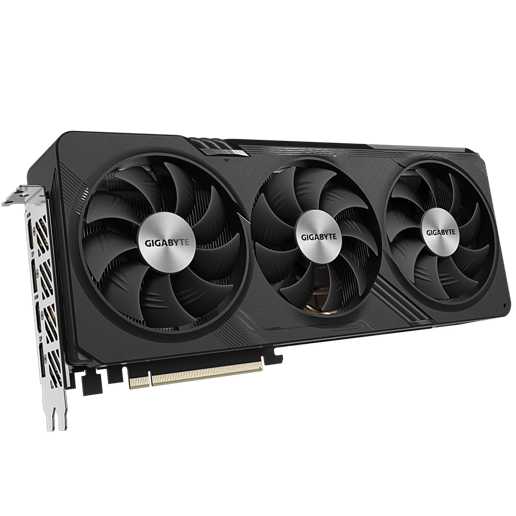

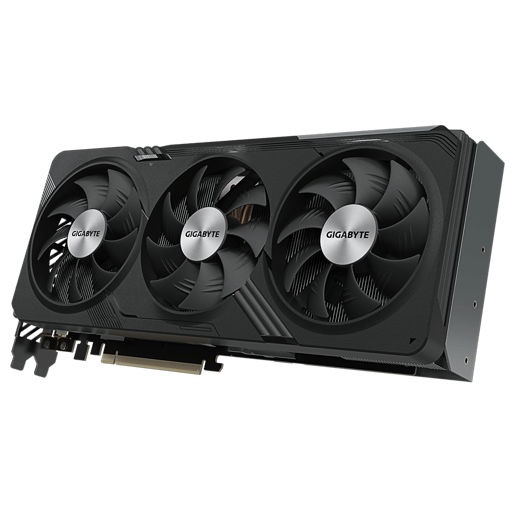

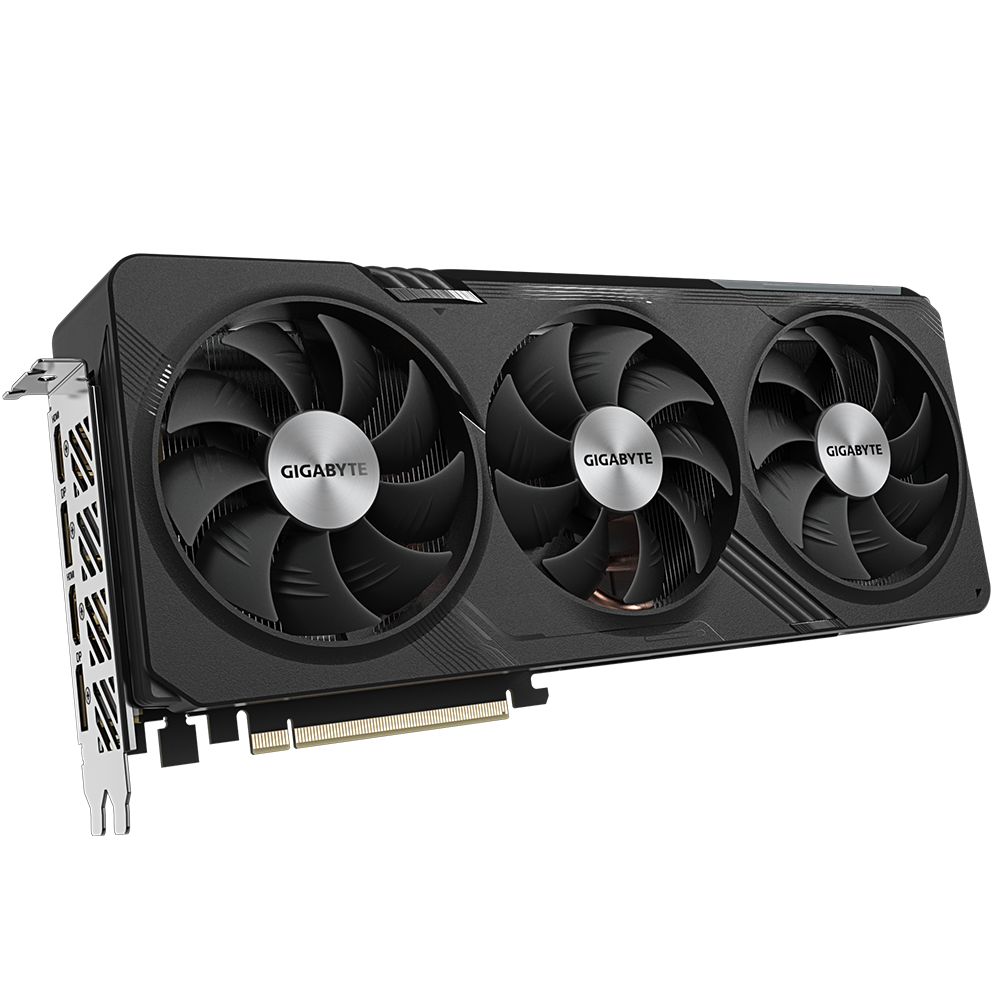

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

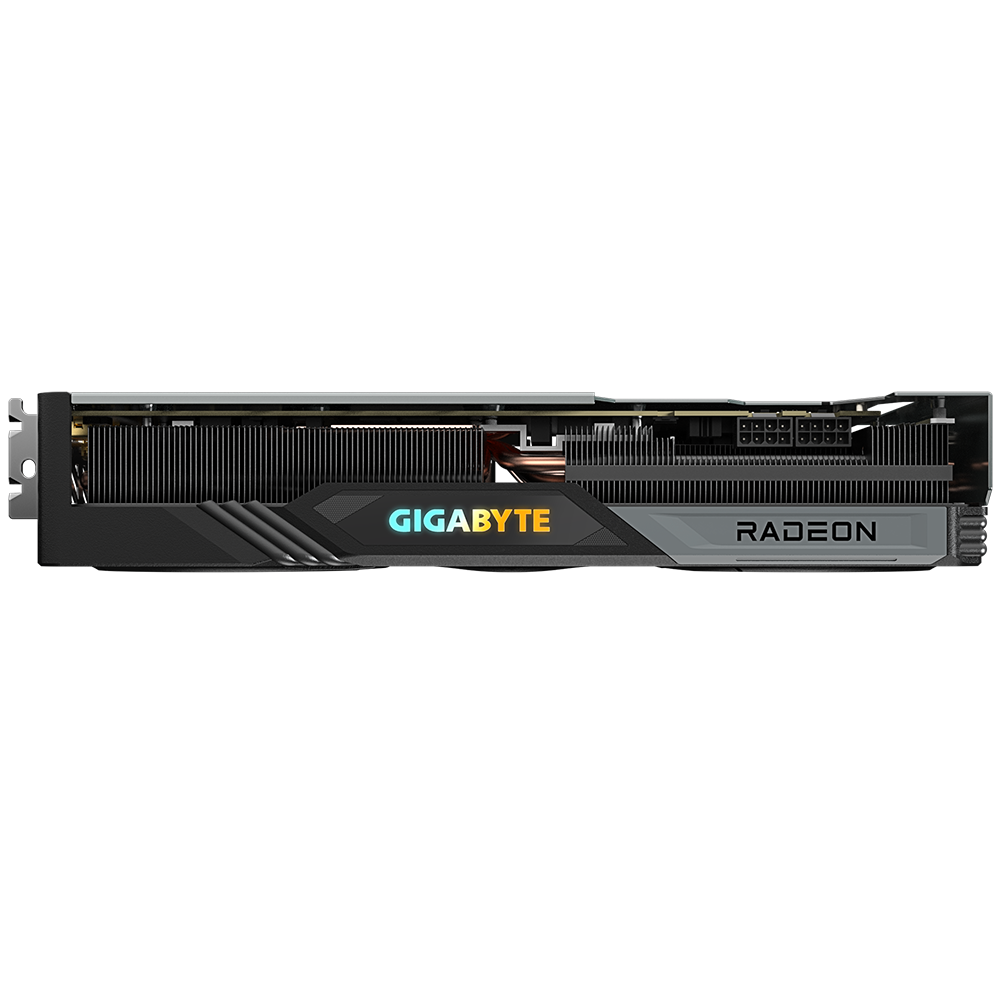

RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GPU
- Chipset Manufacturer: AMD
- Chipset Model Name: Radeon RX
- Chipset Model Number: 7700 XT
- Chipset Additional Information: GAMING OC
- Base Chip Clock: 2276 MHz
- Boost Chip Clock: 2599 MHz
- Number of Cores: 3456
Memory
- Memory Size: 12 GB
- Memory Clock: 18 Gbps
- Memory Type: GDDR6
- Memory Width: 192 bit

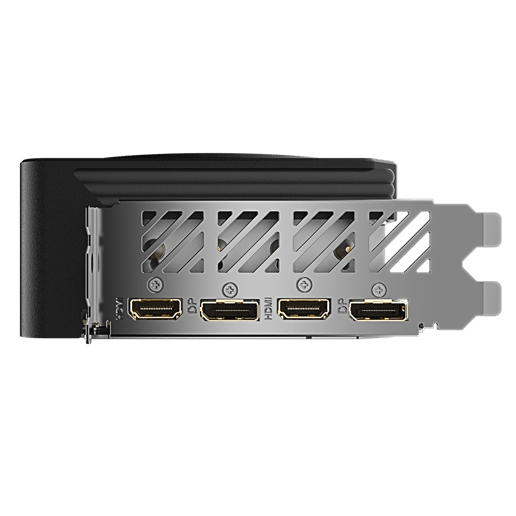

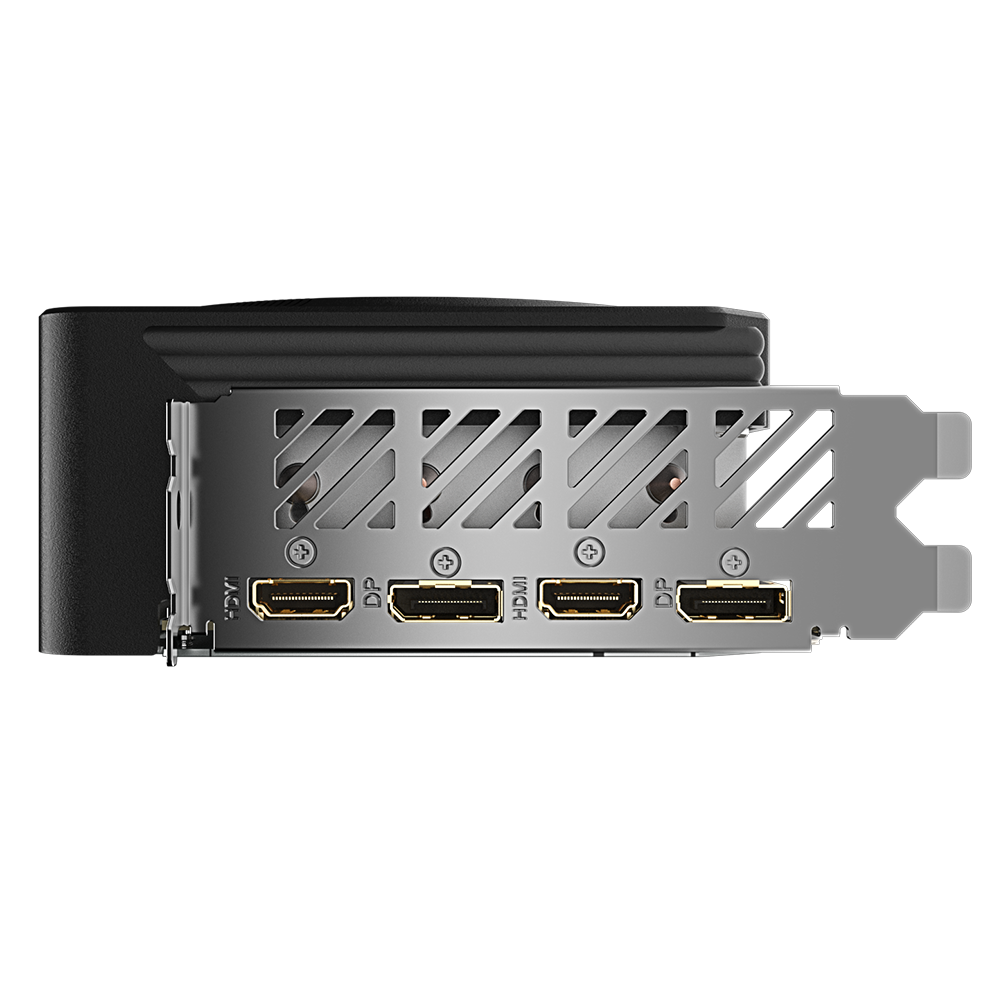

Interfaces/Ports
- Video Card Bus Type: PCI Express
- Video Card Bus Version: 4.0 x16
- HDMI Port: 2 x HDMI 2.1
- DisplayPort: 2 x DisplayPort 2.1
Resolution
- Multiple Monitor Support (Max): Yes (4)
- Maximum Resolution: 7680 x 4320 pixels
System Requirements
- System Requirements: 1 x PCI Express 4.0 x16 slot
- Recommended 700W or greater PSU with 2 x 8-pin PCIe connectors
Electrical
- Power Connector: 2 x 8-pin PCIe
- Recomended Power Supply: 700 W
Physical
- Form Factor: Graphics Card
- In The Box: Graphics Card
- Quick Guide
- Width: 56 mm (Triple Slot)
- Depth: 302 mm
- Height: 130 mm
Warranty
- Warranty: 3 Years
Identifiers
- Stock Code: VGA6838
- Mfg Code: GV-R77XTGAMING OC-12GD
Warranty
- Warranty: 3 Years
