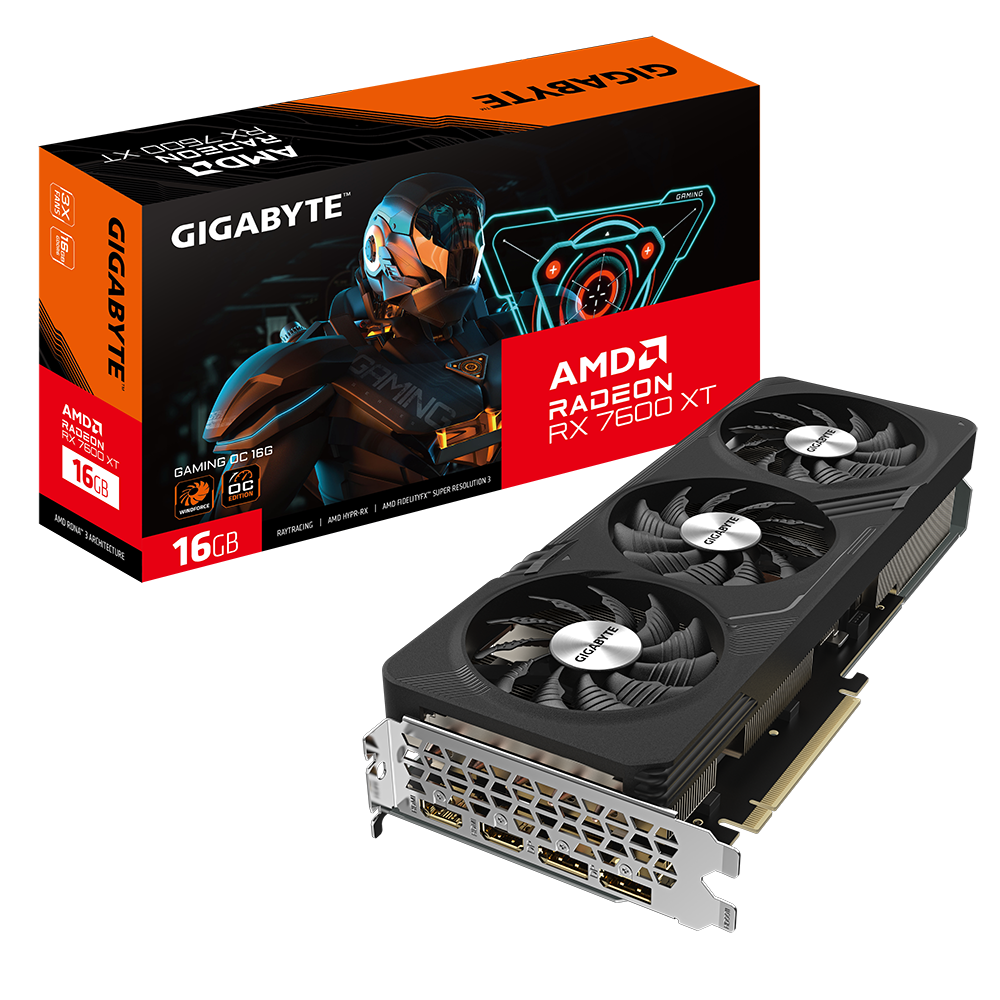

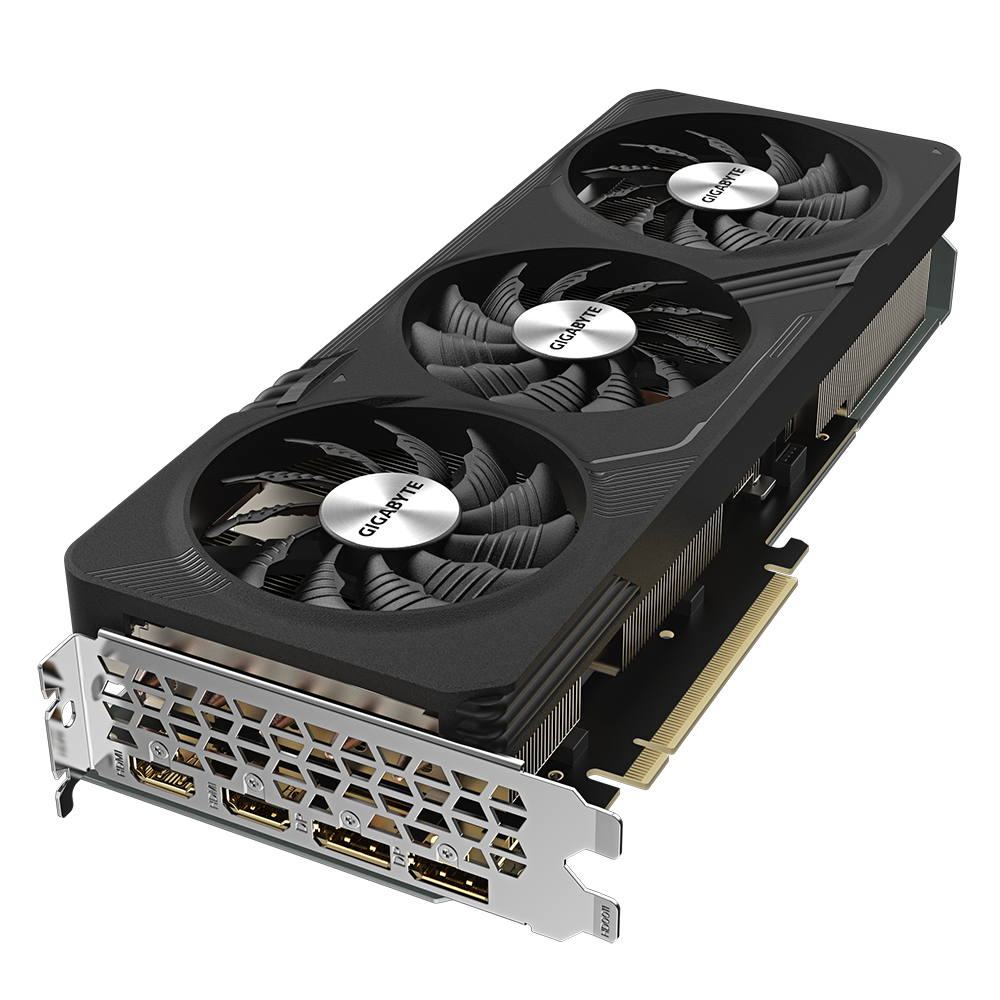

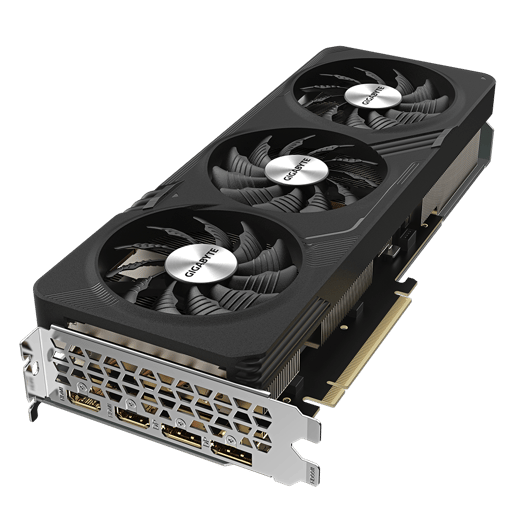

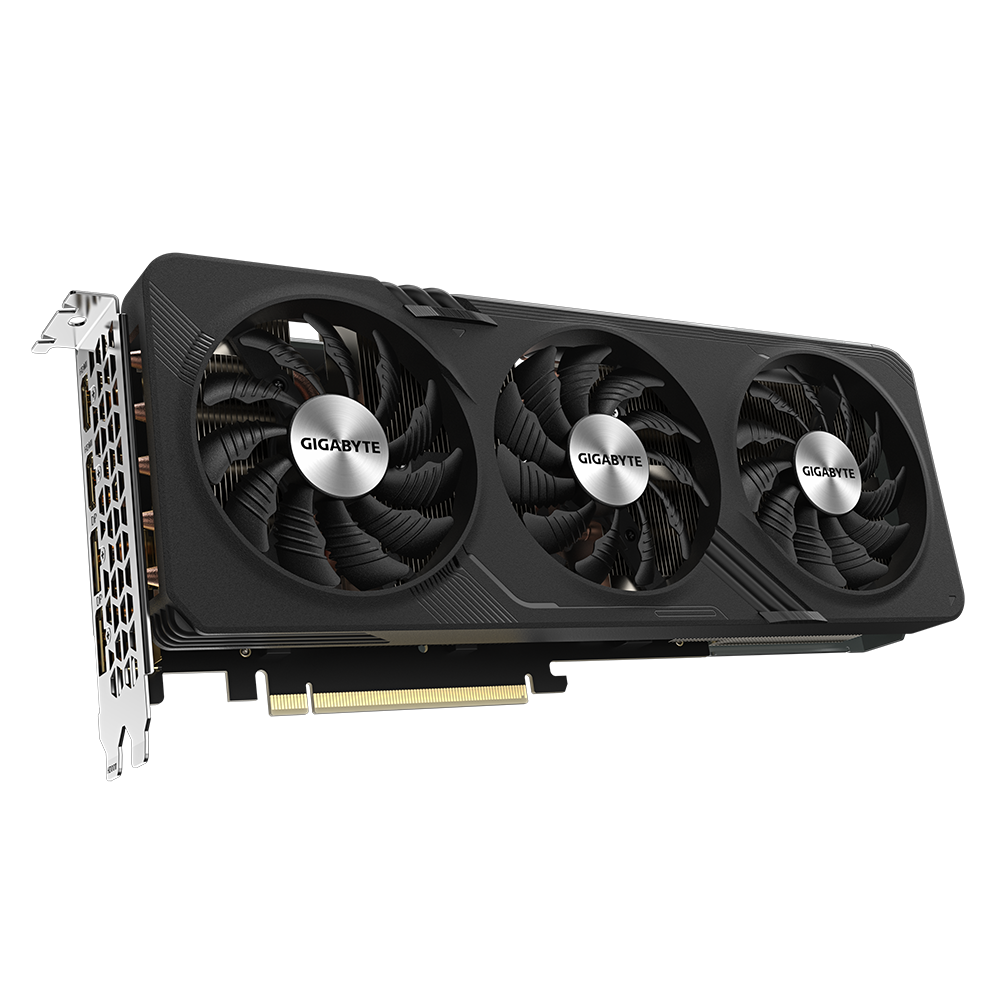

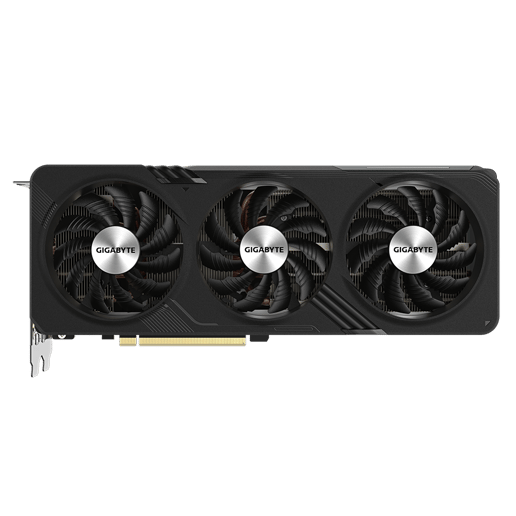

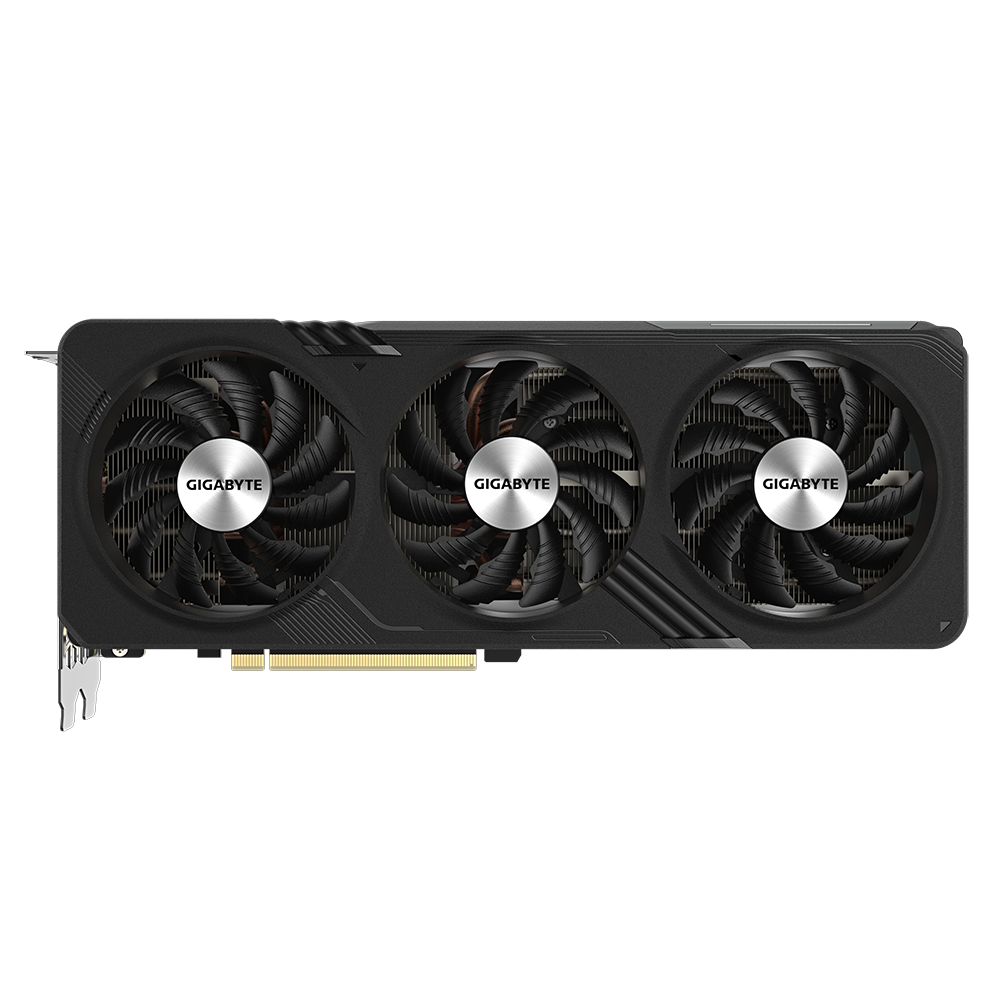

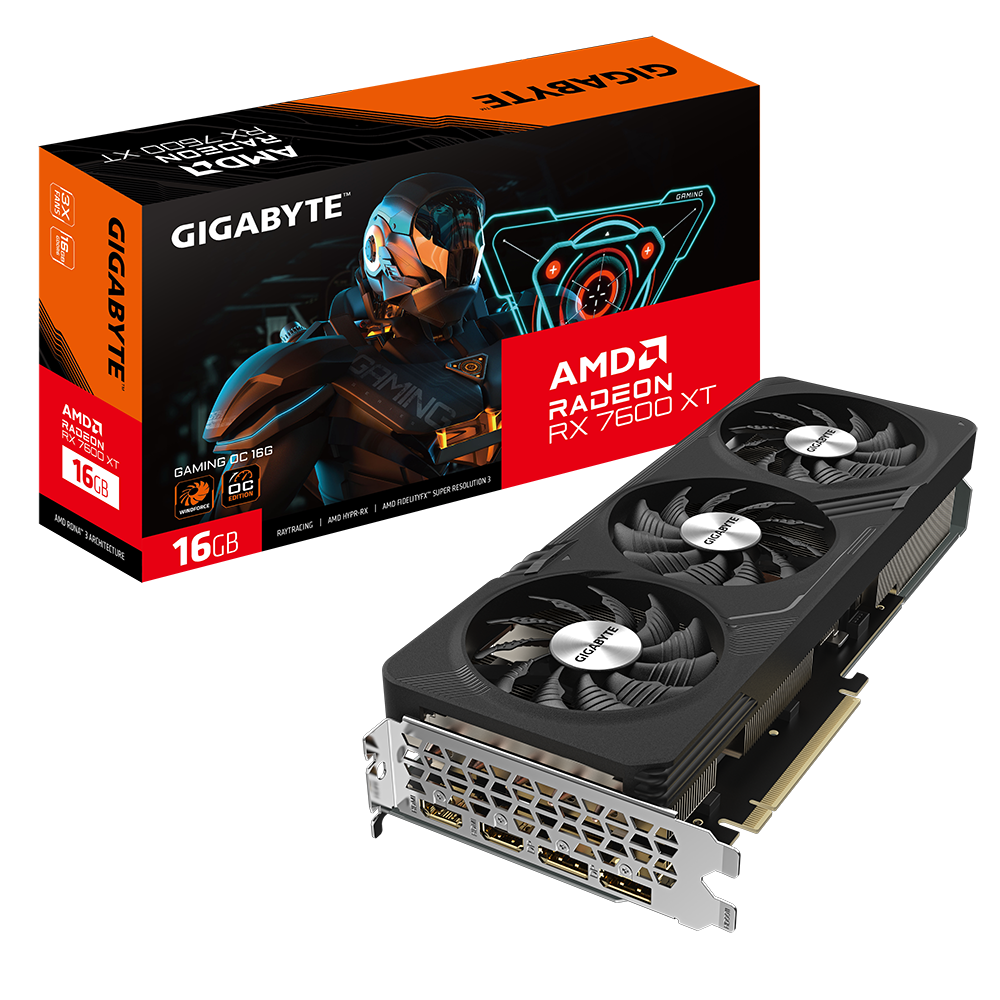

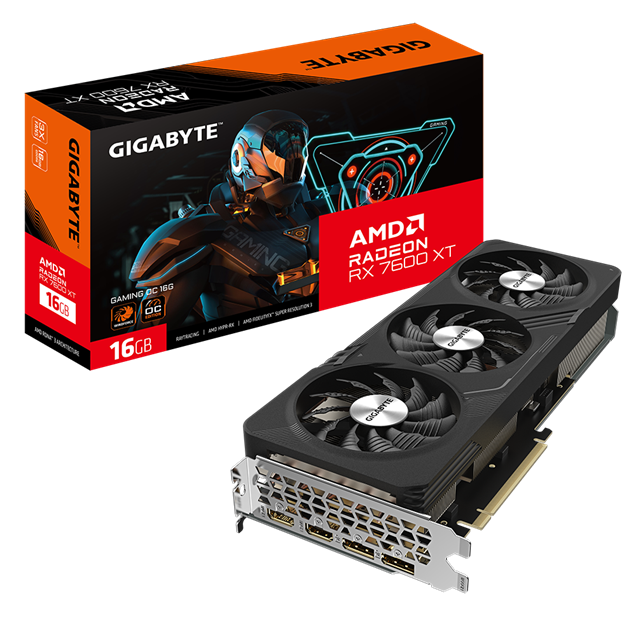

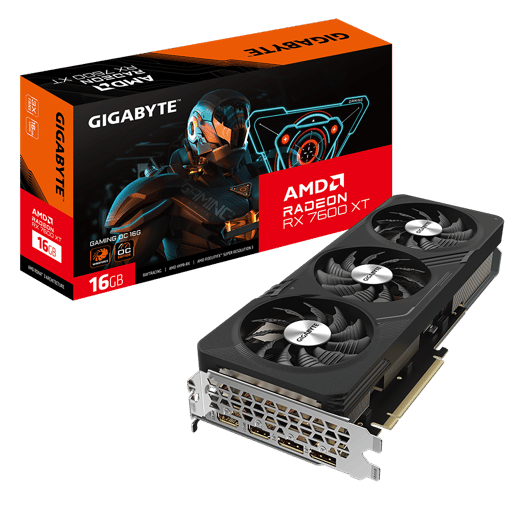

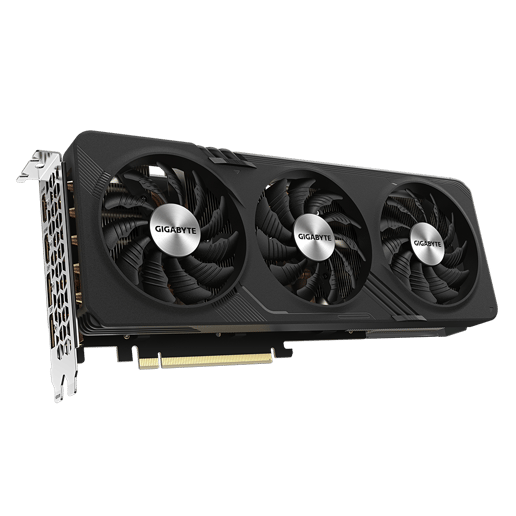

Gigabyte Radeon RX 7600 XT GAMING OC 16GB GDDR6 Graphics Card

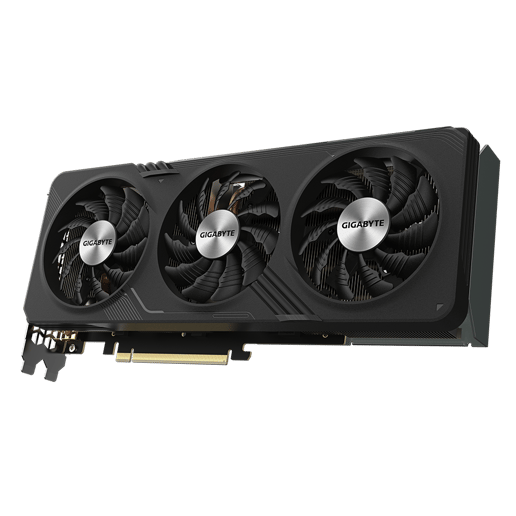

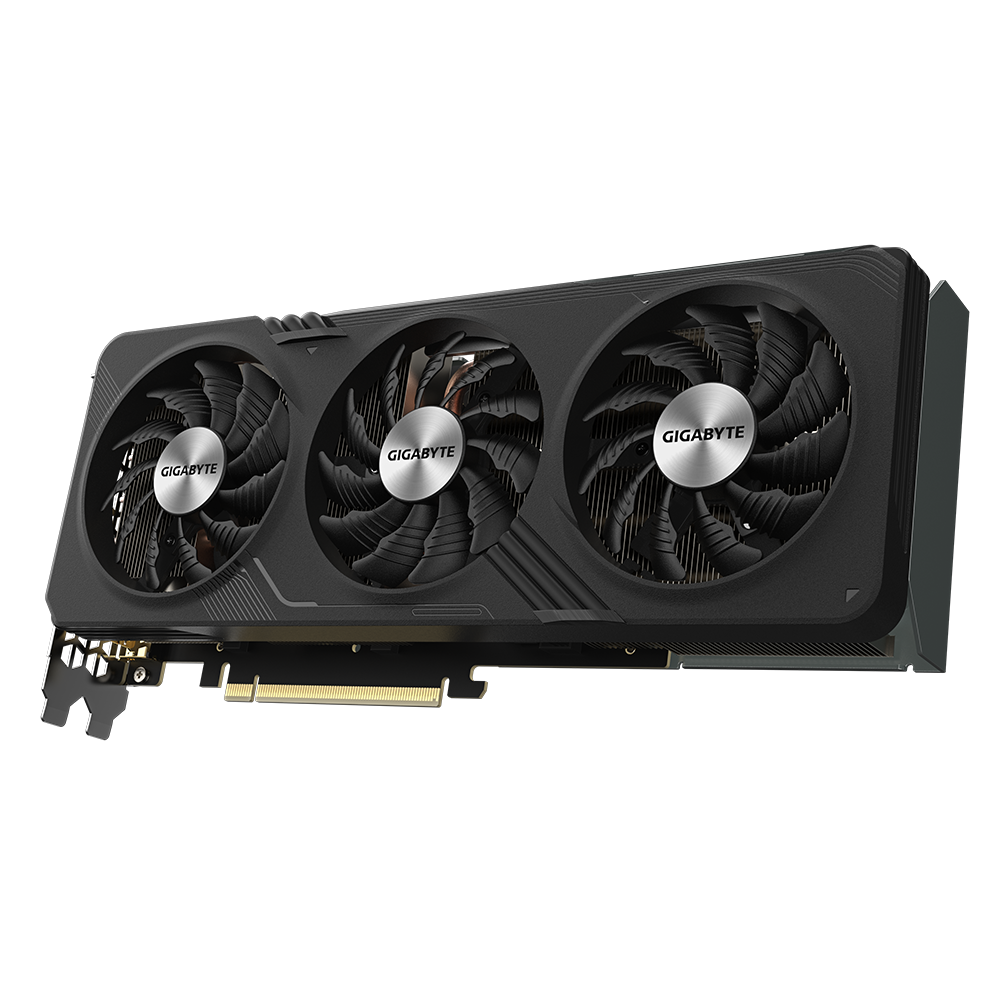

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes directly touch the GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

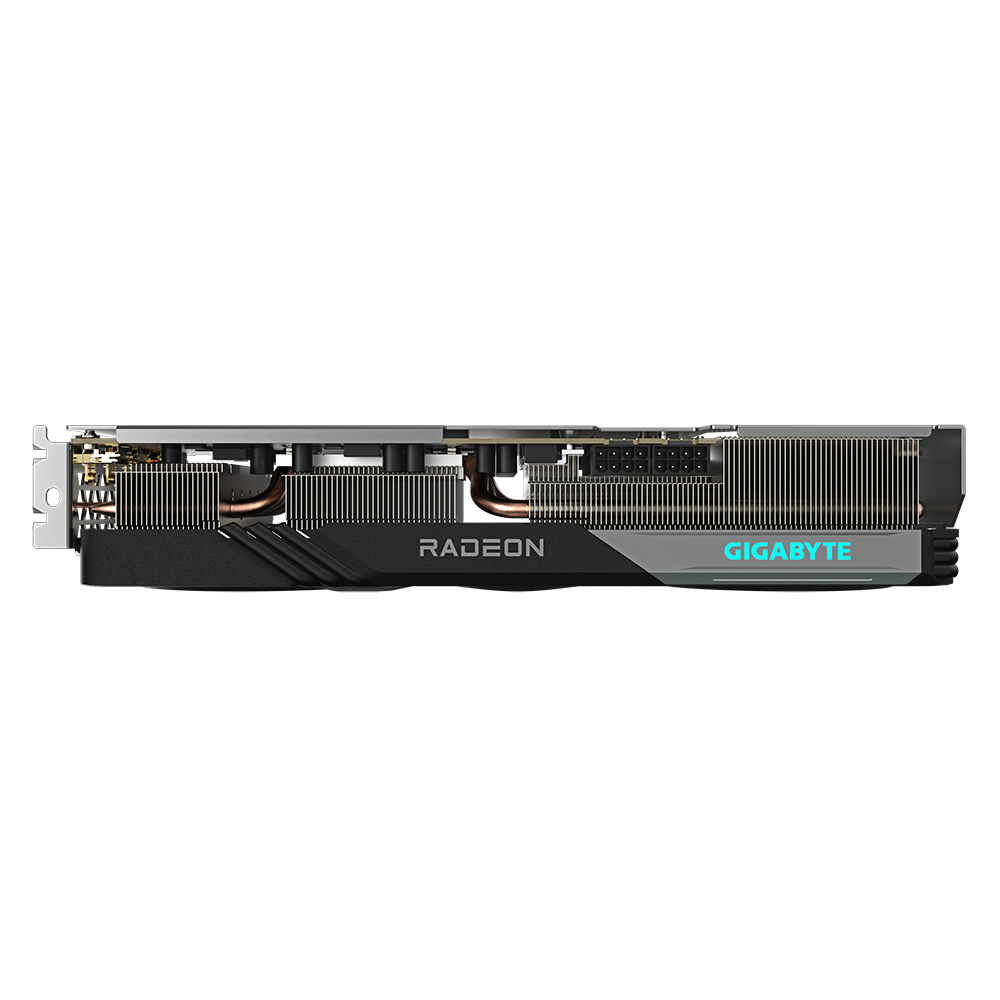

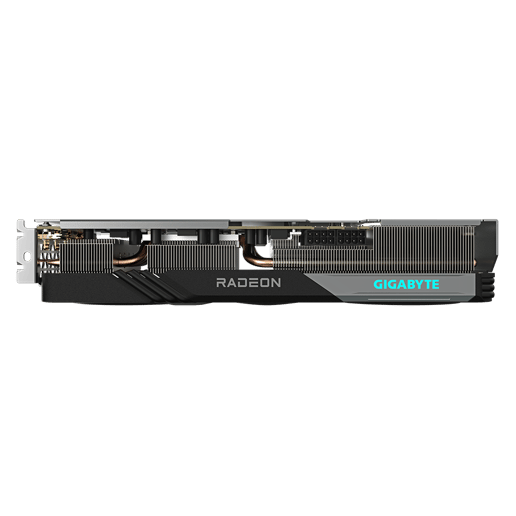

HEAT PIPES DIRECT TOUCH
The shape of the copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a metal plate contact to ensure proper cooling.

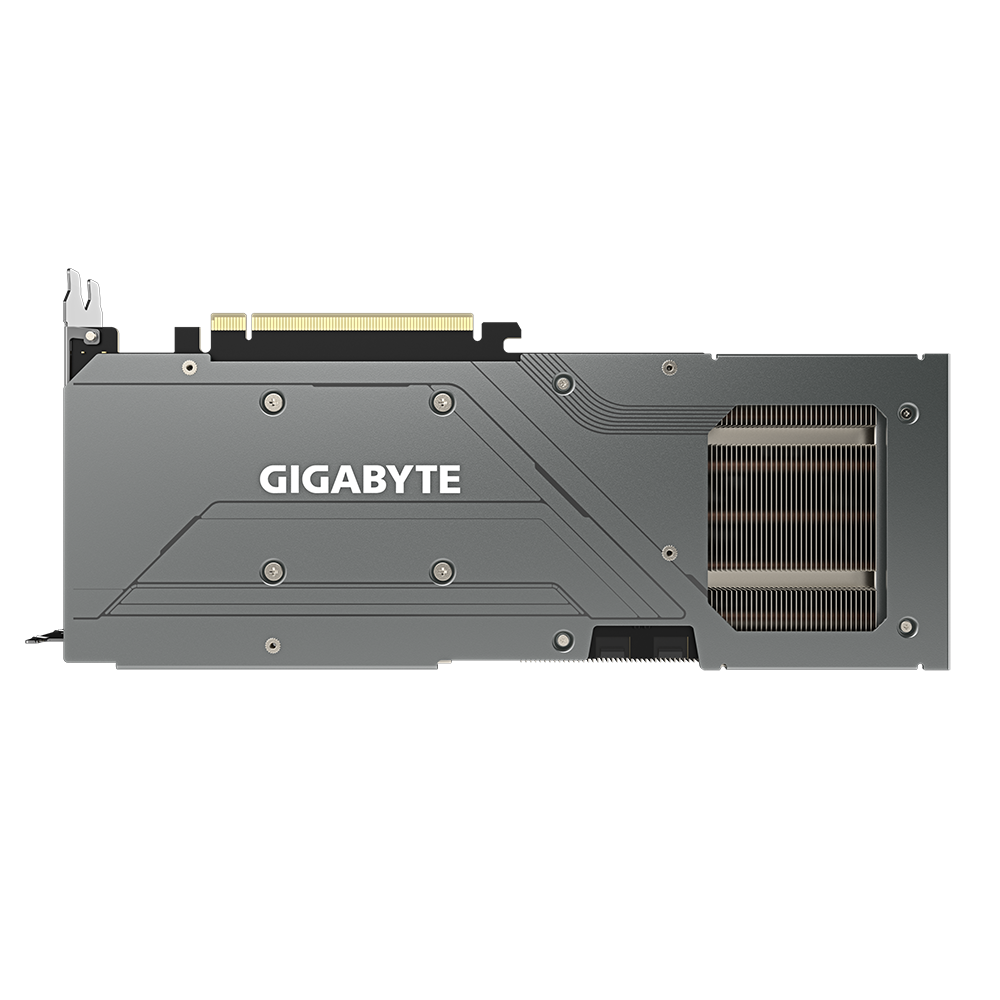

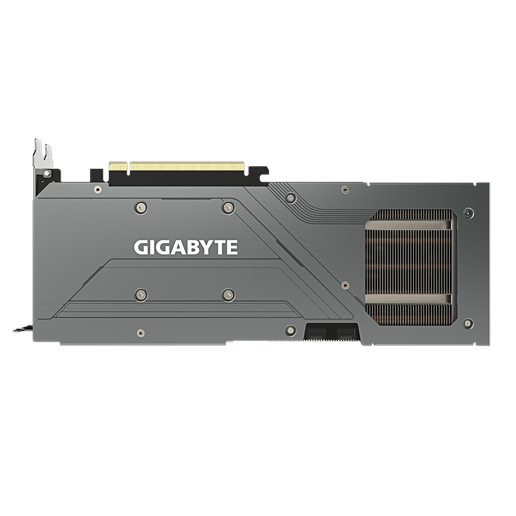

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
BUILT STRONG
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GPU
- Chipset Manufacturer: AMD
- Chipset Model Name: Radeon
- Chipset Model Number: RX 7600 XT
- Chipset Additional Information: GAMING OC
- Boost Chip Clock: 2539 MHz
- Number of Cores: 2048
Memory
- Memory Size: 16 GB
- Memory Clock: 18 Gbps
- Memory Type: GDDR6
- Memory Width: 128 bit
Interfaces/Ports
- Video Card Bus Type: PCI Express
- Video Card Bus Version: 4.0 x16

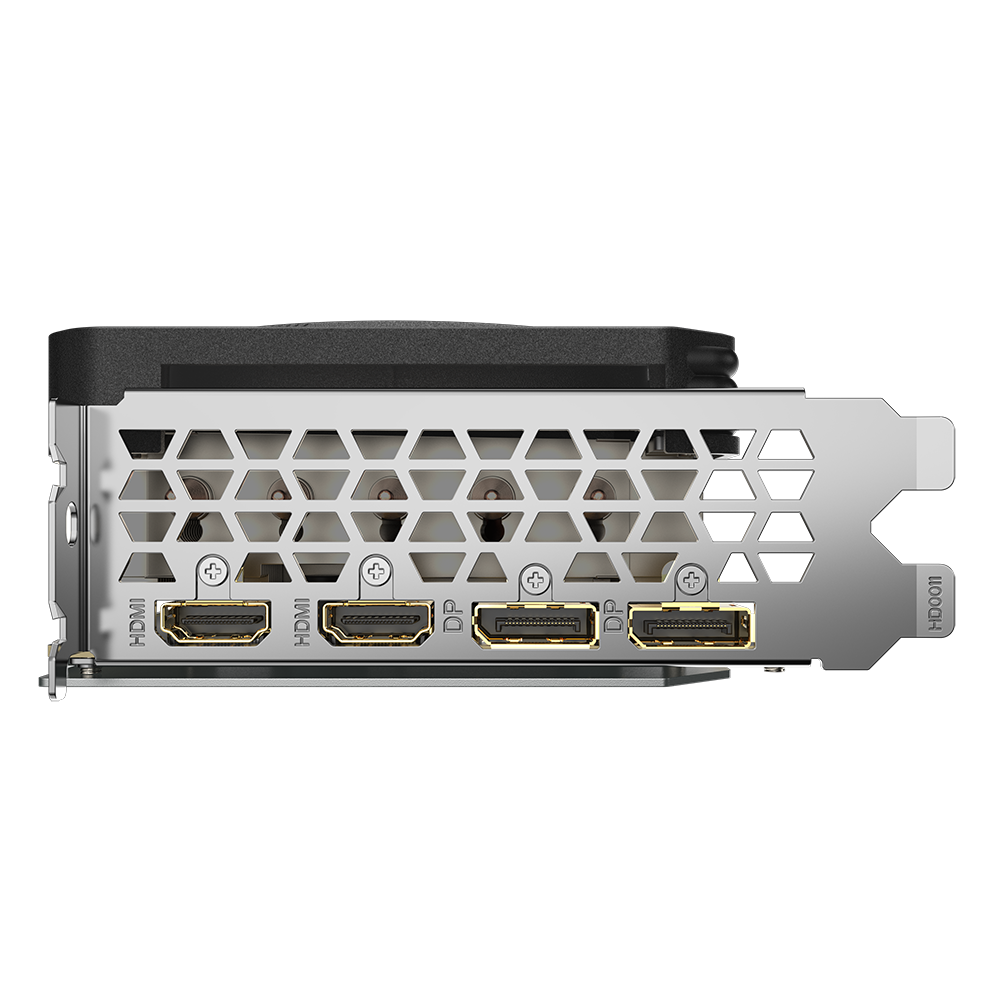

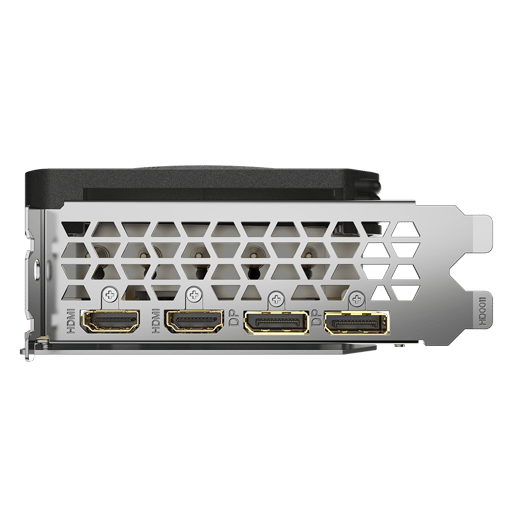

- HDMI Port: 2 x HDMI 2.1a
- DisplayPort: 2 x DisplayPort 2.1
Resolution
- Multiple Monitor Support (Max): Yes (4)
- Maximum Resolution: 7680 x 4320
System Requirements
- System Requirements: 1 x PCI Express 4.0 x16 slot
- Recommended 600W or greater PSU with 2 x 8-pin PCIe connectors
Electrical
- Power Connector: 2 x 8-pin PCIe
- Recomended Power Supply: 600 W
Physical
- Form Factor: Graphics Card
- In The Box: Graphics Card
- Quick Guide
- Width: 52.6 mm (2.6 slot)
- Depth: 281.4 mm
- Height: 116.6 mm
Warranty
- Warranty: 3 Years
Identifiers
- Stock Code: VGA7089
- Mfg Code: GV-R76XTGAMING OC-16GD
Warranty
- Warranty: 3 Years
