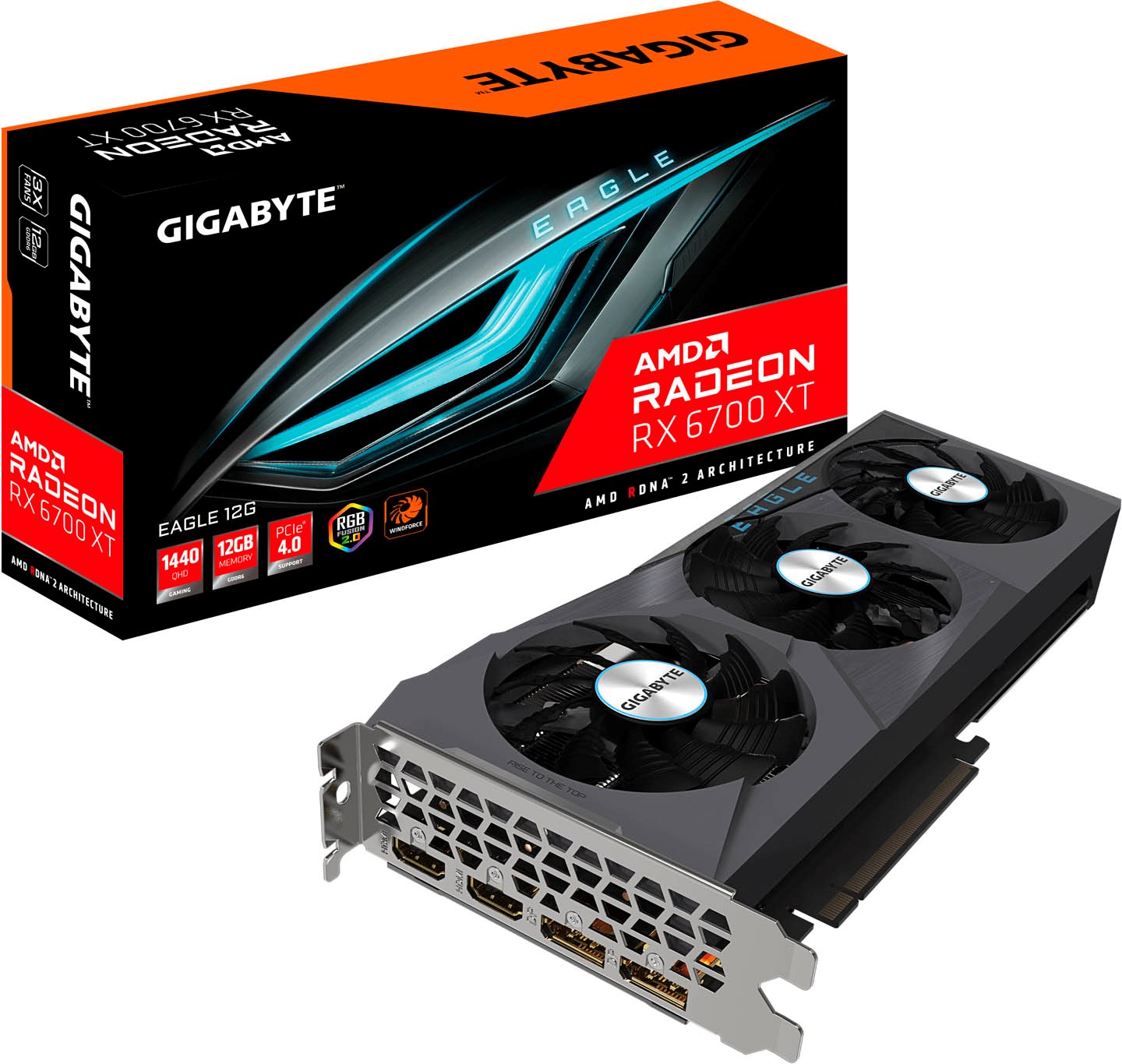

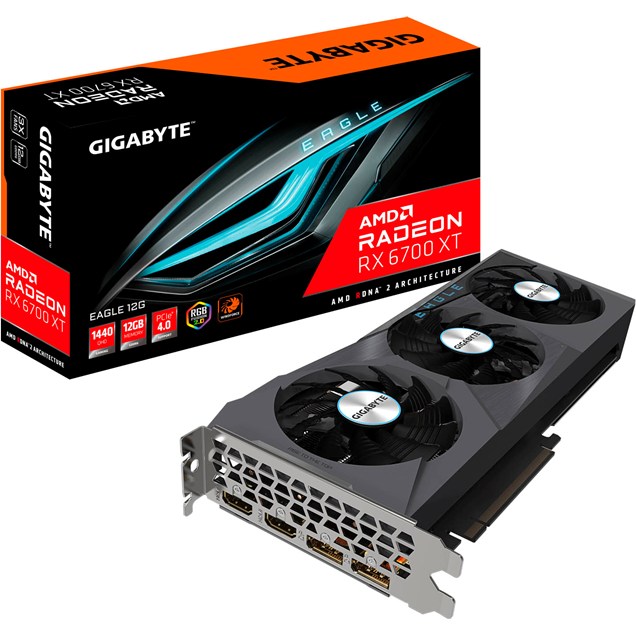

Gigabyte Radeon RX 6700 XT EAGLE 12GB GPU

CCL Code: VGA6121
|
Manufacturer Code: GV-R67XTEAGLE-12GD
| Manufacturer: Gigabyte
|
  • Gigabyte Radeon RX 6700 XT EAGLE 12GB GPU
  • Gigabyte Radeon RX 6700 XT EAGLE 12GB GPU
  • Gigabyte Radeon RX 6700 XT EAGLE 12GB GPU
  • Gigabyte Radeon RX 6700 XT EAGLE 12GB GPU
  • Gigabyte Radeon RX 6700 XT EAGLE 12GB GPU
  • Gigabyte Radeon RX 6700 XT EAGLE 12GB GPU
  • Gigabyte Radeon RX 6700 XT EAGLE 12GB GPU
  • Gigabyte Radeon RX 6700 XT EAGLE 12GB GPU
  • Gigabyte Radeon RX 6700 XT EAGLE 12GB GPU

Key Features:

12GB Graphics Memory
Cooler Type - Dynamic Fan
PCI Express 4.0 x16 Interface

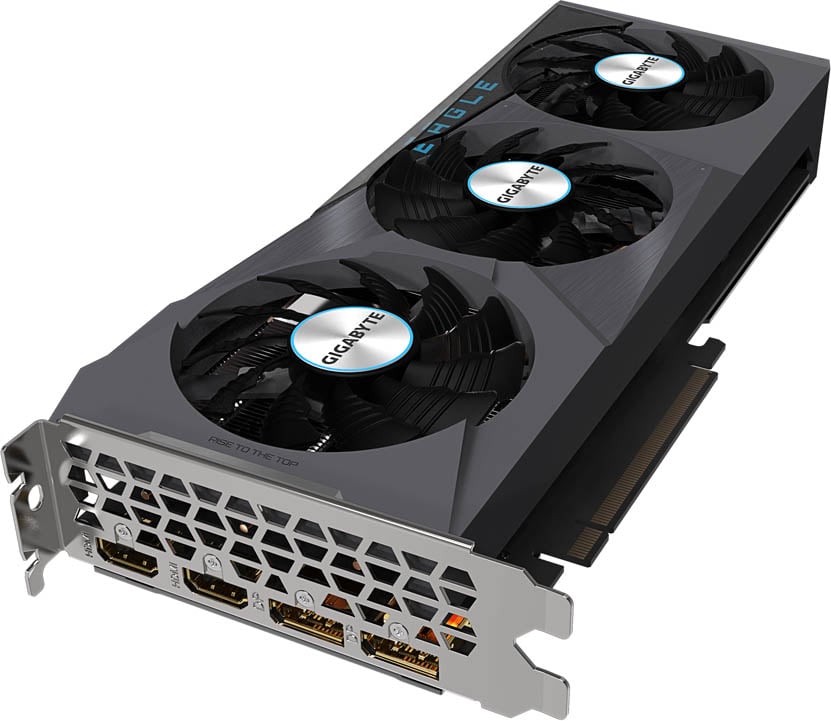

Outputs - HDMI and Display Port

This item has very limited stock [more info]

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Related Products

Overview

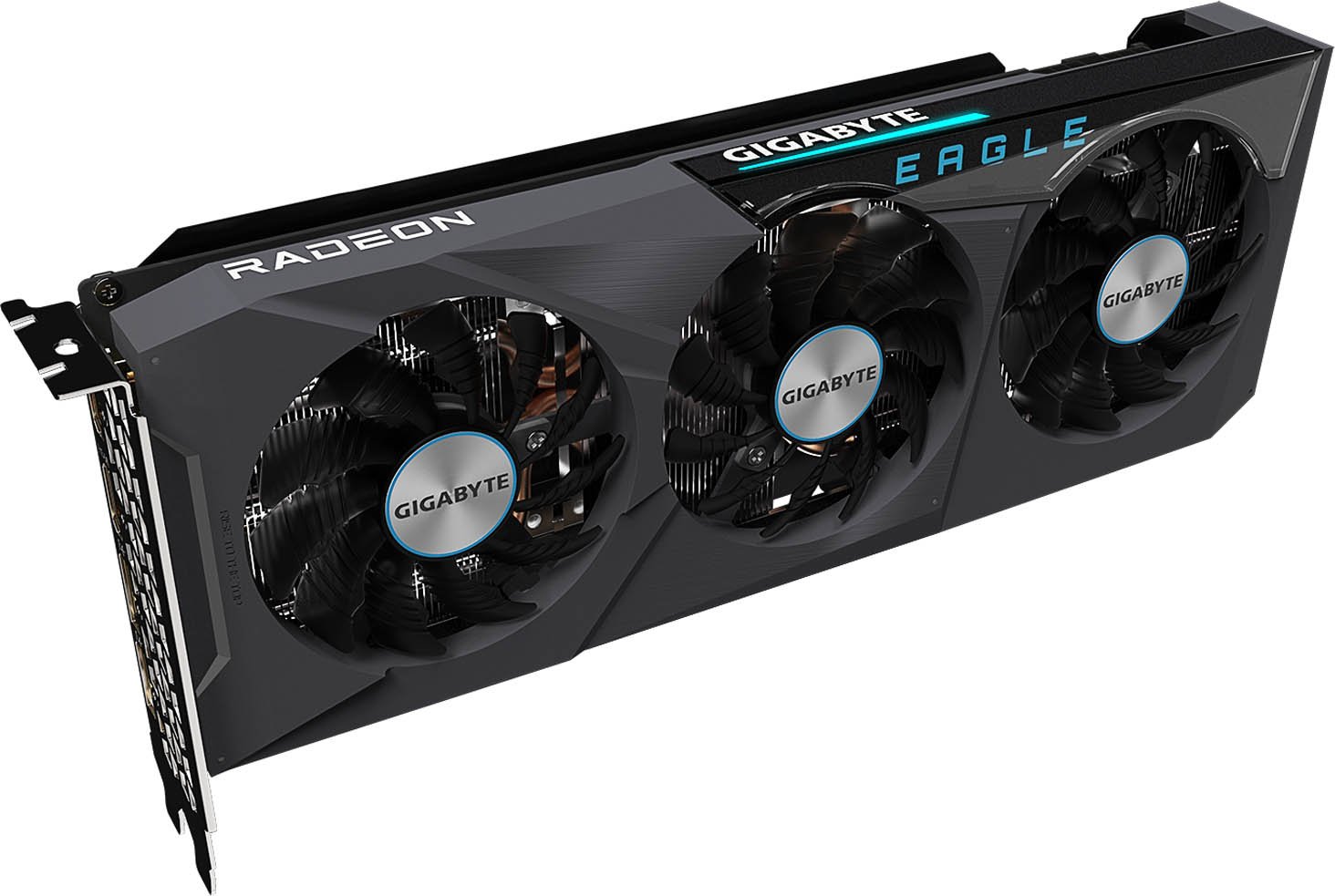

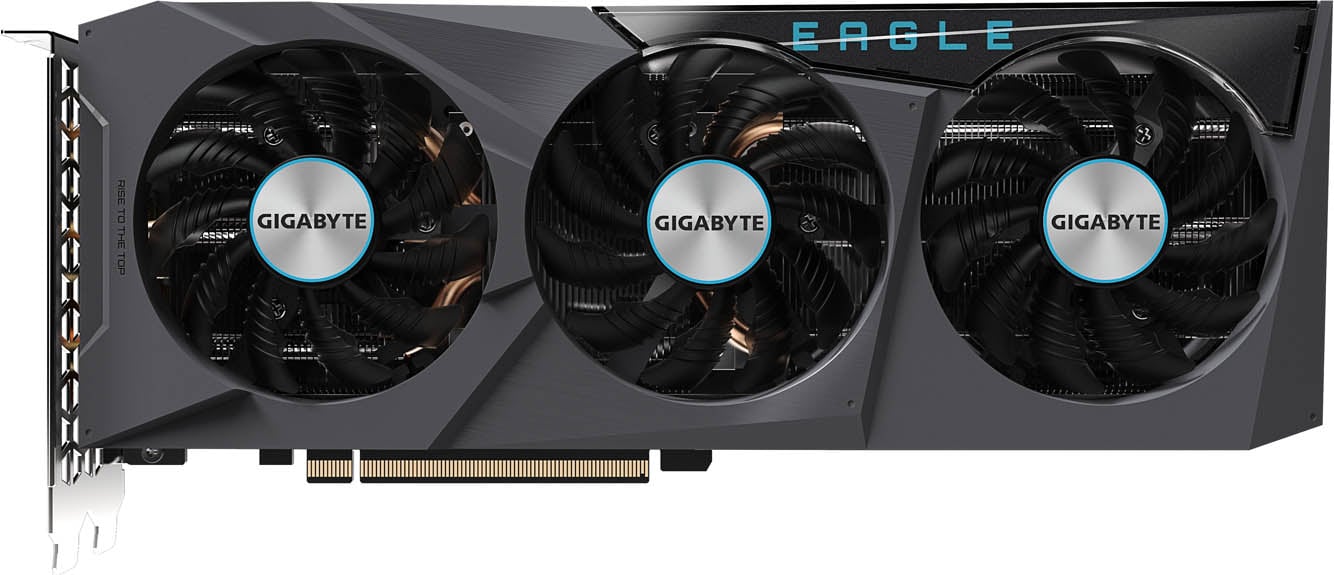

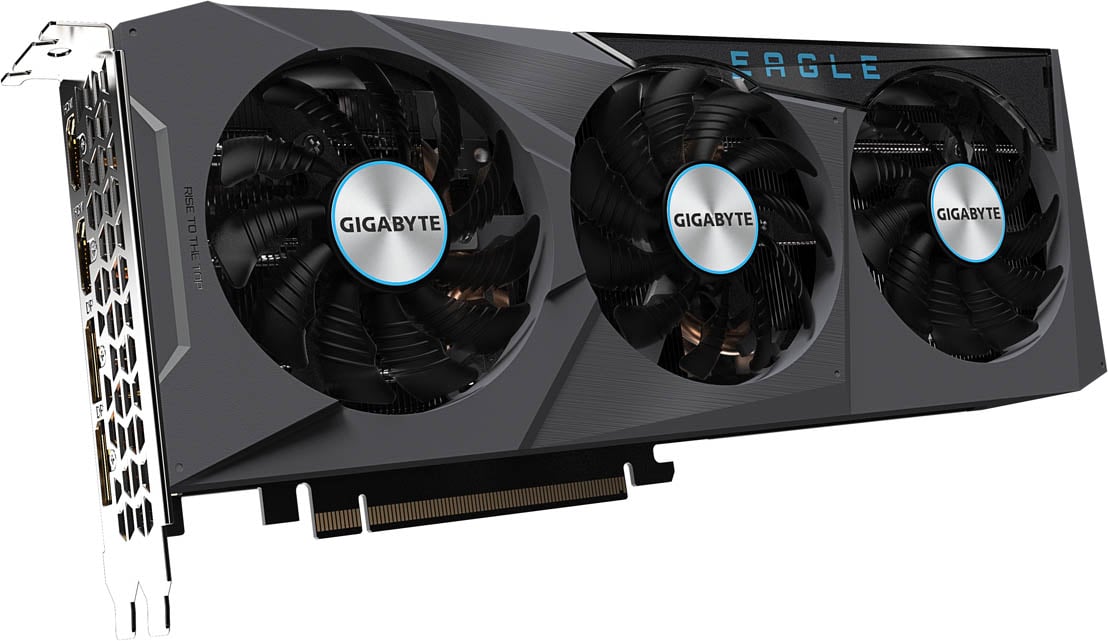

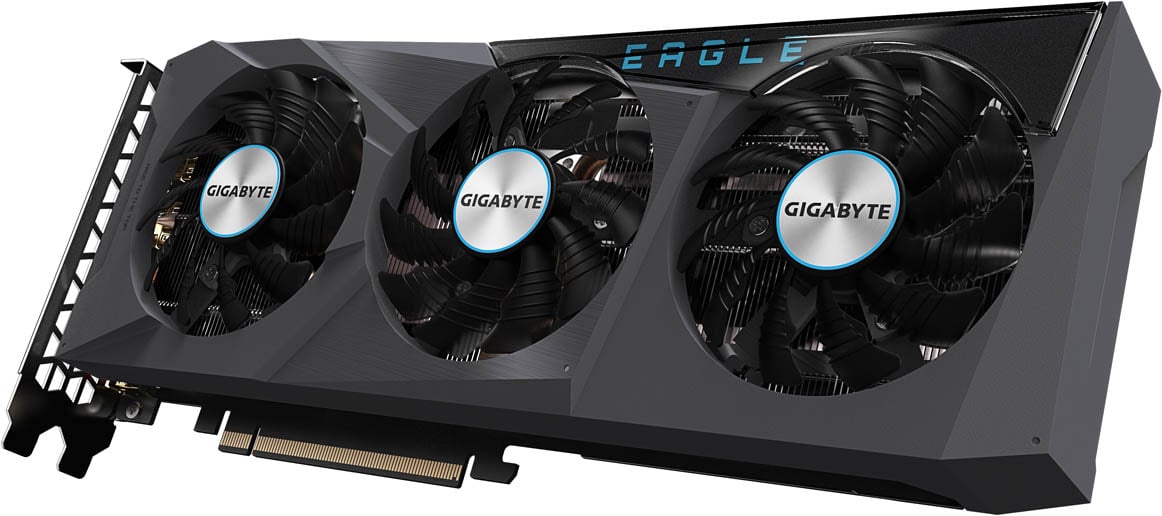

WINDFORCE 3X COOLING SYSTEM

The WINDFORCE 3X cooling system features 3x80mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING

Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.

SMOOTH AIRFLOW

GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.

SCREEN COOLING

Extended heatsink design allows air flow to pass through, providing better heat dissipation.

HEAT PIPES DIRECT TOUCH

The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

RGB FUSION 2.0

With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

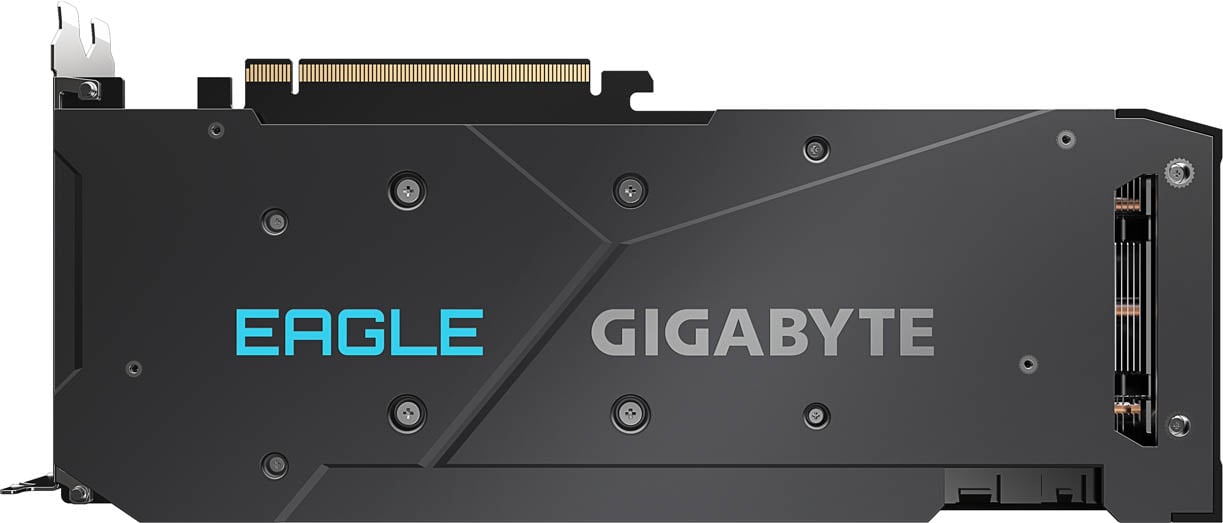

PROTECTION METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

EXTREME DURABILITY AND OVERCLOCKING

The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

AORUS ENGINE

The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.

Main Features

  • Powered by AMD RDNA 2 Radeon RX 6700 XT
  • Integrated with 12GB GDDR6 192-bit memory interface
  • WINDFORCE 3X Cooling System with alternate spinning fans
  • Screen cooling
  • Graphene nano lubricant
  • RGB Fusion 2.0
  • Protection metal back plate
Specifications

GPU

Chipset Manufacturer AMD
Chipset Model Name Radeon RX
Chipset Model Number 6700 XT
Chipset Additional Information EAGLE

Storage

Memory Size 12288 MB

Memory

Memory Clock 16 Gbps
Memory Type GDDR6
Memory Width 256 bit
Memory Bandwidth 384 GB/s

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 4.0 x16

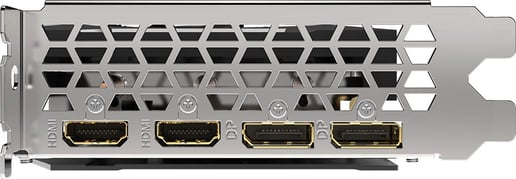

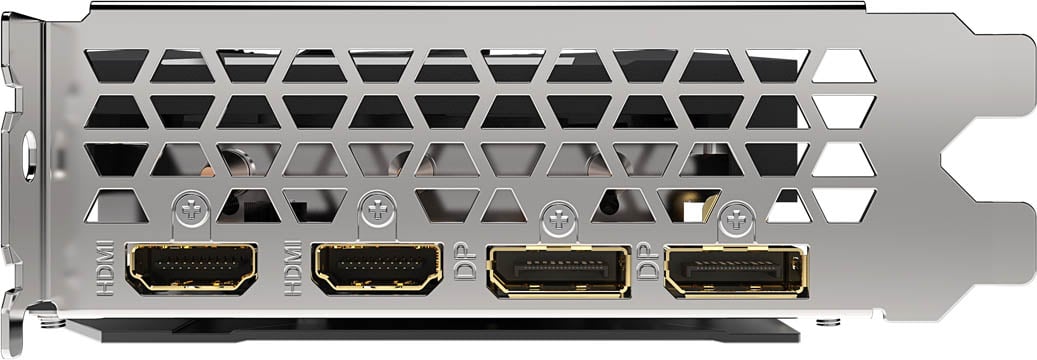

HDMI Port 2 x HDMI 2.1
DisplayPort 2 x DisplayPort 1.4a

System Requirements

System Requirements 1 x PCI Express 4.0 x16 slot

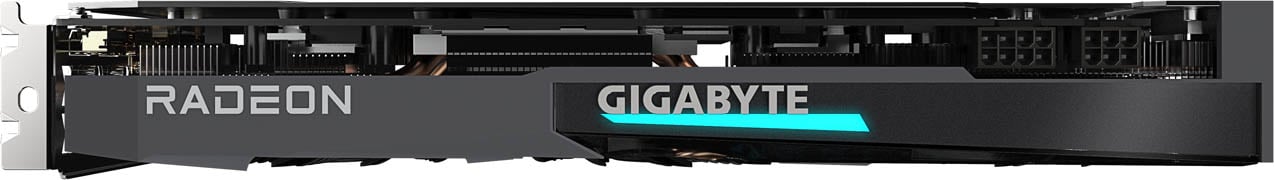

Recommended 650W PSU with 1 x 8-pin & 1 x 6-pin PCIe connectors

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320 pixels

Physical

Form Factor Graphics Card
In The Box Graphics Card
Quick Guide
Width 40 mm (Dual Slot)
Depth 282 mm
Height 113 mm
Weight 0.8 kg

Warranty

Warranty 3 Years

Key Features

Interface Type PCI Express 4.0 x16
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan
Low Profile No
AMD Radeon RX 6700 XT
PCI-E Pin Type 6-Pin + 6+2-Pin
FreeSync Yes
Cooling Technology Dynamic Fan
VR Ready AMD
GPU Length 282 mm
Card Width 2
Graphics card count 1

Graphics

Graphics Chipset Radeon RX 6700 XT

Item Details

Manufacturer Gigabyte
Manufacturer Code GV-R67XTEAGLE-12GD
EAN 4719331308629
UPC 889523027288
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code GV-R67XTEAGLE-12GD
Questions and Answers

Do you have you a question about the Gigabyte Radeon RX 6700 XT EAGLE 12GB Graphics Card?

Reviews
5.0 / 5 2 reviews

Janak

11 months ago

Great upgrade card.

Joss

April 2021

Brilliant performance from this card and with the triple fan design it definitely keeps the temps low
