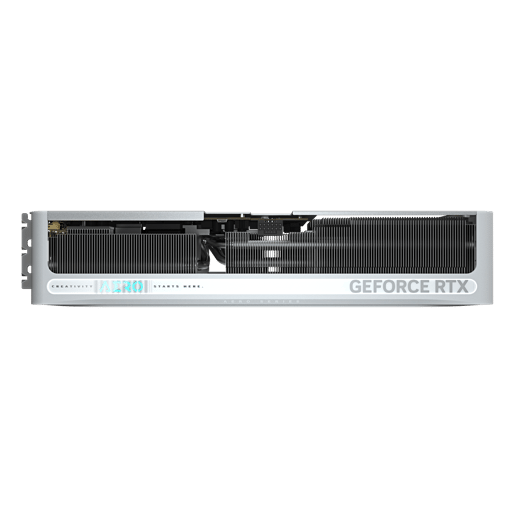

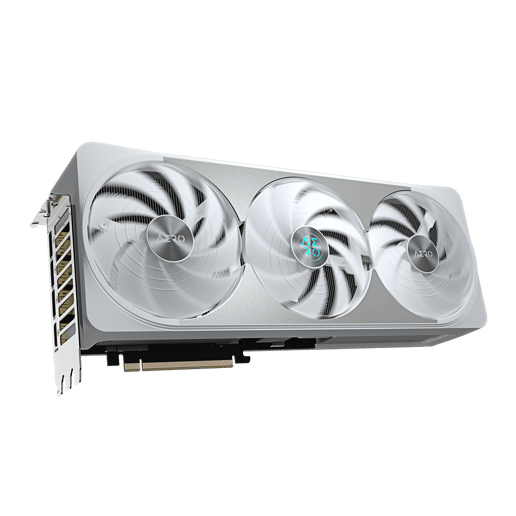

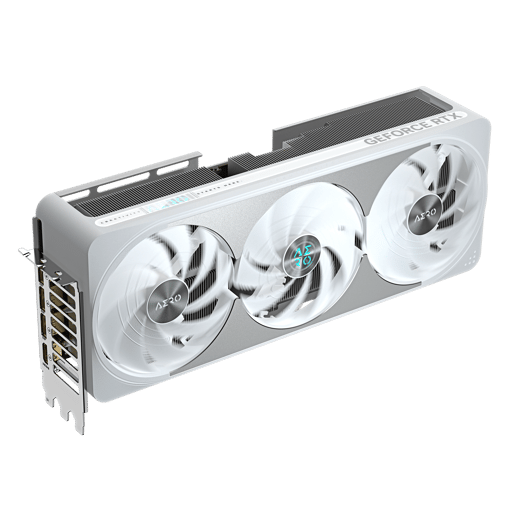

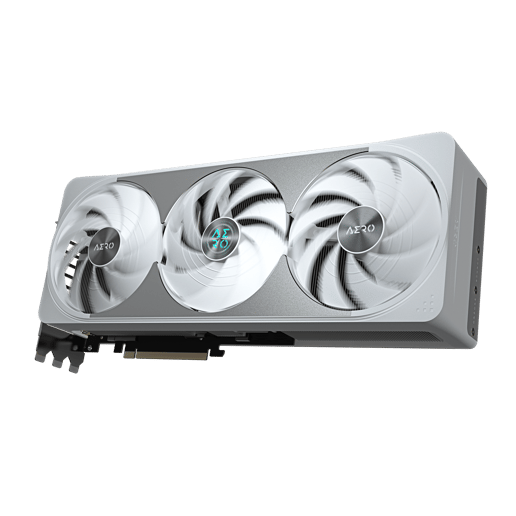

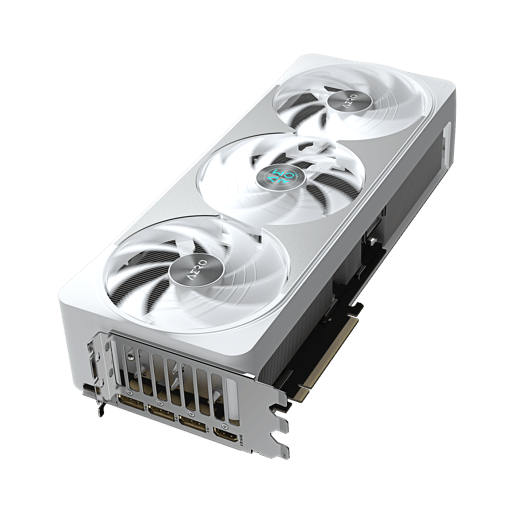

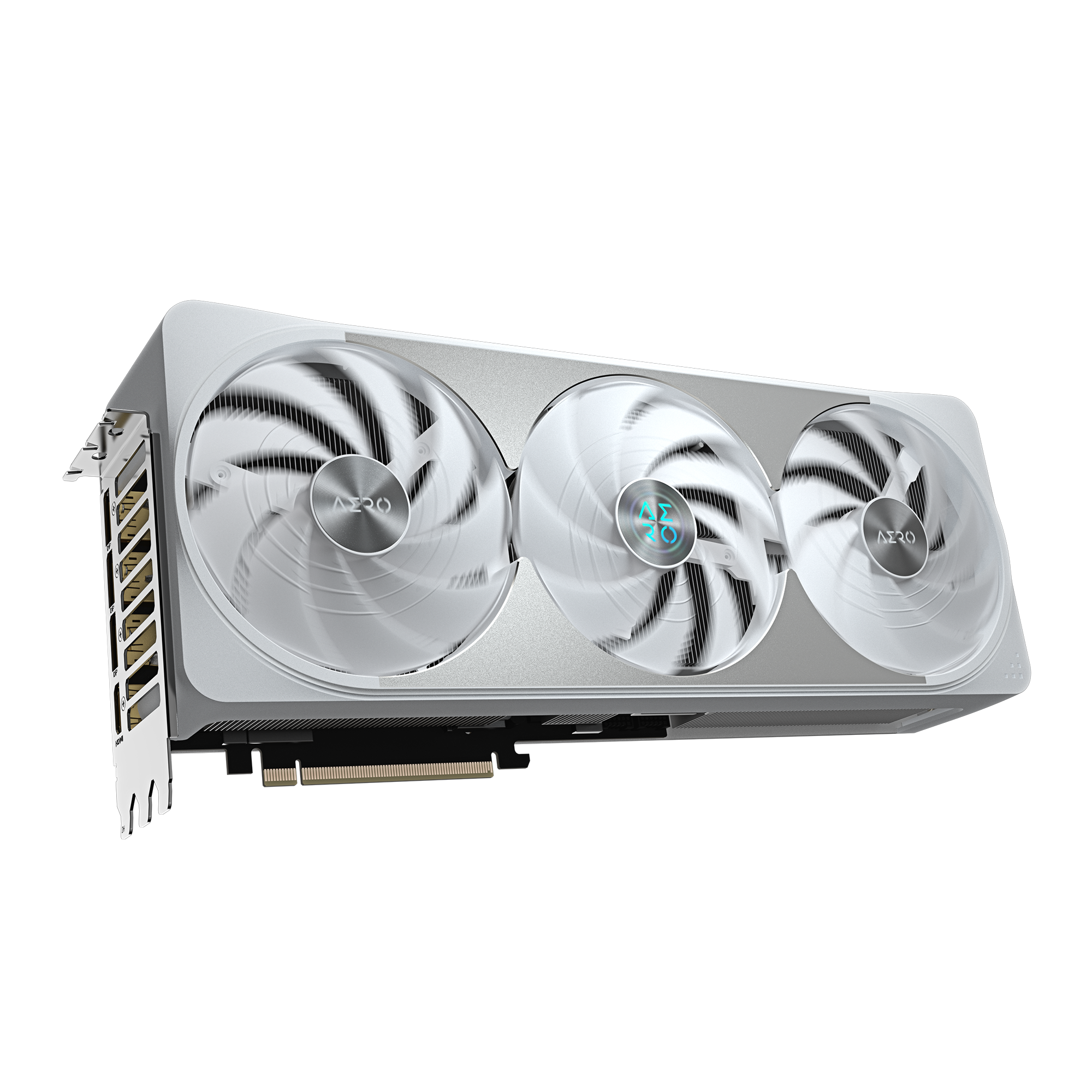

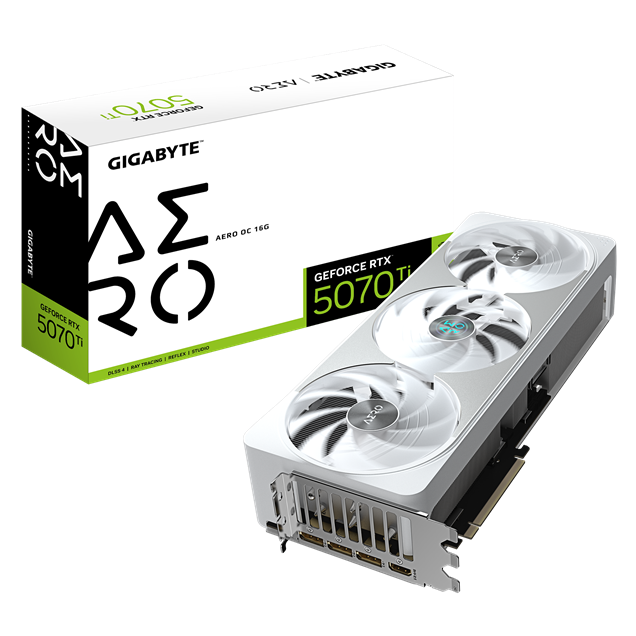

Gigabyte GeForce RTX 5070 Ti AERO OC 16GB GDDR7 Graphics Card

Gigabyte GeForce RTX 5070 Ti AERO OC 16GB GDDR7 Graphics Card

CCL Code: VGA7239

Sold out

Notify Me

Gigabyte GeForce RTX 5070 Ti AERO OC 16GB GDDR7 Graphics Card

GV-N507TAERO OC-16GD

Key Features:

  • 16GB GDDR7 Graphics Memory
  • PCI Express 5.0 x16 Interface
  • Overclocked Edition
  • Outputs - HDMI and Display Port

This item has very limited stock [more info]

CCL Code: VGA7239

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

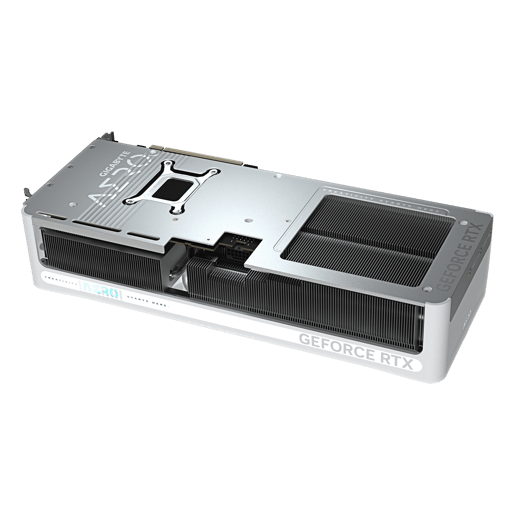

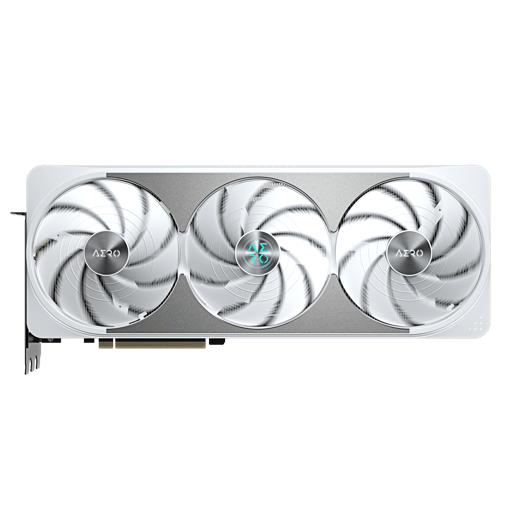

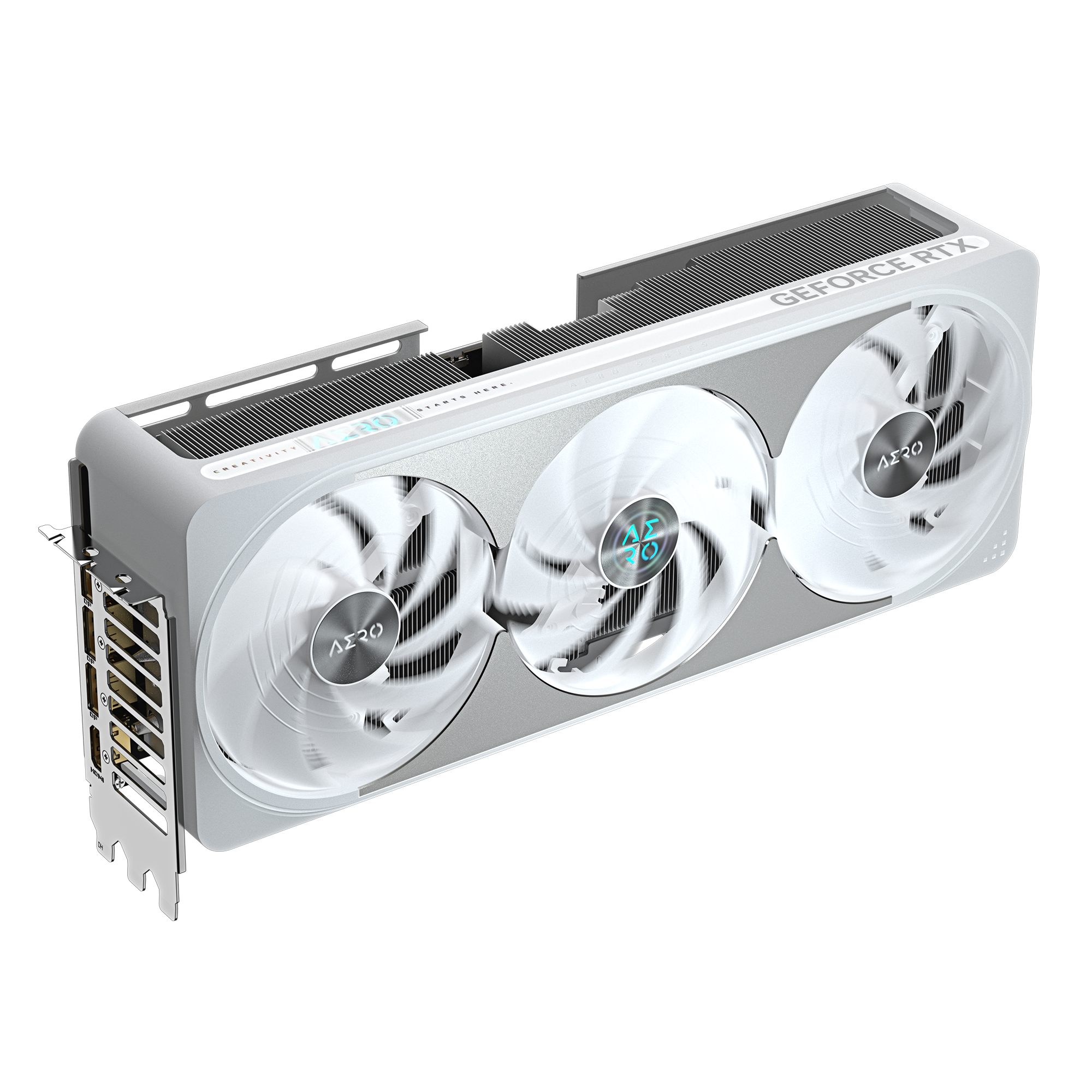

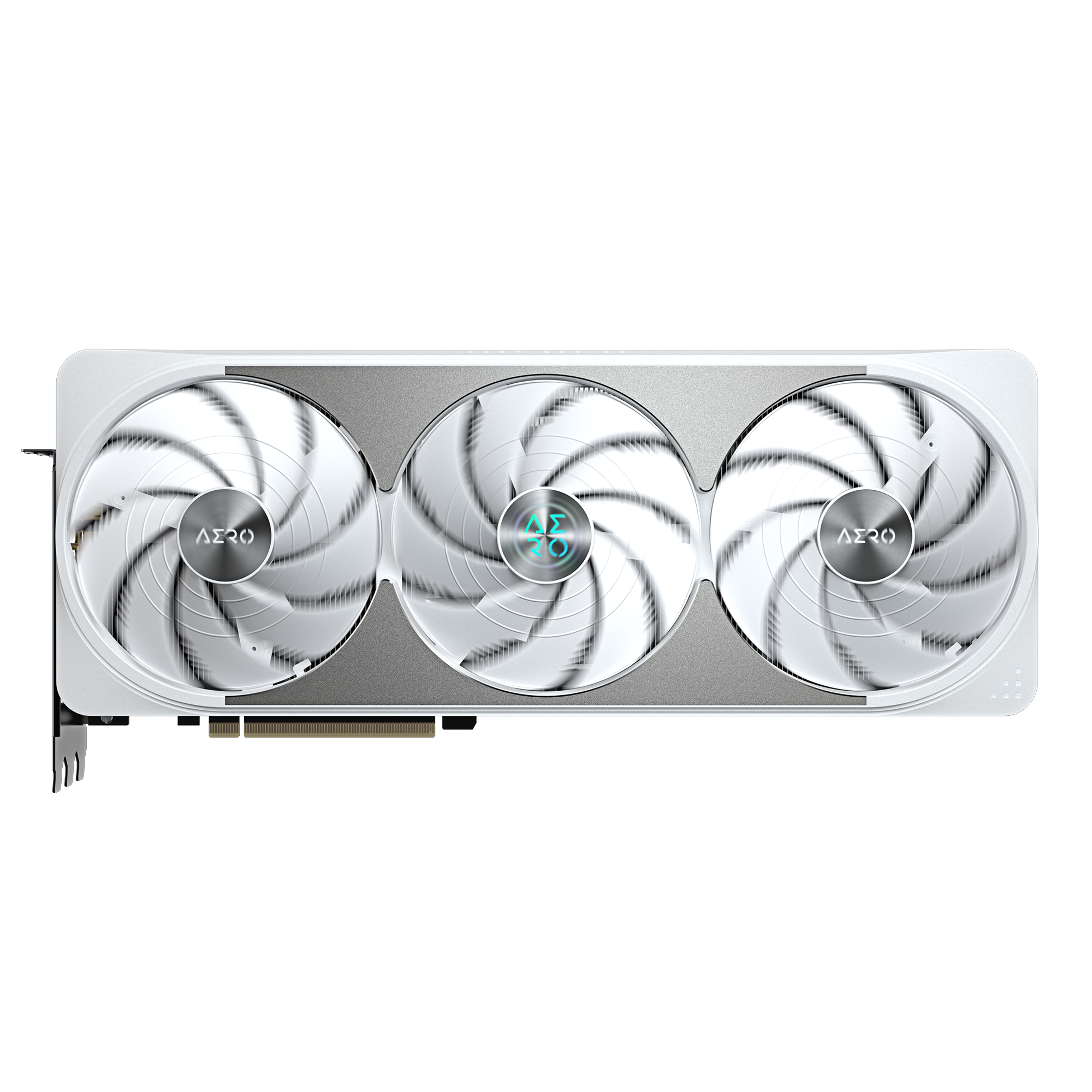

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN

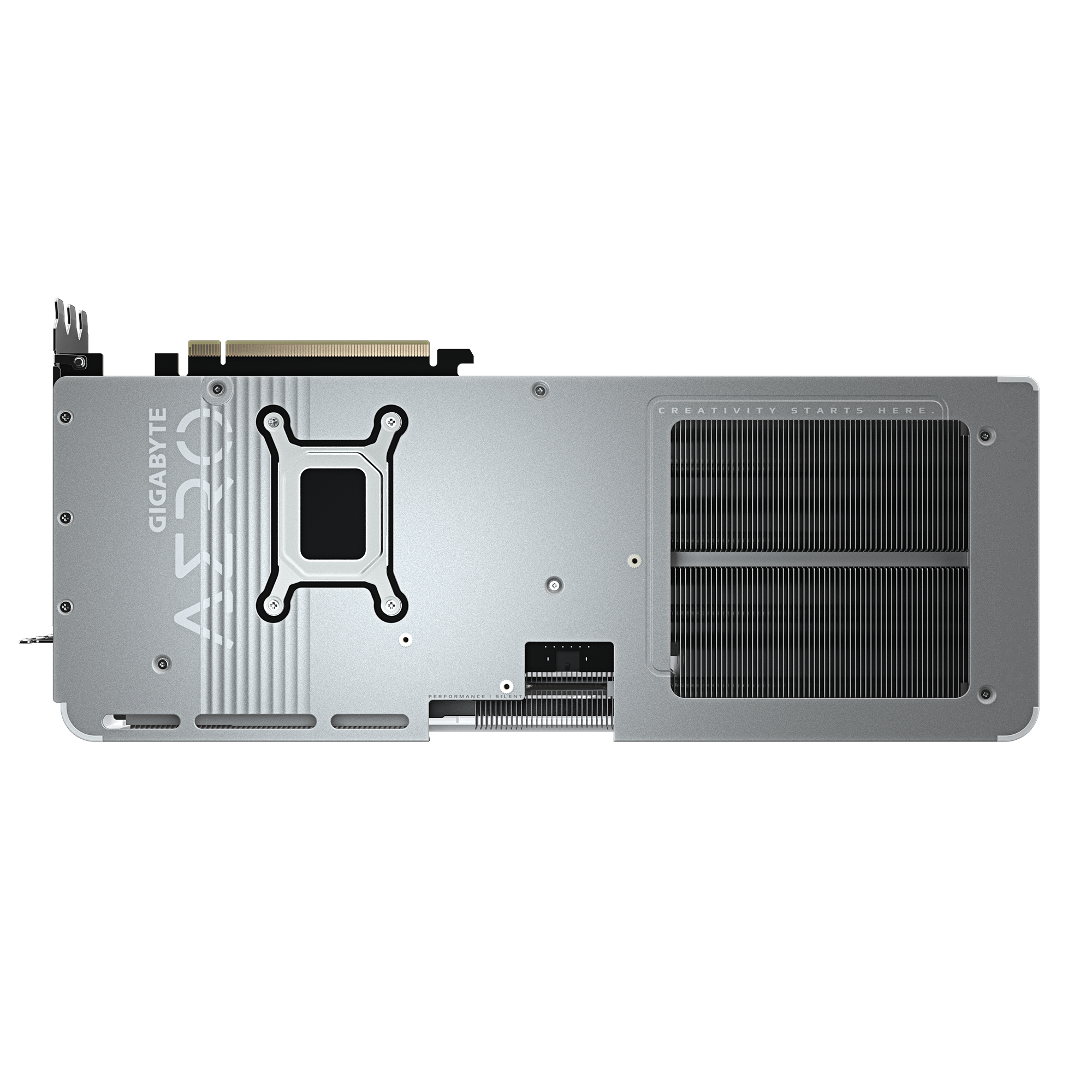

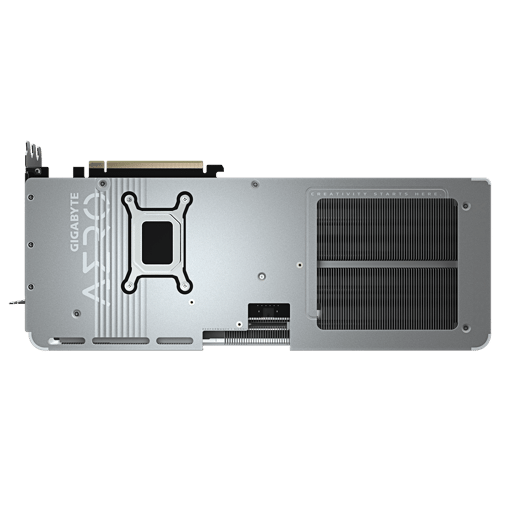

Drawing inspiration from water, the back panel's ripples evoke flowing water, with mirrored, frosted, and light elements reflecting the water's shimmering surface. Metal craftsmanship refines the texture, while teal and iridescent hues accentuate the serene lake. The fan's rotation creates expanding ripples, infusing natural movement into the details.

Main Features

  • Powered by the NVIDIA Blackwell architecture and DLSS 4
  • Powered by GeForce RTX 5070 Ti
  • Integrated with 16GB GDDR7 256bit memory interface
  • WINDFORCE cooling system
  • RGB Lighting
  • Dual BIOS (Performance / Silent)
  • Reinforced structure
  • Versatile VGA holder
  • 4 years warranty (Online registration required)
Specifications

GPU

Chipset Manufacturer NVIDIA
Chipset Model Name GeForce RTX
Chipset Model Number 5070 Ti
Chipset Additional Information AERO OC
Base Chip Clock 2300 MHz
Graphics Core CUDA
Number of Cores 8960

Memory

Memory Size 16384 MB
Memory Clock 28 Gbps
Memory Type GDDR7
Memory Width 256 bit
Memory Bandwidth 896 GB/s

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 5.0 x16

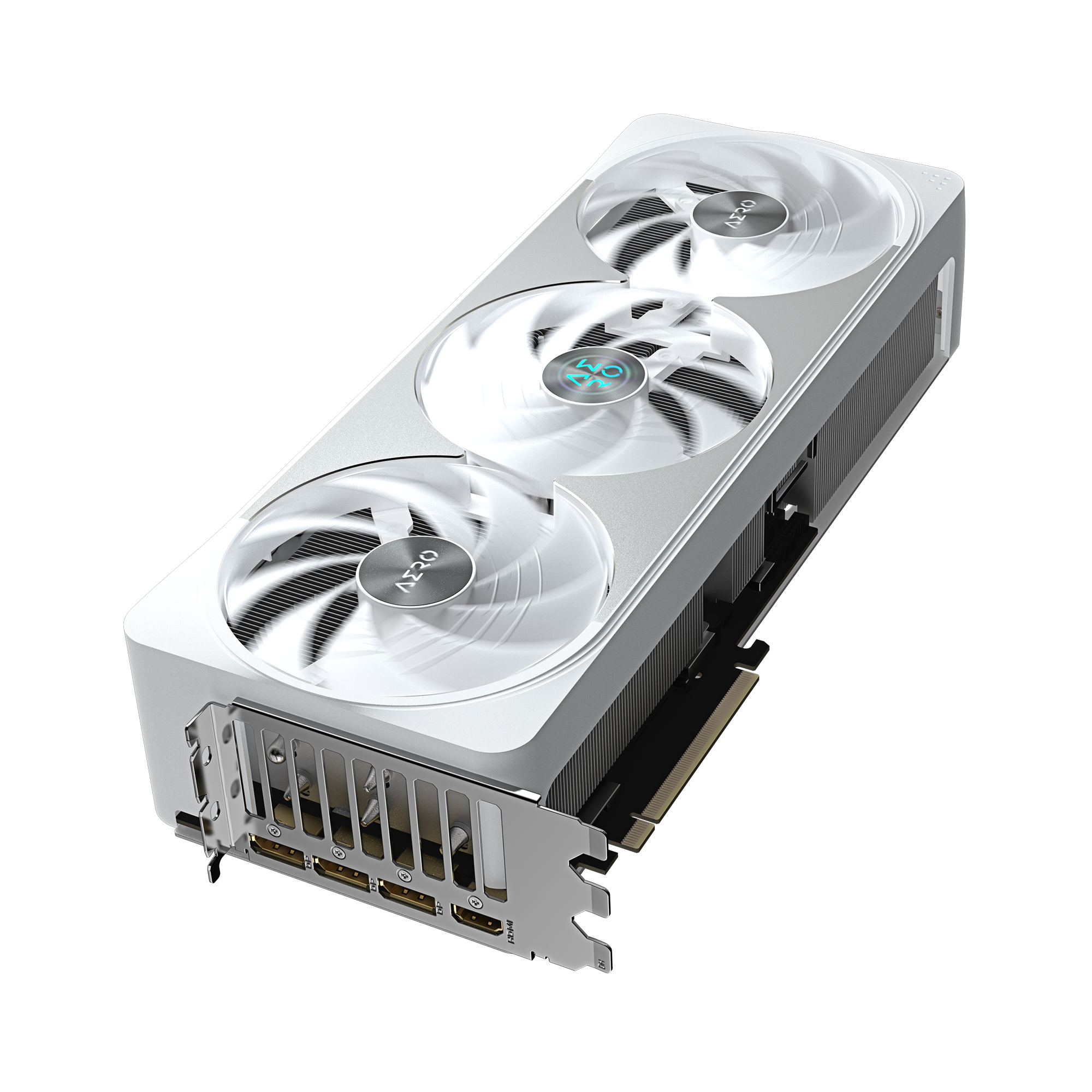

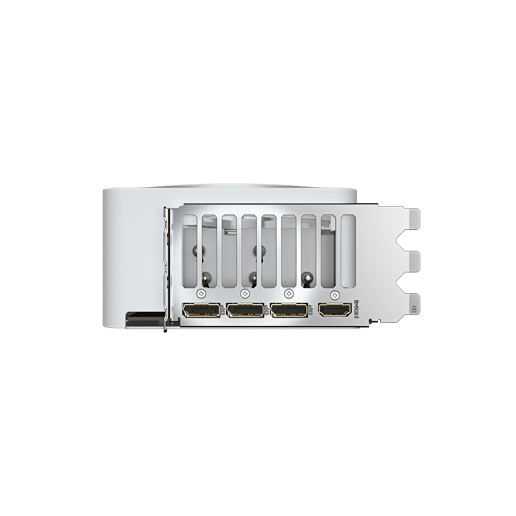

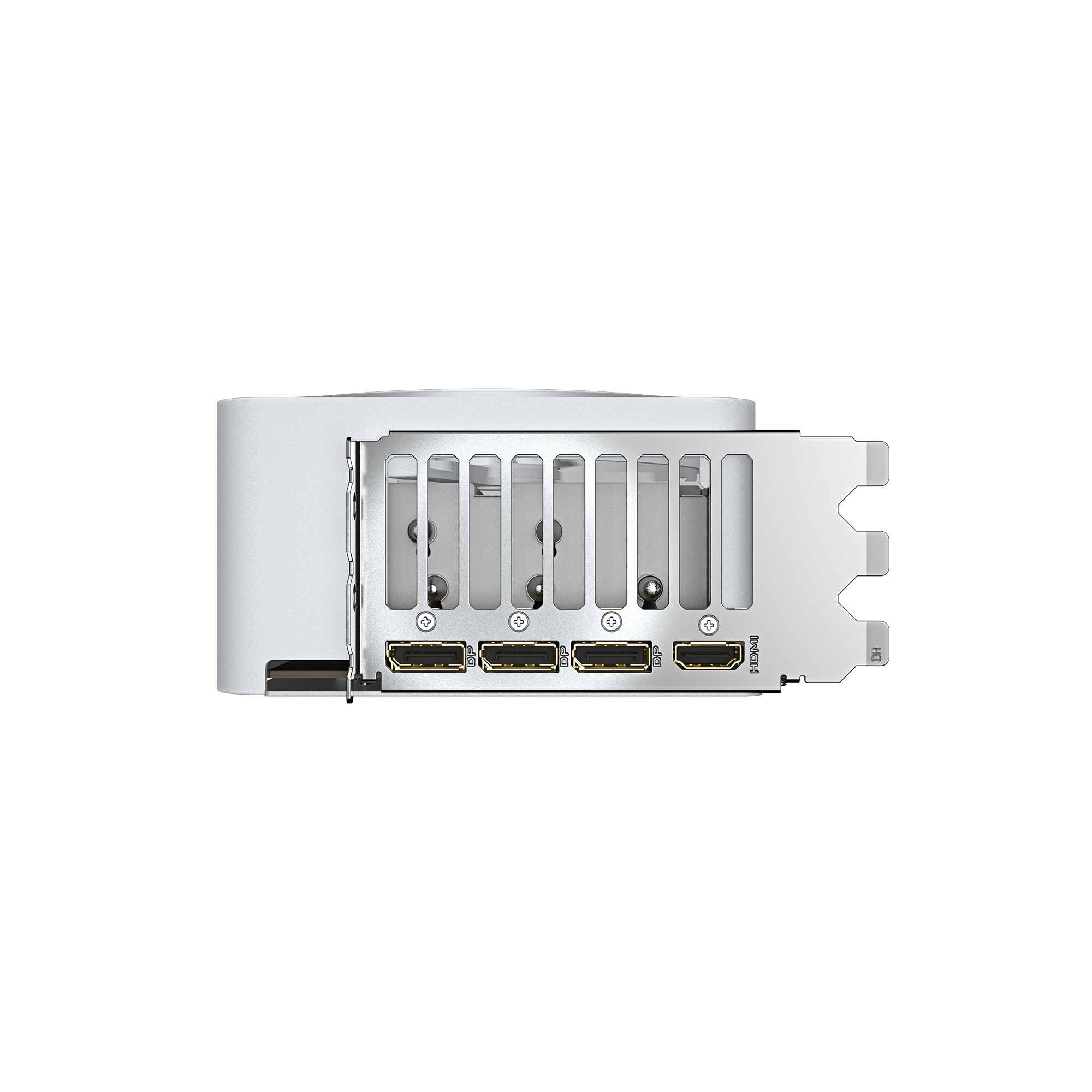

HDMI Port 1 x HDMI 2.1b
DisplayPort 3 x DisplayPort 2.1a

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320

System Requirements

System Requirements 1 x PCI Express 5.0 x16 slot

Electrical

Power Connector 1 x 12V-2x6 to 3 x 8-pin PCIe
Power Consumption 300 W
Recomended Power Supply 750 W

Physical

Form Factor Graphics Card

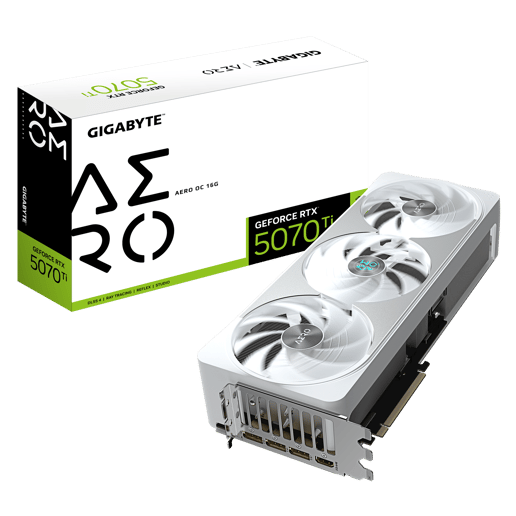

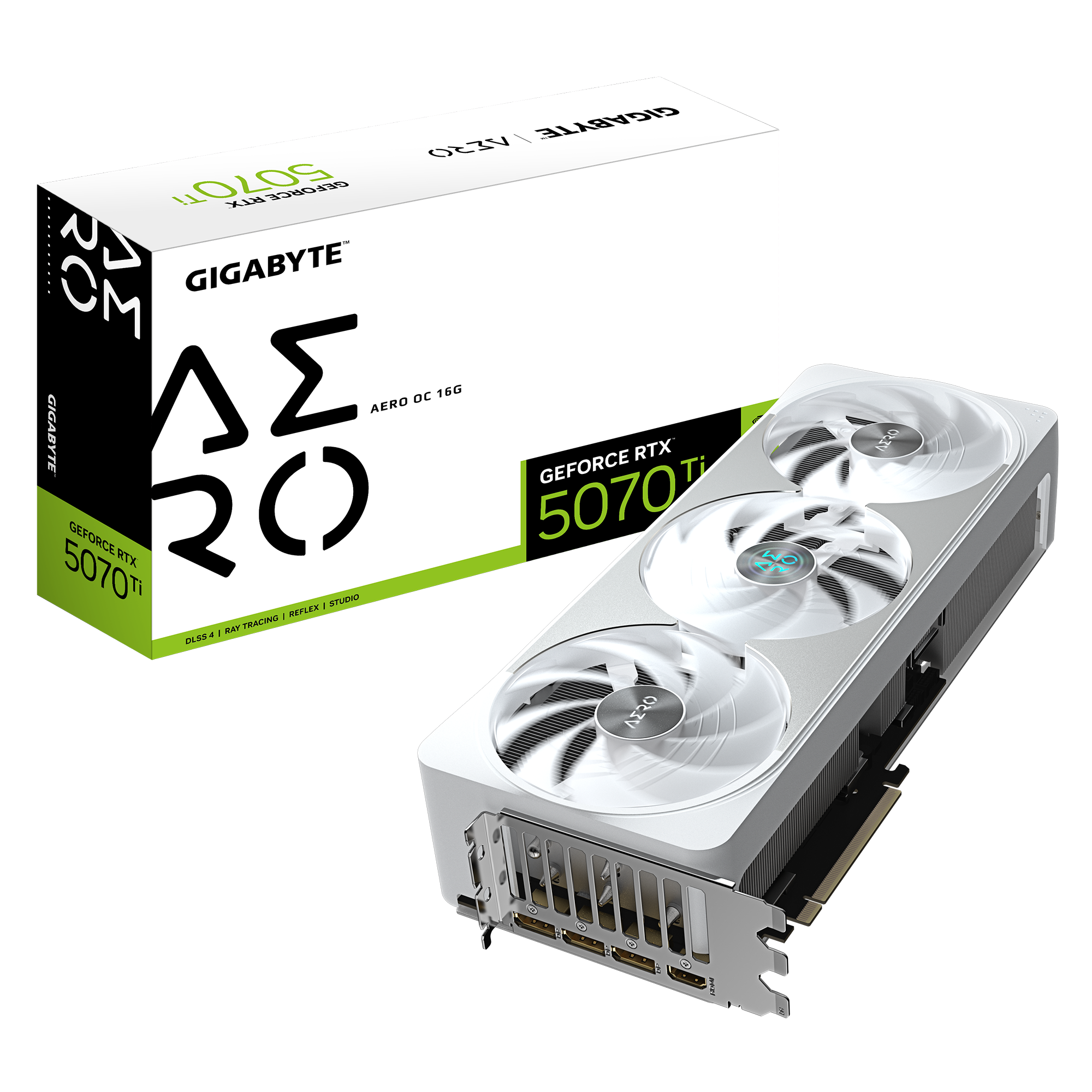

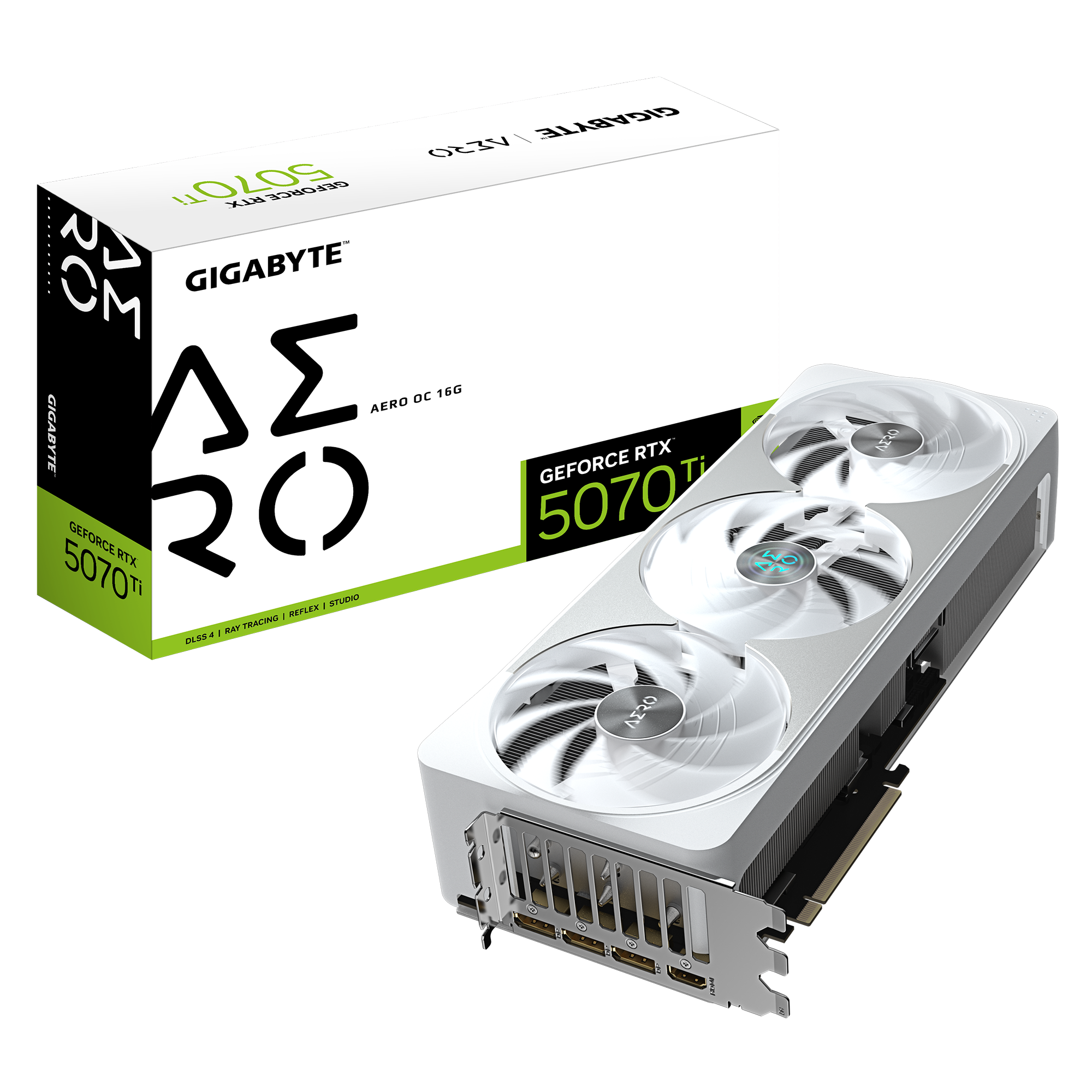

In The Box Graphics Card
Manual
Warranty notice
1 x 12V-2x6 to 3 x 8-pin PCIe adapter
VGA holder
VGA holder manual
Width 70 mm (3.5 slot)
Depth 340 mm
Height 140 mm

Warranty

Warranty 3 Years
4 Years with online registration

Key Features

Interface Type PCI Express 5.0 x16
Config Gaming x8 (CB/CCL) No
Graphics Memory Type GDDR7
Main Colour White
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan Inc. 0dB Mode
Low Profile No
NVIDIA GeForce RTX 5070 Ti
PCIe Pin Type 12+4-Pin (16-Pin)
Cooling Technology Dynamic Fan Inc. 0dB Mode
VR Ready NVIDIA
GPU Length 340 mm
Card Width 4
Power Requirement (auto) 300 W
GPU Power (TDP) 300 W
Graphics card count 1
PCI Express Power Pins (female) 24
PCIe Physical Slot required 16
12VHPWR 16-pin Connector Yes
AI Ready Yes
12V-2x6 Rating 450W

Graphics

Graphics Chipset GeForce RTX 5070 Ti

Graphics Device

G-Sync Yes

Item Details

Manufacturer Gigabyte
Manufacturer Code GV-N507TAERO OC-16GD
EAN 4719331355876
UPC 889523048542
Condition New
Warranty

Warranty Information

Warranty 3 Years
4 Years with online registration

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code GV-N507TAERO OC-16GD
