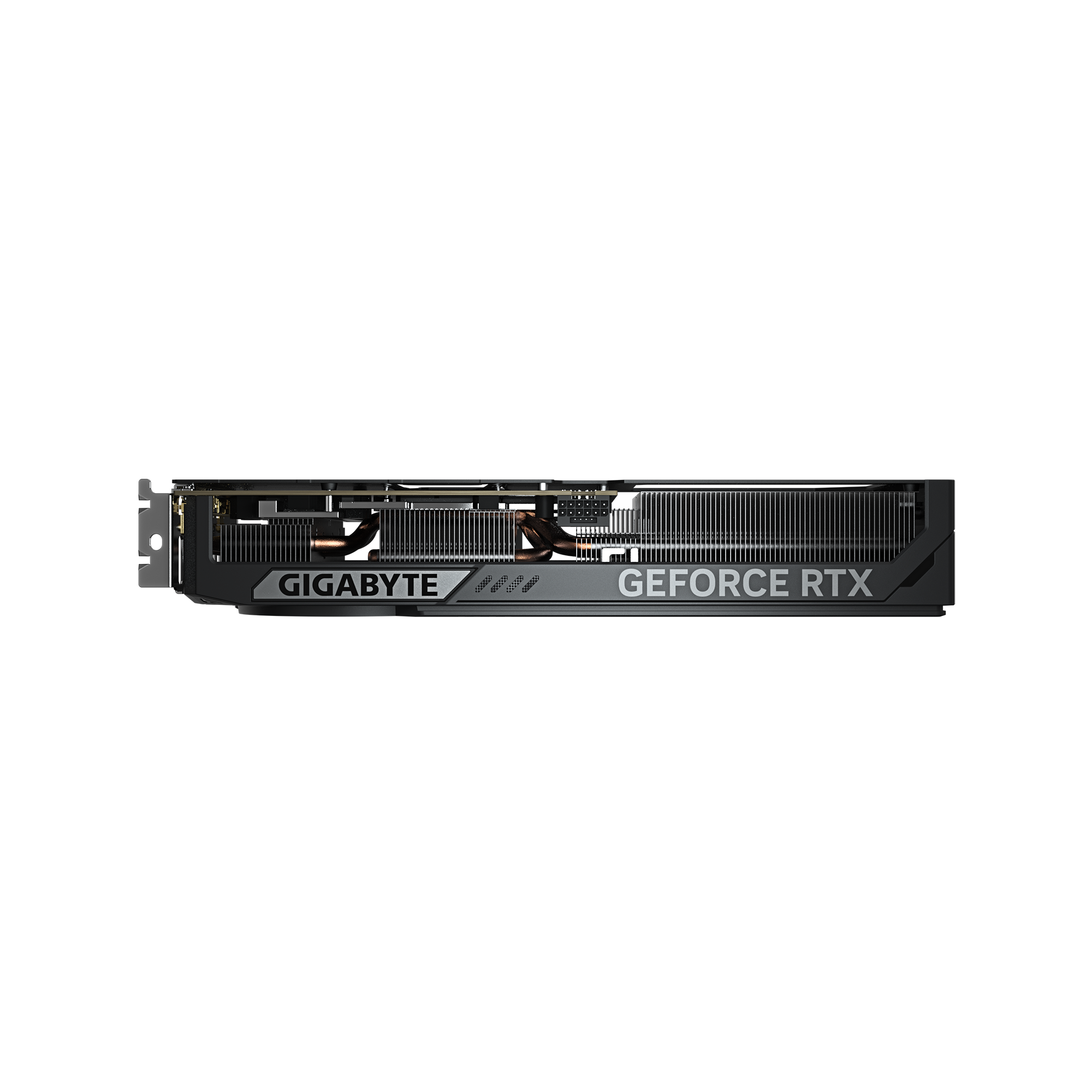

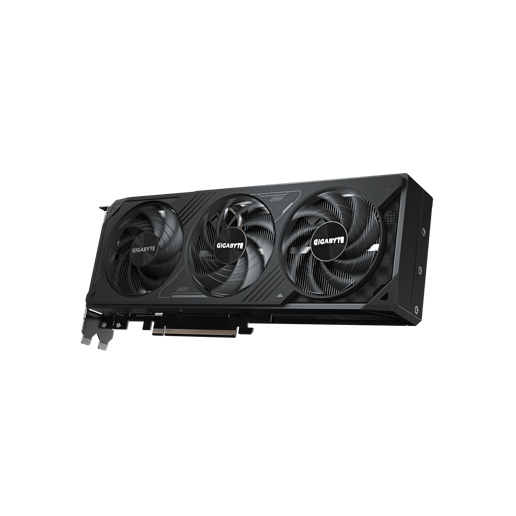

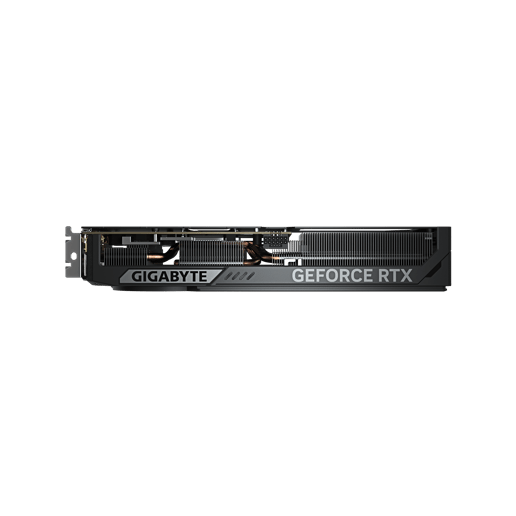

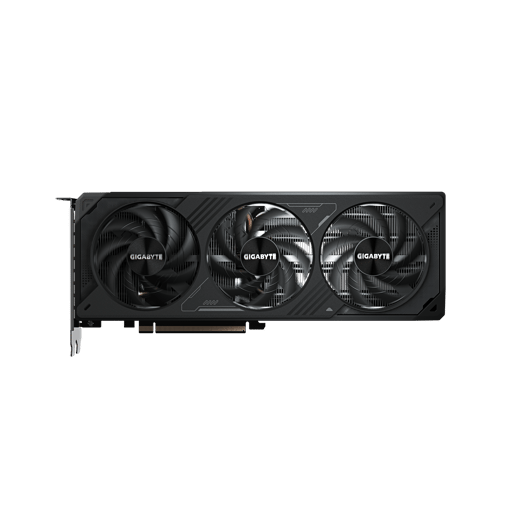

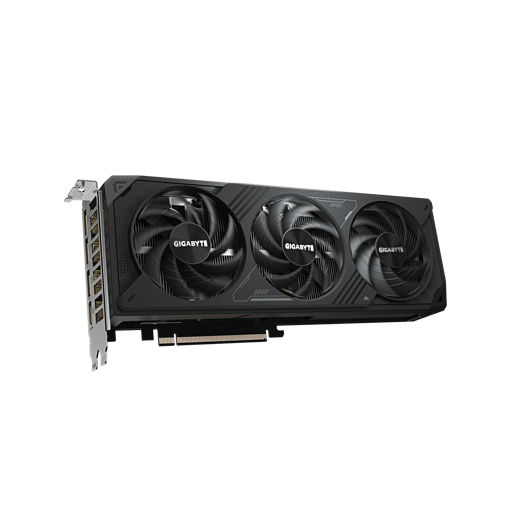

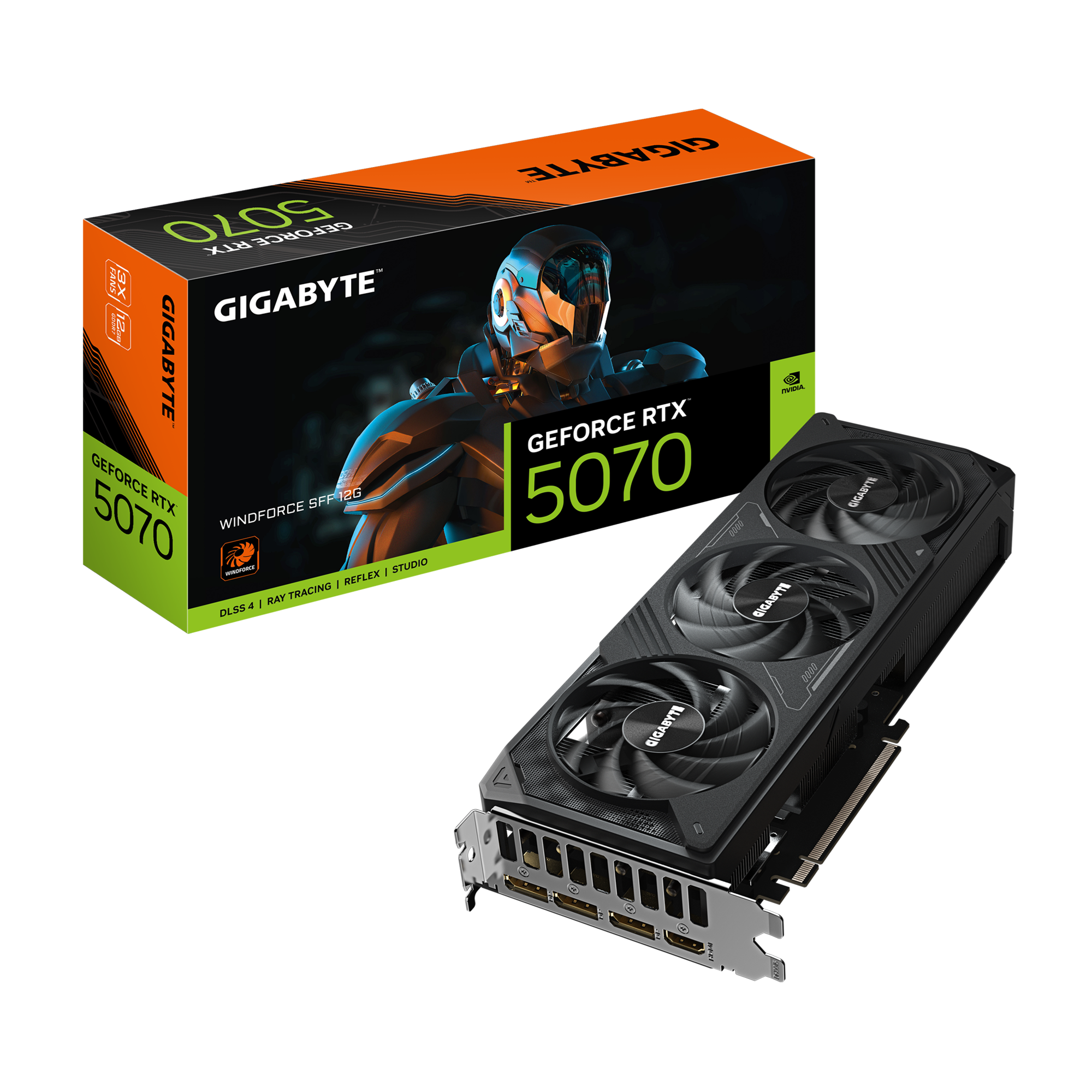

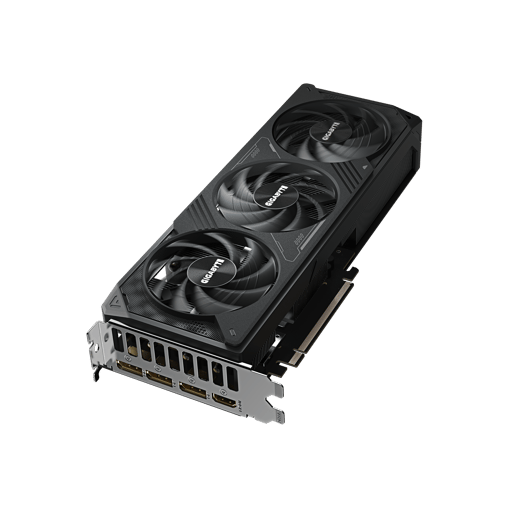

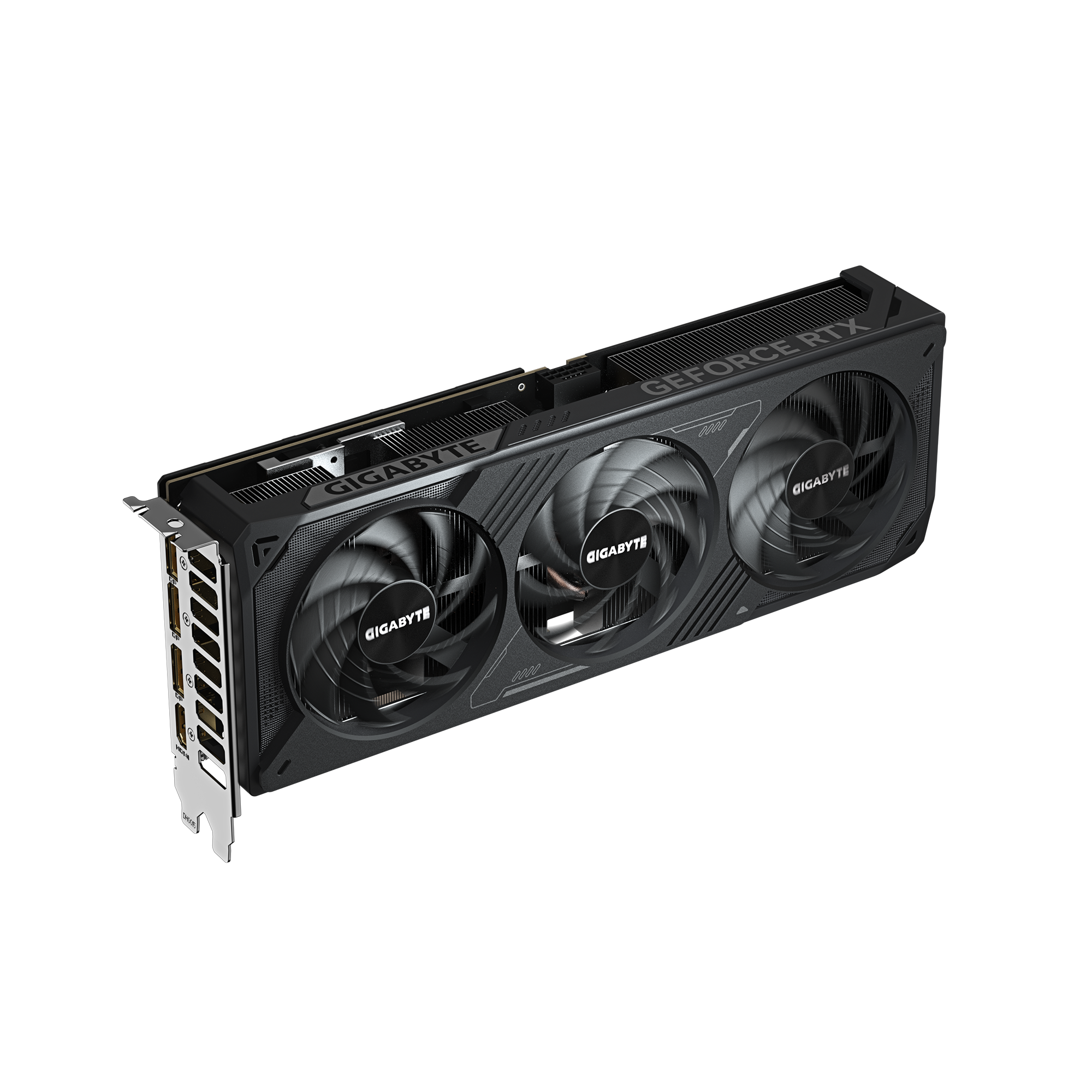

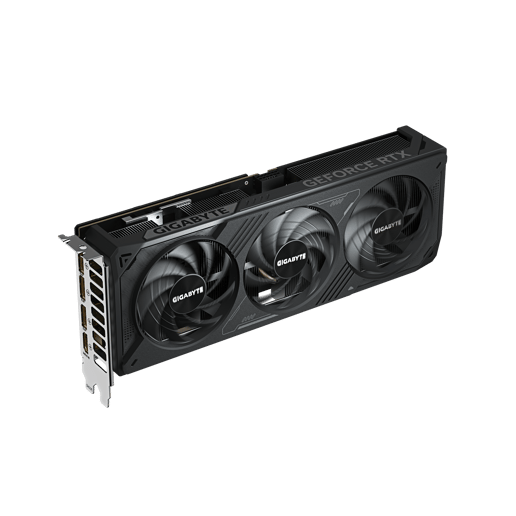

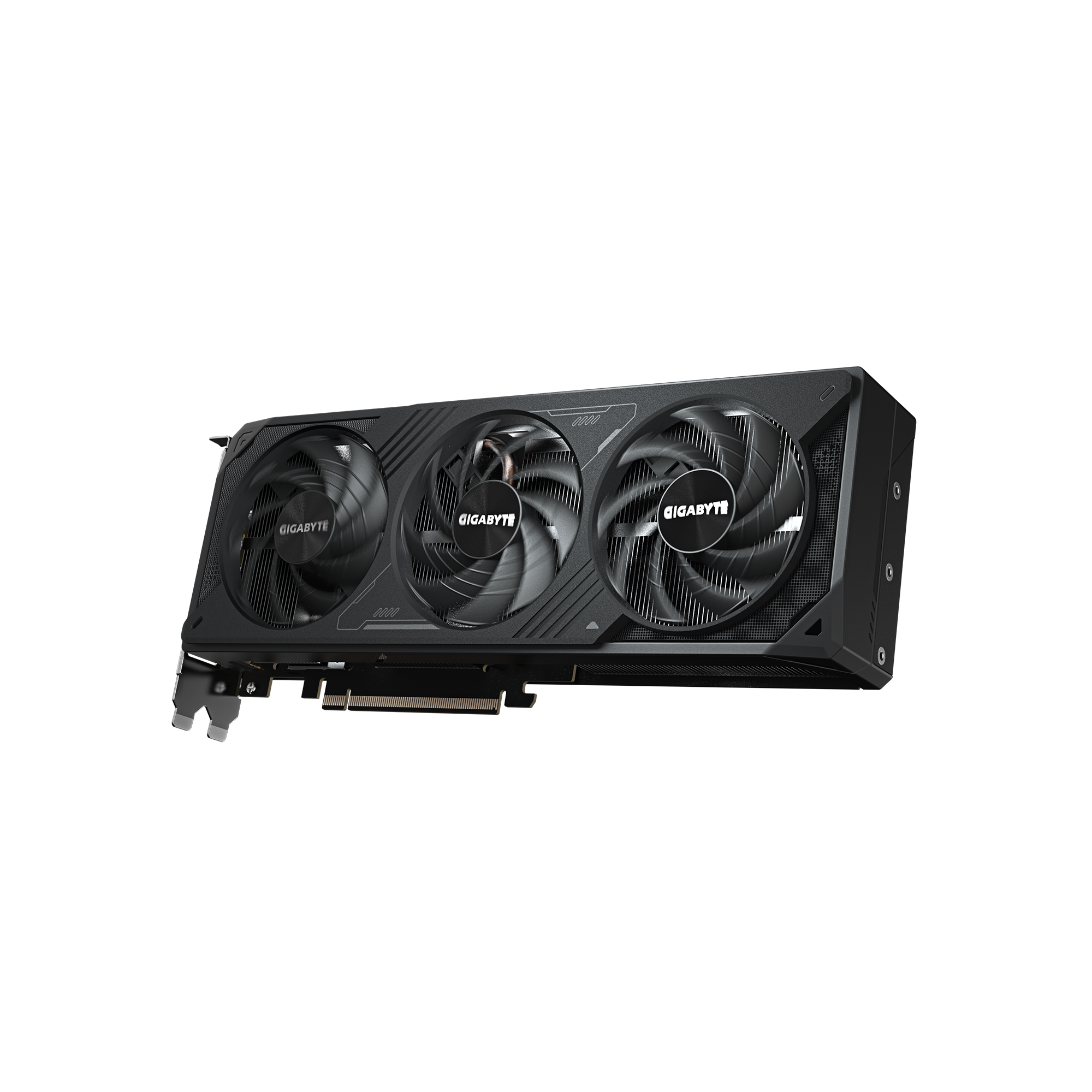

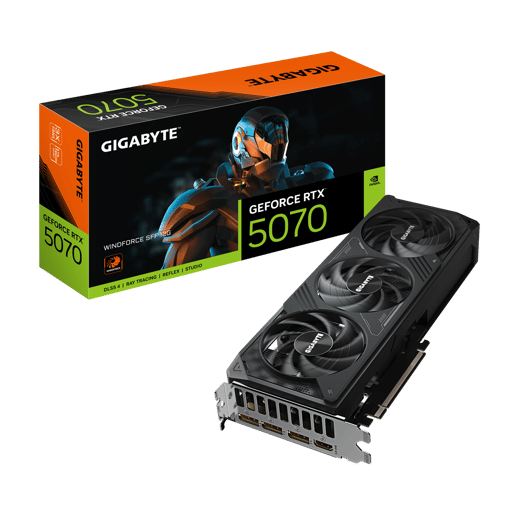

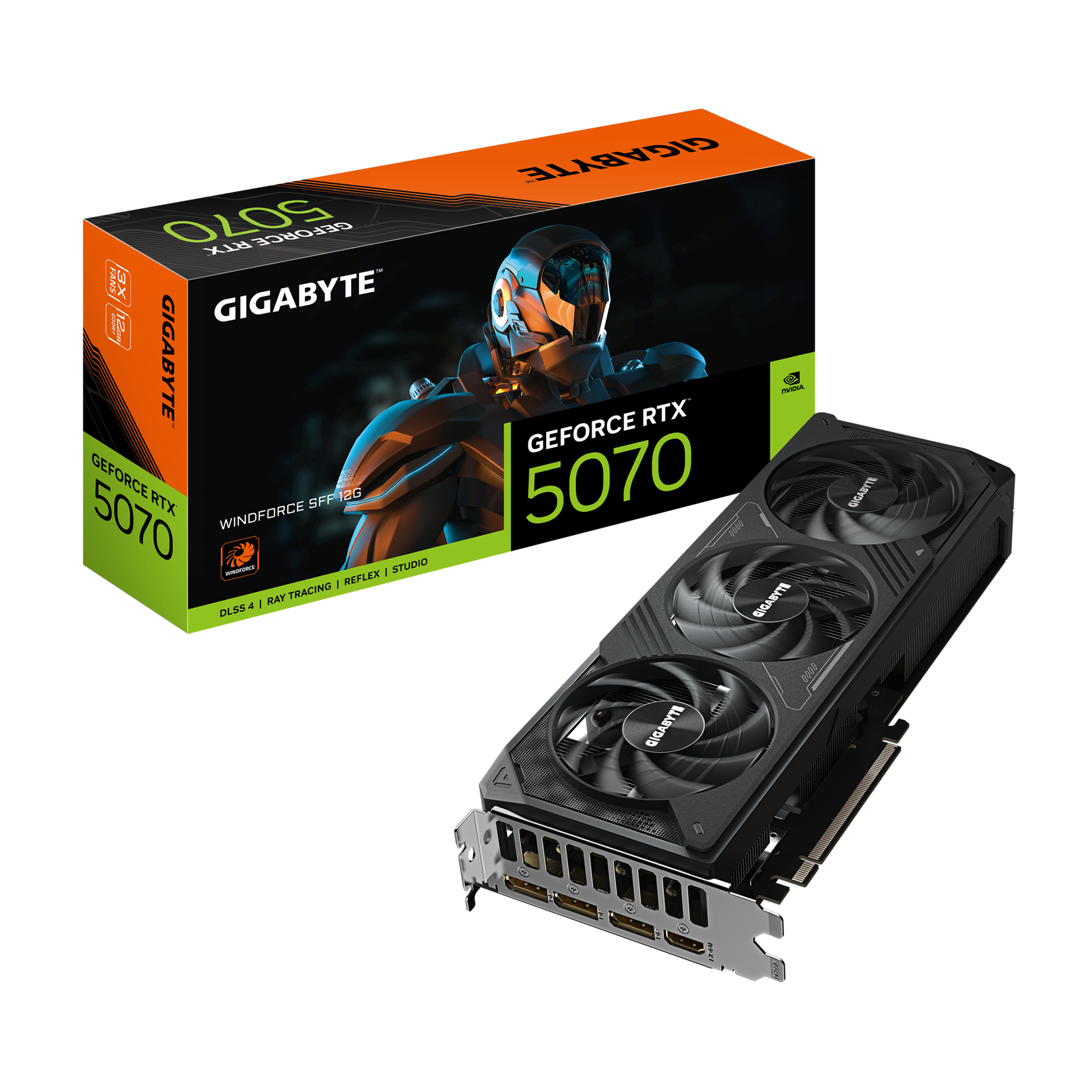

Gigabyte GeForce RTX 5070 WINDFORCE SFF 12GB GDDR7 Graphics Card
Available for delivery from Tuesday 16th June
Click & Collect from Tuesday 16th June
Order within
You have 0 of these in your basket

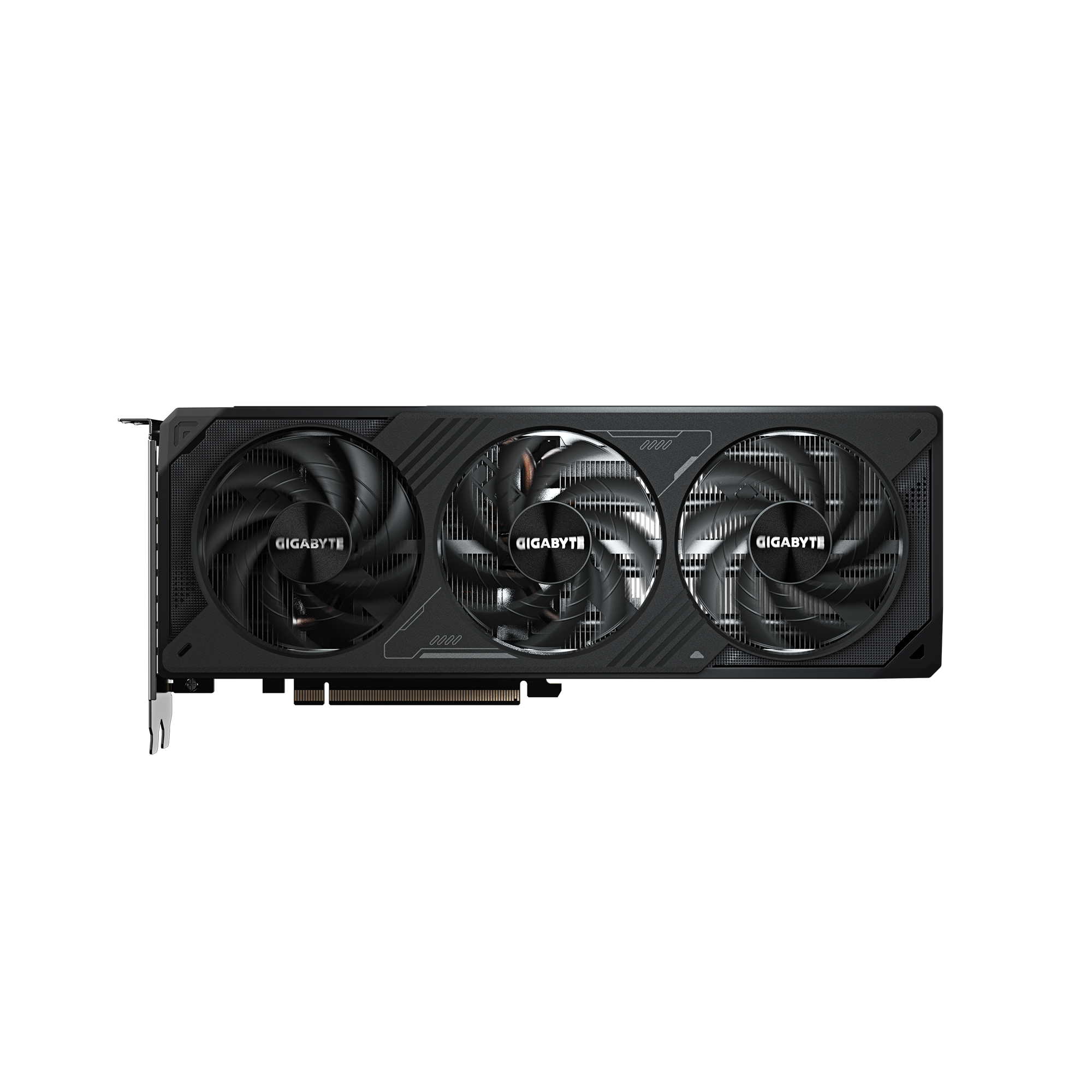

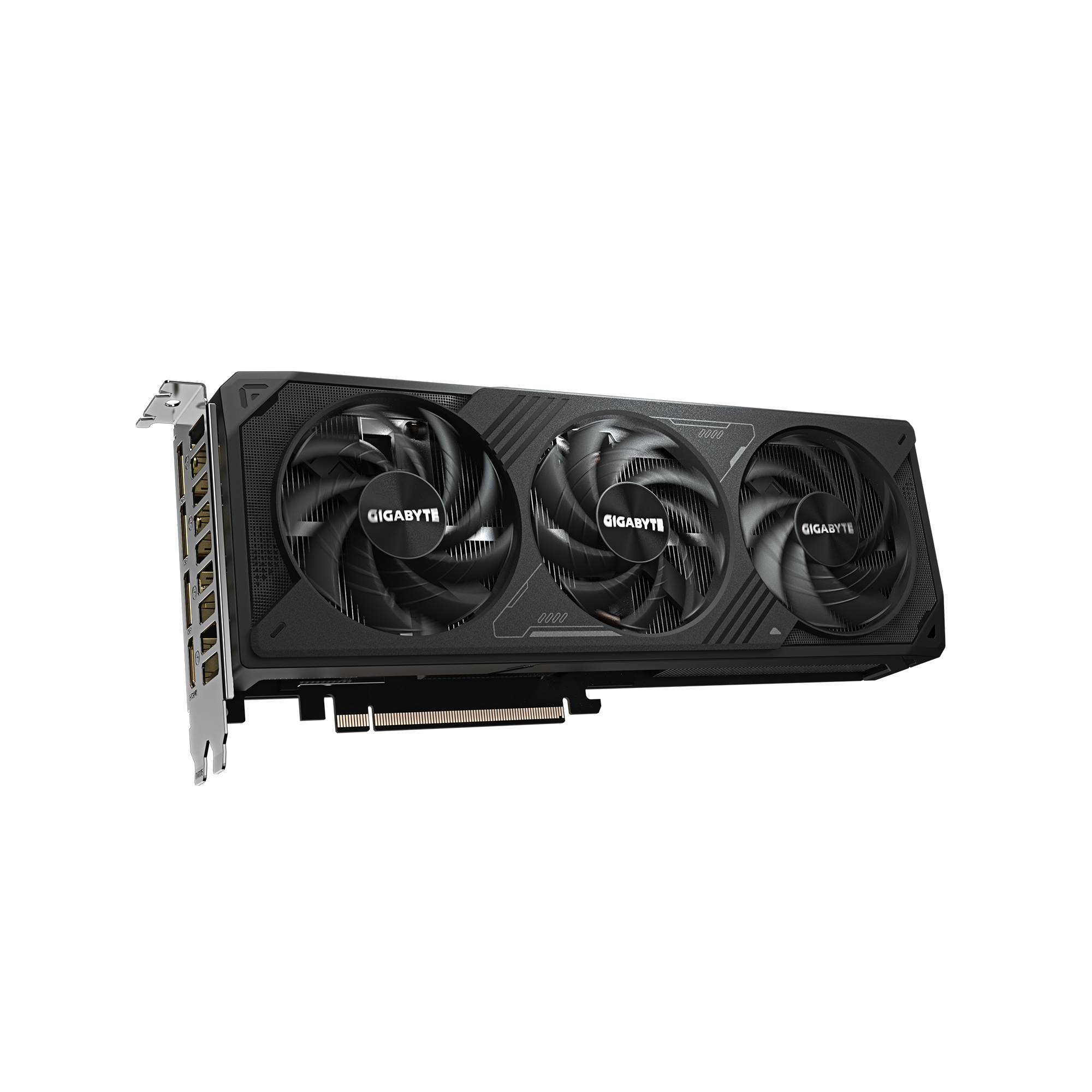

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.
SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
LARGE COPPER PLATE & COMPOSITE COPPER HEAT PIPE
The large copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
NVIDIA SFF-READY
Complying with NVIDIA's small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.

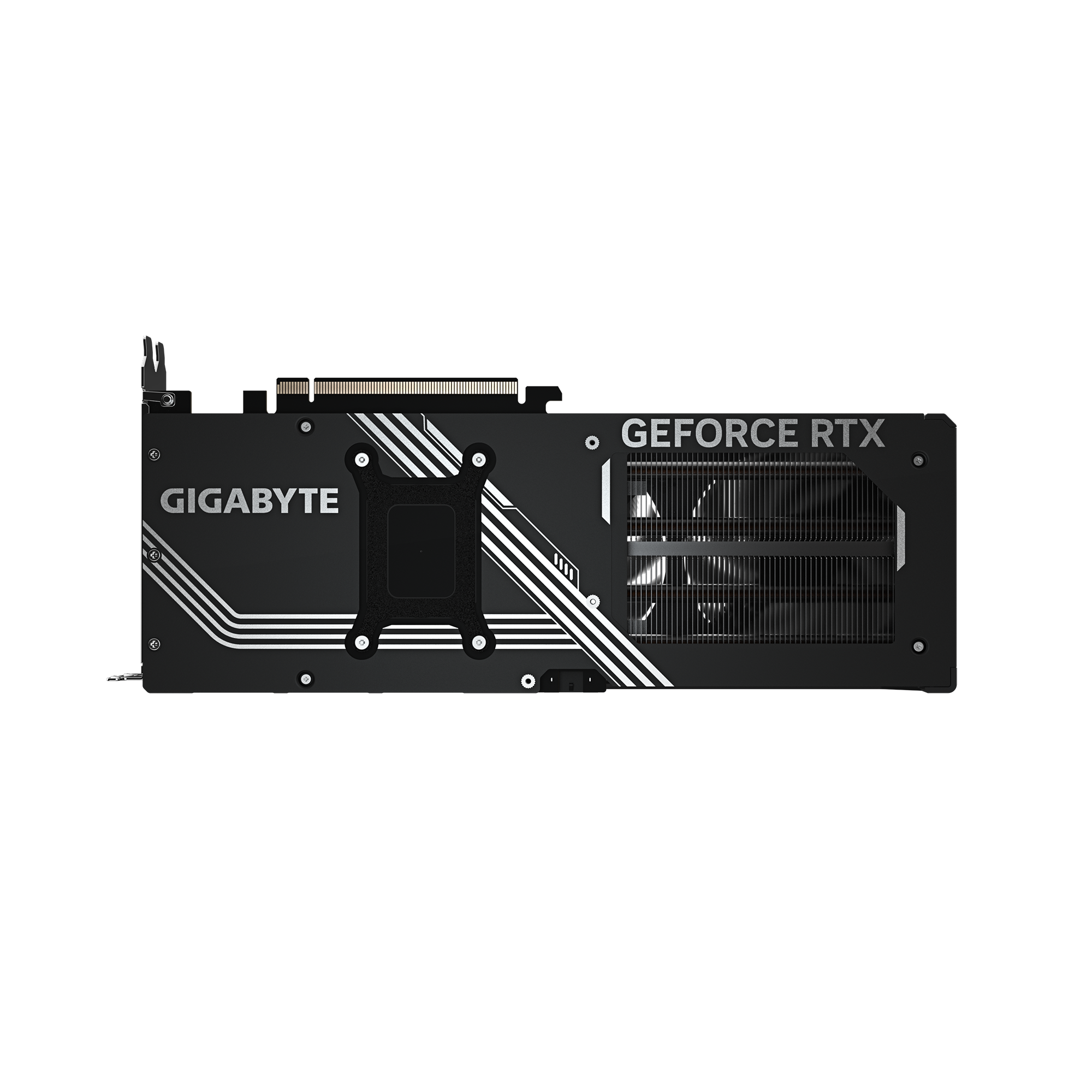

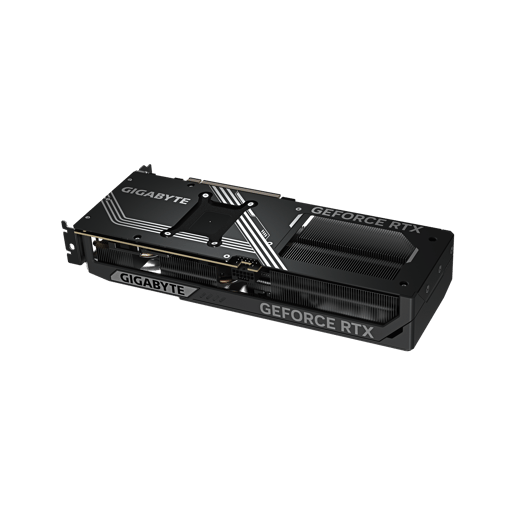

REINFORCED STRUCTURE

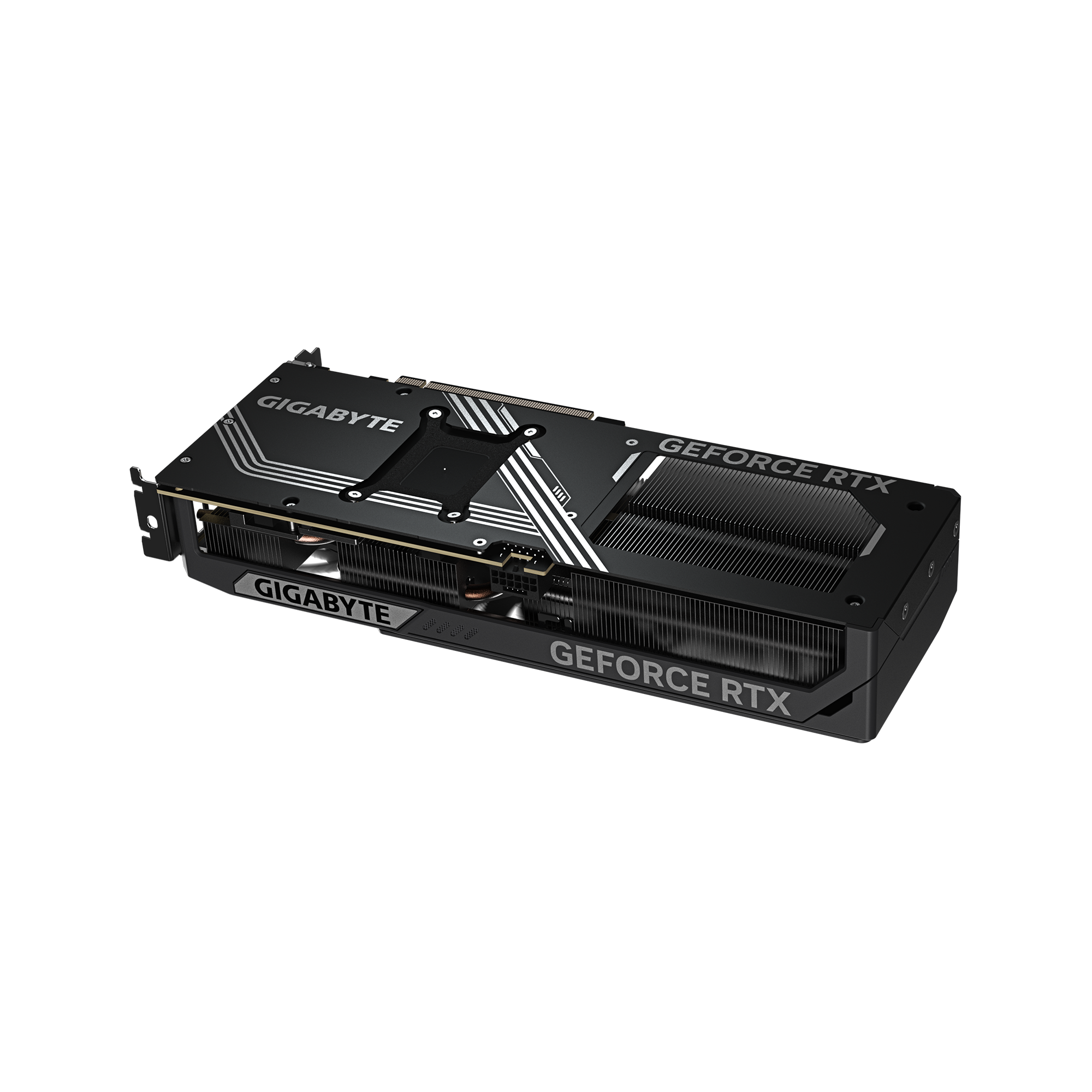

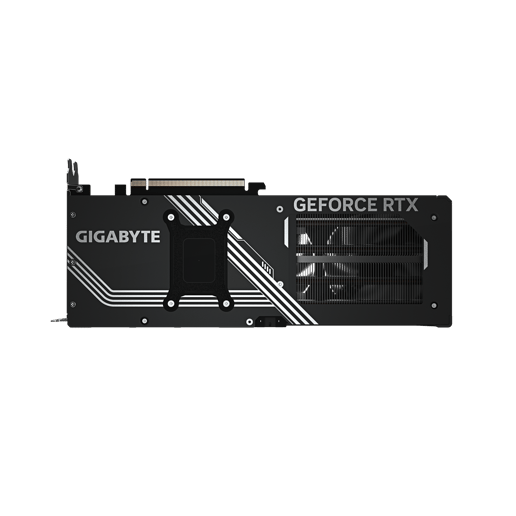

The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
GPU
- Chipset Manufacturer: NVIDIA
- Chipset Model Name: GeForce RTX
- Chipset Model Number: 5070
- Chipset Additional Information: WINDFORCE SFF
- Boost Chip Clock: 2512 MHz
- Graphics Core: CUDA
- Number of Cores: 6144
Memory
- Memory Size: 12 GB
- Memory Clock: 28 Gbps
- Memory Type: GDDR7
- Memory Width: 192 bit

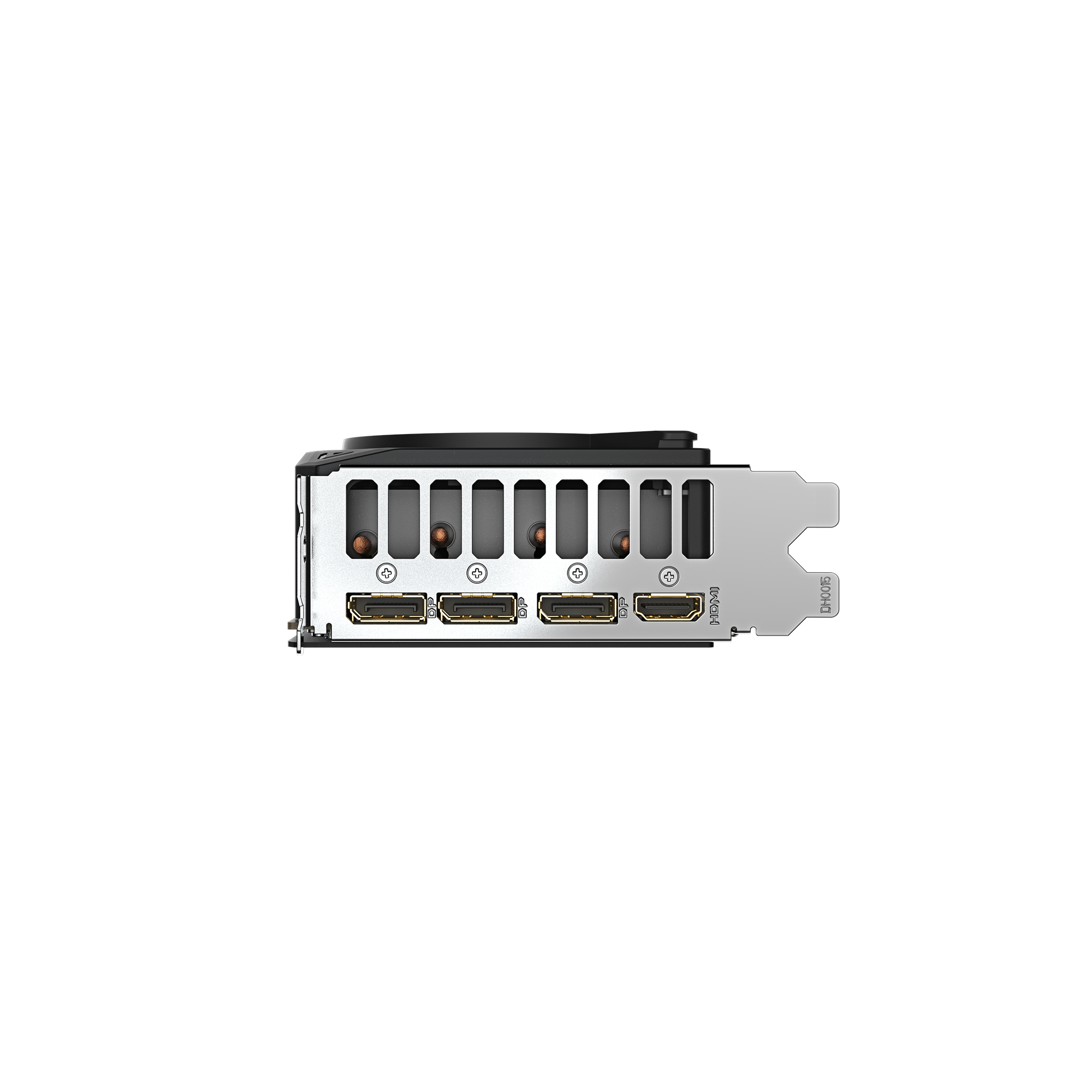

Interfaces/Ports
- Video Card Bus Type: PCI Express
- Video Card Bus Version: 5.0 x16

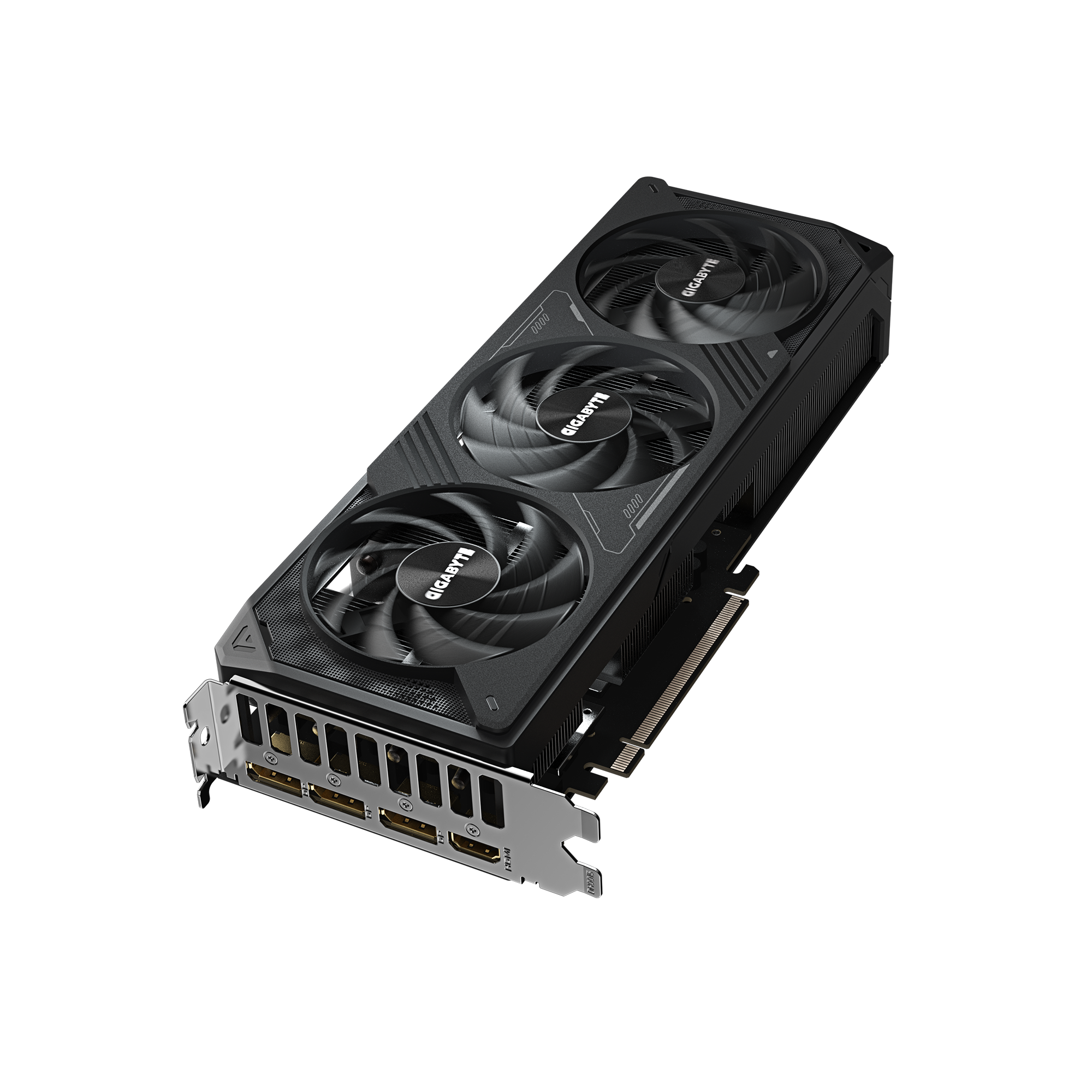

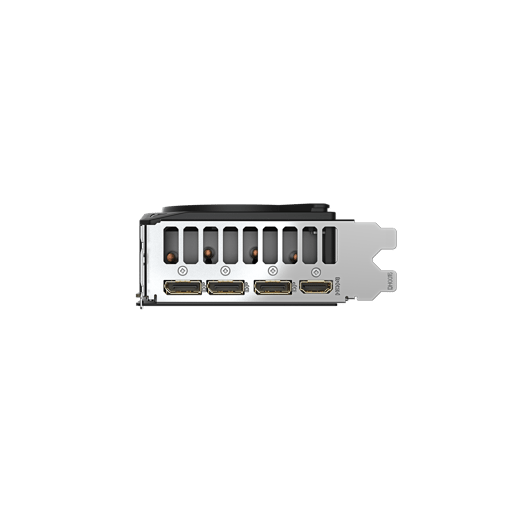

- HDMI Port: 1 x HDMI 2.1b
- DisplayPort: 3 x DisplayPort 2.1b
Resolution
- Multiple Monitor Support (Max): Yes (4)
- Maximum Resolution: 7680 x 4320
System Requirements
- System Requirements: 1 x PCI Express 5.0 x16 slot
Electrical
- Power Connector: 1 x 12V-2x6 or 2 x 8-pin PCIe
- Power Consumption: 250 W
- Recomended Power Supply: 750 W
Physical
- Form Factor: Graphics Card
- In The Box: Graphics Card
- Quick Guide
- 1 x 12V-2x6 to 2 x 8-pin PCIe Adapter
- Width: 50 mm (2.5 slot)
- Depth: 282 mm
- Height: 110 mm
Warranty
- Warranty: 3 Years
Identifiers
- Stock Code: VGA7379
- Mfg Code: GV-N5070WF3-12GD
