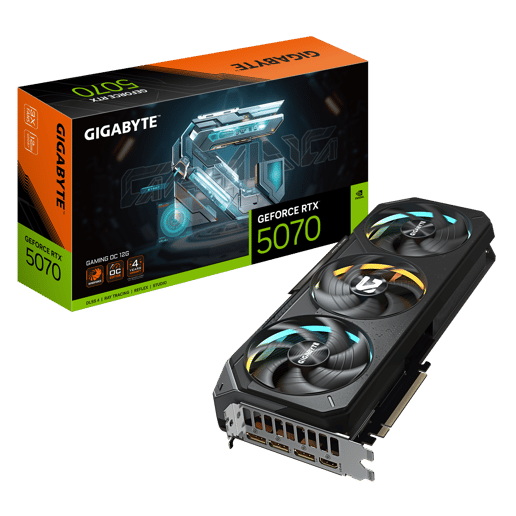

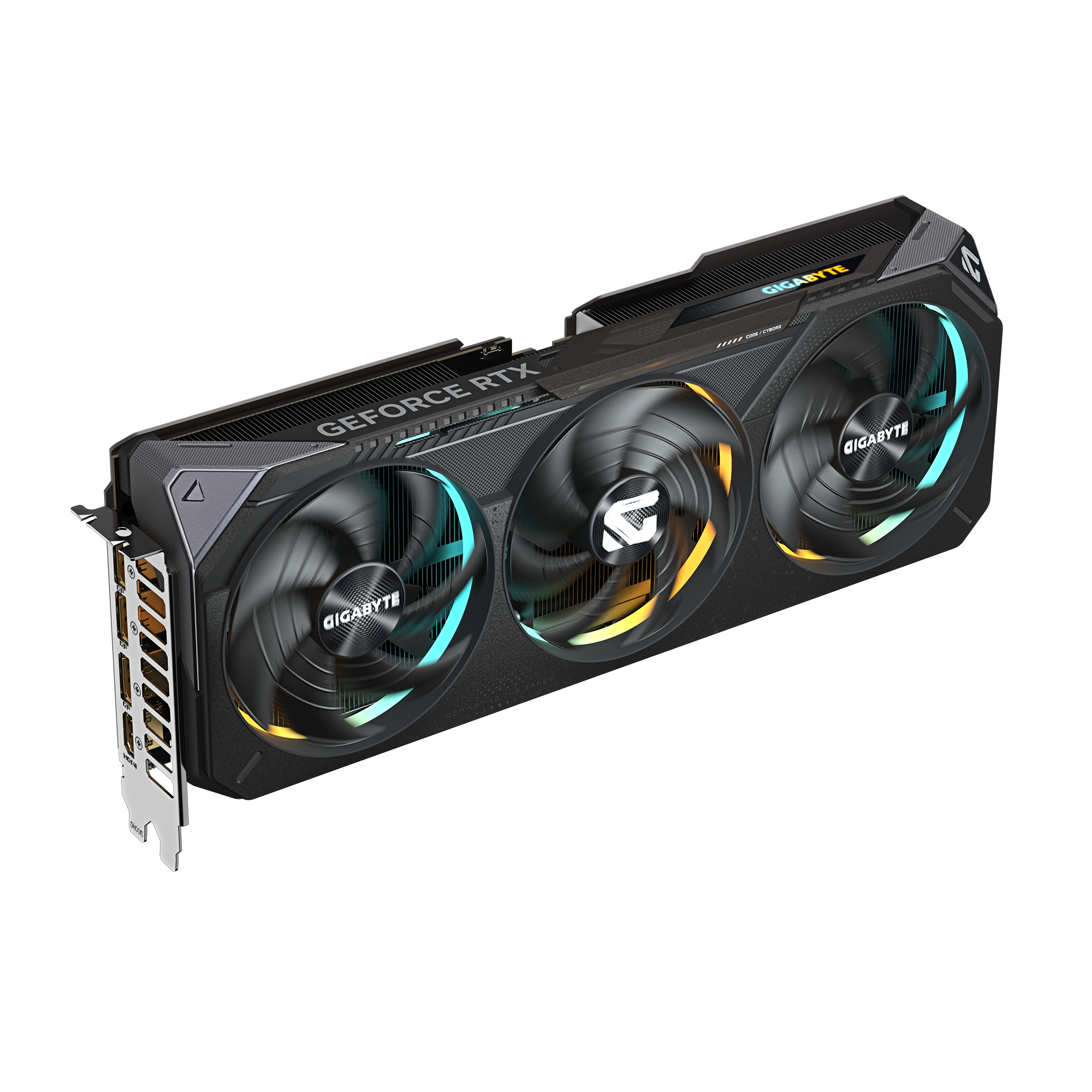

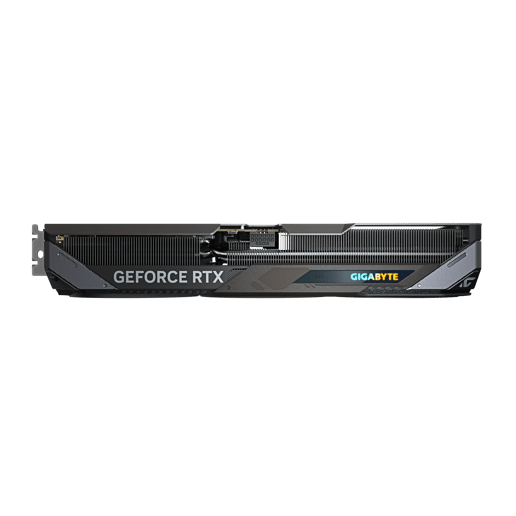

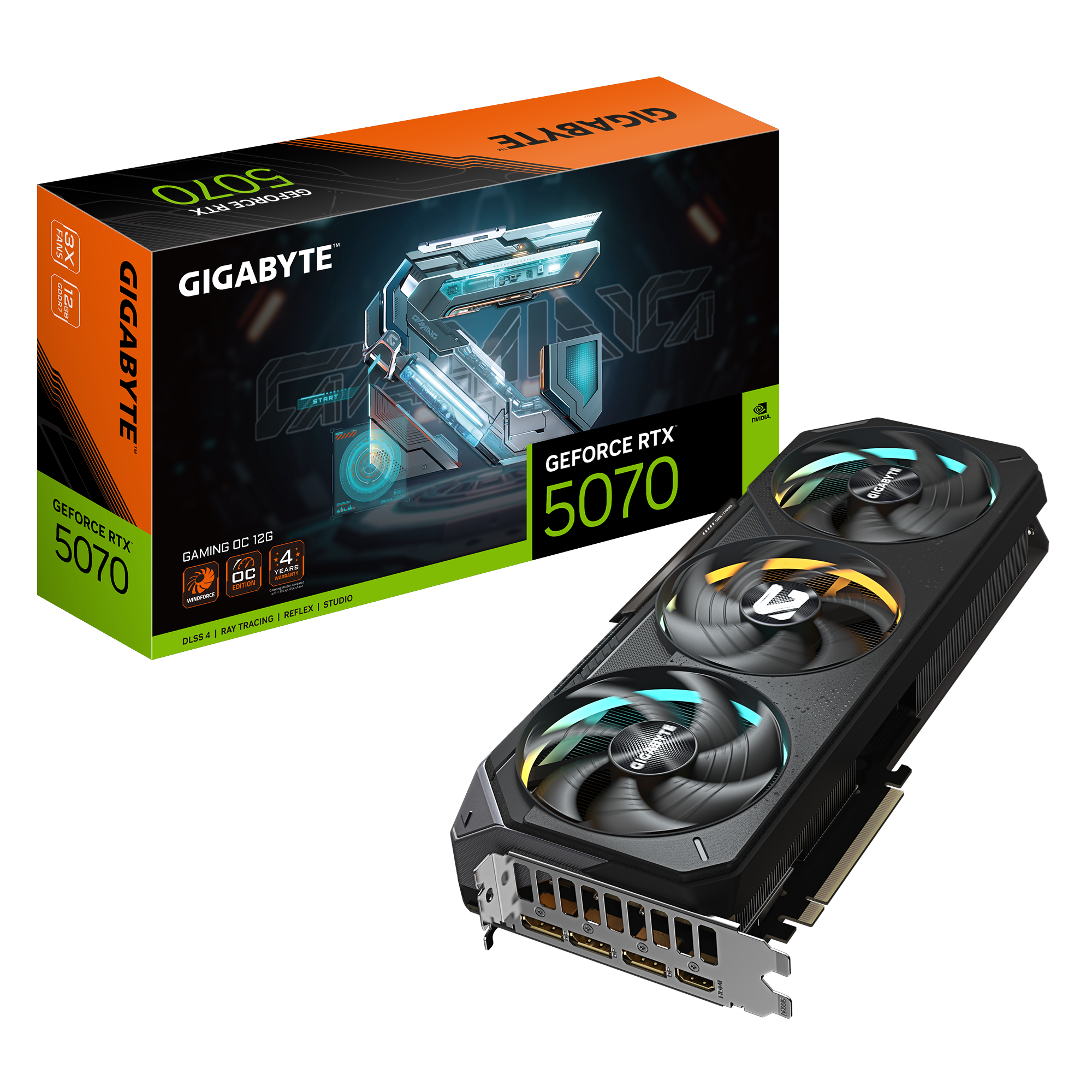

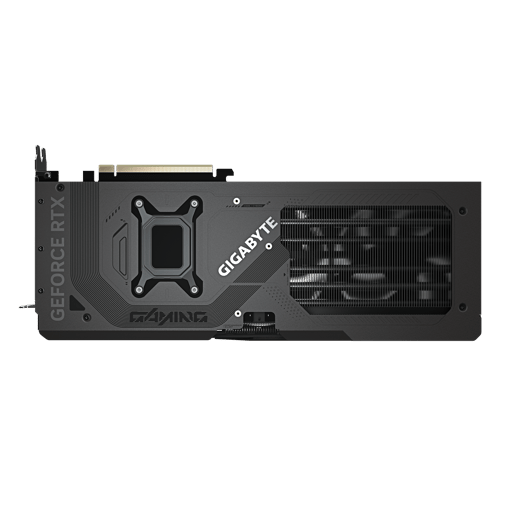

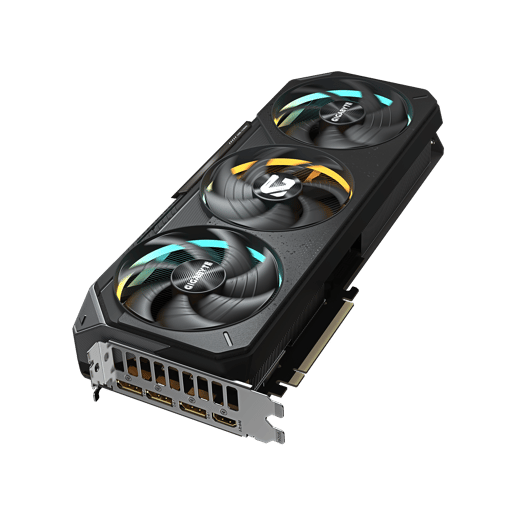

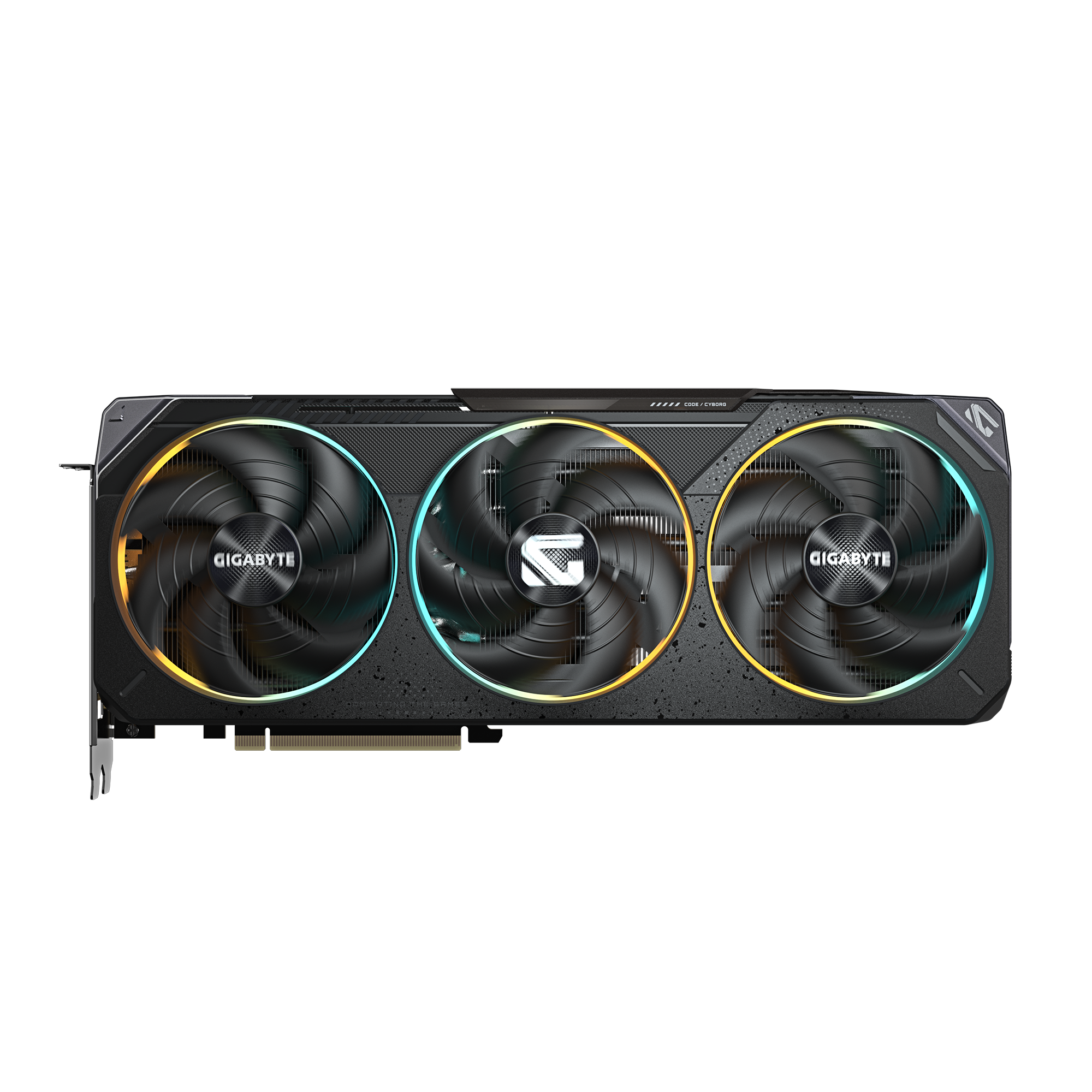

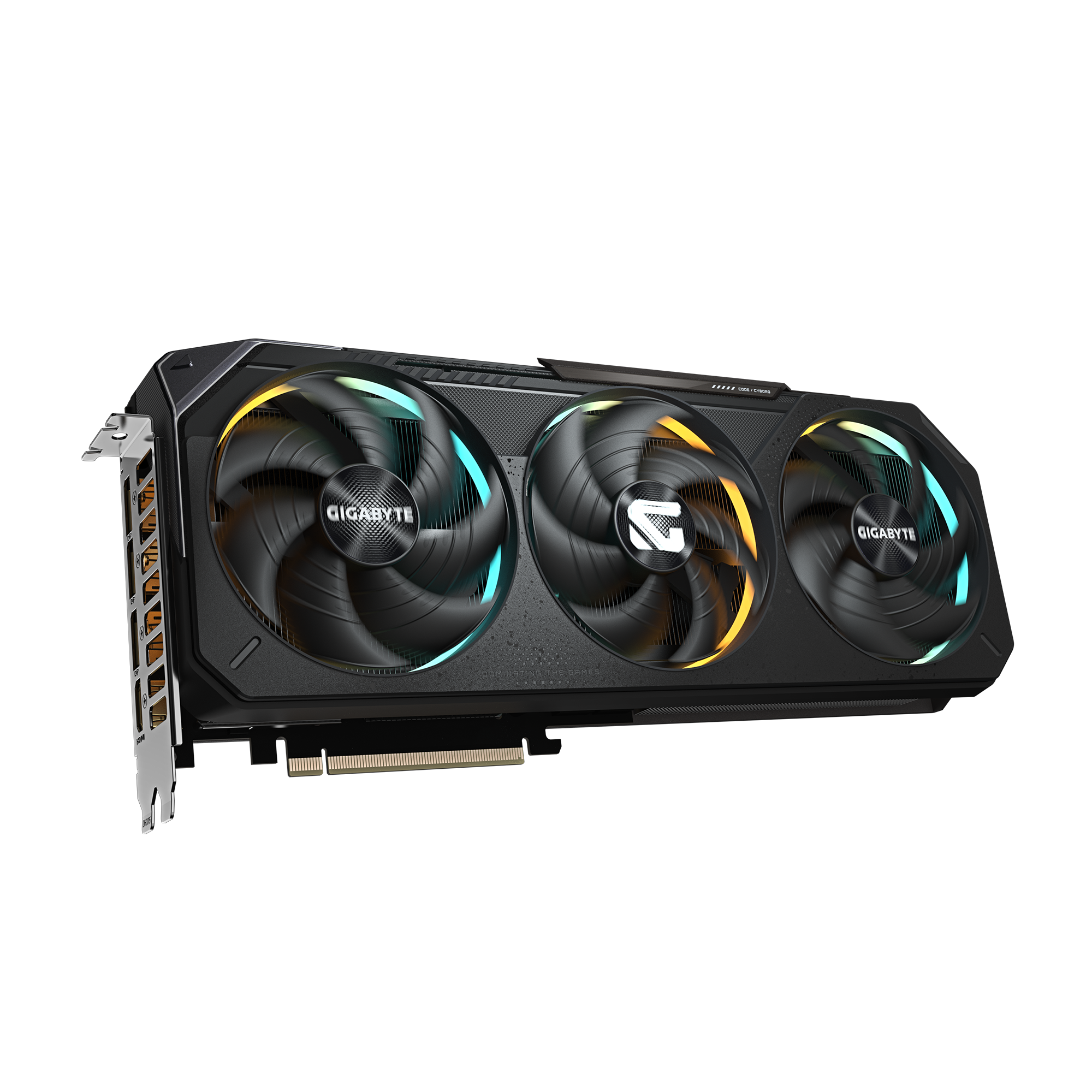

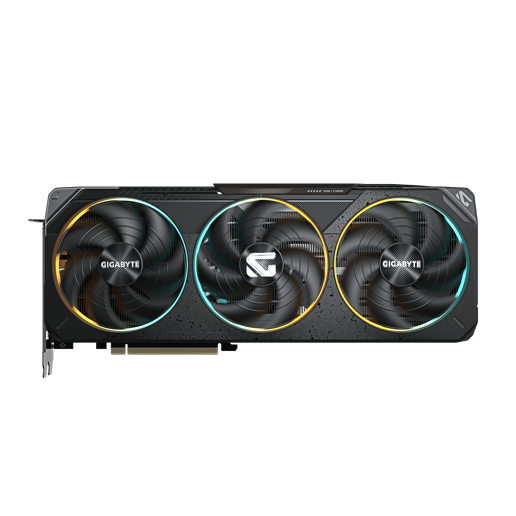

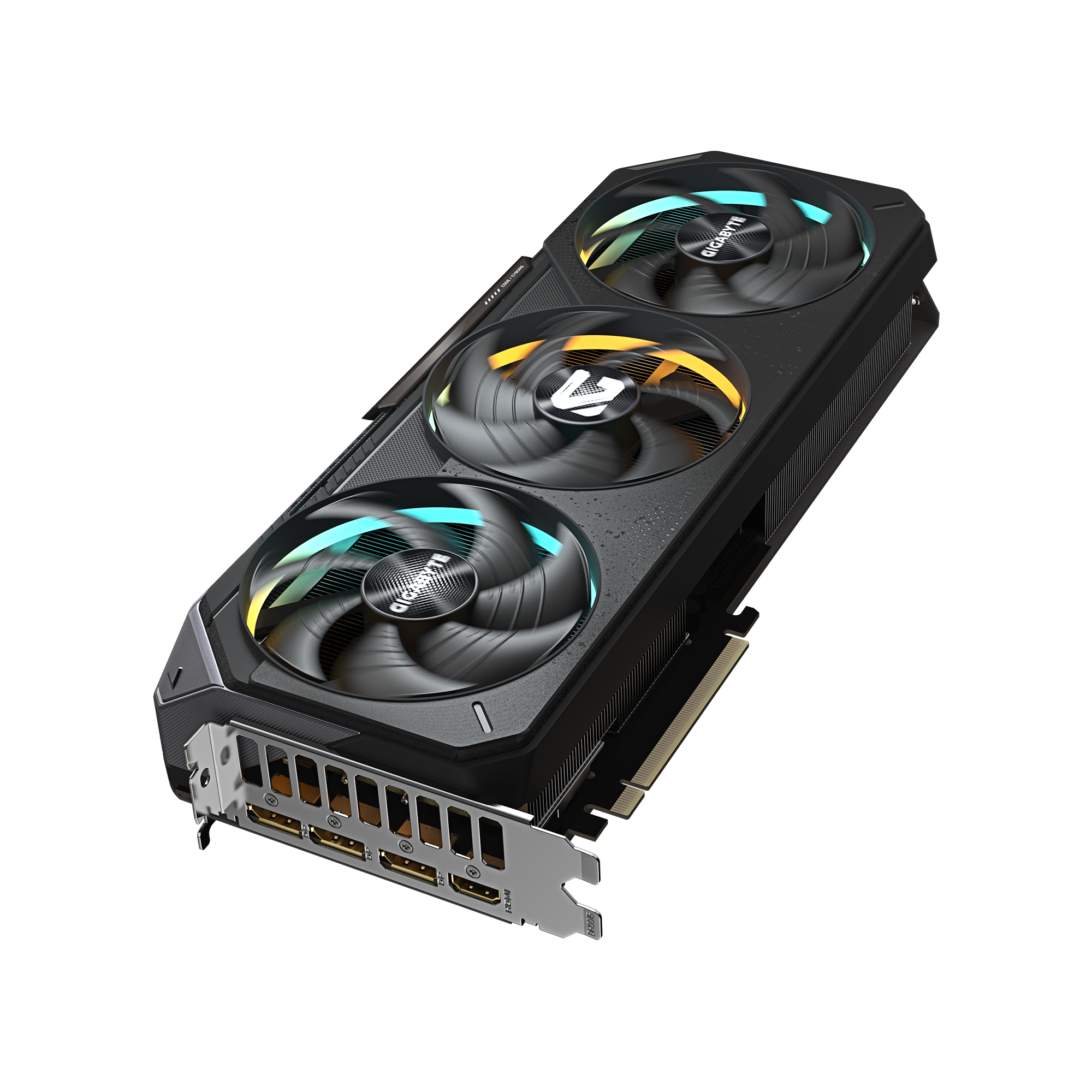

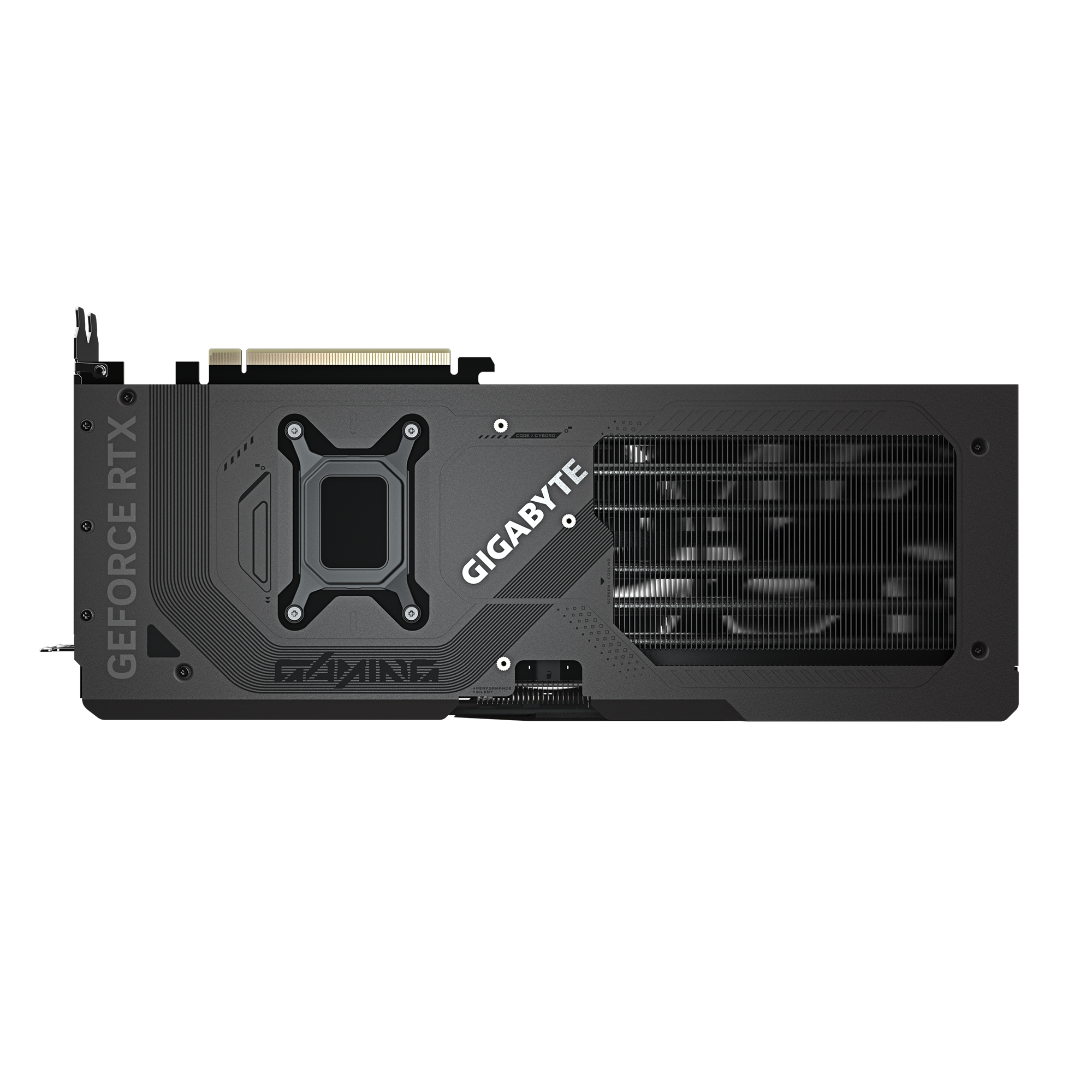

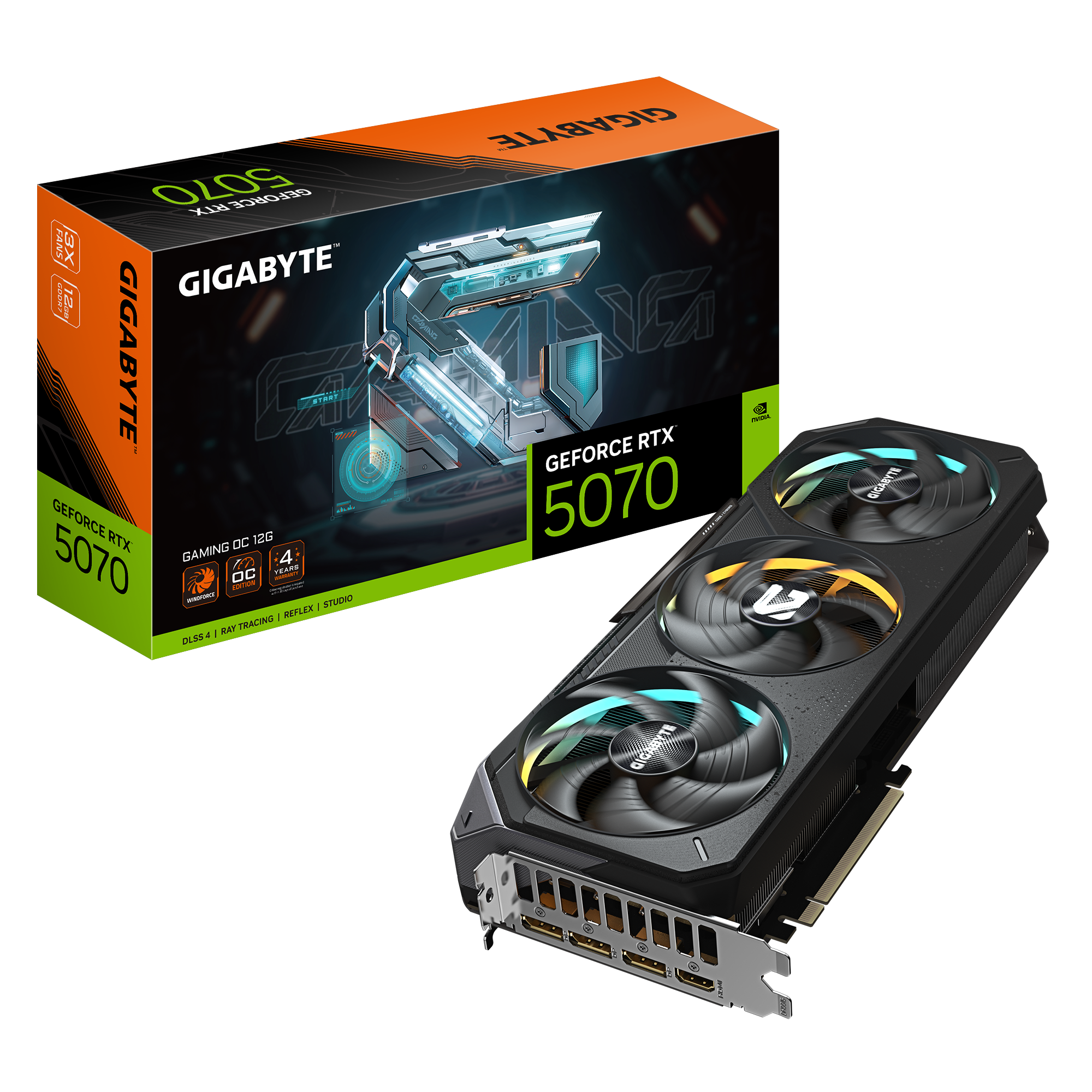

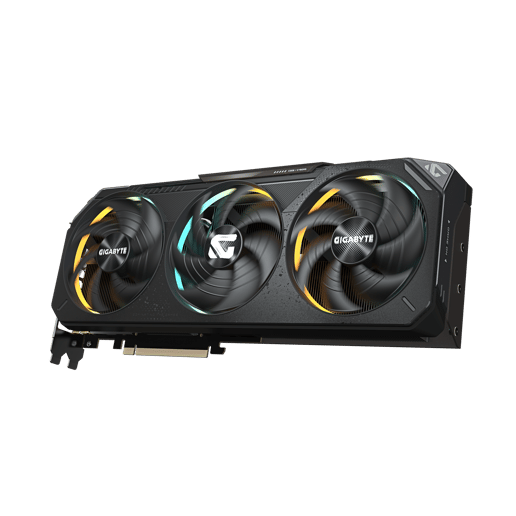

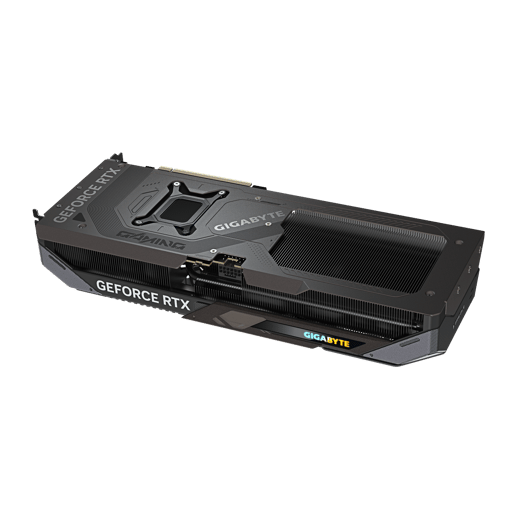

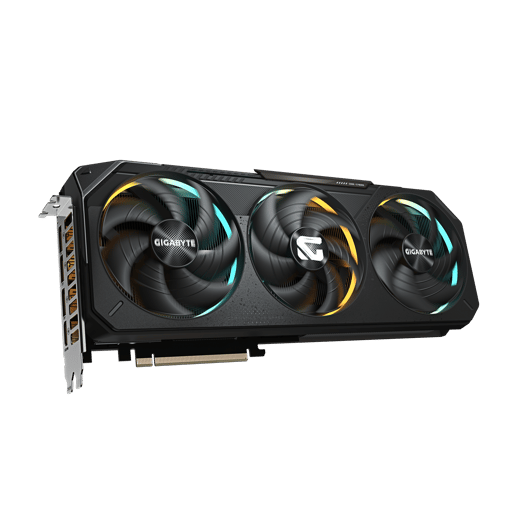

Gigabyte GeForce RTX 5070 GAMING OC 12GB GDDR7 Graphics Card

Gigabyte GeForce RTX 5070 GAMING OC 12GB GDDR7 Graphics Card

CCL Code: VGA7251

£675.99 inc VAT

Gigabyte GeForce RTX 5070 GAMING OC 12GB GDDR7 Graphics Card

GV-N5070GAMING OC-12GD

£675.99 inc VAT

Key Features:

  • 12GB GDDR7 Graphics Memory
  • PCI Express 5.0 x16 Interface
  • Overclocked Edition
  • Outputs - HDMI and Display Port

This item has very limited stock [more info]

Maximum of 1 per customer

CCL Code: VGA7251
Overview

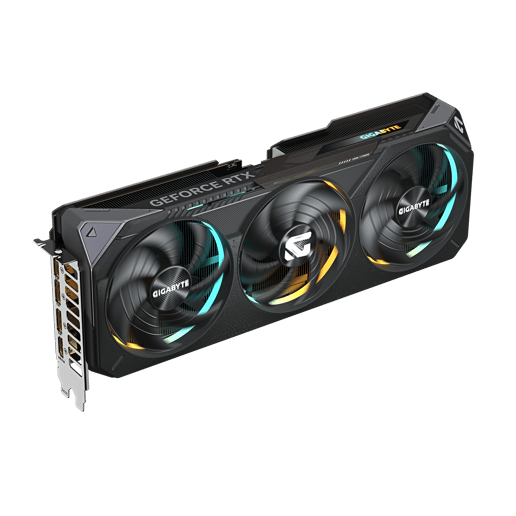

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN

The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Main Features

  • Powered by the NVIDIA Blackwell architecture and DLSS 4
  • Powered by GeForce RTX 5070
  • Integrated with 12GB GDDR7 192bit memory interface
  • WINDFORCE cooling system
  • RGB Halo
  • Dual BIOS (Performance / Silent)
  • Reinforced structure
  • Versatile VGA holder
  • 4 years warranty (Online registration required)
Specifications

GPU

Chipset Manufacturer NVIDIA
Chipset Model Name GeForce RTX
Chipset Model Number 5070
Chipset Additional Information GAMING OC
Base Chip Clock 2165 MHz
Graphics Core CUDA
Number of Cores 6144

Memory

Memory Size 12288 MB
Memory Clock 28 Gbps
Memory Type GDDR7
Memory Width 192 bit
Memory Bandwidth 672.2 GB/s

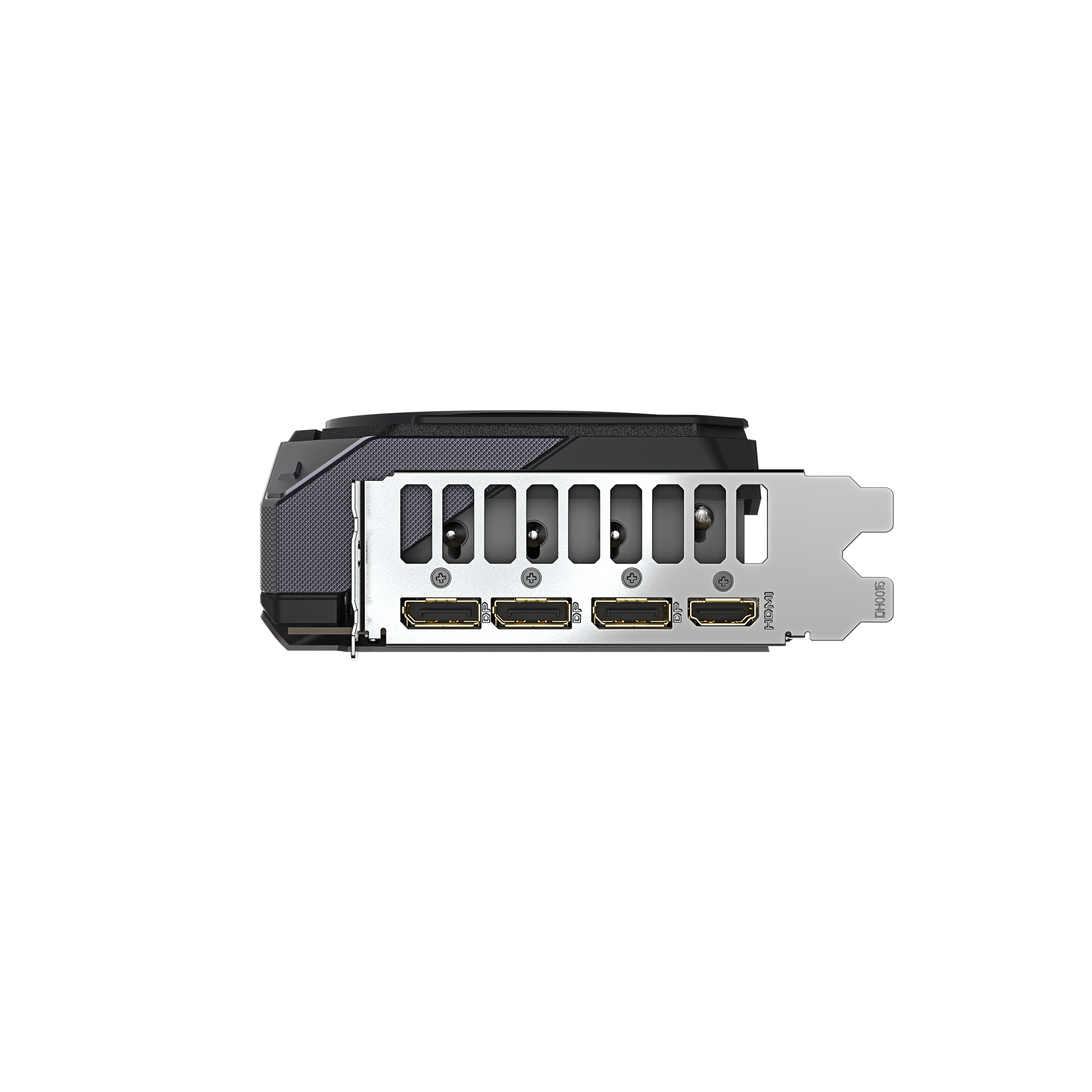

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 5.0 x16

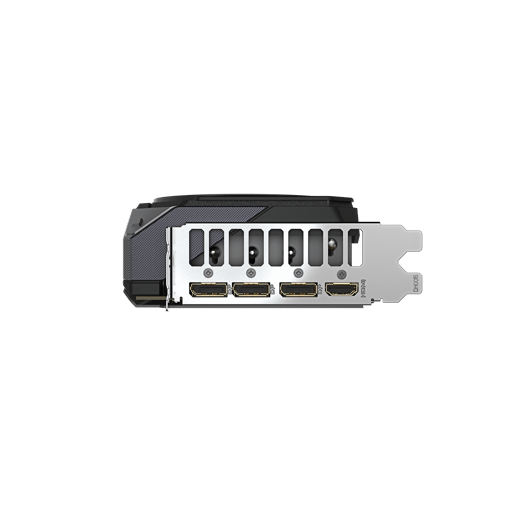

HDMI Port 1 x HDMI 2.1b
DisplayPort 3 x DisplayPort 2.1a

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320

System Requirements

System Requirements 1 x PCI Express 5.0 x16 slot

Electrical

Power Connector 1 x 12V-2x6 or 2 x 8-pin PCIe
Power Consumption 250 W
Recomended Power Supply 750 W

Physical

Form Factor Graphics Card
In The Box Graphics Card
Quick guide
Warranty registration
1 x 12V-2x6 to 2 x 8-pin PCIe adapter
VGA holder
VGA holder manual
Width 56 mm (2.7 slot)
Depth 327 mm
Height 132 mm

Warranty

Warranty 3 Years
4 Years with online registration

Key Features

Interface Type PCI Express 5.0 x16
Config Gaming x8 (CB/CCL) No
Graphics Memory Type GDDR7
Main Colour Black
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan Inc. 0dB Mode
Low Profile No
NVIDIA GeForce RTX 5070
PCIe Pin Type 12+4-Pin (16-Pin)
Cooling Technology Dynamic Fan Inc. 0dB Mode
VR Ready NVIDIA
GPU Length 327 mm
Card Width 3
Power Requirement (auto) 250 W
GPU Power (TDP) 250 W
Graphics card count 1
PCI Express Power Pins (female) 16
PCIe Physical Slot required 16
12VHPWR 16-pin Connector Yes
AI Ready Yes
12V-2x6 Rating 300W

Graphics

Graphics Chipset GeForce RTX 5070

Graphics Device

G-Sync Yes

Item Details

Manufacturer Gigabyte
Manufacturer Code GV-N5070GAMING OC-12GD
EAN 4719331355722
Condition New
Warranty

Warranty Information

Warranty 3 Years
4 Years with online registration

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code GV-N5070GAMING OC-12GD
