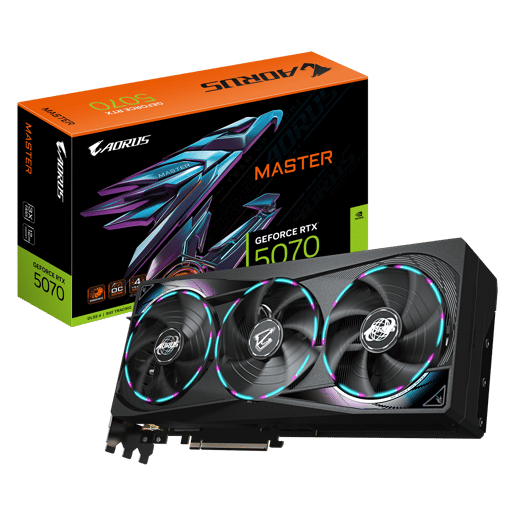

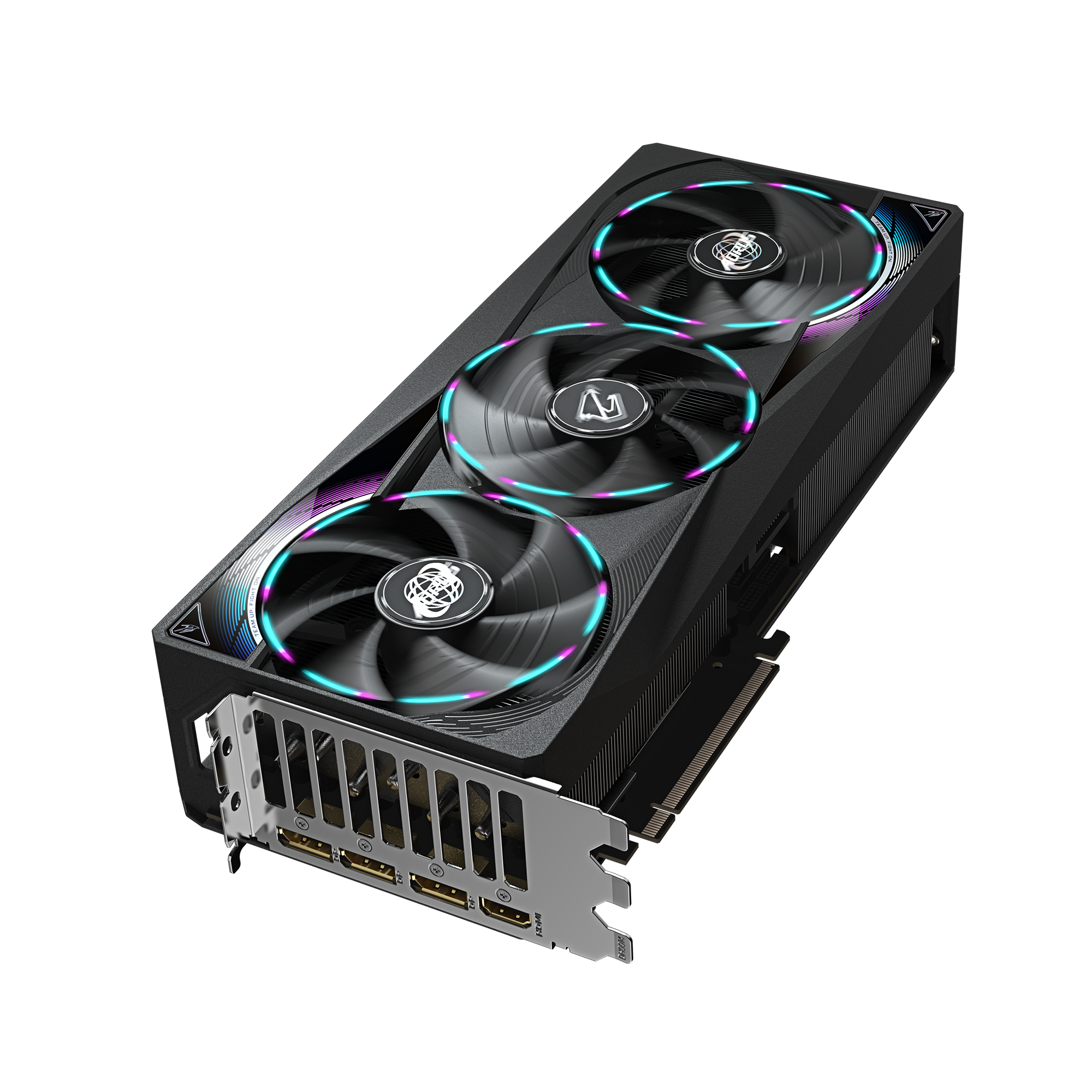

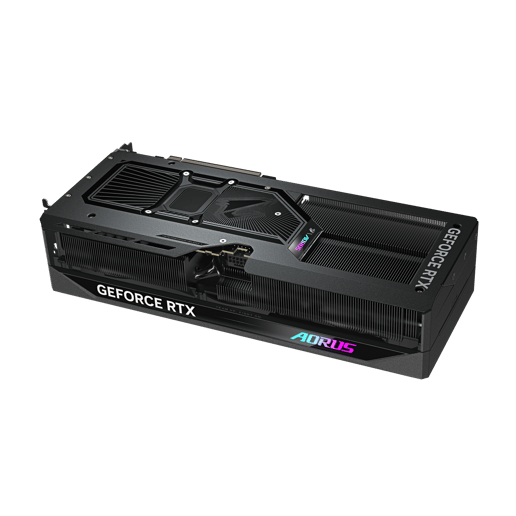

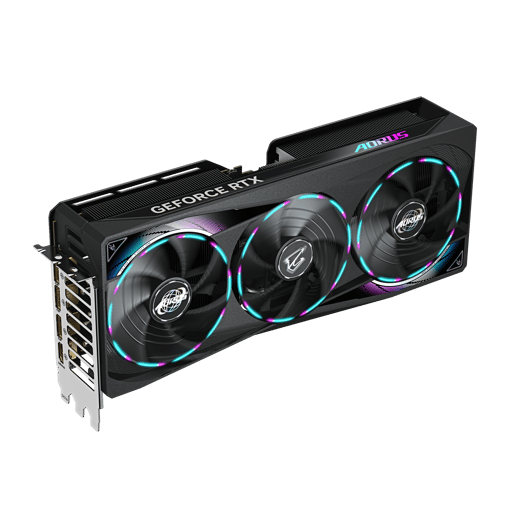

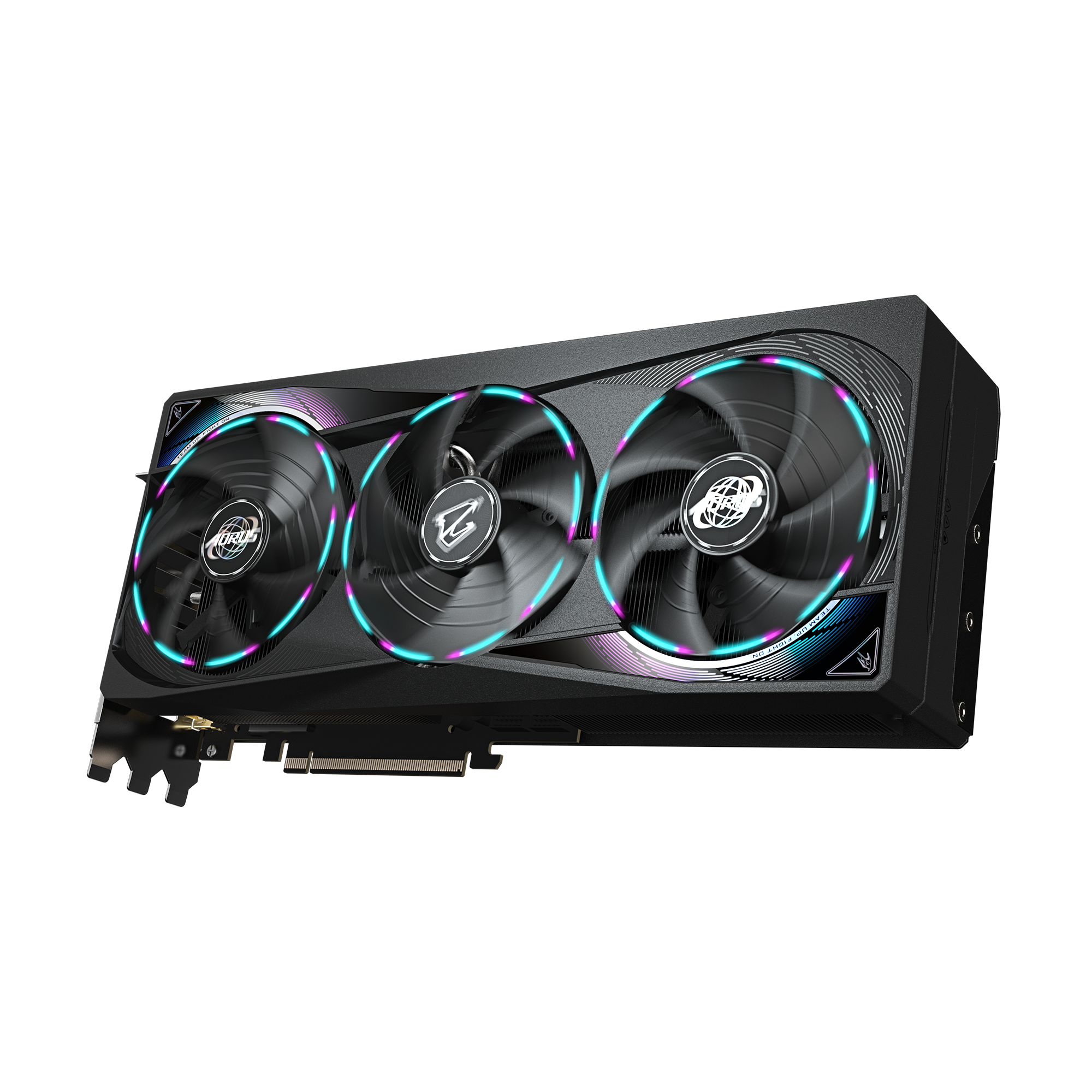

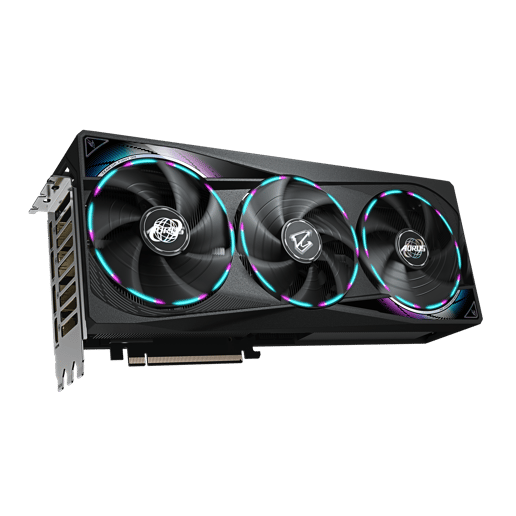

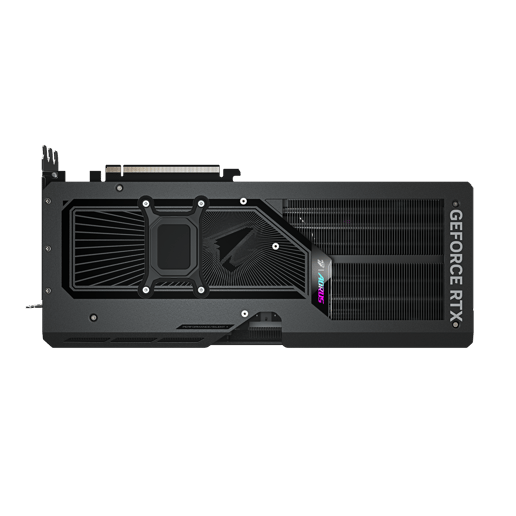

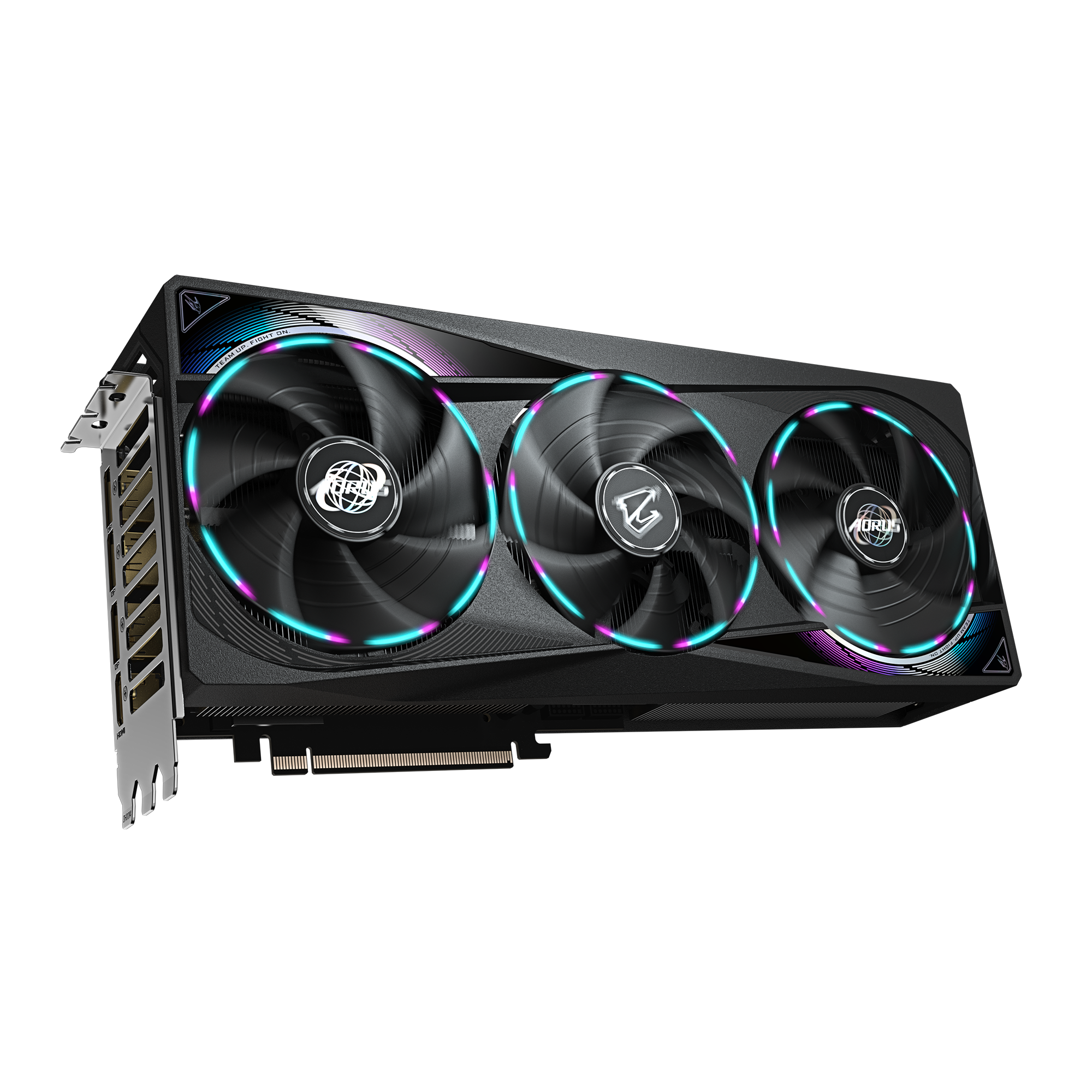

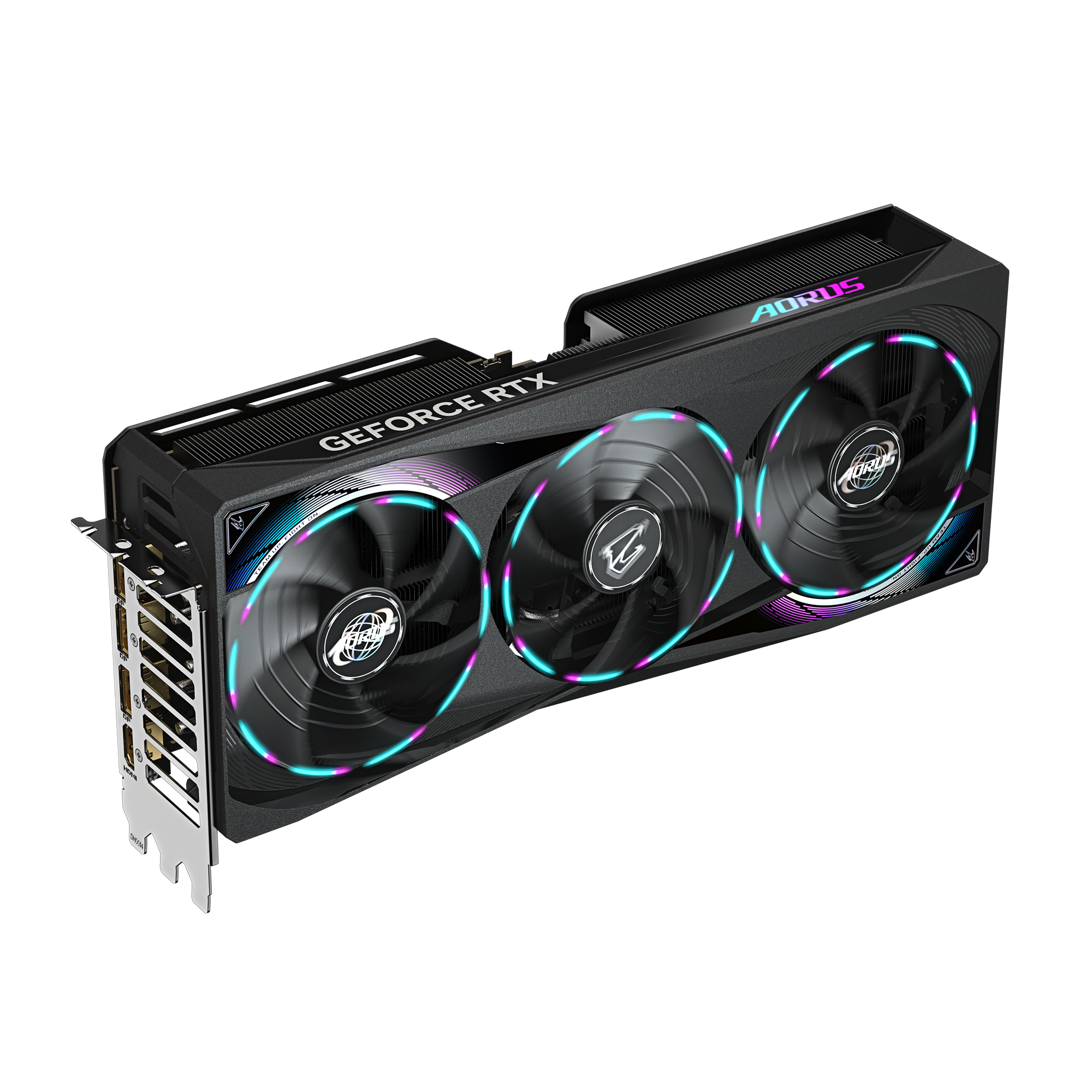

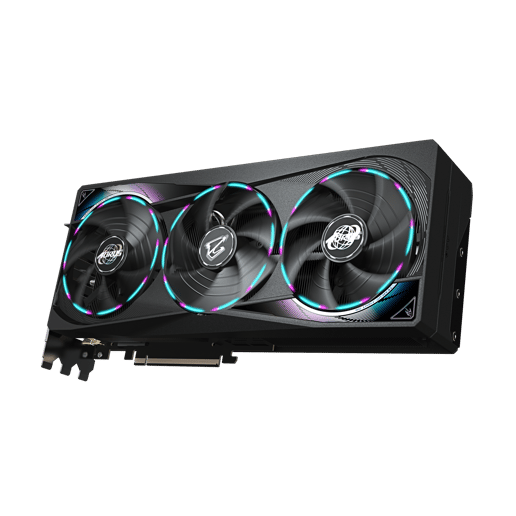

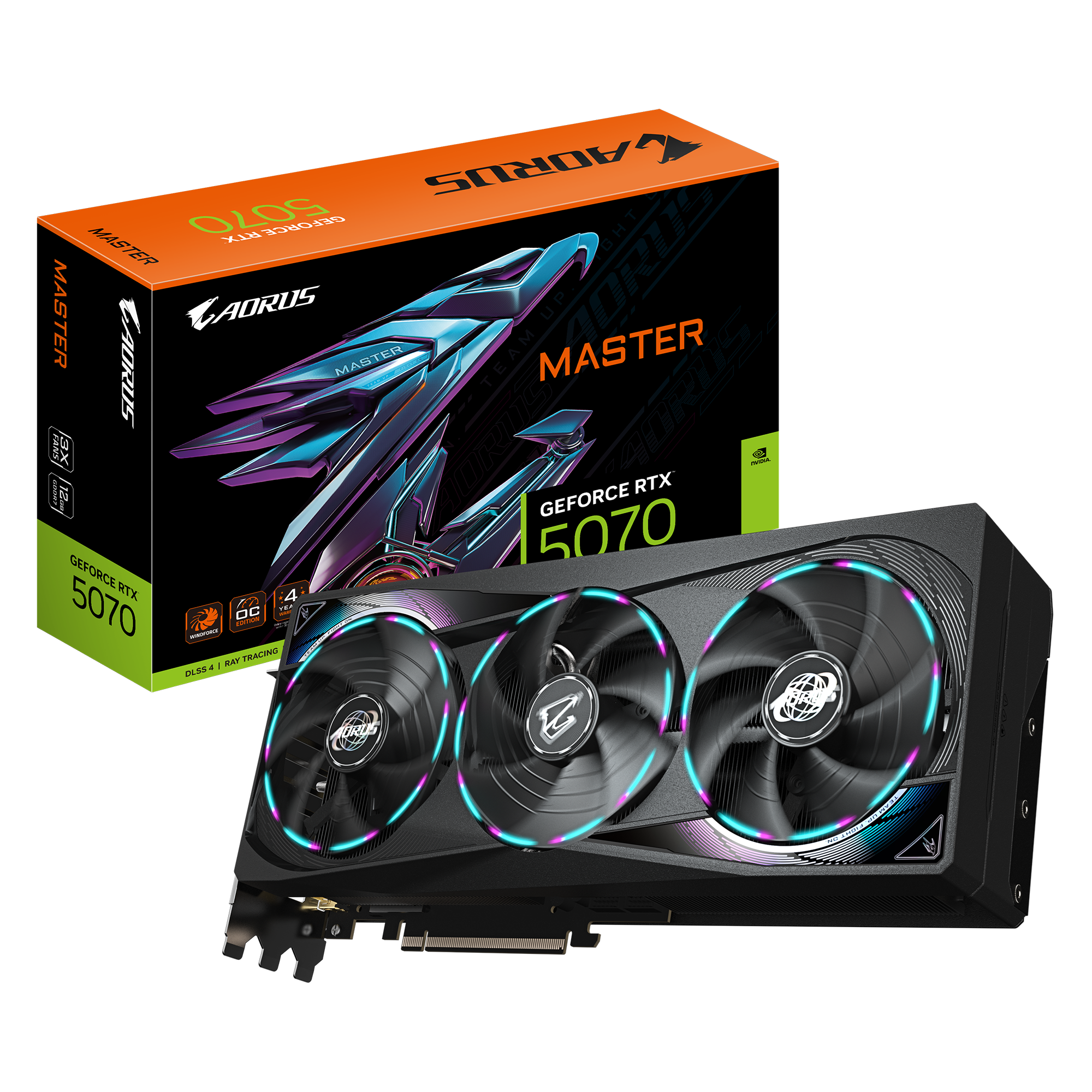

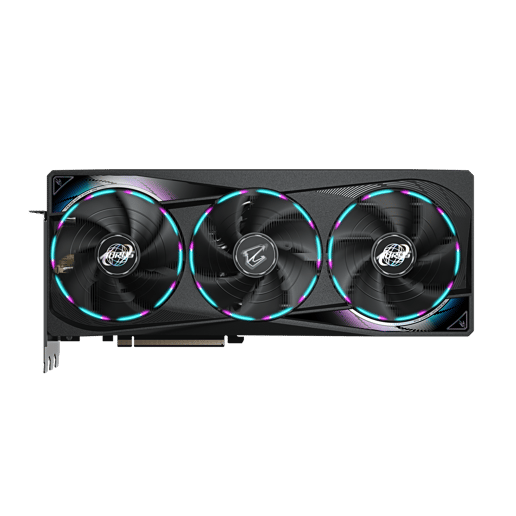

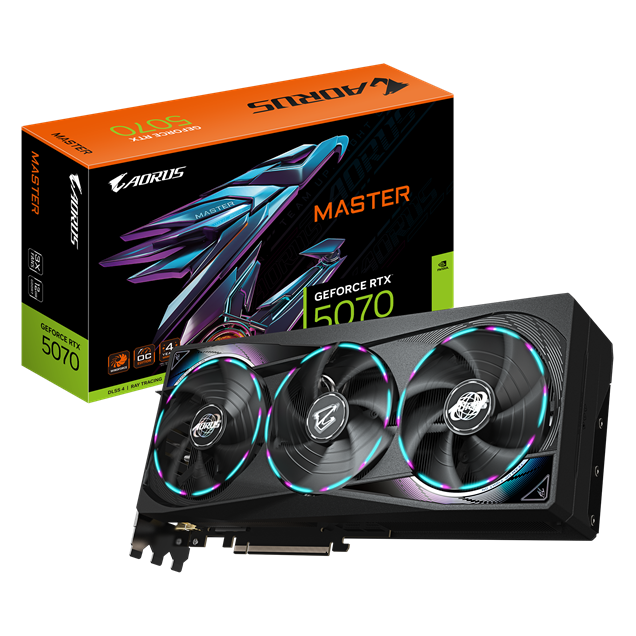

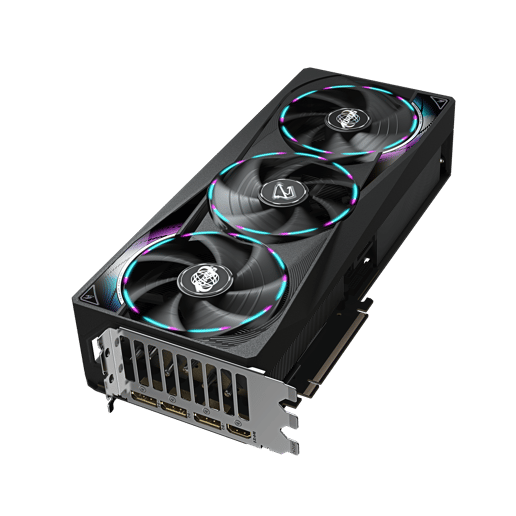

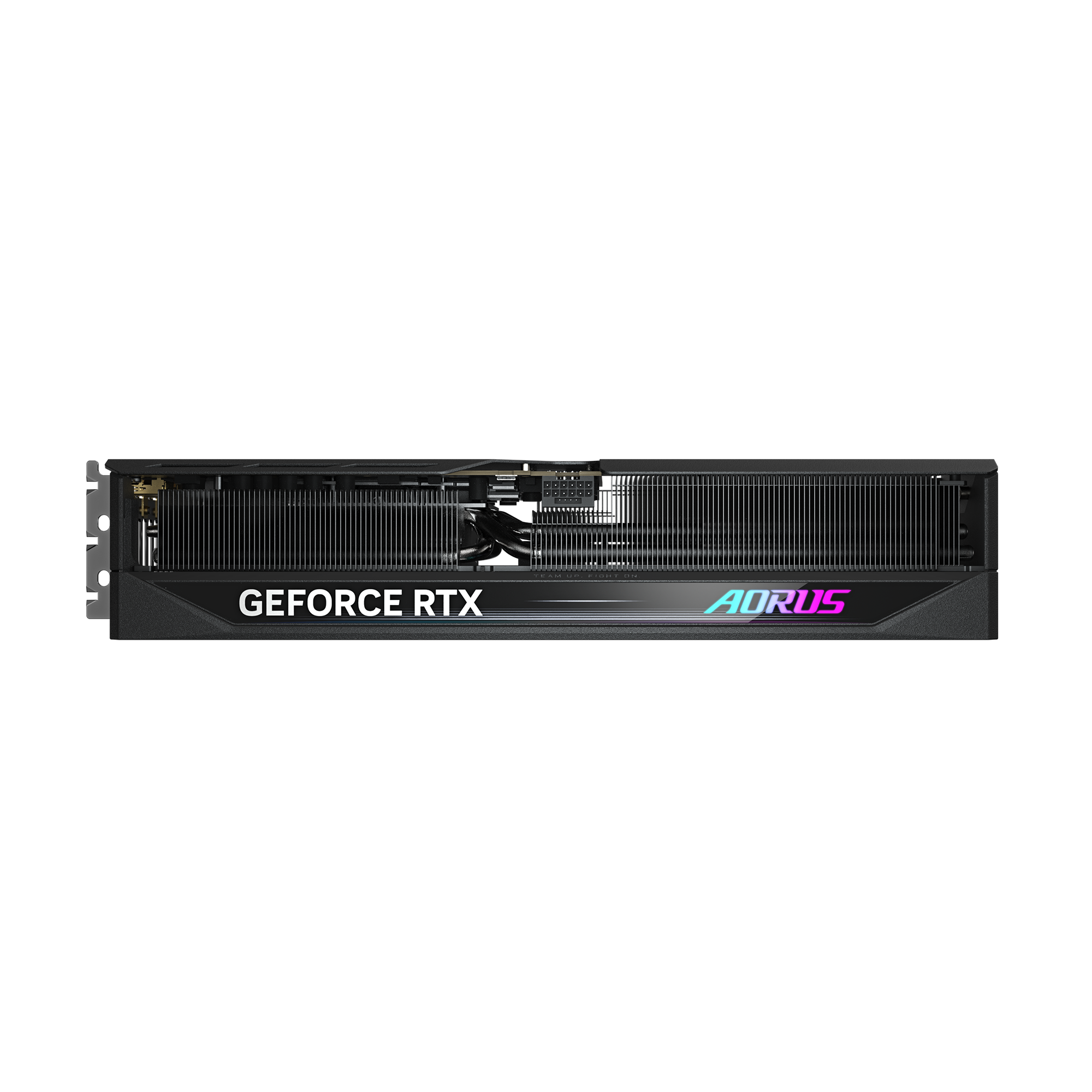

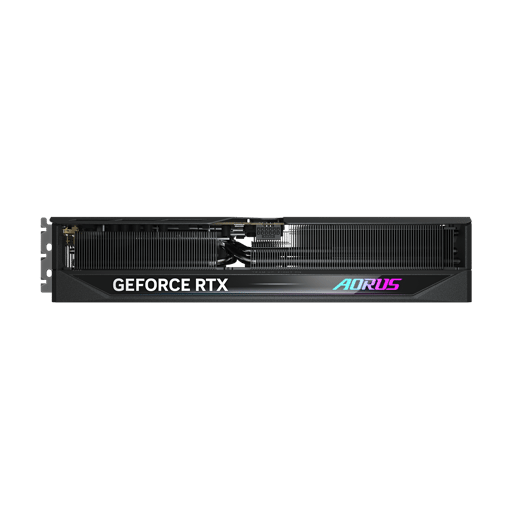

Gigabyte GeForce RTX 5070 Aorus Master OC 12GB GDDR7 Graphics Card

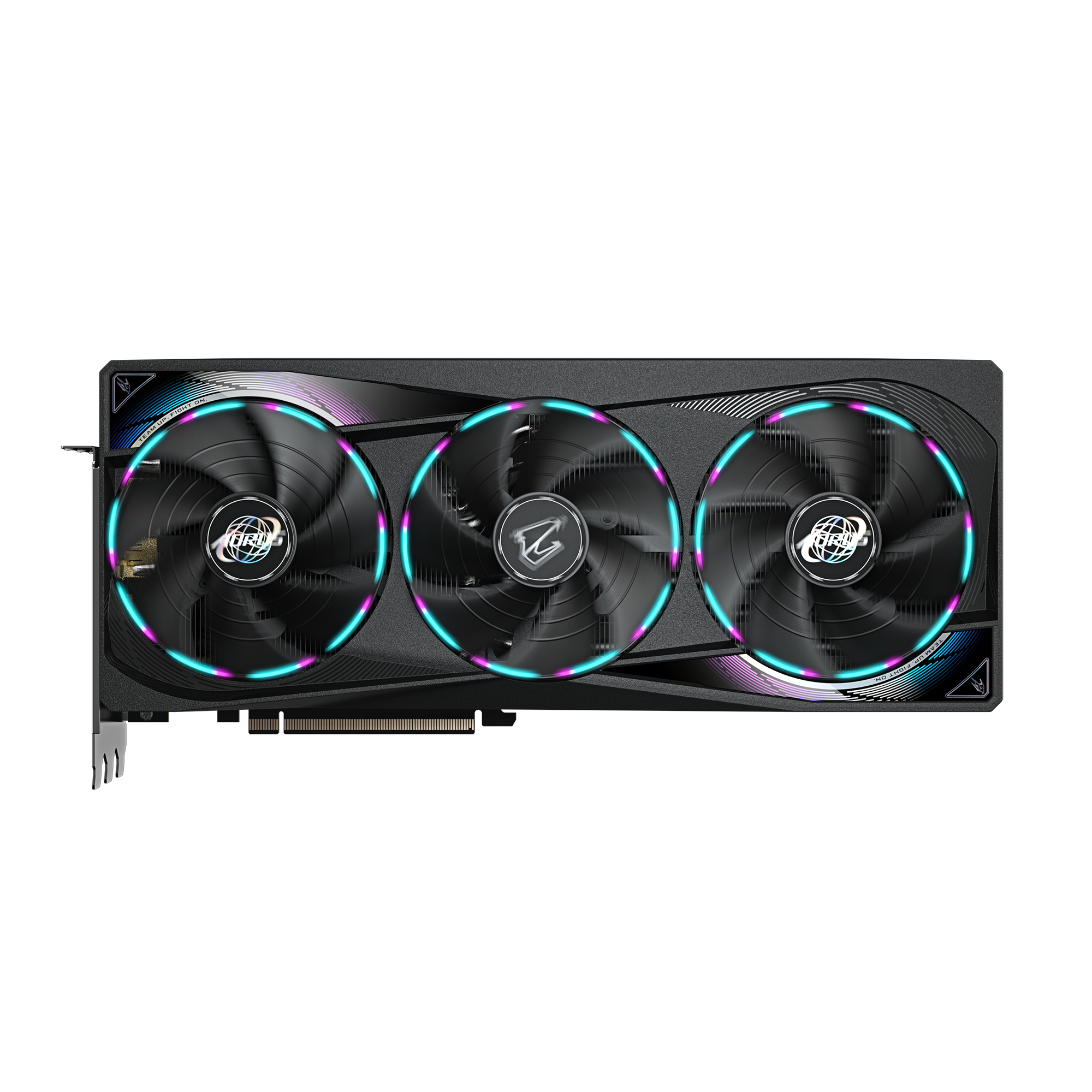

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.
UNCOMPROMISING CRAFTSMANSHIP & PERFORMANCE
The AORUS series redefines next-gen aesthetics, embodying speed and power to deliver stunning visual experiences. Every detail is meticulously crafted for absolute velocity and unwavering strength.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
GPU
- Chipset Manufacturer: NVIDIA
- Chipset Model Name: GeForce RTX
- Chipset Model Number: 5070
- Chipset Additional Information: AORUS MASTER
- Base Chip Clock: 2165 MHz
- Graphics Core: CUDA
- Number of Cores: 6144
Memory
- Memory Size: 12 GB
- Memory Clock: 28 Gbps
- Memory Type: GDDR7
- Memory Width: 192 bit
- Memory Bandwidth: 672.2 GB/s

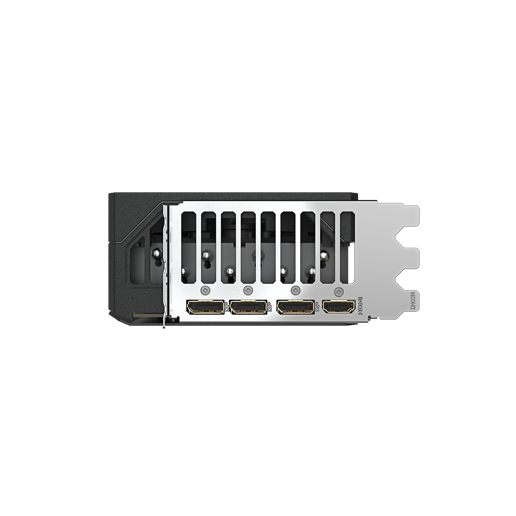

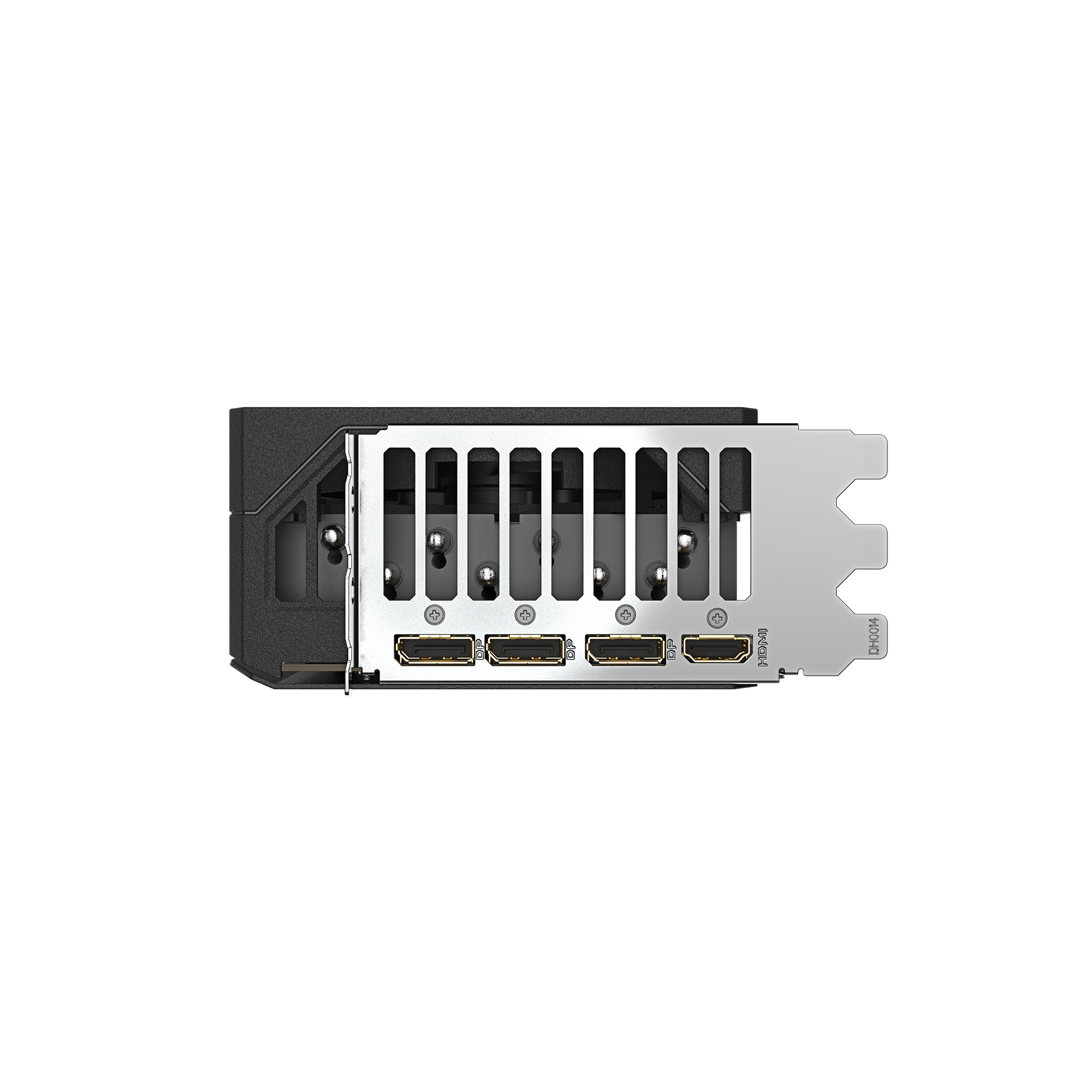

Interfaces/Ports
- Video Card Bus Type: PCI Express
- Video Card Bus Version: 5.0 x16
- HDMI Port: 1 x HDMI 2.1b
- DisplayPort: 3 x DisplayPort 2.1a
Resolution
- Multiple Monitor Support (Max): Yes (4)
- Maximum Resolution: 7680 x 4320
System Requirements
- System Requirements: 1 x PCI Express 5.0 x16 slot
Electrical
- Power Connector: 1 x 12V-2x6 or 2 x 8-pin PCIe
- Power Consumption: 250 W
- Recomended Power Supply: 750 W
Physical
- Form Factor: Graphics Card

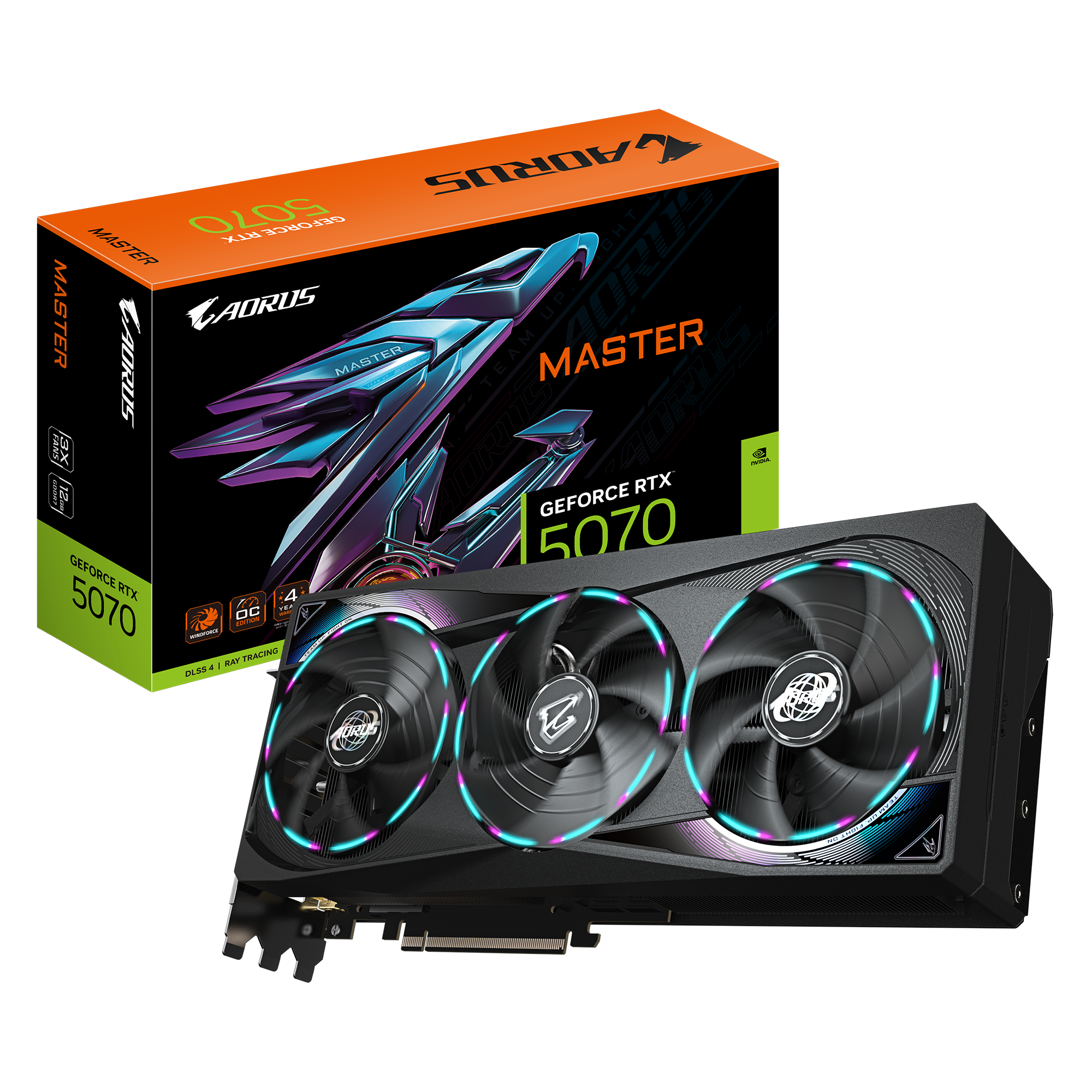

- In The Box: Graphics Card
- Quick guide
- Warranty registration
- 1 x 12V-2x6 to 2 x 8-pin PCIe adapter
- AORUS identity stickers
- AORUS metal sticker
- VGA holder
- VGA holder manual
- Width: 64 mm (3.2 slot)
- Depth: 317 mm
- Height: 136 mm
Warranty
- Warranty: 3 Years
- 4 Years with online registration
Identifiers
- Stock Code: VGA7250
- Mfg Code: GV-N5070AORUS M-12GD
