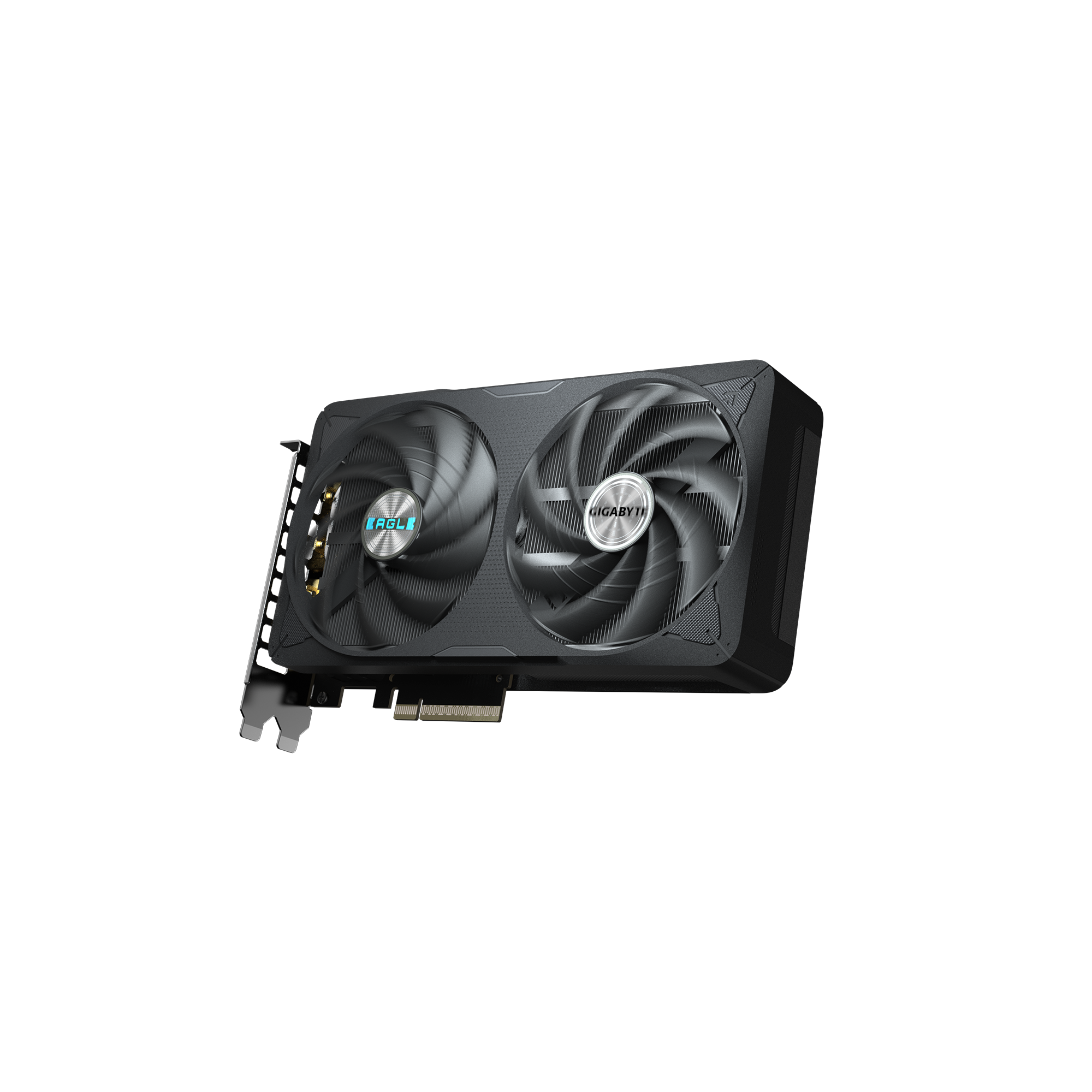

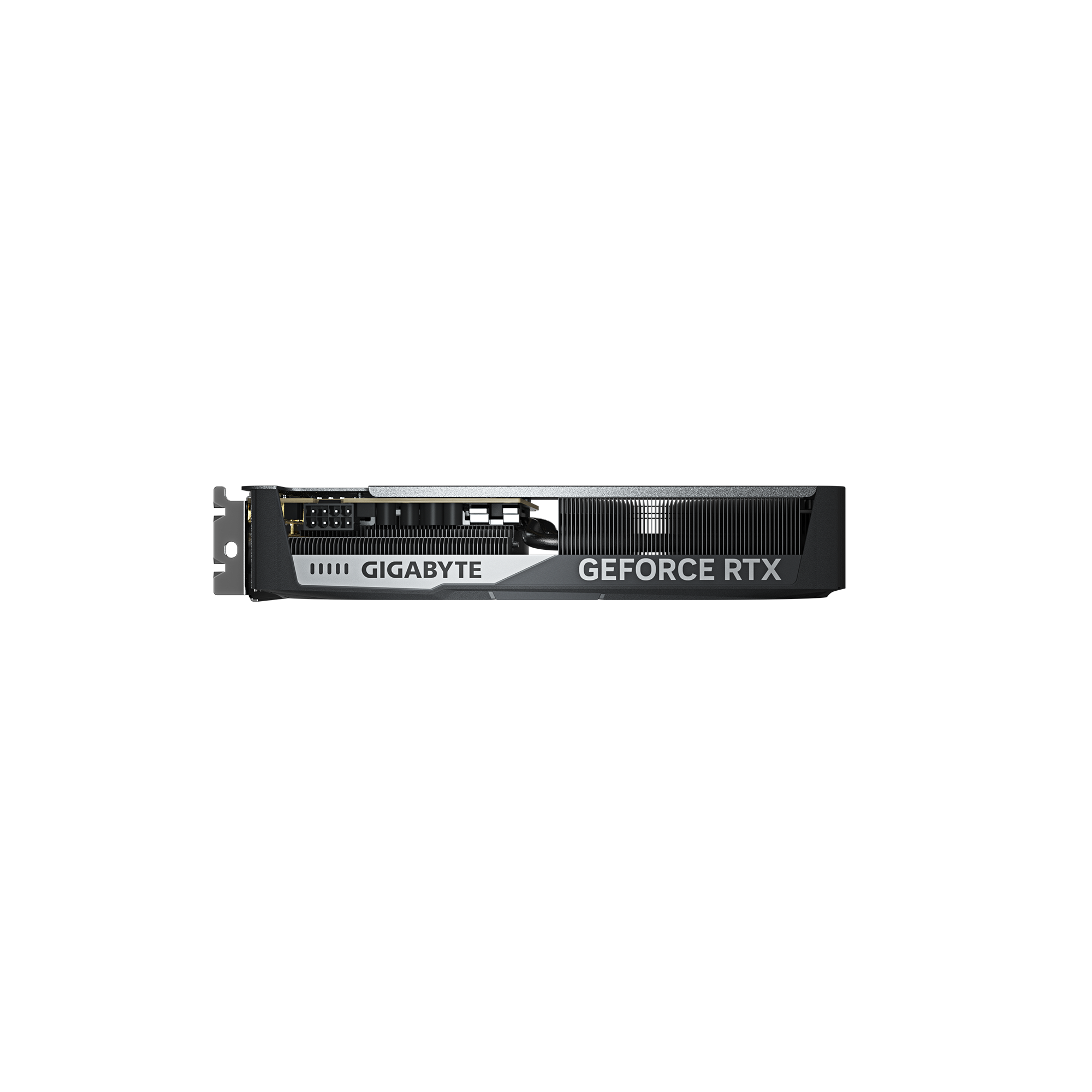

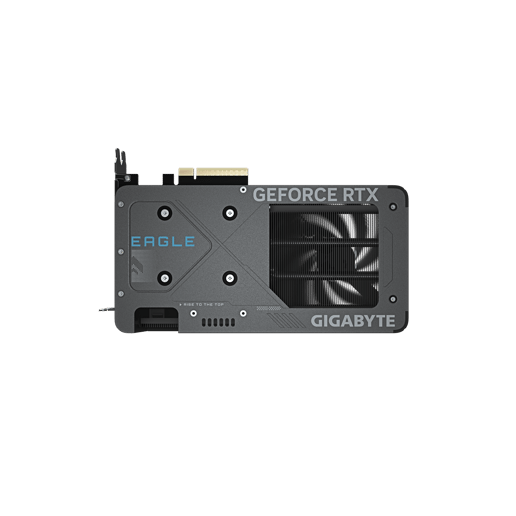

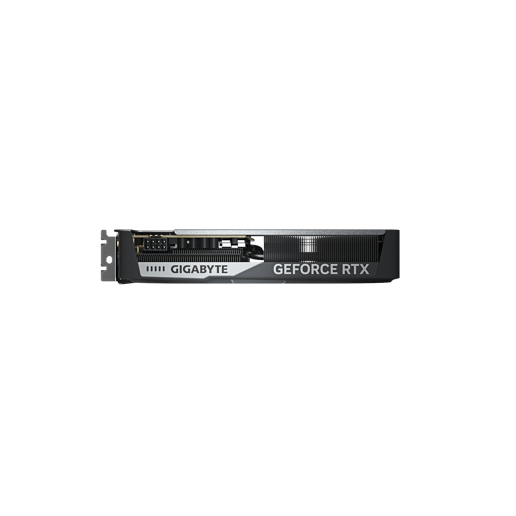

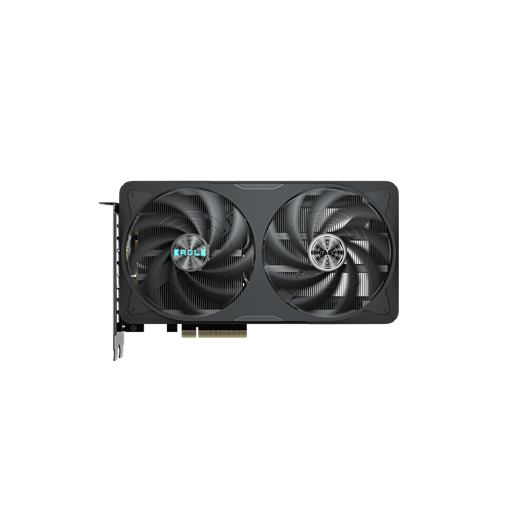

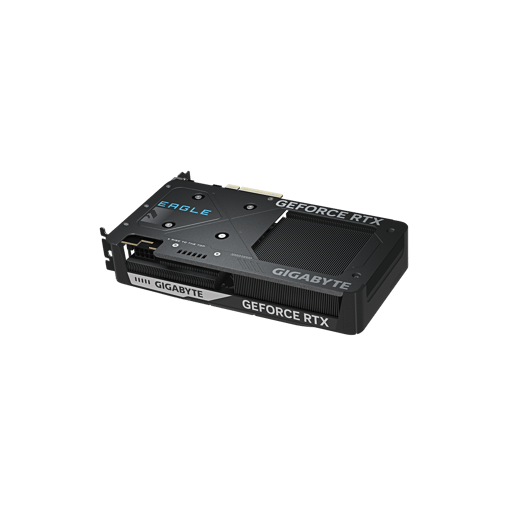

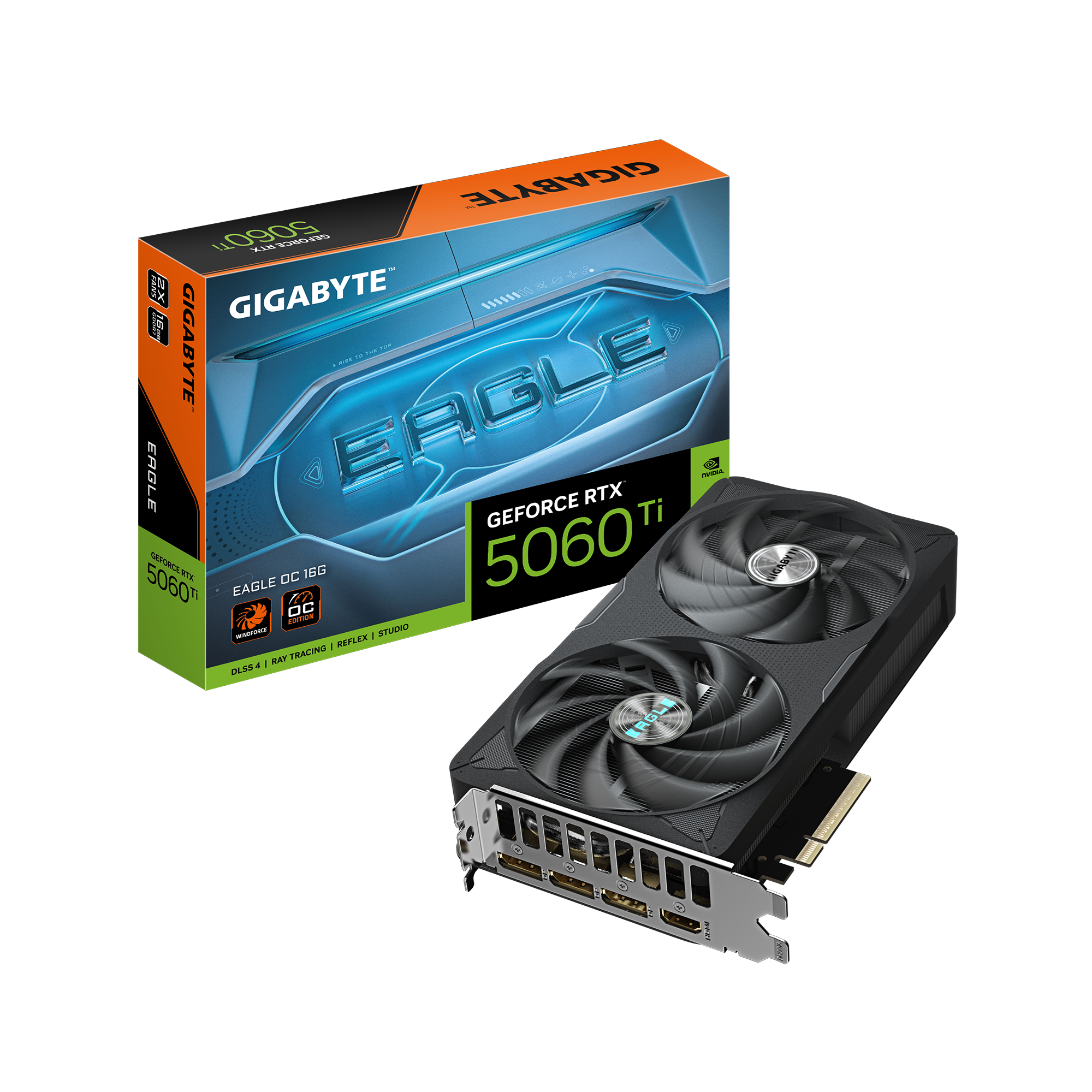

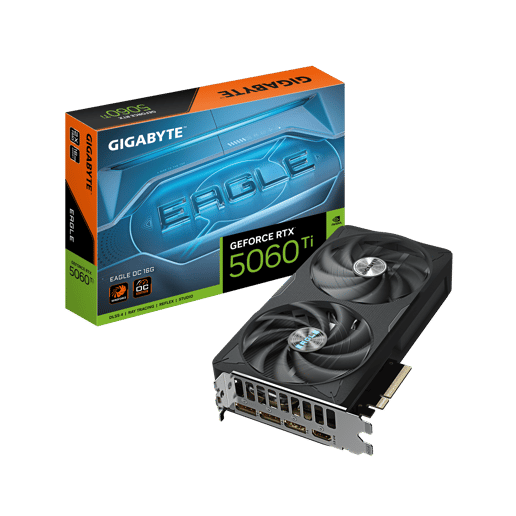

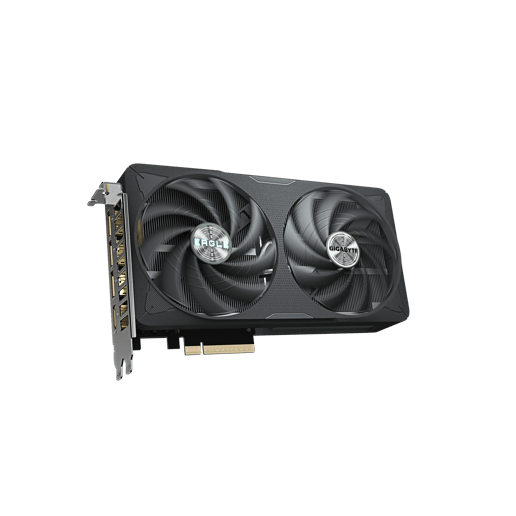

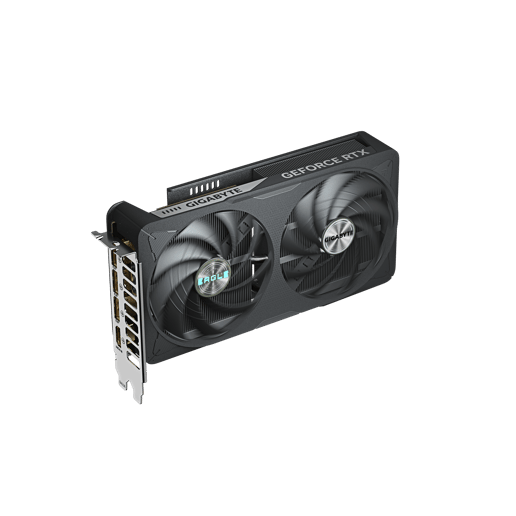

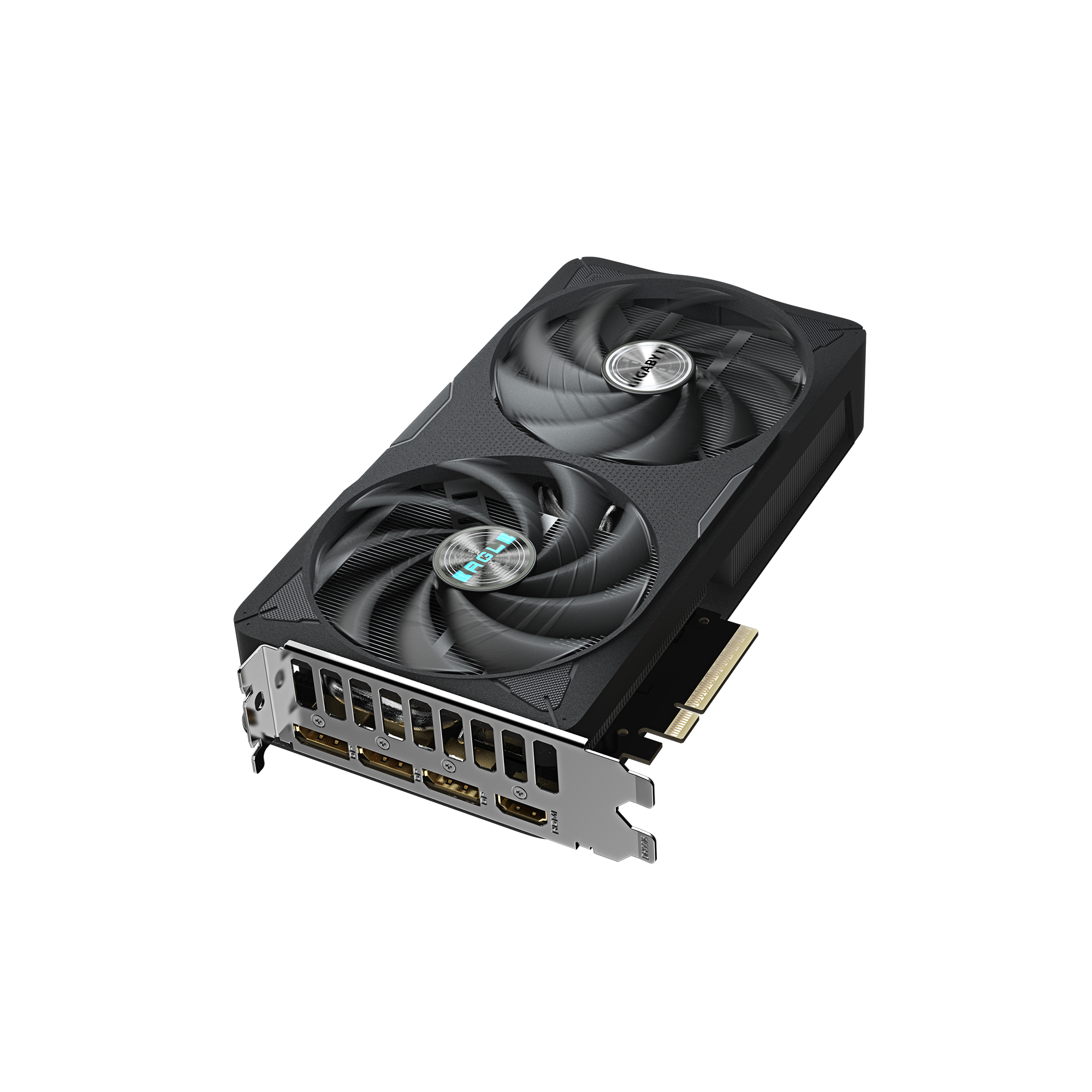

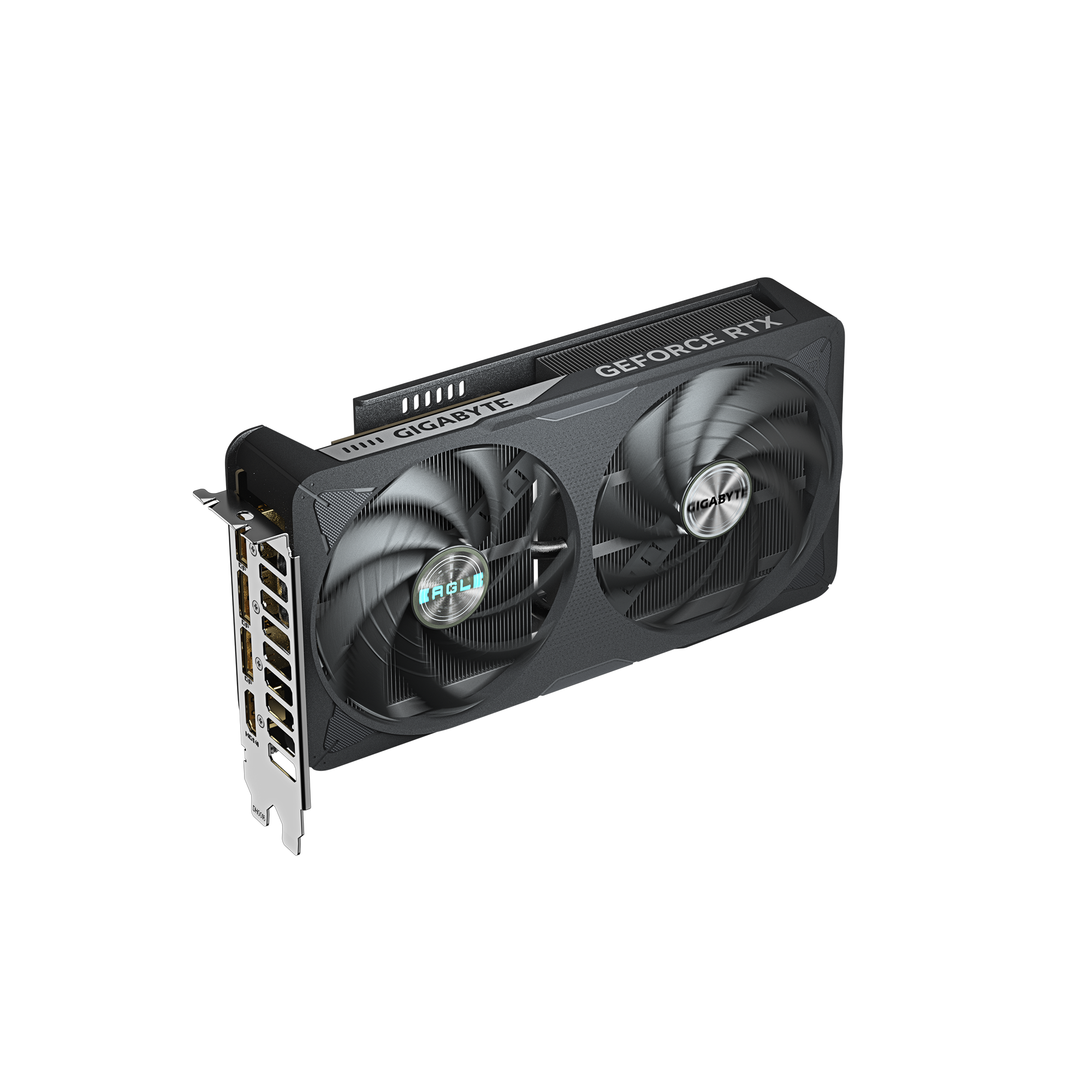

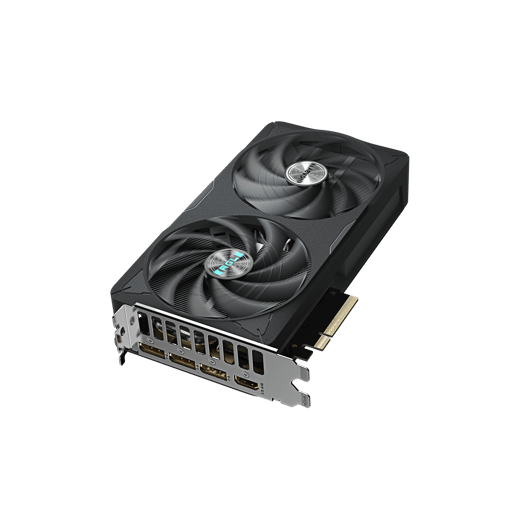

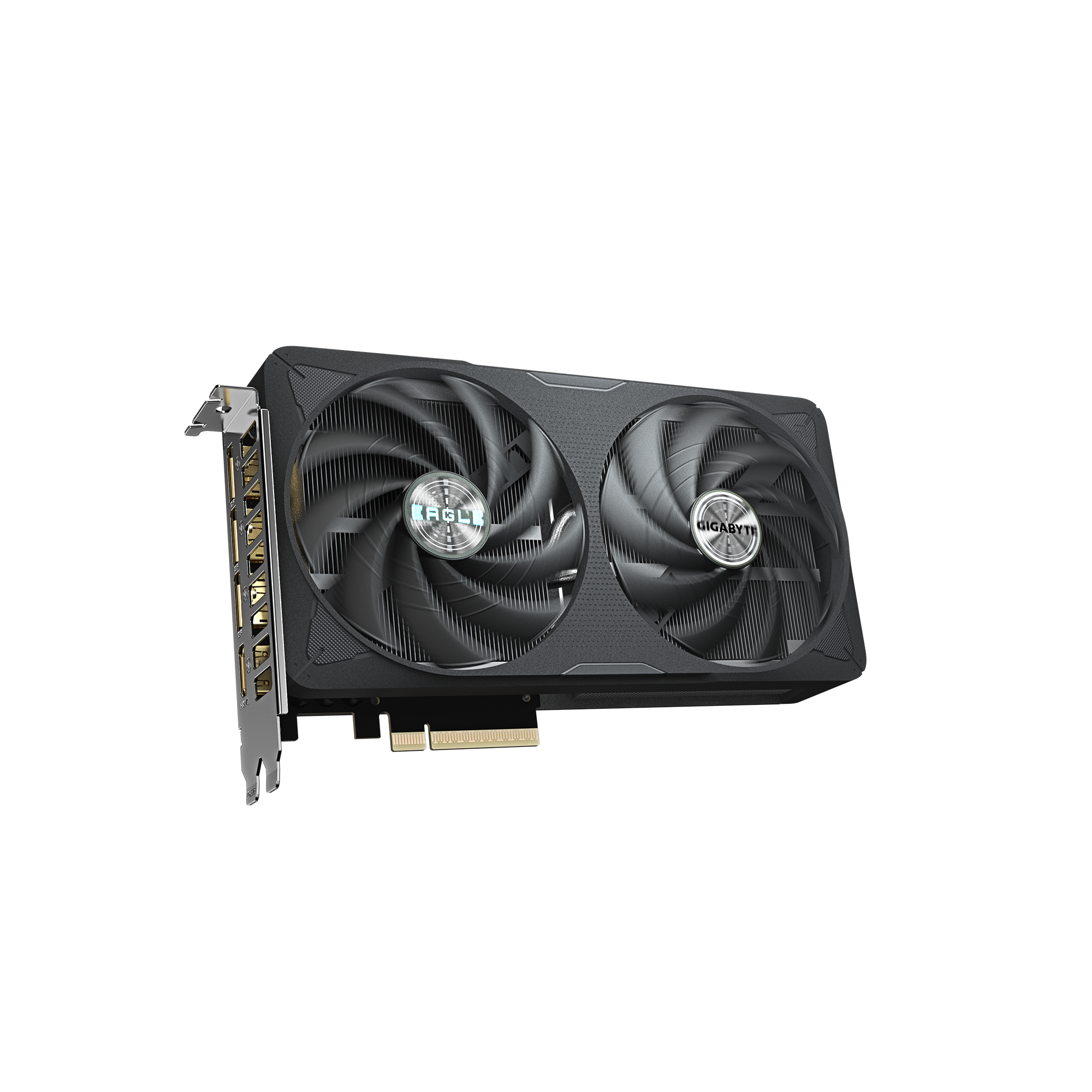

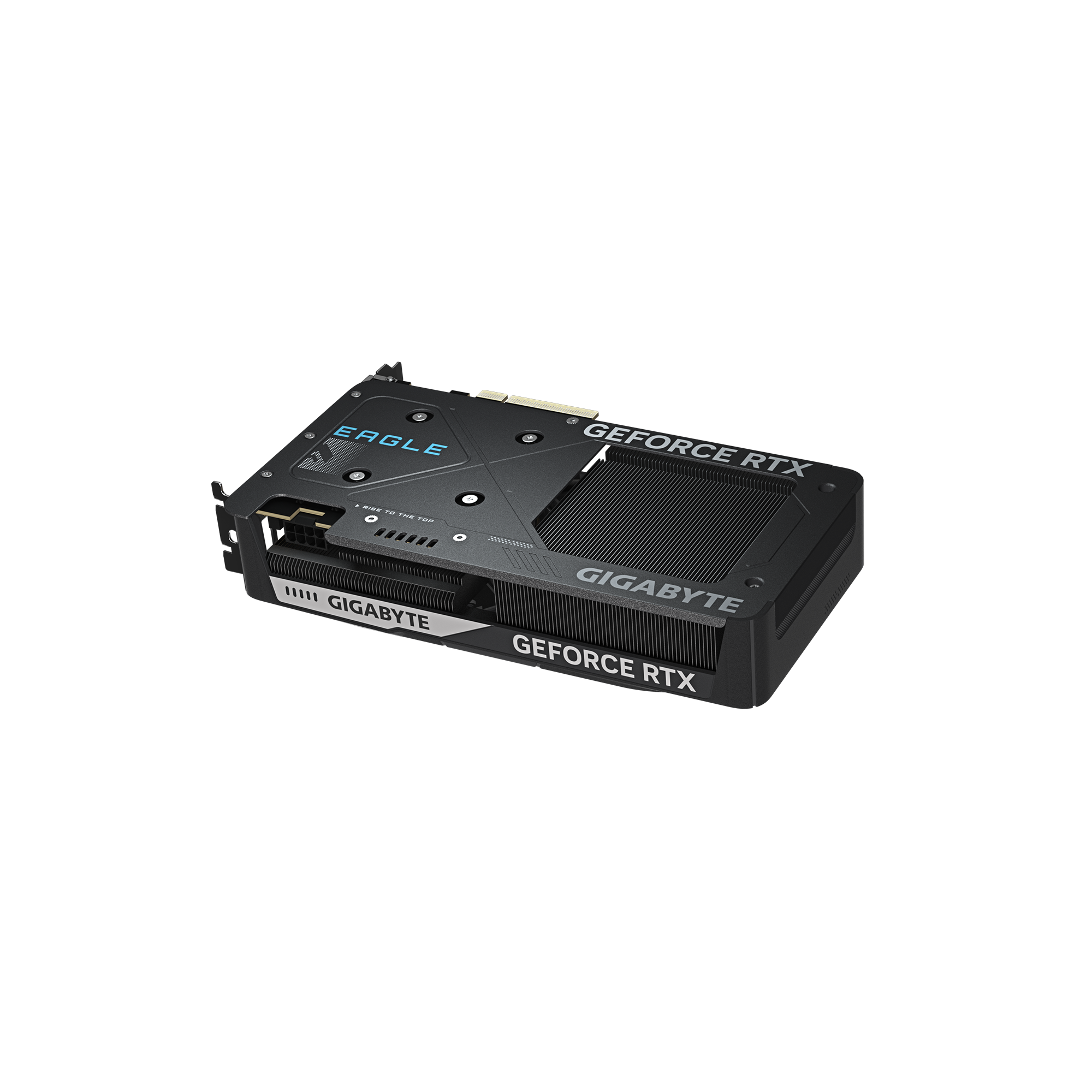

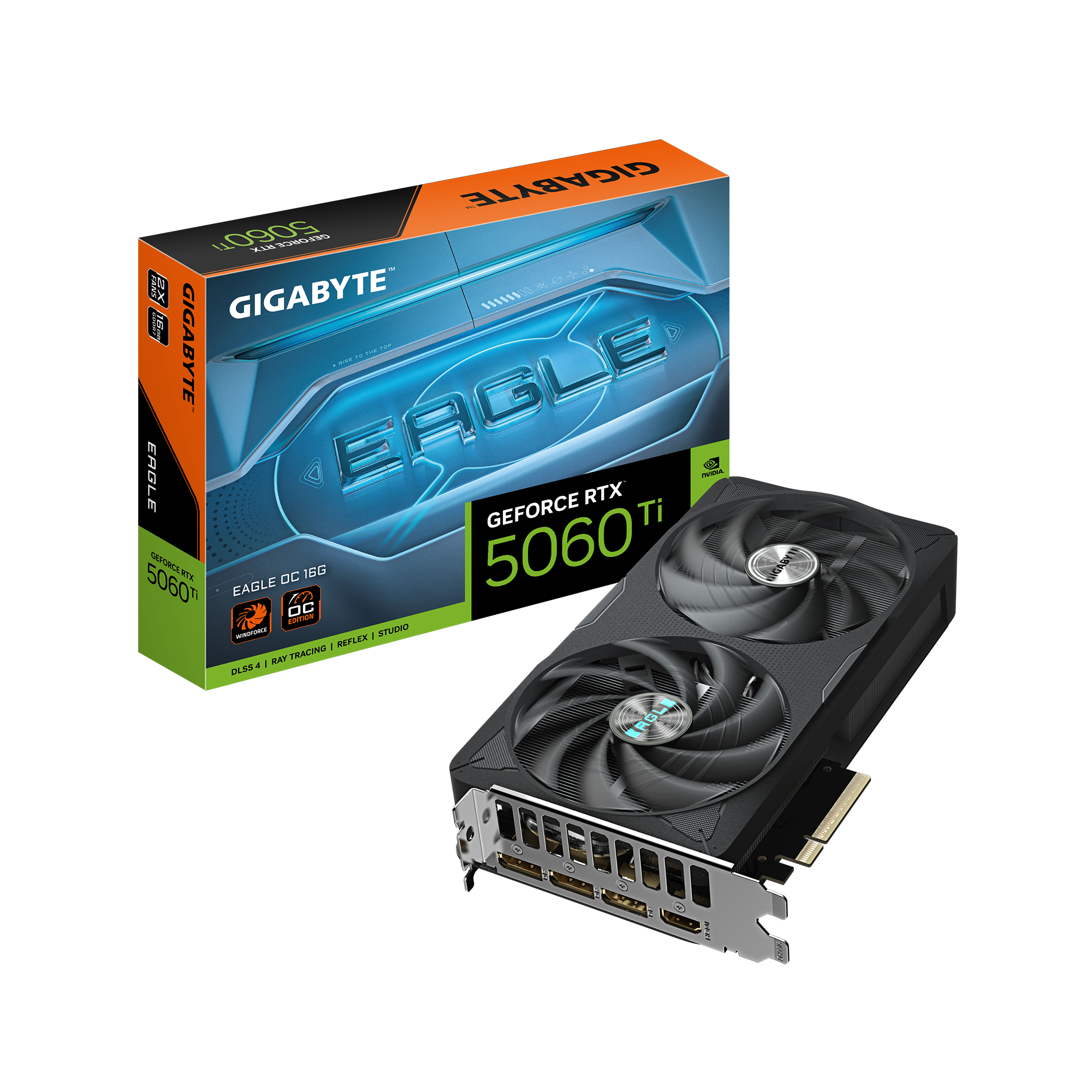

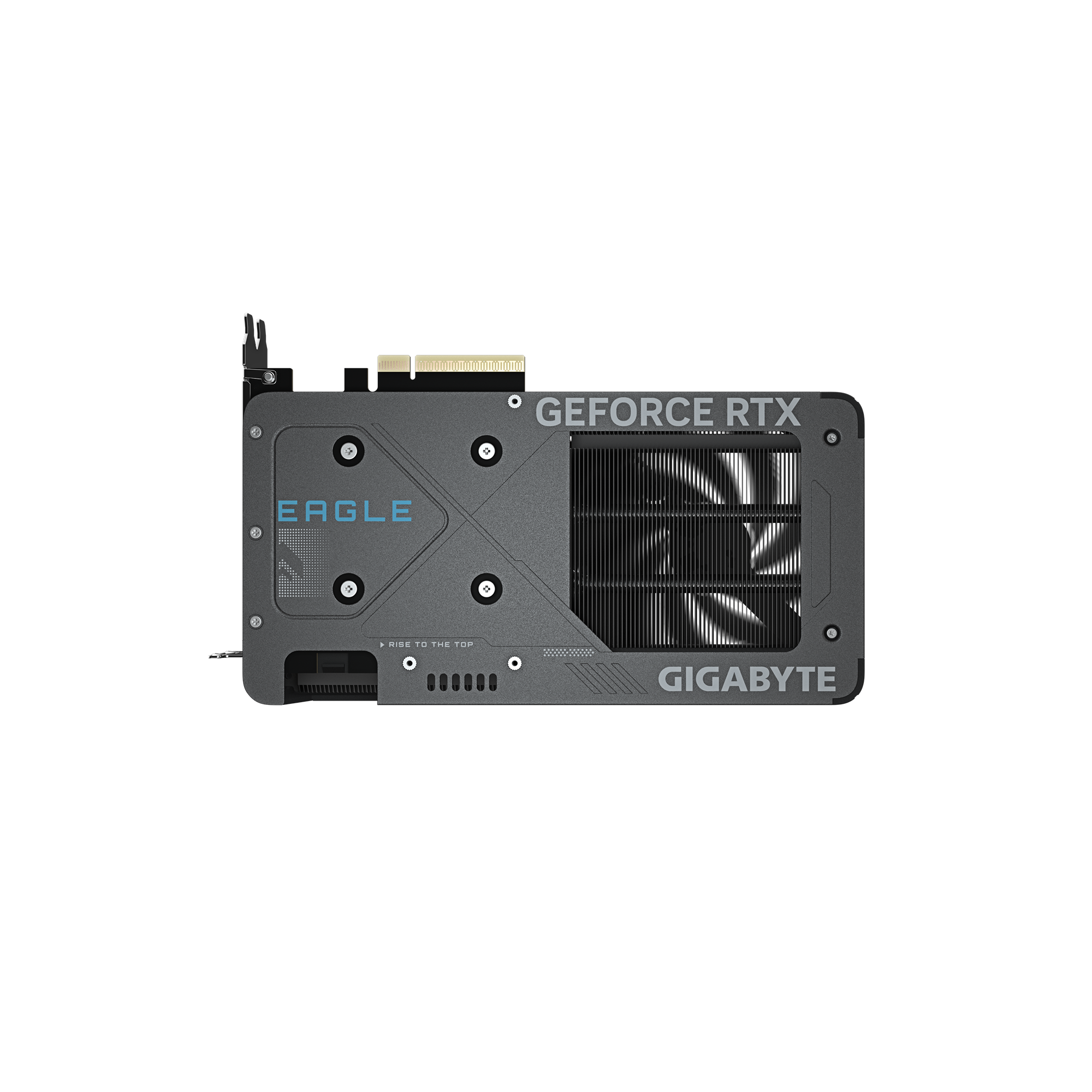

Gigabyte GeForce RTX 5060 Ti EAGLE OC 16GB GDDR7 Graphics Card

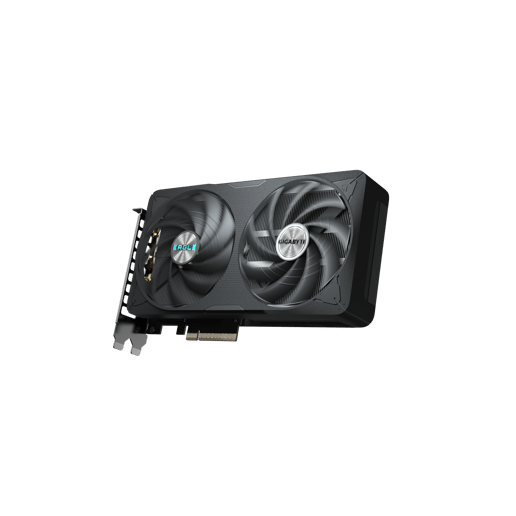

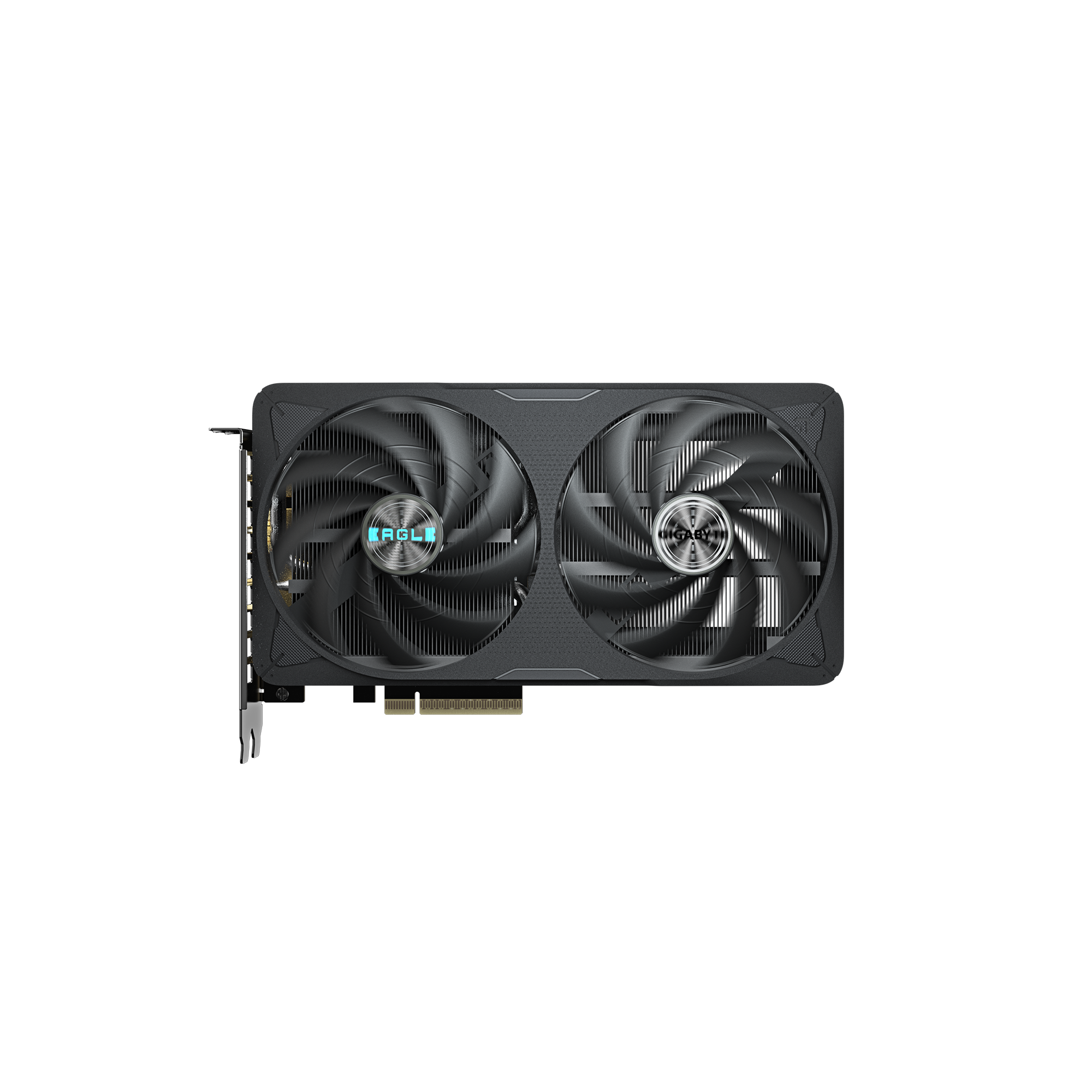

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.
ASTONISHING EXTERIOR DESIGN
The design inspiration for the EAGLE series stems from the fusion of aerospace battleships and sci-fi elements. Its unique curved contours outline a streamlined appearance, complemented by segmented lines resembling disassembled deck components, evoking the intricate structure of a spaceship. This design infuses the overall aesthetic with a rich cosmic technology vibe, showcasing the futuristic aesthetics and craftsmanship in every detail.
GPU
- Chipset Manufacturer: NVIDIA
- Chipset Model Name: GeForce RTX
- Chipset Model Number: 5060 Ti
- Chipset Additional Information: EAGLE OC
- Boost Chip Clock: 2617 MHz
- Graphics Core: CUDA
- Number of Cores: 4608
Memory
- Memory Size: 16 GB
- Memory Clock: 28 Gbps
- Memory Type: GDDR7
- Memory Width: 128 bit
- Memory Bandwidth: 448 GB/s
Interfaces/Ports
- Video Card Bus Type: PCI Express
- Video Card Bus Version: 5.0 x8

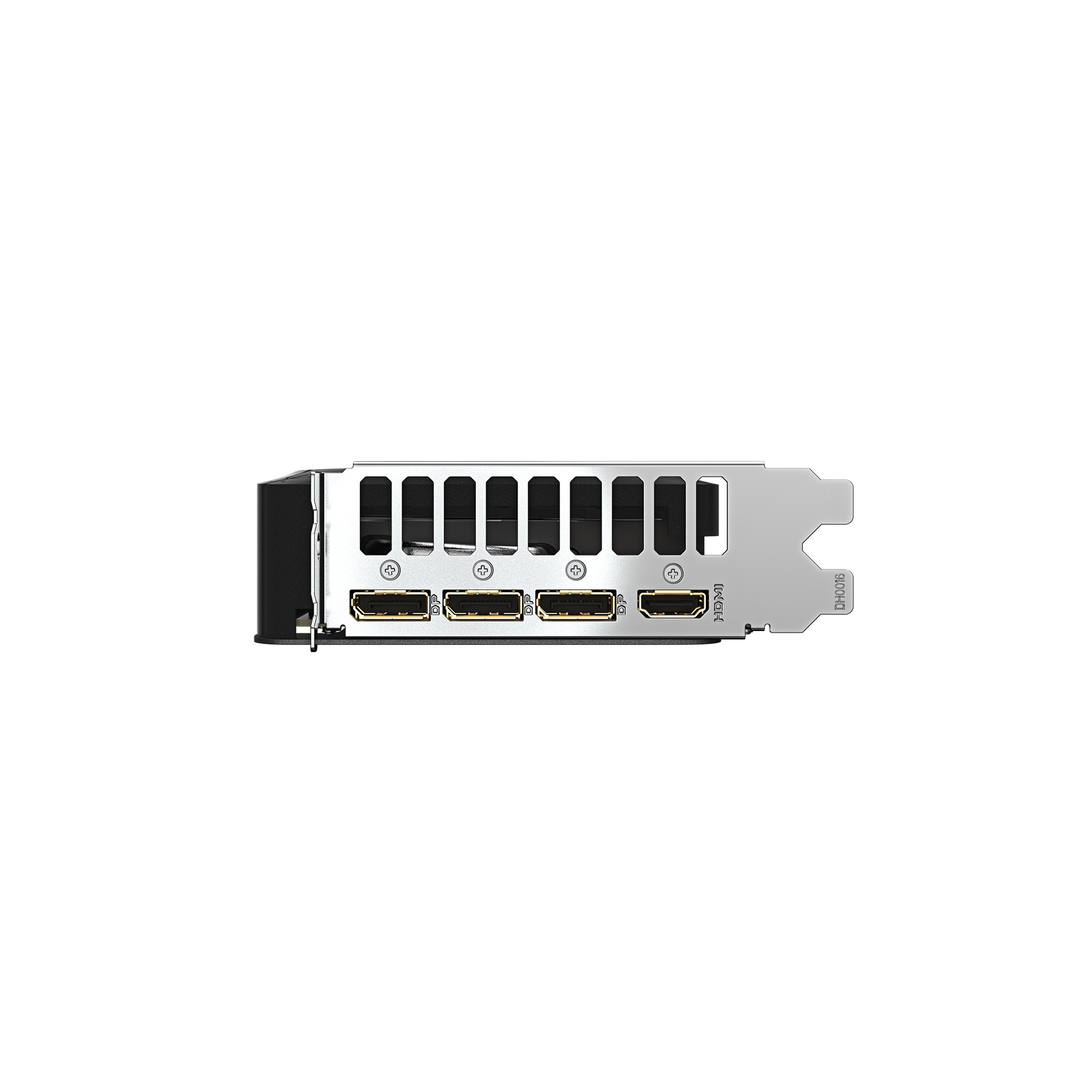

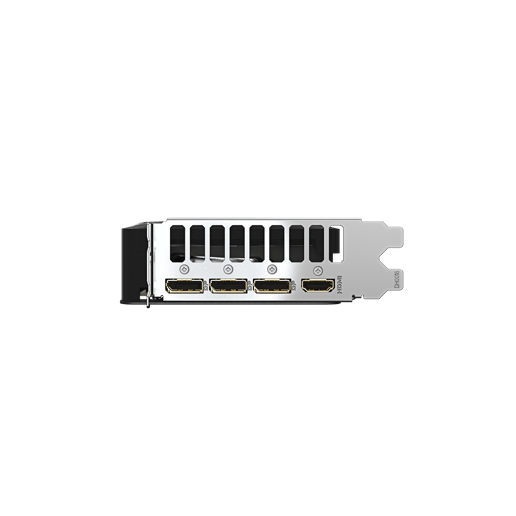

- HDMI Port: 1 x HDMI 2.1b
- DisplayPort: 3 x DisplayPort 2.1b
Resolution
- Multiple Monitor Support (Max): Yes (4)
- Maximum Resolution: 7680 x 4320
System Requirements
- System Requirements: 1 x PCI Express 5.0 x16 slot
Electrical
- Power Connector: 1 x 8-pin PCIe
- Power Consumption: 180 W
- Recomended Power Supply: 650 W
Physical
- Form Factor: Graphics Card
- In The Box: Graphics Card
- Quick Guide
- Width: 40 mm (Dual Slot)
- Depth: 215 mm
- Height: 122 mm
Warranty
- Warranty: 3 Years
Identifiers
- Stock Code: VGA7406
- Mfg Code: GV-N506TEAGLE OC-16GD
Warranty
- Warranty: 3 Years
