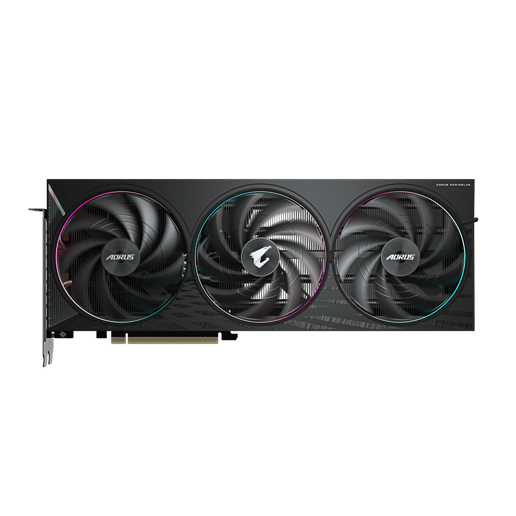

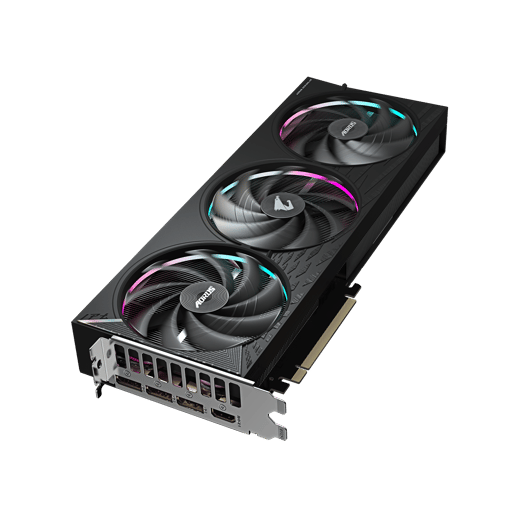

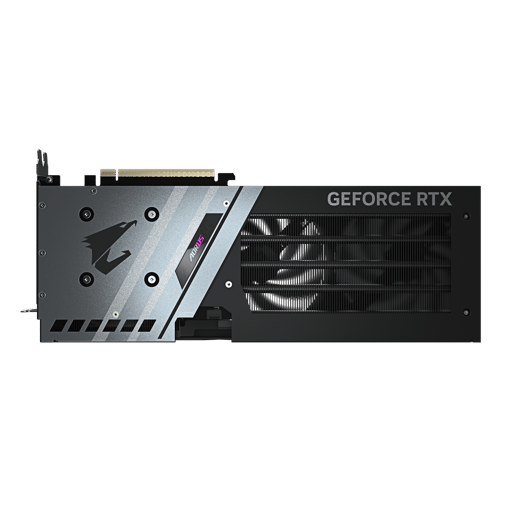

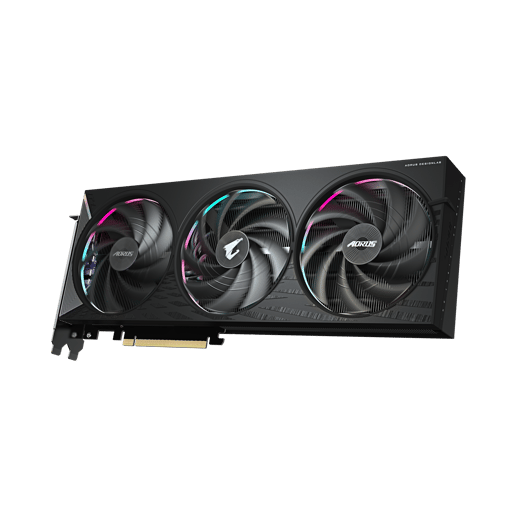

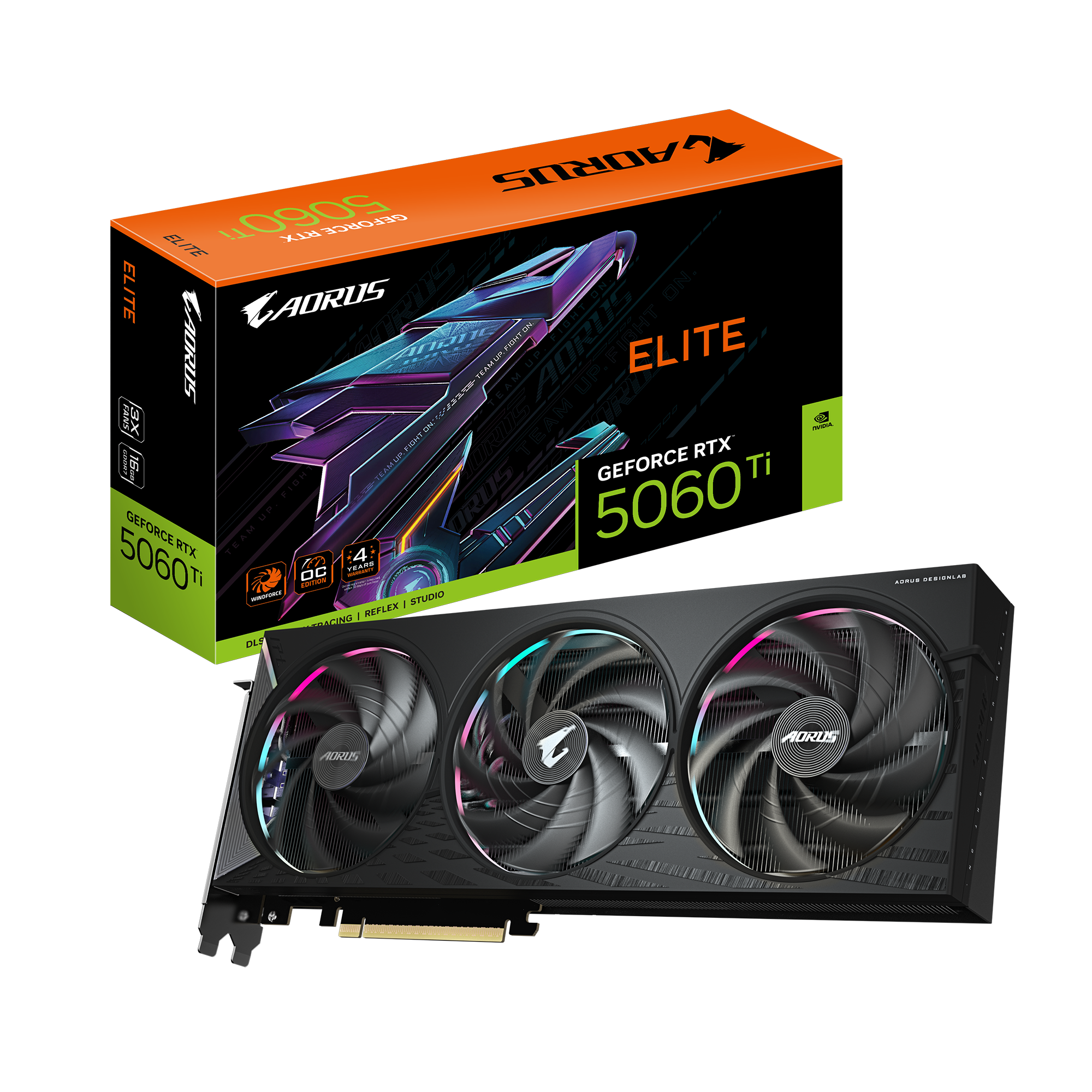

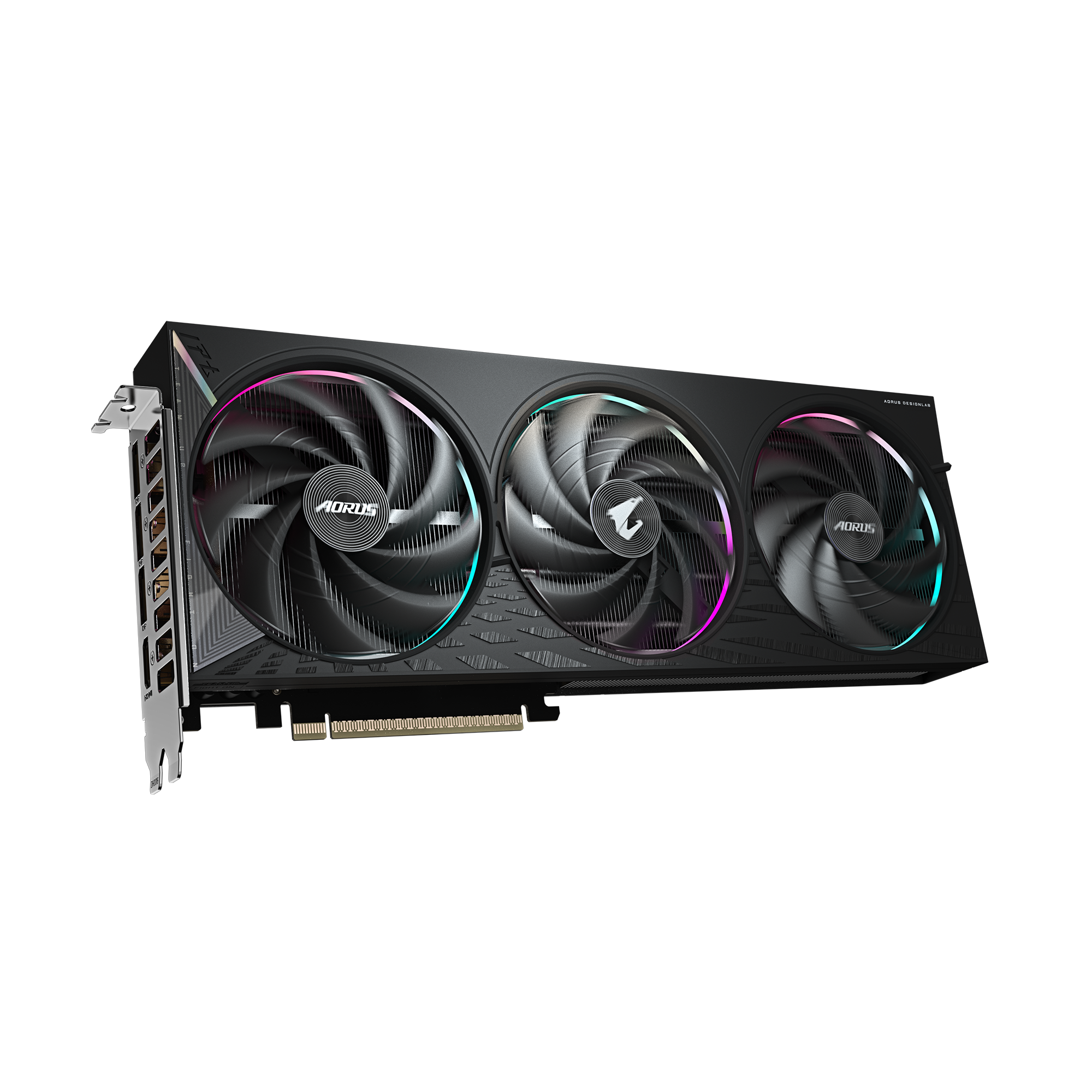

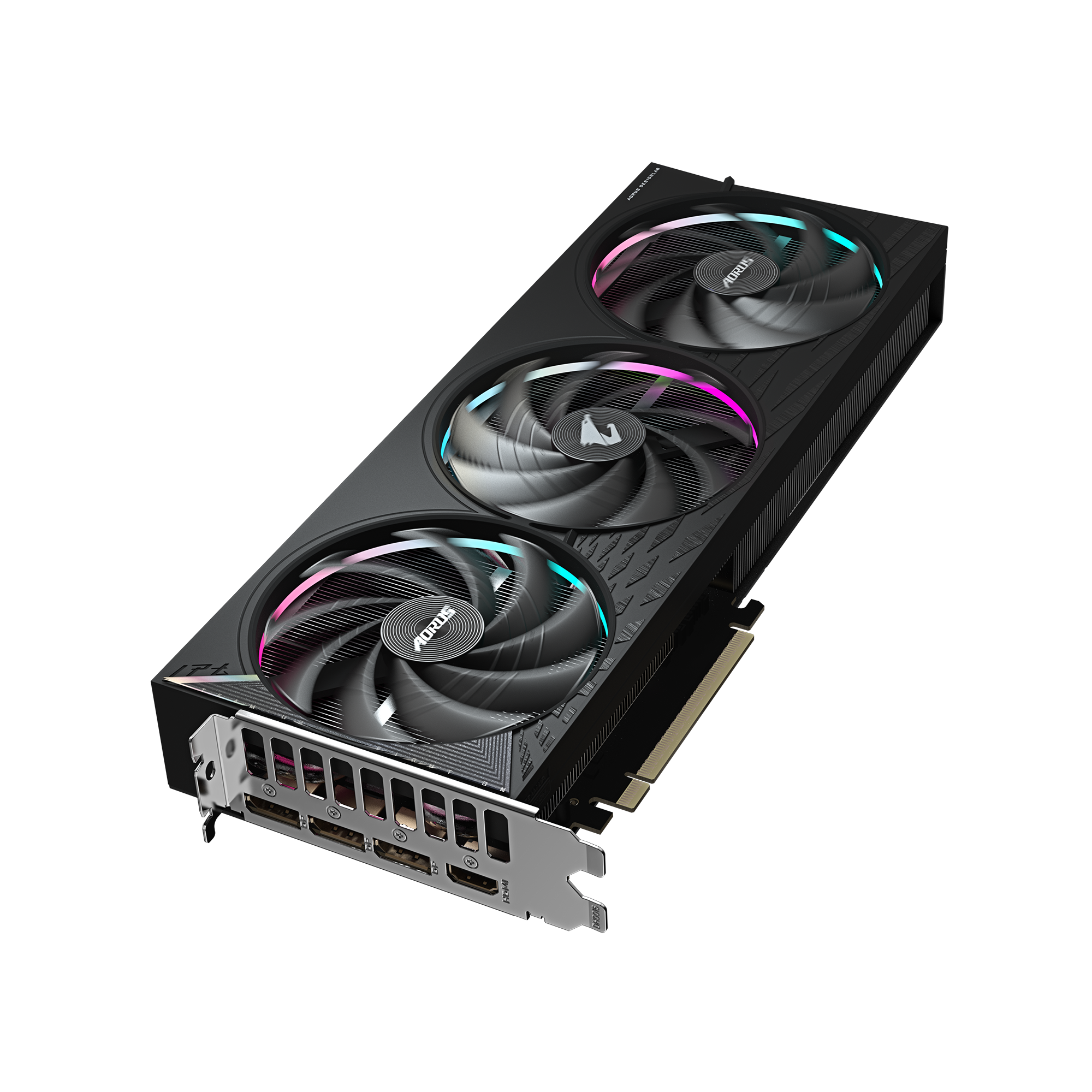

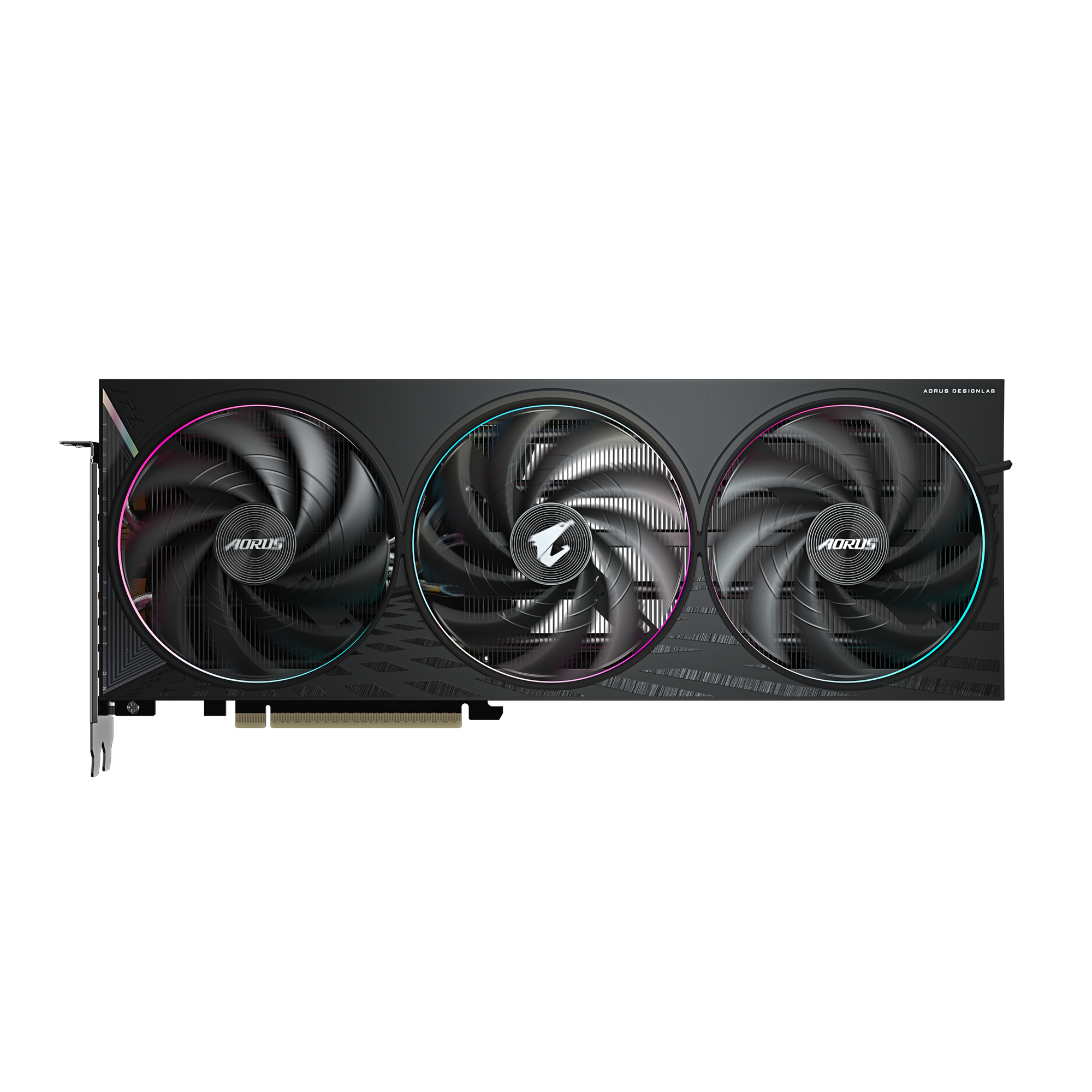

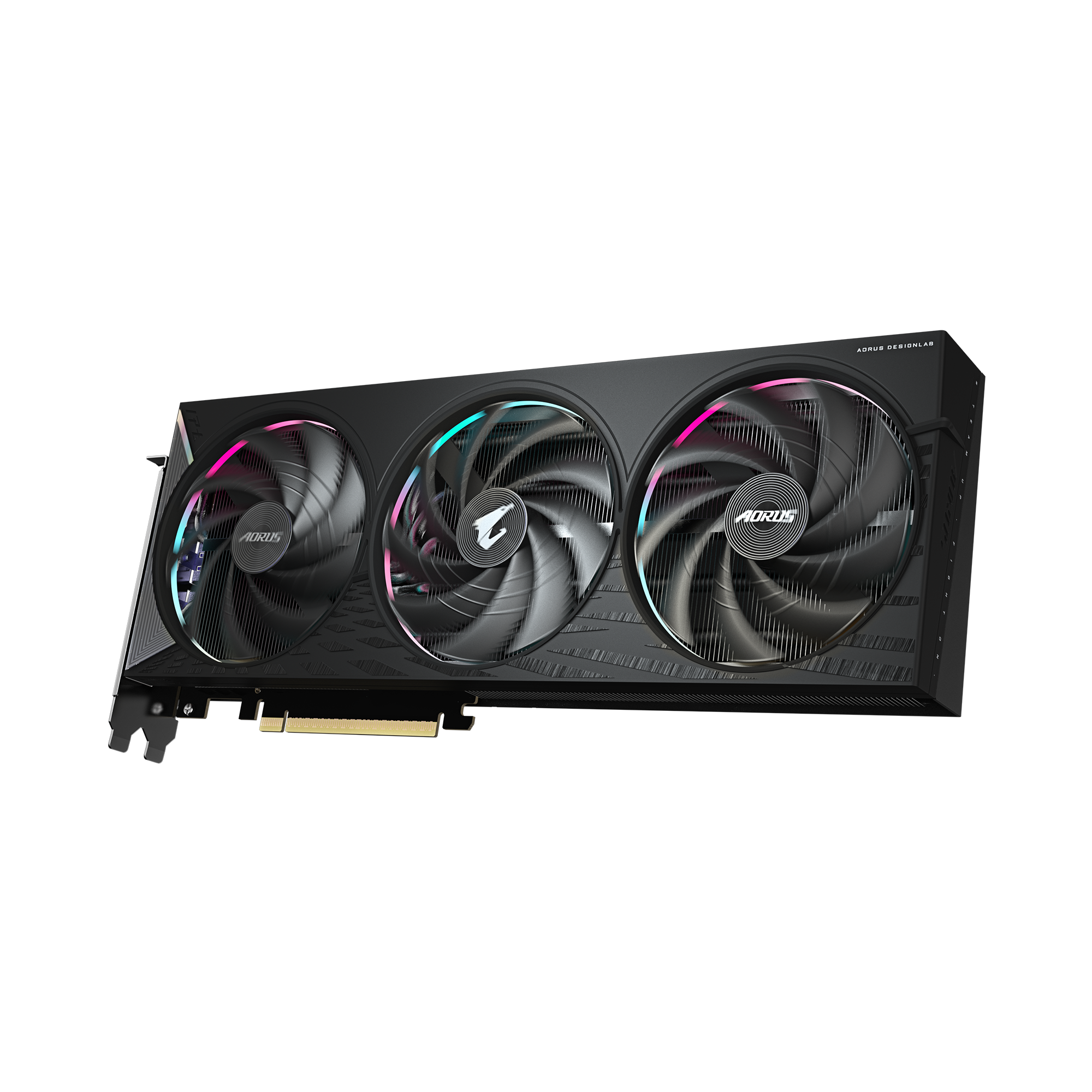

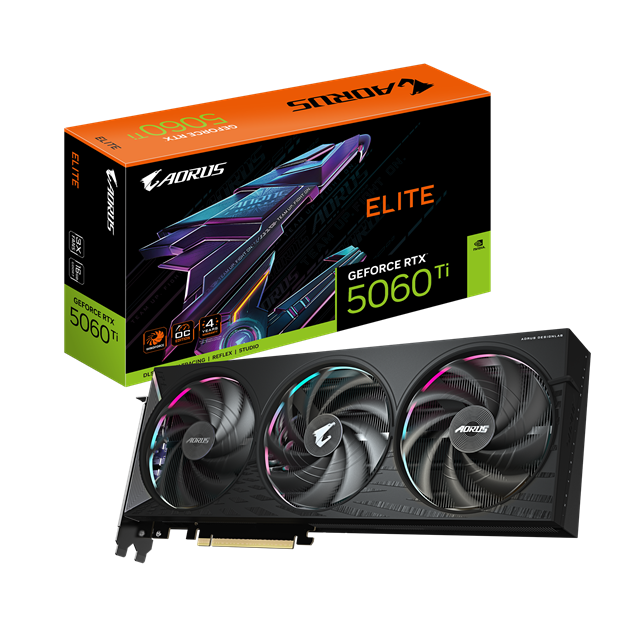

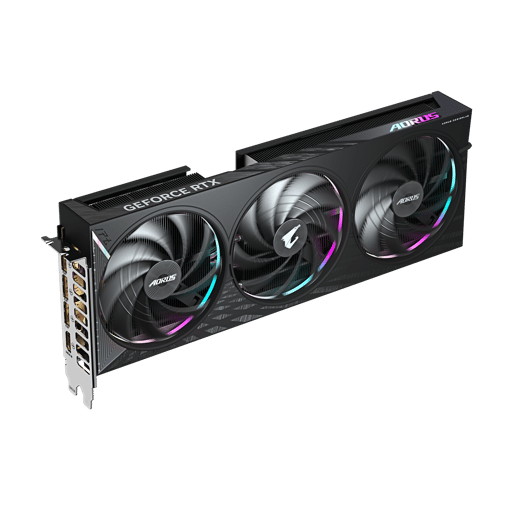

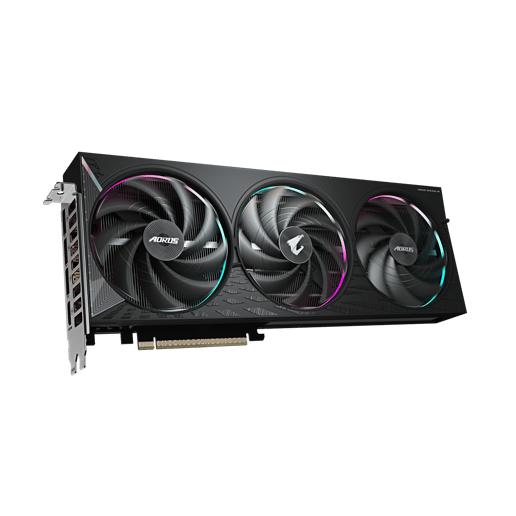

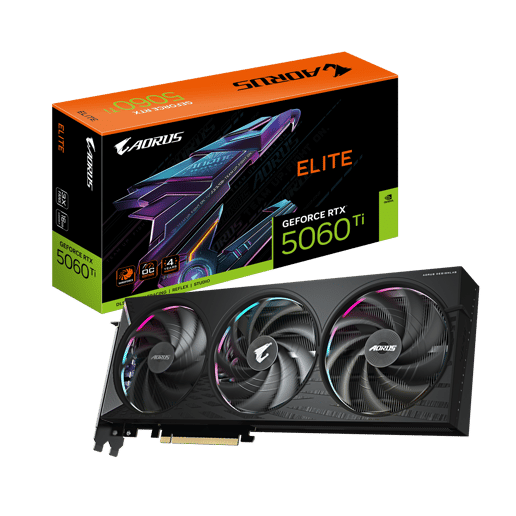

Gigabyte GeForce RTX 5060 Ti Aorus Elite OC 16GB GDDR7 Graphics Card

Gigabyte GeForce RTX 5060 Ti Aorus Elite OC 16GB GDDR7 Graphics Card - Pre-order

CCL Code: VGA7401

£506.99 inc VAT

Pre-Order

Gigabyte GeForce RTX 5060 Ti Aorus Elite OC 16GB GDDR7 Graphics Card - Pre-order

GV-N506TAORUS E-16GD

£506.99 inc VAT

Release Date 19/05/2025

Key Features:

  • 16GB GDDR7 Graphics Memory
  • PCI Express 5.0 x8 Interface
  • Overclocked Edition
  • Outputs - HDMI and Display Port
CCL Code: VGA7401
Overview

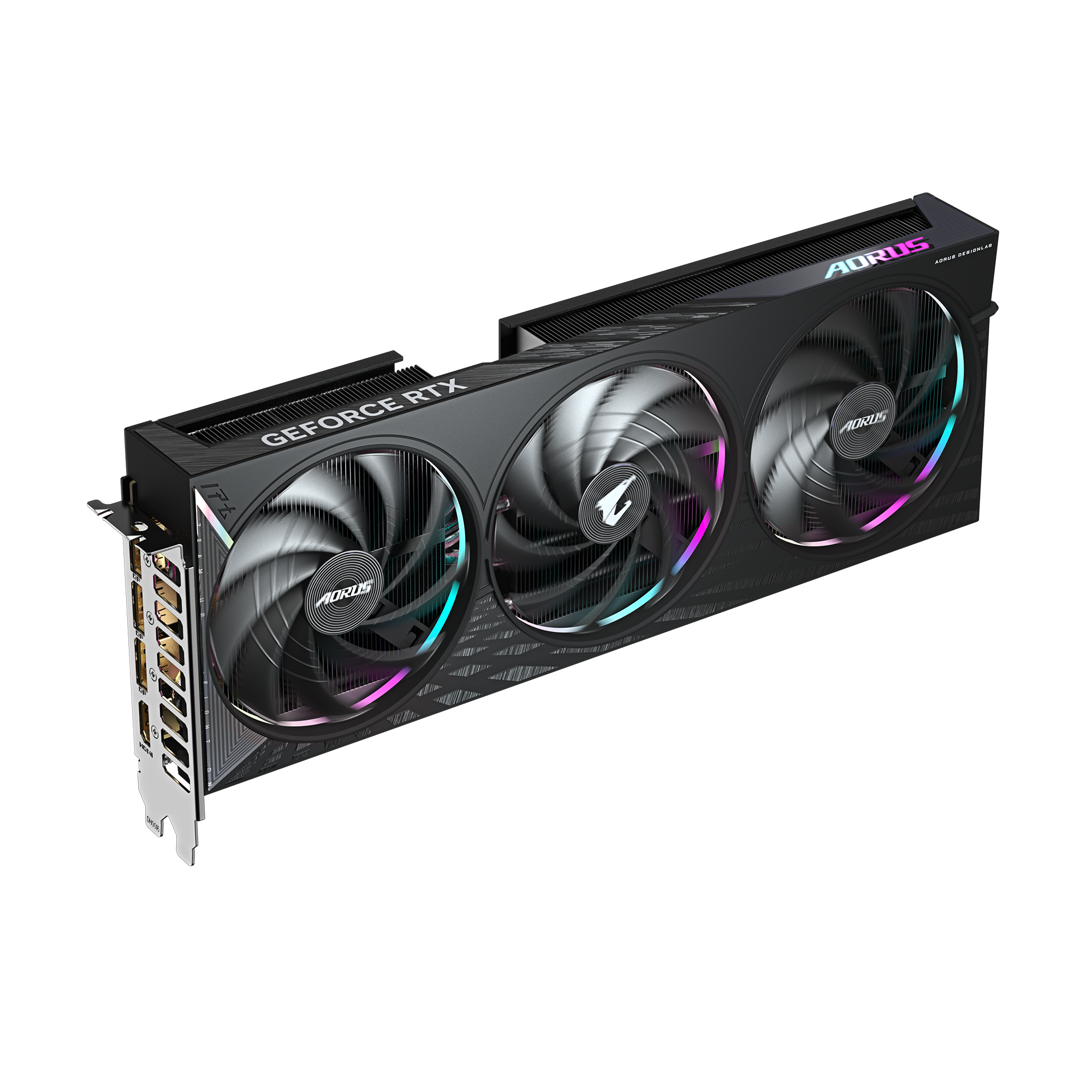

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.

UNCOMPROMISING CRAFTSMANSHIP & PERFORMANCE

Shuttling through the AORUS universe, the iconic light slices through the visual field, while extreme speed leaves afterimages that culminate in a truly one-of-a-kind symbol.

Main Features

  • Powered by the NVIDIA Blackwell architecture and DLSS 4
  • Powered by GeForce RTX 5060 Ti
  • Integrated with 16GB GDDR7 128bit memory interface
  • WINDFORCE cooling system
  • RGB Halo
  • Dual BIOS (Performance / Silent)
  • Reinforced structure
  • 4 years warranty (Online registration required)
Specifications

GPU

Chipset Manufacturer NVIDIA
Chipset Model Name GeForce RTX
Chipset Model Number 5060 Ti
Chipset Additional Information AORUS ELITE
Boost Chip Clock 2722 MHz
Graphics Core CUDA
Number of Cores 4608

Memory

Memory Size 16384 MB
Memory Clock 28 Gbps
Memory Type GDDR7
Memory Width 128 bit
Memory Bandwidth 448 GB/s

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 5.0 x8

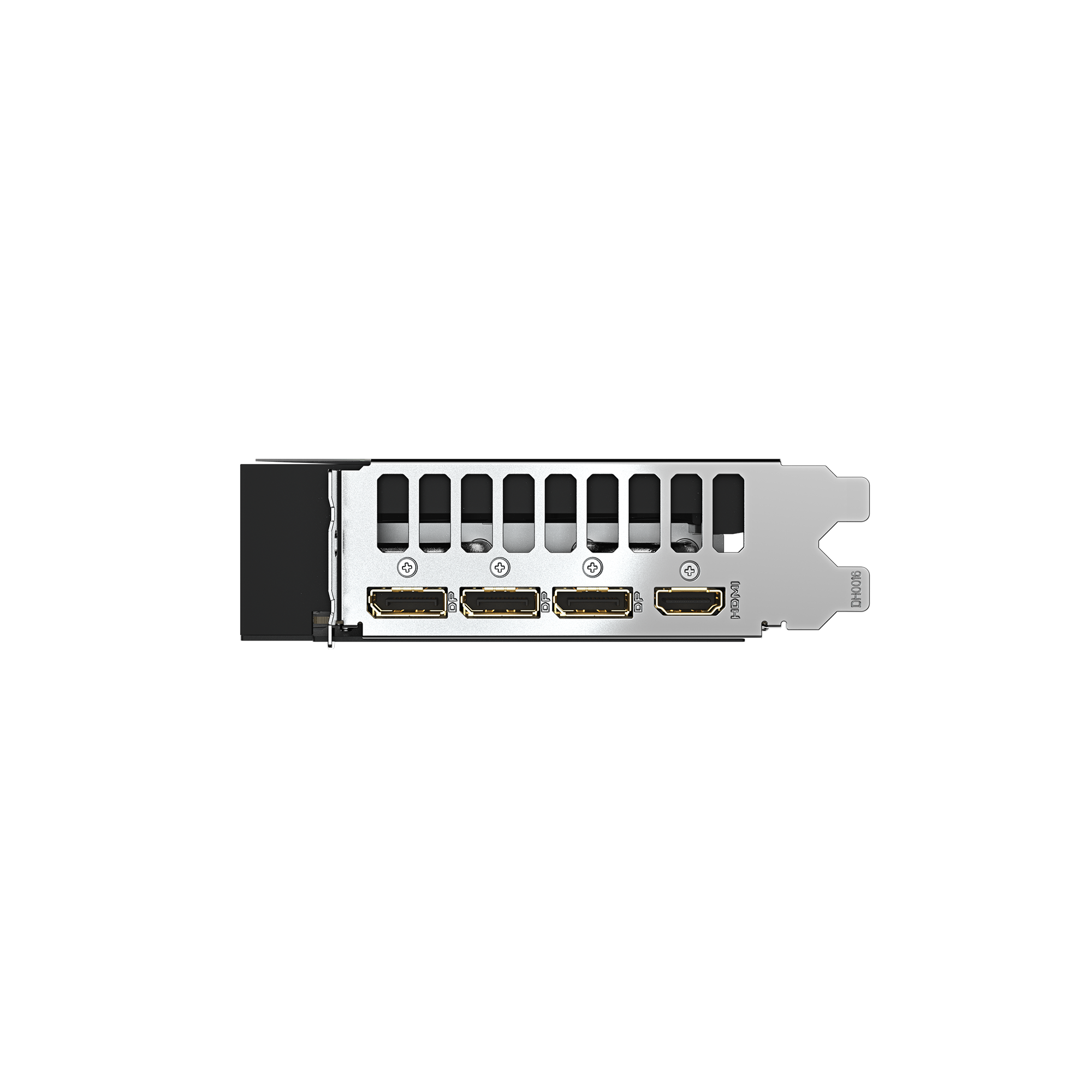

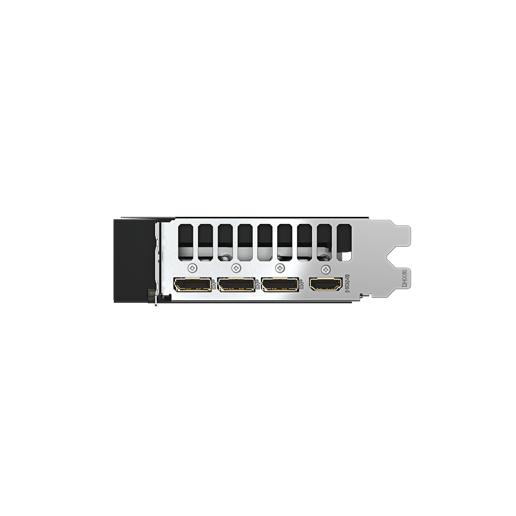

HDMI Port 1 x HDMI 2.1b
DisplayPort 3 x DisplayPort 2.1b

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320

System Requirements

System Requirements 1 x PCI Express 5.0 x16 slot

Electrical

Power Connector 1 x 8-pin PCIe
Power Consumption 180 W
Recomended Power Supply 650 W

Physical

Form Factor Graphics Card
In The Box Graphics Card
Quick Guide
Warranty Registration
AORUS Metal Sticker
Width 41 mm (Dual Slot)
Depth 329 mm
Height 128 mm

Warranty

Warranty 3 Years
4 Years with online registration

Key Features

Interface Type PCI Express 5.0 x8
Config Gaming x8 (CB/CCL) Yes
Graphics Memory Type GDDR7
Main Colour Black
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan Inc. 0dB Mode
Low Profile No
NVIDIA GeForce RTX 5060 Ti
PCIe Pin Type 6+2-Pin
Cooling Technology Dynamic Fan Inc. 0dB Mode
VR Ready NVIDIA
GPU Length 329 mm
Card Width 2
Power Requirement (auto) 180 W
GPU Power (TDP) 180 W
Graphics card count 1
PCI Express Power Pins (female) 8
PCIe Physical Slot required 16
12VHPWR 16-pin Connector No
AI Ready Yes

Graphics

Graphics Chipset GeForce RTX 5060 Ti

Graphics Device

G-Sync Yes

Item Details

Manufacturer Gigabyte
Manufacturer Code GV-N506TAORUS E-16GD
Condition New
Warranty

Warranty Information

Warranty 3 Years
4 Years with online registration

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code GV-N506TAORUS E-16GD
