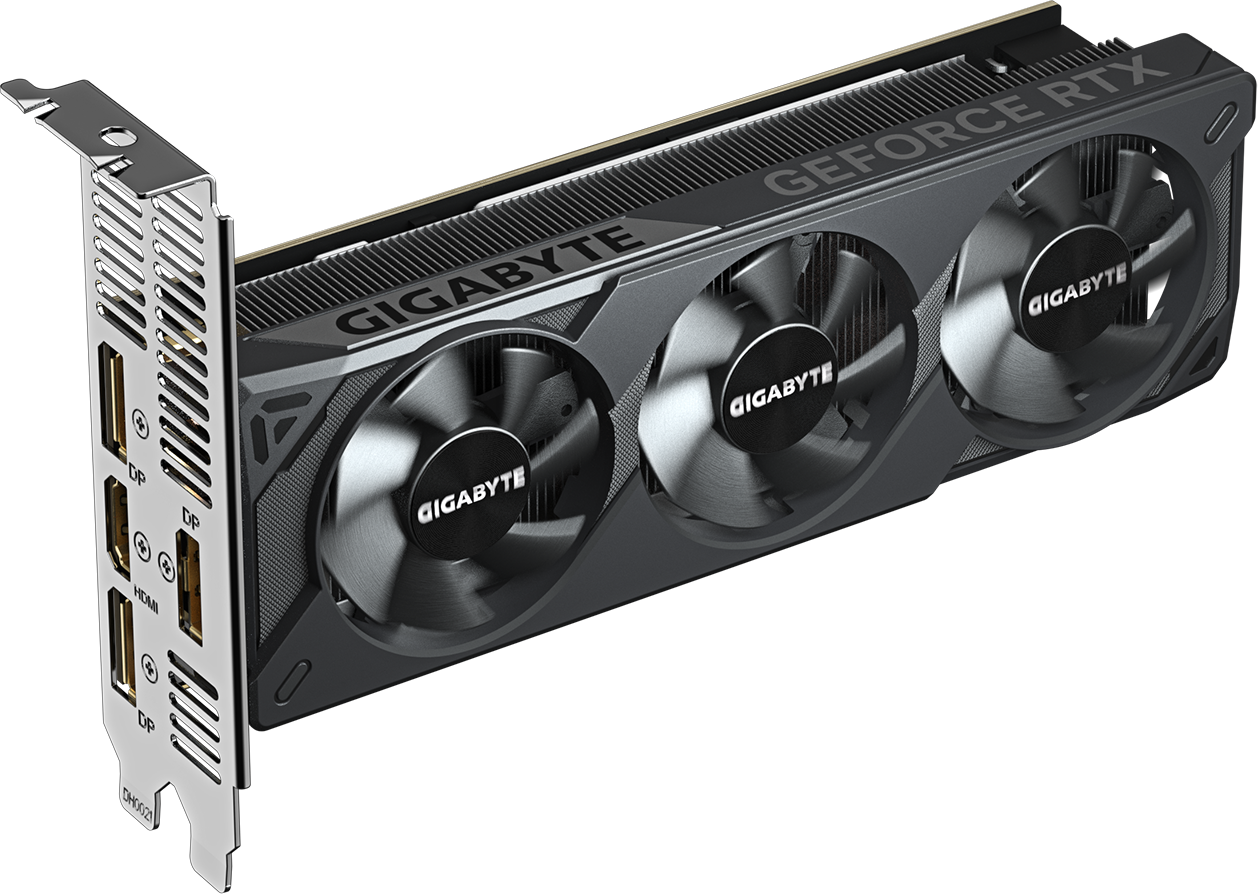

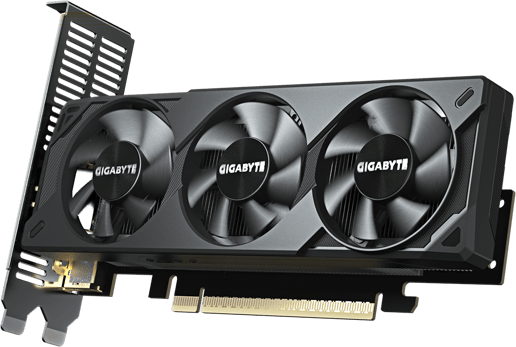

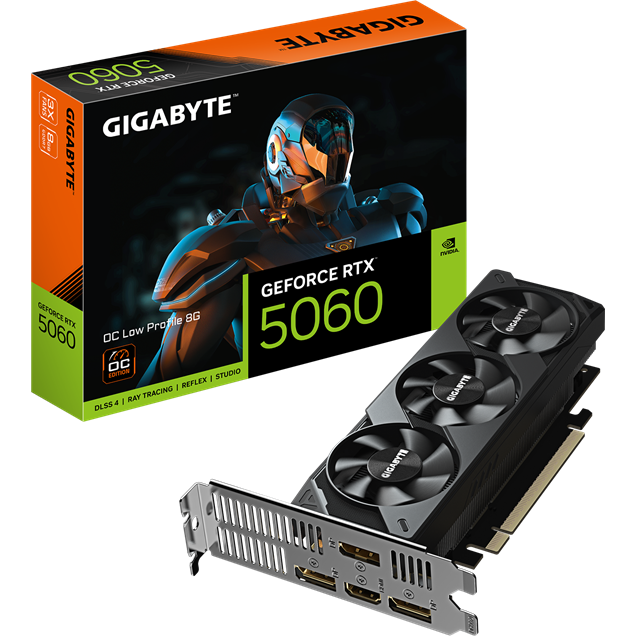

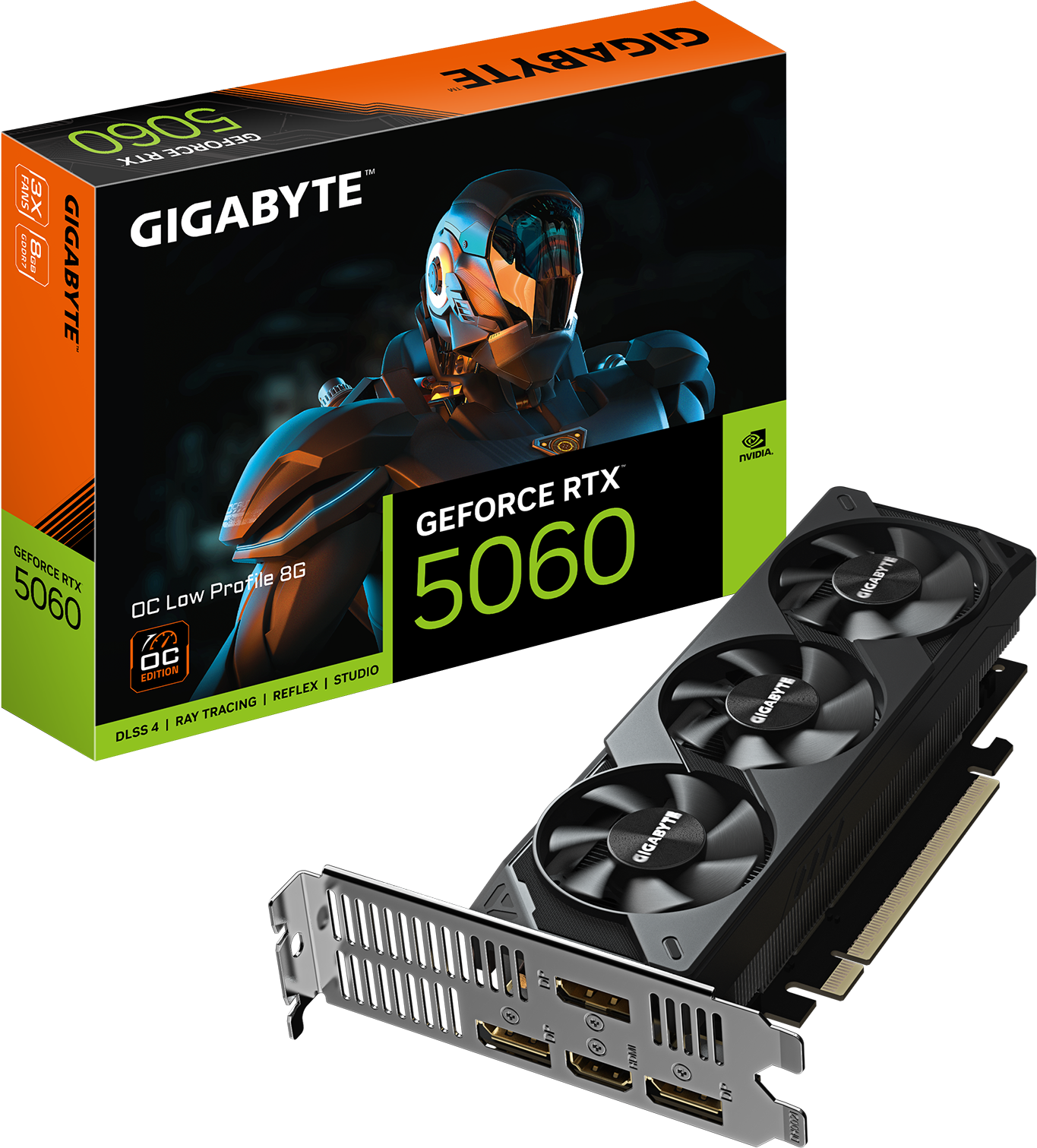

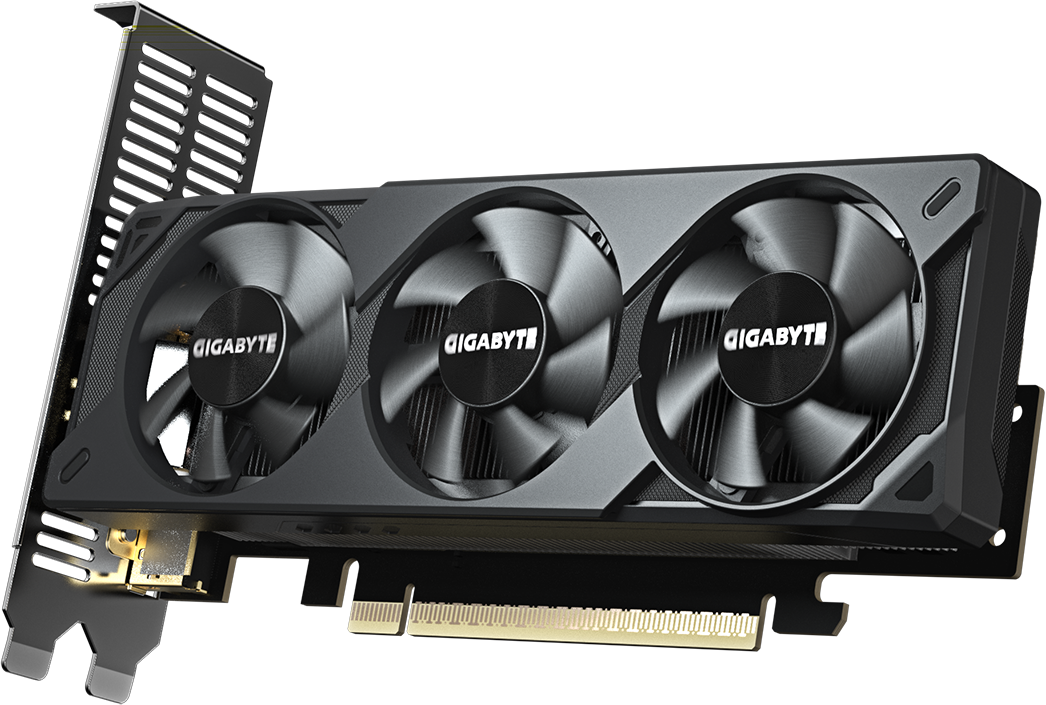

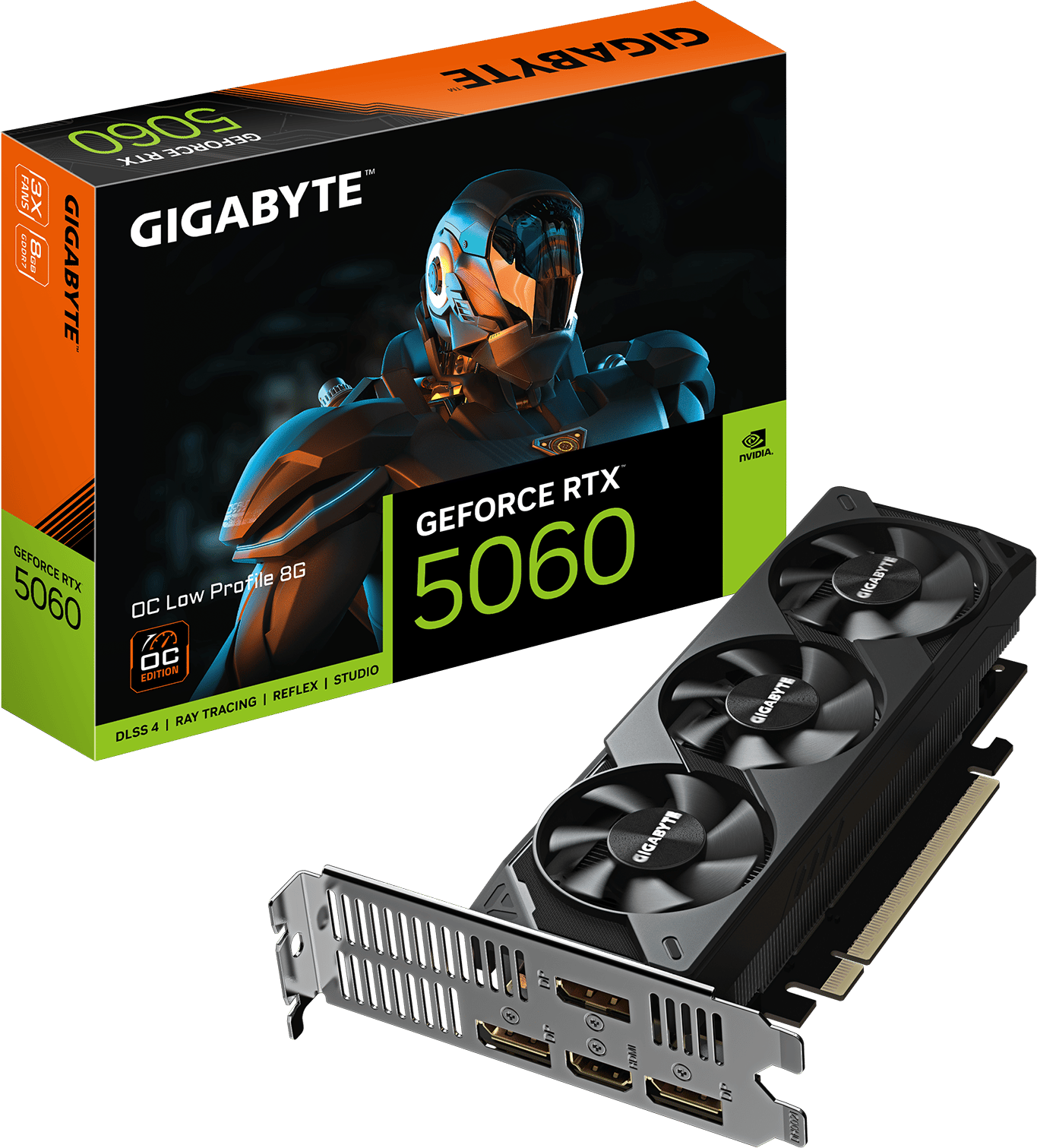

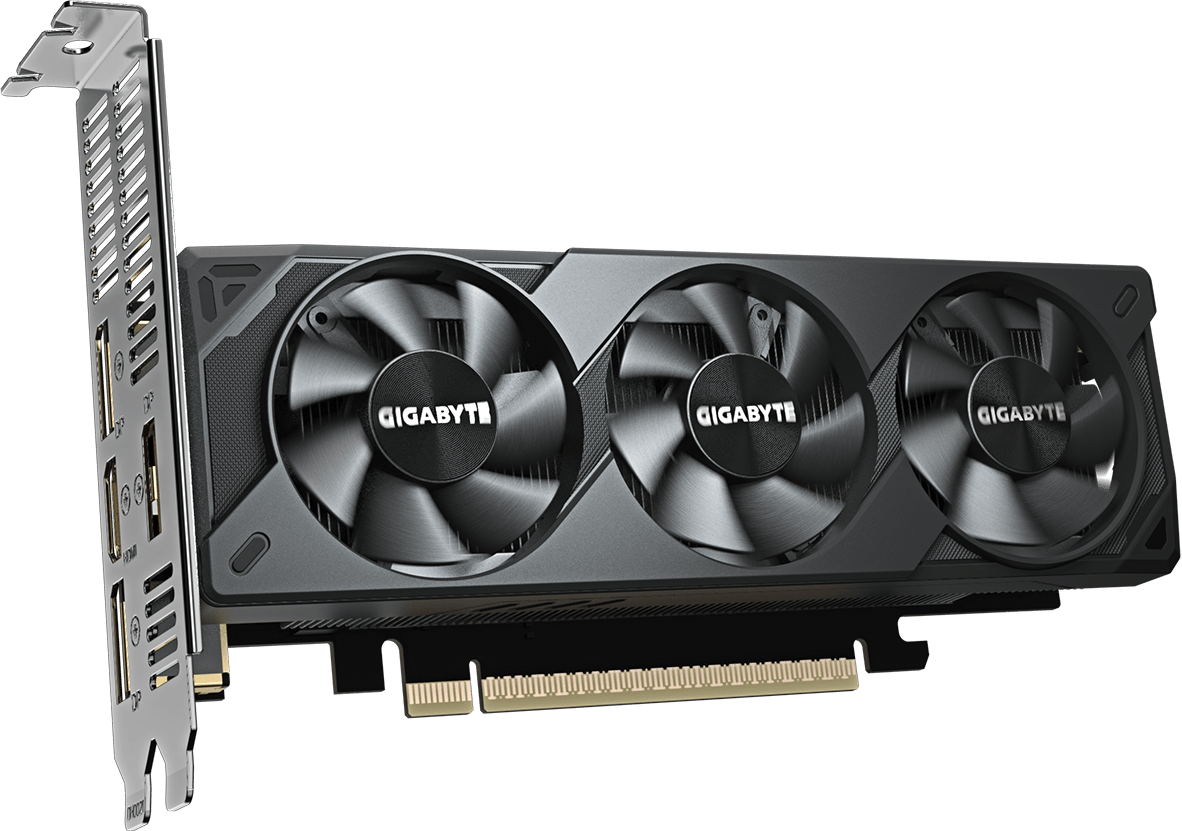

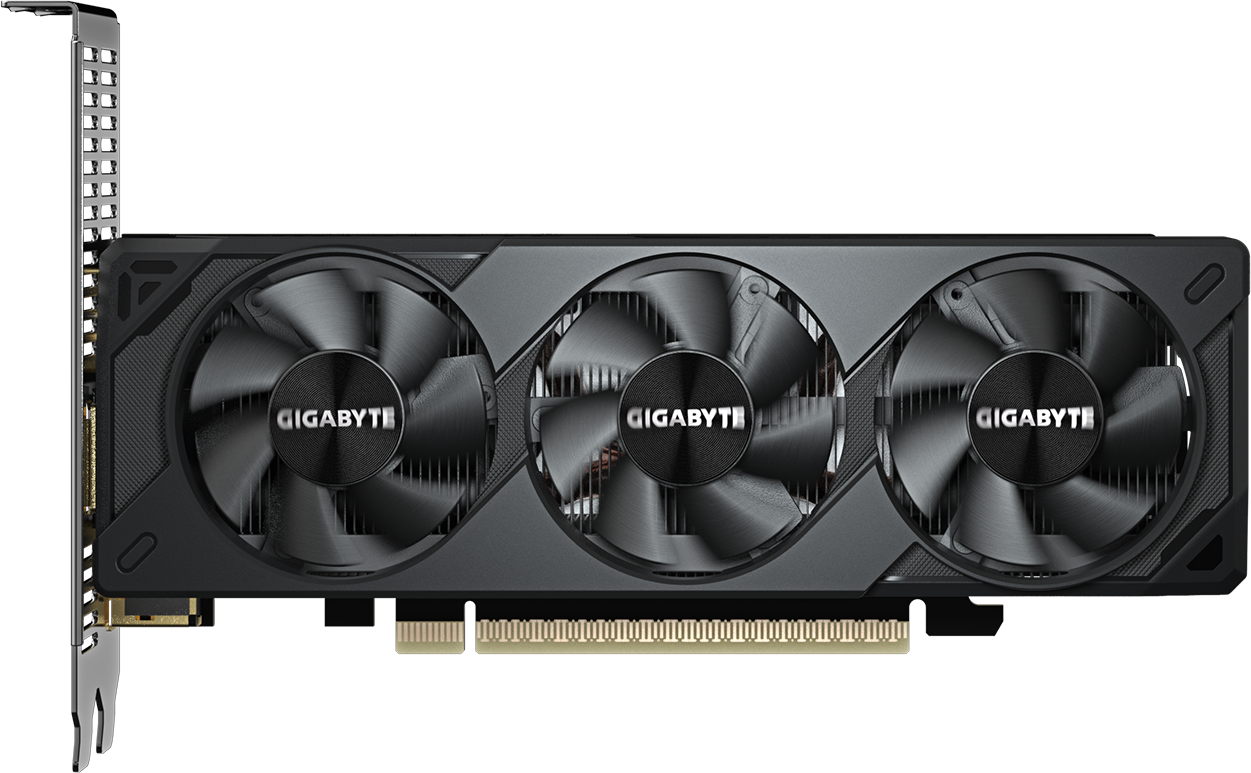

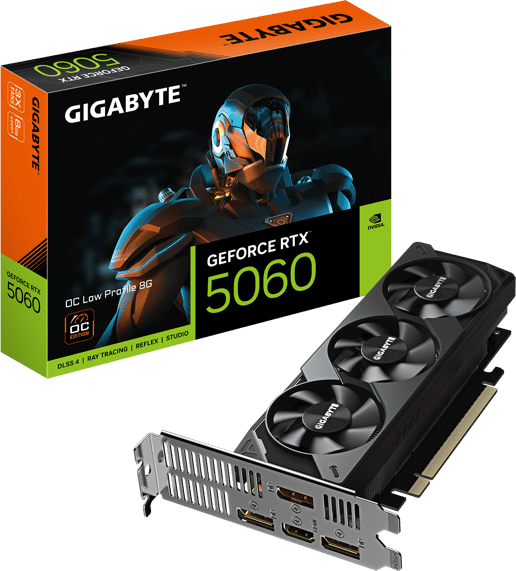

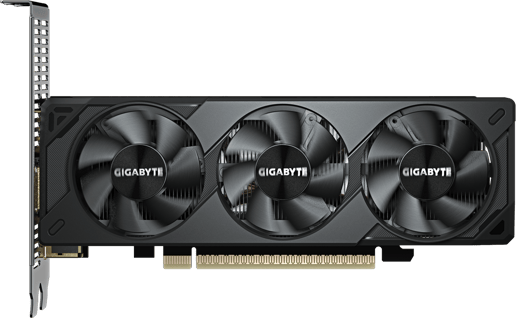

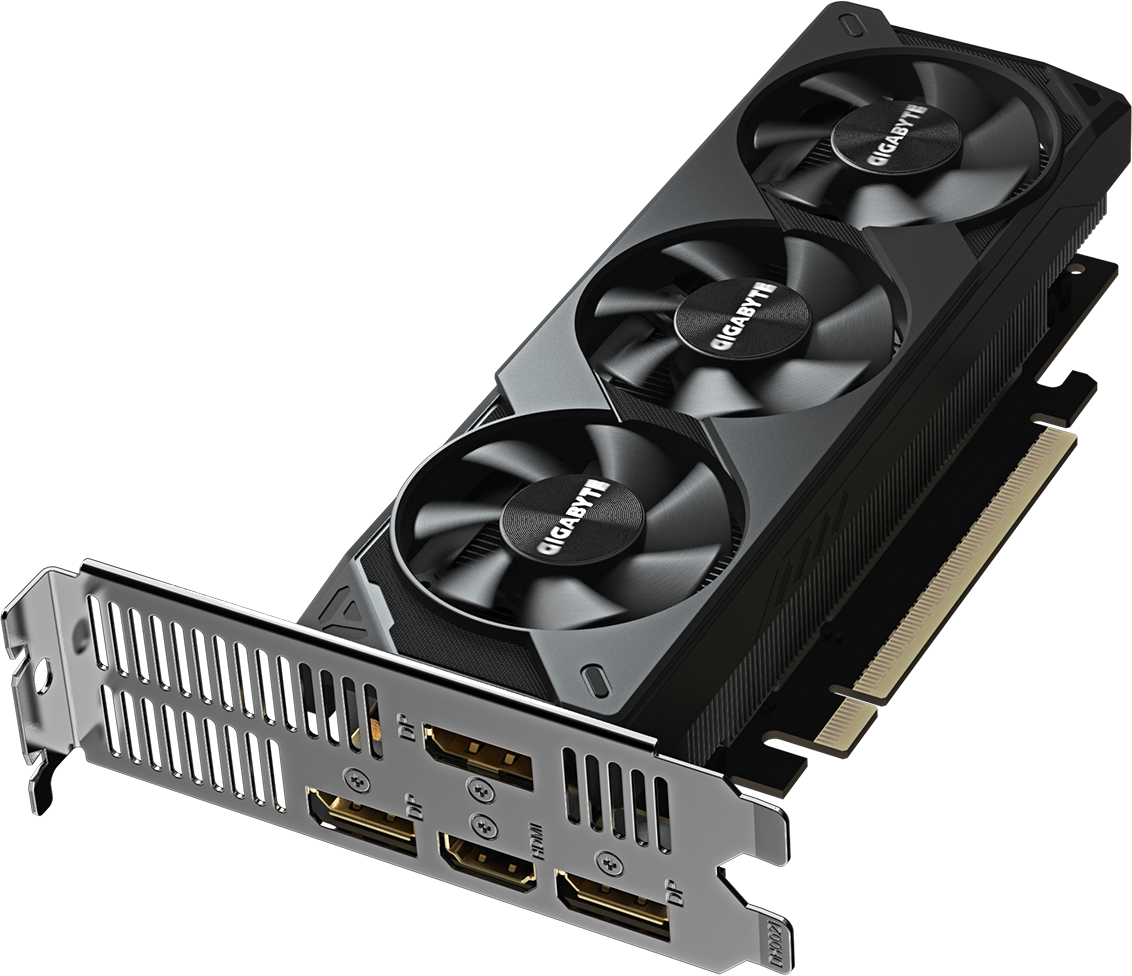

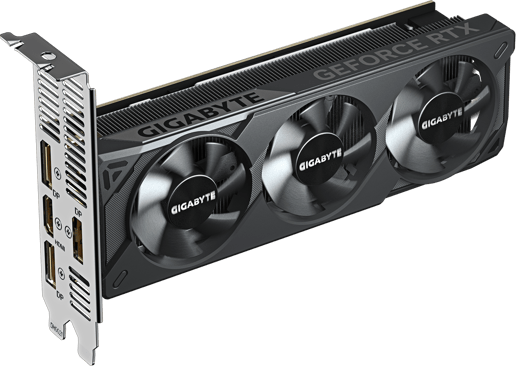

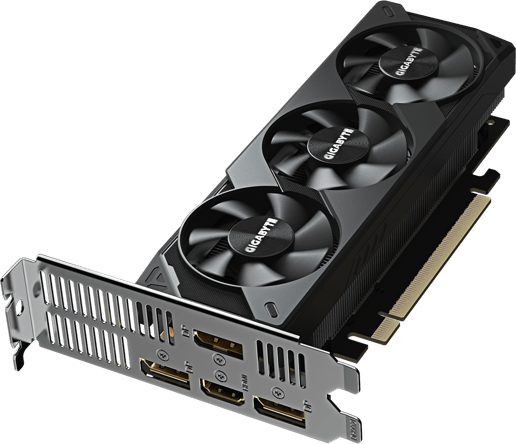

Gigabyte GeForce RTX 5060 LP OC 8GB GDDR7 Low Profile Graphics Card
£1.99
Discontinued
GV-N5060OC-8GL
Gigabyte GeForce RTX 5060 LP OC 8GB GDDR7 Low Profile Graphics Card
8GB GDDR7 GRAPHICS MEMORY
PCI EXPRESS 5.0 X8 INTERFACE
OVERCLOCKED EDITION
LOW PROFILE
OUTPUTS - HDMI AND DISPLAY PORT

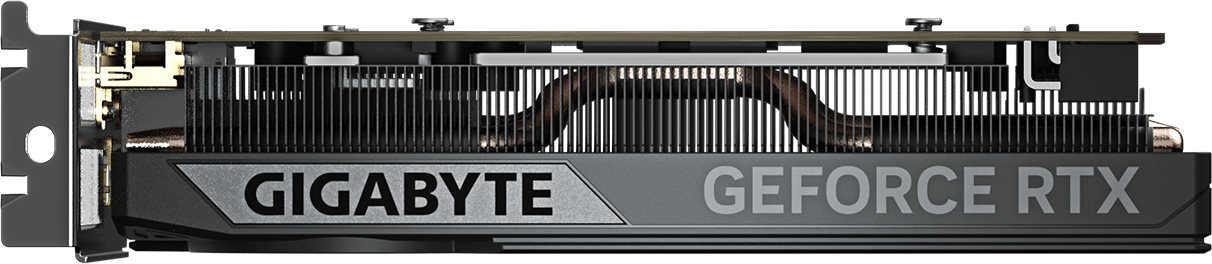

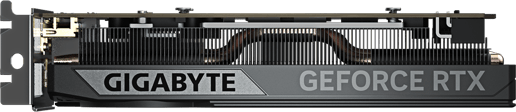

GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM
GIGABYTE's custom-designed cooling system ensures efficient heat dissipation, featuring server-grade thermal conductive gel, a copper plate with direct GPU contact, and composite copper heat pipes. These elements facilitate enhanced heat transfer to the heatsink, enabling higher performance at lower temperatures.
LOW PROFILE DESIGN
At just 182mm in length, the card is perfect for compact builds. An additional low-profile bracket is included for seamless adaptability to different build needs.
GPU
- Chipset Manufacturer: NVIDIA
- Chipset Model Name: GeForce RTX
- Chipset Model Number: 5060
- Chipset Additional Information: OC Low Profile
- Boost Chip Clock: 2512 MHz
- Graphics Core: CUDA
- Number of Cores: 3840
Memory
- Memory Size: 8 GB
- Memory Clock: 28 Gbps
- Memory Type: GDDR7
- Memory Width: 128 bit
- Memory Bandwidth: 448 GB/s

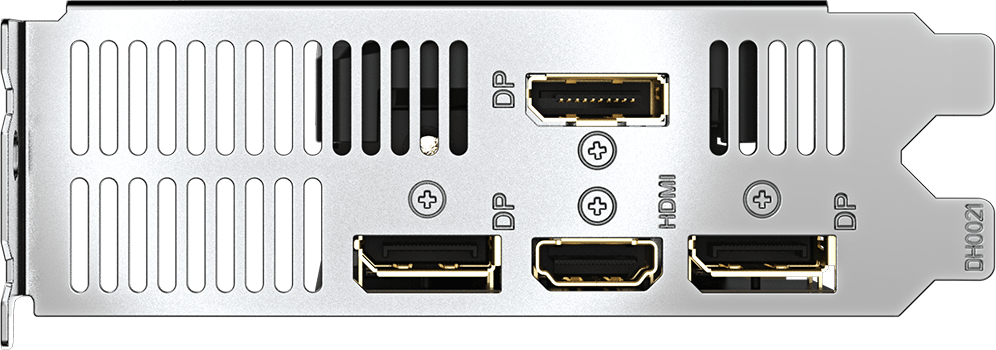

Interfaces/Ports
- Video Card Bus Type: PCI Express
- Video Card Bus Version: 5.0 x8
- HDMI Port: 1 x HDMI 2.1b
- DisplayPort: 2 x DisplayPort 2.1b
- 1 x DisplayPort 1.4a
Resolution
- Multiple Monitor Support (Max): Yes (4)
- Maximum Resolution: 7680 x 4320
System Requirements
- System Requirements: 1 x PCI Express 5.0 x16 slot
Electrical
- Power Connector: 1 x 8-pin PCIe
- Power Consumption: 145 W
- Recomended Power Supply: 450 W
Physical
- Form Factor: Graphics Card
- In The Box: Graphics Card
- Quick Guide
- Low Profile Bracket
- Width: 36 mm (1.8 slot)
- Depth: 182 mm
- Height: 69 mm
- Weight: 0.33 kg
Warranty
- Warranty: 3 Years
Identifiers
- Stock Code: VGA7459
- Mfg Code: GV-N5060OC-8GL
Warranty
- Warranty: 3 Years
