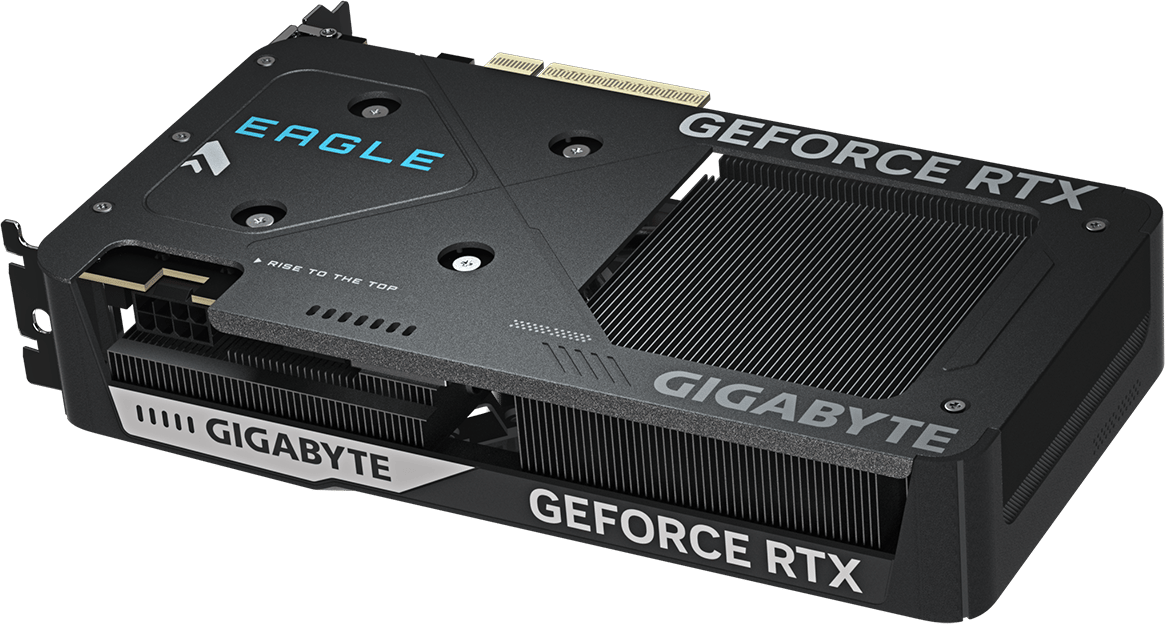

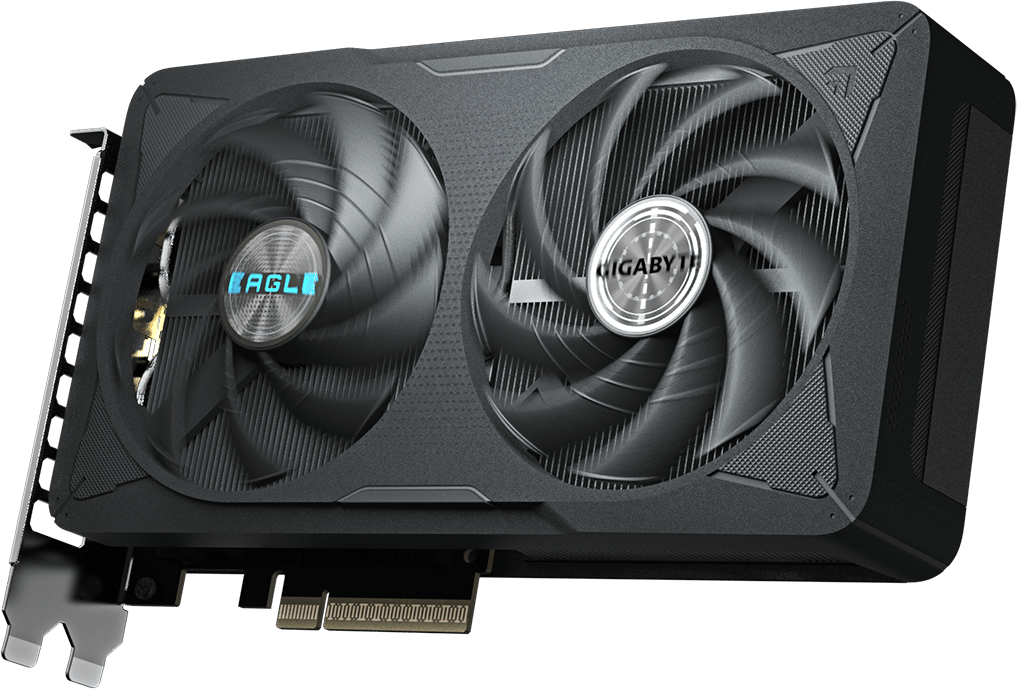

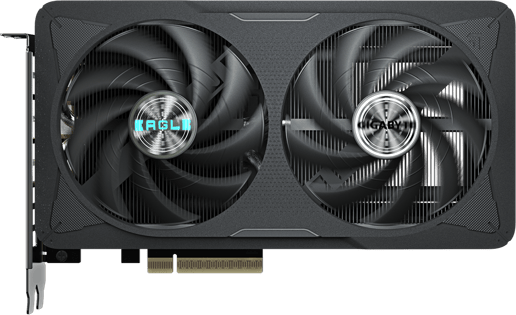

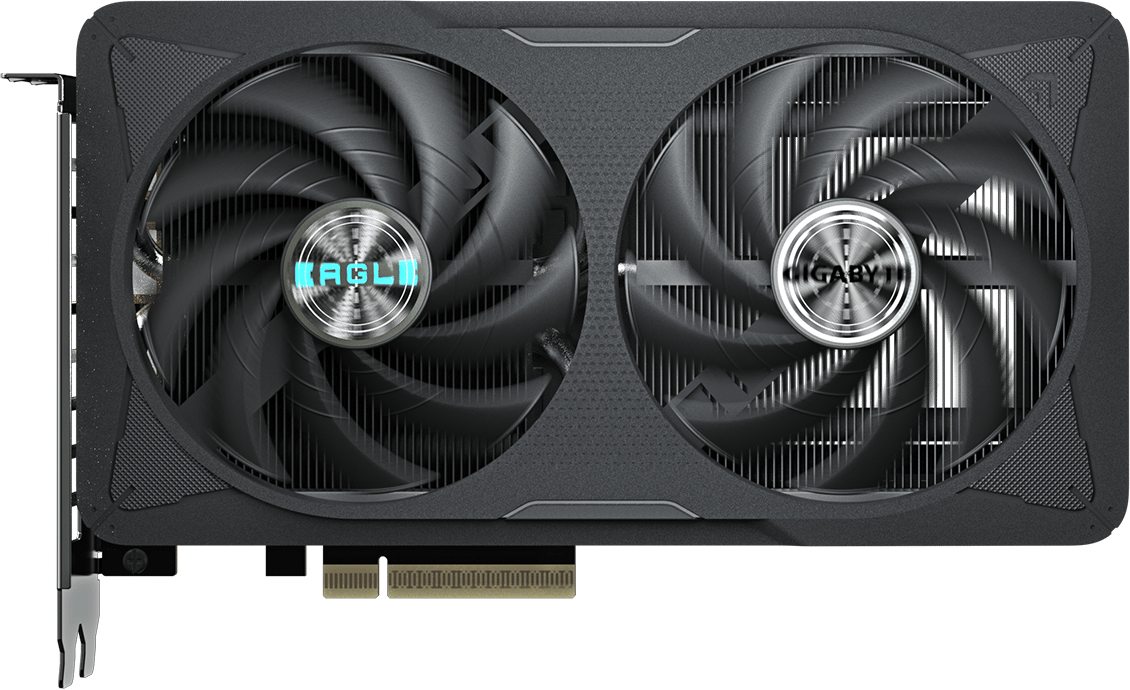

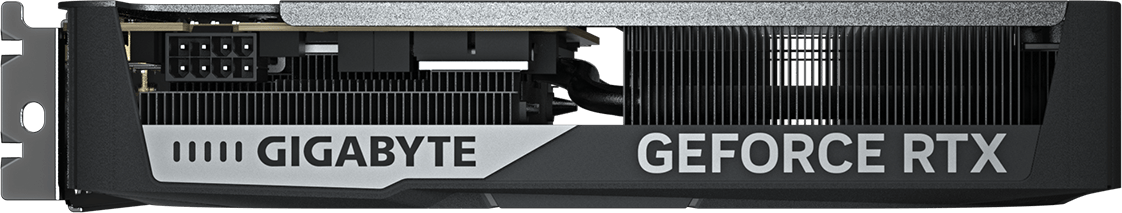

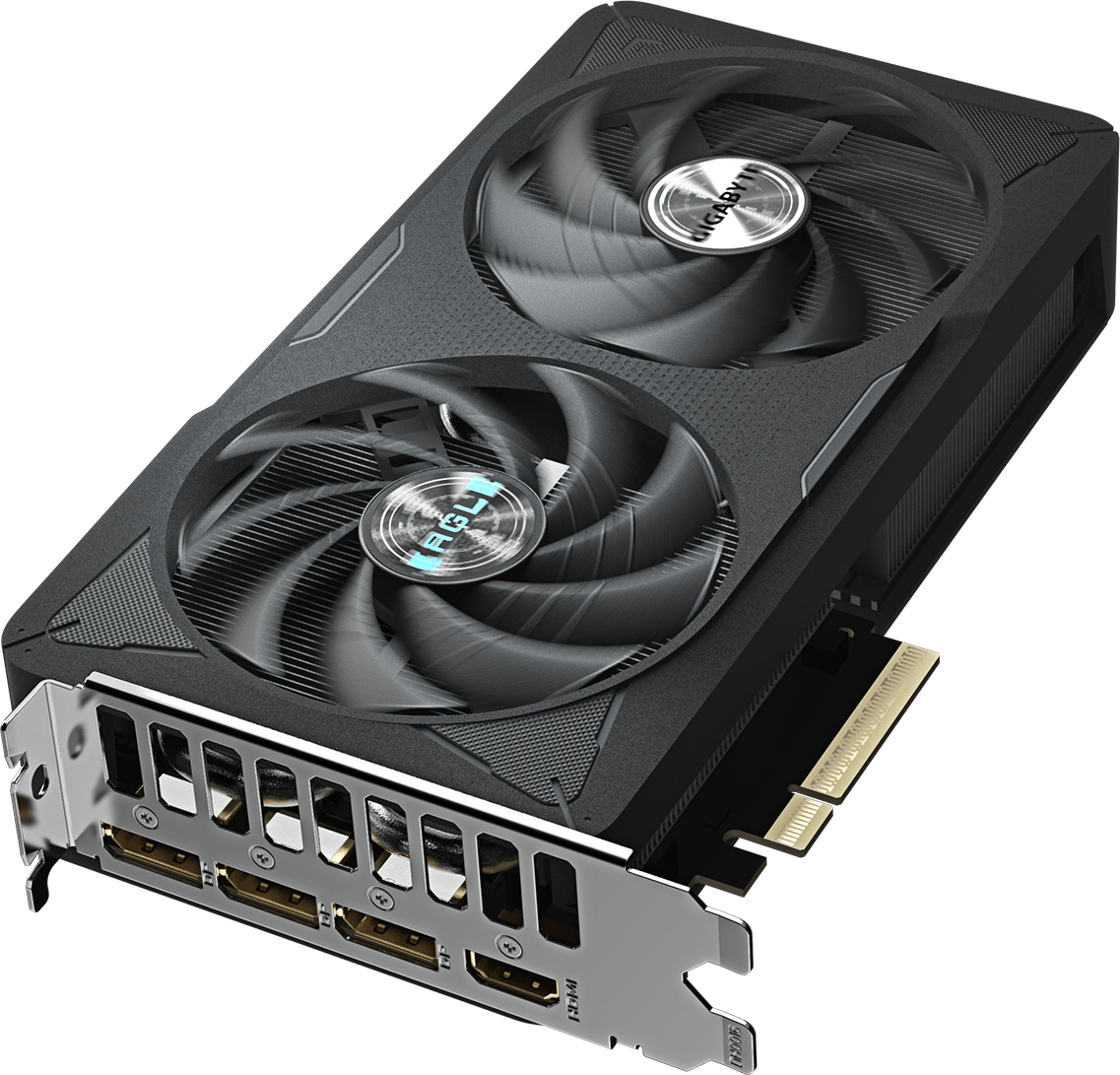

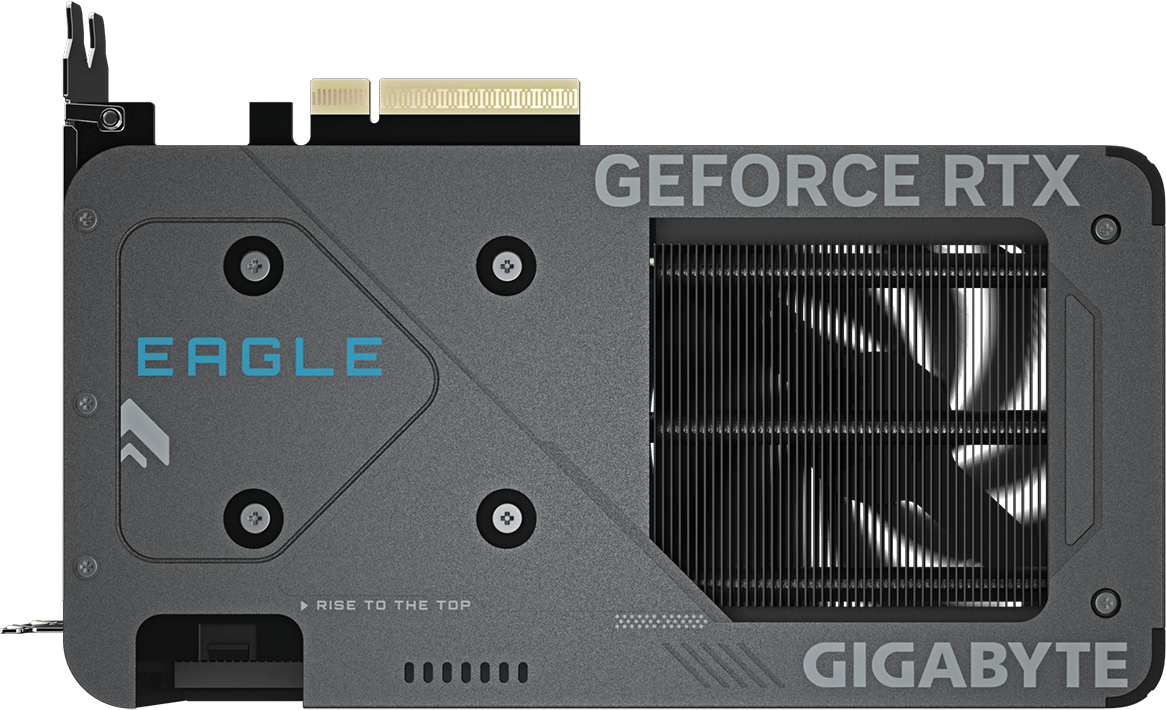

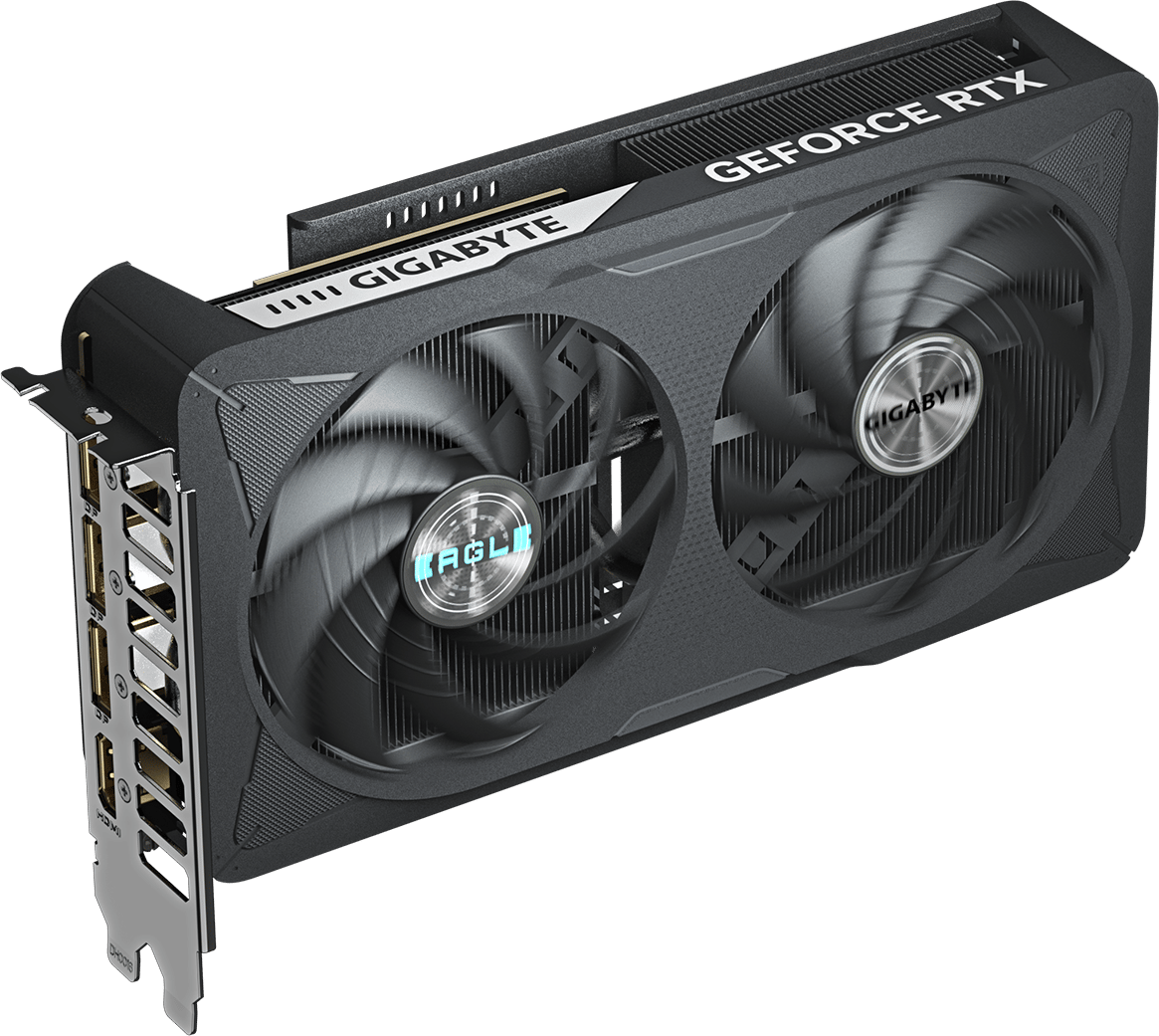

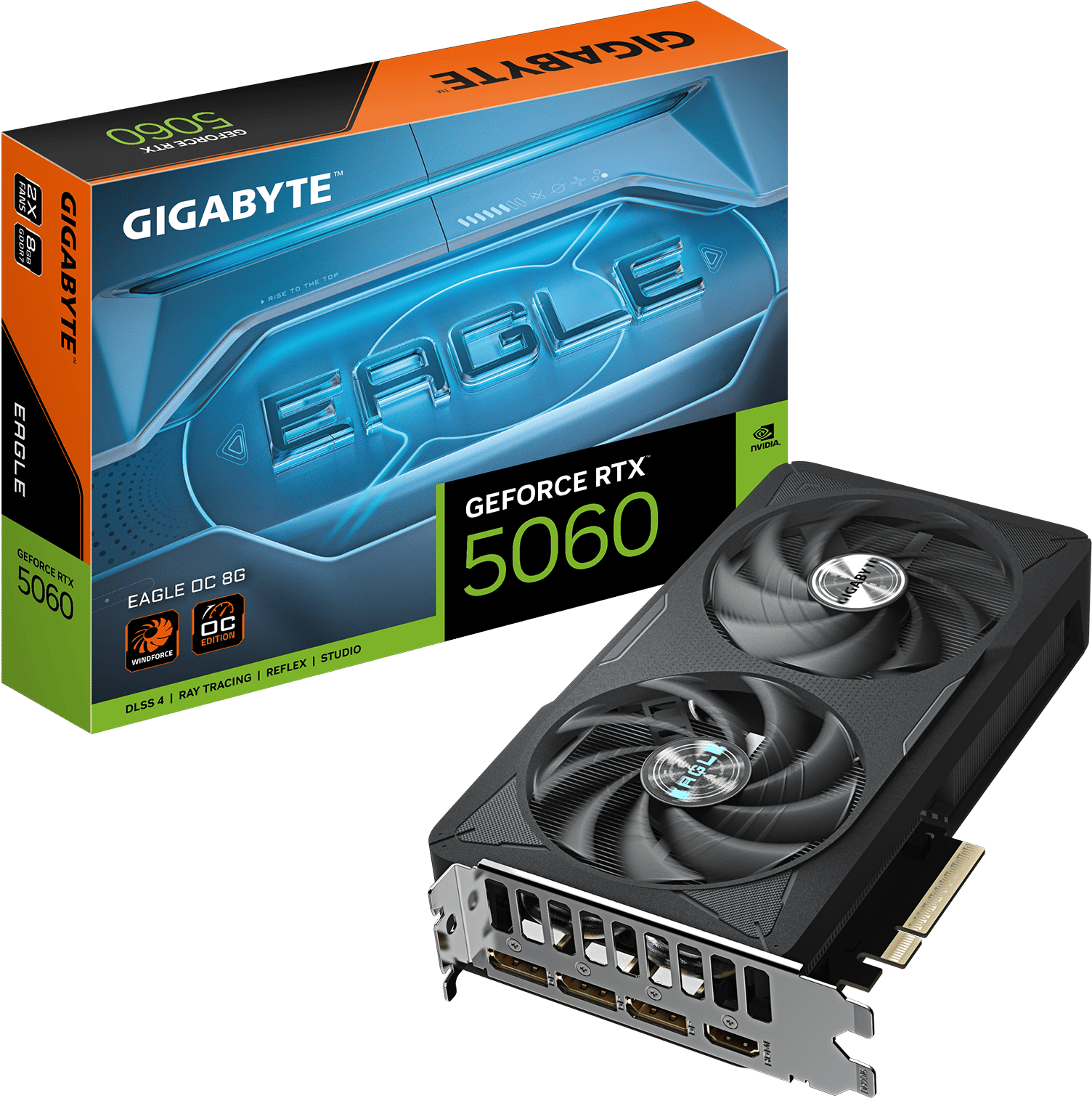

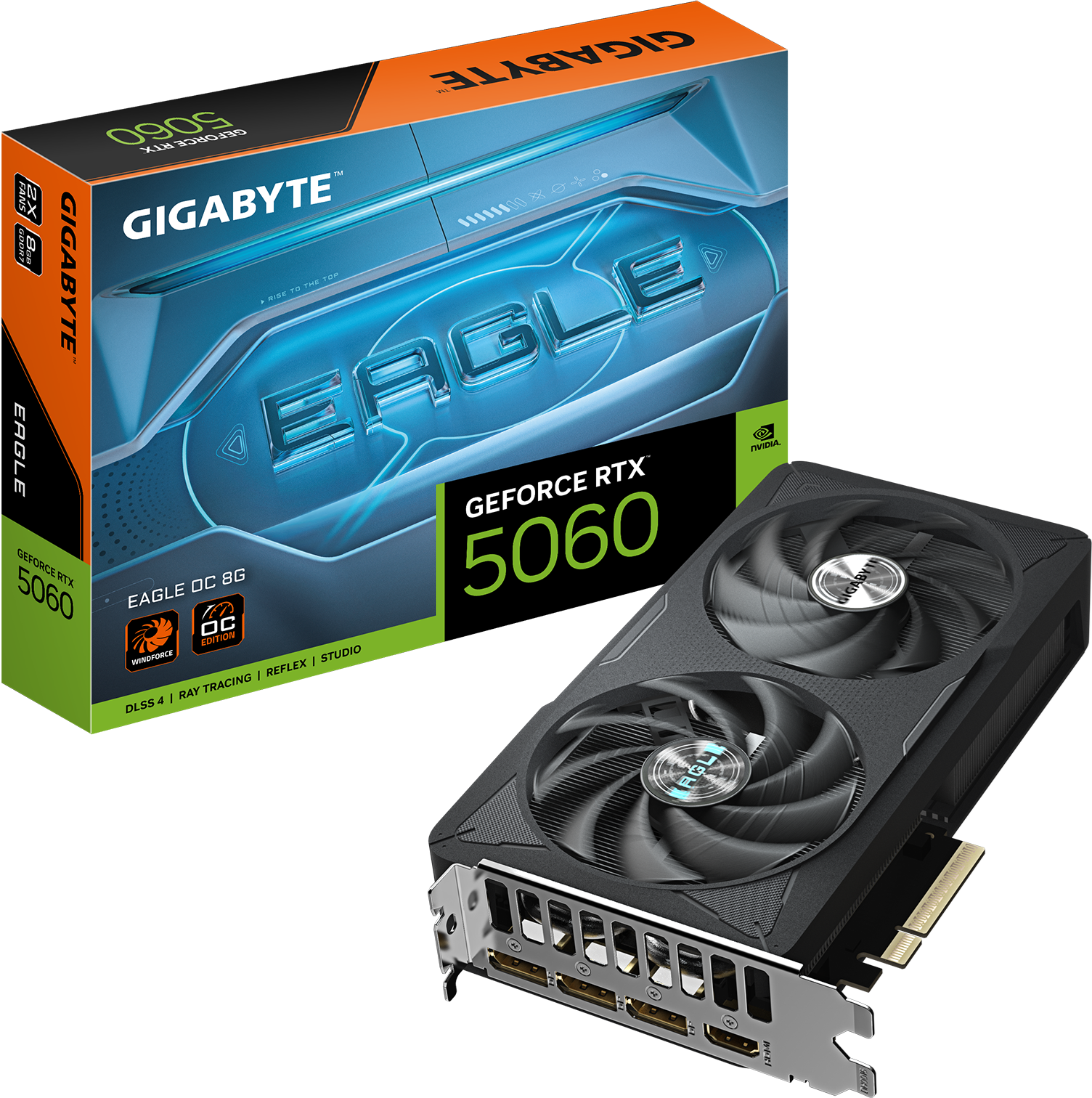

Gigabyte GeForce RTX 5060 EAGLE OC 8GB GDDR7 Graphics Card

Gigabyte GeForce RTX 5060 EAGLE OC 8GB GDDR7 Graphics Card

CCL Code: VGA7455

Coming soon

Notify Me

Gigabyte GeForce RTX 5060 EAGLE OC 8GB GDDR7 Graphics Card

GV-N5060EAGLE OC-8GD

Key Features:

  • 8GB GDDR7 Graphics Memory
  • PCI Express 5.0 x8 Interface
  • Overclocked Edition
  • Outputs - HDMI and Display Port

This item has very limited stock [more info]

CCL Code: VGA7455

Coming soon

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

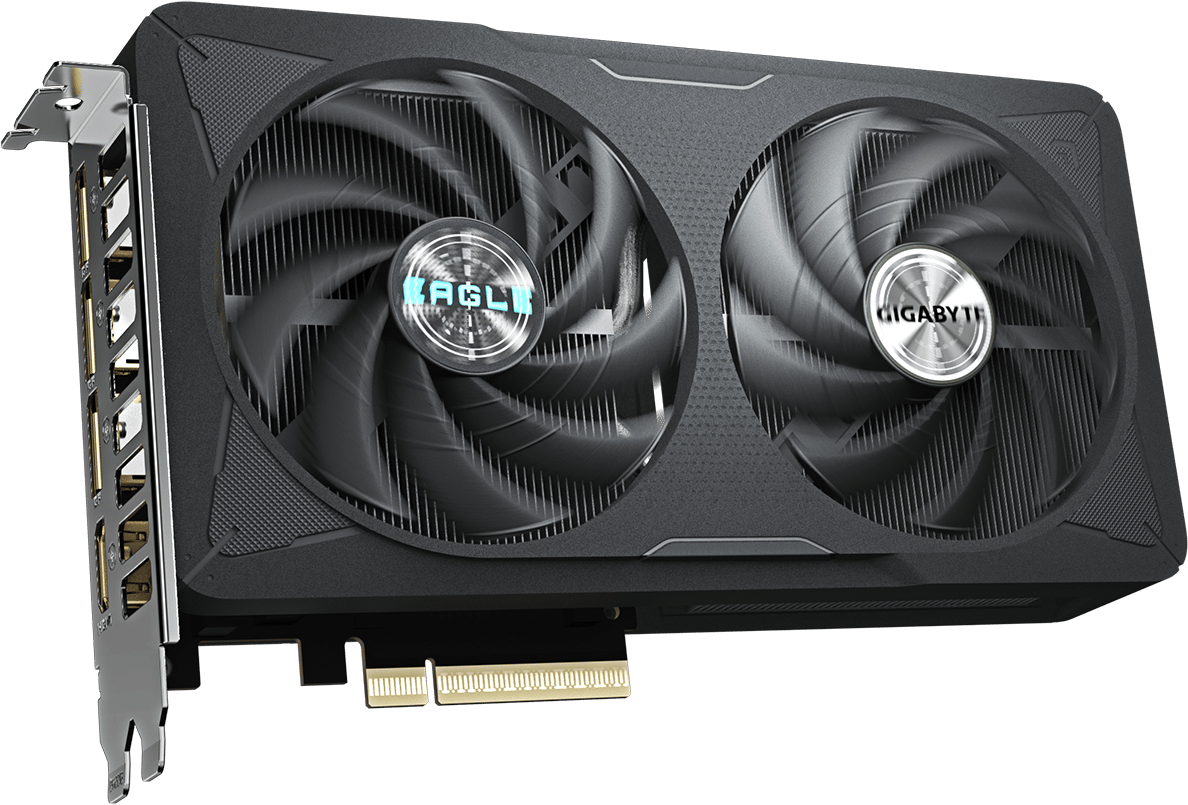

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN

The design inspiration for the EAGLE series stems from the fusion of aerospace battleships and sci-fi elements. Its unique curved contours outline a streamlined appearance, complemented by segmented lines resembling disassembled deck components, evoking the intricate structure of a spaceship. This design infuses the overall aesthetic with a rich cosmic technology vibe, showcasing the futuristic aesthetics and craftsmanship in every detail.

Main Features

  • Powered by the NVIDIA Blackwell architecture and DLSS 4
  • Powered by GeForce RTX 5060
  • Integrated with 8GB GDDR7 128bit memory interface
  • WINDFORCE cooling system
  • Reinforced structure
Specifications

GPU

Chipset Manufacturer NVIDIA
Chipset Model Name GeForce RTX
Chipset Model Number 5060
Chipset Additional Information EAGLE OC
Boost Chip Clock 2550 MHz
Graphics Core CUDA
Number of Cores 3840

Memory

Memory Size 8192 MB
Memory Clock 28 Gbps
Memory Type GDDR7
Memory Width 128 bit
Memory Bandwidth 448 GB/s

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 5.0 x8

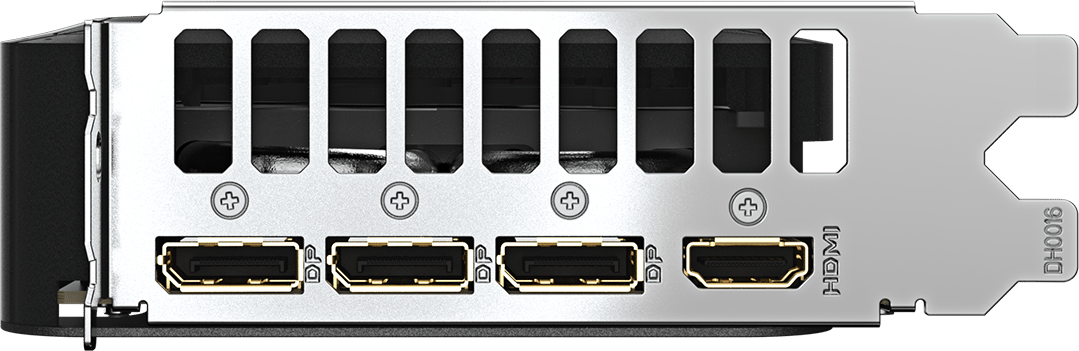

HDMI Port 1 x HDMI 2.1b
DisplayPort 3 x DisplayPort 2.1b

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320

System Requirements

System Requirements 1 x PCI Express 5.0 x16 slot

Electrical

Power Connector 1 x 8-pin PCIe
Power Consumption 145 W
Recomended Power Supply 450 W

Physical

Form Factor Graphics Card
In The Box Graphics Card
Quick Guide
Width 40 mm (Dual Slot)
Depth 208 mm
Height 120 mm
Weight 0.54 kg

Warranty

Warranty 3 Years

Key Features

Interface Type PCI Express 5.0 x8
Config Gaming x8 (CB/CCL) No
Graphics Memory Type GDDR7
Main Colour Black
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan Inc. 0dB Mode
Low Profile No
NVIDIA GeForce RTX 5060
PCIe Pin Type 6+2-Pin
Cooling Technology Dynamic Fan Inc. 0dB Mode
VR Ready NVIDIA
GPU Length 208 mm
Card Width 2
Power Requirement (auto) 145 W
GPU Power (TDP) 145 W
Graphics card count 1
PCI Express Power Pins (female) 8
PCIe Physical Slot required 16
12VHPWR 16-pin Connector No

Graphics

Graphics Chipset GeForce RTX 5060

Graphics Device

G-Sync Yes

Item Details

Manufacturer Gigabyte
Manufacturer Code GV-N5060EAGLE OC-8GD
EAN 4719331356439
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code GV-N5060EAGLE OC-8GD
