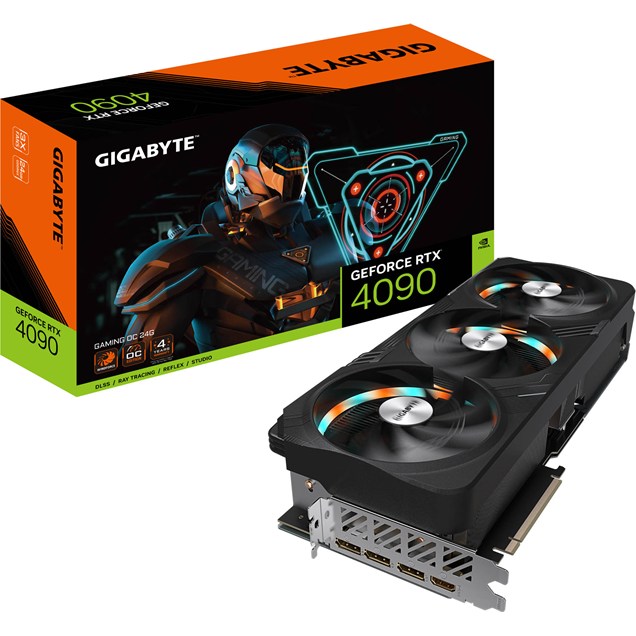

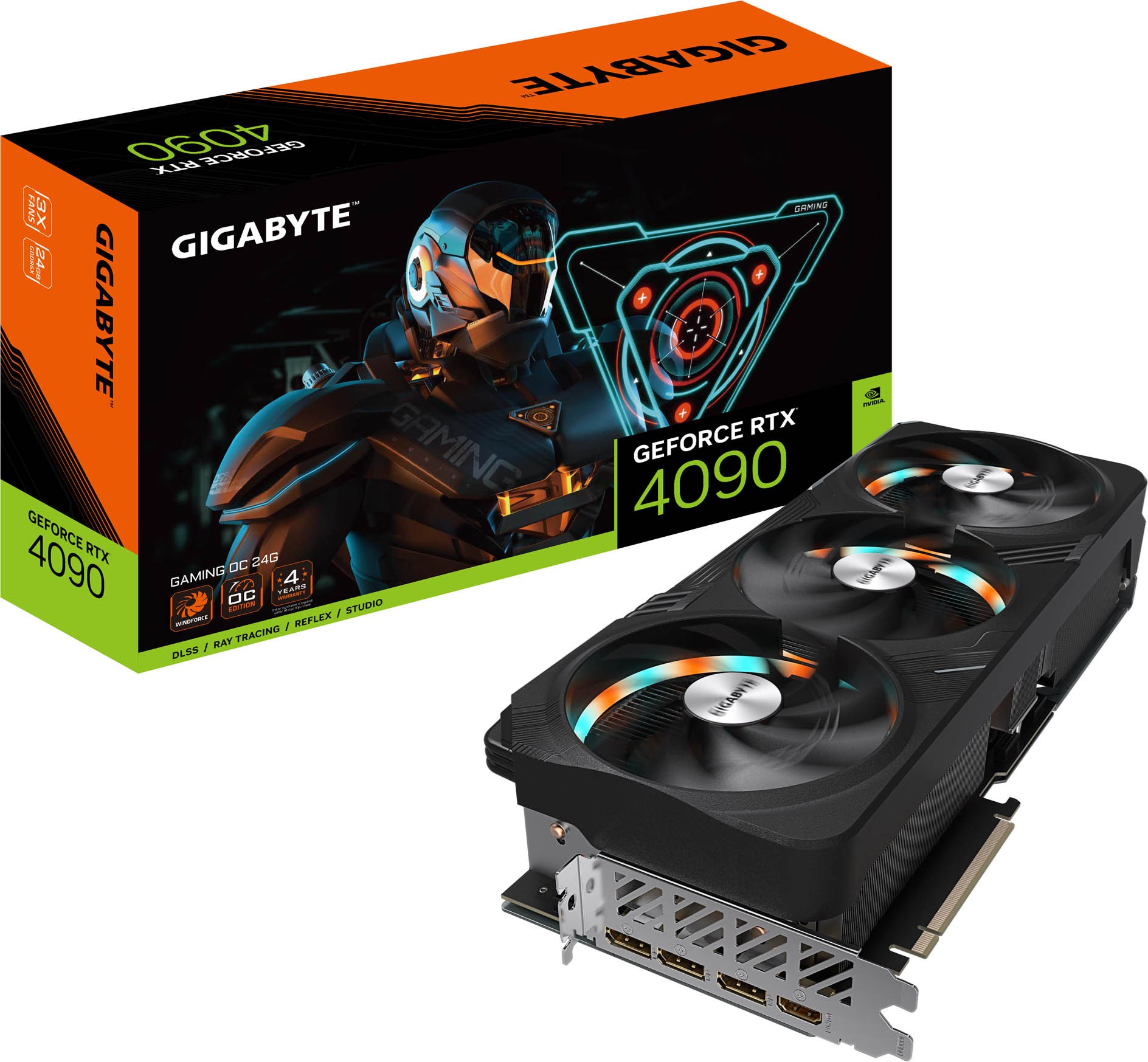

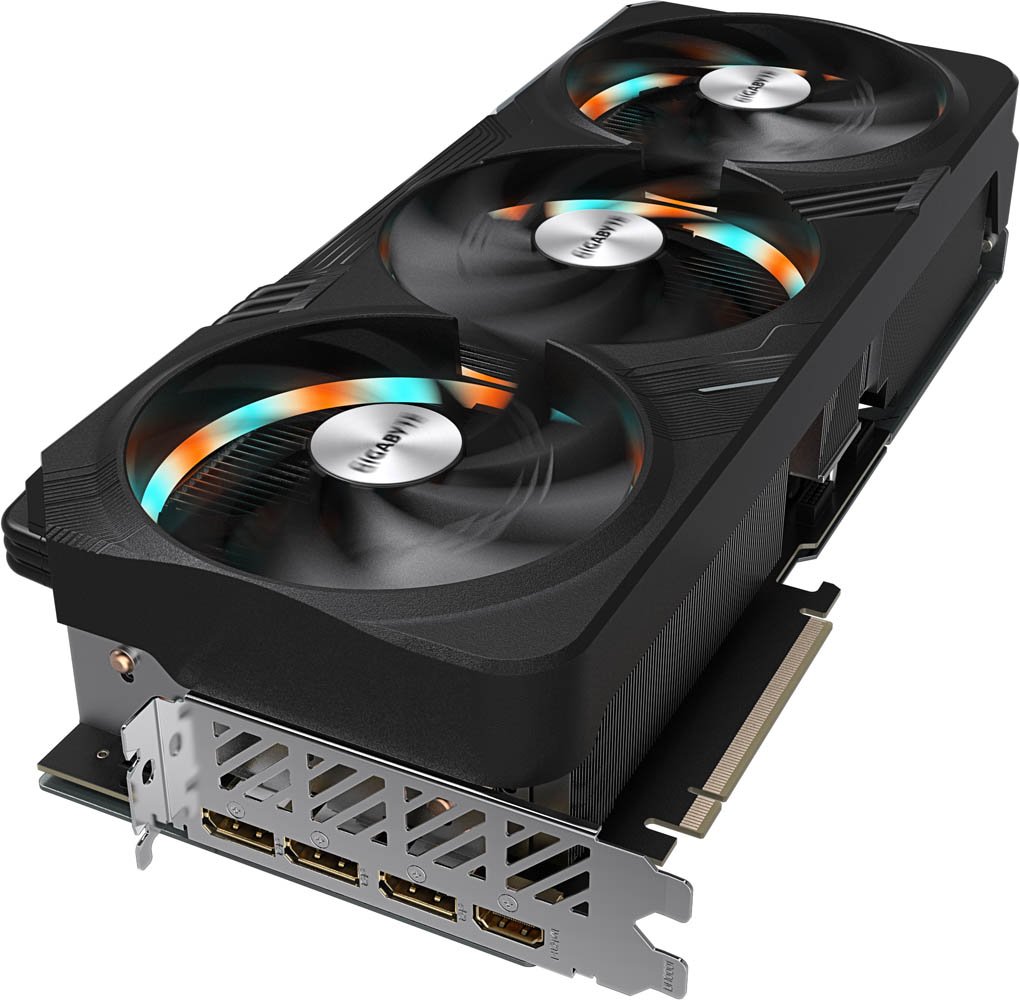

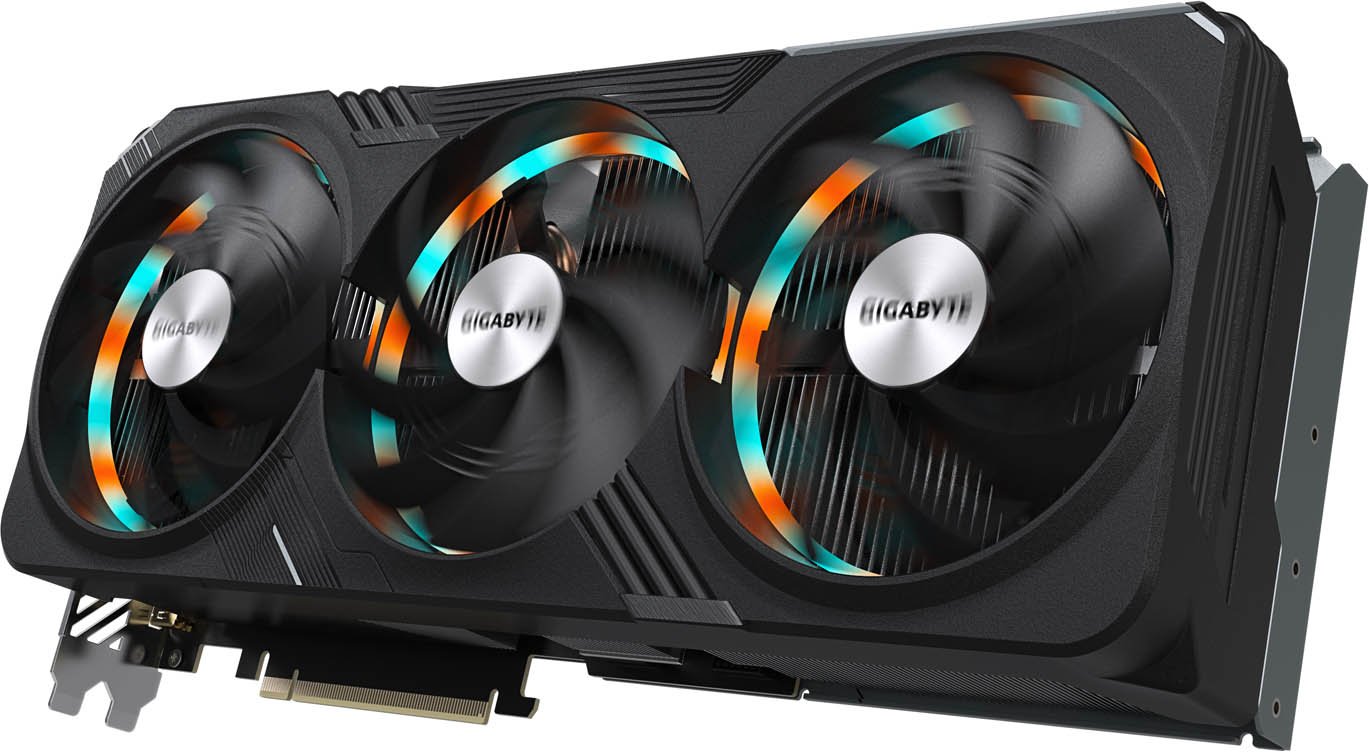

Gigabyte GeForce RTX 4090 GAMING OC 24GB GDDR6X Graphics Card

Gigabyte GeForce RTX 4090 GAMING OC 24GB GDDR6X Graphics Card

CCL Code: VGA6528

Was £2,438.81

SAVE £604

Now only

£1,833.99 inc VAT

  • Gigabyte GeForce RTX 4090 GAMING OC 24GB GDDR6X Graphics Card
  • Gigabyte GeForce RTX 4090 GAMING OC 24GB GDDR6X Graphics Card
  • Gigabyte GeForce RTX 4090 GAMING OC 24GB GDDR6X Graphics Card
  • Gigabyte GeForce RTX 4090 GAMING OC 24GB GDDR6X Graphics Card
  • Gigabyte GeForce RTX 4090 GAMING OC 24GB GDDR6X Graphics Card
  • Gigabyte GeForce RTX 4090 GAMING OC 24GB GDDR6X Graphics Card
  • Gigabyte GeForce RTX 4090 GAMING OC 24GB GDDR6X Graphics Card
  • Gigabyte GeForce RTX 4090 GAMING OC 24GB GDDR6X Graphics Card

Save 5% when you buy 3 or more eligible different items*

Gigabyte GeForce RTX 4090 GAMING OC 24GB GDDR6X Graphics Card

GV-N4090GAMING OC-24GD

Was £2,438.81

SAVE £604

Now only

£1,833.99 inc VAT

Available for delivery from Friday 31st May

Buying in bulk? Contact our business team.

Key Features:

  • 24GB GDDR6X Graphics Memory
  • PCI Express 4.0 x16 Interface
  • Overclocked Edition
  • Outputs - HDMI and Display Port
CCL Code: VGA6528
Overview

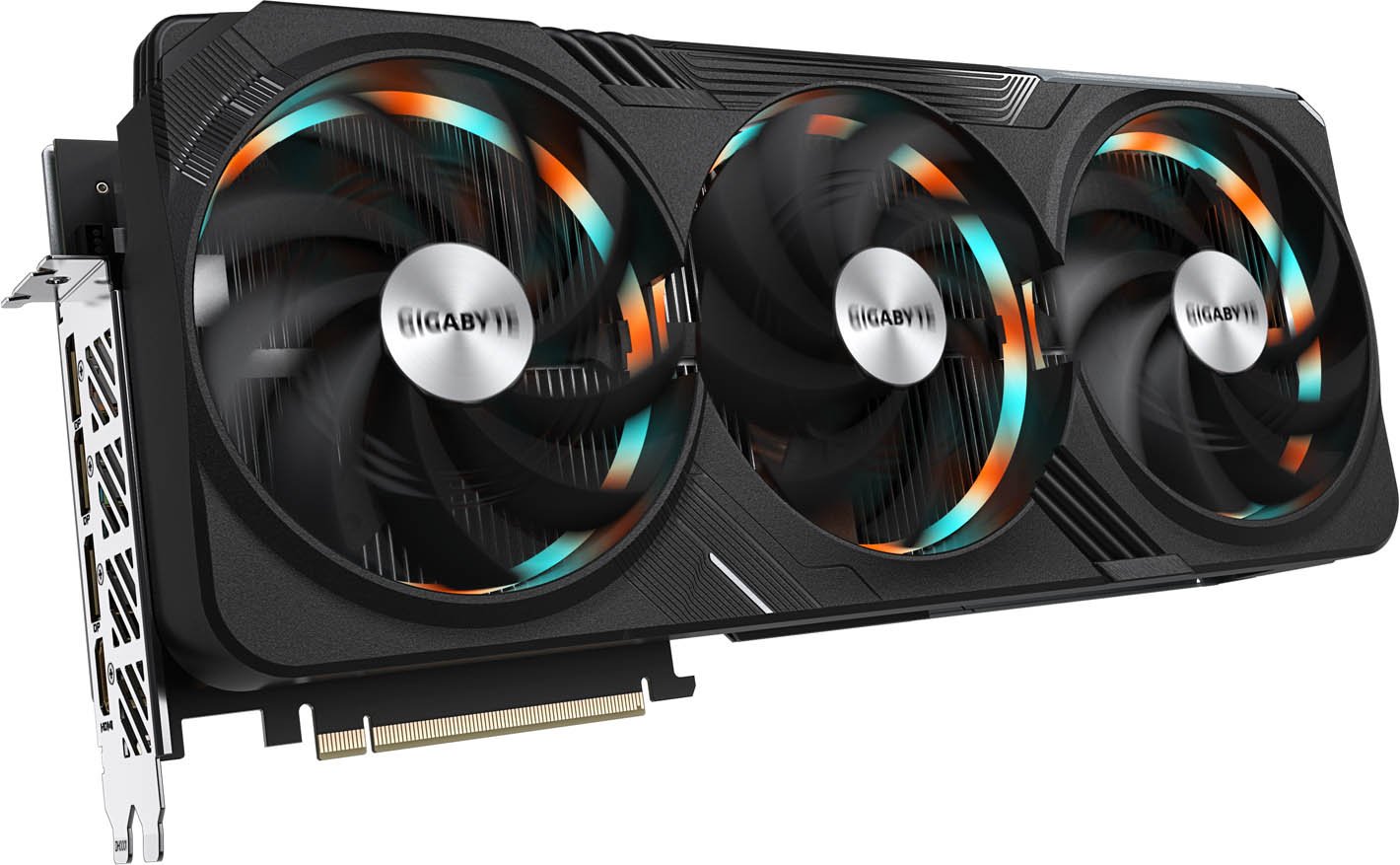

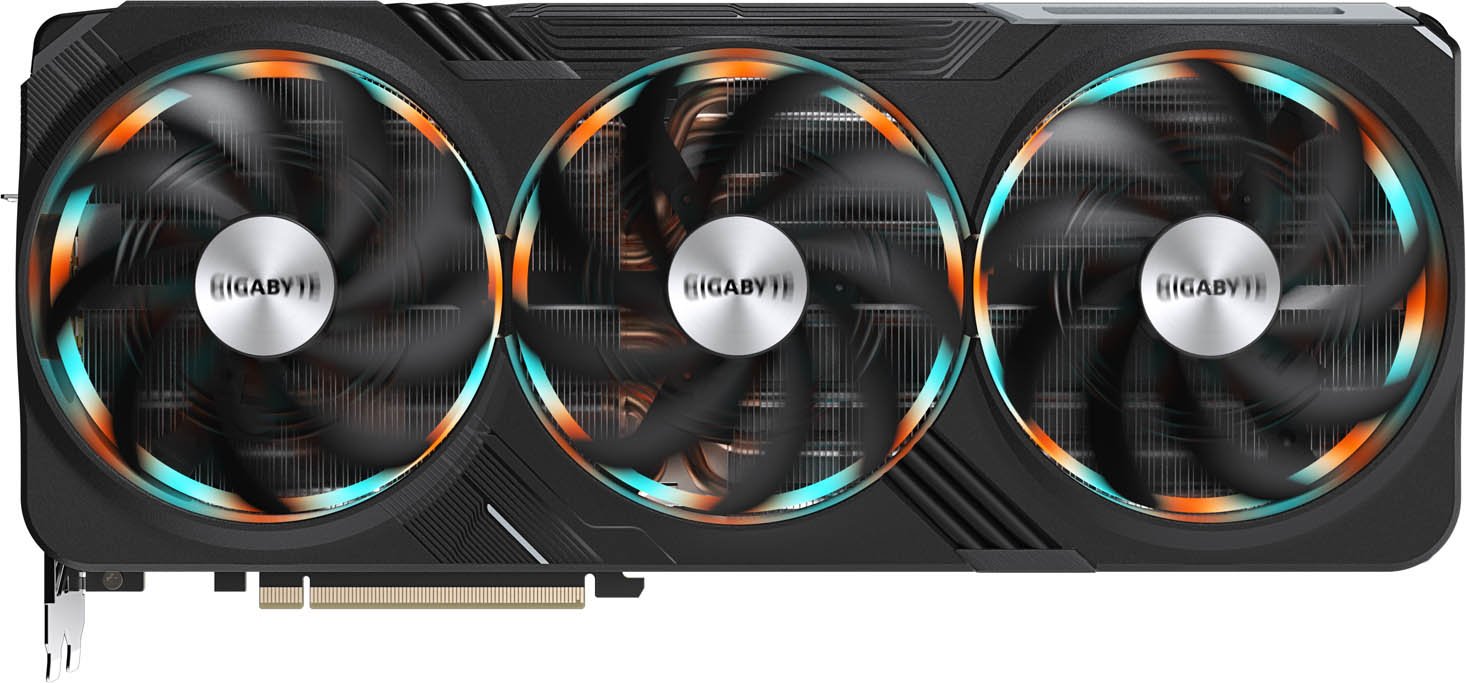

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system features three 110mm unique blade fans, alternate spinning, 10 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

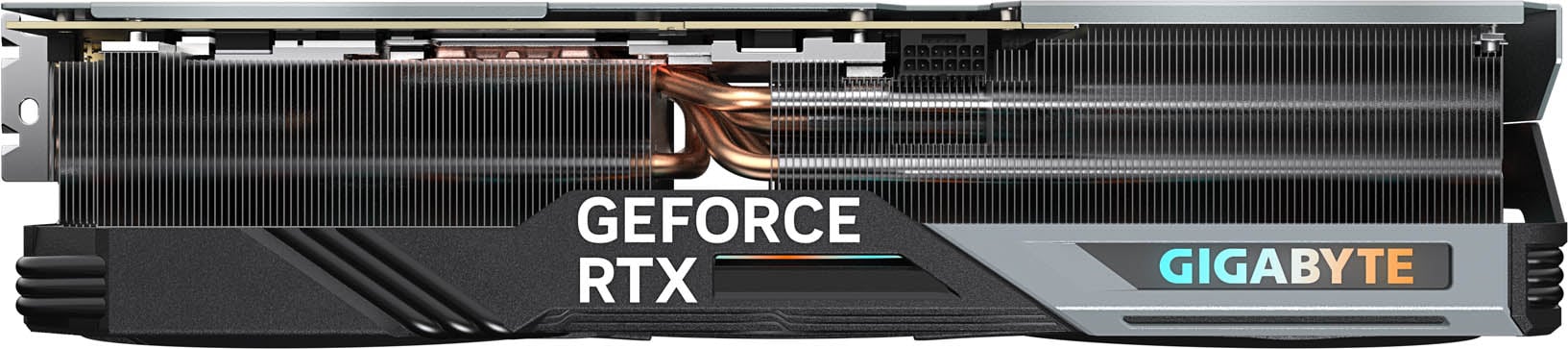

LARGE VAPOR CHAMBER & HEAT-PIPE

The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

RGB FUSION

The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

BUILT STRONG

ULTRA DURABLE

Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

4-YEAR WARRANTY

We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Main Features

  • NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
  • 4th Generation Tensor Cores: Up to 2X AI performance
  • 3rd Generation RT Cores: Up to 2X ray tracing performance
  • Powered by GeForce RTX 4090
  • Integrated with 24GB GDDR6X 384-bit memory interface
  • WINDFORCE cooling system
  • RGB Fusion
  • Dual BIOS

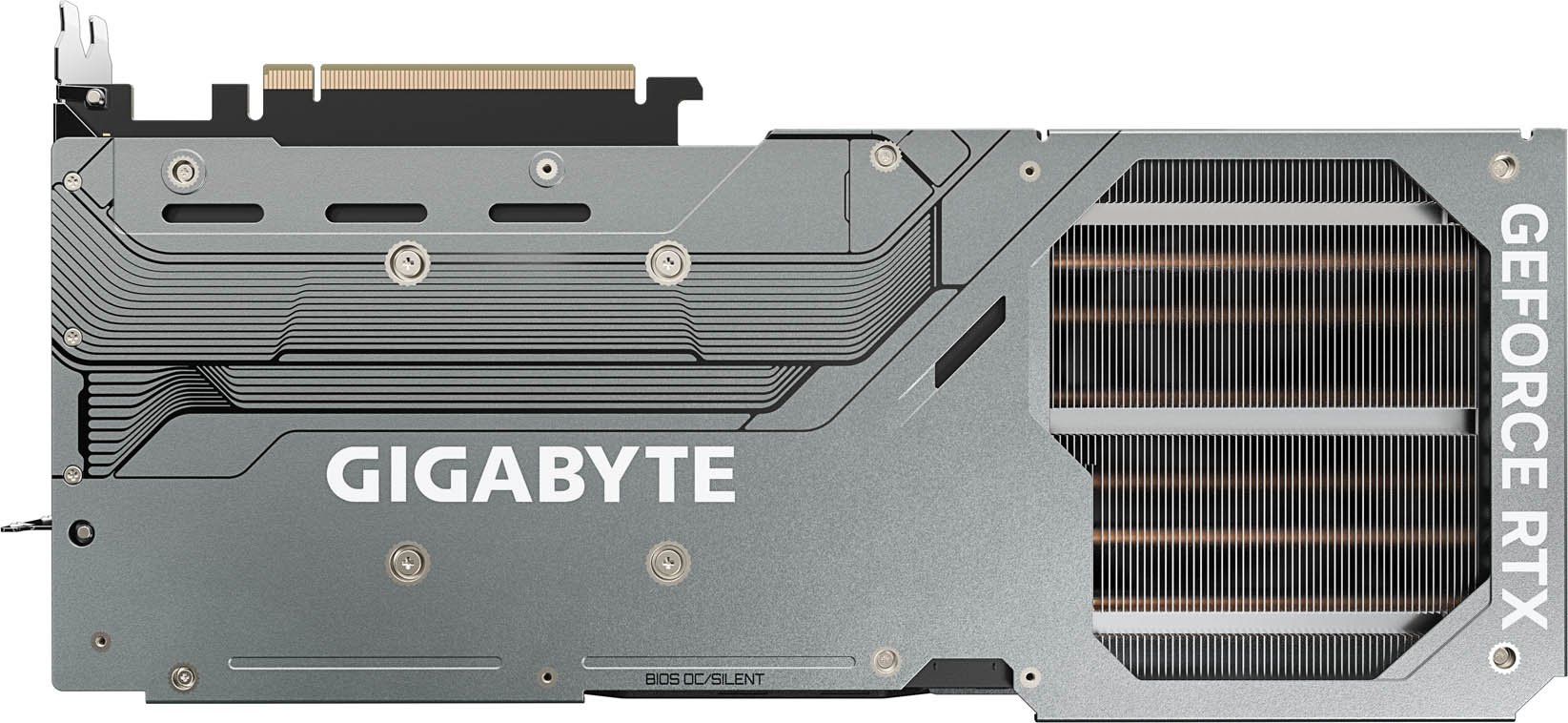

  • Protection metal back plate
  • Anti-sag bracket
  • 4 Years Warranty (Online registration required)
Promotions

Get 5% off PC Components, Peripherals and selected Monitors when you buy three or more*

USE CODE: UPGRADE5 at checkout

For a limited time only, buy at least three different PC components or Peripherals from different qualifying categories and get 5% off those items when you use code UPGRADE5 at checkout. *Terms & Conditions apply.

Qualifying categories are Processors, Motherboards, Desktop Memory, Solid State Drives, Hard Disk Drives, Power SuppliesCPU CoolersCases, MonitorsKeyboards, Mice, HeadsetsLaptop Cases and Bags.


Promotional Period: From 3rd May 2024 till 30th May 2024.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on products in qualifying categories. Discount will apply to three or more items bought from separate categories (e.g. one processor, one motherboard and one keyboard). It will not apply to multiples from categories (e.g. three graphics cards).

Discount will be applied to the items in your basket when you enter the promo code UPGRADE5 at the checkout stage - please double-check your basket to ensure the offer applies correctly when prompted to add a discount code.

Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: until till May 30th 2024.

Specifications

GPU

Chipset Manufacturer NVIDIA
Chipset Model Name GeForce RTX
Chipset Model Number 4090
Chipset Additional Information GAMING OC
Boost Chip Clock 2535 MHz
Graphics Core CUDA
Number of Cores 16384 cores

Memory

Memory Size 24576 MB
Memory Clock 21 Gbps
Memory Type GDDR6X
Memory Width 384 bit

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 4.0 x16

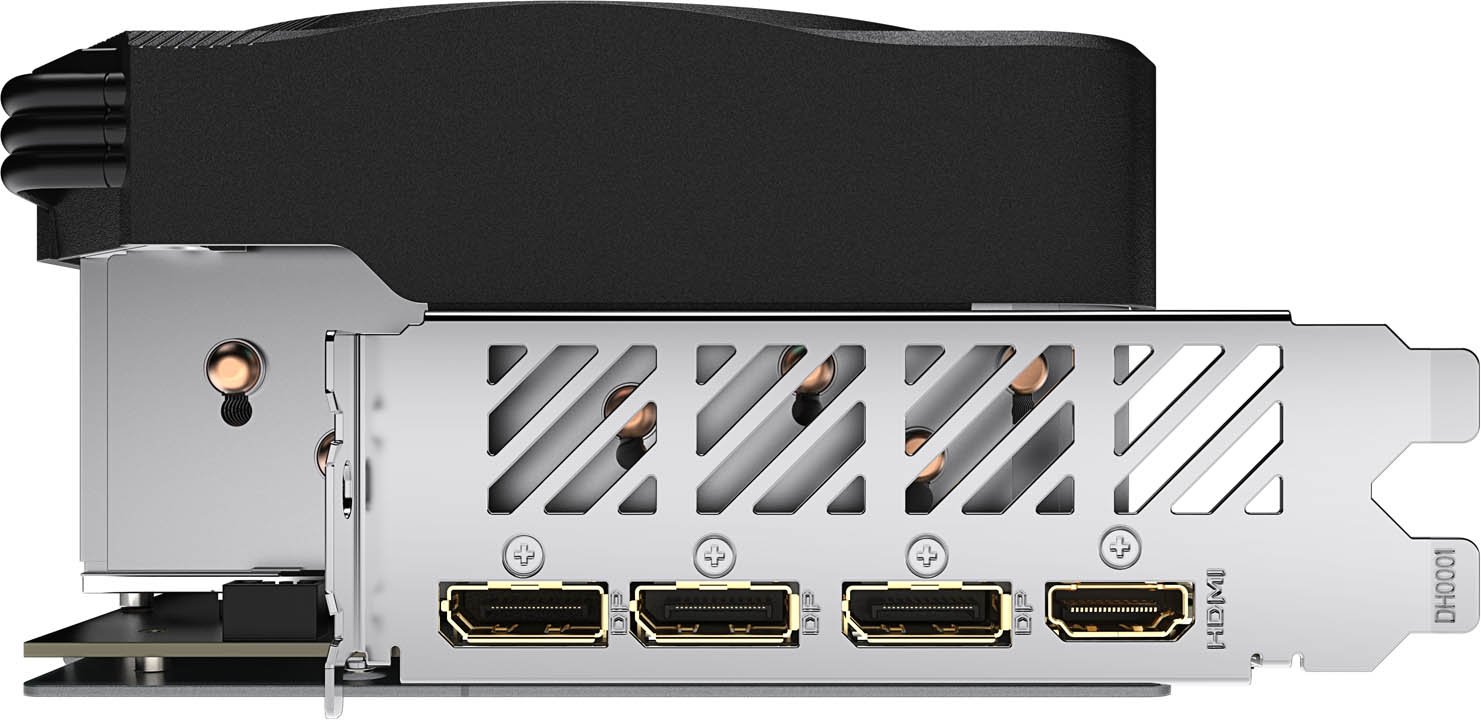

HDMI Port 1 x HDMI 2.1
DisplayPort 3 x DisplayPort 1.4

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320 pixels

System Requirements

System Requirements 1 x PCI Express 4.0 x16 slot
Recommended 1000W or greater PSU with 1 x 16-pin or 4 x 8-pin PCIe connectors

Electrical

Power Connector 1 x 16-pin
Recomended Power Supply 1000 W

Physical

Form Factor Graphics Card
In The Box Graphics Card
Quick Guide
Warranty Registration
Anti-Sag Bracket
Anti-Sag Bracket Installation Guide
1 x 16-pin to 4 x 8-pin PCIe Power Adapter
Width 75.2 mm (3.7 slot)
Depth 340 mm
Height 150.2 mm

Warranty

Warranty 3 Years
4 Years with Registration

Key Features

Interface Type PCI Express 4.0 x16
Graphics Memory Type GDDR6X
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan Inc. 0dB Mode
Low Profile No
NVIDIA GeForce RTX 4090
PCIe Pin Type 12+4-Pin (16-Pin)
FreeSync No
Cooling Technology Dynamic Fan Inc. 0dB Mode
VR Ready NVIDIA
GPU Length 340 mm
Card Width 4
Power Requirement (auto) 450 W
GPU Power (TDP) 450 W
Graphics card count 1
PCI Express Power Pins (female) 16
PCIe Physical Slot required 16
AI Ready Yes

Graphics

Graphics Chipset GeForce RTX 4090

Graphics Device

G-Sync Yes

Compatibility

Lite Hash Rate Yes

Item Details

Manufacturer Gigabyte
Manufacturer Code GV-N4090GAMING OC-24GD
EAN 4719331311438
UPC 889523033845
Condition New
Warranty

Warranty Information

Warranty 3 Years
4 Years with Registration

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code GV-N4090GAMING OC-24GD
Reviews
4.7 / 5 3 reviews

Miles

February 2023

It's a 4090, it's fast and powerful. The fans are louder than on my previous card (3060ti) even under mild loads which is a bit of a bummer, also it's huge and I struggled to fit it in my case plus the support bracket is incompatible with my motherboard.

G. H.

February 2023

Great service, very happy with the delivery time.

Gabriel

November 2022

Got this at MSRP, not scalped like other retailers. Thanks CCL, Ill be back for the 50 series.
