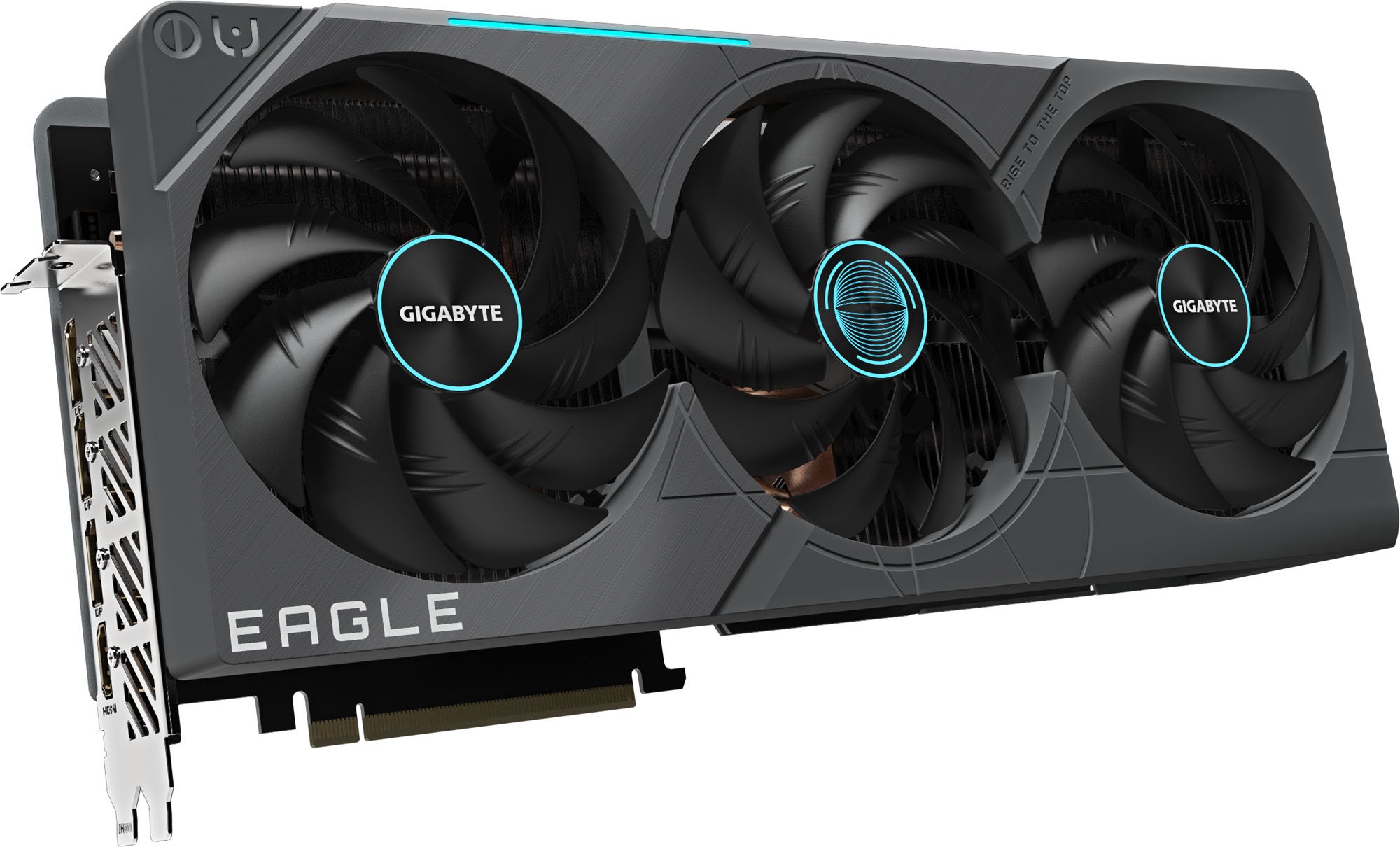

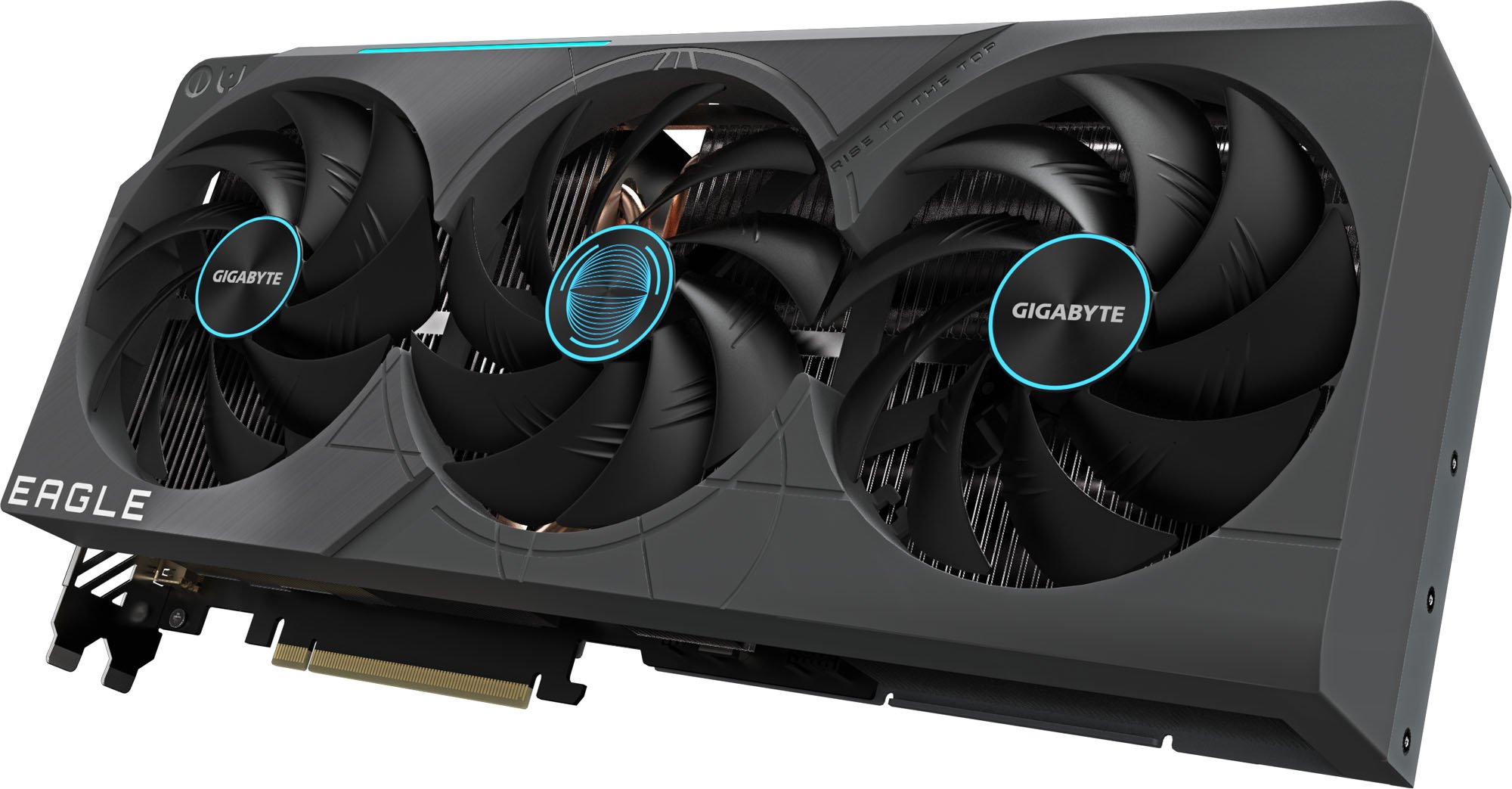

Gigabyte GeForce RTX 4080 EAGLE 16GB Graphics Card

Gigabyte GeForce RTX 4080 EAGLE 16GB Graphics Card

CCL Code: VGA6589

Discontinued

Gigabyte GeForce RTX 4080 EAGLE 16GB Graphics Card

GV-N4080EAGLE-16GD

Key Features:

  • 16GB Graphics Memory
  • PCI Express 4.0 x16 Interface
  • Cooler Type - Dynamic Fan
  • Nvidia GPU Boost Technology
  • Outputs - HDMI and Display Port
CCL Code: VGA6589

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

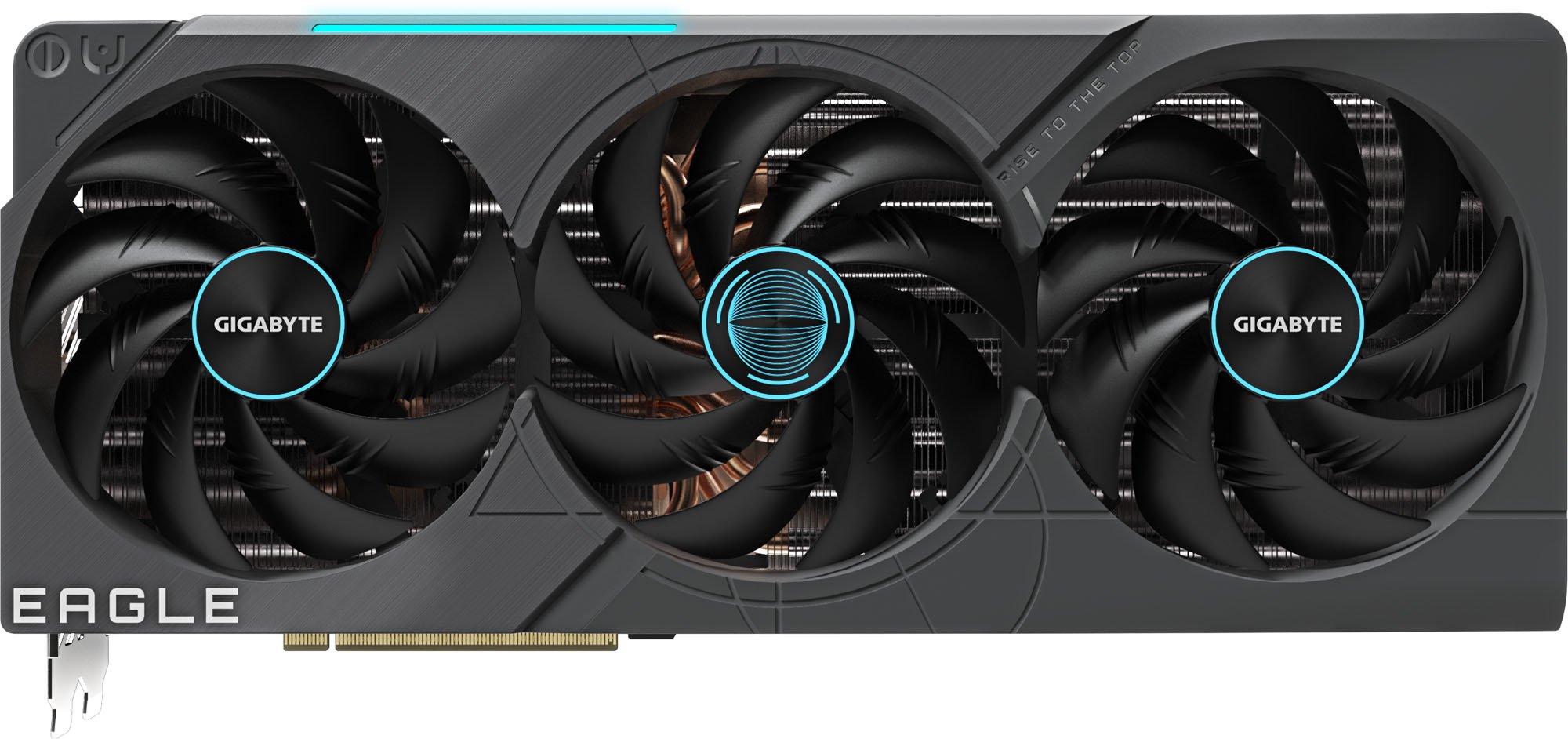

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system features three 110mm unique blade fans, alternate spinning, 10 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

LARGE VAPOR CHAMBER & HEAT-PIPE

The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING

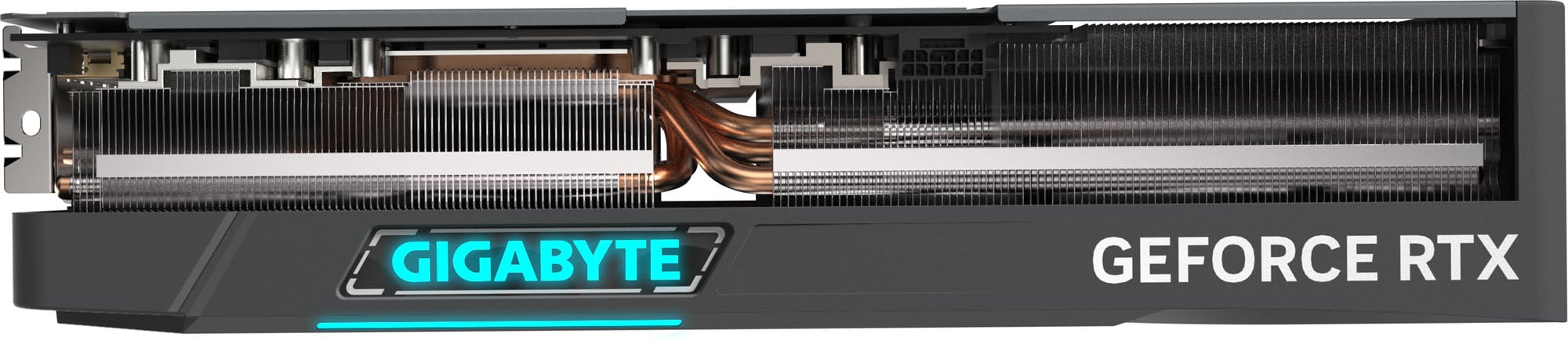

Extended heatsink allows air to pass through, providing better heat dissipation.

RGB FUSION

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

EXCELLENT IN ESSENTIAL

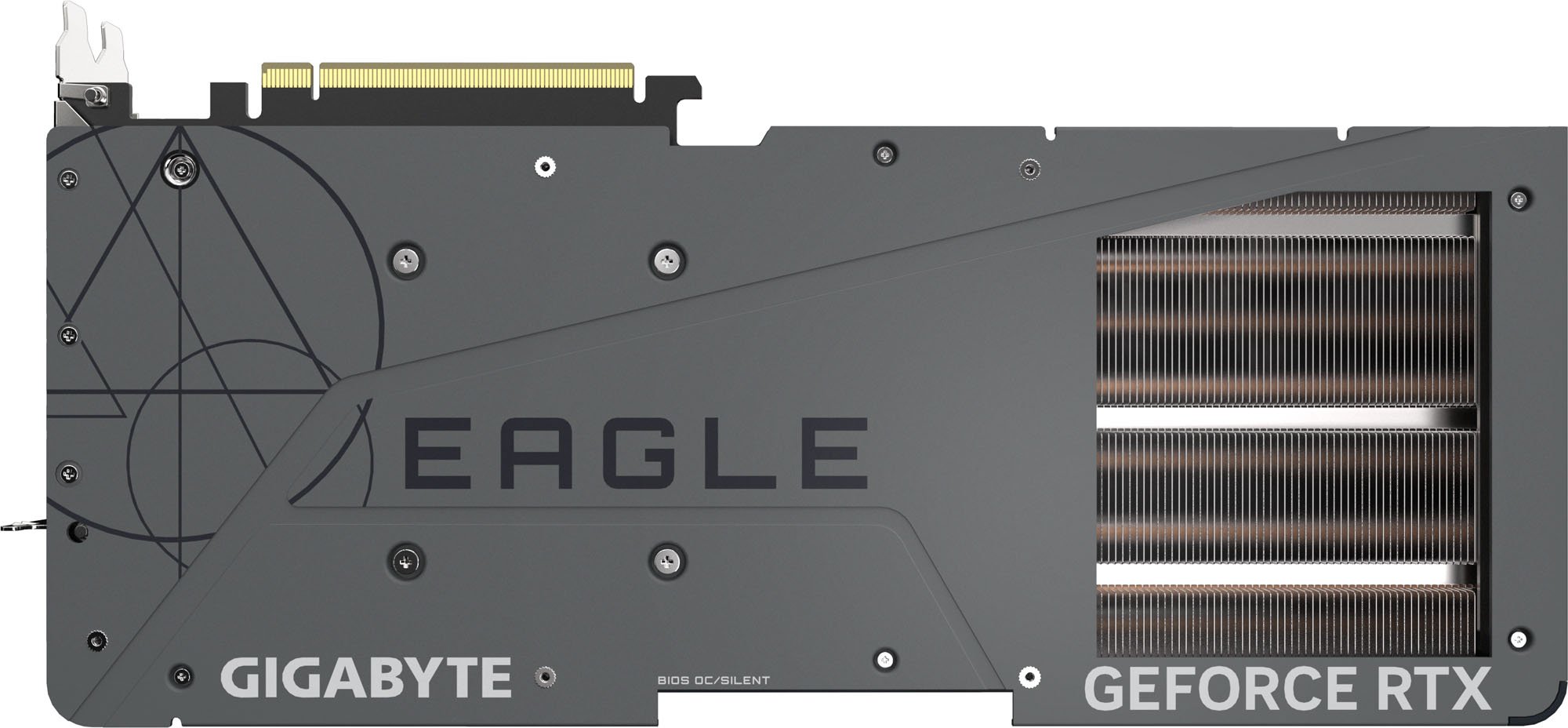

PROTECTION METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

DUAL BIOS

The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.

POWER INDICATOR

When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

ANTI-SAG BRACKET

The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.

BUILT STRONG

ULTRA DURABLE

Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Main Features

  • NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
  • 4th Generation Tensor Cores: Up to 2X AI performance
  • 3rd Generation RT Cores: Up to 2X ray tracing performance
  • Powered by GeForce RTX 4080 16GB
  • Integrated with 16GB GDDR6X 256-bit memory interface
  • WINDFORCE Cooling System
  • RGB Fusion
  • Dual BIOS
  • Protection metal back plate
  • Anti-sag bracket
Specifications

GPU

Chipset Manufacturer NVIDIA
Chipset Model Name GeForce RTX
Chipset Model Number
Chipset Additional Information EAGLE
Boost Chip Clock 2505 MHz
Graphics Core CUDA
Number of Cores 9728 cores

Memory

Memory Size 16384 MB
Memory Clock 22.4 Gbps
Memory Type GDDR6X
Memory Width 256 bit

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 4.0 x16

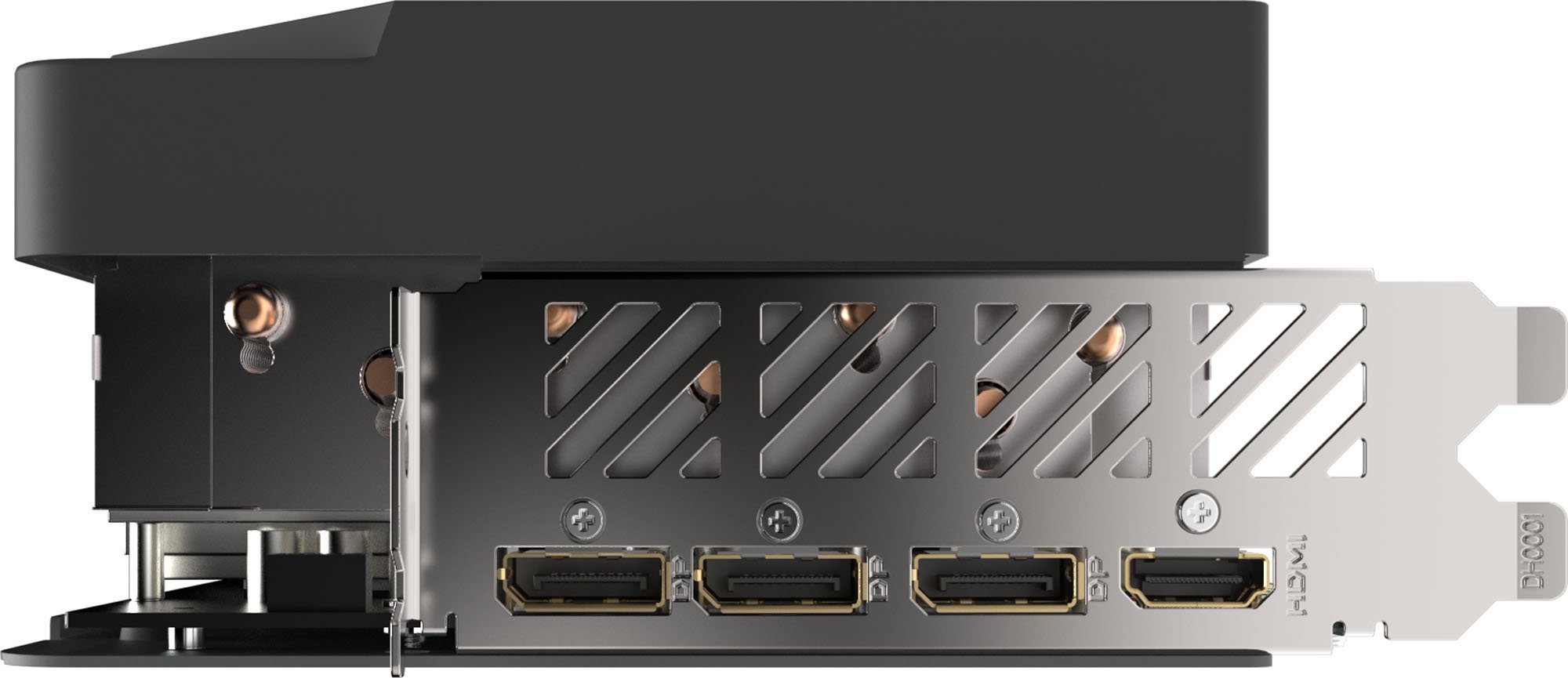

HDMI Port 1 x HDMI 2.1
DisplayPort 3 x DisplayPort 1.4a

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320 pixels

System Requirements

System Requirements 1 x PCI Express 4.0 x16 slot
Recommended 850W or greater PSU with 1 x 16-pin or 3 x 8-pin PCIe connectors

Electrical

Power Connector 1 x 16-pin PCIe
Recomended Power Supply 850 W

Physical

Form Factor Graphics Card

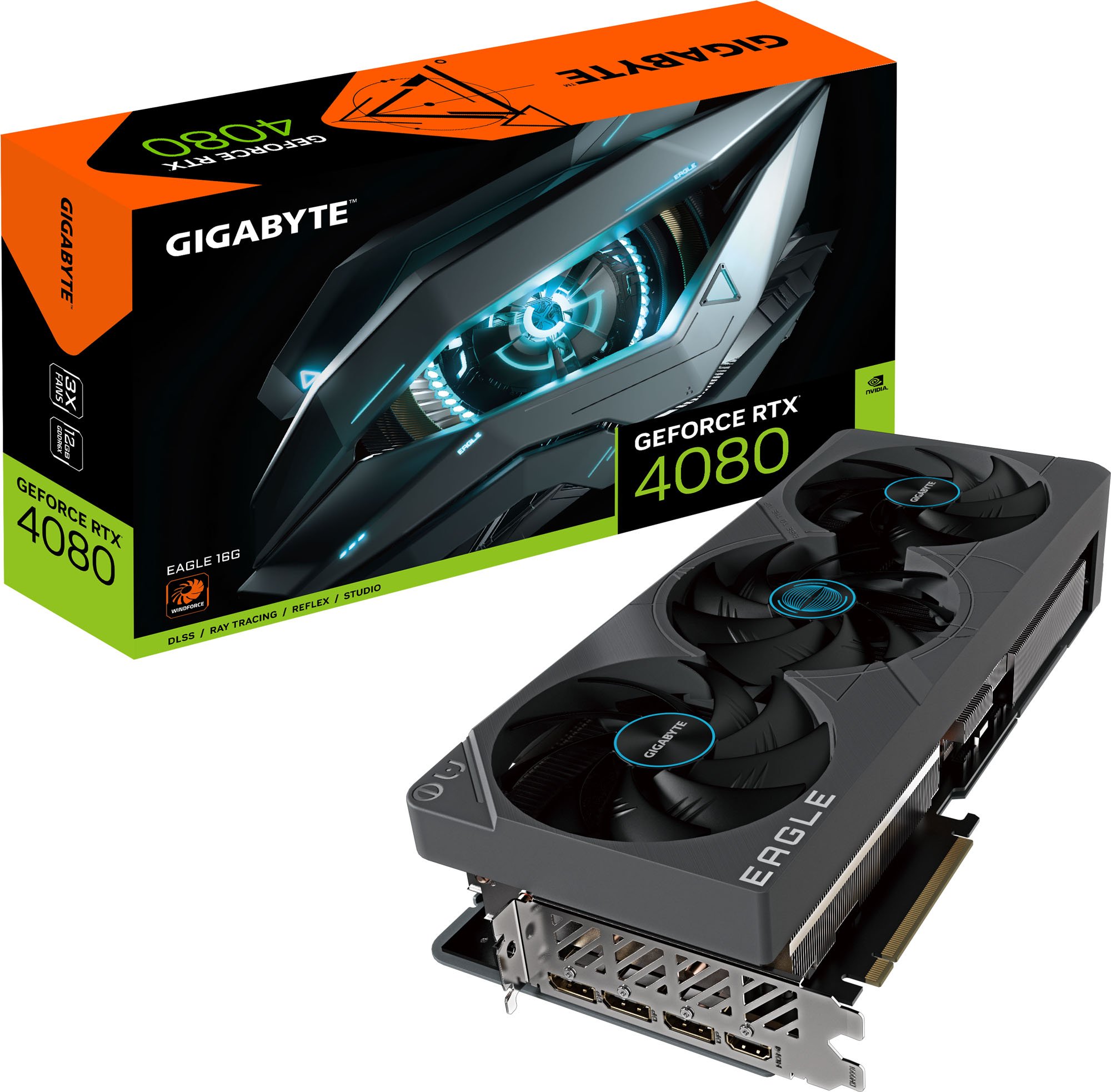

In The Box Graphics Card
Quick Guide
Anti-Sag Bracket
Anti-Sag Bracket Installation Guide
1 x 16-pin to 3 x 8-pin PCIe Adapter
Width 70 mm (3.5 slot)
Depth 342 mm
Height 150 mm
Weight 1.9 kg

Warranty

Warranty 3 Years

Key Features

Interface Type PCI Express 4.0 x16
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan
Low Profile No
Interface Type
NVIDIA GeForce RTX 4080
AMD Radeon
PCI-E Pin Type 12+4-Pin
Screen Type
FreeSync
Cooling Technology Dynamic Fan
VR Ready NVIDIA
VR Ready PC
GPU Length 342 mm
Card Width 4
GPU Power (TDP) W
Graphics card count 1
PCIe Physical Slot required 16

Graphics

Graphics Chipset GeForce RTX 4080

Graphics Device

G-Sync Yes

Compatibility

Lite Hash Rate

Item Details

Manufacturer Gigabyte
Manufacturer Code GV-N4080EAGLE-16GD
EAN 4719331311568
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code GV-N4080EAGLE-16GD
