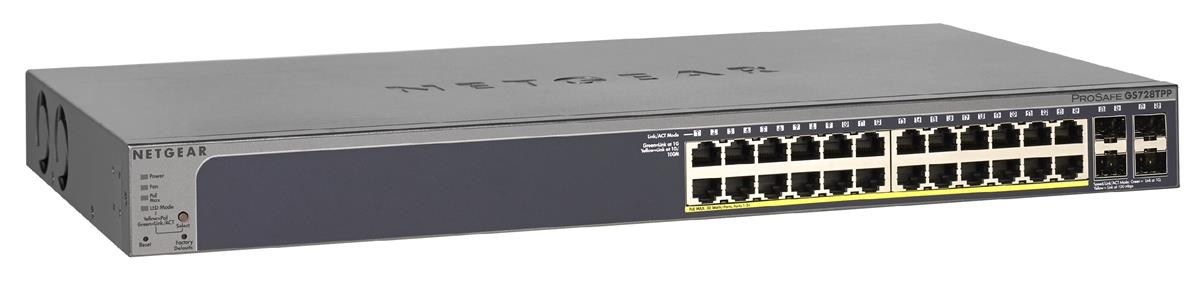

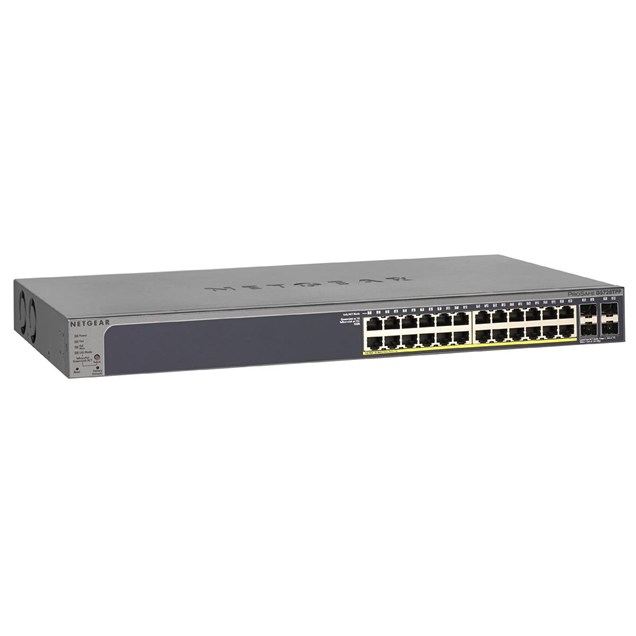

Netgear ProSAFE 28-Port Gigabit PoE Rackmount Switch

Netgear ProSAFE 28-Port Gigabit PoE Rackmount Switch

CCL Code: NET3376

Sold out

Notify Me

Netgear ProSAFE 28-Port Gigabit PoE Rackmount Switch

GS728TPP-200EUS

Key Features:

  • 28 x Gigabit Ports
  • Switch Type: Managed
  • Form Factor: Rackmount
  • 24 x PoE Ports
CCL Code: NET3376

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

The NETGEAR new generation of Gigabit PoE/PoE+ Smart Managed Switches offers powerful L2+/Layer 3 Lite features, better PoE functions, and enhanced performance and usability. They are purposely designed for the converged networks where voice, video, data are all carried on a single network platform for network efficiency, operational cost savings, and ease of management. There are four products in this series, 16/28/52-port Gigabit with PoE and a 28-port Gigabit with PoE Plus. GS516TP is the Smart Managed Switch with PoE/ PD features. It can work as PD device that can get power from other PSE device through port 15 or/and port 16. Meanwhile, it can also deliver power to other PDs that are connected to its PoE ports (port 1 to 8). GS728TP and GS752TP are Gigabit PoE/PoE+ Smart Managed Switches that come with PoE capabilities on all ports and supports PoE+ with up to 30W of power budget on the first 8 ports, providing hardware investment protections so that the switch can support many more PoE powered devices and new higher-powered devices down the road. With the new generation, also comes the addition of high-powered PoE+ Smart Managed Switch into the portfolio. The GS728TPP comes with 24 PoE+ ports and a total PoE power budget of 384w. It can be used in any deployment with high-density of power-hungry devices, such as multiple 11ac Wireless Access Point, PTZ cameras and Video IP phones. All 28-port and above switches come with 4 dedicated Gigabit SFP ports for fiber connectivity. The new generation of Gigabit PoE/PoE+ Smart Managed Switch from NETGEAR is the optimized solution providing the best value at an affordable SMB price point.

Main Features

  • Designed for converged network, big or small
  • Build a future-proof network
  • Network development made easy
  • Smart IT, not big IT
Specifications

Routing

Layer 2 Services IEEE 802.1Q VLAN Tagging • Video VLAN • Voice VLAN - Based on phones OUI bytes (internal database, or usermaintained) or protocols (SIP, H323 and SCCP) • IEEE 802.3ad - LAGs LACP ( (8 LAGS with max. of 8 members in each LAG)) • Broadcast Storm Control • IEEE 802.3x (Full Duplex and flow control) • IEEE 802.1D Spanning Tree Protocol • IEEE 802.1w Rapid Spanning Tree • IEEE 802.1s Multiple Spanning Tree • IGMP Snooping (v1, v2 and v3) • MLD Snooping Support (v1 and v2) • IGMP Snooping queriers • Block unknown Multicast
Layer 3 Services DHCP Client • DHCP Snooping • Static Routing • VLAN Routing

Performance

MAC Addresses 8000
Mean Time Between Failure (MTBF) 247163 Hours
Port Bandwidth 56000 Mbps

Interfaces/Ports

PoE Supported Yes
Number of Fixed Ports 24 port(s)
Fixed Port Connector RJ-45
Fixed Port Speed 10/100/1000 Mbps
Number of Uplink Ports 4 port(s)
Uplink Port Connector SFP
Uplink Port Speed 10/100 Mbps

Compliance

Standards Compliance CE mark, commercial • FCC Part 15 Class A, VCCI Class A • Class A EN 55022 (CISPR 22) Class A • Class A C-Tick • EN 50082-1 • EN 55024 • CCC
Safety CE mark, commercial • CSA certified (CSA 22.2 #950) • UL listed (UL 1950)/cUL IEC 950/EN 60950

System

Management Capabilities Password management • Configurable Management VLAN • Admin access control via Radius and TACACS+ • Web-based graphical user interface (GUI) • Smart Control Center (SCC) for multi-switch management • IPv6 management • Dual Software (firmware) image • Dual Configuration file • SNTP client over UDP port 123 • SNMP v1/v2 • SNMP v3 with multiple IP addresses • RMON 1,2,3,9 • Port Mirroring • Many to One Port Mirroring • Cable Test utility • SSL/HTTPS and TLS v1.0 for web-based access • TFTP/HTTP File transfers (uploads, downloads) • HTTP Download (firmware) • Syslog (RFC 3164)
Protocols Supported IEEE 802.3 Ethernet • IEEE 802.3i 10BASE-T • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.1Q VLAN Tagging • IEEE 802.3x full-duplex flow control • IEEE 802.3z Gigabit Ethernet 1000BASESX/LX • IEEE 802.3ae 10-Gigabit Ethernet • IEEE 802.3ad Trunking (LACP) • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) • IEEE 802.1p Class of Service • IEEE 802.3 af (PoE) • IEEE 802.1D Spanning Tree (STP) • IEEE 802.1s Multiple Spanning Tree (MSTP) • IEEE 802.1w Rapid Spanning Tree (RSTP) • IEEE 802.1x Radius network access control • IEEE 802.3 at (PoE Plus)

Warranty

Warranty Lifetime Warranty

Electrical

Power Consumption 483.5 W

Environmental

Heat Dissipation 1650.67 BTUs per Hour
Noise Level (full operating mode) 31.8 dbA
Operating Temperature 0 to 50 °C
Operating Humidity 95 %

Physical

Form Factor Rack Mountable
Case Colour Silver
LED Status Indicators Speed • Link • Activity • Power • Fan • PoE Power Status
In The Box Netgear ProSAFE • Power cord • Rack-mounting kit • Resource CD
Width 44 cm
Depth 25.7 cm
Height 4.4 cm
Weight 4.36 kg

Key Features

Main Colour Silver
Switch Type Managed
Switch Form Factor Rackmount
LAN Port(s) Speed 10/100/1000
Number of LAN Port(s) 28
Number of PoE Ports 24
PoE+ Supported Yes

Item Details

Manufacturer Netgear
Manufacturer Code GS728TPP-200EUS
EAN 606449131673
Condition New
Warranty

Warranty Information

Warranty Lifetime Warranty

Manufacturer Information

Manufacturer Netgear
Manufacturer Code GS728TPP-200EUS
