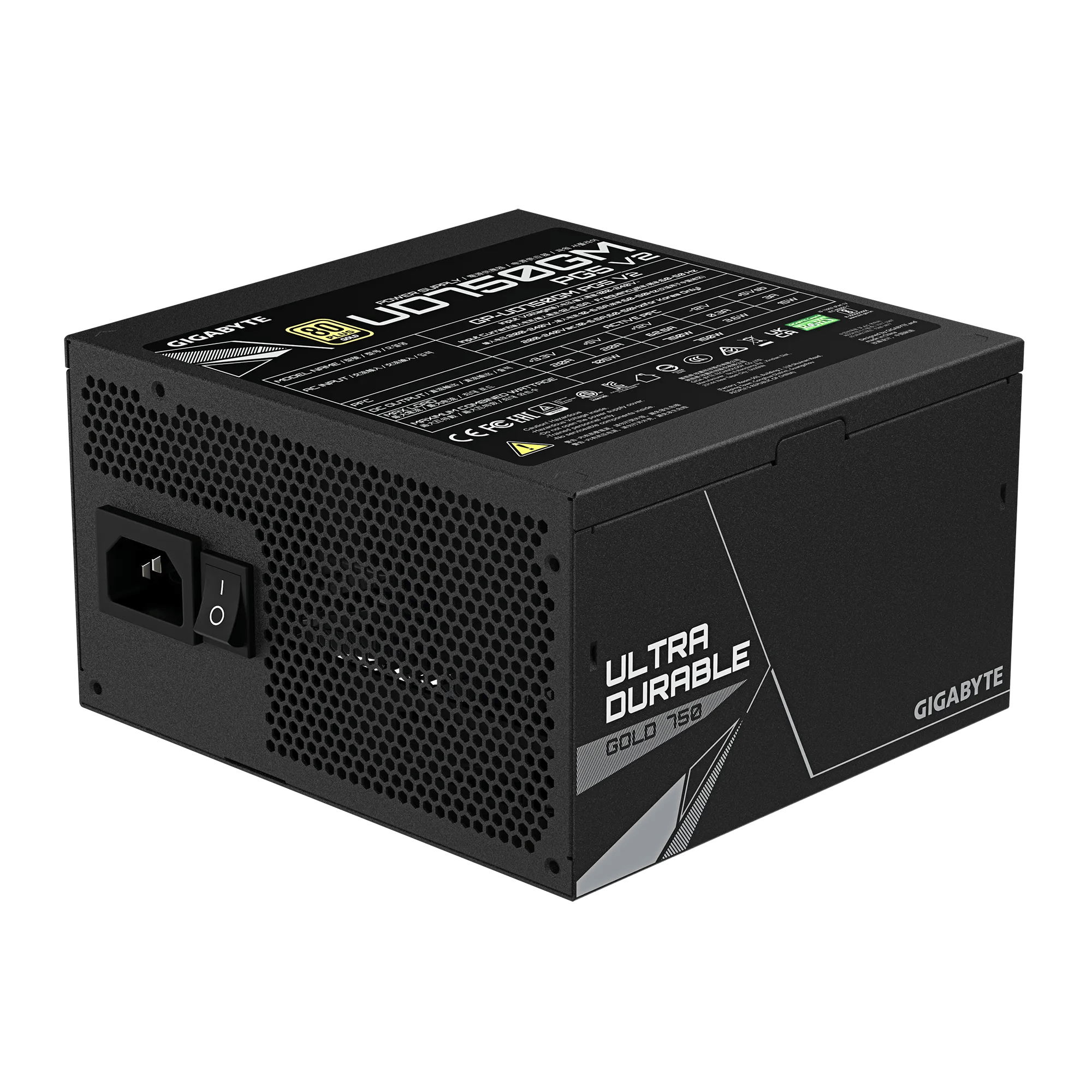

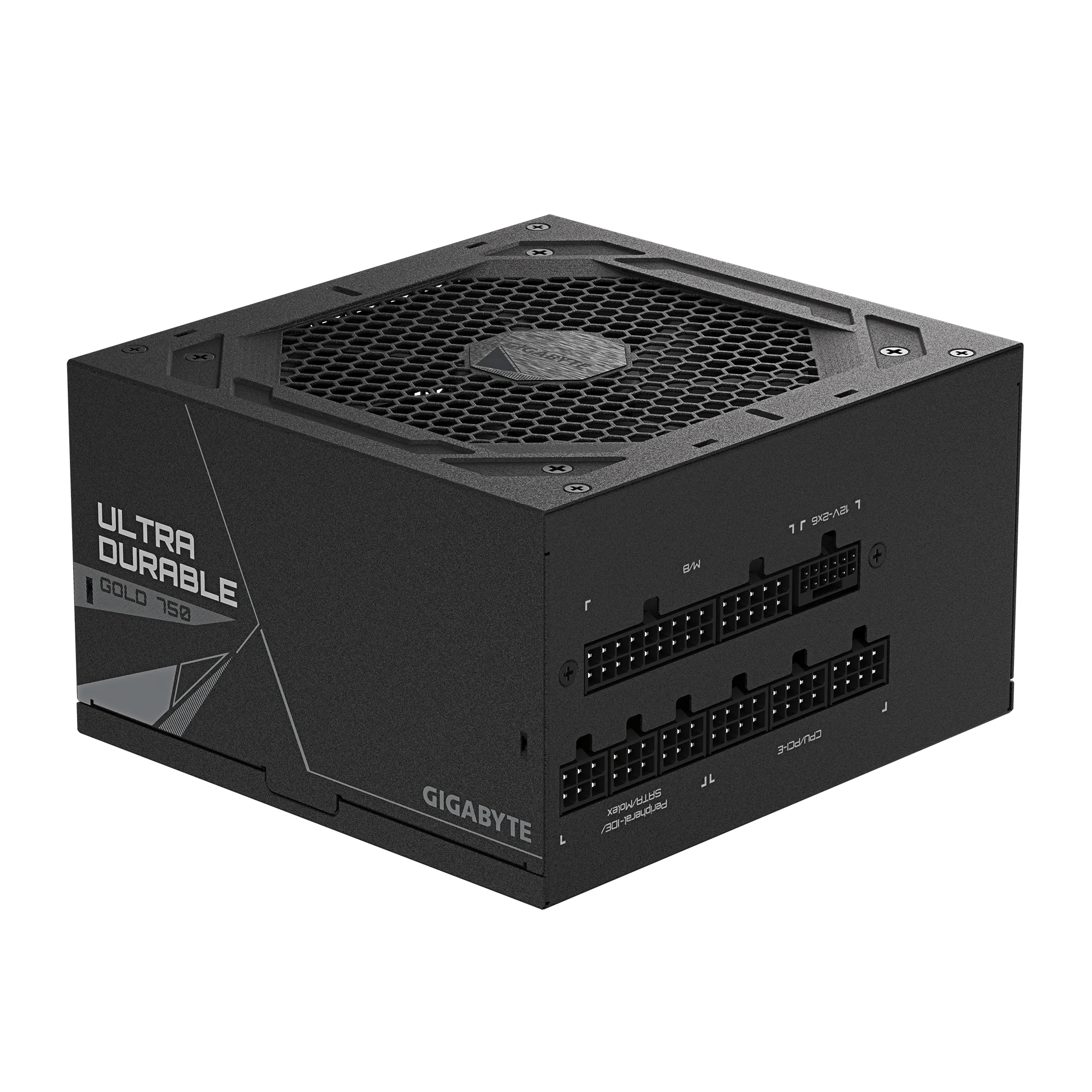

750W Gigabyte GP-UD750GM PG5 V2 Modular 80 Plus Gold PSU
Available for delivery from Tomorrow
Click & Collect from Today
In stock
Order within
You have 0 of these in your basket
At a Glance
Delivering reliable, next-generation performance, this Ultra Durable power supply features 100% Japanese capacitors and a 120mm smart hydraulic bearing fan for efficient, long-lasting cooling. Designed for stability and safety, it includes full OVP/OPP/SCP/UVP/OCP/OTP protection and meets the latest Intel ATX 3.1 and PCIe Gen 5.1 standards. With 80 PLUS Gold certification, a fully modular design, a powerful single +12V rail, and a compact 140mm form factor, it’s built for clean, efficient, and high-performance PC builds.
ATX 3.1 & PCIe 5.1 Ready
Designed to meet next-generation power demands, this ATX 3.1 compliant PSU supports up to 3× GPU and 2× system power excursions while maintaining high efficiency, even at low loads. A native 16-pin cable delivers up to 450W for PCIe 5.1 graphics cards, making it the perfect choice for powering the latest GeForce RTX™ 50 Series GPUs and future releases.
Ultra Durable
Built with GIGABYTE’s proven Ultra Durable design, this power supply combines premium components with smart engineering to deliver exceptional stability, efficiency, and long-term reliability for your system.
100% Japanese Capacitors
Built with premium all-Japanese capacitors, this power supply delivers outstanding efficiency, stability, and long-term reliability for consistent, high-quality performance.

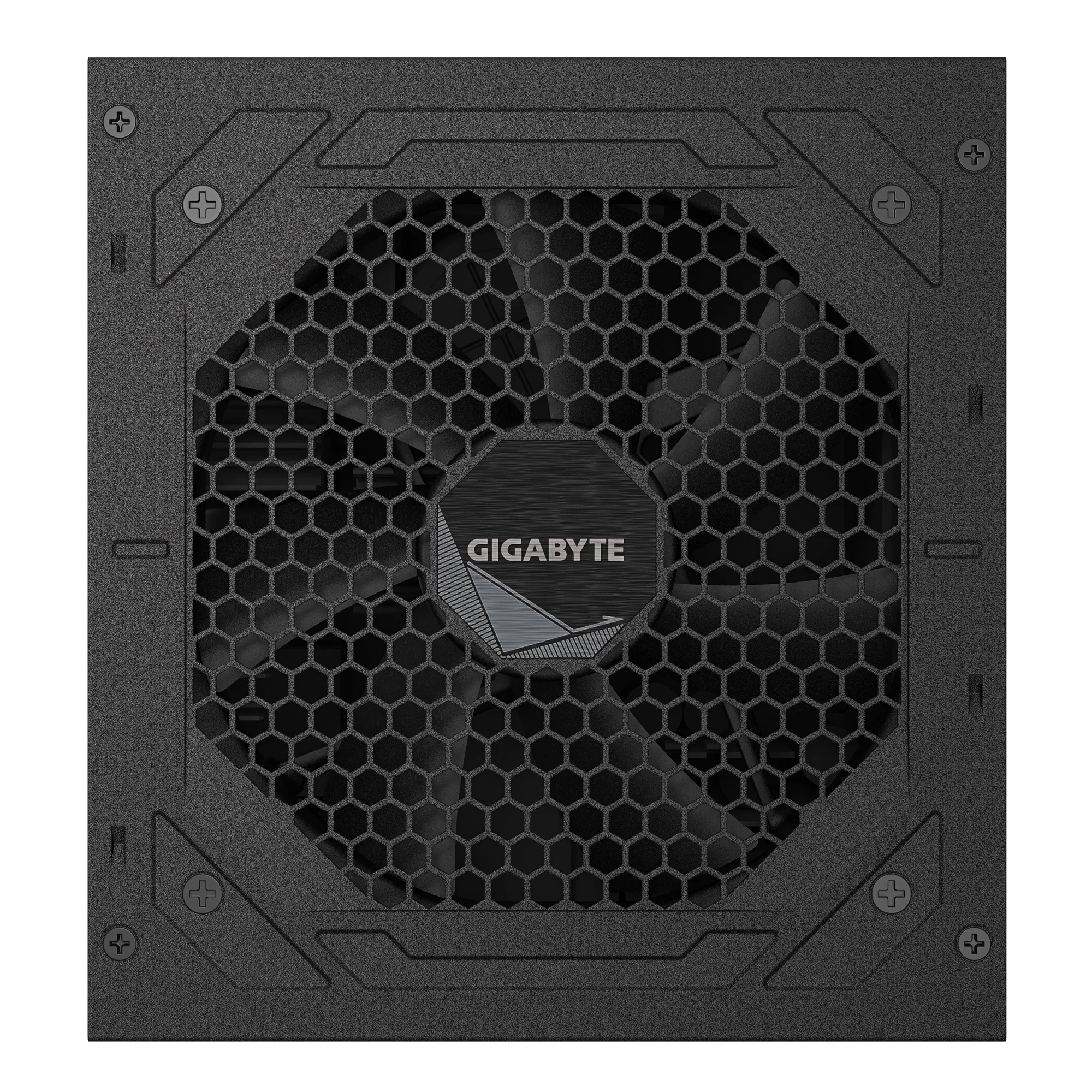

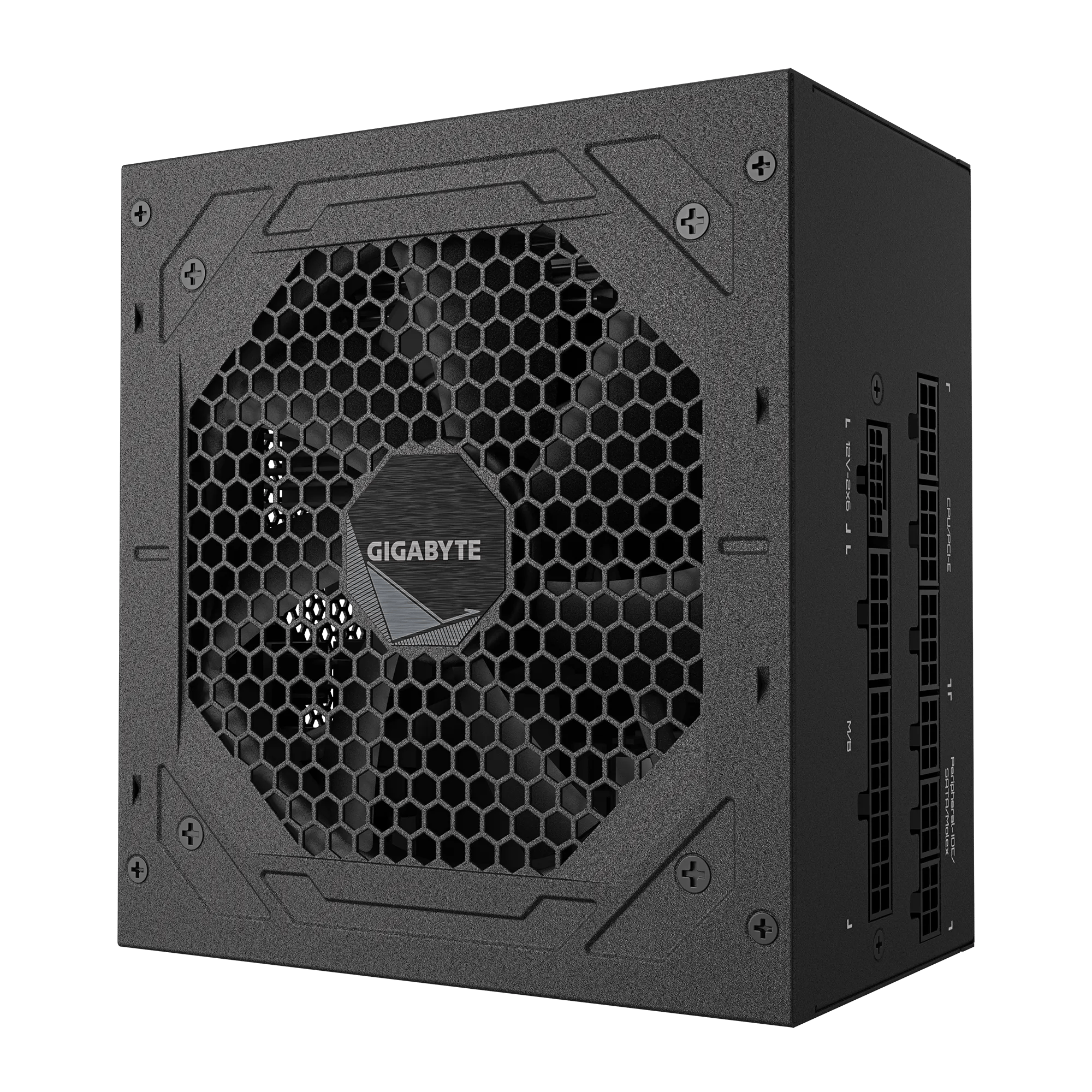

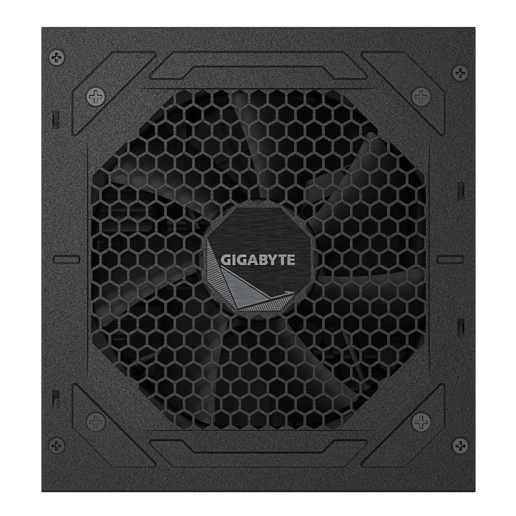

120mm Smart Hydraulic Bearing Fan
The intelligent 120mm HYB fan automatically adjusts its speed according to system load, remaining whisper-quiet when idle or operating under 20% load. Its durable hydraulic bearing design ensures smooth operation and a longer lifespan for dependable cooling performance.
Comprehensive Protection
Equipped with multiple protection features — including OVP, OPP, SCP, UVP, OCP, and OTP — this PSU maintains safe, stable operation under all conditions. Certified to international safety standards, it offers complete peace of mind for long-term use.
Fully Modular Design
Use only the cables you need with a fully modular setup. The sleek black embossed cables help reduce clutter, improve airflow, and enhance overall thermal performance inside your case.
80 PLUS Gold Certified
Delivering up to 90% efficiency at 50% load, this 80 PLUS Gold certified PSU reduces energy waste, heat, and fan noise — ensuring quiet, reliable, and energy-efficient performance for your system.
Single +12V Rail
A powerful single +12V rail ensures stable and reliable power delivery across all components. Designed for maximum compatibility and easy cable installation, it’s the perfect choice for high-performance and overclocked systems.
Compact Design
Expertly engineered for performance and versatility, this 140mm power supply delivers full power in a space-saving form factor — ensuring easy installation and excellent compatibility with smaller or space-limited PC cases.
Attributes
- Cable length: Varies by cable, typically 600 mm (main ATX)

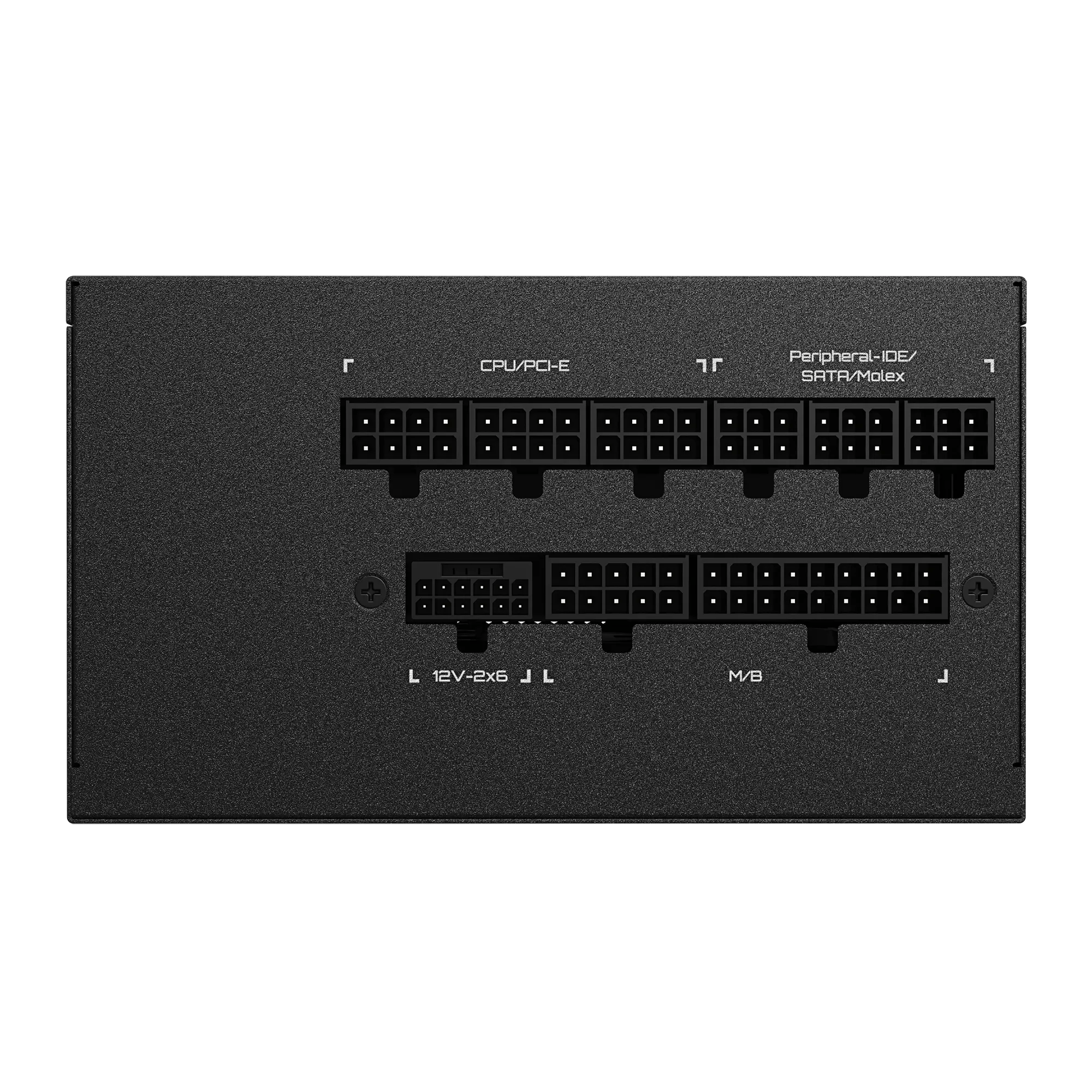

Interfaces/Ports
- Power Connectors: 1 x 20+4-pin ATX (Motherboard)
- SATA Connectors: 8
- CPU Connectors: 2 x 4+4-pin (EPS/CPU)
- PCI Connectors: 1 x 16-pin (12VHPWR) + 4 x 6+2-pin PCIe
- Motherboard Connectors: 1 x 24-pin (20+4) ATX
- Molex Connectors: 3 x 4-pin Peripheral
- Berg Connectors: 1 (Floppy)
- Floppy Connectors: 1
- Fan Connectors: 1 internal 120 mm cooling fan (HYB bearing)
Compatibility
- Compatibility: ATX 3.1 and PCIe 5.1 ready, supports modern GPUs
Compliance
- Standards: 80 PLUS Gold, ATX 12V v3.1, RoHS compliant
- Safety: OVP, OPP, SCP, UVP, OCP, OTP protection

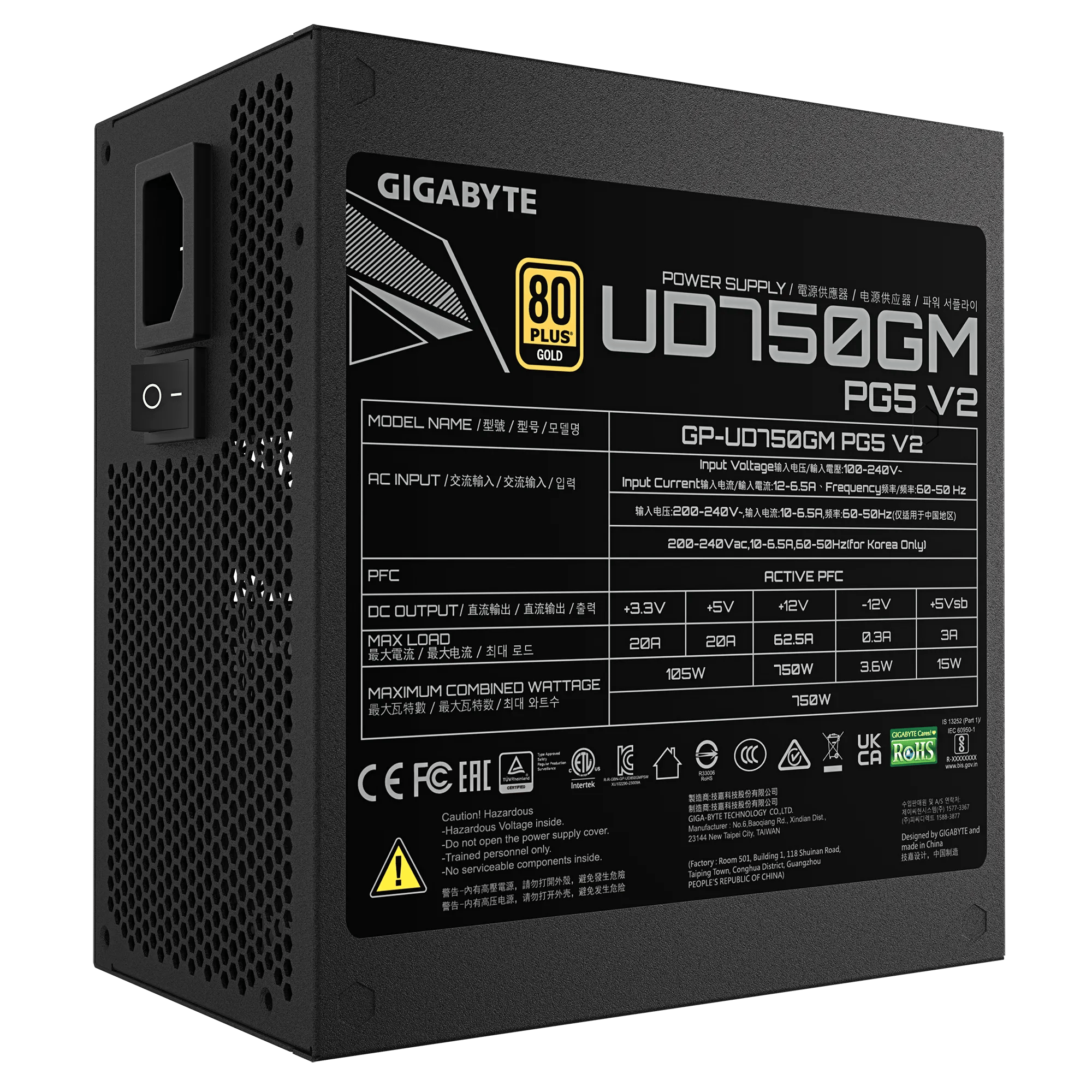

Electrical
- Voltage: 100-240 Vac (full range)
Physical
- Form Factor: Intel Form Factor ATX 12V v3.1
Electrical
- Power: 750W
- Frequency Range: 50-60 Hz
- Power Cord: Standard UK power cable included
Environmental
- Operating Temperature: 0øC - 40øC
- Operating Humidity: 20% - 90% (non-condensing)
- Storage Temperature: -20øC - 70øC
Physical
- Form Factor: ATX
- Case Colour: Black
- Pack Quantity: 1

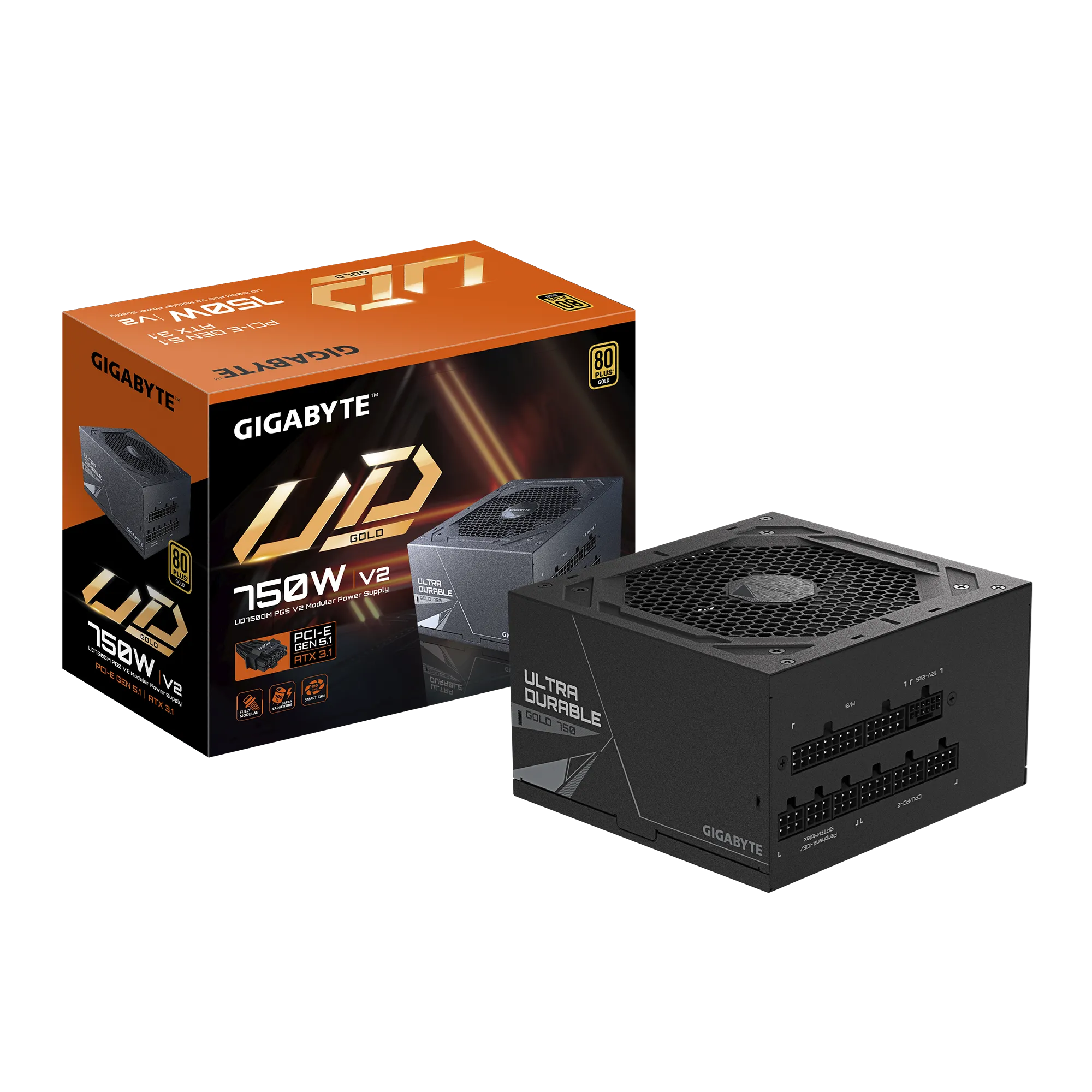

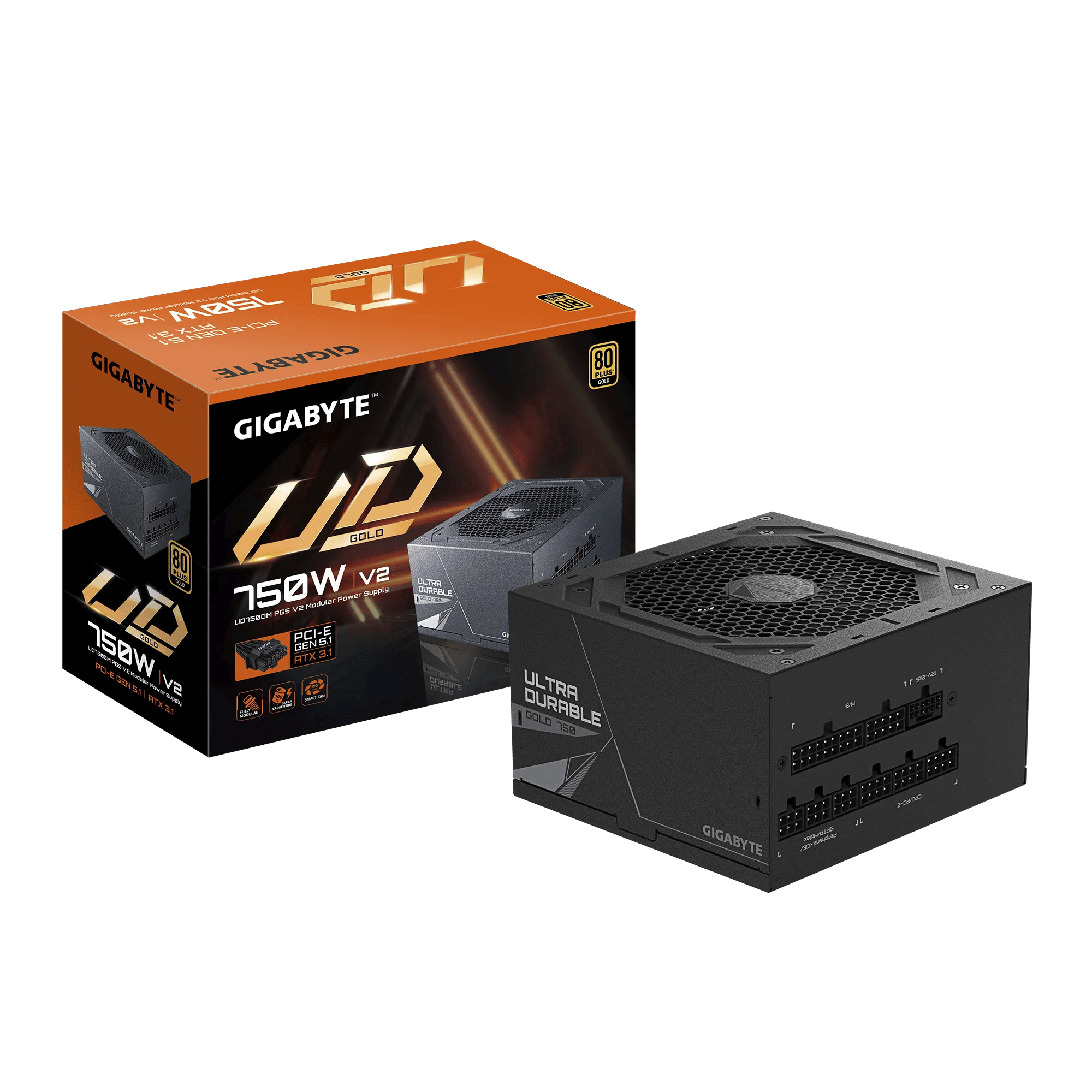

- In The Box: Power supply unit, modular cables, power cord, user manual
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
- Weight: Approx. 1.5 kg
Warranty
- Warranty: 5 years
Identifiers
- Stock Code: PSU2521
- Mfg Code: GP-UD750GM PG5 V2
