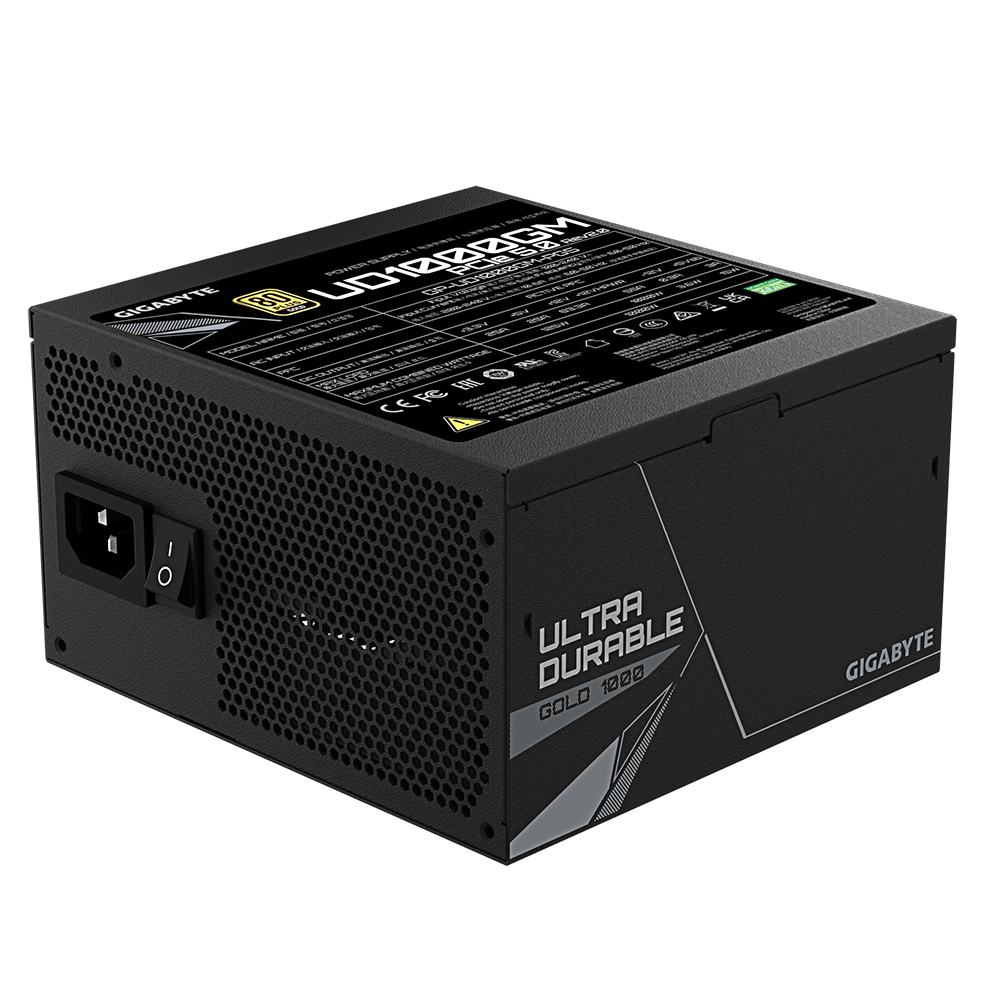

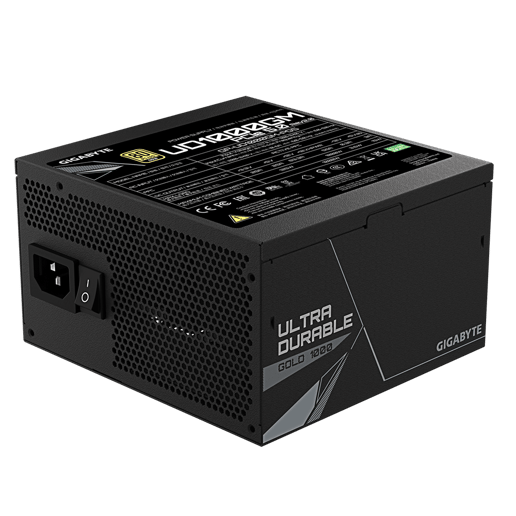

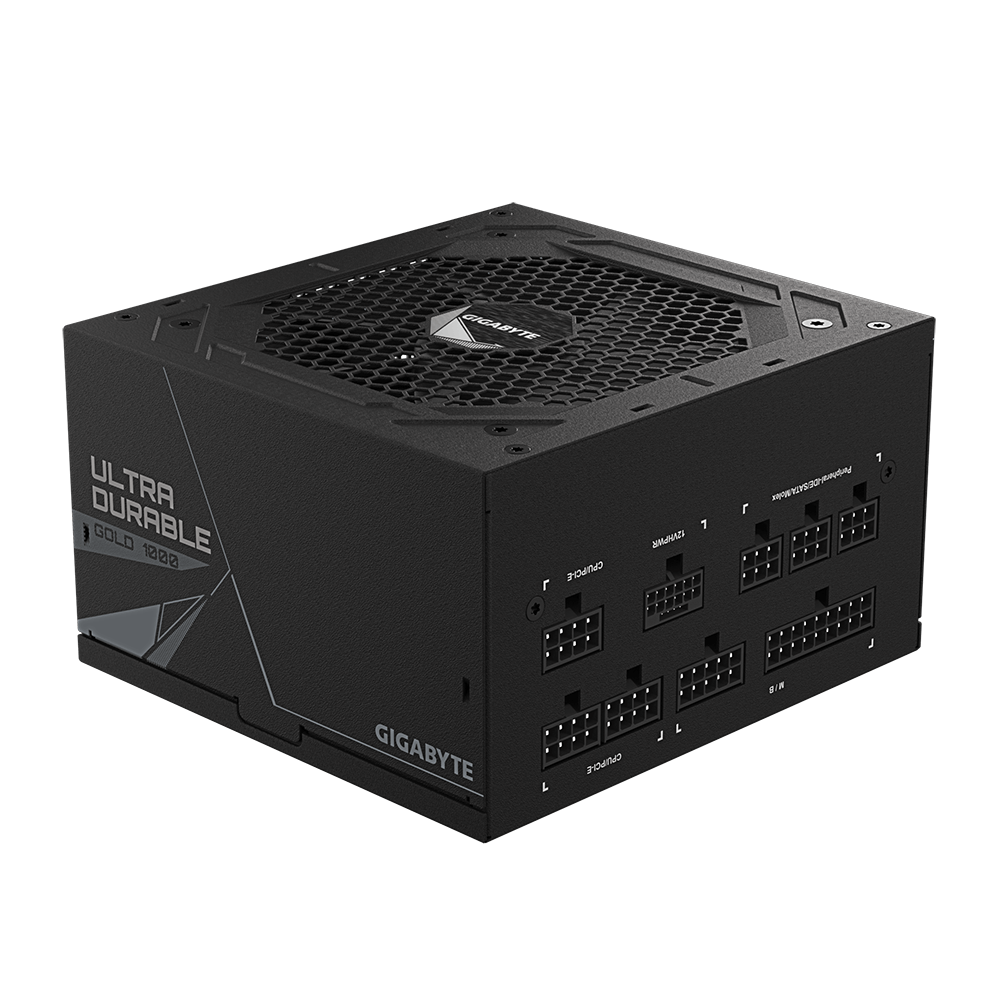

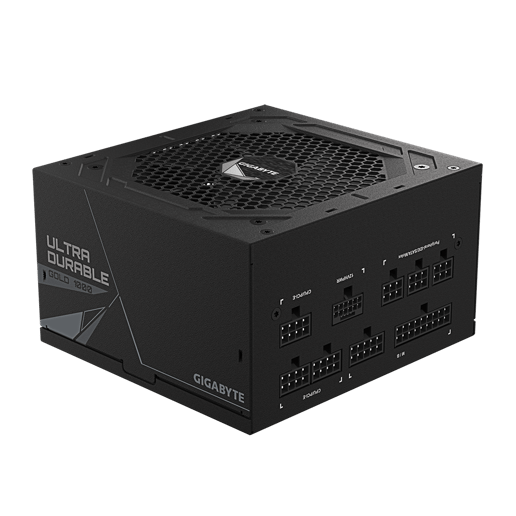

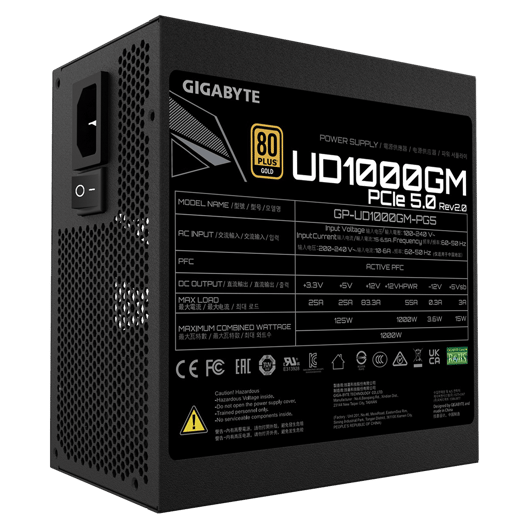

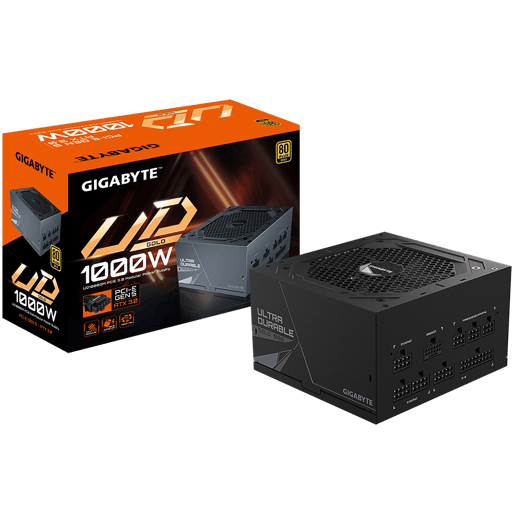

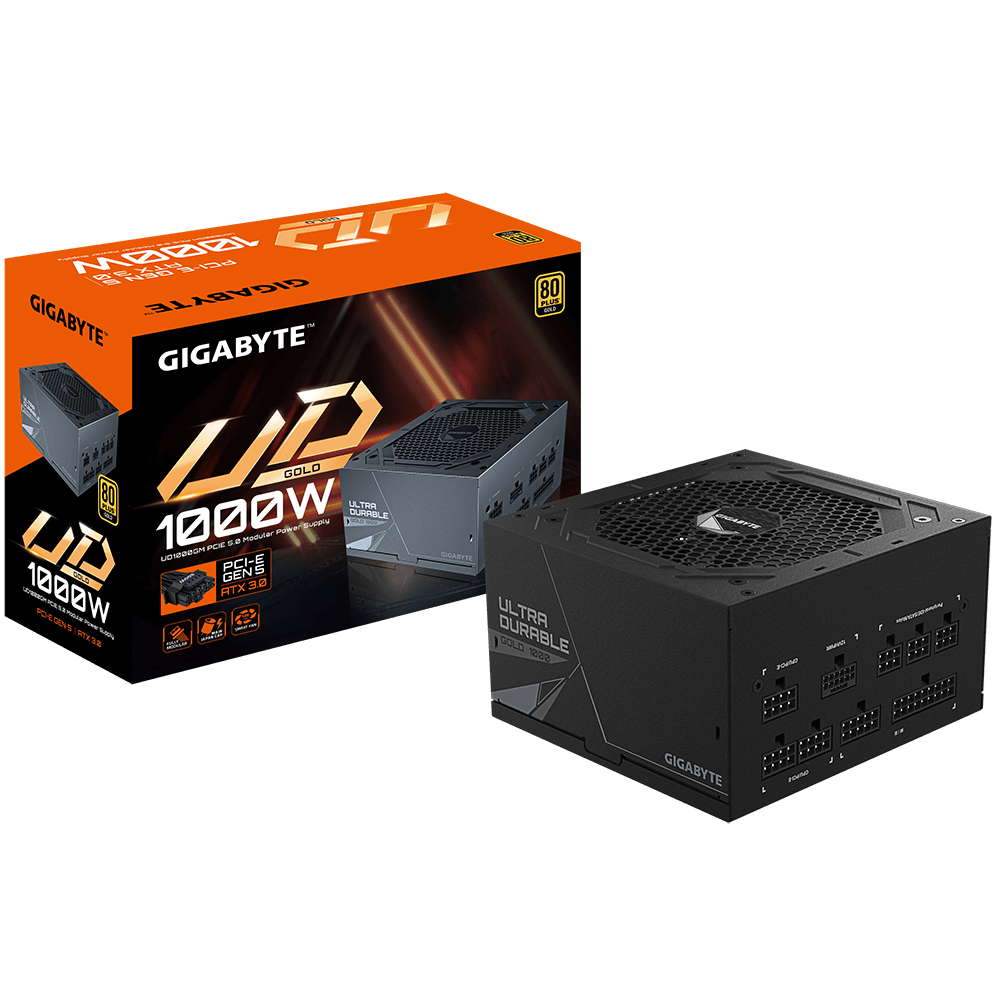

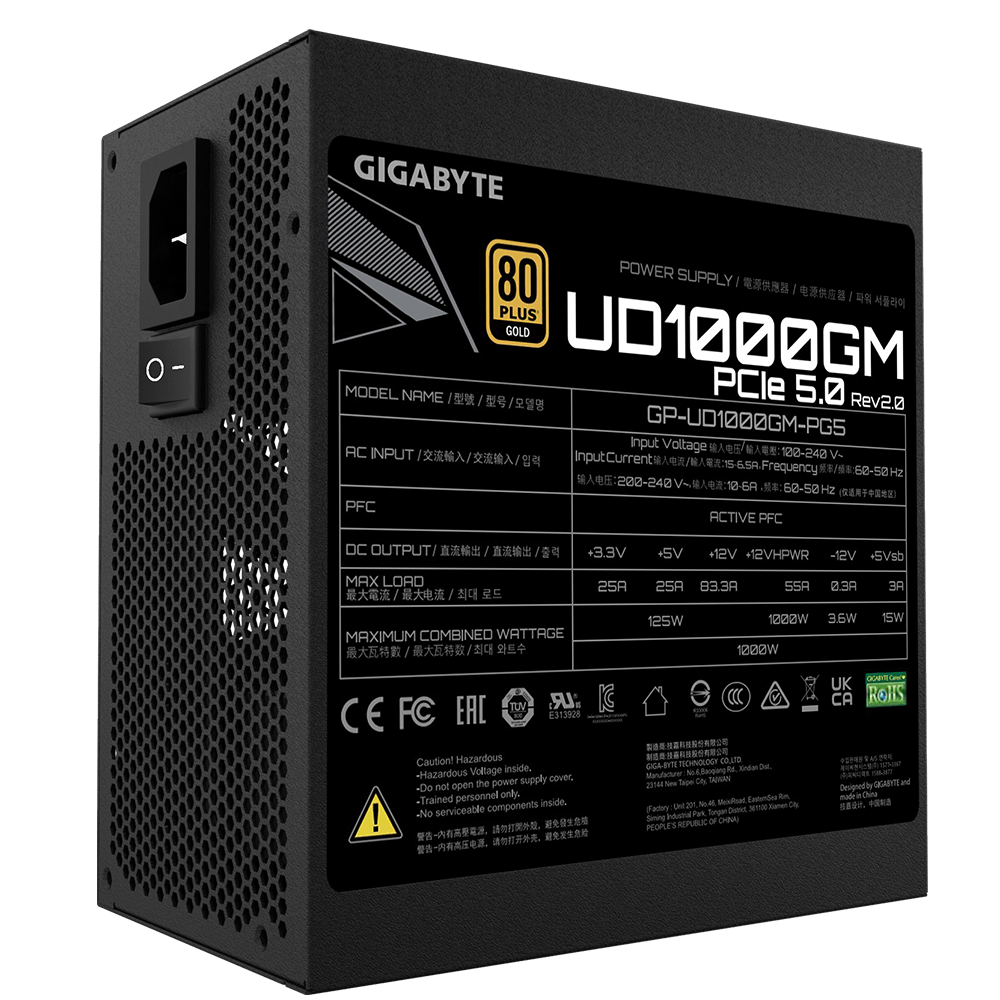

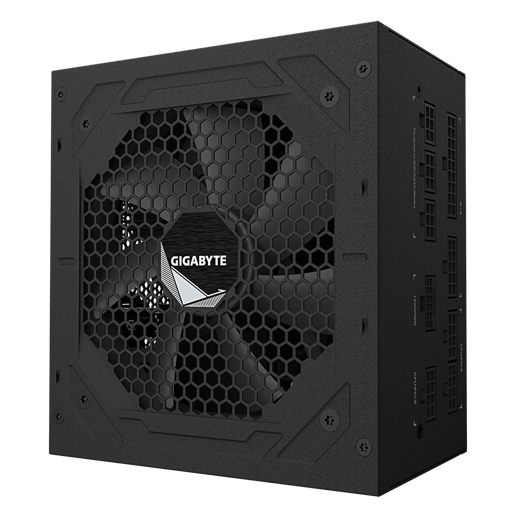

1000W Gigabyte GP-UD1000GM PG5 (rev. 2.0) Modular 80 Plus Gold PSU
SAVE £50
Available for delivery from Tomorrow
Click & Collect from Today
In stock
Order within
You have 0 of these in your basket

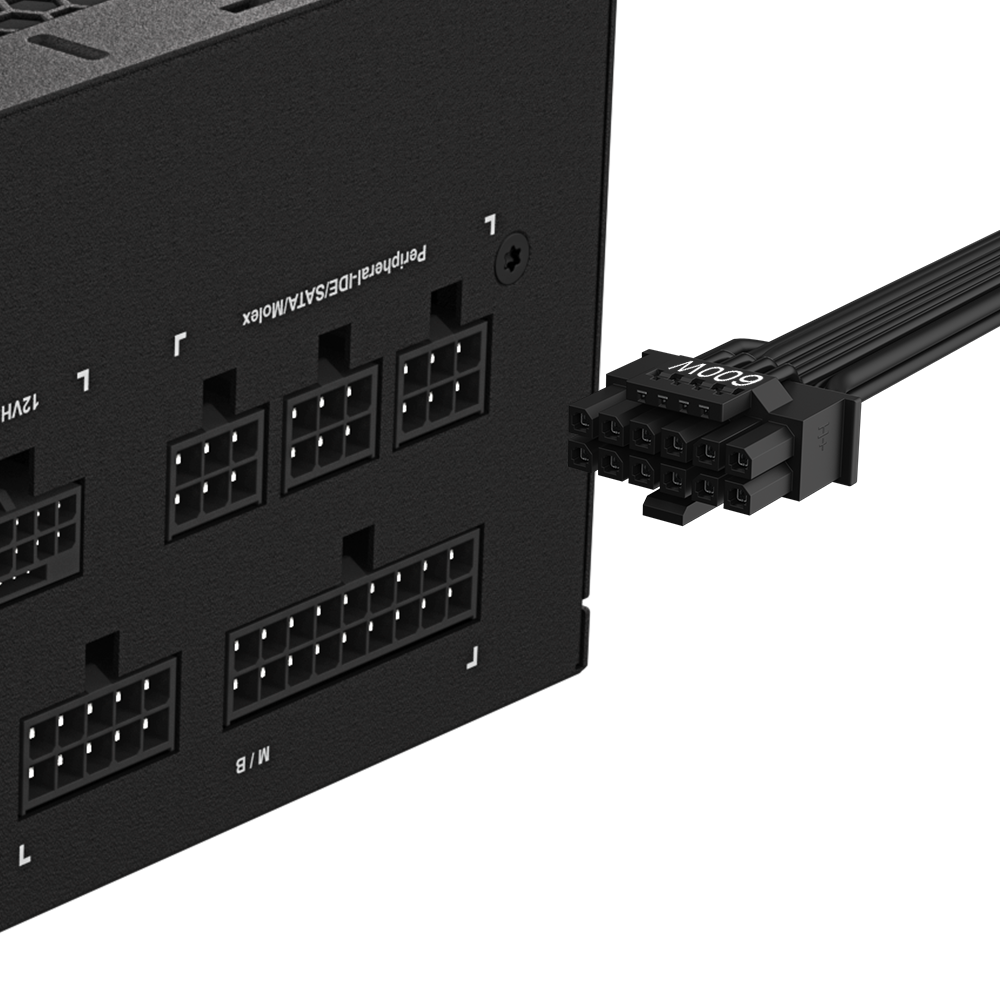

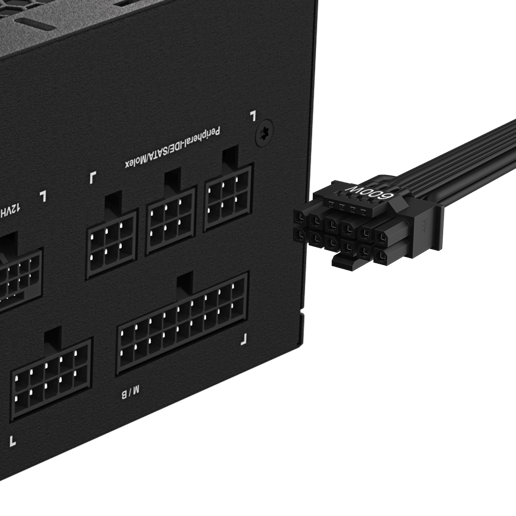

The Gigabyte GP-UD1000GM PG5 (rev. 2.0) is a powerful 1000-watt power supply made for modern gaming PCs and high-performance computers. It comes with the new PCIe Gen 5.0 16-pin connector, which means it’s ready to handle the newest graphics cards that need a lot of power. With this single cable, it can deliver up to 600 watts just to your GPU, so you don’t need messy adapters. This makes it a smart choice if you want a system that’s ready for today’s and tomorrow’s most demanding games and applications.

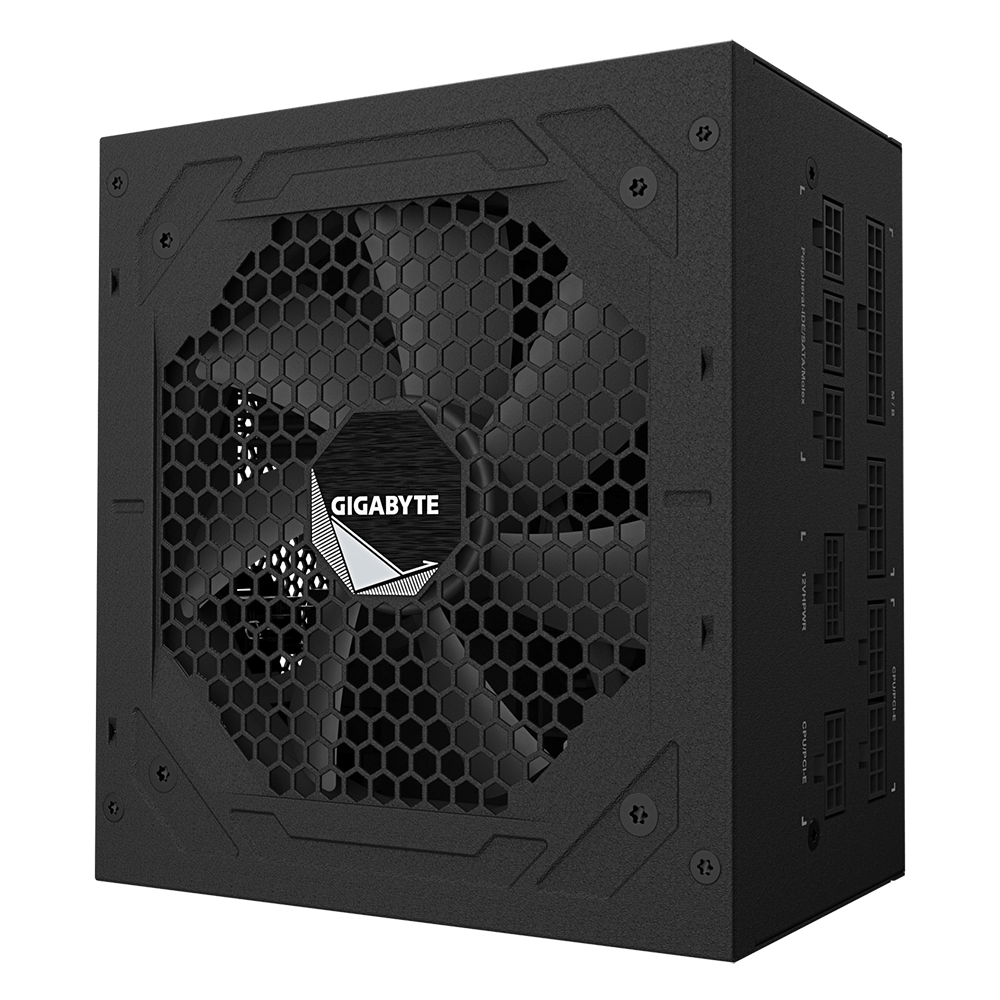

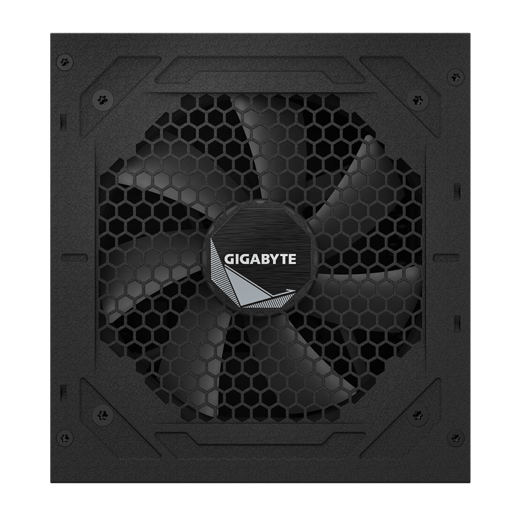

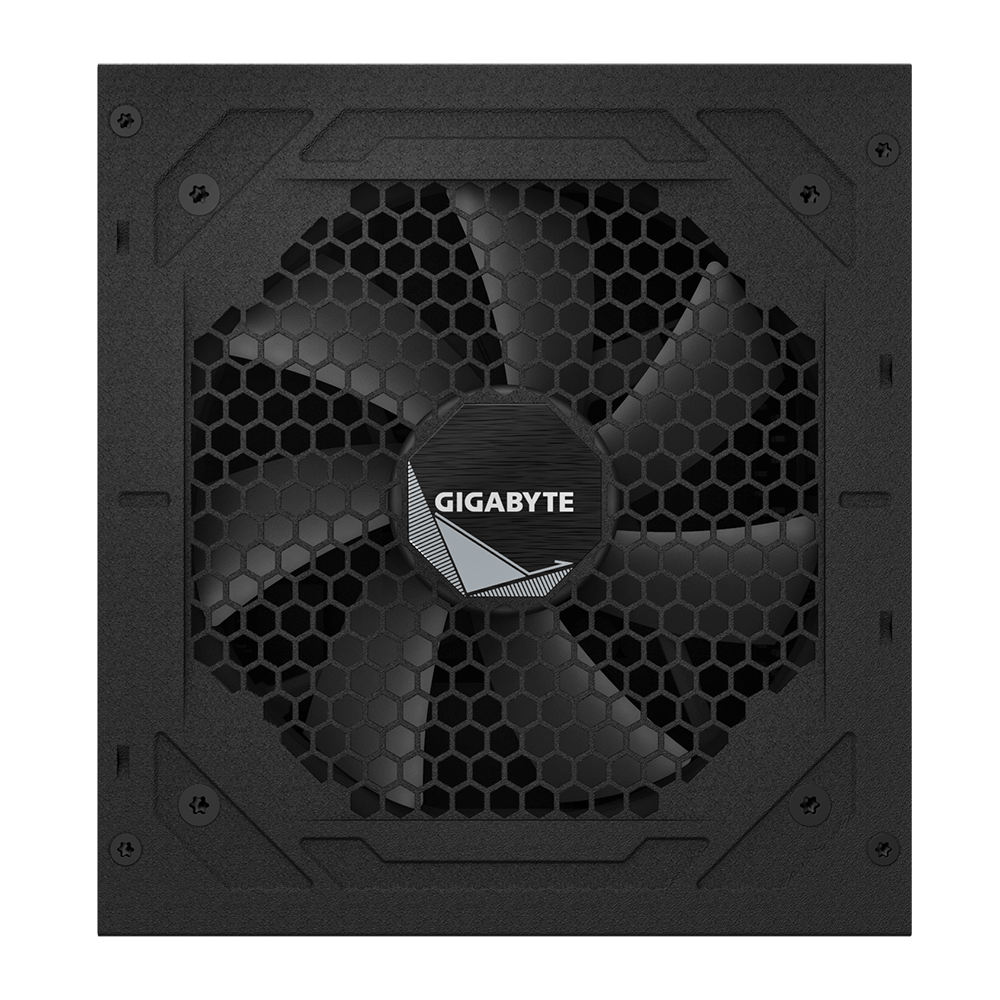

This power supply is fully modular, so you only plug in the cables you need. That makes your PC look cleaner and improves airflow, helping keep everything cool. It’s also compact at just 140 mm long, so it can fit in more cases without trouble. With an 80 Plus Gold certification, it runs efficiently and wastes less energy as heat, saving you money on electricity. The built-in smart fan can even stop spinning at low loads, keeping your system quiet during lighter use.
Gigabyte designed the UD1000GM PG5 (rev. 2.0) with safety in mind, adding multiple protections like over-voltage, over-current, and short-circuit protection. Backed by up to a 10-year warranty (depending on your region), it’s built to last and give you peace of mind. If you want a reliable, modern power supply that can handle the latest GPUs and keep your system running strong, the GP-UD1000GM PG5 (rev. 2.0) is an excellent choice.
Attributes
- No Of Sockets: 1 (internal PSU unit, standard ATX)
- Cable length: Varies; ~600 mm (ATX/CPU/PCIe main cables), ~500-800 mm range
Interfaces/Ports

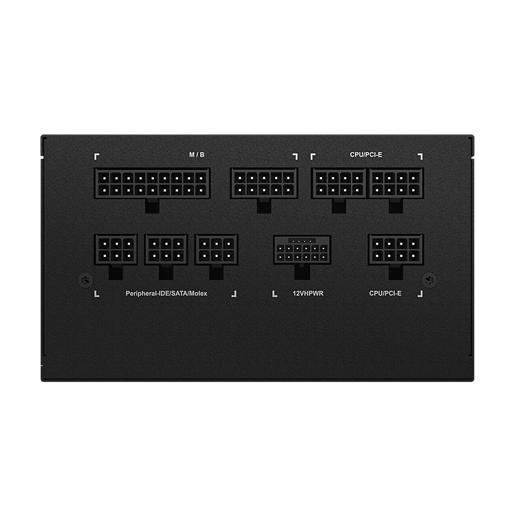

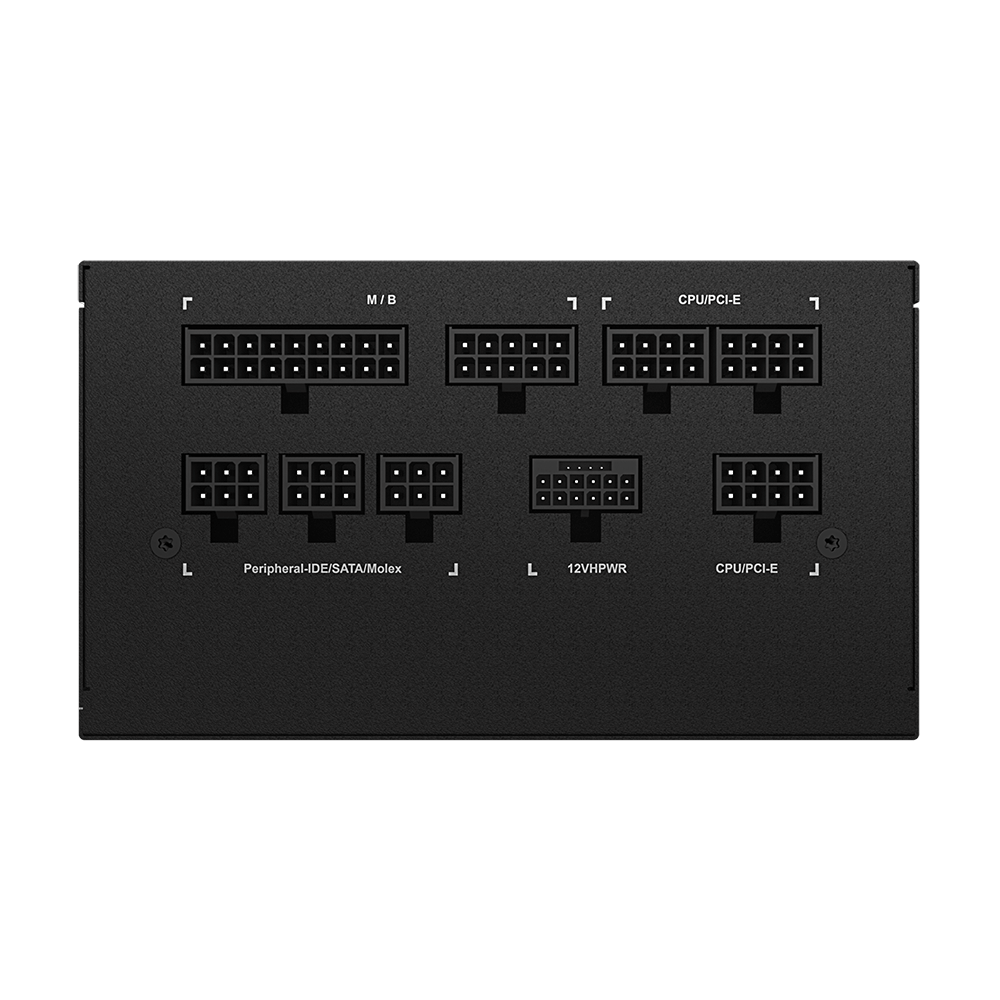

- Power Connectors: 1 x 24-pin ATX, 2 x 4+4-pin CPU, 5 x PCIe (6+2), 1 x 16-pin (12VHPWR), 8 x SATA, 3 x Molex
- SATA Connectors: 8
- CPU Connectors: 2 x 4+4-pin EPS (for CPU power)
- PCI Connectors: 5 x 6+2-pin PCIe, 1 x 16-pin (12VHPWR, up to 600 W)
- Motherboard Connectors: 1 x 24-pin ATX
- Molex Connectors: 3
- Berg Connectors: 0
- Floppy Connectors: 0
- Fan Connectors: 0 external (only internal cooling fan)
- RJ-45 Connectors: 0
- Other Connectors: 1 x 16-pin PCIe Gen 5.0 (12VHPWR)
Compatibility
- Compatibility: ATX 12V v2.4 / Intel ATX 3.0 (rev. 2.0); supports latest GPUs
Compliance
- Standards: 80 Plus Gold, ErP Lot 6 2013, CE, FCC, UL, CCC, BSMI, EAC, KC, RCM
- Safety: OVP, OPP, SCP, UVP, OCP, OTP protections; CE, FCC, UL, CCC, BSMI, EAC, KC, RCM certified
Electrical
- Voltage: 100-240 V AC (auto-ranging)
Physical
- Form Factor: ATX
Electrical
- Power: 1000 W
- Frequency Range: 50-60 Hz
- Power over Ethernet (PoE): No
- Power Over LAN Output: No
- Power Cord: 1 x AC power cord (region dependent)
Environmental
- Operating Temperature: 0øC - 40øC
- Operating Humidity: 20% - 90% (non-condensing)
- Storage Temperature: -20øC - 70øC
Physical
- Form Factor: ATX
- Case Colour: Black
- Pack Quantity: 1
- In The Box: PSU unit, modular cables, AC power cord, user manual, warranty info
- Width: 150 mm
- Depth: 140 mm
- Height: 85 mm
- Weight: ~1.5 kg (approx, without cables)
- LED Status Indicators: No LEDs
Identifiers
- Stock Code: PSU2513
- Mfg Code: GP-UD1000GM PG5
